WONDOM SUPB5005 User manual
Specifications are subjected to change without any further notice. Copyright ©2021 by Wondom Audio Technology. All rights reserved.
For more information please visit www.wondom.com
SUPB5005
2" Plastic Box Speaker Unit
SUPB5005
Data Sheet

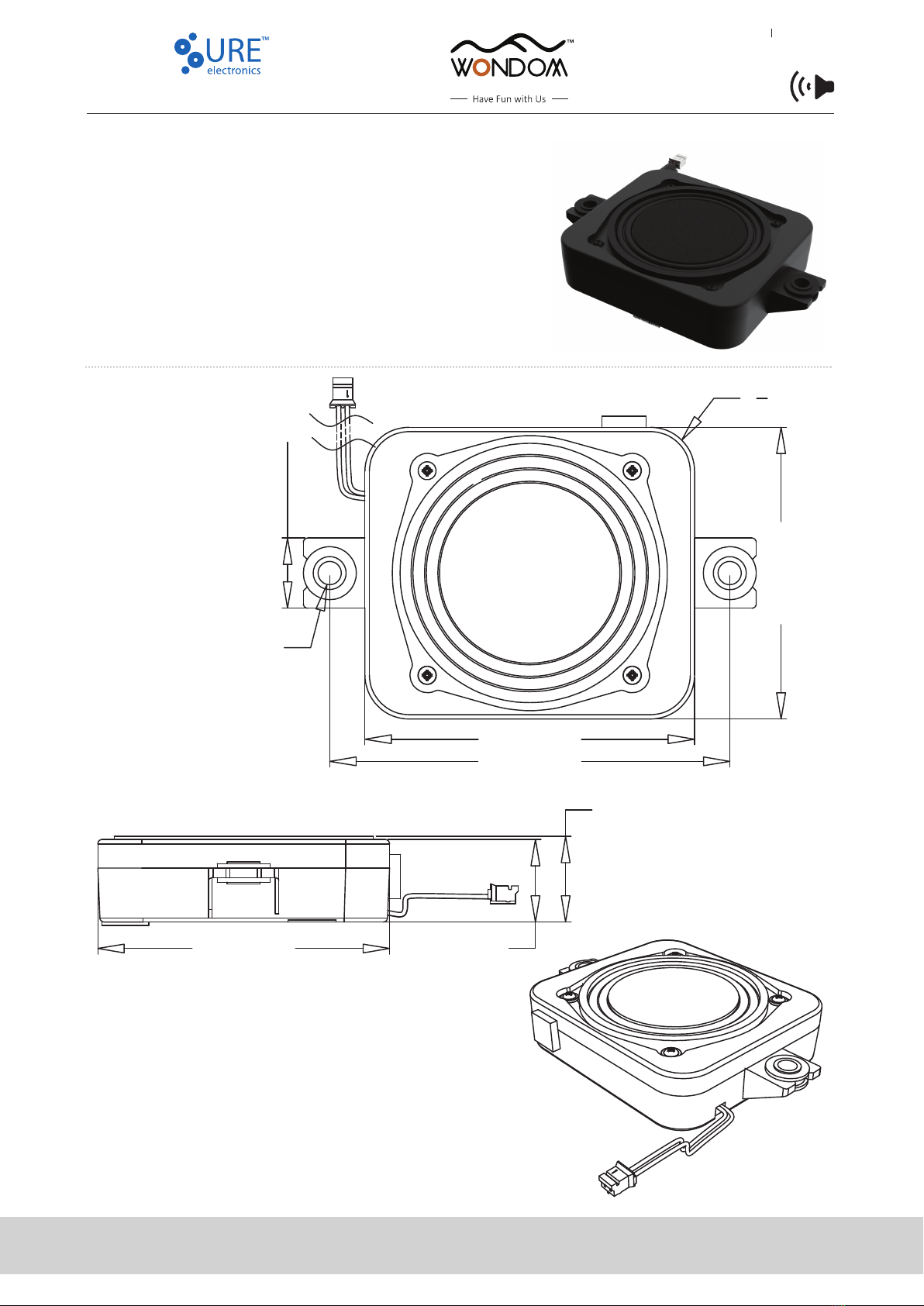

Mechanical Drawing
(Nominal Dimensions, mm)
The SUPB5005 is a 2-inch 4ohm 5Watt full range speaker with powerful
neodymium motor.
Features:
• 2-Inch driver optimized for voice band.
• Rubber surround for a good balance of stiffness, mass and self damping.
• Smallest volume cabinet (96ml) for a 2-inch driver, ultra-compact design,
lightweight and high build quality.
• Specially designed for panel mounting integrated with rubber mounts for
vibration damping.
Distributed
by:
Designed
by:
Sure Electronics Co., Ltd.
Professional Industrial Audio Solu�on Provider
Wondom Audio Technology
18.80
19.50
66.40±0.5
Side View
Top View
Note: 3D view is not 1:1 scale.
Released Date: 07.05.2021 Version 1.00
UMSUPB5005-01
3D View
16.00±0.3
91.00±0.2
75.00±0.5
66.40±0.5
4 R10.00
Ø5.30
SUPB5005
Data Sheet
Specifications are subjected to change without any further notice. Copyright ©2021 by Wondom Audio Technology. All rights reserved.
For more information please visit www.wondom.com

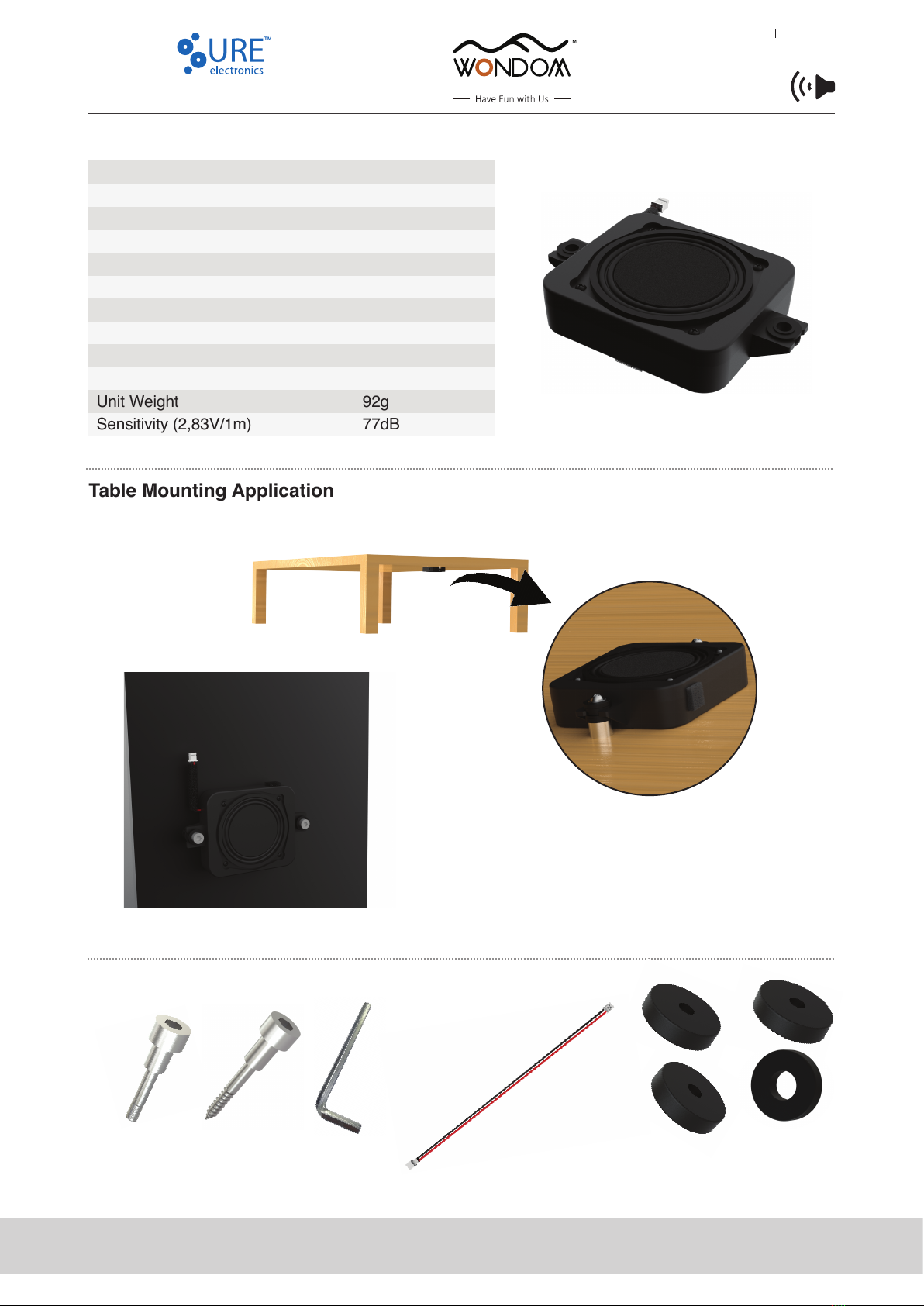

SUPB5005 Specifications
Table Mounting Application
Distributed
by:
Designed
by:
Sure Electronics Co., Ltd.
Professional Industrial Audio Solu�on Provider
Wondom Audio Technology
Special Accessories
Specifications
Resonance Frequency [fs]
Rated Power Input
320Hz
5W
8W
4.07Ω at 1kHz
3.97 Ω
27.83 Ω
3.31Ω
0.028mH at 1kHz
25.5mm
92g
77dB
Max Power Input
Normal Impedance [Zn]
Minimum Impedance [Zmin]
Maximum Impedance [Zmax]
DC Resistance [Re]
Voice Coil Inductance [Le]
Voice Coil Diameter
Unit Weight
Sensitivity (2,83V/1m)
Wood Surface Mounting
Notes:
1. 3D model is provided for free in our resale website www.sure-electronics.com.
2. These special accessories are for sale and not a standard accessory, customer can find in our website.
M3 Customized
Socket Head
Screw Nylon
Washer
3mm
Wrench
Released Date: 07.05.2021 Version 1.00
UMSUPB5005-02
Metal Surface Mounting
#5 Customized
Socket Head Self
Tapping Screw
Male to Female PH 2
Extension Cable
Specifications are subjected to change without any further notice. Copyright ©2021 by Wondom Audio Technology. All rights reserved.
For more information please visit www.wondom.com
SUPB5005
Data Sheet
Distributed
by:
Designed
by:
Sure Electronics Co., Ltd.
Professional Industrial Audio Solu�on Provider
Wondom Audio Technology
Released Date: 07.05.2021 Version 1.00
UMSUPB5005-03
1) Insert three pieces nylon washer (Øin 3mm)
in stacking form under the speaker mounting.
2) Place another nylon washer (Øin 5mm)
on the rubber mounting.
3) Insert through the customized socket self
tapping screw and fasten the screw using
the provided 3mm wrench.
4) Installation is finished.
2) Insert three pieces nylon
washer (Øin3mm) in stacking
form under the speaker
mounting.
3) Place another nylon washer
(Øin 5mm) on the rubber
mounting.
4) Insert through the customized socket head
M3 screw and fasten the screw using the
provided 3mm wrench.
5) Installation is finished.
1) Place the speaker on the
drilled hole.
Note: The drilled hole shall be Ø3mm
and 0.5mm pitch thread

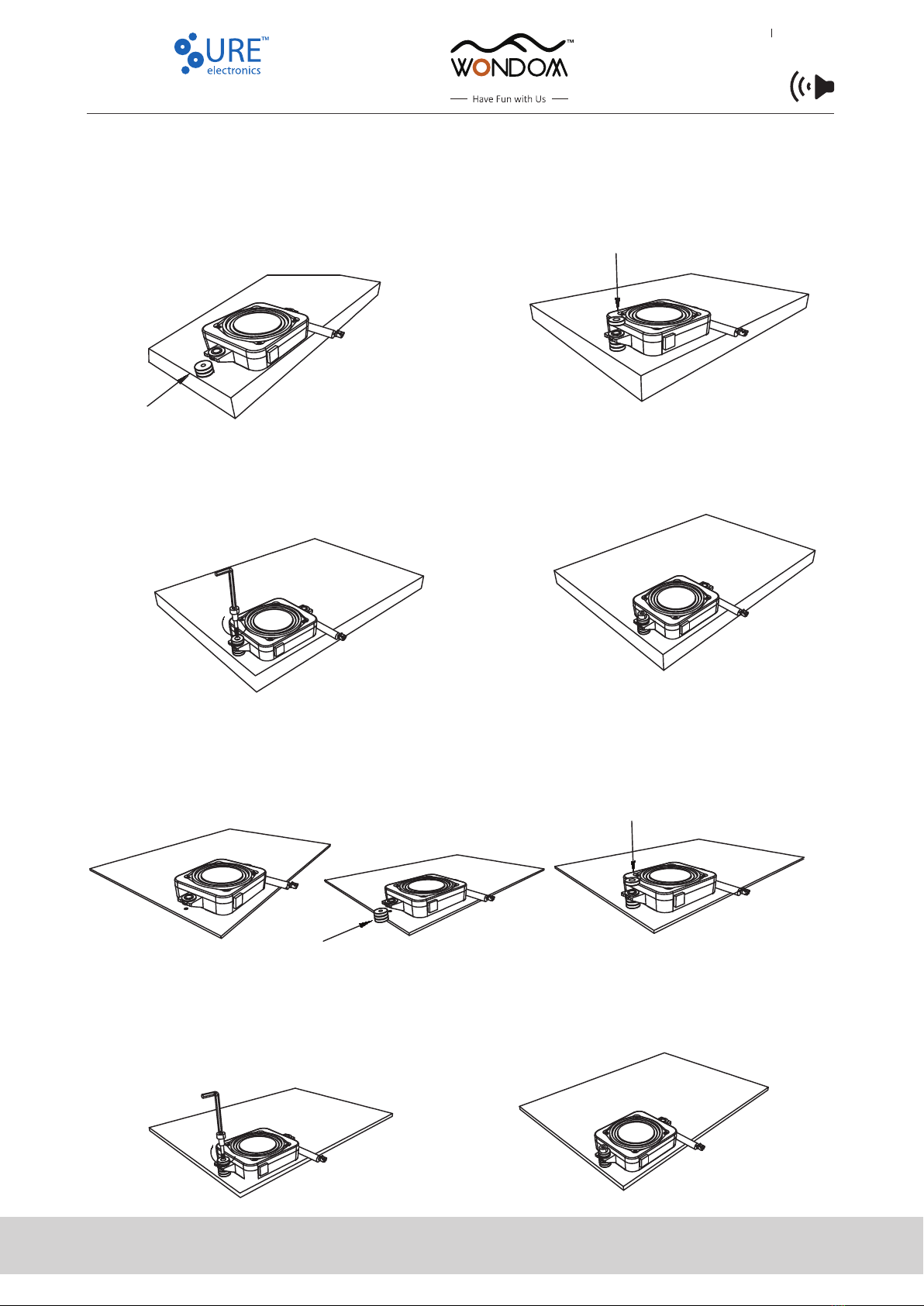

Mounting Guidelines
i) For Wood Surface
ii) For Metal Surface
SUPB5005
Data Sheet
Frequency Response
Impedance Curve
Distributed
by:
Designed
by:
Sure Electronics Co., Ltd.
Professional Industrial Audio Solu�on Provider
Wondom Audio Technology
3F, Building F6, No. 9, Weidi Road,
Xianlin, Qixia Dist., Nanjing, China.
To view our products and purchase,
please visit our website:
store.sure-electronics.com
58-7-2, Jalan Cantonment,
Wisma Fortune Heights, 10250, Pulau Pinang, Malaysia.
To view our products, please visit our website:
www.wondom.com
Distributed by:
Designed by:
www.wondom.com
store.sure-electronics.com
Sure Electronics Co., Ltd.
Professional Industrial Audio Solu�on Provider
Wondom Audio Technology
Drafted:
Approved:
Countersigned:
.......................................................................
.......................................................................
.......................................................................
MOQ and SPQ is 2pcs speaker per small cardboard
box for retail, incremental is one SPQ 2pcs.
MOQ and SPQ is 144pcs small cardboard box per
carton (530x290x230mm) for wholesale, incremental is
one SPQ 144pcs
•
•
Ohm
dBSPL
Hz
20 200 20002000050 100
500 1000 5000 10000
0
90
80
70
60
50
40
30
20
10
SPL vs Freq
Impedance vs Freq
0
36
32
28
24
20
16
12
8
4
Hz
20 200 20002000050 100
500 1000 5000 10000
40
