Woozik ROCKIT-PRO User manual

ROCKIT-PRO USER MANUAL
For correctly operating, please read this manual carefully before using RockIt-PRO.
Any content revise of the manual won’t declare again, and we are no responsible for consequence
caused by fault or oversight of this manual.
FEATURES:

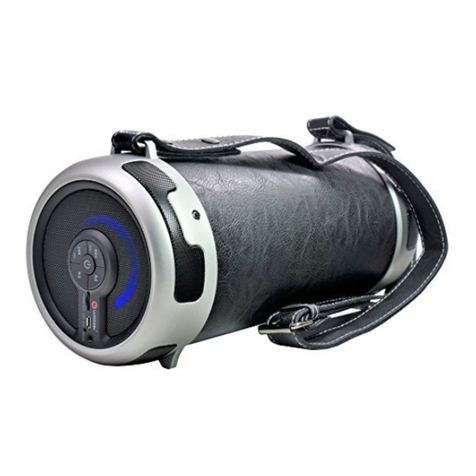

1. 2.1CH outdoor innovation Bazooka speaker
2. Bluetooth Audio Streaming for Wireless Freedom
3. With RGB light
4. Output perfect sound performance
5. With USB & Micro SD support, FM radio
6. 3.5mm Stereo Analog Input to Connect any Audio Source
7. With karaoke function, 1 microphone input
8. Build in lithium rechargeable battery 3600mAh
9. Strong aluminum handle for easy carrying out
ACCESSORIES:
Charging cable, Audio cable, User manual.
SPECIFICATION:
Bluetooth range:.........................................................................Up to 10 meters/33 Feet
Speakers: ...........................................................................................Horn Size: 1.4 inch
...................................................................................Subwoofer Size: 4 inch
................................................................................Horn output: 2.5W*2, 4?
............................................................................Subwoofer output: 19W,4?

Connections: .................................................................USB and Micro SD card(reader)
....................................................................Aux-in 3.5mm jack connection
Power supply: ......................................... Built-in rechargeable lithium battery 3600mAh
Play time : ......................................................Up to 6 hours ( 2 hours with max volume )
Recharge power:.......................DC 5V 1A (USB-to-micro USB charging cable included)
Product size: .......................................................................... L390X W180XH120MM
INSTRUNCTION FOR
APPEARANCE AND KEY:
1. Previous
2. Pause/Play
3. Next
4. USB Port
5. Digital Display
6. DC 5V Input
7. Volume Control & Power ON/OFF390(L)* 180(W)*210(H)mm
8. MODE (Switch Bluetooth, USB disk,
Micro SD,FM and AUX-IN state)
9. RGB Light/EQ
10. Wired MIC Input

11. Micro SD Slot
12. AUX-in Jack
13. BASS (Slide to adjust Bass volume)
14. MIC ECHO
(Slide to adjust Mic Echo volume)
BLUETOOTH:
1. Rotate “Power ON/OFF” knob to “ON”, The digital will show “rockit-pro” and beep twice.
* Then the RGB light on both sides automatically start;
* Short press “RGB LIGHT/EQ” button, to enjoy different light changing circle and turn
on/off RGB light;
2. Activate Bluetooth of mobile phone and search for device name “RockIt-PRO” then connect
it. The speaker will beep three times once connected successfully.
3. Play the music from your mobile phone and enjoy. select songs you like.
5. Press “PAUSE/PLAY” buttons on the speaker or on Mobile phones to play/stop the music;
6. Rotate “Volume Control & Power ON/OFF” knob to adjust volume up and down.
Or adjust volume on your mobile phones.
PLAYING MUSIC FROM USB DISK & MICRO SD CARD:
1. Rotate “Power ON/OFF” knob to “ON”.
2. Insert Micro SD card or USB flash disk into slot, the music stored will be played
automatically.
3. Under playing mode, short press “Previous” or “Next” buttons on the speaker or on
Mobile phones to select songs you like, long press to fast forward or backward the song.
4. Press “PAUSE/PLAY” buttons to play or pause.
5. Please turn the Power button to “OFF” while without use.
Remark: Under Bluetooth playing mode, insert Micro SD or USB will disconnect the
Bluetooth and switch to play USB or Micro SD card. Press the “MODE” button to switch back to
Bluetooth mode again.
FM RADIO:
1. Under FM radio state, the audio cable provided treat as antenna. Please insert the

audio cable to get the best FM signal before using.
2. Rotate “Power ON/OFF” knob to “ON”, press the “MODE” button to switch to FM radio state.
3. Under playing mode, short press “PAUSE/PLAY” buttons to auto search the FM
Channel and store it automatically.
4. Press “PREVIOUS” or “NEXT” buttons to change the stored FM channel.
AUX-IN:
For other compatible music devices or your MP3/MP4 players, use the supplied audio line
cable to connect from the device’s “Line Out” to the “AUX-in Jack” of this devices. Then
press the “MODE” button to switch to AUX-IN state. Enjoy… When using an external device,
all functions can be controlled by the external device.
MICROPHONE:
This product with 1 wired Microphone input, just plug the 6.5MM microphone into the Mic
hole then you can use.
EQ FUNCTION:
Long press “RGB LIGHT/EQ” button to switch EQ mode between SITE and BASS; Under
AUX mode, EQ function is not available;
REMARKS:
1. Press the “MODE “button to switch the different modes, the order is Bluetooth, USB
disk, Micro SD, FM radio and AUX-IN.
2. Turn the power button to “OFF” to cut off the power supply while without use.
HOW TO CHARGE:
1. The charger is not included in the accessories. Please use the universal 5V/1A charger
to charge this device. Put the provided charge cable into the charging jack, connect
the other end to the charger, the charging indicator will keep lighting.
(When playing music during charging, please put the volume to middle, because for
some music with heavy bass, the charger may fail to afford the high current temporarily
under the maximum volume)
2. Charge time should be 6 hours. When charging full, the indicator light will switch off.
