Wortmann terra LCD/LED 1910W User manual

Operation Instructions
Thank you for purchasing this monitor, a high-resolution multi-scan color monitor.
Please read this guide thoroughly before installation.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This monitor has been tested and found compliant with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper
protection against harmful interference to a residential installation. This monitor generates,
uses, and can radiate radio frequency energy. Harmful interference to radio
communication may be led as a result if it‘s not properly installed and used. However,
there is no guarantee that interference will not occur in a particular installation. If this
monitor does cause serious interference to radio or television reception, resetting the
monitor may determine it. Moreover, users are encouraged to correct interference by doing
one or more of the following:
 Reorient or relocate the receiving antenna.
 Move the monitor and the receiver further away from each other.
 Connect the monitor into an outlet on a circuit different from that to which the receiver
is connected.
 Consult your local dealer or an qualified technician.
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded power supply cord
and the provided shielded video interface cable with bonded ferrite cores. Also, any
unauthorized changes or modifications to this monitor would void the user‘s authority to
operate this device.
Note: If necessary, shielded interface cables and AC power cord must be used to meet
the emission level limits.
English

English
Contents
Safety Precautions .............................................................................1
First Setup ..........................................................................................2
Quick Installation ................................................................................2
Front View of the Product...................................................................3
Rear View of the Product....................................................................3
Using On Screen Display (OSD) Functions........................................ 4
Supporting Timing Modes ..................................................................7
Technical Information..........................................................................8
Care and Maintenance .......................................................................9
Troubleshooting..................................................................................9

English
1
Safety Precautions
This monitor is manufactured and tested on a ground principle that a
user’s safety comes rst. However, improper use or installation may result
danger to the monitor as well as to the user. Carefully go over the following
WARNINGS before installation and keep this guide handy.
WARNINGS:
This monitor should be operated only at the correct power sources
indicated on the label on the rear end of the monitor. If you’re unsure of
the power supply in your residence, consult your local dealer or power
company.
Do not try to repair the monitor yourself as it contains no user-
serviceable parts. The monitor should only be repaired by a qualied
technician.
Do not remove the monitor cabinet. There is high-voltage parts inside
that may cause electric shock to human bodies, even when the power
cord is disconnected .
Stop using the monitor if the cabinet is damaged. Have it checked by a
service technician.
Put your monitor only in a clean, dry environment. Unplug the monitor
immediately if gets wet and consult your service technician.
Always unplug the monitor before cleaning it. Clean the cabinet with a
clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not
directly onto the glass screen.
Keep the monitor away from magnetic objects, motors, TV sets, and
transformer.
Do not place heavy objects on the cable or power cord.
For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed
near the equipment and shall be easily accessible.

English
2
First Setup
Congratulation for purchasing this monitor of high performance!
This monitor comes with the following accessories :
Power cable Audio cable
D-Sub cable (15 pin) User’s guide
Quick Installation
1. Connect power cord
Connect the power cord to a properly grounded AC outlet, then to the monitor.
2. Connect Analog video cable (D-Sub cable)
Make sure both monitor and computer are powered OFF. Connect the video
cable (D-Sub cable) to the computer, then to the monitor.
3. Connect audio cable
Connect the audio cable from audio output of computer to the audio input of
the monitor.
4. Power-ON computer and monitor
Power-ON the computer, then Power-ON the monitor.
5. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)
Resolution Right-click on the Windows desktop > Properties > Settings >
“Desktop Area”. Set the resolution.
Refresh Rate (vertical frequency) See your graphic card’s user guide for instructions.
Example:
Warranty Card


English
3
Front View of the Product
 OSD Menu On/Off  CONFIRM SELECTION OSD
 SCROLL DOWN/DECREASE  POWER ON/OFF
SCROLL UP/INCREASE  LED INDICATOR
Rear View of the Product
 POWER INPUT VGA INPUT (D-SUB 15 PIN)
 AUDIO INPUT
 


English
4
Using On Screen Display (OSD) Functions
Display main menu.
Exit from OSD menu.
Auto adjust the image when not in OSD menu.
Conrm the selection.
▲
Select the desired item when in OSD menu.
▼Select the desired item when in OSD menu.
When not in OSD menu,directly enters Contrast/Brightness/DCR.
▼ + ▲ Recall both of Contrast and Brightness.
+ ▼ Power Lock (when not in OSD menu)
+ ▲ OSD Lock (when not in OSD menu)
Main Menu
1
2
1
1

English
5

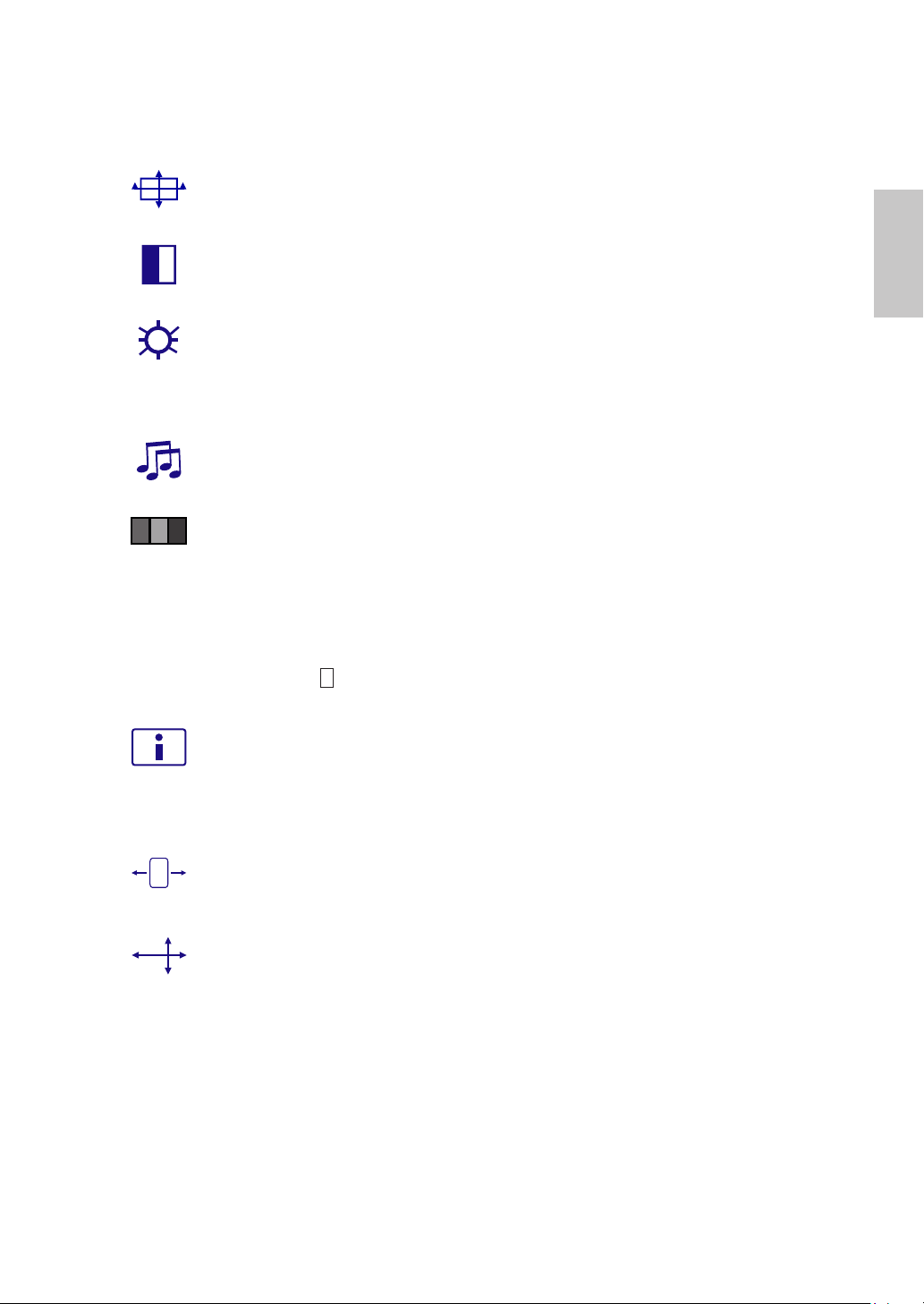

Short Cuts Function from the button(s)
Auto Image Adjust : To auto adjust Horizontal Position, Vertical Position,
Phase (Fine Tune) and Clock (H. Size) of the screen.
Contrast : To adjust the foreground white level of screen image.
▲: increase contrast, ▼: decrease contrast.
Brightness :: To adjust the luminance of the video.
▲: increase brightness, ▼:decrease brightness.
DCR : To turn On or Off the DCR function (dynamic contrast ratio)
Audio Adjust : To adjust the audio functions.
Volume : To adjust the volume of speaker output.
Color Adjust : To select the color for improving brightness and color
saturation between Cool, Normal,Warm, and User Color.
Cool : Adds blue to screen image for cooler white.
Normal : Adds red to screen image for warmer white and richer red.
Warm : Adds green to screen image for a darker color.
User Color : Individual adjustments for red (R), green (G), blue (B).
1. Press button 2 to select the desired color.
2. Press ▼or ▲button to adjust selected color.
Information : To display the information, regarding the current input signal
coming from the graphic card in your computer.
Note: See your graphic card user guide for more information about
changing the resolution and refresh rate.
Horizontal Size : To adjust the width of the screen image.
▼: decrease the width of screen image, ▲:increase the width of screen image.
H./V. Position : To adjust the horizontal and vertical position of the video.
H. Position : ▲: move screen to the right, ▼: move screen to the left.
V. Position : ▲: move screen up, ▼: move screen down.

English
6
Fine Tune : To adjust the delay time of data and clock.
Press ▲or ▼to adjust to your preference.
Sharpness : To adjust the clarity of a non-WXSGA+ (1366x768) signal
with ▼or ▲button.
Aspect Ratio: To select 4:3/16:9 image size.
Setup Menu : To set up Language Select, OSD Position, OSD Time Out,
and OSD Background.
Language Select : To allow users to choose from available languages.
OSD Position : Press button ▲ or ▼ to select between horizontal and
vertical OSD Position adjustment.
H. Position : To horizontally adjust the OSD position.
▲: move OSD to the right, ▼: move OSD to the left.
V. Position : To vertically adjust the OSD position.
▲: move OSD up, ▼: move OSD down.
OSD Time Out : To automatically turn off On Screen Display(OSD)after a
preset period of time.
OSD Background : Allows the user to turn the OSD background On or
Off.
Memory Recall : To recall factory settings for Video controls.
Press button 2 to select the Memory Recall menu option.
?

English
7
Supporting Timing Modes
Warning : Do not set the graphic card in your computer to exceed these
maximum refresh rates. Doing so may result in permanent damage to your
monitor.
Note: Simultaneously press 1 and 2 keys on monitor panel to switch between
similar PC timings.Similar PC Timing on list below:·
640 x 400 @ 70Hz / 720 x 400 @ 70Hz
 640 x 350 @ 70Hz / 720 x 350 @ 70Hz
VESA 720 x 400 @ 70Hz
VESA 640 x 480 @ 60Hz
MAC 640 x 480 @ 67Hz
VESA 640 x 480 @ 75Hz
VESA 800 x 600 @ 56Hz
VESA 800 x 600 @ 60Hz
VESA 800 x 600 @ 72Hz
VESA 800 x 600 @ 75Hz
MAC 832 x 624 @ 75Hz
VESA 1024 x 768 @ 60Hz
VESA 1024 x 768 @ 70Hz
VESA 1024 x 768 @ 75Hz
VESA 1280 x 800@ 60Hz
VESA 1280 x 1024@ 60Hz
VESA 1280 x 1024@ 75Hz
VESA 1360 x 768@ 60Hz
VESA 1366 x 768@ 60Hz

English
8
Technical Information
Technical Specication
LCD Display 18.5” TFT
Power Management Off Mode, <0.5W
Pixel size 0.3x 0.3 mm
Display Colours 16.7M (6bits + Hi FRC)
Tilt 0°~20°
Active Display Area 409.8 mm x 230.4 mm
Temperature Operating: 0°C ~ +40°C
Storage: -20°C ~ + 60°C
Compliance CE, WEEE
Input voltage Input Voltage AC100-240 V
Speaker 1W x 2

English
9
Care and Maintenance
Care
Avoid exposing your monitor directly to sunlight or other heat source. Place your
monitor away from the sun to reduce glare.
Put your monitor in a well ventilated area.
Do not place any heavy things on top of your monitor.
Make certain your monitor is installed in a clean and moisture-free area.
Keep your monitor away from magnets, motors, transformers, speakers, and TV
sets.
Safety Tips
If smoke, abnormal noise or odor came out from your monitor, caution you
should remove the power cord immediately and call your service center.
Never remove the rear cover of your monitor cabinet. The display unit inside
contains high-voltage parts and may cause electric shock to human bodies.
Never try to repair your monitor yourself. Always call your service center or a
qualied technician to x it.
Troubleshooting
No power
Make sure A/C power cord is securely inserted to both the AC-INLET socket on
the monitor and the wall outlet.
Plug another electrical device into the power outlet to verify that the outlet is
supplying proper voltage.
Make sure all signal cables are installed.
Power on but no screen image
Make sure the video cable supplied with the monitor is tightly secured to the
video output port on back of the computer. If not, tightly secure it.
Adjust brightness.
Wrong or abnormal colors
If any colors (red, green, blue) are missing, check the video cable to make sure
it is securely connected. Loose or broken pins in the cable connector could
cause an improper connection.
Connect the monitor to another computer.
According to WEEE regulation , this monitor can’t be handled
as normal trash in Europe when it is out of usage. Please
refer to the recycle information from our website to handle it.

WEEE Statement
Wichtige Recyclinginformation
Das Gerät darf nach dem Ende der Nutzungszeit nicht mit dem Restmüll entsorgt werden.
Bitte führen Sie es zur umweltgerechten Entsorgung den kommunalen
Altgeräte-Sammelstellen zu.
Für weitere Informationen wenden Sie sich bitte an die unten stehende Adresse.
Important Information for Recycling
This warning sign of trash bin indicates that the objects are not allowed to be disposed as
general refuse. Please follow the local act and carry out further disposal with refuse
recycling and collecting system in your Country or District.
Please contact the address below for more information on recycling.
Informations importantes relatives au recyclage
En fin de vie, cet appareil ne dois pas étre jeté aux ordures ménagères. Veuillez
respecter les réglementations locales et rester en conformité avec le système de collecte
et de recyclage des ordures en vigueur dans votre région. Pour plus d'information sur le
recyclage, veuillez contacter votre centre de recyclage agréé. Votre attitude quand au
recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité
pour les générations futures.
Wortmann AG
Bredenhop 20
D-32609 Hüllhorst
Tel. [phone] / 944-0
Fax [phone] / 944-444
www.wortmann.de
[email protected]
