Wottan motor GP 1 User manual

Wottan Motor
USER MANUAL
GP 1 - GP 2

Welcome to Woan Motor
Dear owner: Congratulaons on your choice of a GP 1 e GP 2 model and thank you for your trust in us.
In order to operate your vehicle safely and to keep it in perfect condion at all mes, we recommend that
you carefully read the instrucons in this manual and follow the spulated maintenance procedures. We are
condent that WOTTAN MOTOR will repay the trust you have placed in us.
We would like to remind you that only WOTTAN service technicians are trained and have all the up-to-date
informaon and tools to provide you with excellent service according to the specic needs of your new vehicle.
The enre Woan motor team is constantly working to update and improve the product. Therefore, some of
the informaon in this manual may be altered and modied without prior noce.
The manufacturer declines responsibility for any damage to the unit as a result of accessories not approved
by the manufacturer.

Page / 3 Wottan Motor
Introducon ......................................................... 4
SECURITY INSTRUCTIONS
Security check...................................................... 5
Safe driving recommendaons ............................ 8
Transported cargo ............................................. 13
Running-in ......................................................... 14
VEHICLE IDENTIFICATION
Chassis, frame and engine number ................... 16
CONTACT LOCK
Operaon .......................................................... 18
DASHBOARD
GP 1 elements ................................................... 20
GP 2 elements ................................................... 22
GENERAL VIEW
Instrumentaon le hangrip ............................. 24
Instrumentaon right hangrip ........................... 25
Fuel tank cap ..................................................... 26
Exhaust system .................................................. 27
DRIVING INSTRUCTIONS
Gear lever .......................................................... 28
Rear brake pedal ................................................ 29
STANFS
Side stand .......................................................... 30
MAINTENANCE INSTRUCTIONS
Maintenance and cleaning ................................ 32
Tyres and storage .............................................. 34
Technical changes, accessories and spare parts 36
Engine oil ........................................................... 37
Tyres condion .................................................. 38
Fuses .................................................................. 40
Baery ............................................................... 40
TECHNICAL DATA
GP 1 engine ....................................................... 42
GP 2 engine ....................................................... 43
GP 1 trasmission and chassis ............................. 44
GP 2 trasmission and chassis ............................. 45
GP 1 lubricants and operang uids ................. 46
GP 1 electrical equipment ................................. 46
GP 2 lubricants and operang uids ................. 47
GP 2 electrical equipment ................................. 47
GP 1 dimensions and weight ............................. 48
GP 2 dimensions and weight ............................. 49
BOOK MAINTENANCE
Warranty............................................................ 52
Wear parts list ................................................... 54
Exclusions .......................................................... 56
Inspecon plan .................................................. 62
Revision table .................................................... 66
TABLE OF CONTENTS

Woan GP 1 - GP 2 User Manual 2023 Page / 4
INTRODUCTION
WOTTAN MOTOR has designed, tested and produced this motorbike using the most advanced technology in
order to oer you a safe and enjoyable ride. to provide you with a pleasant and safe ride.
Your WOTTAN will provide you great moments of fun while being a praccal, safe and economical means of
transport. However, before using it, especially for the rst me, please familiarise yourself with the informaon
on this manual. Also, all the care and maintenance your WOTTAN requires is described in this manual. If you
follow all instrucons carefully, you will ensure a long service life for your motorbike. The WOTTAN Authorised
Dealer and Service Network has experienced technicians capable of giving your motorbike the best possible
service with the necessary tools and knowledge.
All informaon, illustraons, photographs and specicaons contained in this manual are based on the latest
producon informaon. Due to WOTTAN’s policy of connuous product improvement there may be some
dierences between this manual and your motorbike. WOTTAN reserves the right to make changes to its
products at any me. Please also note that this Manual refers to all specicaons of a parcular motorbike
model for any given country. Some details may vary from one country to another. Therefore, your model may
dier from what is shown in this manual.
COPYRIGHT WOTTAN MOTOR, S.L.
February Edion 2023

Page / 5 Wottan Motor
WARNING
This owner’s manual contains important instrucons for your safety and the operaon of your scooter.
Please read it carefully, as careful driving in combinaon with regular care and maintenance helps to
maintain the value of the scooter and is one of the prerequisites for claiming warranty care.
Please be advised, of course, that it is neither praccal nor possible to warn you of all the dangers associated
with the operaon, handling or maintenance of your vehicle. You must use your common sense.
SAFETY > SECURITY CHECK
Checklist
Before driving, perform a safety check using the enclosed checklist.
Take the safety check seriously. Perform proper maintenance before you start your journey. A technically fault-
free motorbike is a basic requirement for your safety and that of other road users.

Woan GP 1 - GP 2 User Manual 2023 Page / 6
Before you start your journey, check the following:
- Handlebars (smooth and easy to handle).
- Engine oil level
- Fuel quanty
- Front brake
- Rear brake
- Tyres (contour and pressure)
- Front fork
- Load distribuon
- Lights
- Total weight
- Brake uid level.
In the event of problems or dicules, contact an authorised service point.
WARNING
Do not touch the ignion system while the engine is running.

Page / 7 Wottan Motor
FIRE HAZARD
The exhaust system reaches very high temperatures. Make sure that you are not in contact with ammable
materials while driving, staonary or parked!
WARNING
For your safety, only use original accessories or products approved and cered by Woan Motor.
NOTE
Our approved products and accessories are available at all authorised points of sale and in our website www.
woanmotor.com.
WARNING
Do not exceed the maximum permissible weight.
Check tyre pressure.
Check rims.
WARNING
Before any journey, check the operaon of all lighng components of the vehicle.
- Check that the headlights are clean.

Woan GP 1 - GP 2 User Manual 2023 Page / 8
SAFETY > SAVE DRIVING RECOMMENDATIONS
CAUTION
Safety is also largely determined by driving style.
Therefore:
- Put on an approved safety helmet and adjust it correctly.
- Wear appropriate protecve clothing.
- Use foot rests.
- Do not drive if your driving ability may be compromised (in ice, rain or strong wind).
Your reacons can be severely aected, not only by alcohol, but also by drugs and medicines, do not drive
under the inuence of either.
- Strictly observe all trac regulaons.
- Always adapt your driving speed to the trac and road condions.
On wet roads or in the presence of loose gravel, be aware that your stability and braking power are limited by
the grip of the wheels on the road surface and the distance may be greater.
Drive economically and be environmentally friendly.

Page / 9 Wottan Motor
Fuel consumpon, environmental polluon and wear and tear on the engine, brakes and tyres depend on a
number of factors.
Your personal driving style is a major determinant of fuel consumpon, exhaust and noise generaon.
At idle, the engine needs me to warm up to an opmal operang temperature. However, in the warm-up
phase, pollutant emissions and the level of wear and tear are very high. Therefore, it is best to start driving
immediately aer starng the engine gently and without forcing the engine unl it reaches opmum operang
temperature.
Avoid hard acceleraon
Moderang the use of the accelerator to what is strictly necessary reduces fuel consumpon as well as
polluon and wear levels.
Drive as smoothly as possible and ancipate manoeuvres as much as possible.
Hard acceleraon and braking cause high fuel consumpon and increased polluon levels.
Wet brakes
Washing the scooter or driving through water or rain can delay the braking eect due to wet or (in winter) icy
brake discs or pads.

Woan GP 1 - GP 2 User Manual 2023 Page / 10
WARNING
CAUTION braking distances increase exponenally when the brake discs are wet.
CAUTION
On roads salted by de-icing.
When driving on roads on which salt has been deposited, full braking performance may be compromised.
Oil and grease
WARNING
Brake discs and pads must be free of oil and grease!
If the scooter is not to be used for a while, a layer of rust may form on the brakes and thus increase the braking
eect. A thick layer of rust can cause the brakes to lock. When riding aer a period of non-use, carefully
apply the brakes several mes unl they funcon normally. Also, during the rst 500 km of the unit as well as
when changing discs or pads there is an adaptaon period during which the components adjust and gradually
increase their eciency.

Page / 11 Wottan Motor
Dirty brakes
When driving in less than opmal road condions (mud, rain, oil, grease, etc.), the braking system’s capacity
may be reduced.
WARNING
In these circumstances use the brakes with cauon unl they are clean, the braking distance may be increased.
Pad wear increases with dirty brakes!
NOTE
Be sure to pracce braking for emergency situaons, but do so in a situaon that will not put yourself or others
at risk.
Turn o the engine if you are going to be stopped to save fuel.
Dierent driving condions aect fuel consumpon. The following are unfavourable for fuel consumpon:
- High trac density, especially in large cies with many stops and trac lights.
- Short, frequent journeys with constant starng and stopping of the engine.
- Driving in trac jams with slow and dense trac.
Plan journeys in advance to avoid heavy trac.

Woan GP 1 - GP 2 User Manual 2023 Page / 12
Fuel consumpon is also aected by condions beyond our control, such as poor road condions, steep
gradients and low temperatures.
Observe the following points to reduce fuel consumpon:
- Adhere to the unit’s maintenance schedule.
- Regular maintenance by a specialised workshop will ensure not only the connued good performance of the
unit, but also reduced fuel consumpon, low environmental polluon and a long service life.
- Check tyre pressure every two weeks.
Low tyre pressure increases rolling resistance. This increases fuel consumpon and tyre wear and negavely
aects the performance of the unit.
- Connuously monitor fuel consumpon.
- Check the engine oil level frequently, it is recommended to check the oil level every 500km maximum. On
journeys of more than 50km it is recommended to check the oil level before seng o.

Page / 13 Wottan Motor
SAFETY > TRANSPORTED CARGO
The performance of the vehicle varies depending on the load being carried and its arrangement. Overloading
aects the stability, steering and safety of the vehicle.
For your safety, do not exceed the specied load limits under any circumstances.
Be especially careful when transporng liquids that could spill on the vehicle or damage other vehicles in
trac.
If you use the rear luggage rack, be sure to secure items with strong straps or nets to prevent loss. Remember
that a bulky package is very sensive to wind, causing instability in the handling of the vehicle.
Be especially careful in side winds and when overtaking large vehicles such as trucks and buses.
Do not place any material outside the spaces designed for transport.

Woan GP 1 - GP 2 User Manual 2023 Page / 14
SAFETY > RUNNING-IN
Running-in instrucons for engine and transmission
CAUTION
Excessive engine speed during the running-in period increases engine wear and reduces engine life by up to
50%.
Any engine faults during the running-in period must be reported immediately to an ocial service centre.
NOTE
During the running-in period, drive smoothly but vary the engine speed frequently. Select winding roads with
some hills. Constantly avoid driving at very low revs and also avoid accelerang the unit to the limit.
- For the rst 500 km: Use less than half the throle range.
- Aer 1.000 km: Use less than ¾ of the throle range.
CAUTION
The rst inspecon should be carried out immediately at 1.000 km or 4 months (whichever comes rst).
You can save delays by making an appointment with an authorised service agent in advance.

Page / 15 Wottan Motor
Running-in of new tyres
CAUTION
New tyres have a smooth surface. Therefore, they should be roughened by rolling them carefully and smoothly
in various inclined posions.
Only then will the surface get its full grip!
Running-in of new brake pads
WARNING
New brake pads must be used and will not have their full friconal power unl aer 500 km of use.
The eect of reduced braking power can be compensated by increased brake lever pressure.
During this period, avoid unnecessary heavy braking acons.

Woan GP 1 - GP 2 User Manual 2023 Page / 16
VEHICLE IDENTIFICATION > CHASSIS NUMBER
Your vehicle has three forms of idencaon: the idencaon plate, the chassis number and the engine
number.
This secon shows you how to locate both of these numbers so that you can include that informaon in your
owner’s manual.
The idencaon plate (1) is located on the frame on the lower right hand side as shown in the illustraon.
NOTE
The idencaon on the right side is from the driver’s perspecve.
The chassis number (2) is located on the frame under the rubber cover of the right footrest.
VEHICLE IDENTIFICATION > ENGINE NUMBER
The engine number (3) is accessible from the le-hand side of the vehicle.
Place your vehicle on the centre stand and note the engine serial number on the front of the right-hand
crankcase.

Page / 17 Wottan Motor
13
2

Woan GP 1 - GP 2 User Manual 2023 Page / 18
CONTACT LOCK > OPERATION
WARNING
While driving, do not switch the key from ON to OFF.
NOTE
Keys
With the scooter, you get two sets of ignion keys. Keep the spare key in a safe place.
NOTE
Acvate the indicator lights for a limited period only. Note that power consumpon may aect the baery
charge.

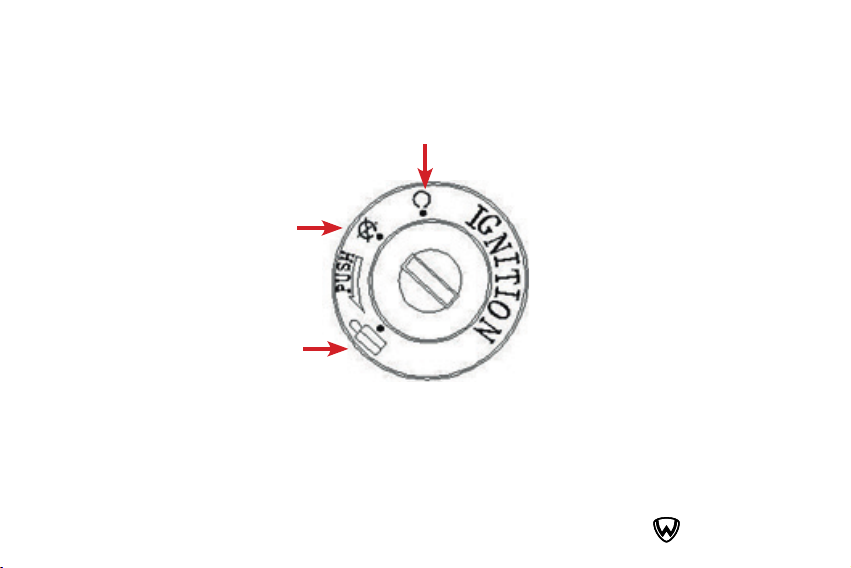

1. ON posion
All ignion circuits are ON and the engine can be started. The key cannot be removed in this posion.
2. OFF posion
All circuits are OFF and the key can be removed.
3. Engine o and steering locked
To lock the steering, turn the handlebar to the le, then insert the key.

Page / 19 Wottan Motor
1
2
3

Woan GP 1 - GP 2 User Manual 2023 Page / 20
DASHBOARD > GP 1 ELEMENTS
1. Main beam headlamp indicator light
When the headlamp is on high beam, the indicator light comes on.
2. Indicator light
When the le-turn indicator light is on, the le-turn indicator on the “ “ panel and the turn signal indicator
light will ash.
When the right turn indicator light is on, the right turn indicator light on the “ “ panel and the direcon
indicator light will ash.
3. Engine fault warning light
This warning light will ash or remain lit if the engine is malfunconing. In such a case, ask a dealer to check
the self-diagnosis system.
4. Empty fuel warning light
The fuel gauge indicates the amount of fuel in the tank. When the last segment of the fuel gauge starts
ashing, refuel as soon as possible.
5. Neutral indicator light
This warning light illuminates when in neutral.
