WOWee One PRO User manual
User Guide
WOWee One™ Pro - User Guide
2
Contents
Contents......................................................................................................................................................
User Guide..................................................................................................................................................
Included in This package.......................................................................................................................
Technical Specication...........................................................................................................................
Power Bass Portable Bluetooth Speaker..........................................................................................
Torubleshooting.......................................................................................................................................
Safety Information...................................................................................................................................
Important Handling Information.......................................................................................................
One Year Limited warranty....................................................................................................................
Regulatory..................................................................................................................................................
2
3
7
8
8
9
10
11
12
13
WOWee One™ Pro - User Guide
3
User Guide
1. Power On/O
Press and hold the power button to turn the unit on and o. The GA logo will start to ash
blue to indicate the unit is on.
(The unit will turn itself o after several minutes if not used or connected to)
HOLD
3
ON/OFF
2. Bluetooth Pairing
Once turned on, the unit automatically goes into pairing mode, shown by the GA logo ashing
blue. To pair with the unit, search for ‘WOWee Pro’using your bluetooth device and when se-
lected will pair straight away, with no need for a password. Once paired the GA logo will stay
solid blue to show a connection is made.
FLASH
WOWee One™ Pro - User Guide
4
3. Bluetooth On/O
If no bluetooth pairing is made after 3mins bluetooth is turned o. The GA logo turns solid
white to show bluetooth is o. Press and hold the bluetooth button to turn back on. Alterna-
tively if you wish to turn bluetooth o manually, press and hold this button until the GA logo
turns white.
HOLD
3
4. In Use
The unit uses the surface it is placed on to generate deep rich bass. Press the unit down
slightly when positioned to ensure the unit has a good contact with the surface to achieve the
best audio performance. Have fun trying it out on dierent surfaces for dierent sound per-
formance.
** Please note the unit is not designed to stick and hold by itself onto vertical surfaces such as
windows. Please see www.woweeone.com for accessories. **
WIPE
CLEAN
PRESS PRESS
Keep the base pad clean with a damp cloth to ensure a good contact is made with surfaces.
WOWee One™ Pro - User Guide
5
5. Answer / End Call
To answer any incoming calls press the button on the left side once to accept the call.
Press the button once again to end the call.
To reject an incoming call, press and hold the button until you hear a double beep.
PRESS
ANSWER/
END CALL
6. Aux Input
To get sound from a device without bluetooth, just connect the two using the 3.5mm audio
cable provided. The GA will change to solid white to indicate auxiliary input is being used.
AUX
INSERT
WOWee One™ Pro - User Guide
6
7. Volume
To change volume, touch either the down or up white arrows. The unit will beep to indicate
the volume level has changed. When the volume has reached the lowest level there will be no
more beeps and when the unit reaches the highest level there is a double beep.
TOUCH
VOLUME
- +
8. Muting
Touch both volume arrows together to mute the sound. Volume arrows will begin to pulse on
and o to show mute is on. Press them both again, or just one of the arrows, to un-mute.
During a hands free call the mute function will disable the microphone so that the other per-
son cannot hear you but you will still be able to hear them.
TOUCH
LED
PULSE
VOLUME
- +
WOWee One™ Pro - User Guide
7
9. Low Battery
When the battery becomes low the battery indicator will appear red and start to pulse on and
o. At this point please place the unit on charge by connecting the USB cable provided and
then to a power source.The battery indicator will be solid red when charging and will turn o
once fully charged.
Included in this package
WOWee One™ Pro - User Guide
8
Technical Specication
• Playback Duration: Up to 10 Hours per charge
• Power: Built in rechargeable Li-Po Battery
• Charging input: Via micro USB typ. 5hrs
• Audio input: 3.5 mm audio jack
• Output Power: 2W RMS
• Frequency Range: 40Hz – 20KHz
Power Bass Portable Bluetooth Speaker
• 1. Bluetooth Button / Answer & End Call • 2. Volume Down
• 3. GA function Indicator • 4. Volume Up
• 5. Power Button • 6. Battery Indicator
• 7. Aux Input Socket • 8. Mic
• 9. USB Charging Socket • 10. Gel Pad
WOWee One™ Pro - User Guide
9
Troubleshooting
No LEDs light up when trying to turn the unit on:
The battery could be out of power and needs recharged.
Connect the unit to a power supply and fully charge the unit.
No sound:
Check the unit is switched on.
Make sure the unit is paired properly via bluetooth to the audio source.
Make sure the unit or audio device isn’t on mute.
Make sure the volume is turned up on both the unit and audio device.
Check 3.5mm audio jack is inserted correctly if being used.
Can’t connect to the unit via Bluetooth:
Check that bluetooth is switched on both the unit and audio device.
Clear the unit as a device on your phone/mp3 and attempt to establish a brand
new pairing with the unit.
Unit is moving:
Clean the bass pad.
Lower the volume level as the bass may be too strong.
Lack of bass:
The surface the unit is on is too dense to allow the sound vibrations transfer
through, therefore try and move the unit onto a less dense and thick surface.
WOWee One™ Pro - User Guide
10
Safety Information
Failure to follow these safety instructions could result in damage to WOWee
One™ Pro or other property.
Fire, Electric Shock and Damage Hazard
• Do Not expose WOWee One™ Pro to rain, water, liquid or moisture to reduce
the risk of electric shock.
• Do Not drop, disassemble, open, crush, bend, deform, puncture, shred, mi-
crowave, incinerate, paint, or insert foreign objects in to WOWee One™ Pro.
• Do Not place WOWee One™ Pro near radiators, near re sources, under di-
rect sunlight or near water to avoid damages.
• Do Not place WOWee One™ Pro directly onto hard drives or other devices
aected by magnetic elds. Magnets are used in this product
• Do Not store or expose WOWee One™ Pro to extreme temperature. Accept-
able temperature is between -10º and 60º C (14º to 140º F).
• Do Not operate WOWee One™ Pro in too cold or too hot environment. Suit-
able environment temperature is between 0º and 45º C (32º to 113º F).
Battery/Charger Hazard
• Do Not dispose WOWee One™ Pro in a re. The battery could explode caus-
ing injury or death.
• Do Not charge WOWee One™ Pro in damp area or in extreme temperature.
• Must only use a Certied USB Power Adapter if main power is used as power
source.
Fall Hazard
• Do Not place WOWee One™ Pro on vertical surfaces like window or wall on
its own. Go to www.woweeone.com for accessories.
• Do Not place WOWee One™ Pro on high surfaces like shelves. During music,
WOWee One™ Pro might shift and fall if the base pad is dirty,
!WARNING
WOWee One™ Pro - User Guide
11
!Caution
Failure to follow these handling instructions could result in damage to WOWee
One™ Pro or other property.
• Operate WOWee One™ Pro in a place where the temperature is between 0º
and 45º C (32º to 115º F). Battery life might temporarily shorten in low-tem-
perature conditions.
• When using WOWee One™ Pro or charging the battery, it is normal for
WOWee One™ Pro to get warm. The exterior of the unit functions as a cool-
ing surface that transfers heat from inside the unit to the cooler air outside.
• Do Not store WOWee One™ Pro in a discharged state for prolong period. This
may cause irreversible failure to the battery.
• Do Not use abasive cleaner to clean WOWee One™ Pro becaus this could
cause scratches or damage.
• Do Not force a connector into a port. Check for obstructions on the port.
Make sure that the connector matches the port and that you have posi-
tioned the connector correctly in relation to the port.
• Do Not attempt to repair or modify WOWee One™ Pro yourself. It does not
contain any user-serviceable parts.
• Do Not attempt to replace WOWee One™ Pro battery. It is built in and not
changeable
Important Handling Information
WOWee One™ Pro - User Guide
12
Thank you for purchasing WOWee One™ Pro, a rechargeable portable bluetooth
speaker which has been designed and manufactured to the highest quality
standards. This limited warranty applies, provided the product is handled prop-
erly for its intended use and in accordance with its operating instructions.
This limited warranty does not apply to:
1) Product repair or product modications and alterations that has been
executed by unauthorised service organisations or persons.
2) Damaged product that caused by accident, abuse, misuse, re and
natural disasters.
3) Damaged product that cause by operating the product outside its
intended use.
In case your WOWee One™ Pro is not working properly, please contact :
Email: info@woweeone.com www.woweeone.com
All rights reserved. Reproduction in whole or in parts is prohibited. The Gel
Audio trademark is operated under a worldwide licence by SFX Technologies
Limited.
One Year Limited Warranty
WOWee One™ Pro - User Guide
13
The crossed-out wheeled bin symbol on the base pad indicates
that this product is covered by the European Directive 2002/96/EC.
The battery is not replaceable and it needs to be removed and disposed re-
sponsibly.
All electrical and electronic products must be collected separately
by your local collection system. Please act accordingly to your local rules and
do not dispose of your old products with your normal household waste.
Removal of Battery
Wedge under the grill using a at screwdriver and prise o the top plate. Re-
move the battery from WOWee One™ Pro and dispose the battery responsibly.
Disposal of WOWee One TM Pro
This product is in compliant with the CE directive. For the Declaration of Con-
formity, visit website www.woweeone.com
EU Declaration of Conformity
0700
Regulatory
This device has been tested and found to be comply with FCC RF radiation ex-
posure limits set forth for an uncontrolled environment.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Do not make changes or modify the device in any way. Changes or modica-
tions not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC Compliance Statement
FCC ID: O5QWOPRO
WOWee One™ Pro - User Guide
14

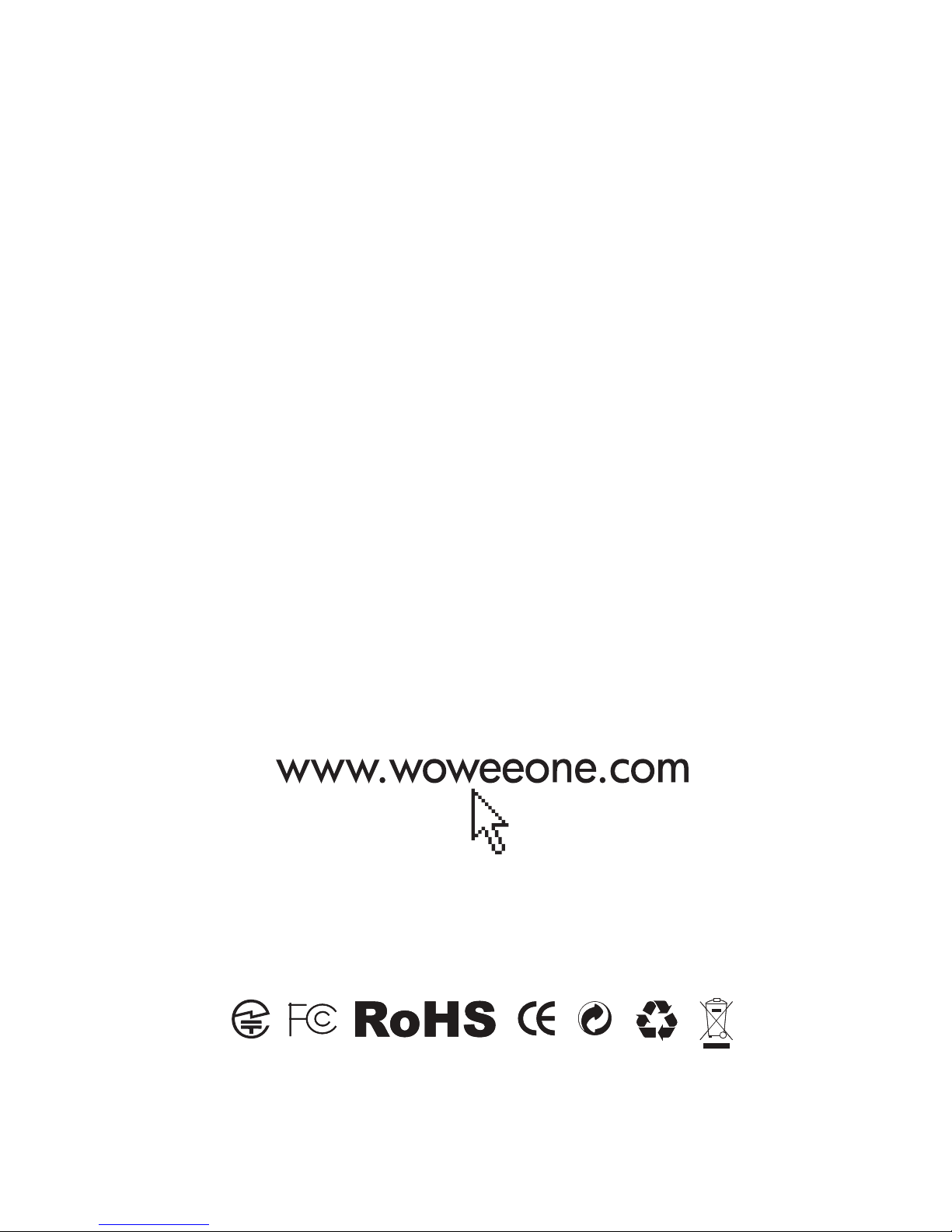

for accessories, support
and more products please visit.....
© 2012 WOWee ONE™. All rights reserved.
Gel Audio™ & GA logo are trademarks of SFX Technologies LTD.
NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Table of contents
