Wulian Smart Lookever Camera User manual

User Manual
Smart Lookever Camera (720P)
Nanjing IoT Sensor Technology Co., Ltd.
Publication Number: 2015-0605.V01
The company passed the ISO9001: 2008 quality
management system standard

Welcome to use Wulian Wireless Smart Lookever Camera (720P) User Manual
● is the registered trademark of Nanjing IOT Sensor Technology Co., Ltd. All the other
trademarks and registered trademarks mentioned in this manual are trademarks or registered trademarks of
their respective owners.
●Please read this manual carefully for the proper use of this product.
●Wulian Smart Lookever Camera Series (720P) (hereinafter referred to as “this product”) are smart home
audio and vedio products produced by Nanjing IoT Sensor Technology Co., Ltd. (hereinafter referred to as
“Wulian”). This product shall be used with smart home APP as well as the supplied accessories. Wulian is
not responsible for any loss due to improper installation and usage of this product.
●Please check the Wulian website periodically for manual and APP update availability and the relevance.
●Without the written permission of Wulian, any individuals and enterprises shall not copy all or part of the
contents of this manual, must not use our registered trademark. Behavior of the illegal use of our
trademarks, we will actor and corporate legal liability shall be pursued in accordance with the law.
●For more information about smart home products, please visit：www.wulian.cc.

Front Side Side Reverse Side
Indicator Light SET Key
SD Card Slot
USB Interface
QR Code
Device ID
1

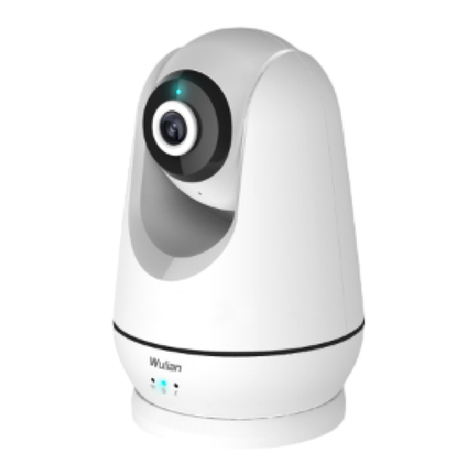

1.Wulian Smart Lookever Camera Series (720P)
Product Display (e.g. white camera)

Installation Guide
Option A: Place it on any fixed flat surface
Option B: Ceiling/Wall Mounted
Remove the base
Expand Plug
Self-tapping Screw
Remove the base
(attached with magnets)
Attach the camera to the base
2
Mount expansion pipe in predesigned
position and fix the base with self-tapping
screw

Attentions
Keep away from video
cable, audio cable,
USB cable or power
cable.
Place this product in
fixed flat surface.
Make sure accesso-
ries are matched for
adapters.
Keep away from
strong electromag-
netic fields.
Avoid direct sun.
Keep the camera away
from oil, vapor, steam,
moisture, dust, etc.
Wiping the lens
with harsh cleaner
or organic solvent
is forbidden.
Disassembling or
modification of this
product or its acces-
sories is forbidden
+
3

44
2.Instructions to use Wulian Smart Lookever Camera (720P)
①Install “iCam” APP or Smart Home APP
Android Version
Option A: Download the APP by scanning the QR Code in the packaging box.
Option B: Download the APP with the links
http://api.wuliangroup.cn/qr/icam (iCam APP)
http://www.wulian.cc/service.shtml (Smart Home APP)
IOS Version
Option A: Download the APP by scanning the QR Code in the packaging box.
Option B: Download the APP with the link
http://api.wuliangroup.cn/qr/icam (iCam APP)
Enter into “APP Store” to search “wulian smart home” to download the latest iOS APP (Version 5)
Warm prompt: please read this manual carefully and pay attention to the information of our
company to update the latest version of the smart home APP.
Operation Preparation

5
2.Instructions to use Wulian Smart Lookever Camera (720P) ②Start Device
Connect power,
and wait for about 20s.
③Start iCam APP and register an account as per the APP prompts.
For the first use, indicator
flashes blue light means the
camera has started and waits
for configuration.

6
Start iCam APP, and scan QR Code on the back side of the camera, connect ZigBee network as per APP
instruction, then you can use the camera.
“iCam -- Add Camera & Configure Wi-Fi
Start iCam APP. Add camera (by scanning QR Code or inputting the ID on the back side of the camera)
& Configure Wi-Fi, then you can use the camera.
iOS:
Android:
Operation Instructions:

7
Android Version / iOS Version
Smart Home--The Usage of Smart Lookever Camera As Gateway:
①Log in “Smart Home” APP (by scanning QR Code or inputting the ID on the back side of the camera),
and configure network.
②Log in “Smart Home” APP, and choose “MONITOR”, select “Lookever Camera”, input the camera
code, (by scanning QR Code or inputting the ID on the back side of the camera) then you can use the
camera.

①Build ZigBee network for the first time
②Add Devices to ZigBee Network:
Click Set Key 6 times quickly ZigBee Network Constructed
Click Set Key 4 times New devices are
allowed to be added
Networking : Add ZigBee Devices
8
Camera can be used as gateway by this time, and it can add ZigBee devices.

3.Basic Functions
Wi-Fi Technology
HD Video
Account Share
Video Saved
Playback Anytime.
Supports Wi-Fi, put the camera
anywhere in our house. One-key
configuration, simple & conve-
nient.
Share video with friends by entering friends’
account. Support multi-users to watch video.
Zigbee Technology
ZigBee technology is a close, low
complexity, low power, low data
rate, low cost and safe wireless
communication technology.
SD Card Storage
Card storage, safety local storage,
permanent free.
9
720P HD images, 3 times more
than normal camera.

Talkback Function Motion Detection
Mobile Phone Monitor
Users could receive messages via smart
phones, as well as watch videos
remotely.
Two-way time sharing talkback. Support motion detection alarm, focus
on home situation at any time.
10
Appearance Design
Delicate in appearance & design, APP is
beautiful and easy to operate.

Net Weight(g)
Housing Material
Color
Lens Material
130
PC
Black\White\Blue\White plus
Optical Glass
70
70
Appearance
4.Specification Parameter
11

Power Supply
Antenna Type
Operating Temperature
Operating Humidity
Power Consumption
Rotation Angle
AC/DCAdapter DC 5V，1A
Ceramic Antenna，FPC Antenna
-10℃+45℃
≤95%RH(Noncondensing)
Max.3W
Pan:360°,Tilt: > 180°(manual operation)
General Parameter
Audio& Video Parameters
12
Motion Detection/Snapshot
Resolution
Audio
Image Rollover
Local Storage
Supported
720P
Talkback Function
180°
Up to Micro SD 32G
Supported (Auto)
White Balance/Backlight Compensation
/Self-Adapting Video Transmission

IEEE 802.15.4 IEEE 802.11 b/g/n
WiFi
Network Parameter
13
Communication Protocol
Communication Distance
Network Protocol
Wireless Access
IEEE 802.15.4 500m(visible)
IEEE 802.11 b/g/n 50m(visible)
TCP/IP、ICMP、HTTP、HTTPS、DHCP、DNS、
RTP、RTSP、RTCP、NTP、UPnP
Number of ZigBee terminal
devices to connect One (black) Three (white) Six (blue) Unlimited (white plus)

5.Purchase Information
Product Name
Product Model
WL-ZAVMDPB-C41112-01
WL-ZAVMDPW-C41112-01
WL-ZAVMDPU-C41112-01
WL-ZAVMDPW-C41112-02
WL-ZAVMDPW-C41112-03
Materials & Color
PC+ABS，Black
PC+ABS，White
PC+ABS，Blue
PC+ABS，White plus
PC+ABS，White
Item No.
WLPN150313002
WLPN150306001
WLPN150313001
WLPN150423001
WLPN150630001
14
Smart Lookever Camera (720P)

Wulian, is beside you!
More information, please visit Wulian official website.

Any illegal use of this manual shall be investigated according to law.
Building 11, No.15, Fengji Road, Yuhuatai District, Nanjing (P. C.: 210039)
Email: [email protected]
Service Hotline：[phone]
www.wulian.cc
