WXT-Pro Sport Product information sheet

1
DIGITAL VIDEO CAMERA
Easy guide
PRO

2
Preparing for use
➢Parts of the camcorder
1. USB jack
2. TF card slot
3. LCD touch screen
4. Shutter button
5. Speaker
6. Charging indicator light
7. Busy indicator light
8. Power button
9. Reset
10. AV out jack
11. HDMI output
12. Tripod slot
13. Microphone
14. Lens
15. Water proof case
15

3
➢Charging the battery
The camcorder has an internal lithium battery, Please
charge the battery for the first time use.
1:Turn off the camcorder.
2:Connect the USB cable to the camcorder and the
computer for battery charging.
3:when charging ,the power indicator light will turn red.
4: Once fully charged the charging indictor will disappear.
Then Unplug the USB cable.
The camcorder body may be warm after extended use.
This is normal.
➢Inserting the Memory Card
This camcorder does not equipped with internal memory.
An TF card (at least class 4) or multimedia card must be
inserted for WXT PRO camcorder to operate. If a card has
not been inserted, camcorder can not record.
1:Turn off the camcorder.
2: Open the rubber cover at the side of camcorder .Find
the TF card slot, and then insert the TF card .
If the memory card has successfully been inserted, you will
hear a clear buzzer.

4
➢Mounts How to fix the WXT PRO camcorder to the bike?
1: Open the round of mount (1), insert the
rubber pad(2) into it and fix them to
handlebars of bike, then turn the screw to fix
it.
2: Fix the metal screw of the mount to the
tripod slot of the camcorder respectively,
and then wring the thread to fix the mount
3. After fixing it to bike, you can start to take pictures.
➢How to use strap fix to your helmet?
There are two types: for top and side mount : Insert strap
into the two ends of the mount, adjust length according to
1

5
helmet’s size, and then you can use strap fix to your helmet
and start to take pictures.
➢How to use sticker fix to your helmet?
1: Use the side of the paste to the mount, and the other side
paste to your helmet and start to take pictures. You can fix
it as below
TIPS: Please note that watercase can also be used in the
sport camcorder fixed to the bike or the helmet .

6
Basic operation
➢Turn Power On and Off
1:Press the POWER button to turn on the camcorder.
2: Press the POWER button again to turn the power off.
Both turn on and turn off the camcorder ,the busy indicator
light will turn green.
➢Change the mode of the camcorder
The LCD screen is touchable, so you can touch it to set
most of the options. Current camcorder settings will be
displayed on the touchable LCD screen. The camcorder
has 3 different modes : capture mode, video mode and
playback mode. Touch the icon ( / / ) on the LCD
screen to select between those modes.

7
Display
Title
Description
Capture mode
For taking still photos.
Video mode
For recording movie clips.
Playback mode
For playing recorded files.
➢Setting the camcorder
Before taking photographs or recoding videos ,press the
power button to switch on the camcorder first. our
camcorder has a touch LCD screen, so all the settings are
operated by touching the options on the screen. Touch the
icon to show the MENU on the screen, touch it and then
the icon to bring up the setup menu (Date/ Auto power
off / Beep sound/ Language/ Frequency / TV mode/
Format/ Default setting), touch the option you want to

8
modify, and then you can touch the LEFT to exit and return
to the last menu .
Date
[On]/[off]: show or don’t show the date and time .
[Set the date]:set the date and time for the camcorder.
Touch the option including year, month, date, hour ,minute,
second and slide on the screen to select a value you want
to modify.
Language
Set the on-screen language.[English] /[French]
/[Spanish]/[Portuguese] /[German]/[Dutch]/[Italian]
Auto power off
To save power ,the video camera is turned off
automatically after a period of time . After you select the
"off " that means the power save function is
switched off .[1min]/[ 3min ]/[6min]/[off ]
Format .[OK]/ [Cancel]
Format your TF card including protected files, CAUTION:
removing the TF card during formatting may damage the
card

9
➢Recording movie clips
1:Turn on the camcorder and touch the icon to set the
camera to video mode .2: Start recording.
Use the LCD screen to view your subject, and touch the
to zoom in or zoom out on your subject .
Press the shutter button to start recording.
The LCD monitor will displays how long it has been
recording for .
If using a slow card, it will change the size to 720P
automatically.
3:Finish recording.
Press the Shutter button again to stop recording.
The camcorder will stop recording automatically when the
memory capacity is full.
4: Touch the icon”MENU” to set the option in video
mode.(Size/ Exposure/ White balance/ Color/ Loop
recording/ Motion detection/ Record audio/ Date stamp)
Exposure
Set the exposure value manually to compensate for
unusual lighting conditions. The value varies from -2 to +2.
White balance
Adjust white balance to suit different light sources. There

10
five items for
option:[Auto]/[Daylight]/[Cloudy]/[Fluorescent]/[Incandesc
ent]
Loop recording
Sets the time of the video before recording, when the time
is up, it will start another video. When the memory card is
full, it will delete the previous recorded files .[off]/
[1minutes]/ [3minutes]/[5minutes]
Motion detection
Using this function means that the camcorder will stop
recording automatically when it detect no motion, and
when it detect active scene, it will restart recording by itself
. [On ]/[Off ]
Record audio
You can record sound when recording movie clips [On
]/[Off ]
➢Taking still images
1:Turn on the camcorder and touch the to set the
camera to capture mode .
2: take a still image.
Use the LCD screen to view your subject, and touch the

11
icon to zoom in or zoom out on your subject.
Press the shutter button to take a still image.
After the image has been taken the LCD will display the
image for a brief second.
The memory capacity in the top right of screen will
decrease as each image is taken.
3: Touch the icon“MENU” to set the option in capture
mode.(Capture mode/ Resolution/ Quality/ Sharpness/
Exposure/ White balance/ Color/ ISO/ Scene mode/ Anti-
shake/ Continue shot)
Capture mode
Use this function to set a delay from the time the shutter
button is pressed to the time the image is shot.[Single]/[2s
timer]/ [5s timer ]/[10s timer ]
Continue shot
Use this function to take 6 pictures continuously.[On ]/[Off ]
➢Playback and delete
1: Turn on the camcorder and touch the icon to set the
camera to playback mode.
2: Touch the screen right and left to view the photos and
video files .

12
3: press the shutter button or touch the icon to start
playing the video file, then it will appears another icon ,
touch it or press the shutter button can have a pause.
Repeating this move can play or pause it again. At last, you
can touch the icon to stop playing the video file.
4: When viewing the images, you can touch the icon to
zoom in or zoom out it. In the situation of zooming in the
image , you can touch and move on the screen to see
details of the image .but you cannot use the menu any
more, unless zoom out it to the original size.
5: Touch the icon“MENU” to set the option in playback
mode.(Delete/ Rotate/ Protect/ Pictbridge)
Delete
Use this function to delete a single file or all files.[Delete
Current Image]/[Delete All Images]/[Cancel]

13
Making connections
➢Connecting the Camcorder to a TV
When plug in the TV-out cable (supplied) to the camcorder
AV out jack , the LCD screen turns black, Connect the
camcorder to a TV and the TV screen now performs as the
camcorder LCD screen.
1、Connect the camcorder to a TV via the AV cable
(supplied) 。
2、Turn on the TV and the camcorder, and then set the TV
to “AV”mode.
3、When the camcorder is set to record mode, you can
preview the subjects you want to record on the TV screen.
4、When the camcorder is set to Playback mode, you can
review all the pictures, video clips stored in the camera on
the TV.
➢Connecting the Camcorder to a HDTV
1. Connect the camcorder to HDTV output via HDMI-cable
(optional).
2. Turn on HDTV and switch to HDMI-mode.

14
3. Turn on the camcorder. Set the camcorder in playback
mode. Select the desired file by touching the option on the
screen.
4. It will appear the next menu on the TV.
➢Connecting the Camcorder to a PC
There are two ways to download files from the camcorder's
internal memory or memory card to a computer:
•By inserting the memory card into a card reader
•By connecting the camera to a computer using the
supplied USB cable.
Zoom in
Next
Stop
Zoom out
Last
Play

15
Using a Card Reader
1: Eject the memory card from the camcorder and insert it
into a card reader that is connected to a computer.
2: Open [My Computer] or [Windows Explorer] and double-
click the removable disk icon that
represents the memory card.
3: Copy images from the card into a directory of your
choice on the
computer’s hard disk.
Connecting the Camcorder to a PC with the USB Cable
1: Connect the supplied USB cable to the computer's USB
port and turn the camcorder on.
2: When connect to the computer, it will appears “Mass
storage”on the screen
3: Open [My Computer] or [Windows Explorer].
A"Removable Disk" appears in the drive list. Double-click
the "Removable Disk" icon to view its contents. Files
stored on the camera are located in the folder named
"DCIM".
4: Copy the photos or files to your computer.
➢How to use the PC Camera function
At first you have to connect the camcorder to the

16
computer with the supplied USB cable. Press and hold the
shutter button for a few seconds, then press the power
button for a while. So an icon "PC CAM" will appear on the
screen. If not, please continue to press the shutter button
and press the power button as well.. Open [My Computer],
there will be a file named "USB video tool". Double click the
icon . The camcorder will work as the webcam.
© Woxter Technology Co., Ltd. All rights reserved. Woxter®, the Eagle Logo, iWXT®, WXT® and other
Woxter ® trademarks are property of Woxter Technology Co., Ltd and are registered. All other
trademarks, products and images are property of their respective owners.
www.wxtpro.com

17
Quick guide for using remote control
(optional)

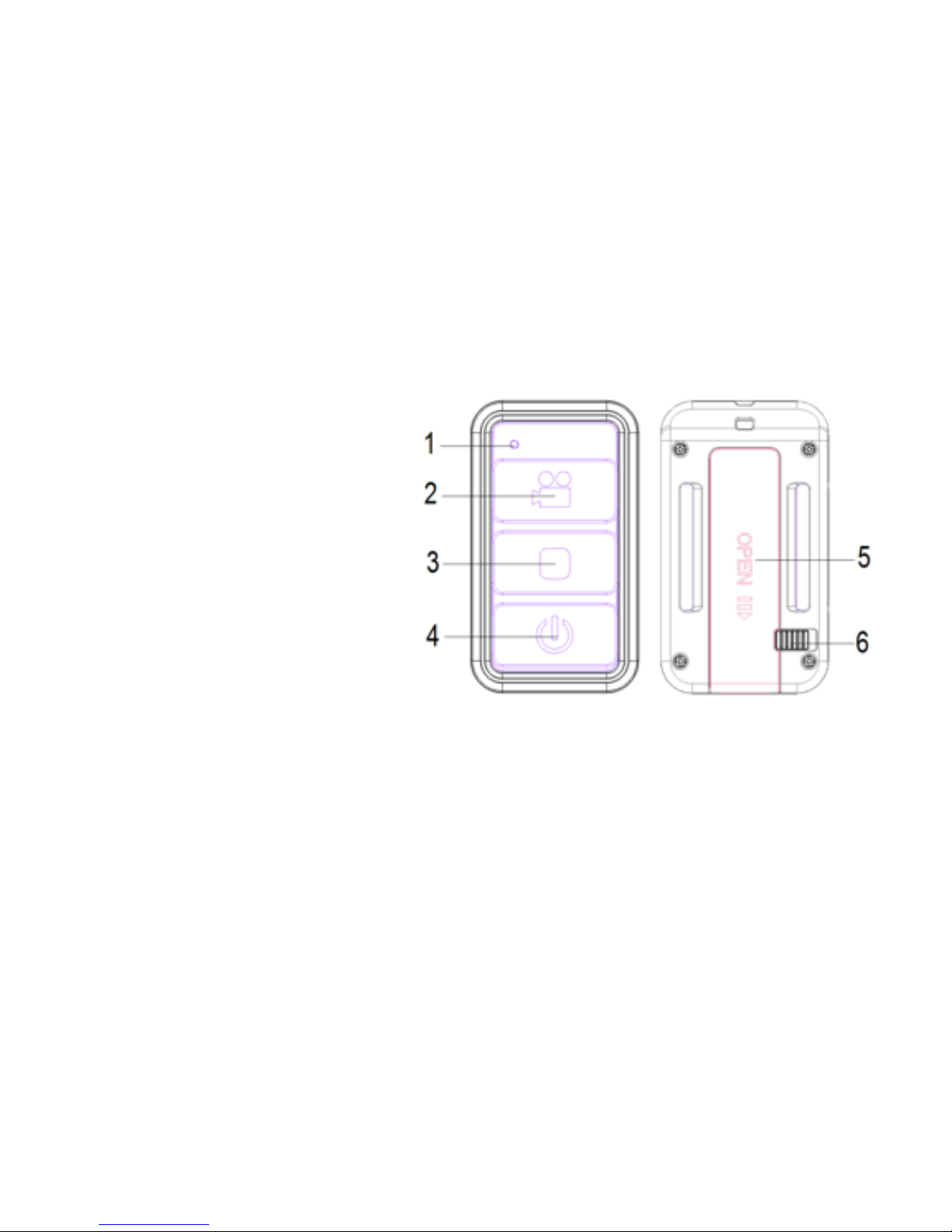

Part names
1. LED light
indicator
2. Shutter
button
3. Stop
button
4. Power
button
5. Battery slot cover
6. Battery slot lock

18
ii. Preparing
Push the battery slot lock, and open the battery department
cover , then insert a battery (1.5V, AAA) into the battery slot.
Please pay attention to the (+) mark on the battery for proper
functioning.
iii. Operating
Turn on the camcorder, now you can use the remote
controller to control the camcorder in video mode.
➢Press the shutter button to start recording, the LED light
will flash.
➢Press the stop button to stop recording, the LED light
keep blue. The camcorder will stop recording
automatically when the memory capacity is full.
➢Press the power button to stop recording, and the
screen will turn black, press the shutter button to
recovery.

19
NOTE: Please allow 3 sec delay time after press these buttons,
for smooth recording mode please do not press the button
too frequently.
iv. Powering off
When battery is low, the camcorder will turn off, and LED light
of the remote controller will flash fast then turn off

20
Specification
Sensor
5MegaPixels CMOS
LCD display
2.0" TFT touch screen
Lens
F/3.2 , f=7.5mm
Shutter
Electronic Shutter: 1/2 ~ 1/800 sec
Angle of lens
120°
Resolution
Still Image:12M (by interpolation)/8M (by
interpolation)/5M/3M/2M /VGA
Video:1080p/ 720p/VGA/QVGA
White balance
Auto/Daylight/Cloudy/Incandescent/Fluoresce
Exposure
-2.0 ~ +2.0EV
Continue shot
6frame/shot
ISO
Auto/100/200/400
