WynMax WMIX-D5256 User manual

WMIX-D5256 Intel Atom D525
User Manual Rev. 02, May 2012

2
All rights reserved. No part of this publication may be reproduced in any form or by
any means, without prior written permission of the publisher.
All trademarks are the properties of the respective owners.
All product specifications are subject to change without prior notice
□WMIX-D5256
□Driver CD (Include user’s manual)
□1 x PS2 Y Cable(KB and Mouse)
□1 x LPT Cable with Bracket
□1 x 2 Port COM Cable with Bracket
□1 x 2 Port USB Cable with Bracket
□1 x SATA Cable
□1 x SATA Power Cable
Ordering Information
Packing List
Statement

3
Contents
Chapter 1 Product Information..........................................................................................4
1.1 Block Diagram.............................................................................................................4
1.2 Features........................................................................................................................5
1.3 PCB Layout..................................................................................................................7
1.4 Jumper Setting............................................................................................................8
1.5 Connector Function List.........................................................................................11
1.6 Internal Connector Pin Define...............................................................................12
Chapter 2 BIOS Setup........................................................................................................20
2.1 Main Menu..................................................................................................................20
2.2 Standard CMOS Features.......................................................................................21
2.3 Advanced BIOS Features.......................................................................................22
2.4 Advanced Chipset Features ..................................................................................24
2.5 Integrated Peripherals.............................................................................................26
2.6 Power Management Setup.....................................................................................34
2.7 PnP/PCI Configurations..........................................................................................36
2.8 PC Health Status.......................................................................................................37
2.9 Frequency/Voltage Control....................................................................................38
2.10 Load Fail-Safe Defaults.........................................................................................39
2.11 Load Optimized Defaults......................................................................................40
2.12 Set Supervisor Password ....................................................................................41
2.13 Set User Password ................................................................................................42
2.14 Save & Exit Setup...................................................................................................43
2.15 Exit Without Saving...............................................................................................44
Chapter 3 Drivers Installation..........................................................................................45
3.1 Intel Chipset Device Software...............................................................................45
3.2 Intel Graphic Media Accelerator Driver ..............................................................48
3.3 LAN Driver..................................................................................................................51
3.4 Audio Driver...............................................................................................................53
Appendix-A Watchdog.......................................................................................................54
Appendix-B GPIO................................................................................................................56

4
Chapter 1 Product Information
This chapter introduces the product features, jumper and connector information.
1.1 Block Diagram
Intel
DMI 4 Lanes
DDR3 800MHz
LPC I/F
82801HBM
ICH8M
Intel
SO-DIMM x2
CK505
SM Bus
SM Bus
2MOCSM&BKLPT
SPI SIO_W83627EHG
USB 2.0 x8
SATA x2
CF Socket
COM1 COM3 COM4 COM5 COM6
SPI
UART_ F81216D
VGA
XC3S200AN
DIO
ATOM D425/D525
CODEC_ALC662
HD Audio
PCI-E x4 Slot
LAN1_RTL8111E
PCIe x1 (Port 5)
Mini-PCI-E Slot
PCIe x1 (Port 4)
SATA
ATA100
USB 2.0
VRM11
LVDS 18bit
LAN2_RTL8111E
PCIe x1 (Port 6)
PCIe x4 (Port 1-4)
(Share Port 4)
not support MINI PCI-E and PCI-Ex4 device running together
LVDS 24bit Dual Channel
LVDS 18bit

5
1.2 Features
System
Processor / Chipset
Processor Intel ATOM D525 1.8 GHz (Dual Core)
Chipset ICH8M
BIOS AWARD 16Mb SPI
Memory
Technology Dual DDR3 800 MHz SDRAM
Max. Capacity Up to 4GB
Socket 1 x SO-DIMM DDR3
Display
Chipset Intel D525 integrated refresh of the 3rd
generation graphics core
VRAM Shared with 224MB system memory
Resolution Analog Display: Up to 2048 x 1536 (QXGA)
LVDS 18/24 bit, Single channel
LVDS
Resolution Digital LVDS: Up to 1280 x 1024
Dual Display CRT + LVDS
Ethernet Interface 2 X 10/100/1000 Mbps
Controller Realtek RTL8111E
Audio Interface High Definition Audio
Controller Realtek ALC662 HD CODEC
SATA
Max. Data
Transfer Rates 300 MB/s
Port 2
IDE
Mode
Channel 1
Compact Flash 1, Compact Flash Type I/II
Expansion Slot PCI-Ex4 1
Mini PCI-E 1 (Top Side)

6
Internal Connector
VGA 1
LVDS 18 bit single channel or 24 bit Dual channel
USB 2.0 2
COM 3 (RS-232, supply 5V / 12V / RI)
Parallel 1
Audio Amplifier 1 [2W(8Ω) stereo]
Compact Flash 1 (Bottom Side)
Digital IO 8 bit GPIO (4 IN + 4 OUT)
Rear I/O
PS2 1(1 K/B and 1 Mouse by Y-Cable)
VGA 1
COM
3 (RS-232, supply 5V / 12V RI, COM2
RS232/RS422/RS485 Jumper select),
(3 x DB9)
LAN 2(RJ-45)
USB2.0 6
Audio 1 (Line-In, MIC-In, Line-out)
Power Type 4 Pin DC +12V or ATX Power connector
(Optional)
Watchdog Timer Interval Programmable 1~255 sec./min.
Output System reset
Environment
Operating
Temp. -5°C~ 60°C (23°F ~ 140°F)
Storage Temp. -20°C~ 80°C (-4°F ~ 176°F)
Relative
Humidity 0%~ 95% (non-condensing)
Form Factor Dimension
(L x W)
Mini-ITX (170mm x 170mm)
(6.69” x 6.69”)

7
1.3 PCB Layout
COM1_COM2
USB1_KBMS
VGA_COM3
USB_LAN1 USB_LAN2 DIO1
AUDIO1
AUDIO2
PWR1
CPUFAN1
JCOM2_SEL
JCOM1
JCOM2
MCR
JCOM3
VGA2
JSPI
RT1
LPT
PCIE4
USB4
JCF
JIDE
MINI-PCIE COM4
JCOM4
JCMOS
JPWR_SEL
SYSFAN1
SATA2
SATA_PWR2
SATA1
SATA_PWR1
JMODE2
JMODE1
JMODE0
LVDS18
LVDS24
INV
JCOM5
JCOM6
COM5 COM6
LPC
JLVDS
SO -DIMM1
16 151
2
1
210
9
2324
21
111
2
7 4 1
7 4
1
1 4
1
4
15
26 13
14
1
1
4
7
8
2
1
1 6
1
210
1
9
2
10
102
9
1
1
9
2
10
1
9
2
10
1
5
2
6
1
5
2
6
6
2
5
1
15
2
6
1
5
2
61
5
2 6
12
30
29
1
230
29
34
2
10
71
3
JFRONT
JPCI-E

8

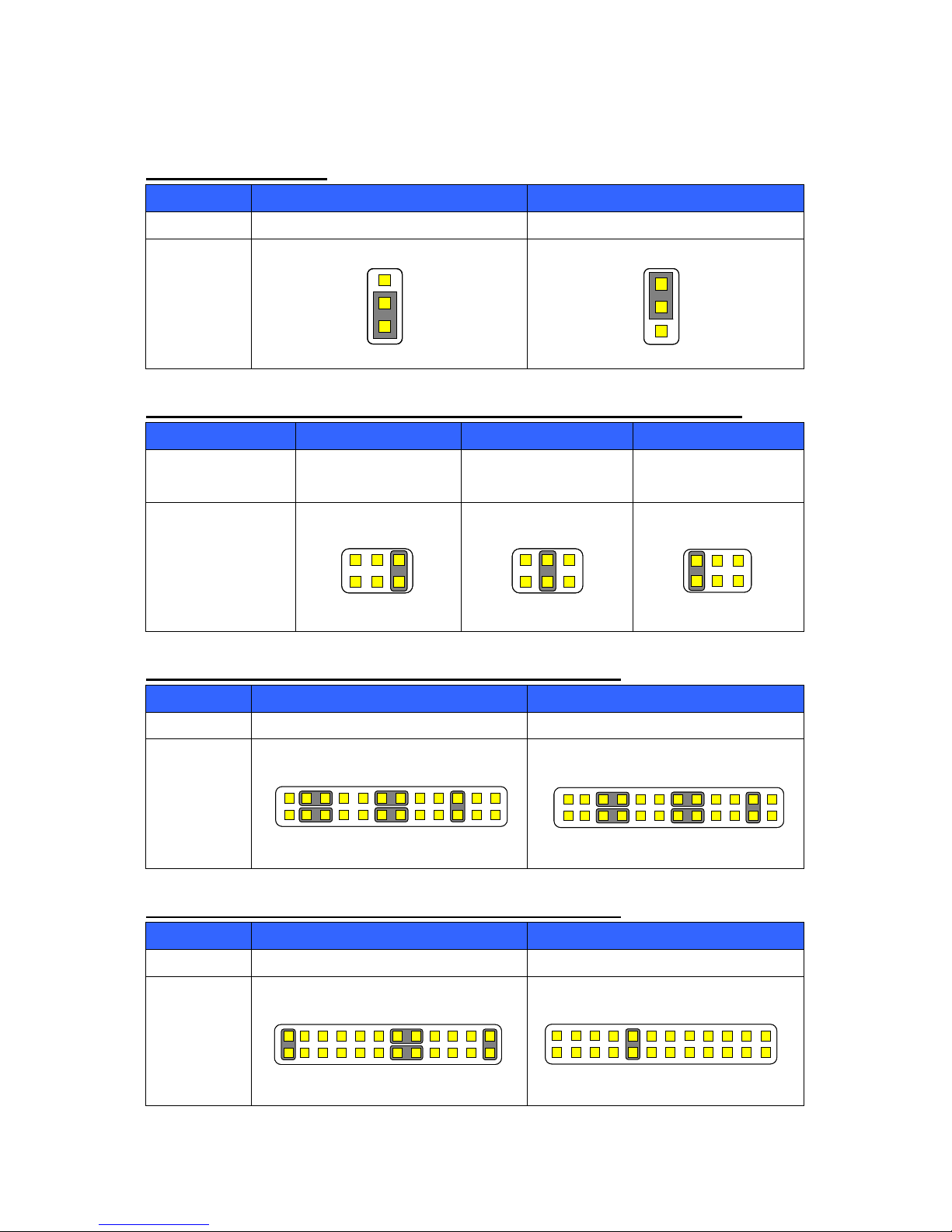

1.4 Jumper Setting
JCMOS：CMOS Clear
Pin No. 1-2 2-3
Function Normal Operation (Default) Clear CMOS Contents
Jumper
Setting
JCOM1 / JCOM2 /JCOM3 / JCOM4 / JCOM5 / JCOM6：(5V/12V/RI) Select
Pin No. 1-2 3-4 5-6
Function +5V Modem Ring In
(Default)
+12V
Jumper Setting

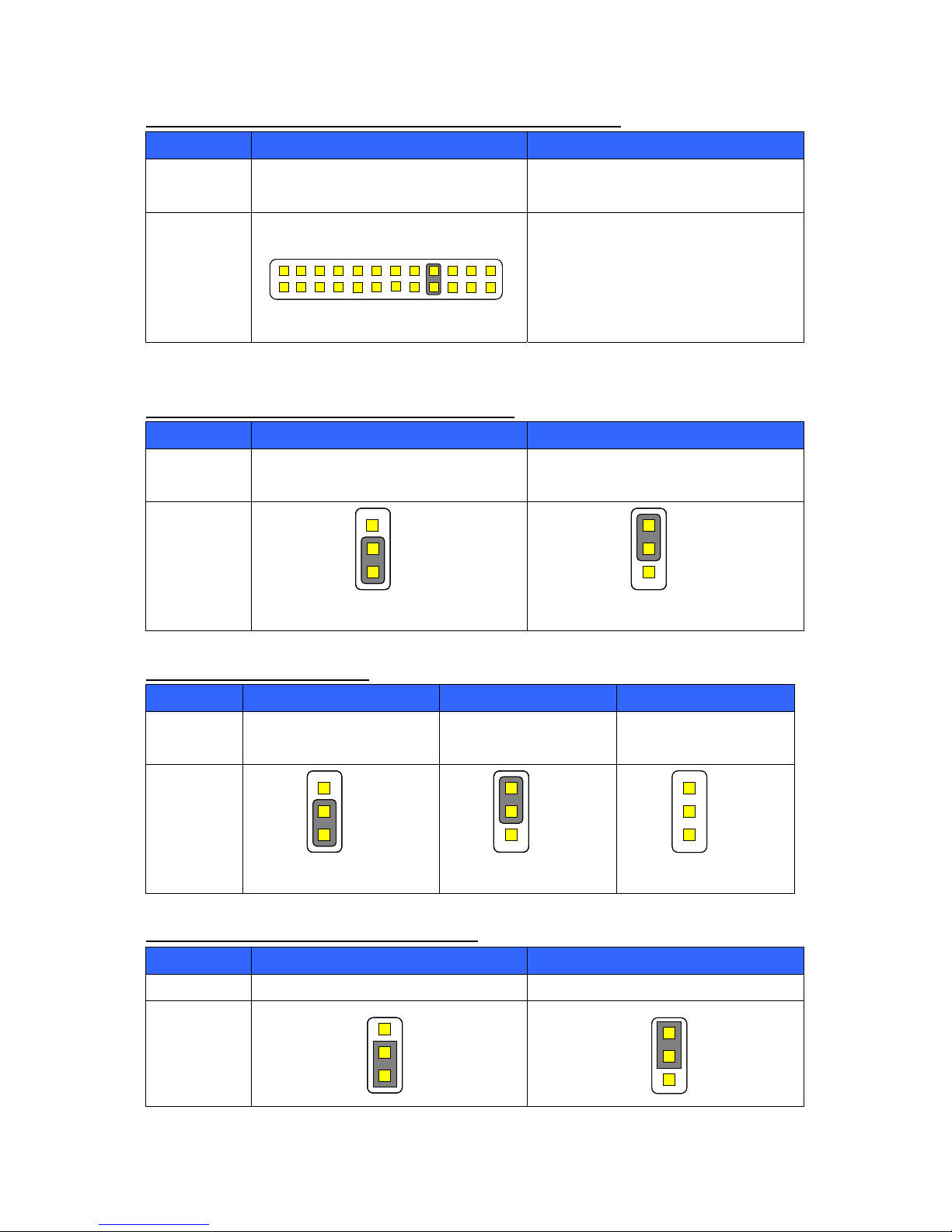

JCOM2_SEL：COM2 (RS-232/RS-422/RS-485) Select (1/3)
Pin No. 5-6, 11-13, 12-14, 19-21, 20-22 3-4, 9-11, 10-12, 17-19, 18-20
Function RS-232 (Default) RS-422
umper
Setting
JCOM2_SEL：COM2 (RS-232/RS-422/RS-485) Select (2/3)
Pin No. 1-2, 9-11, 10-12, 23-24 15-16
Function RS-485 RS-422 RX 100ΩTermination
Jumper
Setting
3
2
1
3
2
1
3
2
1
3
2
1
6 4 2
5 3 1
6 4 2
5 3 1
6 4 2
5 3 1
6 4 2
5 3 1
6 4 2
5 3 1
6 4 2
5 3 1
23 1
24 2
23 1
24 2
23 1
24 2
23 1
24 2
23 1
24 2
23 1
24 2
23 1
24 2
23 1
24 2

9
JCOM2_SEL：COM2 (RS-232/RS-422/RS-485) Select (3/3)
Pin No. 7-8
Function RS-422 TX 100Ω/ RS-485
Termination
Jumper
Setting
Note: Not Recommended for RS-422 TX 100ΩTermination
JCF: Compact Flash ( Master / Slave ) Select
Pin No. 1-2 2-3
Function Master Slave
(Default)
Jumper
Setting
3
2
1
3
2
1
3
2
1
3
2
1
JIDE: IDE ATA Mode Select
Pin No. 1-2 2-3 All Open
Function Max. UDMA Mode 1
(33M)
Auto Detect UDMA
Mode (Default)
Min. UDMA Mode 2
(66M)
Jumper
Setting
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
JLVDS：LCD Power (+3.3V / +5V) Select
Pin No. 1-2 2-3
Function LCD Power +3.3V (Default) LCD Power +5V
Jumper
Setting
23 1
24 2
23 1
24 2
3
2
1
3
2
1
3
2
1
3
2
1

10
JMODE2, JMODE1, JMODE0: LVDS24 24bit Panel signal mode select
Pin No. ATOM D525 Output to
XC3S200AM LVDS24 Output
JMODE0: 1
JMODE1: 1
JMODE2: 1
3 2 1
JMODE0
JMODE1
JMODE2
3 2 1
JMODE0
JMODE1
JMODE2
Single channel (18 bit)
* Default setting, bypass.
Support one 48bit dual channel panel
(resolution by VBIOS)
(48bit: odd 24bit + even 24bit)
JMODE0: 0
JMODE1: 1
JMODE2: 1
3 2 1
JMODE0
JMODE1
JMODE2
3 2 1
JMODE0
JMODE1
JMODE2
Single channel (18 bit)
(resolution: 1280 x 800)
Scalar.
Support one 48bit dual channel panel
(resolution: 1280 x 1024)
(48bit: odd 24bit + even 24bit)
JMODE0: 1
JMODE1: 0
JMODE2: 1
3 2 1
JMODE0
JMODE1
JMODE2
3 2 1
JMODE0
JMODE1
JMODE2
Single channel (18 bit)
Bypass.
Support two 24 bit single channel panel
(resolution by VBIOS)
JMODE0: 1
JMODE1: 1
JMODE2: 0
3 2 1
JMODE0
JMODE1
JMODE2
3 2 1
JMODE0
JMODE1
JMODE2
Single channel (18 bit)
Bypass.
Support two 18 bit single channel panel
(resolution by VBIOS)
Pin No. ATOM D525 Output to
XC3S200AM LVDS Output
Don't care Single channel (18 bit)
(resolution: 1366 x 768)
** Specific firmware, scalar.
Support one 48bit dual channel panel
(resolution: 1920 x 1080)
(48bit: odd 24bit + even 24bit)

11
JPCI-E: PCI-E Port1 to Port4 configuration Select
Pin No. Configuration PCI-E x4 Slot Mini-PCI-E
(share Port4)
1-2
3 2 13 2 1
Port1 ~ Port4: (x4)
PCI-E x1: OK NG
PCI-E x4: OK NG
2-3
3 2 13 2 1
Port1: (x1)
Port2: (x1)
Port3: (x1)
Port4: (x1)
PCI-E x1: OK OK
JPWR_SEL: AT / ATX Mode Select
Pin No. 1-2 2-3
Function AT Mode ATX Mode (Default)
Jumper
Setting
3
2
1
3
2
1
3
2
1
3
2
1

12
1.5 Connector Function List
Connector Function Note
AUDIO1 Line-In/MIC-In/Line-Out Connectors
AUDIO2 Audio Amplifier Output Connector
CF Compact Flash Connector
COM1_COM2 Serial Port Connector
COM4, COM5, Serial port with Box-header
CPUFAN1 CPU Fan 4Pin Connector
DIO1 Digital I/O Connector
INV LCD inverter connector
JSPI Reserved for debug
LPC Reserved for debug
LPT Parallel Port Connector
LVDS18 LVDS 18 bit Connector
LVDS24 LVDS 24 bit Connector
MCR MCR with Box-header
MINI-PCIE Mini PCI Express connector
PCIE4 PCI-E x4 Connector
PWR1 ATX 2x2 connector For DC12V In
RT1 Reserved for external thermistor
SATA1,SATA2 SATA Connector
SATA_PWR1, SATA Power Connector
SO-DIMM1 DDR3 SO-DIMM connector
SYSFAN1 System FAN connector
USB_LAN1, USBx2 and RI45-LAN Conenctor
USB1_KBMS USB and PS2 Keyboard, Mouse Connector
USB4 USBx2 Pin Header
VGA_COM3 VGA and Serial Port Connector
VGA2 VGA Pin Header

13

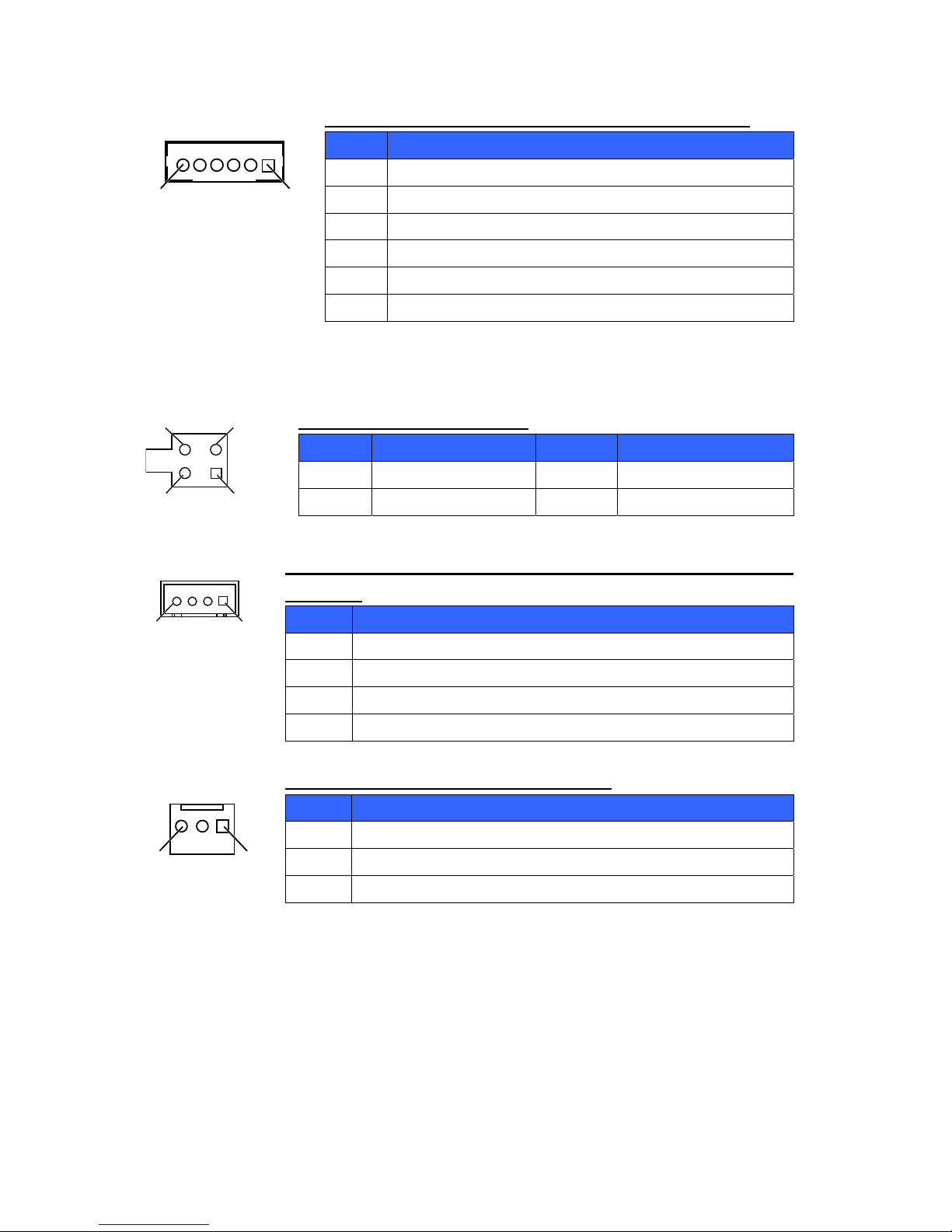

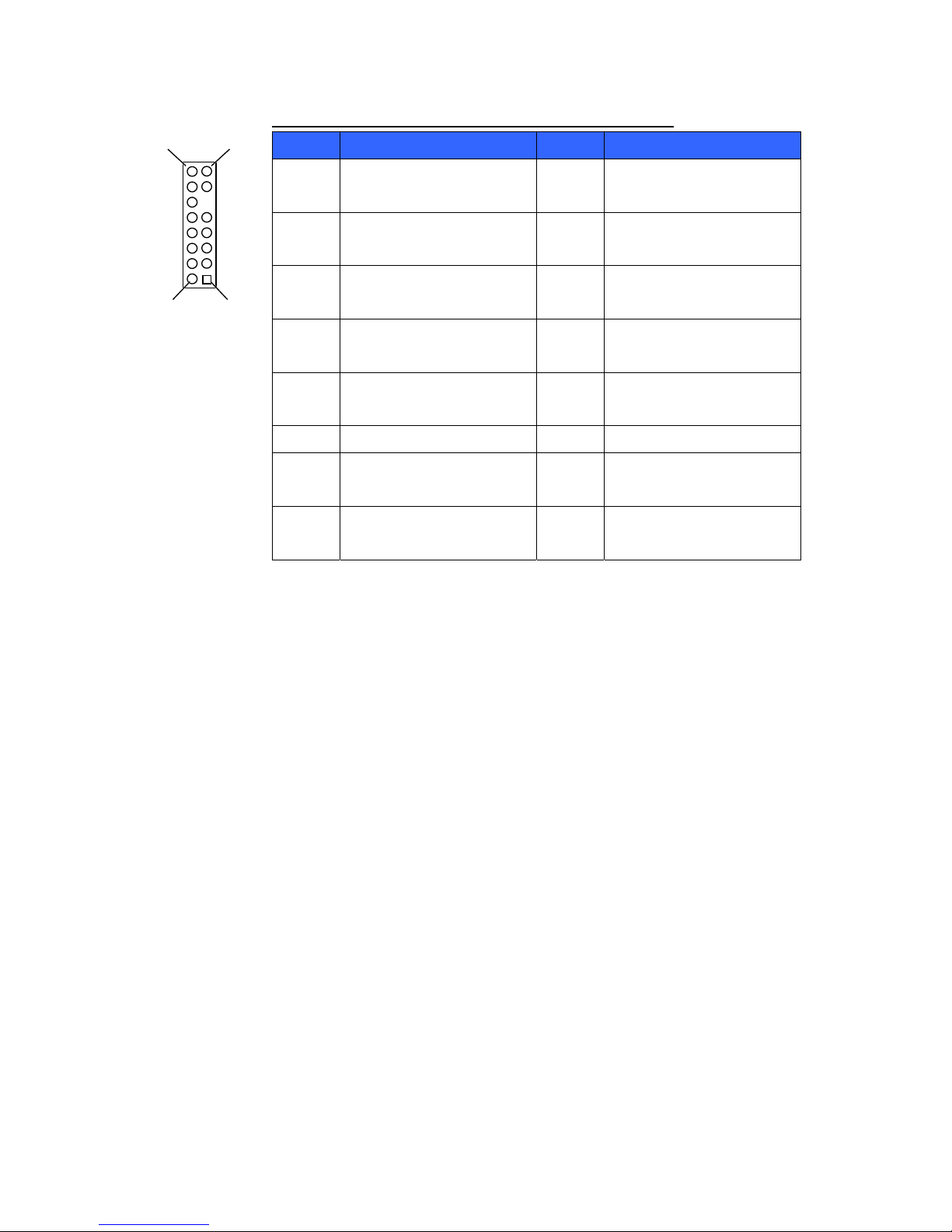

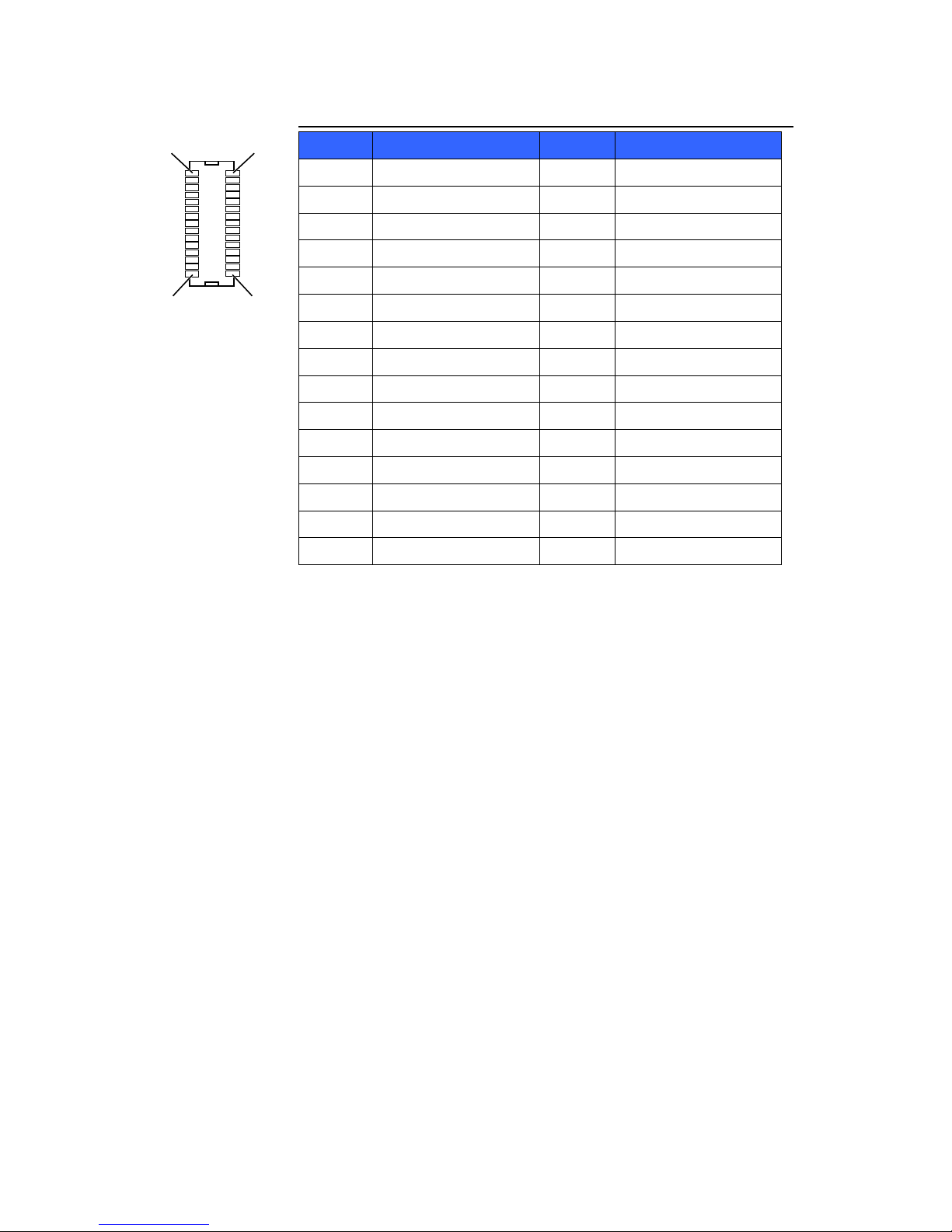

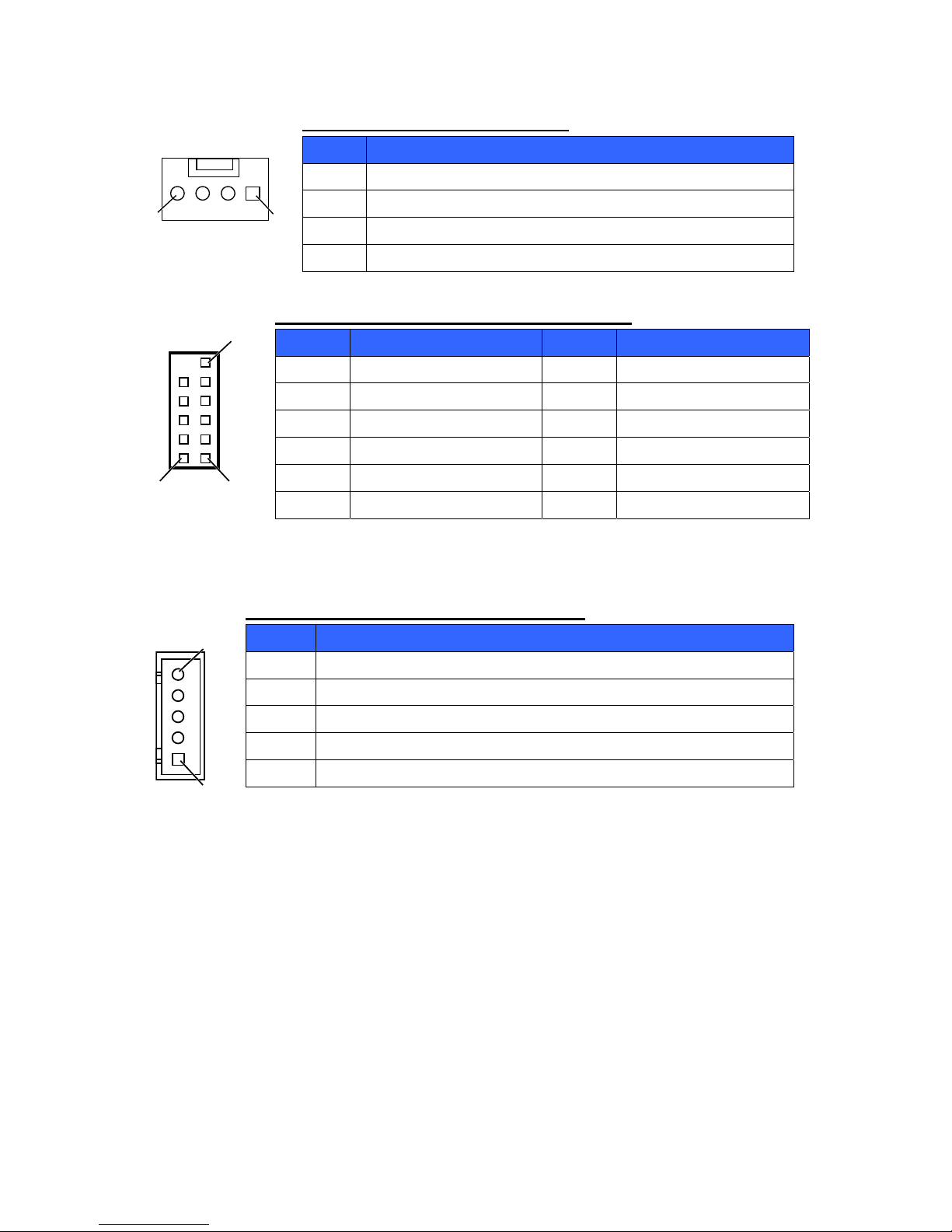

1.6 Internal Connector Pin Define
1
4

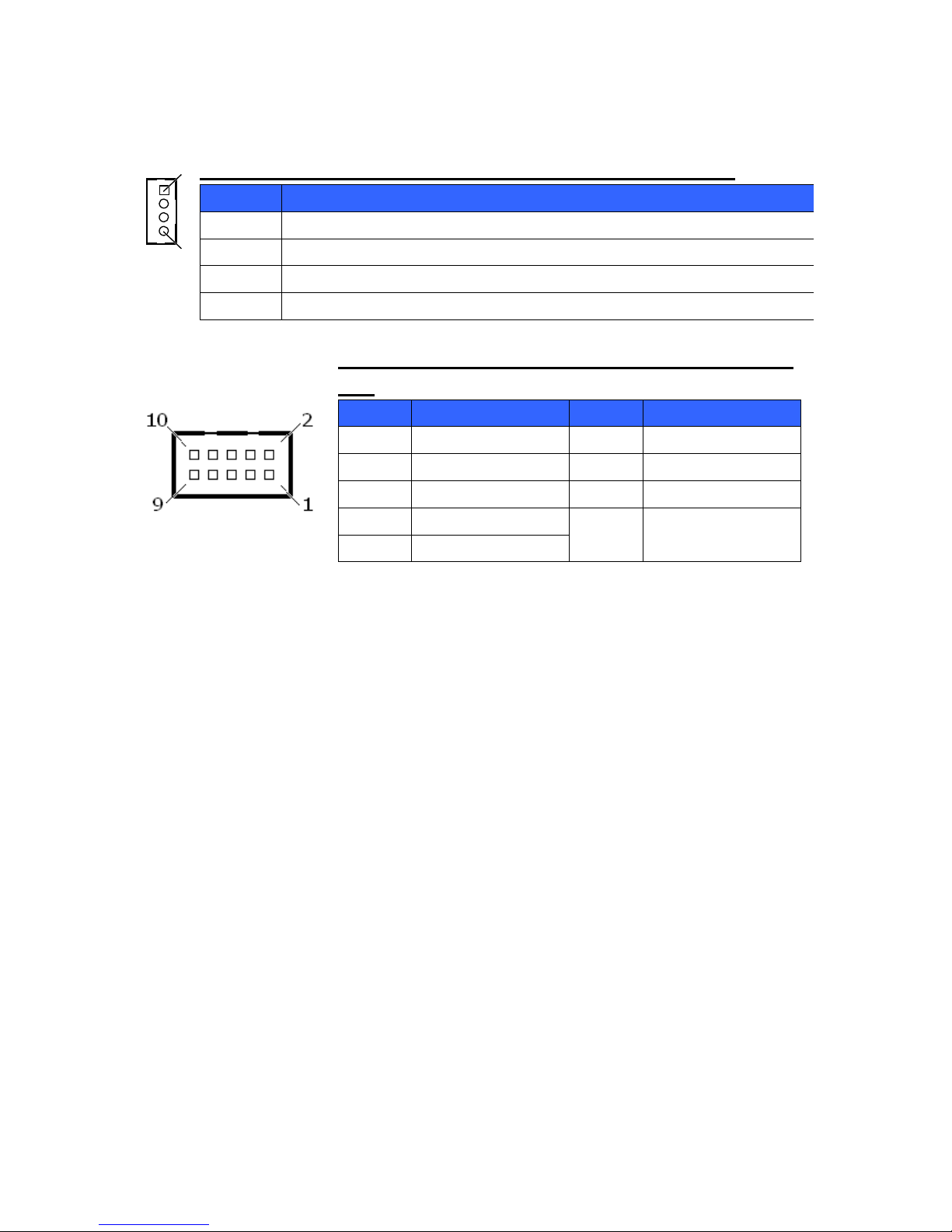

AUDIO2：Audio Amplifier Output with Wafer connector (2.0 mm)
Pin No. Signal
1 Audio Amplifier Out Right
2 Ground
3 Ground
4 Audio Amplifier Out L ft
COM4, COM5, COM6：Serial Port with Box-header (2.0
mm)
Pin No. Signal Pin No. Signal
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8,10 RI/+5V/+12V
9 Ground

14
4 1
CPUFAN1：4Pin FAN connector
Pin No.Signal
1 Ground
2 Fan Power (+12V)
3 Speed Sense
4 Control
12
11
DIO1：Digital I/O with Pin-header (2.54mm)
Pin No. Signal Pin No. Signal
1 DIO-Out0 bit0 2 DIO-In0 bit2
3 DIO-Out1 bit1 4 DIO-In1 bit3
5 DIO-Out2 bit6 6 DIO-In2 bit4
7 DIO-Out3 bit7 8 DIO-In3 bit5
9 +12V 10 +5V
11 Ground 12 NC
1
5
INV：Inverter with Box-header (2.50 mm)
Pin No. Signal
1 +12V
2 +12V
3 Ground
4 Inverter Bright ess Abject
5 Inverter Enable

15
12
1516
JFRONT：Front Panel with Pin-header (2.54mm)
Pin No. Signal Pin No. Signal
1 +5V (470 Ohm),
(Power LED+)
2 +5V (470 Ohm),
(HDD LED+)
3 NC 4 HDD LED#,
(HDD LED-)
5 Ground,
(Power LED-)
6 5VSB (470 Ohm),
(Suspend LED+)
7 RESET#,
(Reset Button Pin1)
8 Suspend LED#,
(Suspend LED-)
9 Ground,
(Reset Button Pin2)
10 FSPK# (Beep),
(Speaker-)
11 NC 12 NC
13 SW_PWR#,
(Power ON Button Pin1)
14 NC
15 Ground,
(Power ON Button Pin2)
16 +5V,
(Speaker+)

16
12
30 29
LVDS18：LVDS 18 bit Panel Signal with Box-header (1.0 mm)
Pin No. Signal Pin No. Signal
1 Ground 2 Ground
3 NC 4 NC
5 LA_CLKP 6 LA_CLKN
7 LA_DC2P 8 LA_DC2N
9 LA_DC1P 10 LA_DC1N
11 LA_DC0P 12 LA_DC0N
13 Ground 14 Ground
15 NC 16 NC
17 NC 18 NC
19 NC 20 NC
21 NC 22 NC
23 NC 24 NC
25 Ground 26 Ground
27 LVDS Power 28 LVDS Power
29 LVDS Power 30 LVDS Power
Note1：LVDS Power = +5V or +3.3V (Default)

17
12
30 29
LVDS24：LVDS 24 bit Panel Signal with Box-header (1.0 mm)
Pin
No. Signal Pin No. Signal
1 Ground 2 Ground
3 LVDS_P_CH0_TX3 4 LVDS_N_CH0_TX3
5 LVDS_P_CH0_TX_CLK 6 LVDS_N_CH0_TX_CLK
7 LVDS_P_CH0_TX2 8 LVDS_N_CH0_TX2
9 LVDS_P_CH0_TX1 10 LVDS_N_CH0_TX1
11 LVDS_P_CH0_TX0 12 LVDS_N_CH0_TX0
13 Ground 14 Ground
15 LVDS_P_CH1_TX3 16 LVDS_N_CH1_TX3
17 LVDS_P_CH1_TX_CLK 18 LVDS_N_CH1_TX_CLK
19 LVDS_P_CH1_TX2 20 LVDS_N_CH1_TX2
21 LVDS_P_CH1_TX1 22 LVDS_N_CH1_TX1
23 LVDS_P_CH1_TX0 24 LVDS_N_CH1_TX0
25 Ground 26 Ground
27 LVDS Power 28 LVDS Power
29 LVDS Power 30 LVDS Power
Note1：LVDS Power = +5V or +3.3V (Default)
26
13
14
1
LPT：Parallel Port with Box-header (2.0 mm)
Pin No. Signal Pin No. Signal
1 Strobe# 14 Auto Form Feed#
2 Data 0 15 Error#
3 Data 1 16 Initialization#
4 Data 2 17 Printer Select IN#
5 Data 3 18 Ground
6 Data 4 19 Ground
7 Data 5 20 Ground
8 Data 6 21 Ground
9 Data 7 22 Ground
10 Acknowledge# 23 Ground
11 Busy 24 Ground
12 Paper Empty 25 Ground
13 Printer Select 26 Ground

18
16
MCR：Internal Keyboard with Box-header (2.0 mm)
Pin No. Signal
1 +5V
2 KCLK_CON
3 KCLK_KBC
4 KDAT_CON
5 KDAT_KBC
6 Ground
Note：If not use MCR need short (Pin2 to Pin3) and (Pin4 to
Pin5) to enable PS2 Keyboard
14
3 2
PWR1：ATX 2x2 +12V Input
Pin No. Signal Pin No. Signal
1 Ground 2 Ground
3 +12V 4 +12V
14
SATA_PWR1, SATA_PWR2：SATA Power with Box-header
(2.50mm)
Pin No. Signal
1 +5V
2 Ground
3 Ground
4 +12V
13
SYSFAN：System FAN 3 Pin connector
Pin No. Signal
1 Ground
2 Fan Power (+12V)
3 Speed Sense

19
P1P2 P3P4
P6 P5
USB1_KBMS: USBx2, PS2 Keyboard and PS2 Mouse
connector (PS2 Y-Cable)
Pin No. Signal
U1 USB Power (+5V)
U2 USB Data0N
U3 USB Data0P
U4 USB_Ground
U5 USB Power (+5V)
U6 USB Data1N
U7 USB Data1P
U8 USB_Ground
P1 PS2_Ground
P2 PS2 Keyboard Data
P3 PS2 Mouse Data
P4 PS2 Power (+5V)
P5 PS2 Keyboard Clock
P6 PS2 Mouse Clock
12
10
USB4：USB6/7 Port with Pin-header (2.54mm)
Pin No. Signal Pin No. Signal
1 USB Power (+5V) 2 USB Power (+5V)
3 USB DATA6N 4 USB DATA7N
5 USB DATA6P 6 USB DATA7P
7 USB Ground 8 USB Ground
9 NC 10 Shield Ground
19
210
VGA2：VGA with Box-header (2.0 mm)
Pin No. Signal Pin No. Signal
1 VGA_RED 2 VGA_DDC_DATA
3 VGA_GREEN 4 VGA_DDC_CLK
5 VGA_BLUE 6 Ground
7 VGA_ HSYNC 8 Ground
9 VGA_ VSYNC 10 Ground

20
Chapter 2 BIOS Setup
This chapter introduces BIOS setup information.
Power on or reboot the system board, when screen appears message as “Press DEL
to enter SETUP“. Press <DEL> key to run BIOS SETUP Utility.
Note: The BIOS configuration for reference only, it may subject to change without
prior notice.
2.1 Main Menu
Please use arrow keys to select item, then press <Enter> key to accept or enter the
sub-menu.
Phoenix – AwardBIOS CMOS Setup Utility
Frequency / Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc : Quit ↑↓ ← → : Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type…
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
