x-sense SCO1 User manual

>< SENSE
Combination Smoke and Carbon Monoxide Alarm
Alarma Combinada de Humo y Mondoxido de Carbono
10-Year Sealed Battery Operated
Operada por una bateria sellada de 10 anos
User Manual
Manual de usuario
Model: SCO1/SC02/SCO7/SC08
F.1.05.8C0105 V01

This user manual contains important information about your combination smoke
& carbon monoxide alarm’s operation. To ensure proper use and trouble-free
operation, please read this manual carefully and store it in a safe place for future
reference.
Package Contents
1 x Alarm Unit
1 x Mounting Bracket
3 x Screws
3 x Anchor Plugs
1 x User Manual
1 x Warranty Card
2 x Carbon Monoxide Safety Stickers
Introduction
All X-Sense combination smoke & carbon monoxide alarms conform with
regulatory requirements, including UL 217 & UL 2034 standards and are designed to
detect both smoke and carbon monoxide.
This unit adopts photoelectric technology to detect smoke which is generally
more sensitive than ionization technology. It is effective at detecting large
particles, which tend to be produced in greater amounts by smoldering fires and
may smolder for hours before bursting into flame. Sources of these fires may
include cigarettes burning in couches or bedding.
Carbon monoxide (CO) is odorless, tasteless and invisible — it's a silent killer. Using
electrochemical sensing technology, this unit can detect increased levels of
carbon monoxide early, protecting your family from the dangers of carbon
monoxide.
Note: For maximum protection, use smoke & CO alarms on each level and in
every bedroom of your home. 0

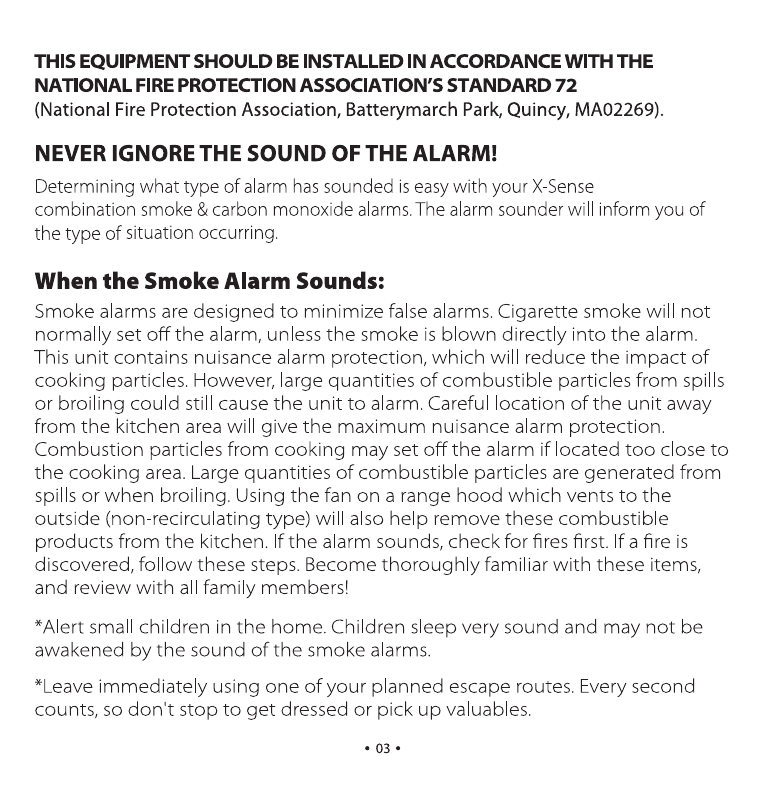

THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE
NATIONAL FIRE PROTECTION ASSOCIATION’S STANDARD 72
(National Fire Protection Association, Batterymarch Park, Quincy, MA02269).
NEVER IGNORE THE SOUND OF THE ALARM!
Determining what type of alarm has sounded is easy with your X-Sense
combination smoke & carbon monoxide alarms. The alarm sounder will inform you of
the type of situation occurring.
When the Smoke Alarm Sounds:
Smoke alarms are designed to minimize false alarms. Cigarette smoke will not
normally set off the alarm, unless the smoke is blown directly into the alarm.
This unit contains nuisance alarm protection, which will reduce the impact of
cooking particles. However, large quantities of combustible particles from spills
or broiling could still cause the unit to alarm. Careful location of the unit away
from the kitchen area will give the maximum nuisance alarm protection.
Combustion particles from cooking may set off the alarm if located too close to
the cooking area. Large quantities of combustible particles are generated from
spills or when broiling. Using the fan on a range hood which vents to the
outside (non-recirculating type) will also help remove these combustible
products from the kitchen. If the alarm sounds, check for fires first. If a fire is
discovered, follow these steps. Become thoroughly familiar with these items,
and review with all family members!
*Alert small children in the home. Children sleep very sound and may not be
awakened by the sound of the smoke alarms.
*Leave immediately using one of your planned escape routes. Every second
counts, so don't stop to get dressed or pick up valuables.
e©03e¢

*Before opening inside doors, look for smoke seeping in around the edges, and
feel with the back of your hand. If the door is hot, use your second exit. If you
feel it's safe, open the door very slowly and be prepared to close immediately if
smoke and heat rush in.
*lf the escape route requires you to go through smoke, crawl low under the
smoke where the air is clearer.
*Go to your predetermined meeting place. When two people have arrived, one
should leave to call 911 from a neighbor's home, and the other should stay to
perform a head count.
*Do not reenter under any circumstance until fire officials give the go-ahead.
*There are situations where a smoke alarm may not be effective to protect
against fire as noted by the NFPA and UL Std. 217. For instance:
- Smoking in bed.
- Leaving children unsupervised.
- Cleaning with flammable liquids, such as gasoline.
- Fires where the victim is intimate with a flaming initiated fire; for example,
when a person's clothes catch fire while cooking.
- Fires where the smoke is prevented from reaching the detector due to a
closed door or other obstruction.
- Incendiary fires where the fire grows so rapidly that an occupant's egress is
blocked even with properly located detectors.
°04e

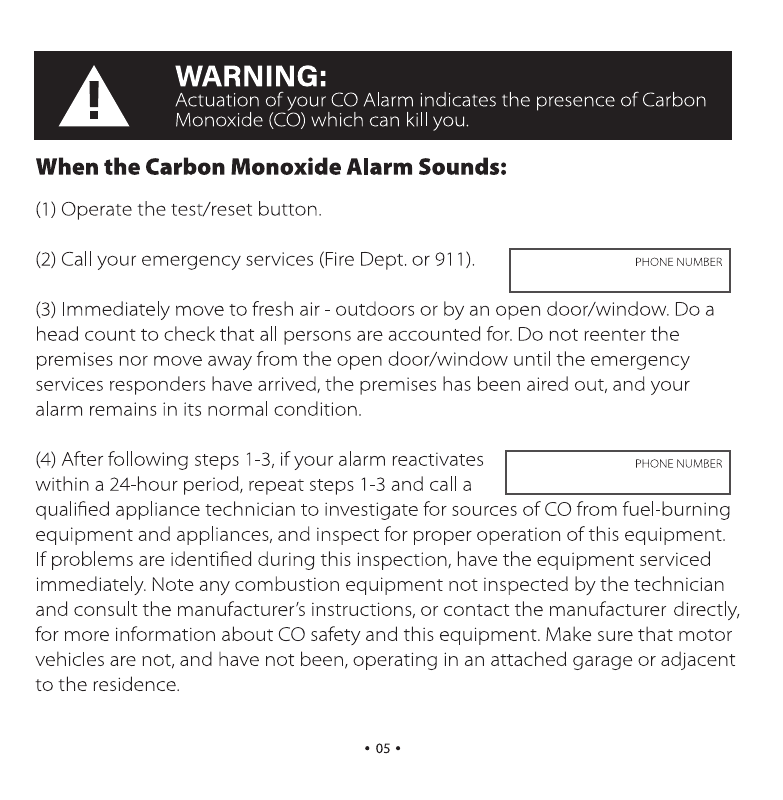

WARNING:
Actuation of your CO Alarm indicates the presence of Carbon
Monoxide (CO) which can kill you.
When the Carbon Monoxide Alarm Sounds:
(1) Operate the test/reset button.
(2) Call your emergency services (Fire Dept. or 911). PHONE NUMBER
(3) Immediately move to fresh air - outdoors or by an open door/window. Do a
head count to check that all persons are accounted for. Do not reenter the
premises nor move away from the open door/window until the emergency
services responders have arrived, the premises has been aired out, and your
alarm remains in its normal condition.
(4) After following steps 1-3, if your alarm reactivates PHONE NUMBER
within a 24-hour period, repeat steps 1-3 and calla
qualified appliance technician to investigate for sources of CO from fuel-burning
equipment and appliances, and inspect for proper operation of this equipment.
If problems are identified during this inspection, have the equipment serviced
immediately. Note any combustion equipment not inspected by the technician
and consult the manufacturer's instructions, or contact the manufacturer directly,
for more information about CO safety and this equipment. Make sure that motor
vehicles are not, and have not been, operating in an attached garage or adjacent
to the residence.
e©05e

Technical Specifications
Power supply 10-year sealed lithium battery
Sensor type
Smoke: Photoelectric
CO: Electrochemical
Product life About 10 years
Safety standards Conforms with UL 217 & UL 2034 standards
Smoke sensitivity
0.97-1.79%/ft OBS
CO sensitivity
70 ppm: 60-240 minutes
150 pom: 10-50 minutes
400 ppm: 4-15 minutes
Standby current < 6 UA (avg.)
Alarm current < 60 mA (avg.)
Best operating ambient temperature 40-100 °F (4.4-37.8 °C)
Operating relative humidity < 85% RH (non-condensing)
Alarm loudness > 85 cB at 9.84 ft (3 m) @ 3.2 + 0.3 kHz pulsing alarm
Silence duration
Smoke: < 9 minutes;
CO: < 6 minutes
°06e

Product Overview
J CAUTION!
THIS SMOKE AND CO ALARM IS DESIGNED FOR INDOOR USE ONLY. DO NOT EXPOSE TO
RAIN OR MOISTURE. DO NOT KNOCK OR DROP THE ALARM. DO NOT OPEN OR TAMPER
WITH THE ALARM AS THIS COULD CAUSE MALFUNCTION.

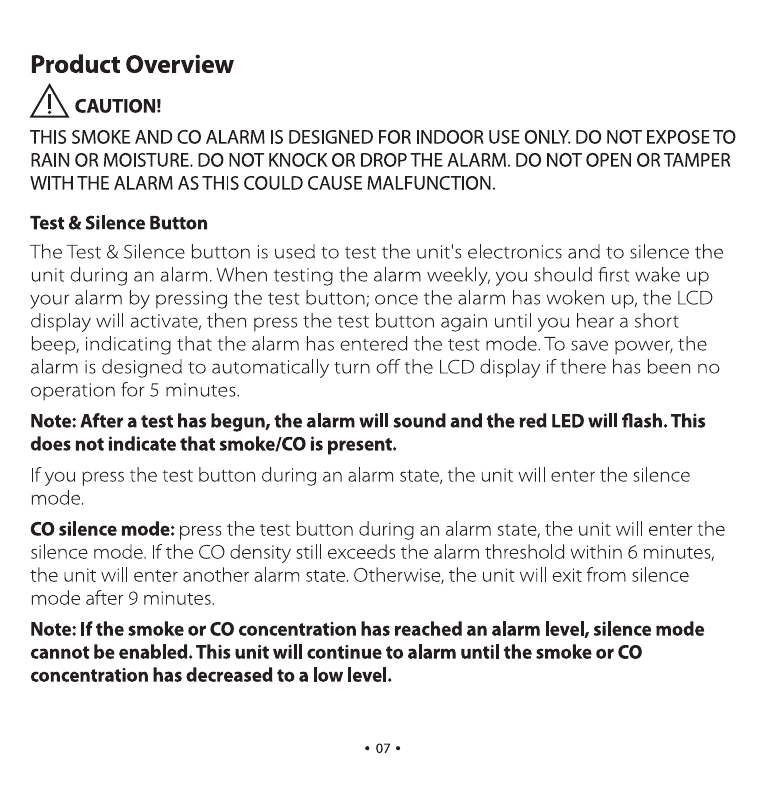

Test & Silence Button
The Test & Silence button is used to test the unit's electronics and to silence the
unit during an alarm. When testing the alarm weekly, you should first wake up
your alarm by pressing the test button; once the alarm has woken up, the LCD
display will activate, then press the test button again until you hear a short
beep, indicating that the alarm has entered the test mode. To save power, the
alarm is designed to automatically turn off the LCD display if there has been no
operation for 5 minutes.
Note: After a test has begun, the alarm will sound and the red LED will flash. This
does not indicate that smoke/CO is present.
If you press the test button during an alarm state, the unit will enter the silence
mode.
CO silence mode: press the test button during an alarm state, the unit will enter the
silence mode. If the CO density still exceeds the alarm threshold within 6 minutes,
the unit will enter another alarm state. Otherwise, the unit will exit from silence
mode after 9 minutes.
Note: If the smoke or CO concentration has reached an alarm level, silence mode
cannot be enabled. This unit will continue to alarm until the smoke or CO
concentration has decreased to a low level.
°07e

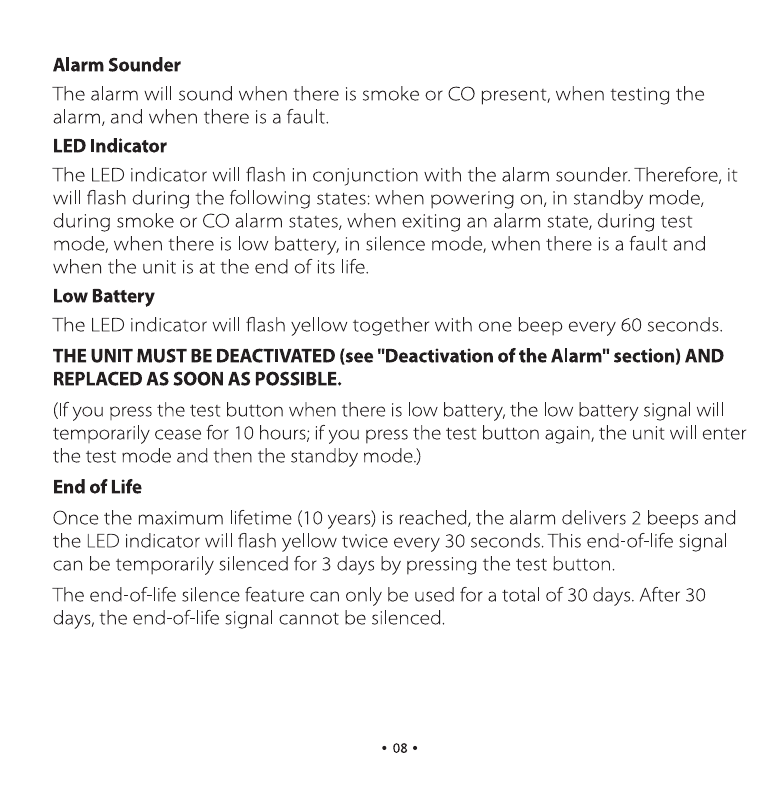

Alarm Sounder
The alarm will sound when there is smoke or CO present, when testing the
alarm, and when there is a fault.
LED Indicator
The LED indicator will flash in conjunction with the alarm sounder. Therefore, it
will flash during the following states: when powering on, in standby mode,
during smoke or CO alarm states, when exiting an alarm state, during test
mode, when there is low battery, in silence mode, when there is a fault and
when the unit is at the end of its life.
Low Battery
The LED indicator will flash yellow together with one beep every 60 seconds.
THE UNIT MUST BE DEACTIVATED (see "Deactivation of the Alarm" section) AND
REPLACED AS SOON AS POSSIBLE.
(If you press the test button when there is low battery, the low battery signal will
temporarily cease for 10 hours; if you press the test button again, the unit will enter
the test mode and then the standby mode.)
End of Life
Once the maximum lifetime (10 years) is reached, the alarm delivers 2 beeps and
the LED indicator will flash yellow twice every 30 seconds. This end-of-life signal
can be temporarily silenced for 3 days by pressing the test button.
The end-of-life silence feature can only be used for a total of 30 days. After 30
days, the end-of-life signal cannot be silenced.
° 08 e

Different working modes and states are shown in the below table:
Mode LED Indicator Audible Alarm Remarks
Powering on | Blinks 8 cycles None.
(red/green/yellow)
in sequence.
Standby Flashes green once | None.
mode every 60 seconds.
Alarm mode
Flashes red 3 times
every 1.5 seconds.
3 long beeps every
1.5 seconds.
Smoke alarm.
First 4 minutes:
flashes red 4 times
every 5.8 seconds.
After 4 minutes:
flashes red 4 times
every 60 seconds.
First 4 minutes: 4
quick beeps every
5.8 seconds.
After 4 minutes: 4
quick beeps every
60 seconds.
CO alarm.
Flashes green
once every second
for 5 seconds.
None. Exiting an alarm:
When the smoke or
CO concentration
drops below the
alarm threshold, the
alarm signal stops.
2 sets of 3 red 2 sets of 3 long
Test mode _ | flashes followed by 2) beeps followed by 2
sets of 4 red flashes. | sets of 4 quick beeps.
Flashes red once None. After 9 minutes, the
Silence every 5 seconds. unit will exit silence
mode mode.
Flashes green 3
times.
None. Exiting silence
mode.
© 09e

Low battery
Flashes yellow once
every 60 seconds.
One beep every 60
seconds.
Fault Flashes yellow 1 or 2 Smoke
times every 40 seconds.} 2 beeps every 40 | malfunction mode.
Flashes yellow 3 or4 | Seconds. CO malfunction
times every 40 seconds. mode.
; Flashes yellow 2 times |2 beeps every 30
End of life every 30 seconds. seconds.
LCD Display
While detecting CO, the LCD will display different indications to help you
understand what to do, as shown below:
LCD Display LED Status Alarm Sound Unit Status Solutions
Ifa CO The alarm delivers | Dangerous Refer to "If the
concentration |beeps andthe |COconcentration |Smoke/CO Alarm
of 30-999 ppm |LED indicator will |has been detected] Sounds".
co ff
exists for a certain
time period, the
screen will be
backlit blue, and
the LED indicator
will flash red 4
times every 58
seconds. After 4
minutes, it will
flash red 4 times
per minute.
flash with the
same frequency.

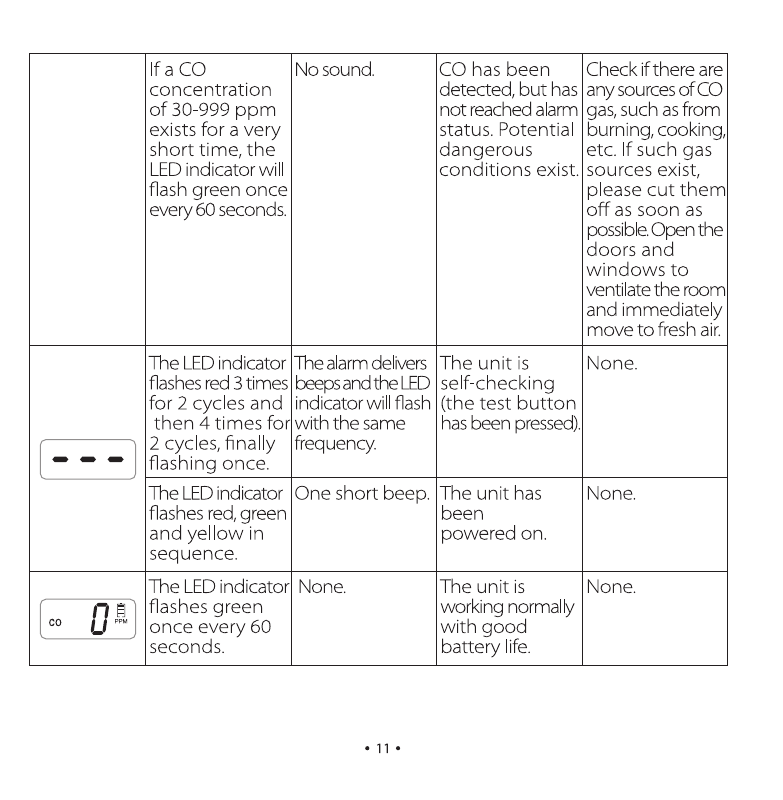

Ifa CO
concentration
of 30-999 ppm
exists for a very
short time, the
LED indicator will
flash green once
every 60 seconds.
No sound. CO has been
detected, but has
not reached alarm
status. Potential
dangerous
conditions exist.
Check if there are
any sources of CO
gas, such as from
burning, cooking,
etc. If such gas
sources exist,
please cut them
off as soon as
possible. Open the
doors and
windows to
ventilate the room
and immediately
move to fresh air.
The LED indicator |The alarm delivers |The unit is None.
flashes red 3 times] beeps andthe LED |self-checking
for 2 cycles and indicator will flash | (the test button
then 4 times for)with the same has been pressed),
2 cycles, finally |frequency.
- = @ | |flashing once.
The LED indicator |One short beep. |The unit has None.
flashes red, green been
and yellow in powered on.
sequence.
The LED indicator} None. The unit is None.
1712 | |flashes green working normally
co Hi ™ | lonce every 60 with good
seconds.
battery life.
elle

The LCD display
One quick beep
Low battery
As the battery is
alternates every 60 seconds. }warning. not replaceable,
co H b Ul | |between "Lb" you will need to
- and current CO replace the unit.
mq level. The LED
°° LI | Jindicator flashes
yellow once every
60 seconds.
The LED indicator Smoke If "Err" continues
flashes yellow malfunction. —_|to display, the
1 time every unit has
AO seconds. malfunctioned
and must be
The LED indicator Smoke replaced
flashes yellow malfunction. immediately.
°° Err é
2 times every
AO seconds.
The LED indicator
flashes yellow
3 times every
40 seconds.
The LED indicator
flashes yellow
Two quick beeps
every 40 seconds.
CO malfunction.
CO malfunction.
id Eni d F
4 times every
AO seconds.
The LED Two quick beeps |End of life. Replace the unit
indicatorflashes |every 30 seconds. immediately.
yellow twice every
30 seconds.
°12°

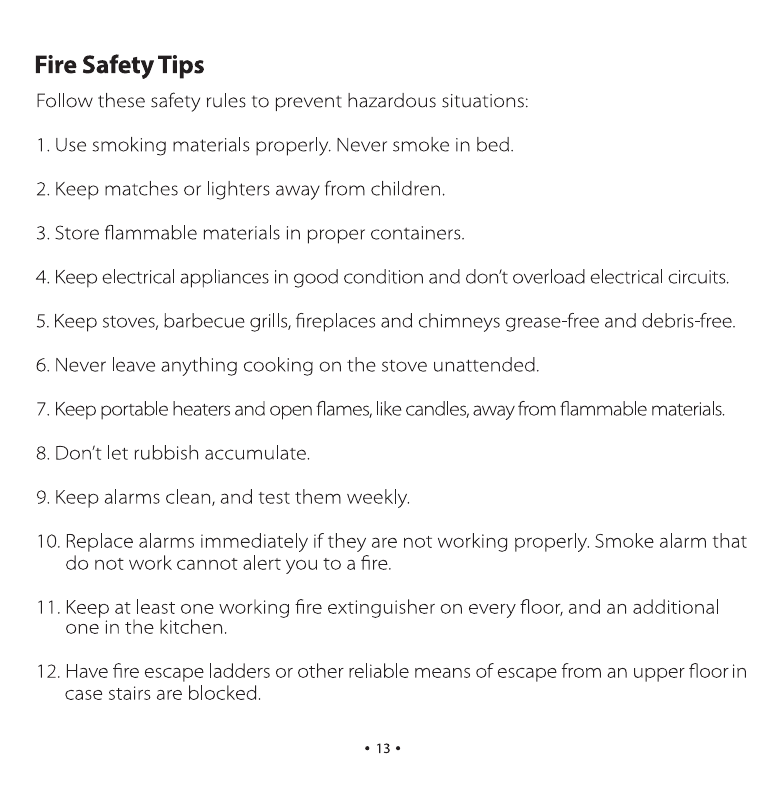

Fire Safety Tips
Follow these safety rules to prevent hazardous situations:
1, Use smoking materials properly. Never smoke in bed.
2. Keep matches or lighters away from children.
3. Store flammable materials in proper containers.
4. Keep electrical appliances in good condition and don't overload electrical circuits.
5. Keep stoves, barbecue grills, fireplaces and chimneys grease-free and debris-free.
6. Never leave anything cooking on the stove unattended.
7. Keep portable heaters and open flames, like candles, away from flammable materials.
8. Don't let rubbish accumulate.
9. Keep alarms clean, and test them weekly.
10. Replace alarms immediately if they are not working properly. Smoke alarm that
do not work cannot alert you to a fire.
11. Keep at least one working fire extinguisher on every floor, and an additional
one in the kitchen.
12. Have fire escape ladders or other reliable means of escape from an upper floor in
case stairs are blocked.
e136

evle
“ASOdYNd LWHLYOS FTEVLINS GNNOJ GNV GSLWNTIWAA N38 SVH NOLLWNIGWOD
AHL SSFINN SGYVND YOLDALAG HLIM G4SN 44 OL LON Suv SWYVTV JYOWS °S
Asdl AYSLIVE JDNGIAY AVW ALIGIWNH MO7 YO HDIH OL SAYNSOdxX4 LNVLSNOD “7
‘NOILSNAWOD 40 JDYNOS ANV WOYSs
ACIXONOW NO@¥VD L94514d OL GANDISAC SI WaV1V SGIXONOW NO@YVD SIHL*E
“ASN AWOH OS
QsAAOUddV AINO SI WYV TV JCIXONOW NOY) 3 SHOWS NOLLVNIEWOD SIHL *Z
“SNOLLVNLIS ASAHL OL NOILNALLV
WID4dS AVd “SNOLLWNLIS SNOGYVZVH ATIVILNSLOd OL YO SNOLLINYLSNI
ONILWYddO LNVLYOdWI OLNOA LYATV SNOLLAVD CNV ‘SDNINYVM ‘SHFDNV ‘1
iLNVLYOdWI \j/
uo!}eWAOJU] AjJayes DISeg

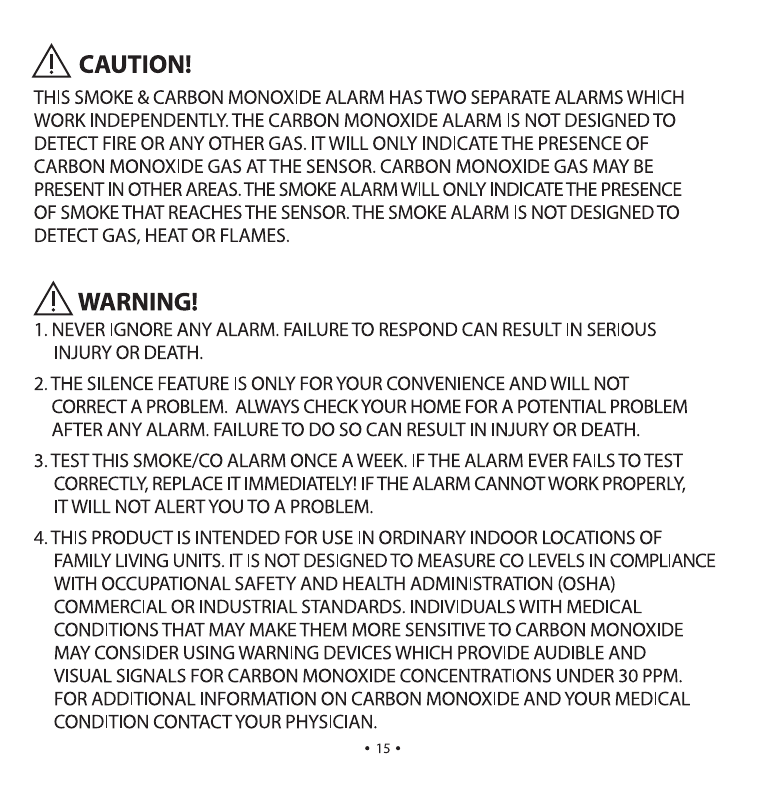

/\, CAUTION!
THIS SMOKE & CARBON MONOXIDE ALARM HAS TWO SEPARATE ALARMS WHICH
WORK INDEPENDENTLY. THE CARBON MONOXIDE ALARM IS NOT DESIGNED TO
DETECT FIRE OR ANY OTHER GAS. IT WILL ONLY INDICATE THE PRESENCE OF
CARBON MONOXIDE GAS AT THE SENSOR. CARBON MONOXIDE GAS MAY BE
PRESENT IN OTHER AREAS. THE SMOKE ALARM WILL ONLY INDICATE THE PRESENCE
OF SMOKE THAT REACHES THE SENSOR. THE SMOKE ALARM IS NOT DESIGNED TO
DETECT GAS, HEAT OR FLAMES.
/\ WARNING!
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL PROBLEM
AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY OR DEATH.
3. TEST THIS SMOKE/CO ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST
CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY,
IT WILL NOT ALERT YOU TO A PROBLEM.
4. THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR LOCATIONS OF
FAMILY LIVING UNITS. IT IS NOT DESIGNED TO MEASURE CO LEVELS IN COMPLIANCE
WITH OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA)
COMMERCIAL OR INDUSTRIAL STANDARDS. INDIVIDUALS WITH MEDICAL
CONDITIONS THAT MAY MAKE THEM MORE SENSITIVE TO CARBON MONOXIDE
MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND
VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM.
FOR ADDITIONAL INFORMATION ON CARBON MONOXIDE AND YOUR MEDICAL
CONDITION CONTACT YOUR PHYSICIAN.
e15¢e

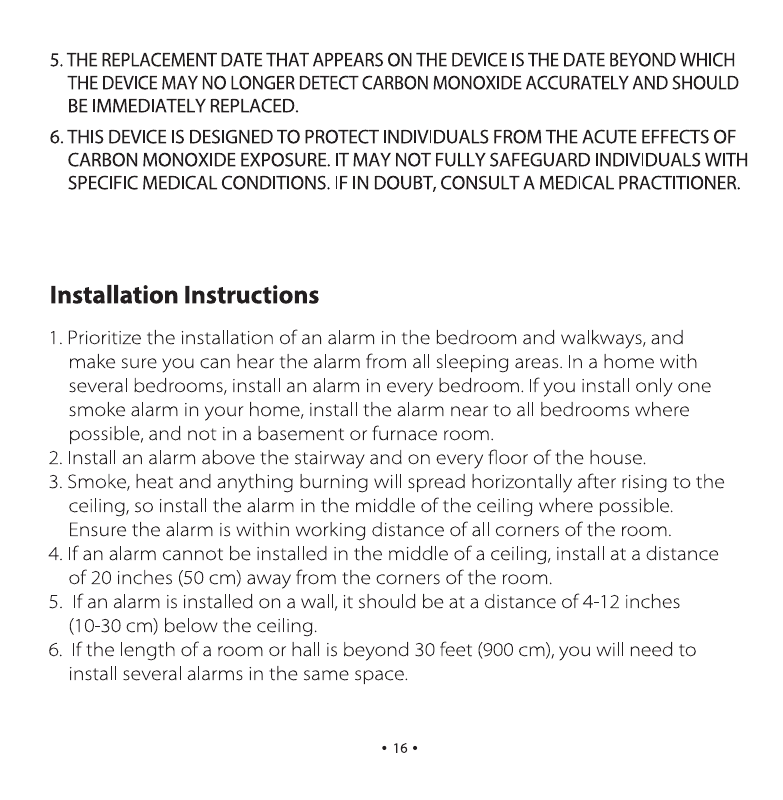

5. THE REPLACEMENT DATE THAT APPEARS ON THE DEVICE IS THE DATE BEYOND WHICH
THE DEVICE MAY NO LONGER DETECT CARBON MONOXIDE ACCURATELY AND SHOULD
BE IMMEDIATELY REPLACED.
6. THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM THE ACUTE EFFECTS OF
CARBON MONOXIDE EXPOSURE. IT MAY NOT FULLY SAFEGUARD INDIVIDUALS WITH
SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER.
Installation Instructions
1. Prioritize the installation of an alarm in the bedroom and walkways, and
make sure you can hear the alarm from all sleeping areas. In a home with
several bedrooms, install an alarm in every bedroom. If you install only one
smoke alarm in your home, install the alarm near to all bedrooms where
possible, and not in a basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to the
ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure the alarm is within working distance of all corners of the room.
4. If an alarm cannot be installed in the middle of a ceiling, install at a distance
of 20 inches (50 cm) away from the corners of the room.
5. lf an alarm is installed on a wall, it should be at a distance of 4-12 inches
(10-30 cm) below the ceiling.
6. If the length of a room or hall is beyond 30 feet (900 cm), you will need to
install several alarms in the same space.
° 16°

20”
ig —__ (50cm) ——->
1 MINIMUM
—___—_., boponn anne
L J DEAD AIR 4"
NEVER HERE SPACE (10 cm)
PERE MINIMUM
—
(dcr )
cm.
accep
rable
MAXIMUM
LE
7.When the wall or ceiling is angled, the alarm needs to be installed within 3 feet
(90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
NOT IN NOT IN
Lo THIS AREA THIS AREA
ye oper ANYWHERE \ tag
(10 cm) | Lf, | a ANYWHERE INTHIS AREA { (10 cm)
SS AREA \ E
3ft ! 3ft
(90cm) 0 on) (90 cm)
e17e

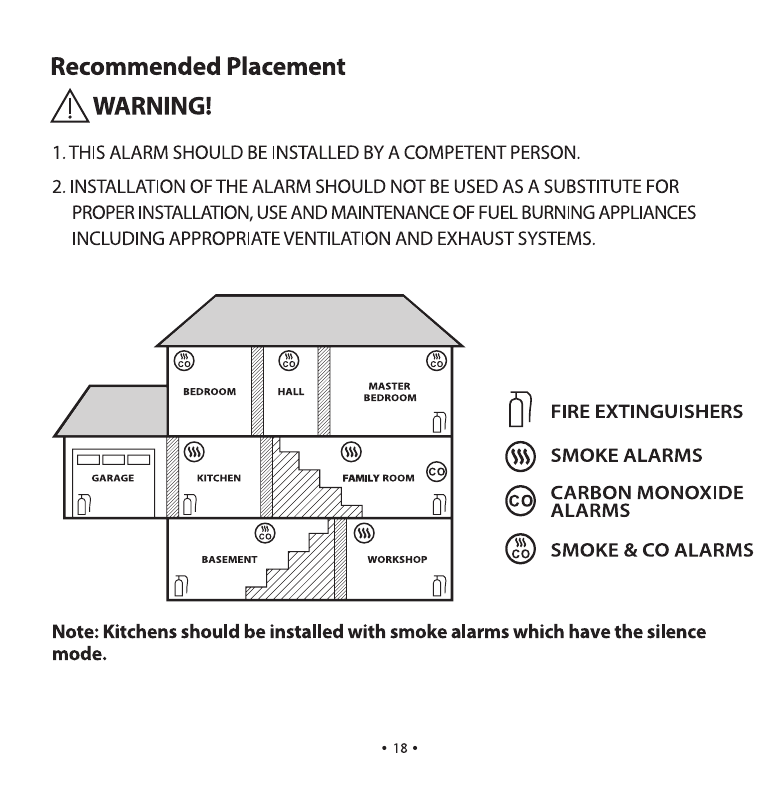

Recommended Placement
/\\. WARNING!
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. INSTALLATION OF THE ALARM SHOULD NOT BE USED AS A SUBSTITUTE FOR
PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES
INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.
BEDROOM eepronu
/ 7 fil FIRE EXTINGUISHERS
Ses) 1), ® ZY ®) @) SMOKE ALARMS
GARAGE KITCHEN GY FAMILY ROOM
G CARBON MONOXIDE
fi 0 L al ALARMS
®)
BASEMENT WORKSHOP SMOKE & co ALARMS
Gg
a a
Note: Kitchens should be installed with smoke alarms which have the silence
mode.
°18¢

How to Install This Alarm
/\\ IMPORTANT!
THIS COMBINATION SMOKE/CO ALARM IS DESIGNED TO BE MOUNTED ON THE CEILING
OR WALL.
/\\ WARNING!
FAILURE TO PROPERLY INSTALL AND ACTIVATE THIS ALARM WILL PREVENT PROPER
OPERATION OF THE ALARM AND WILL PREVENT ITS RESPONSE TO FIRE HAZARDS OR
CO.
Locations to Avoid
WARNING - This product is intended for use in ordinary indoor locations of
family living units. It is not designed to measure compliance with the
Occupational Safety and Health Administration (OSHA) commercial or industrial
standards.
1. Do not install in garages, kitchens, furnace rooms or bathrooms! Do not install
within 5 ft or 1.5 m of cooking appliances.
2. Do not install within 3 ft (0.9 m) of the following: The door to a kitchen, or a
bathroom that contains a tub or shower, forced air supply ducts used for
heating or cooling, ceiling or whole house ventilating fans, or other high air
flow areas. Avoid excessively dusty, dirty or greasy areas. Dust, grease or
household chemicals can contaminate the alarm’s sensors, causing the alarm
to not operate properly.
°©19e

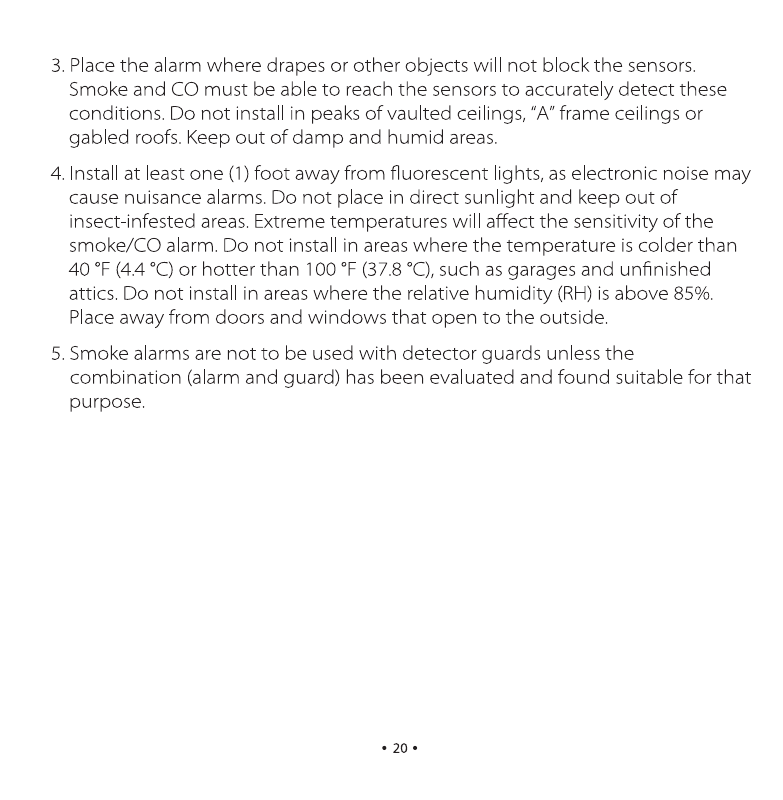

3. Place the alarm where drapes or other objects will not block the sensors.
Smoke and CO must be able to reach the sensors to accurately detect these
conditions. Do not install in peaks of vaulted ceilings, “A” frame ceilings or
gabled roofs. Keep out of damp and humid areas.
4. Install at least one (1) foot away from fluorescent lights, as electronic noise may
cause nuisance alarms. Do not place in direct sunlight and keep out of
insect-infested areas. Extreme temperatures will affect the sensitivity of the
smoke/CO alarm. Do not install in areas where the temperature is colder than
40 °F (4.4 °C) or hotter than 100 °F (37.8 °C), such as garages and unfinished
attics. Do not install in areas where the relative humidity (RH) is above 85%.
Place away from doors and windows that open to the outside.
5. Smoke alarms are not to be used with detector guards unless the
combination (alarm and guard) has been evaluated and found suitable for that
purpose.
© 20°
