XFIRE AUDIO XFR2000.5 User manual

AUDIO
XFR series multi channel
Mobile power amplifiers
Owners manual
xfireaudio.com

XFR series Life Amplified
Introduction
Welcome to XFIRE AUDIO ‘‘The New Breed Of Mobile Audio’’.
Congratulations on purchasing one of the finest autosound power amplifiers in existence.
Born in The U.S.A from rigorous pursuits of exceptional sound, strength, performance, and style delivering kick ass mo-
bile audio! Relentless pride and passion with 30 plus years of experience and excellence in the 12 volt industry.
It’s Your Music, It’sYour Style, It’s Your Life, AMPLIFIED!
Purchase and serial number information.
Record your New XFIRE AUDIO product information for future reference.
Purchase Date
Retailer
Model #
Serial #
XFR series amplifiers raise the bar on amplification savagery with gut wrenching performance and quality producing
pristine audio with discerning detail capable of unleashing profound sonic fury without breaking a sweat.
• Ultraecient2,4and5channelfullrangeClassDtopologydesignswith8voltinputsand2ohmstability.
• ExtensivecustomizationcontrolslikeHP/LPcrossovers,subsoniclter,bassboost,andvariableboostfrequency
make it easy to design the perfect soundstage.
• Heavy-dutyallaluminumchassis,“DirectDeviceMount”PCB’sandtighttolerancecomponentsforimprovedsignal
to noise ratios for superior musical reproduction from the very first note.
• InputandoutputconnectorsdirectPCBmountedensuringmaximumpowerandsignaltransferwhilesidepanel
secured terminals resist flex, twist or breakage for structural integrity and performance .
XFR series amplifiers are raw, rugged and road worthy workhorse powerhouses.
Peerless Amplification Unleashed!
This operating manual provides necessary information for the installation and use of your XFR amplifier. Please read it
carefully to insure a lifetime of high fidelty autosound enjoyment.
Features

Specifications
RMS power output (14.4V0.15%THD):
Model @ 2Ω @ 4Ω @ 4Ω Bridged
XFR2000.5 4x150W
1x400W
4x100W
1x250W
2x 300 W
1x400W
XFR2000.4 4x250W 4x150W 2x500W
XFR1800.2 2x450W 2x 300 W 1x 900 W
XFR1200.4 4x150W 4x100W 2x 300 W
Customization controls:
Model LP X-over HP X-over Subsonic Phase Shift Bass Boost
XFR2000.5 50-250Hz 50-250Hz N/A 00-18000-+18dB
40-100Hz
XFR2000.4 50-5000Hz 20-5000Hz N/A N/A N/A
XFR1800.2 30-500Hz 40-3000Hz 10-50Hz N/A 0 - +12 dB
@45Hz
XFR1200.4 50-250Hz 50-250Hz N/A N/A 0-+18dB
@45Hz
Model Input
Sensitivity
Signal to
Noise Ratio
Frequency
Response
Fuse
Rating
Dimensions
LxWxH (mm)
XFR2000.5 200mV-4V >90dB(IEC-A) 10-30000Hz 90Amp 260x172x53
XFR2000.4 200mV-8V >90dB(IEC-A) 10-30000Hz 60Amp 260x172x53
XFR1800.2 200mV-8V >90dB(IEC-A) 10-30000Hz 60Amp 260x172x53
XFR1200.4 200mV-4V >90dB(IEC-A) 20-30000Hz 50Amp 180x172x53
All XFR amplifiers have a damping factor >200 !
All specifications are subject to change without notification due to continual product improvements.
XFR series Life Amplified

Installation
ActualinstallationofanXFRamplierisnotadiculttask.However,ittakesafewtools,considerablecareandprecise
attention to the instructions in this manual. If you doubt that you are up to the task, or your car proves to require special
installationskills,werecommendhavingtheworkdonebyanauthorizedXFIREAUDIOinstallationprofessional.
Safety instructions
• Alwaysdisconnectthenegative(“-”)batteryterminalbeforemakinganyconnectionstotheamplier.
• Fusethepositive(“+”)powerlead,withtherightvaluefusewithin30cmofthebatteryconnection,thefuserating
for each XFR amplifier is given in the specifications.
• EachXFRamplierisdesignedforusewitha12VoltDCnegativegroundsystem.
• Mounttheampliersecurely.Donotuseunmounted.
• Makesureallwireconnectionsaresecureandprotectedsothereisnodangerofripsorpinchesinthewire.
• Makesureyoursourceunitisswitchedowhenmakinginputconnectionstotheamplier.
• Inspectyourampliermountinglocationcarefullytoavoiddamaginggastanks,gaslines,brakeorhydrauliclines
and electrical wiring.
• Installtheamplierinalocationwhereitwillhaveenoughventilation,protectionfromengineheat,heatersor
direct sunlight, rain and dirt. Do not install in the engine compartment.
• Avoidplayingyourcaraudiosystemforlongperiodsoftimeathighvolumewhentheengineisnotrunning.This
will prevent unneccesary battery drain.
XFR series Life Amplified

AnXFRamplierneedsafewthingstobehappyinacar:Ventilationanda“clean”sourceofpower.
VENTILATION Is important with any mobile amplifier. An amplifier can generate a considerable amount of heat
when driven hard, and car interiors can get quite hot in the summer. Be careful when choosing a spot to mount the
amplifier. Make sure there is enough airflow along the hetasink of the amplifier.
CLEAN POWER Power connections are often overlooked as a source of noise and other frustrations in a mobile
installation. Since mobile amplifiers are powered by a low-voltage car battery, the current required to reach max
outputpowercanbeveryhighandtheresistanceofthepowerwiresbecomesverycriticalinminimizingpower
losses. Since the car’s electrical system is powered by an inherently noisy alternator, you need a low-resistance
groundtokeepthehigh-poweredmobileaudiosystem“quiet”.Toreducepowerloss,powerwiringshouldbe
made directly to the battery, using proper gauge copper wire. For safety reasons an inline fuseholder with the rec-
ommendedfuseratingneedstobeinstalledwithin18inchesofthebattery.Theheavierthewire,thelesschance
there is for power loss. Also, keep wire lenghts as short as possible.
Thegroundleadservesdouble-duty.Inadditiontohandlingallthepower(asmuchasthepositivepowerlead),
the ground is responsible for keeping noise to a minimum.The less the ground resistance, the less noise.
We recommend the same guage ground wire as the power wire. Ensure you have a single point of ground for the
entire audio system to avoid groundloops and inducting noise into the system. Use the Power Wiring Selection
Chart to determine the minimum wire guage for a given power output and length. Remember, there is no such
thing as too little resistance!
Power wiring selection chart: TotalouputpowerVslengthofpositivepowerwire
Length 100W 150W 200W 300W 600W 1000W >1000W
5 ft. 10 AWG 10 AWG 8AWG 8AWG 4AWG 2 AWG 1 AWG
10 ft. 10 AWG 10 AWG 8AWG 8AWG 4AWG 2 AWG 1 AWG
15 ft. 10 AWG 8AWG 8AWG 8AWG 4AWG 2 AWG 0 AWG
20 ft. 10 AWG 8AWG 8AWG 4AWG 4AWG 2 AWG 0 AWG
25 ft. 10 AWG 8AWG 8AWG 4AWG 2 AWG 1 AWG 2x 1 AWG
30 ft. 10 AWG 8AWG 8AWG 4AWG 2 AWG 1 AWG 2x 1 AWG
MinimumrecommendedAmericanWireGaugesizesforpowerandgroundconnections.
XFR series Life Amplified

_
+CAR
BATTERY
FUSE
Remote turn on
Ground
Use recommended
fuse rating
!
+B REM GND
HEAD UNIT
Connections
1 GROUND (-) Ground connection should be made to the vehicle’s chassis with a clean, bare metal, strong connec-
tion keep the length of the ground wires as short as possible. Always use the same wire thickness as used for the
positive12VDCconnection.
2 REMOTE (REM)Thisistheconnectiontoturntheamplieronando.Whena+12VDCvoltageisappliedtothis
terminaltheamplierwillswitchon,whenthisvoltageisremovedtheamplierwillswitcho.Usuallythisis
done by the source unit’s remote output. The source unit’s remote output lead or power antenna lead will supply
+12VDCwhentheunitisturnedon.
3 POSITIVE (+12V)Positivepowerconnectionshouldbemadedirectlytothevehicle’sbatterypositive(“+”)ter-
minal.Usetheproperwirethickness(seePowerWiringConnectionchart)andmakesureyouinstallaninline
fuseholderwithin18inchesofthebatteryconnection,thefuseratingforeachXFRamplierisgiveninthespeci-
fications.
4 LOUDSPEAKER OUTPUTS This is where you connect your speakers. When connecting loudspeakers to an XFR
amplifier, please be sure to observe proper polarity. Do not load the amplifier with so many speakers that the
minimum impedance capacity is exceeded.
Speaker wiring selection chart: OuputpowertospeakerVslengthofspeakerwire
Length 80W 100W 150W 200W 300W 500W
5 ft. 14AWG 12 AWG 12 AWG 10 AWG 10 AWG 8AWG
10 ft. 12 AWG 12 AWG 10 AWG 10 AWG 10 AWG 8AWG
15 ft. 12 AWG 12 AWG 10 AWG 10 AWG 10 AWG 8AWG
20 ft. 12 AWG 12 AWG 10 AWG 10 AWG 8AWG 8AWG
MinimumrecommendedAmericanWireGaugesizesforspeakerconnections.
XFR series Life Amplified

BRIDGED MIN 4ohm
CH1 CH2
BRIDGED MIN 4ohm
CH1 CH2

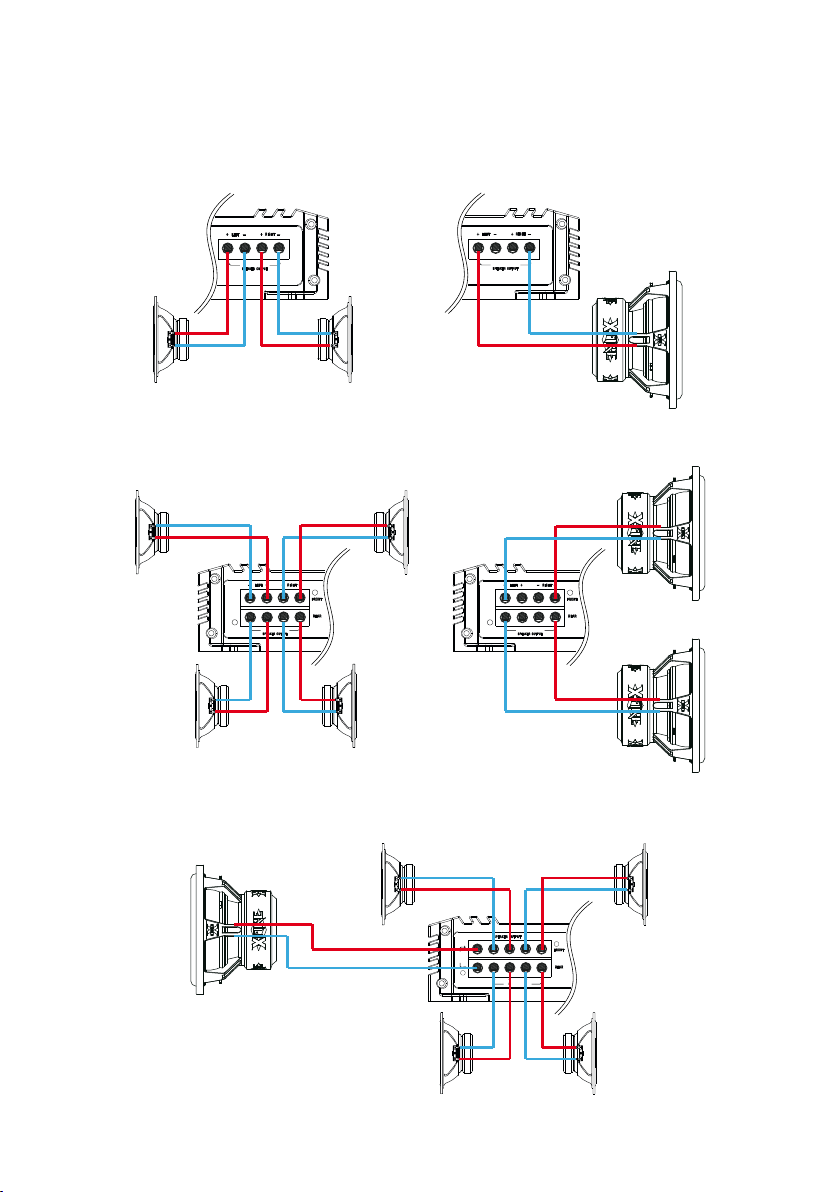

XFR1800.2 - Speakerwiring
Stereo Configuration (Speakers) - Mono Bridged Configuration (Subwoofer)
2 - 8 Ohm Speaker 4 - 8 Ohm Sub
XFR200.4 / XFR1200.4 - Speakerwiring
Stereo Configuration (Speakers) - Mono Bridged Configuration (Subwoofers)
4 - 8 Ohm Sub
BRIDGED MI N 4ohm
BRIDGED MI N 4ohm
4 - 8 Ohm Sub
2 - 8 Ohm Speaker
2 - 8 Ohm Speaker
XFR2000.5 - Speakerwiring
Stereo (Speakers) + Mono (Subwoofer)
2 - 4 Ohm Sub
RIGH TLEFT
SUB
MIN
2ohm
BRIDGED MIN 4o hm
2 - 8 Ohm Speaker
2 - 8 Ohm Speaker
XFR series Life Amplified

XFR2000.5
RI GH TLEF T
SU B
MIN
2oh m
50H z 250H z
50H z 250H z
HPF
FULL
HPF
FULL
MIN M AX
MIN M AX
MIN M AX
50H z 250H z0dB 18dB 40 Hz 100H z
0
0
180
0
POWE R
PROTE CT
BRIDGE D MIN 4oh m
XFR1200.4
POWE R/
PROTE CT
MIN M AX
MIN M AX
0dB 18 dB
0dB 18 dB
50H z 250H z
50H z 250H z
HPF
FULL
LPF
HPF
FULL
LPF
50H z 250H z
50H z 250H z
BRIDG ED MIN 4oh m
MIN M AX 0d B 12dB10H z 150H z
HPF
FULL
LPF
30H z 500H z
BRIDG ED MIN 4oh m
40H z 3kH z 0 180
PWR
PRT
CH1 CH2
CH1/L
CH2/R
SUB
SONIC
INPUT OUTPUT
CH1/L
CH2/R
XFR1800.2
XFR2000.4
GAIN HPF
CH4/R
CH3/L
CH2/R
CH1/L
MaxMin
HPF
LPF
FULL
5KHz20Hz 5KHz20Hz
GAIN
MaxMin
INPUT
CHANNEL 1/2 CHANNEL 3/4
INPUT
(BPF)
LPF LPF HPF
5KHz50Hz 5KHz50Hz
HPF
LPF
FULL
(BPF)
CH1/2 BRIDGE
PRT
PWR CH2CH1
POWER INPUT
GND REM +12 V FUSE
CH3/4 BRIDGE
CH4CH3

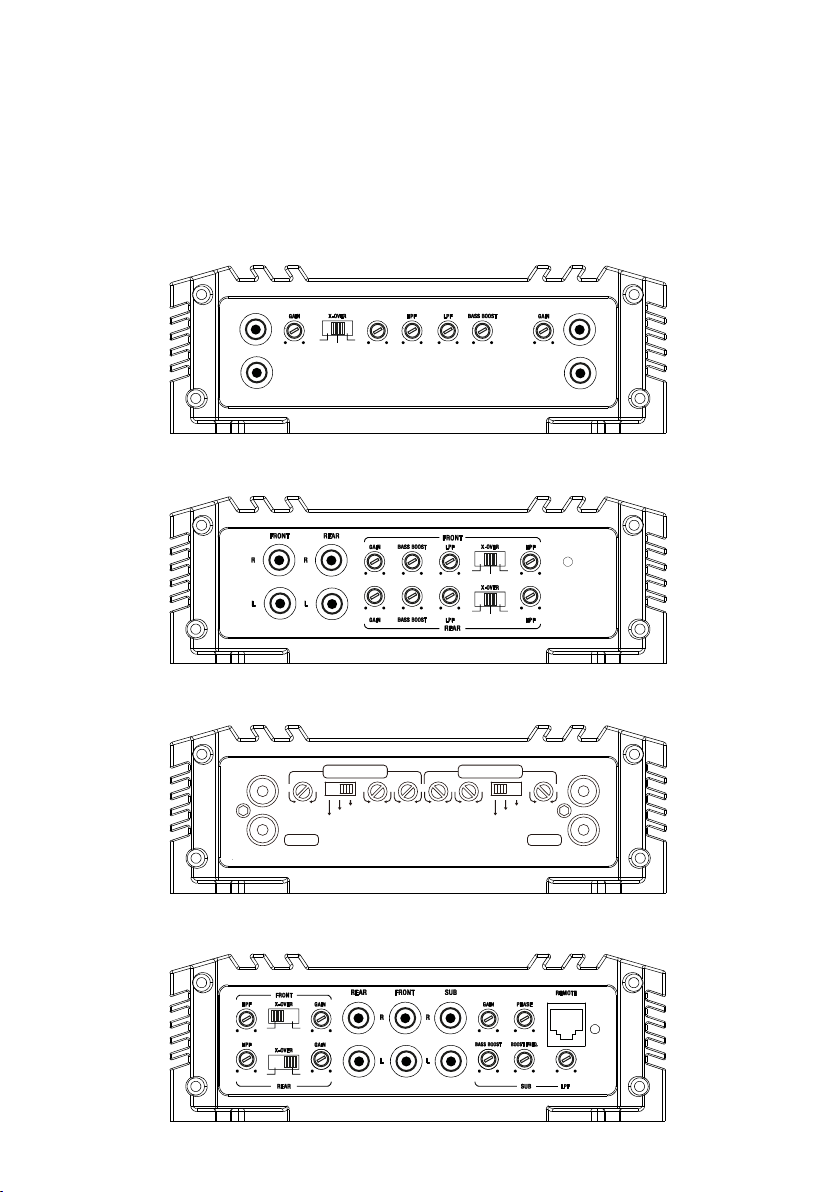

Controls
XFR series Life Amplified

5 LINE LEVEL INPUTS (RCA) These inputs are connectd to the source unit’s line level RCA outputs.
6 GAIN This control is used to match the amplifier’s input sensitivity to the source unit’s output.
7 SUBSONIC This control is used to limit the amount of extreme low frequencies. With this control you can protect
your speakers from damage of excessive excursion.
8 X-OVER SWITCH Thisswitchisusedtoselectthelterfortherespectiveamplierchannels,LowPass(LPF)/Band
Pass(BPF),Fullrange(FULL)orHighPass(HPF).
9 LOW PASS FREQ. This control is used to set the Low Pass filter frequency for the speaker outputs.
10 HIGH PASS FREQ.ThiscontrolisusedtosettheHighPasslterfrequencyforthespeakeroutputs.
11 BASS BOOSTThiscontrolisusedtosetaboostaroundacenterfrequency.(45HzforXFR1200.4/1800.2)
12 BOOST FREQ. Thiscontrolisusedtosetthecenterboostfrequencyofthebassboost(XFR2000.5only).
13 PHASE This control is used to adjust the phase of the output signal.
14 LINE LEVEL OUTPUTS (RCA) These outputs can be used to route the input signal to a second amplifier.
15 REMOTE LEVEL CONTROL PORT Port to connect the external level control.
16 POWER & PROTECTION LEDSThePowerLEDshowsiftheamplierisON(LEDisgreen-orblue-lit),theprotection
LEDshowsiftheamplierisinprotection(LEDisred-lit).
Signal Input
Tp to prevent noise and RF inductance, use only high quality shielded audio cables that are no longer than necessary.
Try to avoid running these low-level cables near cellular phone equipment, electronic management systems or other
potential interference sources.
XFR series Life Amplified

Setting the controls
Turn the gain level on your amplifier to minimum and set the x-over switch to the FULL position, turn down the bass
boost.Turn the volume on the source unit down before you turn on the power (this will save your speakers if something
isn’tright!).Turnthesystemon,checkifthepowerLEDonyouramplierisONandtheprotectionLEDremainsOFF.
Turnthevolumeofyoursourceunit3/4ofthewayup(thisisyourmaximumvolumewithoutdistortion).
Slowly turn up the gain on your amplifier to the point when your speakers just start to distort, now turn the gain a little
down untill the distortion is gone. Turn down the volume on the source unit.
Nowitistimetosetthex-overswitchtotherightsetting:LPFforsubwoofer(s)andHPFforspeakersandselectthe
desired x-over frequency.
Listen to the system and fine tune the gain on the amplifier if needed.
Almost all problems can be eliminated by re-checking connections and settings in your system. Follow the steps below
as a guide. If you cannot solve the problem, consult your XFIRE AUDIO installation professional.
NO SOUND - POWER LED IS OFF
1. Checktheinlinefuse(s)inthepositivepowercable,replacetheseifneeded.
2. Check the negative power cable connections.
3. Checkifthesystemoperatingvoltageisbetween8.5V-16VDC,ourampliershaveahighandlowvoltagepro-
tection.
4. Verifysourceunitoperation.
5. CheckconnectionofREMOTETURNONwire.Ifsteps1-4areOKyourampliershouldswitchONandthepower
LED should light up.
NO SOUND - POWER LED IS ON
1. Check the RCA cables are properly connected on the source unit and amplifier.
2. Check the RCA cables for damages and replace the cables if needed.
3. Check the speaker cables for damages and if they are connected properly, replace cables if needed.
4. Check if the speakers are damaged and replace if needed.
NO SOUND - PROTECTION LED IS ON
1. Thespeakersconnectedhaveanimpedanceunderthespeciedloadorthespeakers/speakercableshaveashort
circuit.
2. The amplifier runs really hot, mount the amplifier as recommended in the INSTALLATION section, check the imped-
anceofthespeakersandmeasureiftheoperatingvoltageiswithin8.5V-16VDC.
3. CheckforDCosetontheRCAinputs,ifsocheckthesourceunitandRCAcablesfordamages.
In case of difficulty
XFR series Life Amplified

POOR BASS RESPONSE
1. Check if all speakers are connected with the right polarity, speakers connected out of phase will cancel each other
resulting in a poor bass response.
2. Checkiftheconnectedspeakers/subwoofer(s)areOK,replaceifneeded.
ENGINE NOISE
1. Use only high quality shielded RCA cables.
2. Ensurethatallsignaltransferwires(RCA,speakercablesetc.)arekeptseparatelyandawayfrom powerand
ground wires.
3. EnsureyouhaveonlyONEgroundconnection(starground)forallyouraudiocomponents.
4. Ensurethatthepointofgroundis100%metalwhichhasbeensandedfreeofrust,paintetc.
5. “Optional”ReplacetheOEMgroundcablefromthebatterywiththepropergaugewire(seePowerWiringSelection
Chart).
XFR series Life Amplified
xfireaudio.com

AUDIO
XFIRE AUDIO limited warranty.
U.S.A.warranty:90days.(1yearifinstalledbyanauthorizeddealer.)
Whatiscovered:ThiswarrantyappliesonlytoXFIREAUDIOproductssoldtoconsumersbyauthorizeddealersintheU.S.A.Productspurchasedby
consumersfromanauthorizeddealerinanothercountryarecoveredonlybythatcountry’sdistributor.
Whoiscovered:TheoriginalpurchaserofXFIREAUDIOproductboughtfromanauthorizeddealerintheU.S.A.Toreceivewarranty,theoriginal
purchaser must provide a copy of the receipt with customer name, dealer, XFIRE model purchased with the date of purchase. Please retain all
receipts for warranty purposes should they be needed. Warranty is not transferable.
Productsfoundtobedefectiveduringthewarrantyperiodwillbereplaced(withaproductdeemedequivalent)atthediscretionofXFIREAUDIO.
What is NOT covered:
• Abuse(includingburntvoicecoils)improperinstallation,operatingproductotherthanwhichitwasdesigned,waterdamage,theft,
product damage from vehicle accidents, or shipping damages.
• Any costs incurred for removal or reinstallation.
• Any product with altered, defaced or removed serial numbers.
• Damage to other components.
• Productspurchasedfromunauthorizeddealers,retailersorinternetsites.
Buyersbewareoftheinternet.ANYXFIREAUDIOproductboughtonlinethatisNOTfromandauthorizeddealerwillvoidanyandallwarranty.
Limit on implied warranties: Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, thus limitations may
not apply. No person shall assume for XFIRE AUDIO any other liability in connection with the sale of products.
Obtainingwarranty:Contactyourlocalauthorizeddealer.
Should you need additional assistance please email XFIRE AUDIO : salesusa@xfireaudio.com
©2015XFIREAUDIO® LLC. All rights reserved.
‘‘XFIREAUDIO’’,‘‘LIFEAMPLIFIED’’,and‘‘THENEWBREEDOFMOBILEAUDIO’’areeitherregisteredtrademarksortrademarksofXFIREAUDIOLLC.
This manual suits for next models
3
Table of contents
