XFIRE AUDIO XFR652S User manual

AUDIO
XFR652S
6.5" 2-way Component System
Owners Manual
XFIREAUDIO.COM
Reference Audio Redefined
Hear What You’ve Been Missing

BRIDGED MIN 4 ohm
PWR
PRT
CH1 CH2
Introduction
Congratulations on purchasing one of the finest autosound loudspeaker component systems available today. XFRS Series
Components are forged from rigorous pursuits of exceptional sound, strength, performance, and style. With our relent-
less pride and passion combined with 30 plus years of experience in the 12 volt industry we are proud to welcome you
to the XFIRE AUDIO family.
It’s Your Music, It’s Your Style, It’s Your Life, AMPLIFIED!
Purchase and serial number information. Record your new XFIRE AUDIO product information for future reference.
Purchase date
Retailer
Model #
Serial #
Welcome to XFIRE AUDIO ‘‘The New Breed Of Mobile Audio’’.
XFRS Series Components redefine the boundaries of sonic euphoria with lush, crystal clear image and dynamics the way
music was intended to be heard.
• Speciallyformulatedcarbon-papercompositeconescoupledwithASVvoicecoils
• Shallow mount 6.5”mid-bass with cast aluminum chassis and brushed aluminum gaskets
• Ferrite (6.5”mid-bass) motor structures with polished chrome backplates
• Butyl rubber surrounds
• XFIRE molded motor covers
• 25mm inverted dome aluminum tweeters matched with external crossovers
XFRS Series Components; Reference Audio Redefined, Hear WhatYou’ve Been Missing!
Features
Reference Audio Redefined

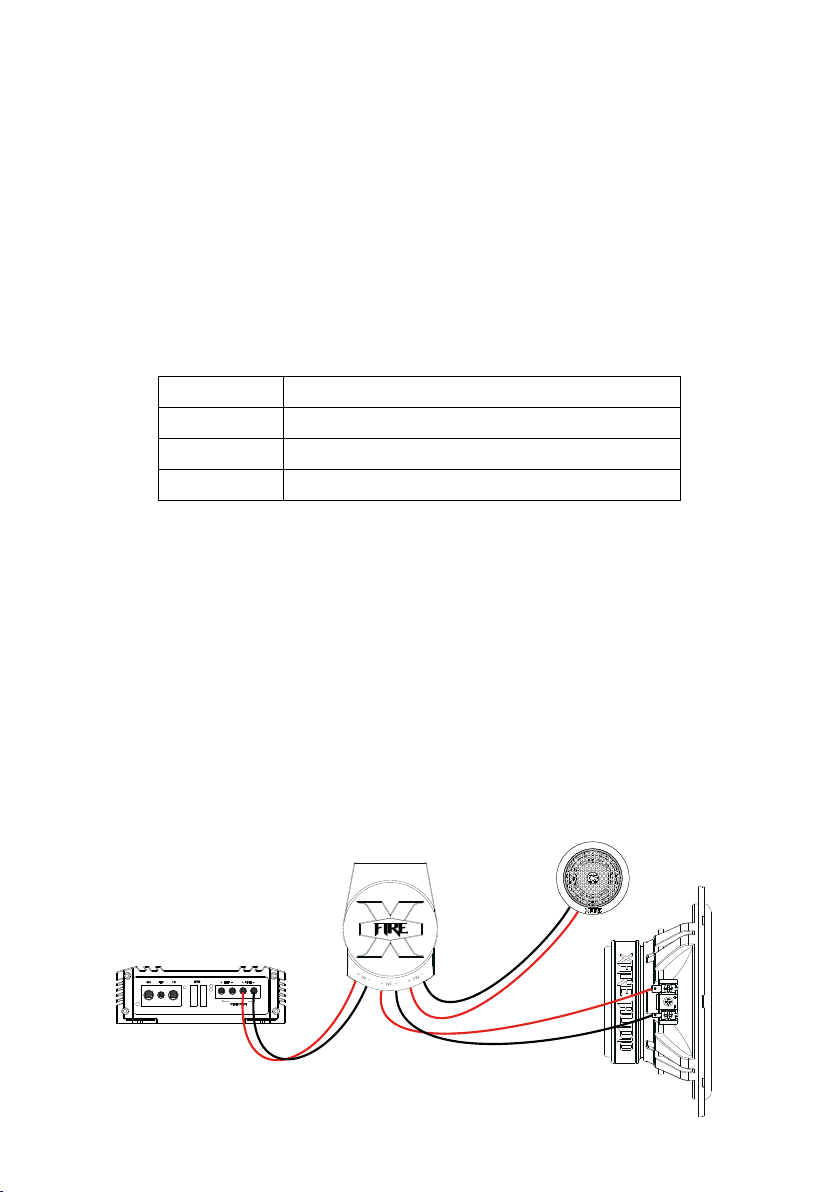

Wiring diagram

Reference Audio Redefined
Specifications
XFR652S
RMS Power 125W
Max Power 500W
Impedance 4Ω
Response 55Hz-25kHz
Sensitivity 92.5dB
X-over 6dB/Oct
Tweeter Level Adjustment -3dB, 0dB, +3dB
Tweeter X-over Freq. Adjustment 4kHz, 5kHz, 6kHz
Midrange Diameter 6.5’’(165mm)
Midrange Mounting Depth 2.6’’(66mm)
Tweeter Diameter 1’’(25mm)
Tweeter Mounting Depth 0.75’’(19.5mm)
All specifications are subject to change without notification due to continual product improvements.
XFRS Series Components are designed for high quality sound systems. XFRS Series Components garner exquisite defini-
tion and detail.
To get the highest performance from your XFRS Components please observe these very important rules .
To ensure you’ll have a good midbass response:
• Make sure all components are connected with the right polarity
• Make sure the midrange is mounted to a strong surface with an airtight seal so the backwaves of the speaker
cannot mix with the front waves of the speaker (a so called acoustic short circuit)
To ensure you’ll have optimum imaging:
• Make sure you angle the tweeters to a point in the middle of the front seats headrests
• Make sure you select the right tweeter level and the right tweeter freq settings in the passive x-over
Installation

-18
-15
-12
-9
1kHz
-6
-3
0
+3
+6

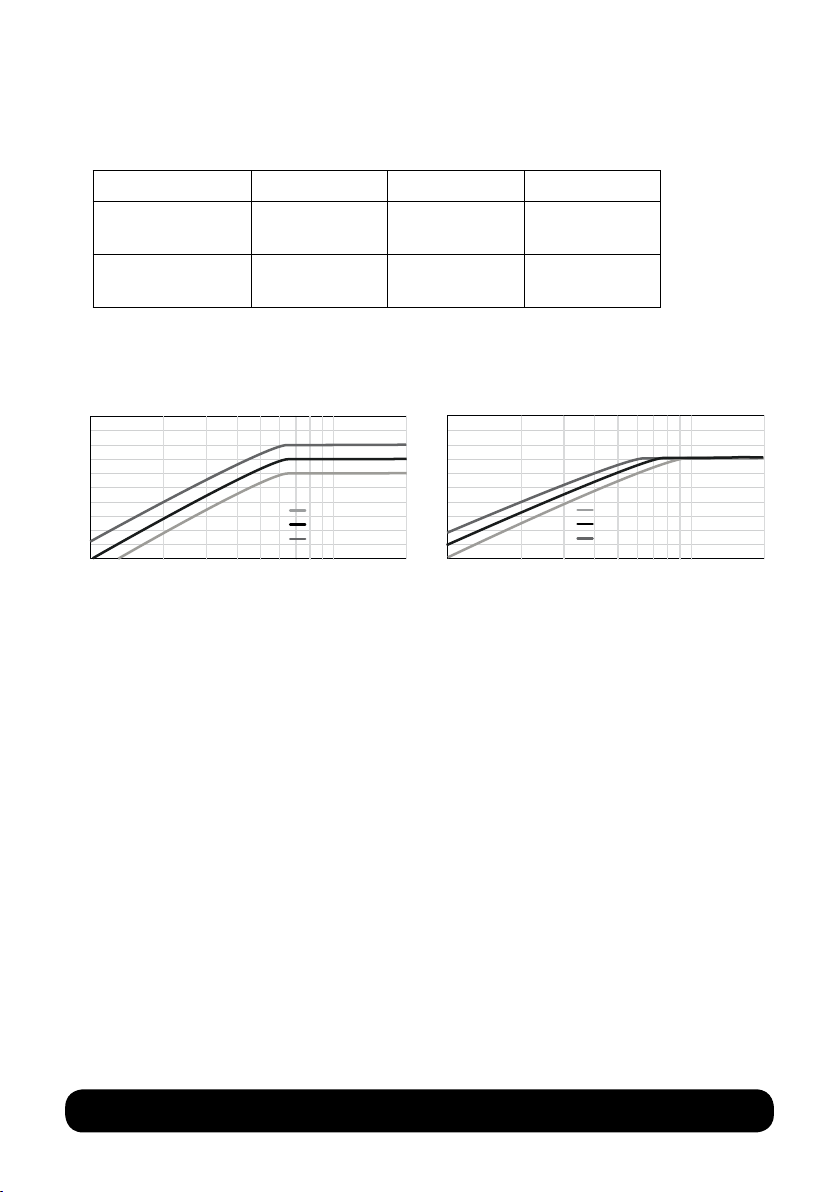

SPL (dB) 1W/1m
Frequency Response
Frequency (Hz)
10kHz
-3dB Tweeter level, S2 Pos 1
0dB Tweeter level, S2 Pos 2
+3dB Tweeter level, S2 Pos 3 -18
-15
-12
-9
1kHz
-6
-3
0
+3
+6
SPL (dB) 1W/1m
Frequency Response
Frequency (Hz)
10kHz
6kHz Tweeter x-over Frequency, S2 Pos 1
5kHz Tweeter x-over Frequency, S2 Pos 2
4kHz Tweeter x-over Frequency, S2 Pos 3
Reference Audio Redefined
Position 1 Position 2 Position 3
Switch S1
Tweeter Level -3dB 0dB +3dB
Switch S2
Tweeter Freduency 6kHz High Pass 5kHz High Pass 4kHz High Pass
Passive x-over tweeter settings
XFIRE AUDIO limited warranty.
U.S.A. warranty: 90 days. (1 year if installed by an authorized dealer.)
What is covered:This warranty applies only to XFIRE AUDIO products sold to consumers by authorized dealers in the U.S.A. Products purchased by
consumers from an authorized dealer in another country are covered only by that country’s distributor.
Who is covered: The original purchaser of XFIRE AUDIO product bought from an authorized dealer in the U.S.A. To receive warranty, the original pur-
chaser must provide a copy of the receipt with customer name, dealer, XFIRE model purchased with the date of purchase. Please retain all receipts
for warranty purposes should they be needed.Warranty is not transferable.
Products found to be defective during the warranty period will be replaced (with a product deemed equivalent) at the discretion of XFIRE AUDIO.
What is NOT covered:
• Abuse (including burnt voice coils) improper installation, operating product other than which it was designed, water damage, theft, product
damage from vehicle accidents, or shipping damages.
• Any costs incurred for removal or reinstallation.
• Any product with altered, defaced or removed serial numbers.
• Damage to other components.
• Products purchased from unauthorized dealers, retailers or internet sites.
Buyers beware of the Internet. ANY XFIRE AUDIO product bought online that is NOT from and AUTHORIZED dealer will void any and all warranty. Limit
on implied warranties: Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of
the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, thus limitations may not apply. No
person shall assume for XFIRE AUDIO any other liability in connection with the sale of products.
Obtaining warranty: Contact your local authorized dealer.
Should you need additional assistance please email XFIRE AUDIO : salesusa@xfireaudio.com or call us 855-77-XFIRE.
©2016 XFIRE AUDIO ® LLC. All rights reserved.
‘‘XFIRE AUDIO’’, ‘‘LIFE AMPLIFIED’’, and‘‘THE NEW BREED OF MOBILE AUDIO’’are either registered trademarks or trademarks of XFIRE AUDIO LLC.
Tweeter level settings Tweeter frequency settings
