Xiaomi Mi Bedside Lamp 2 User manual

Mi Bedside Lamp 2 User Manual

Product Overview
Read this manual carefully before use, and retain it for future reference.
Thank you for using this product. The Mi Bedside Lamp 2 uses high-quality LED chips with a
professional optical structure, combined with a natural light mixing algorithm, excellently bringing out
the light of various colors and offering you the different colors you want. Moreover, it provides a newly
designed high-tech feeling touch control.
Lamp Body
Mode Button
Brightness
Adjustment Bar
Power Button
Base

Using the Lamp
Installation
Plug the power cable into the charging port at the base and connect the adapter to a power supply.
* It is recommended that you place it on a nightstand or a desk.
Charging Port LED Driver
(Adapter)
Plug

Instructions
01 Function Buttons
02 Advanced Features
Night Light Function
You can set the time period via the mobile app to enable the night light mode. When turning on the
lamp with the night light mode enabled, the lamp will automatically enter into night light mode to
avoid excessive brightness to the eyes. When turning on the lamp during non-night light periods, the
lamp will automatically return to the state saved in normal mode.
Mode Button
• Press: switch the default light color for the current mode.
• Press and hold for 2 seconds: switch between color or color
temperature mode.

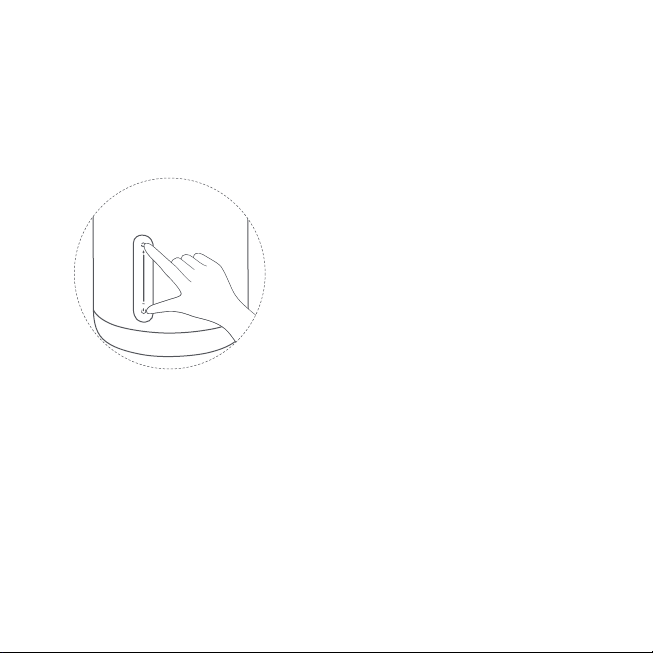

Brightness Adjustment Bar
• Swipe up/down to adjust the brightness.
• When the light is off, touch the brightness bar to turn on the
light, and the brightness level will correspond to the touched
position.
Power Button
• Press: on/off.
• When the light is on, press and hold the power button for 2
seconds to enable the turn-off delay feature (the default
delay is 15 minutes, which can be set in the app.

03 Connect with Mi Home / Xiaomi Home App
The product works with Mi Home / Xiaomi Home app *. Control your device, and interact it and other
smart home devices with Mi Home / Xiaomi Home app.
Scan the QR code to download and install the app. You will be directed to the connection setup page if
the app is installed already. Or search „Mi Home / Xiaomi Home“ in the app Store to download and
install it.
Open Mi Home / Xiaomi Home app, tap „+“ on the upper right, and then follow prompts to add your
device.
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app
displayed on your device should be taken as the default.
Note:
The version of the app might have been updated, please follow the instructions based on the current
app version.

04 Apple HomeKit Smart Control
05 Link a Lamp with Google Assistant
1. Open the Home app on your iPhone or iPad.
2. Tap „Add Accessories“ and follow the instructions in the app to scan the QR code on the product
base, or enter the 8-digit setup code above the QR code to grant the Apple Home app access.
* Make sure a Wi-Fi network with Internet access is available (this product does not support 5G
networks). To control this HomeKit-compatible accessory, it is recommended that you use iOS 9.0
or above. The HomeKit setup code is listed on the product base, do not lose it. After restoring
factory settings, you will need the HomeKit setup code again to add the accessory.
iPad and iPhone are the trademarks of Apple Inc., and they are registered in the United States and
other countries.
Add the Mi Home / Xiaomi Home skill to the Google Assistant app, to control devices connected to Mi
Home / Xiaomi Home from Google Assistant.
1. Tap in the Google Asssistant app, search for „Mi Home / Xiaomi Home“, tap „Link“, and sign in
with your Xiaomi account.
2. Tap in Settings > Home Control to add a device, and follow the on-screen instructions. Once the
accounts are linked, you can control the Lamp from Google Assistant.
06 Link a Lamp with Amazon Alexa
Add the Mi Home / Xiaomi Home skill to the Amazon Alexa app, to control devices connected to Mi
Home / Xiaomi Home from Amazon Alexa.
1. Tap in the Amazon Alexa app, then tap „Skills & Games“, search for „Mi Home / Xiaomi Home“,
select the correct skill and tap „Enable“. Then sign in with your Xiaomi account.
2. After successfully linking the accounts, tap DISCOVER DEVICES to add the device, and follow the
on-screen instructions. Once the accounts are linked, you can control the Lamp from Amazon
Alexa.
Note: The name (Mi Home or Xiaomi Home) varies by selected language or regions.

Specifications
Product Features
Name: Mi Bedside Lamp 2
Model: MJCTD02YL
Operating Temperature: -10°C to 35°C
Operating Humidity: 0%–85% RH
Compatible with: Android 4.4 or iOS 9.0 and above
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2,4 GHz
Operating Frequency: 2412–2472 MHz (Wi-Fi)
2402–2480 MHz (BT)
This product contains a light source of energy efficiency class <E>.
Replaceable (LED only) light source by a professional. Replaceable control gear by an end-user.
Adjustable
Color Adjustable Color Temperature Adjustable Brightness Night Light
Flowing Light Touch Interaction Scheduled On/Off Turn-off Delay
Pick Color Mi Home App
Control Apple HomeKit Control Smart Control
Adjustable Color: WRGB
Color Rendering Index: 80
Power Factor: 0.8
Bedside Lamp Input: 12 V 0,8 A
Rated Input: 100–240 V~50/60 Hz 0,5 A
Rated Power: 9 W (Lamp + LED Driver)
Maximum Output Power: 17,91 dBm (Wi-Fi)
5,76 dBm (BT)

Restore Factory Settings
Precautions
Simultaneously press and hold the power button and mode button for 5 seconds, until the lamp starts
circulating through the colors red, green and blue, then release the buttons. After the circulating colors
end, the lamp will automatically restart, and restoring factory settings will be completed.
* When using the bedside lamp in a new network environment, you need to restore factory settings
and connect to the network again.
• Make sure the voltage is consistent with the product‘s working voltage before use. Using the
incorrect voltage may damage the product and cause a potential safety hazard.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service
agent or a similar qualified person.
• The lamp will produce heat during operation, please use it in a well-ventilated area so that heat can
dissipate.
• Do not use non-standard adapters to avoid product damage or safety hazards.
• Place the lamp steadily and do not tip it over during use.
• Under normal use of condition, this equipment should by kept a separation distance of at least
20 cm between the antenna and the body of the user.

EU Declaration of Conformity
WEEE Disposal and Recycling
Hereby, Qingdao Yeelink Information Technology Co., Ltd. declares that the radio equipment type
MJCTD02YL is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity
is available at the following internet address: https://www.mi.com/en/service/support/declaration.html
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive
2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should
protect human health and the environment by handing over your waste equipment to a designated
collection point for the recycling of waste electrical and electronic equipment, appointed by the
government or local authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. Please contact the installer or local authorities
for more information about the location as well as terms and conditions of such collection points.

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Qingdao Yeelink Information Technology Co., Ltd.
(a Mi Ecosystem company)
Address: 10F-B4, Building B, Qingdao International Innovation Park, No.1 Keyuan Weiyi Road,
Laoshan District, Qingdao City, Shandong Province, P.R.China
For further information, please go to www.mi.com
Importer:
Beryko s.r.o.
Pod Vinicemi 931/2, 301 00 Plzeň
www.beryko.cz
