Xion AXP600 User manual

User’s manual
Model No.:AXP600

CONTENTS
Chapter 1 Product Introduction
Feature ……………………………………………………….. 4
Specification…………………………………....………….…. 5
Contents of Screw Bag/Tool Box ……………………..……. 6
Chapter 2 Installation
Removing and Installing Side Panels ….…...……..…..….. 7
Installing the Motherboard ………………………..….…... 7-8
External 5.25” Drive Bay Installation …….….………………9
External 3.5” Drive Bay Installation …………..……..……... 9
Internal 3.5” Drive Bay Installation ………….……..…...... 10
Installing Power Supply ………..………………………. 11-12
Installing the Case Fan ……….…………………….…..13-14
I/O Function Panel Installation Guide …………………..…15

4
Chapter 1: Introduction
Features:
 Fits ATX standard motherboards and power supplies.
 Fits large 10.5” performance graphics cards.
 Unique 4 x Hot-Swap enabled front-loading trays for easy SATA HDD
installation and removal.
 Expanded cooling directly cools video cards and CPU.
 Patented screwless and shock resistant designed for internal hard
drives installation.
 Pre-drilled water cooling (3 ) holes on the rear.
 Power Supply removal from rear chassis for easy installation.
 Mounting Holes for external dual radiator at the top.
 Wire Routing Cables management. Cable Compartment enables tidy
cable management and unimpeded airflow for stable system
operation.
 Black Internal finish for sleek look.

5
Specifications:
Type ATX Mid Tower Steel Chassis
Color Black
Case Material Black Interior Steel
Power Supply Not included
Form factor ATX, Micro ATX, Baby AT
Expansion 11 drive bays：
External：2x 5.25" drive bays
External：5x 3.5" drive bays（4x hot-swap enabled
front- loading tray for SATA HDDs. 1x 3.5” bay)
Internal：4x 3.5" drive bays (screwless design)
Expansion slots 7
Front ports 1 x eSATA
2 x USB 2.0
2 x 7.1 Channels Audio
Cooling system Front：2x 120 mm blue LED fan (included)
Rear：1 x 120 mm fan (optional)
Side：4 x 120mm fan (optional)
Top：1 x120mm/140mm fan (optional)
Dimensions
(W x H x D)
8”x 17” x 18”
200 x 430 x 450 mm

6
Contents of Screws Bag
Screw Screw Screw Screw Screw
6#*6HW-TC 6#*5B-C 6*5KM 5*10K-T 3*5KM
4PCS 10PCS 16PCS 2PCS 16PCS
Screw
w/ washer
Thumb
Screw
Rubbber
Screw Standoff Screw
Cable
Tie
6*10 M3*5 6#*5 5H-6#*4-
6#*6.5HCu
6#*29 L80mm
4 PCS 16PCS 16PCS 7PCS 14PCS 2PCS
Contents of Tool Box
- 1 set x Screw Bag
- 1 pc x Ferrite Core
- 2 pcs x Key
- 1 pc x Buzzer
- 1 pc x User’s manual
- 1 pc x White Box

7
Chapter 2: Installation

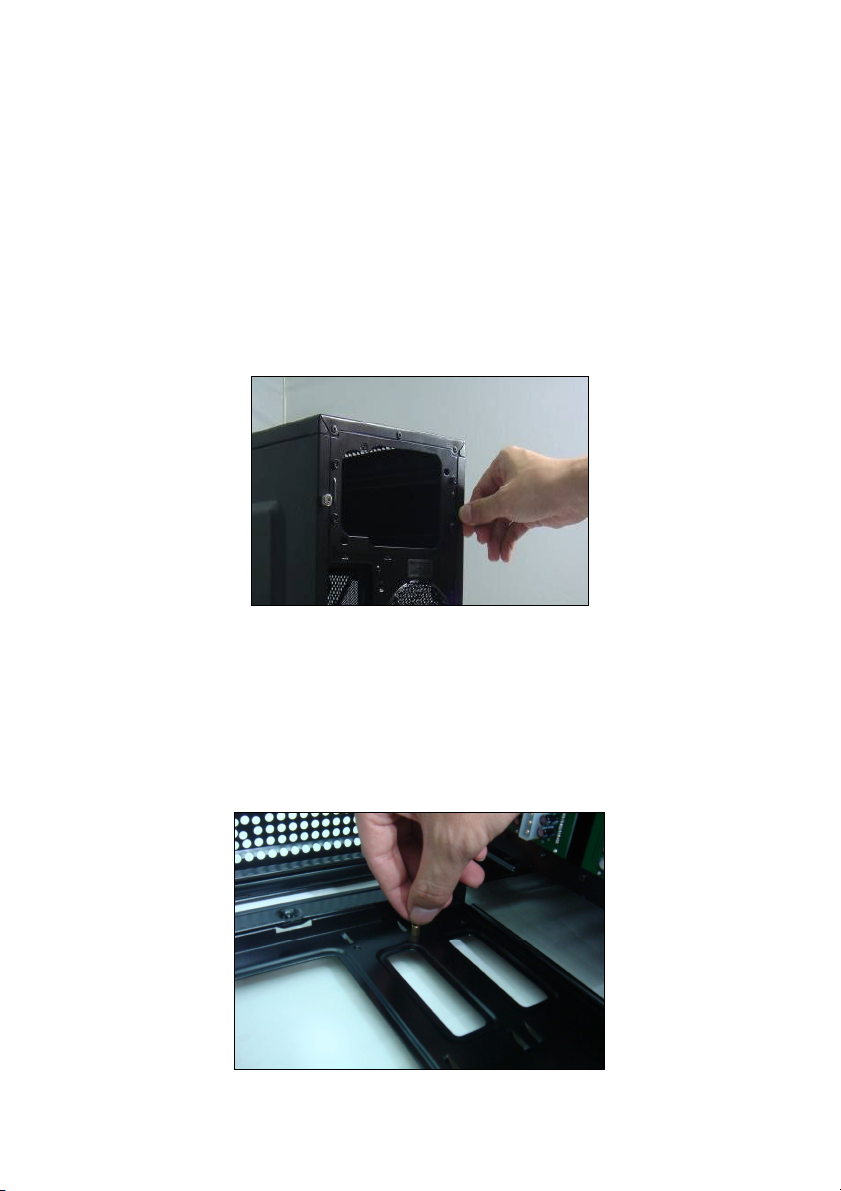

Removing and Installing Side Panels
1. Remove the thumb screws from the back and pull the side panel
backward to remove it.
2. Fit the hooks of the panel to the elongated holes on the edges of casing,
and slide the panel toward and secure with screws to install the panel.
Installing the Motherboard
1. Install the I/O panel that comes with motherboard package.
2. Aim at the holes on the motherboard, and secure the standoffs on
motherboard tray.

8
3. Align the holes of motherboard and motherboard tray, and secure the
motherboard with the provided screws.
External 5.25” Drive Bay Installation
1. Open the front panel with the key provided, slide in the 5.25” ODD
drive from the front of the chassis.
2. Match the ODD drive holes with the drive cage and securing with the
provided thumb screws.
NOTE: CPU, RAM and any peripheral installation are not included in this manual. Please
refer to your motherboard manual for related mounting instructions and troubleshooting.

9

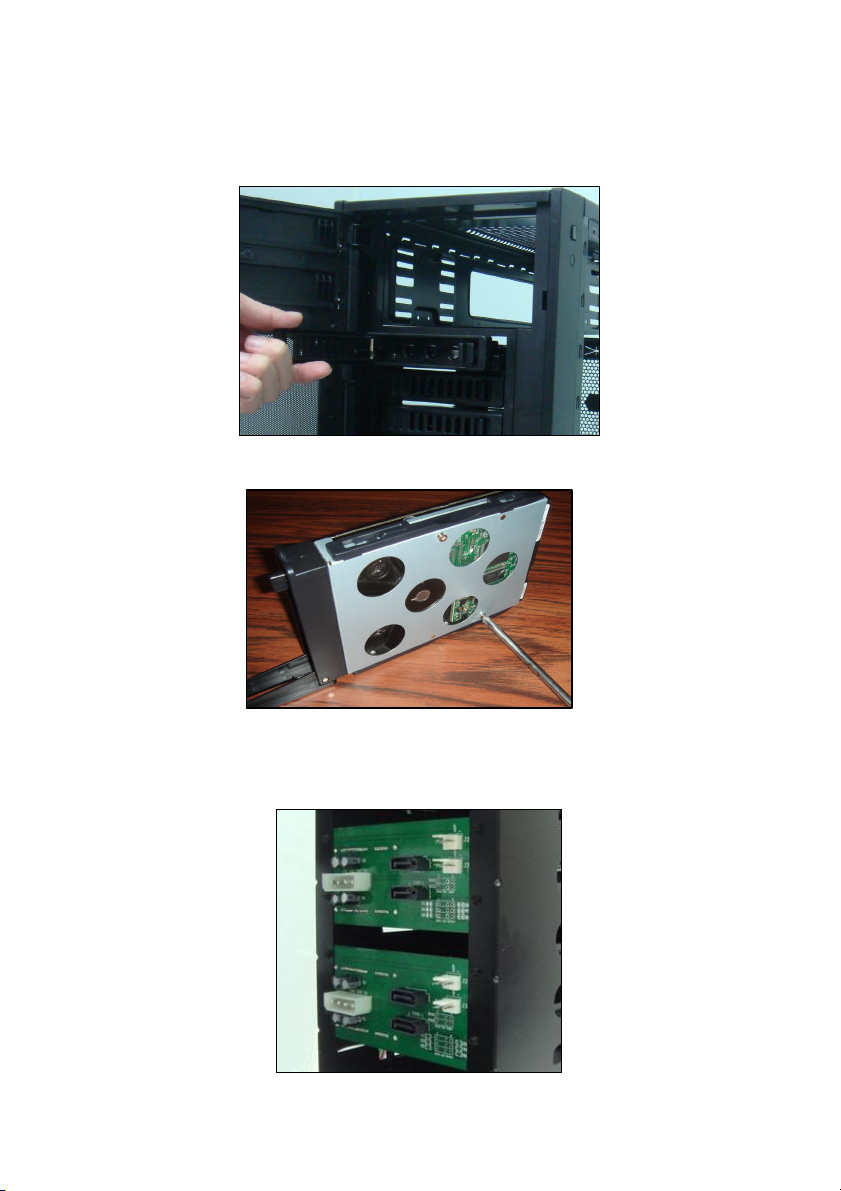

External 3.5” Drive Bay Installation
1. Open the front panel and take out the HDD Tray.
2. Attach the 3.5” drive to the tray and secure with the provided screws.
3. Slide the tray back to the drive cage and the 3.5” drive will connect to
the backplane at rear.

10
4. Find the 4-Pin Molex on the power supply and connect it to the
backplane. Connect the backplane to motherboard with SATA cable.
Internal 3.5” Drive Bay Installation
1. Install the rubber made shock resistant screws on the 3.5” drive.
2. Slide the 3.5” drive into the rail position until the drive in the right
position.

11

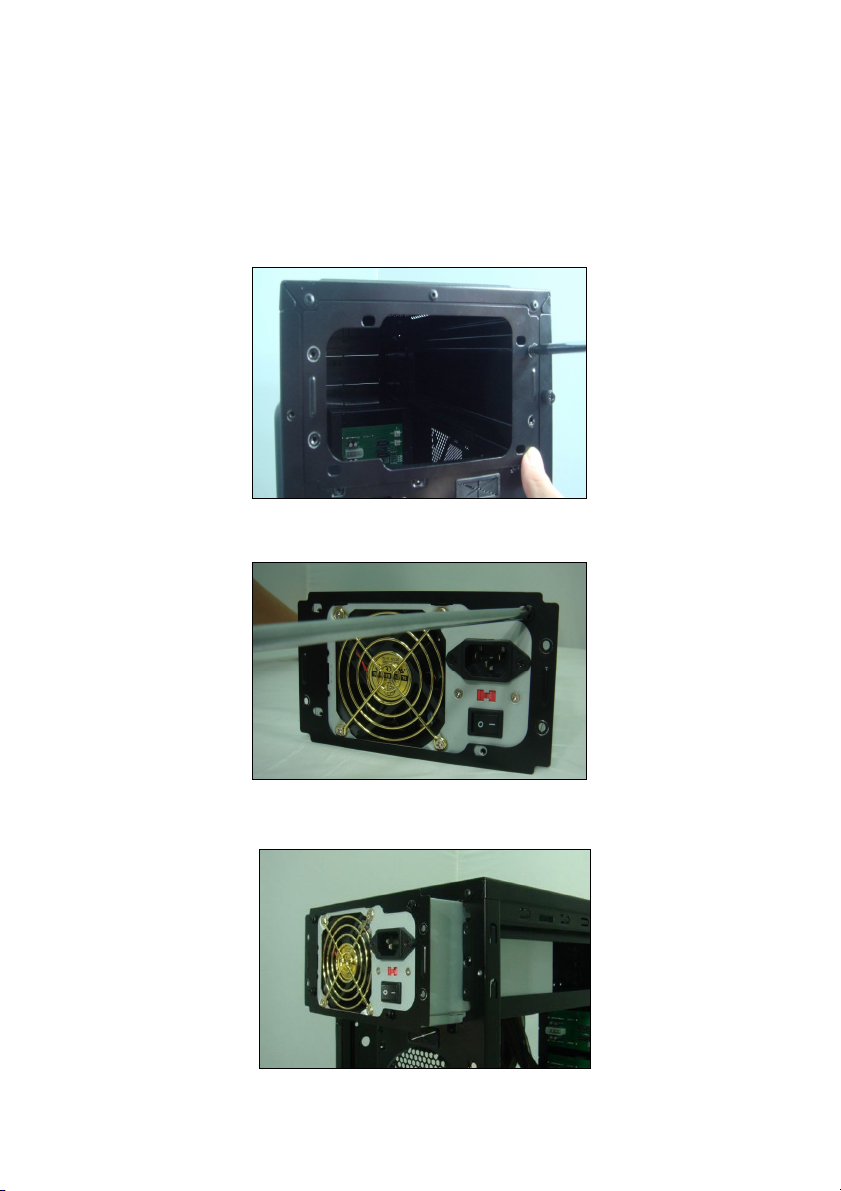

Installing Power supply
The case is designed to install and remove power supply from rear chassis.
1. Remove the bracket from rear chassis.
2. Securing the bracket and power supply with screws.
3. Slide the power supply back to the rack.

12
4. By removing the power supply bracket and turning it, user can mount
the power supply with the fan facing the opposite direction.
5. Simply route the cables behind the motherboard tray and compart
power cables with the provided cable tie. This way enables tidy cable
management and unimpeded airflow for stable system operation.

13
Installing the Case Fan

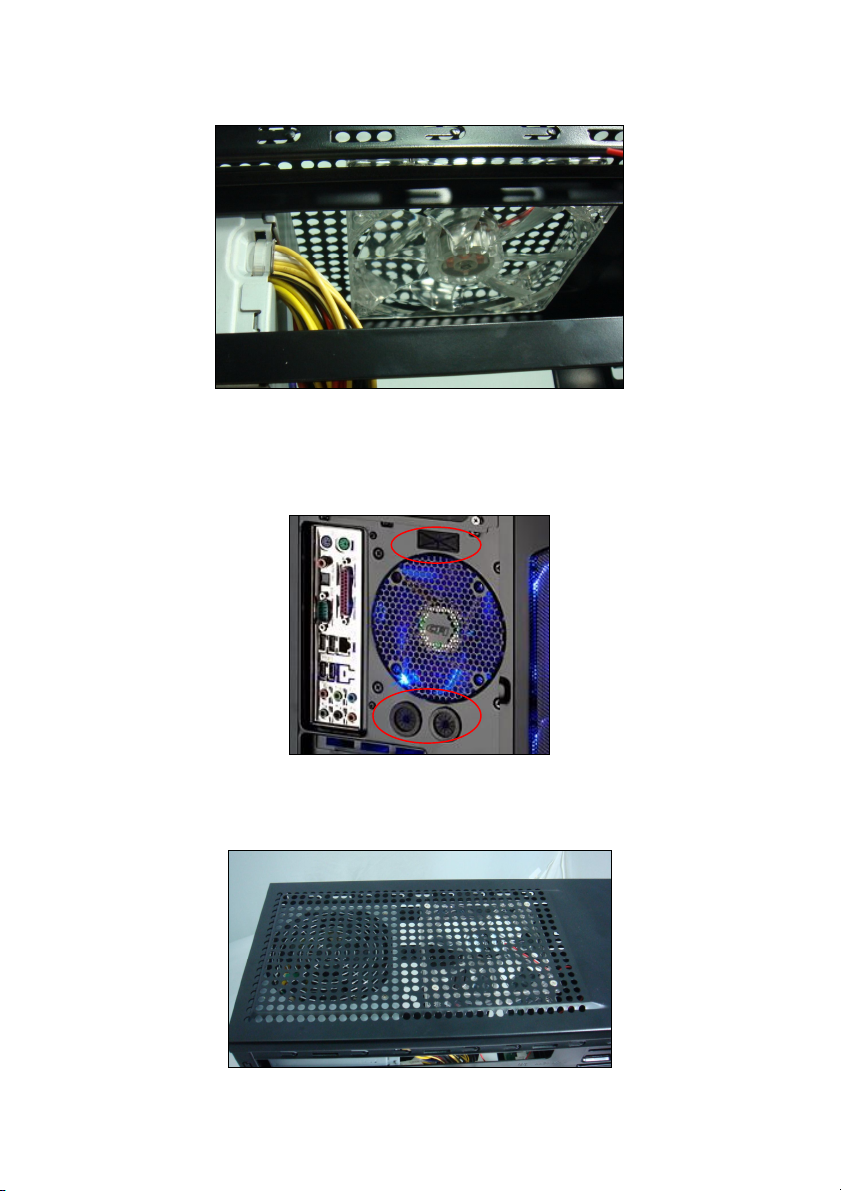

Installing fan on side panel
1. Install the fan from inside of left side panel with the provided screw.
2. User can install up to four 120mm fan on the left side panel.
Installing fan on top panel and rear panel
Install the fan from inside of chassis with the provided screws.

14

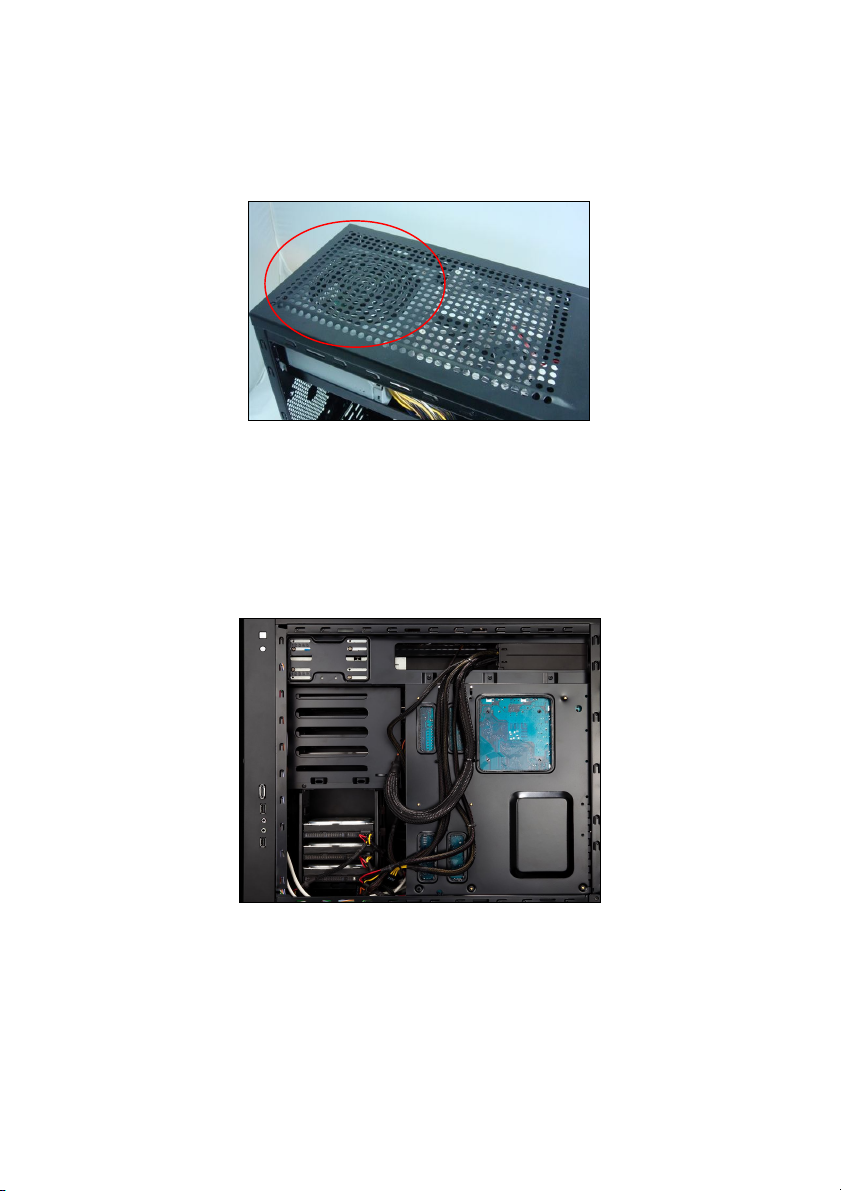

Being water cooling ready
1. Pre-drilled water cooling (3 ) holes at rear.
2. Screw holes are drilled on the top cover for a dual 120mm radiator.

15
I/O Function Installation Guide
Please refer to the illustration on the section of USB2.0 and Audio connector
from the motherboard user’s manual.
Please check your motherboard manual before installing.
