Xo XOU24BCGSL User manual

I worked really hard
on this manual -
so please read it...
+|+d
n:<O6
UsO++'
nUFOU~
!UsnUsd
UNDERCOUNTER

Before You Get Started
Safety Instructions
Electrical and Grounding Instructions
Care and Cleaning
Helpful Hints
Cleaning the Interior / Exterior
Changing the Carbon Air Purification Filter
FAQ’s
Before You Call For Service
Warranty
4 - 7
Installation Instructions
Sizes and Installation Dimensions
Leveling Your XO
Door Handle Installation
8 - 11
19 - 20
21 - 22
3
please read and follow
all safety instructions
It’s for your
own good...
Honest.
Installer Checklist
Find Your Model
Operating Instructions
Control System Overview
Setting the Temperature
Functions
Wine and Beverage Storage
Shelf Instructions
12 - 18

4
To ensure that the installation process is successfully completed,
here are few things to review...
Is the unit plugged in?
Are the controls on? (Panel will illuminate.)
Are the controls operating correctly?
Has the unit been properly leveled - both side to side and front to back -
with all 4 leveling feet securely making contact with the floor?
Is the door sealing properly?
Is the handle secure?
Have you thoroughly inspected the stainless steel surfaces for any imperfections?
Have you reviewed this manual with the customer and explained the unit’s operation and care?
Has the customer received copies of the literature and keys?
Have you properly disposed of all packing materials properly (recycle, please)?
Is the customer satisfied?
O
O
O
O
O
O
O
O
O
O
O
After installation, does the door open sufficiently to fully extend the shelves?
O
RISK OF CHILD ENTRAPMENT!
An empty refrigerator is a very dangerous attraction to children.
Remove door gaskets, latches, lids, lock and/or doors from unused or discarded appliances,
or take other actions to guarantee them harmless.
Always dispose of old appliances in accordance with local laws and regulations.

5
XOU15WGS
XOU24WGS
XOU24WDZGS
WINE COOLERS
24” 15”
BEVERAGE CENTERS
XOU15BCGS
XOU15BCSF
XOU24BCGS
XOU24BCSF
XOU24BWDDGS
XOU30BWDDGS
30” 24” 15”
2
take a minute to circle your model above
and record your serial number
here in case you need it later

Please read through completely before using your XO Unit
To prevent damage to the door gasket, the door must be opened all the way before pulling shelves out.
The appliance must be positioned so that the plug is accessible.
Empty your XO unit before attempting to move the appliance. Moving while loaded may damage or
distort the frame.
The compressor will get HOT during operation / touching it may cause injury.
During installation follow all safety tips provided in this manual / appropriate safety equipment such as
safety glasses and work gloves should be worn.
Two people should move or lift your XO unit to prevent injury or damage.
Remove all interior and exterior packing materials prior to installation and dispose of properly.
Never cover the bottle racks with foil or other material which will impede internal air circulation.
For maximum efficiency, keep the door tightly shut unless loading or unloading and never overload your
XO unit.
Before installing, allow your XO unit to sit upright for 2 hours at the install site. This will allow the cooling
system to stabilize after transportation. Failure to follow this step may cause problems.
Location
Your XO unit should be located away from direct sunlight and heat sources (stove, heaters, etc.) which may
increase electrical consumption. High or low ambient temperature may cause units to work improperly.
The floor must be strong enough to support your XO unit fully loaded.
Your XO unit must not be installed in areas of where water or e
xcessive moisture are present.
Your XO unit’s final installation must observe the correct minimum air clearances around and behind the
unit to ensure adequate ventilation. In addition, all ventilation openings must be kept clear and free of
obstructions, failure to do so will result in damage to the unit.
WARNING
NEVER use external heat sources to accelerate defrosting
NEVER permit unauthorized service or modifications to your XO unit
NEVER tamper with the sealed refrigerant system - this unit uses R600A Refrigerant which is flammable.
It should never be used in the vicinity of any flammable or explosive ignition sources.
ALWAYS FOLLOW THE ELECTRICAL SAFETY INSTRUCTIONS OUTLINED IN THIS MANUAL.
6
your safety matters
Never store perishable food products such as meat or cheese in your wine cooler or beverage center.
Your XO unit must not be installed near
where flammable, corrosive or hazardous materials are present.

Failure To Follow All Electrical Safety Measures May Result in Serious Injury,
Fire Or Death
All electrical work should only be performed by an
experienced, licensed electrician.
All XO units MUST be grounded for safe operation and
come equipped with a 3 Prong molded cord/plug for that
purpose.
NEVER remove or disable the 3rd prong with an adapter.
NEVER use an extension cord to operate your XO unit.
Your XO unit is built to operate on 115V 60Hz and
should be plugged directly into a dedicated 15 amp
3 prong outlet. If you are uncertain as to the
voltage, amperage capacity or if the 3rd prong is
properly grounded - consult a licensed electrician.
To maximize the depth of the installation recess -
your outlet should be mounted flush with the wall.
Your XO unit should not share the circuit with any other
electrical devices as this may cause overloading,
overheating, blown fuses ortripping circuit breakers.
In a worst case this can pose a fire hazard.
NEVER handle your XO unit in wet conditions as this
can pose a severe danger of electric shock.
Exercise care when moving your XO unit to avoid
damage to the electrical cord. If the electrical cord of
your XO unit becomes worn or damaged it must be
replaced immediately by a qualified technician.
NEVER unplug your unit by pulling on the cord.
Unplug by gripping the plug firmly and pull out
straight from the outlet.
INDOOR USE ONLY:
This model isintended for indoor/interior
applications only and is not to be used in
installations that are open/exposed to natural
elements.
This unit isdesigned to operate between 60 F and
90 F. Higher ambient temperatures may reduce
the unit’sability to reachlowtemperatures and/or
reduce performance.
Forbest performance, keep the unit out ofdirect
sunlight and away from heat generating equipment.
In climates where high humidity and dewpoints are
present, condensationmay appearonoutside surfaces,
particularly in non airconditioned spaces.
This isconsidered normal. The condensation will
evaporate when the humidity drops.
CAUTION
Damagescaused by ambient extremesare not
covered by the warranty
SERVICE 115V - 60 Hz - 1 phase
AMPS 15 Amp Circuit Breaker
Requires a DedicatedOutlet
All electrical work must be performed by
a licensed electrician
7
Serious injury, fire or death...
Okay -
o
o

8
use free standing - or - install under counter
when installing -
you might use a recessed outlet or
cut the adjoining cabinet wall to
reach an outlet there...
ALL XO UNDERCOUNTER
UNITS ARRIVE PRE-WIRED
WITH LOW PROFILE PLUGS
FOR EASY INSTALLATION
4"
7"
34 1/4” MIN
“A”
SEE CHART
MODEL DIMENSION “A”
XOU15
XOU24
XOU30
15” MIN
24” MIN
30” MIN
90°
Door Swing
WALL
Clearance
Gap
IF THE DOOR CAN’T OPEN FULLY - YOU CAN’T PULL THE SHELVES OUT.
SS DOOR MODELS
INSTALLING WITH
THE HINGE SIDE
NEXT TO A WALL -
LEAVE A 2 1/4” SPACE
DOOR MUST BE
ABLE TO OPEN 90 .
o
FRENCH DOOR
MODELS INSTALLING
NEXT TO A WALL -
DOOR MUST BE
ABLE TO OPEN 120 .
o
120°
Door Swing
WALL
Clearance
Gap

9
15”
MODELS
24”
MODELS (Single or Double Door)
30”
MODELS
14 31/32" 23 27/32" 23 27/32" 29 9/16"
ALL
MODELS
ARE
34
HIGH
3/32"
W W W
H
W
MODELS WITH
OVERLAY DOORS
ALL OTHER
MODELS
23 11/16” 23 1/4"
D D
THE DEPTH IS SHOWN
WITHOUT HANDLES
EITHER THE STANDARD OR
PRO HANDLE WILL ADD 1 3/4”
TO THE DEPTH

DO NOT NEGLECT THIS IMPORTANT STEP
Rotate to raise or lower the LEVELING LEGS located at each of the four corners until all four legs
are seated firmly on the floor and the interior floor of the unit is level both front to back and
side to side.
Failure to follow this important step may cause problems with proper door operation, excessive
condensation, vibration and noise.
10
get your level out

Place the handle (B) over the 2 mounting studs (A) on the door frame
with the set screws (C) pointing down.
Push the handle tightly against the door
and tighten both of the 2 set screws (C)
with the hex key (D)
Keep the hex key in a safe place for future use.
Two extra set screws are included in the hardware bag.
Handle Option
Your XO Wine Cellar comes with both the designer stainless bar handle -
and our PRO Style Handle - you get to choose which style to install
11
in fact - pick the style you like

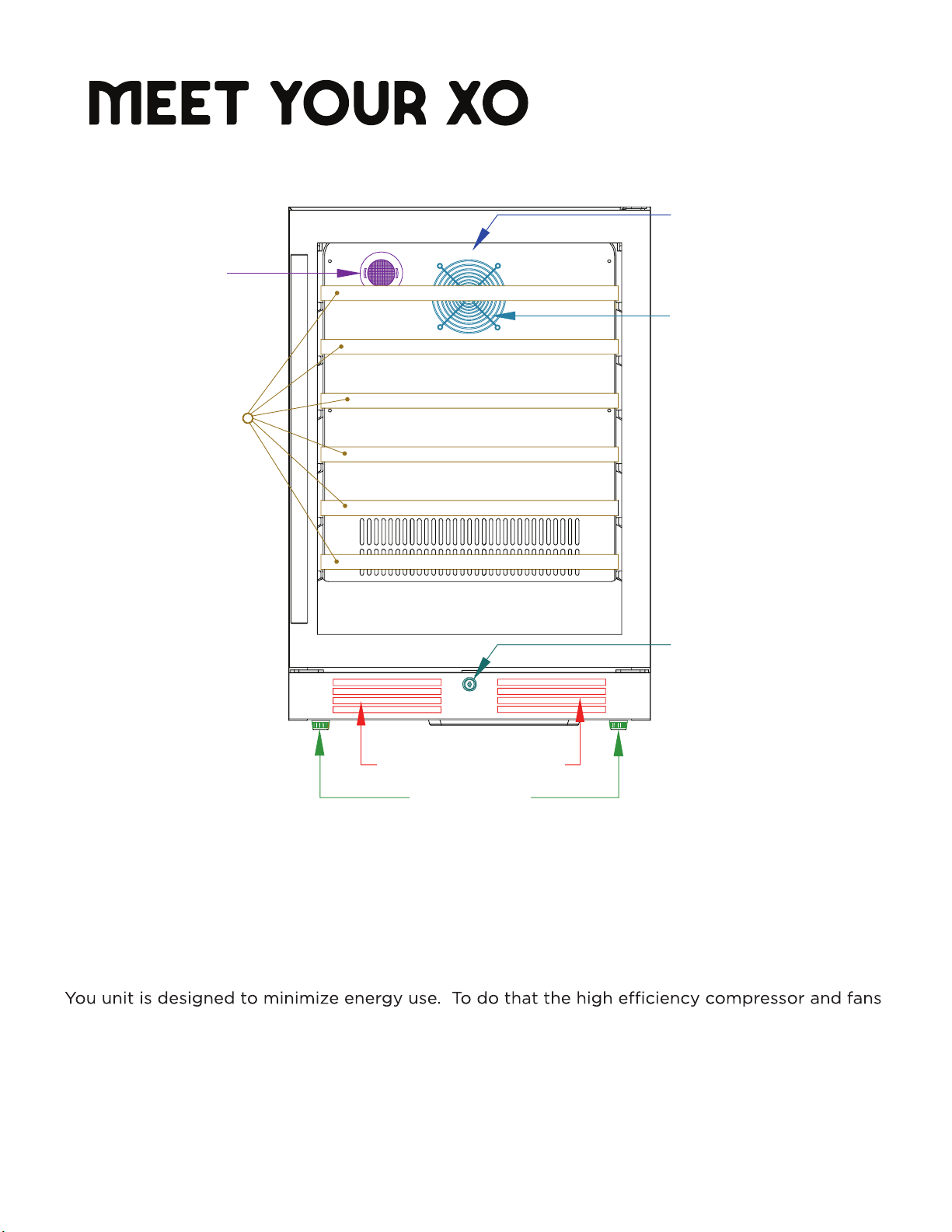

LOCK
FRONT COOLING VENTS
LEVELING LEGS
CARBON FILTER
CARTRIDGE
(replace every 3 to 6 months) RECIRCULATION
FAN
GLIDE OUT
B
(Wine Cooler)
SHELVES
(Beverage Center)
OTTLE RACKS
C
(Hiding up here)
ONTROL PANEL
12
OR
WHAT’S THAT NOISE...
You new XO is designed for quiet operation but you may hear some sounds your old unit didn’t
make. Because they are new you might be concerned, but they are usually normal. Sounds can
also be amplified by hard surfaces like flooring or tiles. Here is a description of the types of
sounds you might hear and what might be causing them.
may run longer than your old unit. You might also hear a pulsating or high pitched sound as the
compressor and fans adjust to improve performance. During defrosting cycles you may hear some
water running into the drip pan. The refrigerant may sometimes cause a rattling or gurgling sound
as it flows through the system and the you might hear clicking sounds as the unit starts and stops.

temperature
Your Wine Cooler or Beverage Center remembers your temperature setting in case of a power
failure and automatically adjusts to the previous setting when power is restored.
When the +/- button is pressed, your wine cellar automatically enters set up mode.
The LED Display will begin flashing and display the temperature setting.
Each time you press the + button, the temperature setting will increase 1 Degree.
Each time you press the - button, the temperature setting will decrease 1 Degree.
Once you have reached the desired temperature setting, the display will continue
to flash for 5 seconds, then revert to showing the compartment temperature.
To view the real time temperature, press and hold the +/- button for 5 seconds.
The interior temperature will flash in the LED Display for 5 seconds.
If you wish to change the display from Fahrenheit to Celsius (or vice versa) press and
hold both “+” and “-” simultaneously for 5 seconds.
led lights
L1: When you turn on your wine cellar, the internal light will switch on when the door is opened,
and off when the door is closed.
L2: Press , the internal light will remain on continuously and dim after 3 minutes.
L3: Press twice, the internal light will remain on for 10 minutes and then shut off.
13
Single Zone Wine Coolers and Beverage Centers have identical control panels.
Single Zone Wine Cooler Temp. Settings
Factory Preset: 54 F (Ideal Storage)
Adjustable Range: 41 F to 64 F
Beverage Center Temp. Settings
Factory Preset: 43 F
Adjustable Range: 34 F to 50 F
o
oo
o
oo

When you turn your XO Unit on, it is set to work in standard mode.
Press ECO mode is turned on. ECO Mode is an energy saver function.
P
ECO Mode also serves as SABBATH Mode.
The Sabbath Mode was designed for use on the Jewish Sabbath and Holidays.
The Sabbath Mode feature makes it possible for observant Jews to use the beverage center during
the duration of the holiday. The Sabbath Mode feature can be set to override typical reactions
caused by your interaction with the unit. While in the Sabbath Mode, your appliance will still
operate. However, it will not respond to your actions.
While in the Sabbath Mode, you may notice the fan running when the door is opened, however,
this is not a result of your actions. The compressor and fan will operate at predetermined times.
ress again, ECO mode is turned off and it returns to standard mode.
Press for 5 seconds, DEMO mode is turned on.
Press for 5 seconds again, DEMO mode is turned off and it returns to standard mode.
Your controls are simple and intuitive to operate.
14
When you turn your wine cellar or beverage center, the interior light is white,
press and the light will change to blue.
Press again and the light will change to amber.
continued
I love
saving
Energy!
colors!
switching modes

The temperature setting can be adjusted from 41-64°F.
Your controls are simple and intuitive to operate.
ON /OFF Button
Press & Hold for 1 Second to turn ON
Press & Hold for 3 Seconds to turn OFF
Press to Silence Alarm
Light Function Button
Toggle Between 3 Light Functions
L1, L2, L3
TEMPERATURE DISPLAY Indicator Light
Cooling Mode ON
Press to raise temperature
Press to lower temperature
Changes interior light color
Toggles between different
operating modes
15
beverage centers or 1 zone wine coolers
54 F is usually
ideal for wine
storage.
°

Your controls are simple and intuitive to operate.
ON /OFF Button
Press & Hold for 1 Second to turn ON
Press & Hold for 3 Seconds to turn OFF
Press to Silence Alarm
Light Function Button
Toggle Between 3 Light Functions
L1, L2, L3
TEMPERATURE DISPLAYS
UPPER | LOWER
Indicator Light
Cooling Mode ON
Press to raise temperature
Press to lower temperature
Changes interior light color
Toggles between different
operating modes
16
UPPER LOWER
Upper compartment:The temperature setting can be adjusted from 41-50°F.
Lower compartment:The temperature setting can be adjusted from 50-64°F.
2 zone wine coolers

Wine bottles come in many shapes and sizes.
The following MAXIMUM capacities are based on two of the most popular types in 750 ml.
6 Shelves of 5 5 Shelves of 3
+ 4 +3
15” 1
MODEL WIDTH ZONES BORDEAUX BURGUNDY
34 TOTAL 18 TOTAL
6 Shelves of 8 6 Shelves of 8
+ 6 +6
24” 1
MODEL WIDTH ZONES BORDEAUX BURGUNDY
54 TOTAL 54 TOTAL
5 Shelves of 8 5 Shelves of 8
24” 2
MODEL WIDTH ZONES BORDEAUX BURGUNDY
46 TOTAL 46 TOTAL
Shelf capacities
15” Wide Wine Cellar Shelves
accommodate up to 5 Bottles Each
24” Wide Wine Cellar Shelves
accommodate up to 8 Bottles Each
Store wine in sealed bottles only
Avoid overloading
Storing little or no product can cause excessive condensation
17
wine bottles can this hold
XOU15WGS
XOU24WDZGS
XOU24WGS
+ 6 +6

Easy to change + more shelf positions give you more storage options with XO.
REAR SHELF FRONT SHELF
GLIDE SUPPORT GLIDE SUPPORT
REAR SHELF FRONT SHELF
GLIDE SUPPORT GLIDE SUPPORT
SHELF GLIDE
SHELF GLIDE
LIFT
UP
FULLY EXTEND
THE SHELF
STEP 1: Remove the shelf
STEP 2: Remove and re-position the shelf glides
STEP 3: Reverse the steps.
LIFT THE
FRONT
PULL OUT
STRAIGHT
S
H
EL
F
G
L
I
DE
Install the right and left SHELF GLIDES in their new position by pushing the
pins into the slots and click the front of the glide down to secure.
Replace the shelf.
ALL SHELVES MUST BE PUSHED ALL THE WAY IN BEFORE CLOSING THE DOOR
DOOR MUST BE FULLY OPENED BEFORE PULLING SHELVES OUT
18
is easy with xo

Cleaning the Inside:
Walls, floor, inside window, and shelves - Some water deposits and dust can be removed with a dry paper
towel, others may require a damp cloth.
Cleaning the Outside:
Outer case - It is important to keep the area clean where the door seals against the cabinet. Clean this area
with a soapy cloth. Rinse with a damp cloth and let dry.
Control Panel and Door - Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large
amounts of soap and water, abrasive, or sharp objects on the panel, they can damage it.
CAUTION: Some paper towels may also scratch the control panel and glass on the door.
Door Surface - Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth.
Rinse well with damp cloth.
NOTE: Do not use cleaners containing ammonia or alcohol on your XO unit. Ammonia or alcohol can
damage the appearance of the appliance.
NOTE: Never use any commercial/abrasive cleaners or sharp objects on any part of the wine cooler.
power failure
Most power failures are corrected within a few hours and should not affect the temperature of your appliance
if you minimize the number of times the door is opened.
If the power is off for a longer period of time, you need to take the proper steps to protect your contents.
vacation
Short vacations: Leave the XO unit operating during vacations of less than three (3) weeks.
Long vacations: If the appliance will not be used for an extended period, remove all items and turn off the
appliance.
Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking
it open if necessary.
ENERGY SAVING TIP
The unit should be located in the coolest area of the room, away from heat producing appliances,
and out of direct sunlight.
moving
Remove all items and securely tape down all loose items (shelves) inside your appliance
Turn the adjustable leveling legs all the way into the base to avoid damage
Tape the door shut and transport the XO unit securely in the upright position
Blanket wrap the exterior to help protect against scratches and other damage
19
goes a long way

Rotate the filter 1/4 turn
to unlock
Pull straight out to remove
Align the tabs and
insert the new filter
Rotate filter 1/4 turn
to lock in place
Your Air Refresh
Charcoal Filter
I
P/N: XOUAIRFILTER
s Located Here
20
for best results change every 3 to 6 months
