Xtreme Power 61026 Original instruction manual

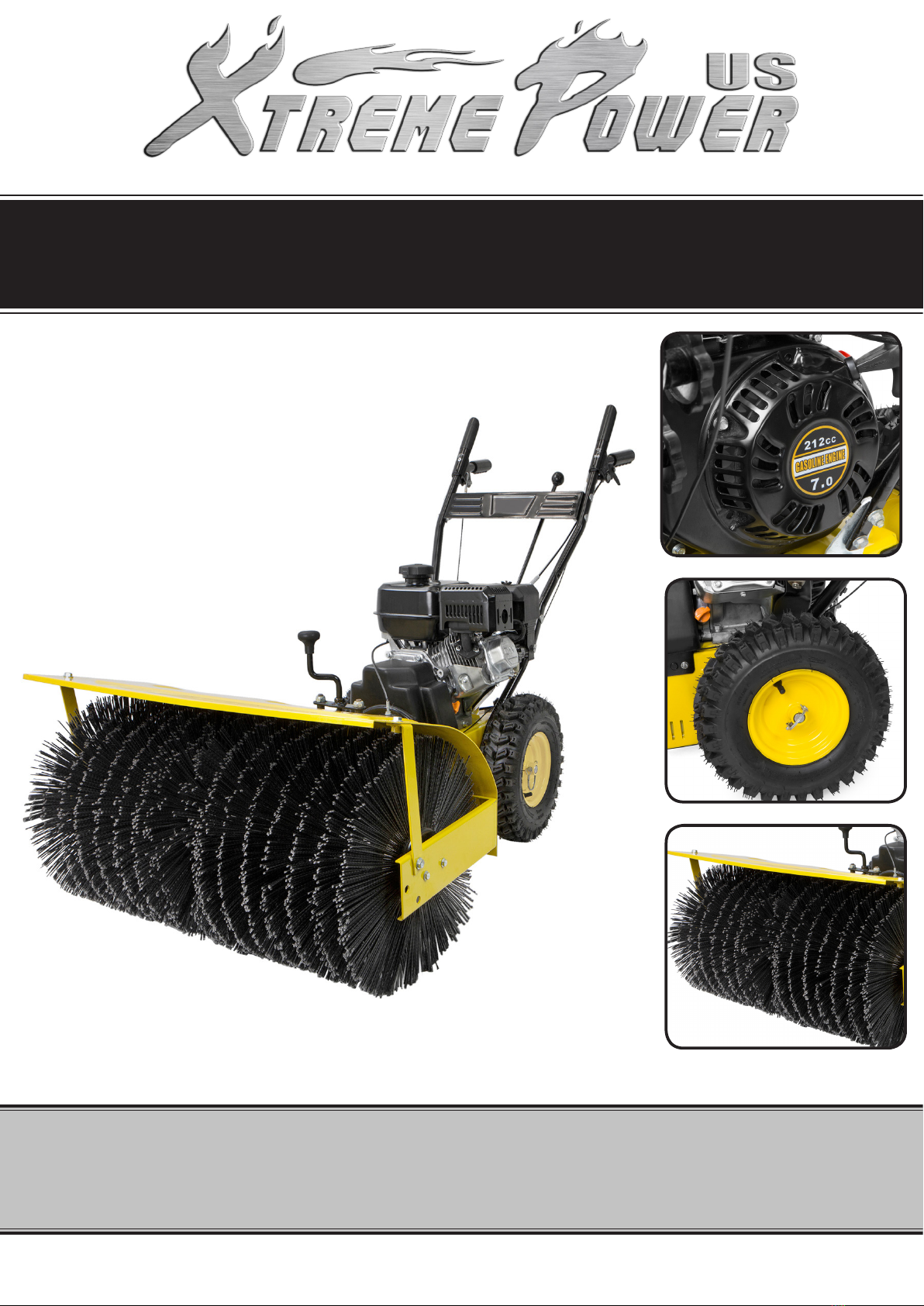

31” 7HP 4 STROKE GAS SNOW SWEEPER BROOM
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 61026
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

1
WARNING AVOID INJURY: This machine is capable of crushing and/or amputating body parts. Failure
to observe the safety instructions in this manual and decals could result in serious injury and death.
ALWAYS stop the unit and engine, remove the key and allow moving parts to stop before leaving the
operator’s position.
IMPORTANT SAFETY INFORMATION
Read and understand the operator’s manual and decals on the unit. This information is for your safety
and the proper use of this equipment. Failure to follow these instructions and warnings may cause seri-
ous injury or death. Familiarize yourself and any other operators with all controls and the safe use of all
the features of this unit. If you rent, loan or sell this product, be sure to provide this manual.
NEVER allow children to operate or play on or near the equipment. NEVER allow adults to operate the
equipment without thoroughly reading and understanding the instructions in this manual.
Keep the area of operation clear of all persons, particularly small children. Be alert and shut off the unit
if children are nearby.
ALWAYS remove the key and/or wire from spark plug before assembly, maintenance or service.
Unintentional engine start up can cause serious injuries.
DO NOT run or jog when pushing the machine. Walk at a normal pace only.
Keep your body and clothes away from the heating or rotating parts of this machine. DO NOT wear loose
clothes, neckties or necklaces while operating this machine.
DO NOT use this machine on bumpy or steep surfaces. Exercise caution to avoid slipping and falling.
Inspect that all nuts, bolts and brush rollers are tight and well connected to ensure the safety and reliability
of this unit prior to operation.
Adjust the clutch pull cable to ensure it is exible and reliable.
Adjust the brush to proper height prior to operation.
If the machine strikes a foreign object or starts to vibrate abnormally, stop and turn off the machine and
check immediately for the obstruction.
Adjust the clutch pull cable to ensure it is exible and reliable.
Adjust the brush to proper height prior to operation.
Stop the engine and pull out the spark plug whenever you leave the operating position before making
any repairs or adjustments.
Inspect the air pressure in the tires prior to use and pay attention to sharp objects when using this unit to
prevent the tire from being pierced.
Replace worn components before operating this machine.
Wear safety gear when operating this machine. It is recommended to wear goggles, ear protection and
work boots when operating this machine.
Inspect the machine prior to use and make sure the fuel tank is full.
To reduce the risk of injury associated with exhaust fume inhalation. DO NOT operate in an unventilated
area.

2
SAVE THESE WARNINGS
IMPORTANT SAFETY INFORMATION
Handle fuel with care, it is highly ammable. Use ONLY approved fuel.
NEVER add fuel to a running or hot engine. Only ll or top up with fuel outdoors. NEVER ll fuel indoors
and make sure it is far and away from any re source.
Screw the ller cap on tightly and wipe up any spilled petrol.
Move this machine at least 3 meters away from the refueling point before starting the engine.
ALWAYS store gasoline in a container approved for containing ammable liquids.
Some of the parts of this unit are made of plastic and rubber, it should be kept away from any chemical
articles to prevent a chemical reaction from happening.

3
PRODUCT INFORMATION
SPECIFICATIONS
Perfect for homeowners who need a medium size snow sweeper, easy-to-use and efcient snow thrower
Designed to clear snow from all kind of surface, at and narrow surfaces on garage driveways and paths
Adjustable Height ~ Lower the brushes and increase the aggressiveness of sweeping

4
PRODUCT INFORMATION INSTALLATION
1. Assemble the four connection knobs on the upward and downward tube.
2. Put the drive cable and auger cable into the trigger hole.
3. Connect the turning alignment pin and spring with the pin xing seat housing and x them with the cable
adapter sleeve. Then x the cable adapter sleeve by bolt.
4. Put the speed handle into speed spacing frame, then x the handle on the body of the machine by screw.
STARTING THE ENGINE
1. Turn the switch to ON.
2. Open the choke and accelerator and then pull the starter cord to start it.
3. Plug the power cable into the wall socket.
4. Don’t push the electric button until you are sure that the power line is properly connected with the power
source.
5. Get the plug out and close the cover when the engine is started, then close the choke.
STOPPING THE ENGINE
1. Turn the engine switch to OFF and the engine will turn off.
LEFT/RIGHT HANDLEBAR CLUTCH OPERATION
1. Operation of the clutch on the left handlebar: The clutch on the left handlebar controls the brush
operation through the clutch on the handlebar.
A. In the loosing position, the sweeper won’t start sweeping.
B. Press the clutch downward and the sweeper will start to work.
2. Operation of the clutch on the right handlebar: The clutch on the right handlebar controls the drive
control. The user will be able to choose the speed gear according to the need and move the equipment
forward at various speeds.
Left Handlebar Right Handlebar
SELECTION OF SPEED TRANSMISSION
1. This unit has a 6-gear transmission that can be chosen by adjusting the speed transmission rider.
A: Four Forward B: Two Reverse
OPERATION OF SUPPORT WHEEL
The support wheel helps support the turning of the unit and also for adjusting the height of the brush.
A. Increase the height of the brush by rotating the rider of the support wheel counter-clockwise.
B. Decrease the height of the brush by rotating the rider of the support wheel clockwise.
ADJUST THE DIRECTION OF THE BRUSH
Press the direction adjustment rider of the brush and adjust the direction of the brush roller.
A. Turn the brush to the right by pushing the machine to the right.
B. Turn the brush to the left by oushing the machine to the left.

STORAGE AND MAINTENANCE
5
STORAGE
1. Clean off all dirt from the machine.
2. ALWAYS remove all gasoline from the machine before storing it. Be sure it is stored away from all re
sources.
3. NEVER place this unit in a high temperature environment or in direct sunlight. Some parts are made of
plastic or rubber materials and may be damaged.
MAINTENANCE
Regularly inspect the unit for any obvious defects like a loose brush that is misaligned or damaged, loose
fasteners or any damaged elements.

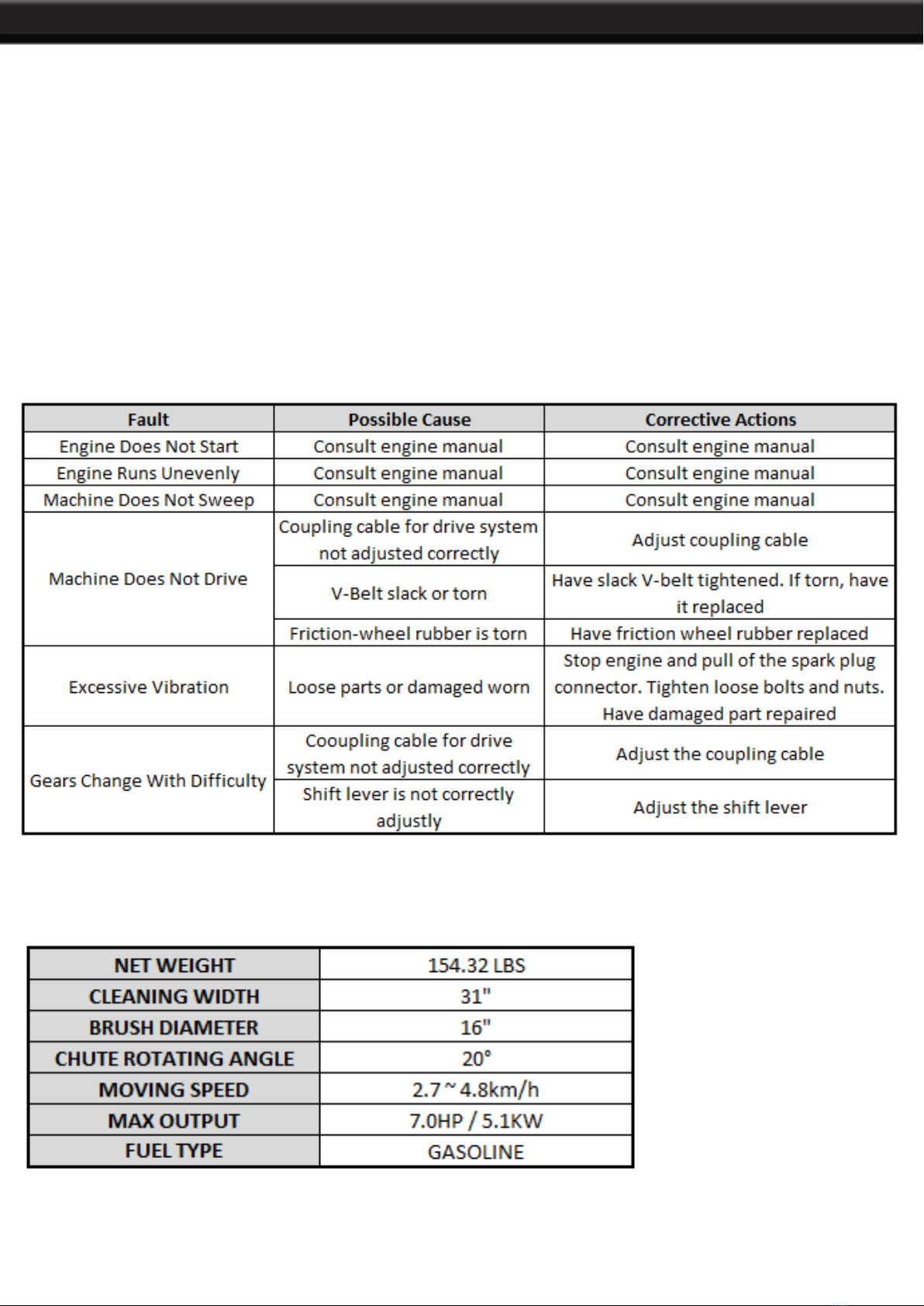

TROUBLESHOOTING
TECHNICAL PARAMETERS

6
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
WARRANTY
PRODUCT MADE IN CHINA
