Xtreme XR3034 Use and care manual

Operation and
Safety Manual
PN 24941-001
Tier 4 Final

PN 24941-001
Tier 4 Final
REV B
Aug 2016
AUTHOR:
OVY LUNGU
© 2015 XTREME MANUFACTURING. ALL RIGHTS RESERVED
Xtreme Manufacturing, LLC (w://www.xmfg.com/) is headquartered in Las Vegas, Nevada, and has fabrication facilities in Selma, California.
In October 2013, Xtreme became the majority shareholder in Snorkel, a global aerial work platform manufacturer, which has manufacturing
facilities in the US, UK & New Zealand, as well as a global sales distribution network. Find out more about Snorkel at www.snorkellifts.com.
Xtreme Manufacturing
8350 Eastgate Road
Henderson, NV 89015, USA
Contact Us:
T: 1.800.497.1704
T: 1.702.636.2969
F: 1.702.636.4943
E: [e-mail]

Operation Manual3
Table of Contents
Description Page
Introduction
General 5
Replacement Manuals 5
Model/Serial Number Plate 5
Forklift Direction Orientation 5
Safety
Safety Disclaimer 5
Signal Words 5
Safety Symbols 5
Employer Responsibility 9
Operator Responsibility 9
Operator Qualications 9
Modications 9
Mounting/Dismounting 10
Work Site Safety 10
Before Starting Forklift 11
Operation Safety 12
Load Safety 14
Attachments 15
Shut Down Procedure 15
Forklift Maintenance 15
Jump Starting 17
Dead Engine Towing 17
Labels
Labels 20
Replacement Labels 23
Features
Standard Equipment 32
Optional Equipment 32
Specications
Specications 33
Operator Cab
Ignition Switch 34
Accessory Outlet 34
Accelerator Pedal 34
Service Brake Pedal 35
Steering Wheel 35
Horn Button 35
Air Conditioning Controls (If So Equipped) 35
Table of Contents
Description Page
Operator Seat 35
Operator Seat Controls 35
Weight Suspension Lever 36
Lumbar Support 36
Fore and Aft Adjustment Lever 36
Backrest Angle Adjustment Lever 36
Seat Belt 37
Rear View Mirrors 37
Controls and Indicators 38
Travel Select Lever 38
Gear Select Switch 38
Parking Brake Switch 38
Load Capacity Charts 38
Light Switches 39
Turn Signal and Hazard Switches 39
Steering Select Switch 39
Wiper Switch 39
Display Indicators 40
Display Features 42
Boom Control 44
Attachment Tilt Switch 45
Frame Sway Control Handle 45
Override Operation 46
Auxiliary Attachment Control 46
Boom Angle Indicator 47
Boom Extend Letters 47
Frame Level Indicator 47
Boom maintenance Stand (If So Equipped) 47
Lifting Points 47
Operation
Pre-Operation Inspection 48
Pre-Operation Inspection Checklist 50
Functional Tests 51
Operator Maintenance 52
Before Starting Forklift 53
Starting Forklift 54
Normal Starting 54
Forklift Travel 55
Steering Modes 55

Operation Manual 4
Table of Contents
Table of Contents
Description Page
Starting Travel 56
Shifting Transmission Range 56
Shifting Gears 56
Warning Indicators and Fault Codes 56
Manual Regeneration 59
Stopping Travel 59
Changing Travel Direction 59
Shut Down Procedure 59
Refueling 60
Diesel Exhaust Fluid (DEF) 60
Fuel Types 60
Attachments 60
Attachment Disclaimer 60
Fork Ratings 61
Standard Carriage Operation 61
Fork Positioning Carriage Operation 62
Quick Attach System 62
Load Handling 64
Boom Lift Point 65
Description Page
Suspended Loads 65
Pick Up a Load 65
Carry a Load 66
Place a Load 66
Tow Pin & Pintle Hook (Optional) 66
Load Shift 66
Elevating Personnel 67
Frame Leveling 68
Load Capacity Charts 69
Preventive Maintenance
Preventive Maintenance 71
Establishing a Maintenance Program 71
Maintenance Schedule 71
Boom Emergency Lower Down Valve 73
Lockout / Tagout
Do Not Operate - Accident Prevention Tags 75
New or Additional Operators 75
Lockout/Tagout Procedure 75
Do Not Operate Tags 75

Operation Manual5
Introduction
This Operation and Safety Manual provides the information
needed to safely operate the XR3034 Reach Forklift.
This manual shall be considered a permanent part of the fork-
lift, and kept in the protective manual case located in the op-
erator’s cab.
Before operating the forklift, read this manual complete-
ly and carefully to understand the safety instructions and
the operation of controls and safety equipment. You must
comply with all DANGER, WARNING, and CAUTION notic-
es. They are for your benet.
Improper operation of this forklift could result in death or
serious injury.
BEFORE starting the engine, do the following:
• Read the Operation and Safety Manual
• Read all the Safety Labels on the Forklift
• Clear the area of all other persons
Learn and practice safe use of forklift controls in a safe,
clear area, BEFORE you operate this forklift on a work site.
It is your responsibility to observe applicable laws and
regulations and to follow manufacturer’s instructions on
forklift operation and maintenance.

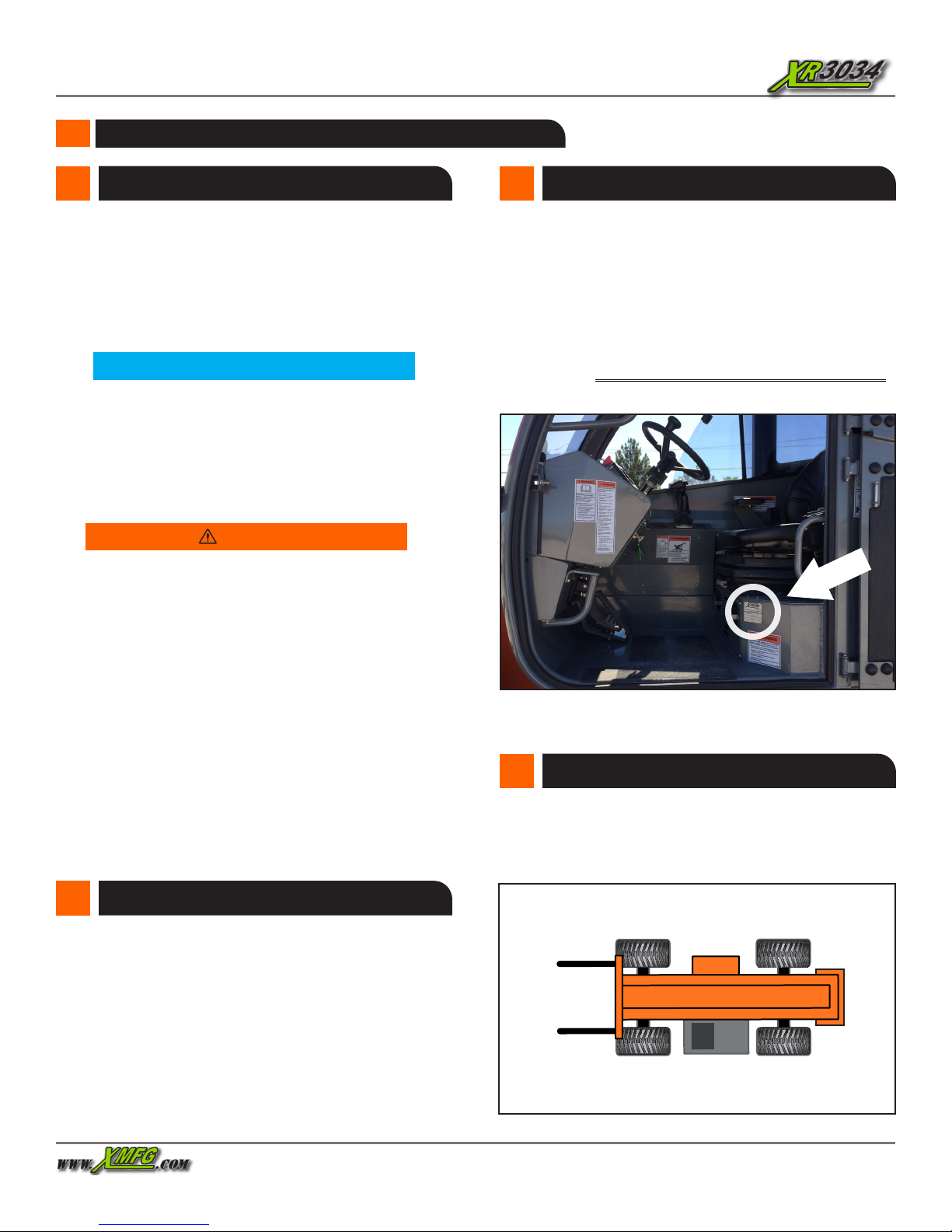

Replacement manuals for the XR3034 Reach Forklift can be
obtained by contacting our parts department by phone or
visiting our website:
Xtreme Manufacturing
Phone: [phone]
www.XMFG.com
When contacting our parts department, please have the
forklift serial number available. The serial number plate is
located in the operator’s cab, at the base of the seat.
For easy reference, you can record the serial number in the
space below.
Serial Number:
Warning
Notice
FRONT
REAR
RIGHT
LEFT
General
Replacement Manuals
Model / Serial Plate
Forklift Direction Orientation
Introduction
Fig 1. Serial Number Plate
Right side, left side, front, and rear are directional references
given from the operator’s seat when facing forward.

Operation Manual 6
Safety
Xtreme Manufacturing reserves the right to make technical
changes for product improvement. This manual may contain
illustrations and photographs (for demonstration purposes),
which slightly deviate from the actual product.
Safety information provided in this manual is a basic guide
and an attempt to prevent accidents. Xtreme Manufacturing
cannot anticipate every circumstance that might involve a po-
tential hazard. Warnings in this manual and on the forklift are
NOT all-inclusive.
You are responsible for safe operation of the forklift and all
attachments. You must satisfy yourself that the techniques,
operating procedures, work methods, or tools you use are
safe; especially those not specically mentioned by Xtreme
Manufacturing.
Thesafetyof everyonearoundtheforklift dependssignicantly
on your knowledge and understanding of all correct and safe
operating practices and procedures. You can help prevent
accidents by remaining alert and recognizing potentially
hazardous situations.
Follow State and Federal health and safety rules and/or local
regulations for operating and maintaining the forklift.
• This manual does not replace any laws and regulations.
• The operator is required to comply with all applicable
laws and regulations.
Danger
Signal WordsSafety Disclaimer
CAUTION (Yellow) with the safety alert sym-
bol indicates a potentially hazardous situa-
tion which, if not avoided, could result in mi-
nor or moderate injury.
Caution
Caution
Warning
Safety Symbols
WARNING (Orange) used with the safety alert symbol indi-
cates a potentially hazardous situation which, if not avoid-
ed, could result in death or serious injury.
Warning
CAUTION (Yellow) used without the safety alert symbol
indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
Safety symbols are provided to remind the operator of
hazardous situations. Xtreme Manufacturing provides these
symbols in an attempt to inform all operators, regardless of
reading and language skills, of as many potential hazards as
possible. These symbols cover many, but not all, potential
dangers and hazards associated with operating the forklift.
Make safety a high priority while operating the forklift.
Learn and follow all safety messages in this manual and on
forklift labels to prevent death, serious injury, or equipment
damage. The following two pages include a list of some of
the safety symbols that may be used on this forklift.
Signal words are the word or words that call attention to
the safety sign and designate a degree or level of hazard
seriousness. The signal words used in this manual are DANGER,
WARNING, and CAUTION.
DANGER (Red) used with the safety alert symbol indicates
an imminently hazardous situation which, if not avoided,
will result in death or serious injury.

Operation Manual7
Safety

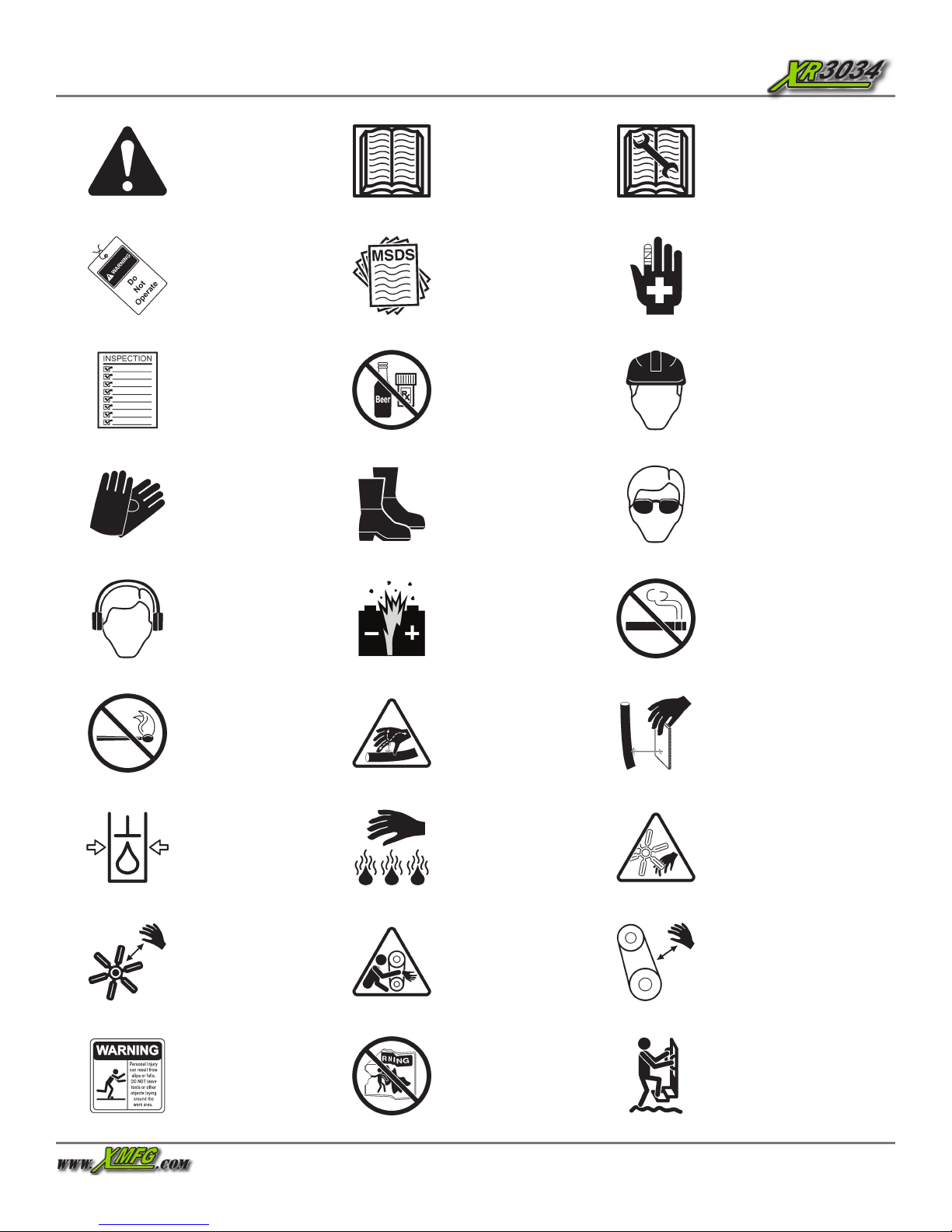

General Safety
Alert Symbol
DO NOT OPERATE!
Forklift Down
For Service Or
Maintenance
Perform
Operator
Inspection
Before Starting
This Forklift
Personal
Protective
Equipment
Gloves
Personal
Protective
Equipment
Ear Protectors
Keep Flames
And Ignition
Sources Away
Hydraulic System
Under Pressure
Keep Hands
A Safe Distance
From Rotating
Fan Blades
Make Sure All
Safety Labels
Are Attached
And Legible
Read Operator
Manual Before
Operating This
Forklift
Read Material
Safety Data
Sheets (MSDS) For
Chemicals And
Fluids
DO NOT
Operate If Using
Alcohol, Drugs,
Or Medications
Personal
Protective
Equipment
Safety Shoes
Lead Acid
Batteries Create
Explosive Gases
Warning!
Hydraulic Oil
Under Pressure
Hot Oil!
DO NOT Open
Unless Cap Is
Cool To Touch
Warning!
Rotating Belts
Can Cut Or
Entangle
Replace Worn And
Illegible Safety
Labels And Labels
Read Maintenance
Manual Before
Working On
This Forklift
Know First Aid
Instructions And/
Or Locations On
Work site
Personal
Protective
Equipment
Hardhat
Personal
Protective
Equipment
Safety Glasses
No Smoking
Keep Lit
Cigarettes
Away
Use A Board Or
Cardboard To
Check Hydraulic
Leaks. DO NOT Use
Your Hand!
Warning!
Rotating
Fan Blades
Can Cut
Keep Hands A Safe
Distance From
Rotating Belts
Use Three Points
of Contact When
Entering and
Exiting Forklift

Operation Manual 8

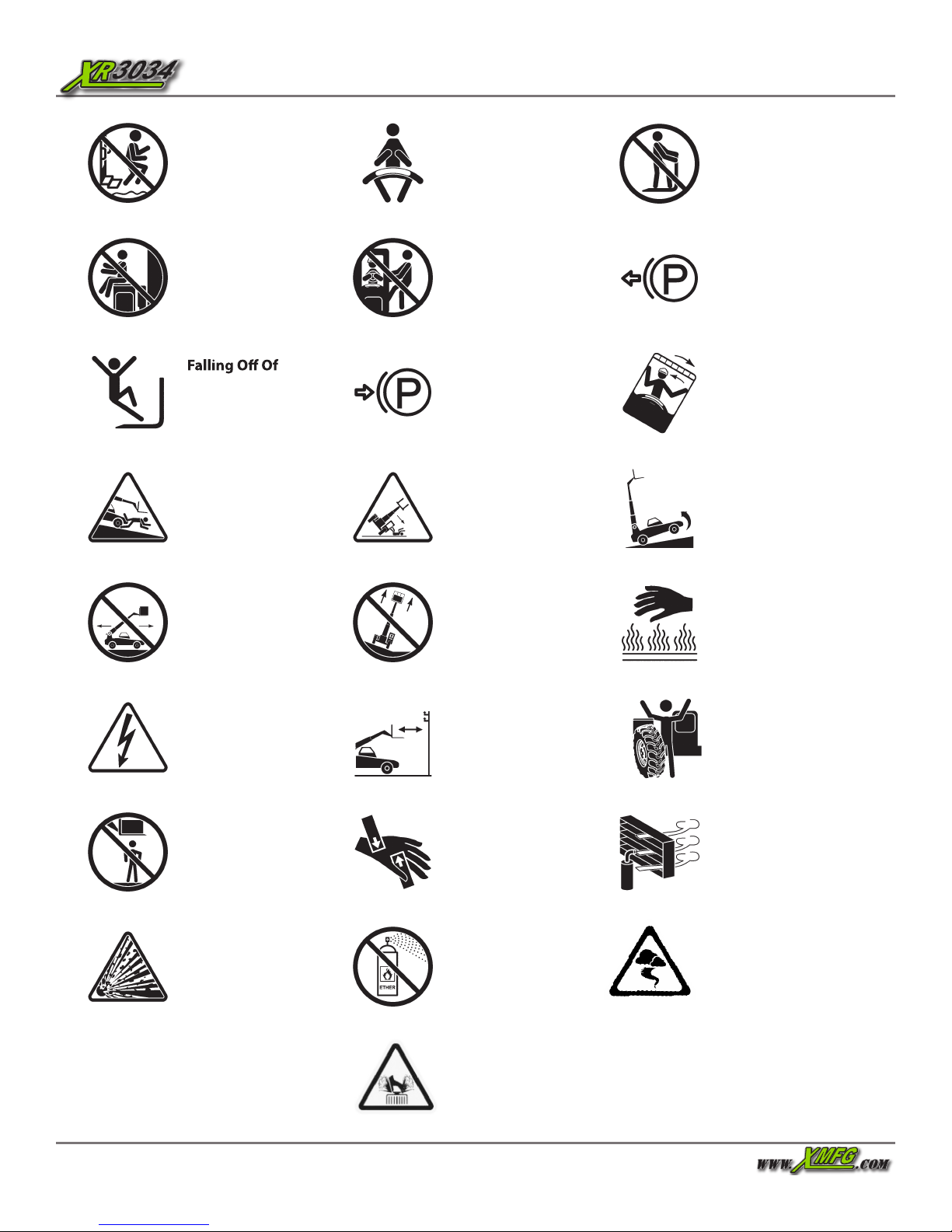

Safety
DO NOT
Jump While
Dismounting
The Forklift
DO NOT Allow
Riders On Forklift
Frame Or Fenders
Attachment Can
Result In Death Or
Serious Injury
Warning!
Forklift Roll Away
Can Cause Death
Or Serious Injury
Warning!
DO NOT Travel
With Boom Raised
Warning!
Electrocution Can
Cause Death Or
Serious Injury
DO NOT Allow
Anyone Under
A Raised Load
Warning!
Explosion
Hazard
Fasten
Seat
Belt
DO NOT Allow
Riders On Or In
The Operator Cab
Set Parking Brake
To ON
Engage Parking
Brake
Warning!
Forklift Tip Over
Can Cause Death
Or Serious Injury
DO NOT
Raise Boom While
Traveling On A
Slope
Danger!
Keep A Safe
Distance From
Electrical Lines
Pinch Points
Hands
DO NOT Use Ether
As A Starting Aid
DO NOT
Allow Riders
On Auxiliary
Attachments
Set Parking
Brake To OFF
Disengage
Parking Brake
DO NOT Jump!
If Forklift Tips,
Keep Seat belt ON
And Brace Yourself
Tip Over Hazard,
Especially
Traveling Up A
Slope Without A
Load
Hot Surface!
Keep Hands Away
Pinch Points
Body
Have Adequate
Ventilation If
Operating This
Forklift In An
Enclosed Space
WARNING! Hot
Coolant. DO NOT
Open Radiator Cap
When Hot To Touch.
Use caution when
operating the fork-
lift during storms or
strong winds.

Operation Manual9
Safety
Employer Responsibility
Operator Responsibility
Modications
Warning
Warning
Reach forklifts are potentially dangerous if proper safety
procedures are not followed. Workers who operate,
maintain, or work near the forklift can be at risk of roll over
and run over incidents or can be crushed or caught by the
forklift or its parts which could result in death or serious
injury if the forklift is not properly operated or maintained.
Read the Operation and Safety
Manual BEFORE operating the
forklift. Follow all safety in-
structions and labels. Only op-
erate the forklift if you under-
stand the safety instructions and warnings in all applicable
manuals and technical publications. Always follow all State
and Federal health and safety laws and/or local regulations.
Maintenance personnel must have the required training,
skills, and tools to perform installation, operation, mainte-
nance, or repair procedures properly and safely. Make sure
the forklift and attachments will not be damaged or made
unsafe by any procedures chosen.
Operator Qualications
Modications to the forklift or attachments
could aect forklift capacity and/or stability
which could result in death or serious injury.
DO NOT make modications to the forklift or
attachments without prior written approval
from the manufacturer. Where such authorization is grant-
ed, capacity, operation, and maintenance instruction plates,
tags, or labels shall be changed accordingly.
• Unauthorized modications or alterations will void the
warranty.
• DO NOT modify, disable, or bypass any safety devices.
• DO NOT burn or drill holes in forks or other attach-
ments.
Structural damage, modication, or alter-
ation, including welding or drilling, can im-
pair and weaken the protective capability
of the Rollover Protective Structure/Falling
Object Protective Structure (ROPS/FOPS) and
could result in death or serious injury.
• Replace the ROPS/FOPS, if it is damaged, before
operating the forklift.
Under Occupational Safety and Health Administration (OSHA)
rules, employers are required to train workers about hazards
related to operating and maintaining the forklift. Successful
completion and certication of the Safety Training for Rough
Terrain Forklifts is required.
Additional safety information and training resources can be
obtained through these publications, organizations, and/or
appropriate sources:
• (29CFR) Code of Federal Regulations.
• (OSHA) Occupational Safety and Health Administration.
• (NIOSH) National Institute for Occupational Health and
Safety.
• (ANSI) American National Standards Institute
• (AEM) Association of Equipment Manufacturers
• (ITSDF) Industrial Truck Standards Development
Foundation
Always consult Material Safety Data Sheets (MSDS) for chemi-
cal hazards and rst aid instructions for any oil or lubricant be-
ing used. MSDS should be available from the manufacturer/
supplier of the uid.
Operators must be in good physical and mental condition,
with appropriate reexes, reaction time, vision, depth
perception, and hearing.
Operators must possess a valid, current operator’s license as
required for the work site; plus those required by applicable
State, Federal, and/or local laws:
Successful completion and certication of Safety Training for
Rough Terrain Forklifts is required.
• Operators must be properly instructed on how to
operate the forklift and attachments.
• Operators must operate the forklift according to ALL
appropriate safety regulations.
• Operator trainees must remain under constant
observation and supervision of an experienced operator.

Operation Manual 10
Safety
Mounting/Dismounting
Warning
Failure to use proper safety procedures when mounting
and dismounting the forklift could result in death or serious
injury.
• Keep steps clear of dirt, mud, snow, ice, debris, and oth-
er hazards.
Face the forklift for mounting or dismount-
ing. Use hand holds and steps to maintain
three (3) points of contact at all times, either
both hands and one foot or both feet and one
hand.
• DO NOT use the controls, steering wheel, or foot pedals
as hand holds or steps. Avoid accidentally engaging or
disengaging a control.
DO NOT jump from the forklift. Clothing
can get caught on pedals, levers, or other
protruding parts. Landing on uneven surfaces
could result in death or serious personal
injury.
Work Site Safety
Warning
Use proper safety procedures and avoid
hazardous situations while operating the
forklift to prevent death, serious injury, or
property damage.
• Check the work site for any hazards before operating
the forklift.
• Check the work surface for loose soil conditions and
overhead power lines.
• Contact your local underground utility service or
digging hotline to mark all underground hazards.
• Learn the location of all underground hazards at the
work site, such as; gas and water pipes, electrical cables,
and sewers. Underground objects could cause death or
serious injury.
Warning
• Theforkliftisdesignedtohandleroughterrain,however,
operating the forklift where large holes, obstructions,
debris, loose ll, and other work site hazards exist could
result in death or serious injury.
• DO NOT allow bystanders in the work area.
• Avoid personnel, machinery, and vehicles in the work
area.
• Know the rules for movement of people and vehicles on
the work site.
• Follow work site signs and signals.
• Check boom clearance before driving under a door
opening, bridge, etc.
• Slow down when approaching obstructions. Use a
spotter, if necessary.
• Stop for poor visibility conditions, such as dust, smoke,
fog, etc. Wait until visibility improves before continuing.
Operate the forklift in an enclosed area only
if there is a ventilation system capable of
routing hazardous fumes outside. Engine
exhaust contains products of combustion
that could cause death or serious injury.
DO NOT operate the forklift if you are using
drugs, alcohol, or any medication that might
impair your judgment or ability.
• You must be 18 years of age or older to operate the
forklift.
• DO NOT operate the forklift on roads for extended
distances. The reach forklift is not equipped for
extended road travel.
Warning
California Proposition 65
Engine exhaust from this product contains chemicals known
to the State of California to cause cancer, birth defects, and
other reproductive harm.
Use caution when operating the forklift
during storms or strong winds.

Operation Manual11
Safety
Warning
Before Starting Forklift
Warning
Keep the Operation and Safety Manual
on the forklift at all times. Contact Xtreme
Manufacturing for replacement manuals.
Clearly dene responsibilities and procedures
for operating the forklift and all attachments.
DO NOT proceed until seeking expert
assistance from a qualied person if any
doubt or question arises about the correct or
safe methods for operating the forklift.
To avoid death or serious injury,
carefully read and understand
all instructions before operating
the forklift. DO NOT operate,
modify, repair, or maintain the
forklift without reading and understanding the instructions
and warnings in this and all other applicable manuals and
technical publications. Follow all State and Federal health
and safety laws and/or local regulations.
Consult Material Safety
Data Sheets (MSDS) for
chemical hazards and rst aid
instructions. MSDS should be
availablefromthemanufacturer
or supplier of the uid.
Warning
Perform a pre-operation inspection and
functional tests at the beginning of each work
shift. Perform the pre-operation inspection
rst. DO NOT perform the pre-operation
inspection with the engine running or hot.
Allow the engine and associated components to cool before
performing an inspection. Contact with moving or heated
parts could cause death or serious injury.
Perform the pre-operation inspection and
functional tests in an open area and away
from any other obstacles or equipment. In-
spections and functional tests may require
assistance. Keep the assistant visible and a
safe distance from the forklift to prevent death or serious
injury.
Become familiar with all safety and hazard
labels, regulations, and procedures. Make
sure all proper safety and hazard labels are
attached to the forklift and remain legible.
A brief description of controls, indicators,
and instruments is provided as a convenience
for the operator. These descriptions DO NOT
provide complete operation instructions.
Read and understand the entire manual to prevent death,
serious injury, or equipment damage.
Keep ngers and feet away from
moving parts or pinch points to
prevent pinching or crushing.
DO NOT allow anyone between
the tires and the forklift frame
while operating the forklift. Doing so can result in death or
serious injury.
Always check the condition of the seat belt
and mounting hardware before operating the
forklift. If the seat belt or mounting hardware
is defective, it may not properly restrain the
operator, resulting in death or serious injury.
• DO NOT operate the forklift until the seat belt or mount-
ing hardware is replaced, if worn or damaged.
• The seat belt MUST be worn while operating the forklift.
Failure to wear the seat belt could result in death or
serious injury.
Wear appropriate protective clothing. Personal protective
equipment can include, but is not limited to hardhat,
gloves, footwear, safety glasses or goggles, and hearing
protection. Make sure clothing is snug and properly belted.
DO NOT wear loose clothing, jewelry, watches, or anything
that can catch on forklift controls, moving parts, etc. Failure
to wear the proper protective clothing could result in death
or serious injury.

Operation Manual 12

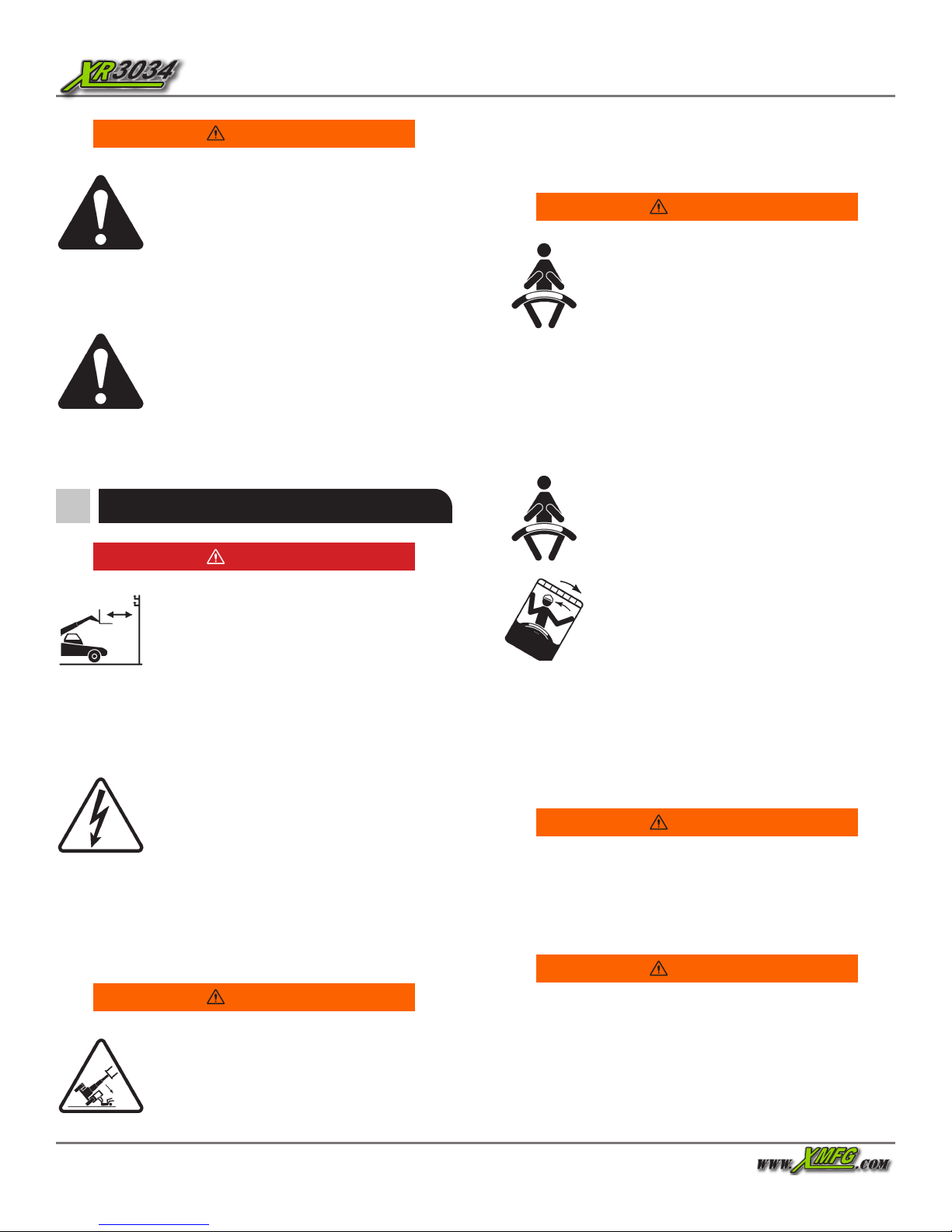

Safety
Death or serious injury by electrocution will
result from contact with or inadequate clear-
ance with energized power lines or apparatus.
Danger
Warning
Operators must be properly trained and
qualied to operate this specic forklift.
Know the location, learn the specic purpose,
and demonstrate safe and proper use of all
controls, instruments, indicator lights, and
safety and instruction labels. Safety is your responsibility.
Failure to follow these guidelines could result in death or
serious injury.
To prevent death or serious injury, the
operator must be seated with seat belt
fastened, the travel select lever set to
NEUTRAL, the Parking Brake switch ON
(engaged), the service brake applied, and the
area free of people and obstructions BEFORE starting the
forklift.
Operation Safety
• Never operate the forklift in an area where
active overhead power lines, overhead or
underground cables, or other power sources exist.
• Contact the appropriate power or utility company
to de-energize power lines or take other suitable
precautions.
• Keep the forklift, attachments, and loads a
safe distance from electrical power lines.
• Remain at least 10 feet, plus an addition-
al 0.4 inches for each 1,000 volts over 50,000
volts, from active power lines and other power
sources.
• Work site operating directives and/or local or state
codes might require a greater distance.
• Know the maximum height and reach of this forklift.
Warning
Use of the frame sway control with the boom
raised above horizontal could cause tip over
resulting in death or injury. Always use the
frame sway control to level the forklift
BEFORE raising the boom above horizontal. If
• Remain securely fastened in the seat belt.
• Keep your head, body, and limbs within the ROPS/FOPS
structure.
• Brace yourself and hold on rmly.
• Lean away from the point of impact.
• Stay on the forklift and ride out the roll over or tip over.
the forklift cannot be leveled using the frame sway control,
do not attempt to raise or place load. Reposition forklift or
have the surface leveled.
Warning
To prevent death, serious injury, or prop-
erty damage, the operator must be seated
with seat belt fastened, arms, legs, and head
completely inside the Rollover Protection
Structure/Falling Object Protection Structure
(ROPS/FOPS), the travel select lever in NEUTRAL, the Park-
ing Brake switch ON (engaged), and the service brakes ap-
plied BEFORE starting the forklift.
• The seat belt MUST be worn while operating the
forklift. Failure to wear the seat belt could result in
death or serious injury.
DO NOT adjust the seat or seat belt while the
forklift is moving. Keep both hands on the
wheel while the forklift is moving to prevent
loss of forklift control which could result in
death or serious injury.
Never try to escape the forklift if it becomes
unstable. Learn and practice these safety pro-
cedures to protect yourself from a roll over or
tip over incident:
Warning
It is unlawful to tamper with or remove any component of
the aftertreatment system. It is also unlawful to use Diesel
Exhaust Fluid (DEF) that does not meet the specications
provided or to operate the machine with no DEF.
Warning
Diesel Exhaust Fluid contains urea. DO NOT get the sub-
stance in your eyes. In case of contact, immediately ush
eyes with large amounts of water for a minimum of 15 min-
utes. DO NOT swallow internally. In the event the DEF is in-
gested, contact a physician immediately. Refer to the Mate-
rial Data Safety Sheet (MSDS) for additional information.

Operation Manual13
Safety
NEVER allow passengers to ride
on the forklift. DO NOT allow
riders on the frame or operator
cab. Allowing passengers to ride
could result in serious injury. The
forklift is designated for the safety of the operator only.
NEVER use crab or four wheel (4W) steering for
traveling at high speeds. Use only two wheel
(2W) steering for higher speed travel and slow
the forklift before turning. Rapid turning
while using crab or four wheel-steering can
cause tip over which could result in death or serious injury.
DO NOT travel with an elevated boom. Retract
the boom fully. Lower the boom as low
as practical for proper visibility. Maintain
enough ground clearance for conditions.
Traveling with an elevated boom can cause tip
over, which could result in death or serious injury.
Allow for adequate clearance between the
attachment and other objects when turning.
The attachment extends beyond the front of
the forklift. The operator must be aware of
the maximum sweep of any attachment be-
ing used to avoid hitting personnel and other objects in the
area and to prevent death, serious injury, or property dam-
age.
Warning
To prevent death, serious injury, or proper-
ty damage, make sure the forklift comes to a
complete stop before moving the travel select
lever. A sudden change in direction of travel,
while carrying a load, could reduce stability
and/or cause the load to shift or fall.
DO NOT shift through multiple gears with a
single turn of the gear select lever. Allow the
engine speed to slow down before shifting to
the next lower gear. Improper use of the gear
select lever could cause transmission damage
or forklift tip over/roll over and result in death or serious in-
jury.
Operate the forklift for maximum stability.
Unstable forklifts can tip over, resulting in
death, serious injury, or property damage.
Keep the forklift stable by following these and
other appropriate guidelines:
• Adjust speed for terrain and conditions.
• Avoid obstacles by driving around them rather than
over them, when possible.
• Start, stop, travel, steer, and brake smoothly.
• Load, unload, and turn the forklift on level ground,
when possible.
• Slow down for turns.
• Slow down for rough, slippery, or soft terrain.
• Use caution around steep slopes, creeks, gullies, ridges,
ditches, and ravines.
• Stay away from soft edges that could collapse under
the forklift.
Become completely familiar with the forklift
before operating on slopes. The forklift could
overturn due to sudden movement or while
operating on a slope resulting in death or
serious injury.
DO NOT raise the boom while
operating on a slope. Raising
the boom on a slope, even with-
out a load, will change the cen-
ter of gravity, could cause a tip
over, and result in death or serious injury.
• DO NOT turn on a steep slope.
• DO NOT drive the forklift across slopes.
• Always drive the forklift straight up and down a slope
(never drive diagonally up or down a slope).
• Drive the forklift forward up a slope (front of forklift fac-
ing uphill).
• Back the forklift down a slope when loaded (front of
forklift facing uphill).
Warning
Caution
Never attempt to create Diesel Exhaust Fluid by mixing agri-
cultural grade urea with water. Agricultural grade urea does
not met the specications required and the aftertreatment
system may be damaged.

Operation Manual 14
Safety
Follow appropriate procedures to prevent
sudden changes in forklift speed that could
result in death or serious injury.
• Turn the gear select lever to the appropriate gear be-
fore descending a slope and before loading or unload-
ing a trailer.
• DO NOT change directions (F/R) of the travel select le-
ver while the forklift is moving.
• DO NOT coast downhill. Keep the transmission in the
appropriate gear.
DO NOT exit the forklift without following
proper shut down procedures.
Engine fuel is ammable and
can cause a re or explosion
resulting in death or serious in-
jury. DO NOT smoke while refu-
eling and keep sparks and open
ames away from the forklift.
Warning
The reach forklift includes a Frame Sway
Override Button. Improper use of the Frame
Sway Override Button could result in death,
serious injury, or property damage.
Make sure the forklift frame is level before
raising and extending the boom. Frame
swaying left or right with the boom raised is
extremely dangerous and can result in death
or serious injury.
• Use the frame sway control to level the forklift before
raising the boom.
• Reposition the forklift if it cannot be leveled using the
frame sway control.
• Remain seated with the seat belt securely fastened
while the cab is tilted.
• Keep personnel at least 30 feet (9.14 meters) from a tilt-
ed forklift.
forklift with“Do Not Operate”tags, and have a qualied me-
chanic service or repair the forklift BEFORE placing it into
service again. Ignoring warning indicators can result in
death, serious injury, or property damage.
Contact with hot surfaces and the exhaust
pipe after the forklift has been operated
could result in serious personal injury.
Check warning indicators and gauges on the
dash panel frequently during operation. If a
warning indicator is illuminated or a gauge
shows abnormal readings, stop the forklift,
follow proper shut down procedures, tag the
Caution
Release the key immediately once the motor starts. If the
motor does not start, DO NOT crank the starter motor con-
tinuously for more than 15 seconds. Failure to release the
key after the motor has started or continuous cranking can
damage the starter motor.
DO NOT change steering modes until the forklift comes to
a complete stop. Align all four (4) tires “straight-ahead,” or
perpendicular to the axle, before changing steering mode.
Load Safety
Warning
Failure to follow proper safety procedures
when lifting, lowering, and traveling with a
load could result in death, serious injury, or
property damage.
DO NOT exceed forklift capacity of 30,000
pounds (13,608 Kilograms) with a 72 inch
xed carriage. The total rated capacity of the
forks being used must equal or exceed forklift
capacity. Forks can bend or break causing loss
of load and possible death or serious injury.
DO NOT exceed the manufacturer’s rated load
for any auxiliary attachment. Any attempt to
lift or carry loads in excess of the manufactur-
er’s rated load may cause forklift tip-over, loss
of load, or structural damage which could re-
sult in death or serious injury.

Operation Manual15
Safety
Failure to keep personnel clear of the load
area while the load is being raised or lowered
could result in death or serious injury. DO
NOT lift, swing, or move a load over anyone.
• Review the rated load capacity of each auxiliary
attachment before performing any operation.
• Use the correct load chart and NEVER exceed specied
weights and load centers.
• DO NOT exceed the manufacturer’s recommended load
capacity.
• DO NOT operate the forklift with an unsafe load
distribution.
• Adjust the load as necessary, especially for nonstan-
dard loads.
• Use caution when handling loose material that can fall
into the cab.
• Remove overhanging load materials, when possible,
and watch for sliding material.
• DO NOT reach a load over posts or other objects that
can enter the cab, if tipped.
• Avoid sudden stops, starts, or turns.
• Avoid carrying a swinging load from the boom lift
point. If necessary, secure the load by attaching it to
the forklift tie-downs and/or have another person as-
sist with safely steadying the load.
Attachments
Warning
Improper connection of an auxiliary attachment could re-
sult in death or serious injury. Attachments not locked into
place can become unstable and fall on the operator or other
personnel near the forklift.
• Make sure attachment locking devices are always in
place.
• Hydraulic attachments have a maximum hydraulic
pressure rating. Failure to make sure the attachment is
equipped with a pressure reducing valve, or is rated to
be equal or greater than 4,300 psi (296.5 bar), which is
the maximum pressure of the forklift auxiliary hydraulic
system at the quick-disconnect couplers, could result in
death or serious injury.
• Make sure all hydraulic connections are tight (if
equipped).
Shut Down Procedure
Warning
To prevent death or serious injury, follow these procedures
before leaving the forklift cab:
• Park forklift on a rm, level surface.
• Move travel select lever to NEUTRAL (N).
• Set parking brake to ON (engaged).
• Either lower forks and attachments to the ground, or
leave boom raised and retracted.
Always engage the parking
brake before leaving the fork-
lift. The forklift can roll if the
parking brake is not ON (en-
gaged), which could result in
death, serious injury, or property damage.
• Turn Ignition switch to the OFF position.
• Remove the key.
• Unbuckle the seat belt.
• Place “Do Not Operate” tags on the Starter switch and
steering wheel when maintenance or service is required.
• Block wheels when maintenance is required.
Forklift Maintenance
Warning
Follow the manufacturer’s instructions for proper
maintenance to make sure the forklift continues to meet
manufacturer’s specications. Failure to properly maintain
the forklift can result in improper performance, which could
cause death, serious injury, or property damage.
Attach “Do Not Operate” tags to the Ignition
Switch and steering wheel before beginning
any service or maintenance.
• “Do Not Operate”tags indicate the forklift should not be
operated until all service or maintenance is completed.
• Keep two (2) legible “Do Not Operate” tags with the
forklift at all times. “Do Not Operate” tags are provided
in this manual.

Operation Manual 16

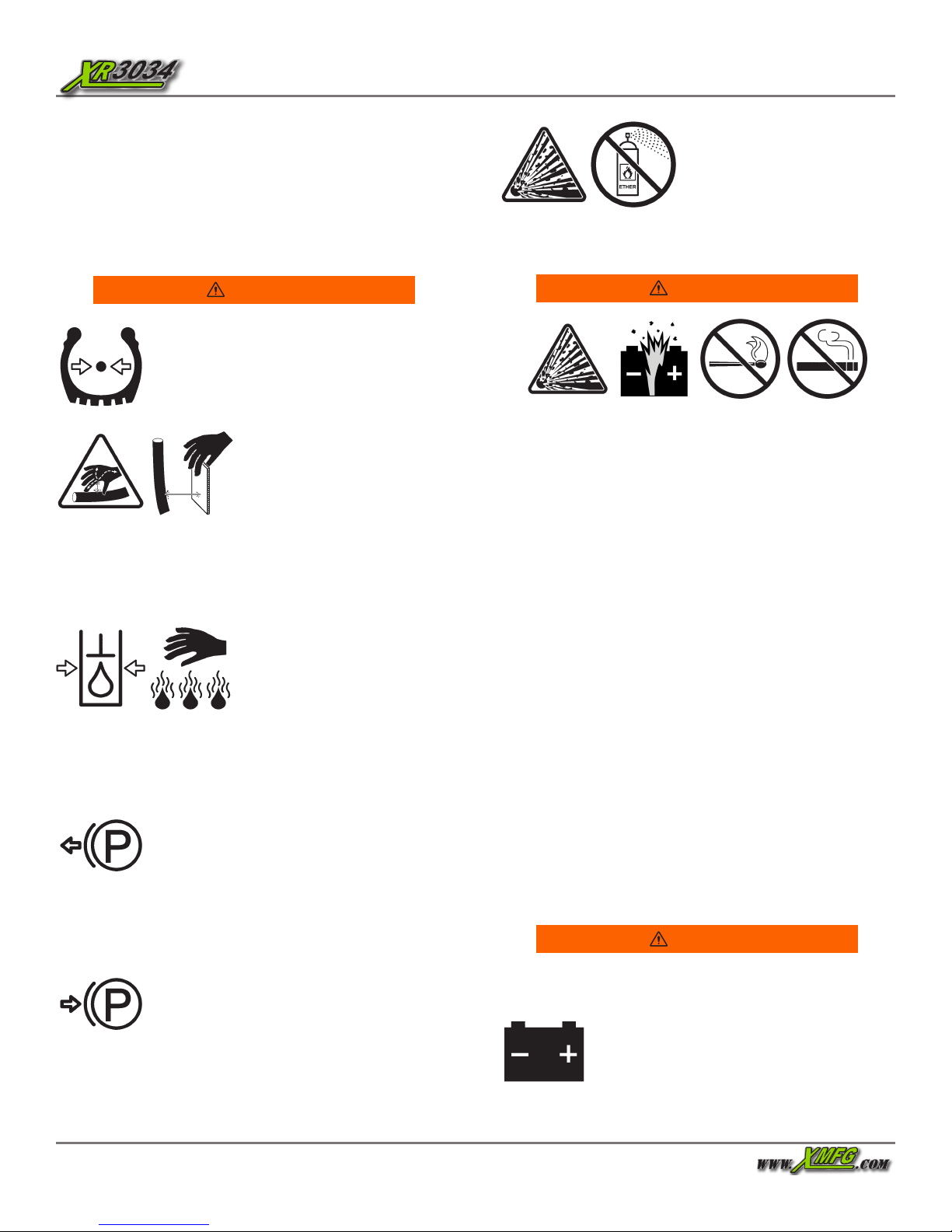

Safety
• DO NOT operate the forklift and attachments if they re-
quire repairs.
• Make sure basic maintenance is completed and service
problems are corrected.
• Death or serious injury can result from operating a fork-
lift before all repairs have been made and all proper
maintenance is completed.
Tires must have proper ballast. DO NOT re-
place foam-lled tires with pneumatic tires.
Use of pneumatic tires will severely aect
vehicle load capacity, which could result in
death, serious injury, or property damage.
Check hydraulic oil lines, tubes,
and hoses carefully. DO NOT
use your bare hand to check for
leaks. Always use a board or
cardboard when checking for
a hydraulic leak. Escaping hydraulic uid under pressure,
even a pinhole size leak, can penetrate body tissue, which
could cause death or serious injury. If hydraulic oil is inject-
ed into your skin, a doctor familiar with this type of injury
must treat it immediately.
Warning
Serious injury could result from
hydraulic oil pressure or hot
oil. DO NOT remove a hydrau-
lic tank ller cap unless it is
cool enough to touch with bare
hands. Remove the hydraulic tank ller cap slowly to relieve
pressure. Relieve all pressure in a hydraulic system before
any caps, lines, ttings, or related items are disconnected
or removed.
If the forklift is to be towed, make sure the
released brake(s) can be reapplied or the tow
vehicle has the braking capacity to stop the
forklift.
DO NOT use ether as a starting
aid. Ether is ammable and can
cause an explosion when start-
ing the engine, which could re-
sult in death or serious injury.
Follow the cold starting procedures and engine manufac-
turer’s specications for using a starting aid.
Lead-acid batteries produce ammable and potentially ex-
plosive gases. To avoid death or serious injury when check-
ing, testing, or charging batteries:
• DO NOT use smoking materials near batteries.
• Keep arcs, sparks, and open ames away from batteries.
• Provide ventilation for ammable vapors.
• Wear proper personal protective equipment, including
safety glasses.
Fluid in electric storage batteries contains sulfuric acid,
which is poisonous and could cause severe chemical burns.
Avoid all contact of uid with eyes, skin, or clothing. Use
protective gear when handling batteries. DO NOT tip a bat-
tery beyond a 45° angle in any direction.
If contact does occur, follow these First Aid suggestions:
• External contact - Flush with water.
• Eyes - Flush with water (including under the eyelids) for
at least 15 minutes and get medical attention immedi-
ately. Flushing must begin immediately to avoid per-
manent eye tissue damage.
• Internal contact - Drink large quantities of water or milk
to dilute stomach contents. Do not induce vomiting.
Get medical attention immediately.
IMPORTANT - In case of internal contact, DO NOT give uids
that induce vomiting.
Warning
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chem-
icals known to the State of California to cause
cancer, birth defects, or other reproductive
harm. Wash hands after handling these items.
Warning
California Proposition 65
The parking brake can be manually released
to tow the forklift. In this condition, it is pos-
sible for the forklift to move suddenly when
the brakes are released, which could result in
death, serious injury, or property damage.
To prevent sudden movement of the forklift, place wheel
chocks in front of and behind wheels before the brakes are
released.

Operation Manual17
Safety
Warning
Wear eye protection when connecting jump
start cables. Improper jump start procedures
could cause the battery to explode, which
could result in death or serious injury.
• Never jump start a frozen battery, as it can explode. Let
the battery thaw out before charging.
• NEVER jump start the forklift when travel select lever is
in gear, which can cause the forklift to lurch forward or
backward, and could result in death, serious injury, or
property damage.
• To avoid injury or death when jump starting with an-
other forklift, make sure the two (2) forklifts are not
touching.
• DO NOT allow jump start cable ends to contact each
other.
• Connect charged battery positive (+) to stalled forklift
battery positive (+).
• Connect charged battery negative (–) to stalled fork-
lift ground. Make the connection to the stalled forklift
ground last.
• Connect jump start cable to stalled forklift ground a
safe distance from the battery to prevent sparks near
the battery.
• Jump start only with a power source with the same volt-
age as the stalled forklift.
• Turn o all lights and accessories on the stalled forklift
to prevent them from operating when the power source
is connected.
• Electrolyte contains acid and could cause serious per-
sonal injury if it contacts the skin or eyes.
Dead Engine Towing
Warning
Block all four wheels. Failure to do so could result in death
or serious injury from vehicle roll away.
Page 16 Xtreme Manufacturing, LLC
Safety R4030X
Dead Engine Towing
Parking Brake Release (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving once the parking brake is disabled.
2. Position the towing vehicle in place. Attach any chain
needed to secure the disabled vehicle.
3. Crawl under the front of the vehicle. Locate the
parking brake assembly.
4. Remove dust cover cap and set aside.
5. Release lock nut. Turn adjusting screw counter-
clockwise until brake disc is free. Tighten lock
nut. Parking brake is now released. Replace dust
cover cap and hand tighten to prevent debris from
contaminating park brake assembly.
Figure 2-1. Parking Brake Location.
Figure 2-2. Parking Brake Assembly.
Figure 2-3. Dust Cover Cap Removal.
Figure 2-4. Lock Nut and Adjusting Screw.
Re-activating Parking Brakes (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving with the parking brake disabled.
2. Crawl under the front of the vehicle. Locate the
parking brake assembly.
3. Remove dust cover cap and set aside.
4. Release locknut. Turn adjusting screw clockwise until
brake disc is fully engaged. Turn adjusting screw
counter-clockwise 1/2 turn. Tighten lock nut. Parking
brake is now re-activated.
5. Re-install dust cover cap and tighten.
6. Verify the parking brake works.
7. Remove any warning tags from the ignition or
steering wheel.
Fig 2. Parking Brake Location (Front Axle)
1. Block all four wheels to prevent the vehicle from moving
once the parking brake is disabled.
2. Position the towing vehicle in place. Attach any chain
needed to secure the disabled vehicle.
3. Crawl under the vehicle. Locate the parking brake assembly.
Jump Starting
Fig 3. Parking Brake Assembly Location
Page 16 Xtreme Manufacturing, LLC
Safety R4030X
Dead Engine Towing
Parking Brake Release (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving once the parking brake is disabled.
2. Position the towing vehicle in place. Attach any chain
needed to secure the disabled vehicle.
3. Crawl under the front of the vehicle. Locate the
parking brake assembly.
4. Remove dust cover cap and set aside.
5. Release lock nut. Turn adjusting screw counter-
clockwise until brake disc is free. Tighten lock
nut. Parking brake is now released. Replace dust
cover cap and hand tighten to prevent debris from
contaminating park brake assembly.
Figure 2-1. Parking Brake Location.
Figure 2-2. Parking Brake Assembly.
Figure 2-3. Dust Cover Cap Removal.
Figure 2-4. Lock Nut and Adjusting Screw.
Re-activating Parking Brakes (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving with the parking brake disabled.
2. Crawl under the front of the vehicle. Locate the
parking brake assembly.
3. Remove dust cover cap and set aside.
4. Release locknut. Turn adjusting screw clockwise until
brake disc is fully engaged. Turn adjusting screw
counter-clockwise 1/2 turn. Tighten lock nut. Parking
brake is now re-activated.
5. Re-install dust cover cap and tighten.
6. Verify the parking brake works.
7. Remove any warning tags from the ignition or
steering wheel.
Parking Brake Release (Front Axle)

Operation Manual 18
Safety
Fig 5. Locking Nut and Adjusting Screw
Warning
Block all four wheels. Failure to do so could result in death
or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from moving
once the parking brake is disabled.
2. Crawl under the front or side of the vehicle and locate the
parking brake assembly.
3. Remove dust cover cap and set aside.
4. Release lock nut. Turn adjusting screw clockwise until brake
disc is fully engaged. Turn adjusting screw counter clockwise
1/2 turn. Tighten lock nut. Parking brake is now re-activated.
5. Re-install dust cover cap and tighten.
6. Verify the parking brake is working.
7. Remove any warning tags from the ignition or steering
wheel.
Page 16 Xtreme Manufacturing, LLC
Safety R4030X
Dead Engine Towing
Parking Brake Release (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving once the parking brake is disabled.
2. Position the towing vehicle in place. Attach any chain
needed to secure the disabled vehicle.
3. Crawl under the front of the vehicle. Locate the
parking brake assembly.
4. Remove dust cover cap and set aside.
5. Release lock nut. Turn adjusting screw counter-
clockwise until brake disc is free. Tighten lock
nut. Parking brake is now released. Replace dust
cover cap and hand tighten to prevent debris from
contaminating park brake assembly.
Figure 2-1. Parking Brake Location.
Figure 2-2. Parking Brake Assembly.
Figure 2-3. Dust Cover Cap Removal.
Figure 2-4. Lock Nut and Adjusting Screw.
Re-activating Parking Brakes (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving with the parking brake disabled.
2. Crawl under the front of the vehicle. Locate the
parking brake assembly.
3. Remove dust cover cap and set aside.
4. Release locknut. Turn adjusting screw clockwise until
brake disc is fully engaged. Turn adjusting screw
counter-clockwise 1/2 turn. Tighten lock nut. Parking
brake is now re-activated.
5. Re-install dust cover cap and tighten.
6. Verify the parking brake works.
7. Remove any warning tags from the ignition or
steering wheel.
Fig 4. Dust Cover Cap Removal.
Page 16 Xtreme Manufacturing, LLC
Safety R4030X
Dead Engine Towing
Parking Brake Release (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving once the parking brake is disabled.
2. Position the towing vehicle in place. Attach any chain
needed to secure the disabled vehicle.
3. Crawl under the front of the vehicle. Locate the
parking brake assembly.
4. Remove dust cover cap and set aside.
5. Release lock nut. Turn adjusting screw counter-
clockwise until brake disc is free. Tighten lock
nut. Parking brake is now released. Replace dust
cover cap and hand tighten to prevent debris from
contaminating park brake assembly.
Figure 2-1. Parking Brake Location.
Figure 2-2. Parking Brake Assembly.
Figure 2-3. Dust Cover Cap Removal.
Figure 2-4. Lock Nut and Adjusting Screw.
Re-activating Parking Brakes (Front Axle)
Warning
Block all four wheels. Failure to do so could result in
death or serious injury from vehicle roll away.
1. Block all four wheels to prevent the vehicle from
moving with the parking brake disabled.
2. Crawl under the front of the vehicle. Locate the
parking brake assembly.
3. Remove dust cover cap and set aside.
4. Release locknut. Turn adjusting screw clockwise until
brake disc is fully engaged. Turn adjusting screw
counter-clockwise 1/2 turn. Tighten lock nut. Parking
brake is now re-activated.
5. Re-install dust cover cap and tighten.
6. Verify the parking brake works.
7. Remove any warning tags from the ignition or
steering wheel.
Re-Activating Parking Brakes (Front Axle)
4. Remove the dust cover cap and set aside.
5. Release lock nut. Turn adjusting screw counter clockwise
until brake disc is free. Tighten lock nut. Parking brake is now
released. Replace dust cover cap and hand tighten to prevent
debris from contaminating the park brake assembly.

Operation Manual19
Labels
Left Side View
Labels

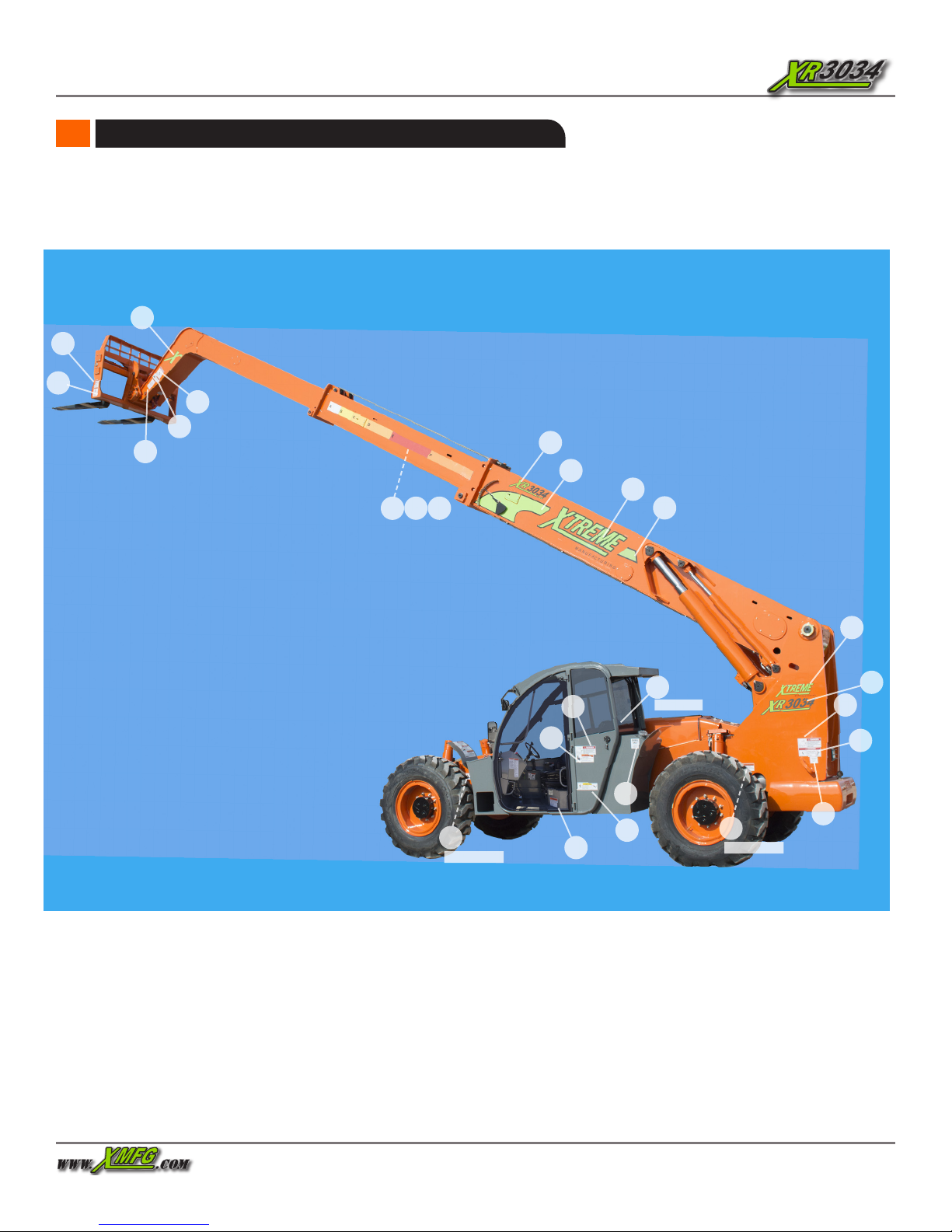

Fig 6. Label Legend (Cab Side)
35
41
37
38
26
25
41
10
12
34
56
3
17
10
5
36
9
24
32
33
45 46 47
31
ON CHASSIS
31
ON CHASSIS
43
ON GLASS

Operation Manual 20

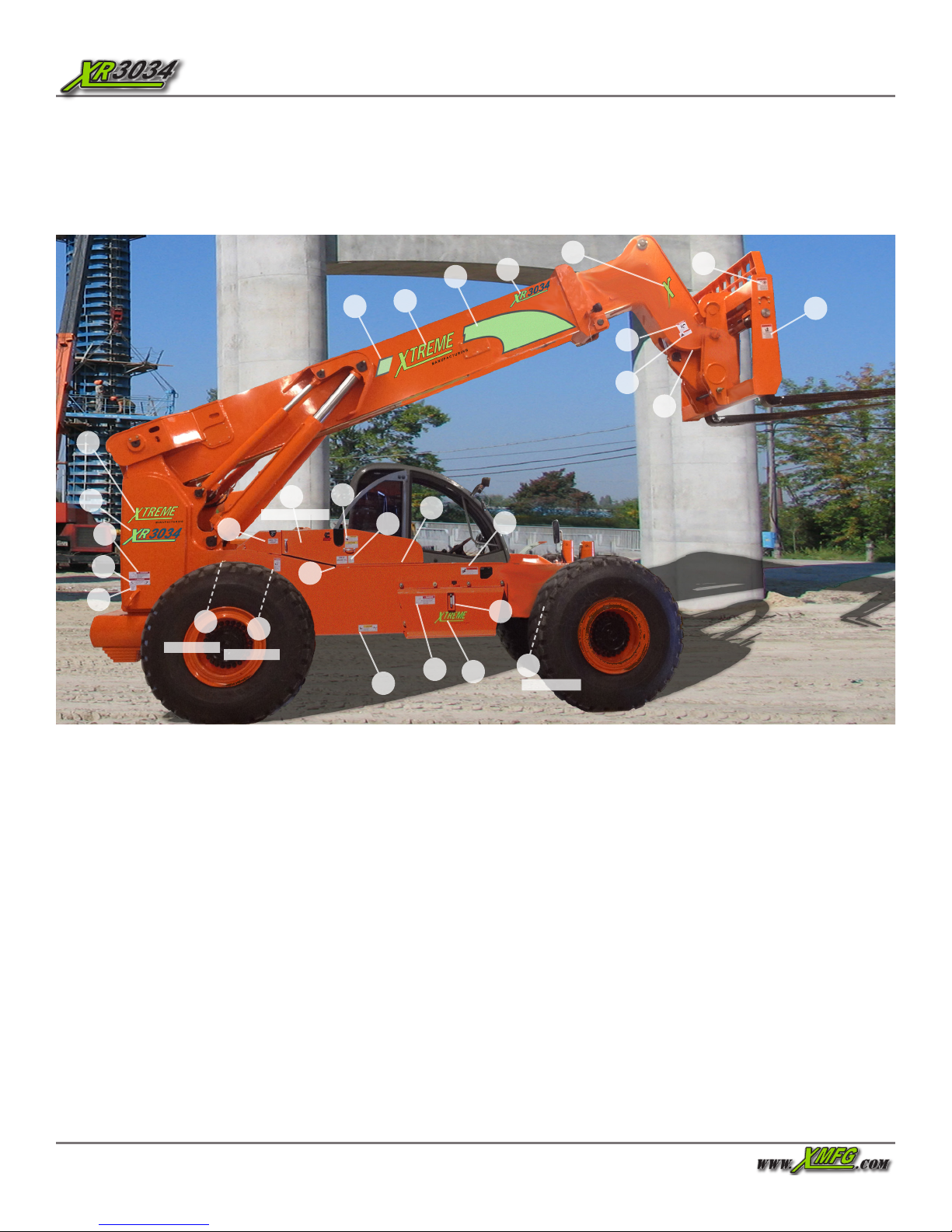

Fig 7. Label Legend (Tank Side)
Right Side View
35
39 41
40
24
9
36
43
33
32
25
41
10
12
34
3 25
10
28
7
06
4
19
27
31
ON CHASSIS
31
ON CHASSIS
51
8
26
ON CHASSIS
INSIDE COVER
