XZENT xt7010 User manual

MOBILE ENTERTAINMENT STATION
1-DIN DVD-MONICEIVER WITH MOTORIZED 7’’ LCD DISPLAY
INSTRUCTION MANUAL
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 1

Contents
Preparation 4-5
Features 4
WARNINGS 4
Disconnecting the Battery 4
Controls and Indicators 6-7
Button Operation 6-7
LCD Display / Indicators 8
The Key Areas Of the Touch Screen 8
Remote Control 9
Remote Control 9
TFT Monitor Operation 10-11
Open/Close the TFT Monitor 10
TFT Monitor Auto Open 10
Monitor Tilt Angle Adjustment 10
Image Setting 10
Parking Brake Interlock 11
Monitor Movement Mechanism 11
Basic Operations 12-13
Power On / Off 12
Playing Source Selection 12
Volume Adjustment 12
Audio Control Menu 12
Four-Channel Audio Control 12
System Reset 13
Mute 13
System Setup Menu 14-20
MAIN Menu 14
General Setup Menu 15
Screen Setting 16-17
Language Setting 18
Video Setting 19
Rating Setting 20
Tuner Operation 21-23
Tuner Operation Display 21
Switch to Radio Tuner source 22
Select FM/AM Band 22
Auto Tuning 22
Manual Tuning 22
Using Preset Stations 22
Auto Store (AS) 23
Program Scan (PS) 23
Seek the PTY 23
AF Function 23
TA Function 23
Local Radio Stations Seeking (LOC) 23
2
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 2

3
DVD Player Operation 24-28
Opening/Closing the TFT Video Screen 24
Insert/Eject Disc 24
Reset the Loading Mechanism 24
Accessing DVD Mode 24
Using the Touch-Screen Controls 25
Controlling Playback 26
Accessing the DVD Menu 26
Moving Through Chapters 26
GOTO Search 26
Direct Chapter / Track Selection 27
Viewing an Alternate Picture Angle (DVD Only) 27
Multi-Language Discs (DVD Only) 27
Playback Information 27
General Disc Information 28
CD/MP3/WMA/JPEG Operation 29
CD Player Interface 29
Troubleshooting 30-31
Remote Control 32-33
Specifications 34
NOTE: 1. Certain description in the book may differ from the actual unit.
2. Some pictures or icons in the book may differ from actual display.
3. Specifications subject to change without notice.
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 3

Preparation
Features
INTEGRATED DVD/CD/MP3/WMA-PLAYER
• Playback of CD, CD-R/RW, MP3, WMA, DVD,
DVD-R/RW, DVD+R/RW and DVD-MP3
• Region code 2
• Integrated Dolby Digital decoder
• Electronic (ESP) and mechanical anti-shock system
MOTORIZED LCD MONITOR
• Fully motorized high-quality 7"/16:9 LCD display with touchscreen-control
TUNER
• FM/AM-tuner
• 30 preset stations (18 FM/12 AM)
• Radio data system (RDS)
A/V-CONNECTIONS
• 2 x RCA composite video outputs
• Analog 4.1 RCA preamp line outputs (front, rear and
subwoofer)
• 1 x RCA Aux-In (stereo)
ADDITIONAL FEATURES
• Integrated 4 x 40 watts digital amplifier
• Blue and white backlit key illumination and high contrast blue dot-matrix status display
• ISO connectors for power supply and speakers
• IR-remote control
WARNINGS
1. Only connect the unit to a 12-volt negative ground system.
2. Never install this unit where operation and viewing could interfere with safe driving conditions.
3. To reduce the risk of a traffic accident (except when using for rear view video camera), never use
the video display function while driving the vehicle. This is a violation of law.
4. To reduce the risk of a traffic accident, never drive with the sound at a level, that prevents you
from hearing sounds outside around the vehicle.
5. Never disassemble or adjust the unit without the assistance of a professional installer.
For details, please consult your local car stereo specialty shop.
6. To prevent injury from shock or fire, never expose this unit to moisture or water.
7. Never use irregular discs.
8. To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.
9. Do not change the fuse on the power wire without professional guidance. Using an improper
fuse may cause damage to the unit and result in a fire.
10. The monitor employs an automatic motorized mechanism. To prevent damage to the core
mechanism, please do not push, pull or swivel the monitor manually.
4
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 4

5
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable
prior to installation.
NOTE: If the unit is to be installed in a car equipped with an on-board drive or navigation computer,
do not disconnect the battery cable. If the battery cable is disconnected, the preset memory may be
erased. Under these conditions, use extra caution during installation to avoid causing a short circuit.
NOTE: It is especially important that you read the WARNINGS and NOTES in this manual.
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 5

Controls and Indicators
1 POWER OFF/ VOL
Rotary encoder.
Press the encoder to turn on the unit, press and hold it to turn off.
Rotate clockwise/counterclockwise to adjust the volume.
Press to enter the audio adjust menu when the unit is on.
2 MUTE
Press the button to mute the volume, and press the button again to restore the volume.
6
1
22 21 20
2 3 4 5 6 7 8 9 10 11
12
13
14
16
17
15
19
18
Button Operation
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 6

7
3 FAST REVERSE
4 FAST FORWARD
5 PREVIOUS
6 NEXT
7STOP
8 PLAY/PAUSE
9 SRC
Press the button to select a playing source.
10 RESET
Press the button to restart the unit.
11 SMART DIAL
Rotary encoder.
Press the encoder to access the MAIN menu.
Rotate clockwise/counterclockwise to select a desired item and press to access or confirm.
12 EJECT
Press the button once to eject the disc.
Hold to reset the loading mechanism.
13 DISK SLOT
14 INFO
Press the button to display playback information on the screen on DVD mode, if the TFT monitor
is closed DVD playback information will display on the LCD screen.
Press and hold to access the picture setup.
15 ANGLE+
Press the button to adjust the upward tilt angle of the screen one step at a time.
Press and hold to continuously adjust the upward tilt.
Press to adjust the picture settings in picture setup mode.
16 ANGLE-
Press to adjust the downward tilt angle of the screen one step at a time.
Press and hold to continuously adjust the downward tilt.
Press to adjust the picture settings in picture setup.
17 TFT DISPLAY
18 OPEN
Press the button to activate the motorized system and move the TFT monitor into the
viewing position.
Press again to close the TFT.
19 DISP
Press the button to display system information on the front LCD screen when the main screen
is closed.
20 LCD DISPLAY
21 AS/PS (Auto store/program scan)
Press the button to auto store strong radio stations in the 6 preset channels in the
current band.
Press and hold to start to scan the preset radio station.
22 FM/AM
Press the button to change among the following bands: FM1, FM2, FM3, AM1 and AM2.
Press to change tuner mode while in other source.
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 7

Controls and Indicators
LCD Display / Indicators
1. Main display area, displays the time, tuning frequency and other text information.
2. Loudness indicator. Indicates the LOUD function is activated or not.
3. Alternative frequency (AF) indicator.
4. Traffic announcement (TA) indicator.
5. Traffic program (TP) indicator.
6. Program type (PTY) indicator.
7. Local indicator. Indicates the local radio station seeking function is activated or not.
8. Stereo broadcasting indicator. Indicates the radio is in stereo mode or not.
The key areas of touch screen
A— Return to MAIN MENU.
B— Display playing information.
C— Select previous chapter.
D— Select next chapter.
E— Display the on-screen controls. Different mode displays different menu.
F— In DVD mode, display the GOTO search menu on the screen directly.
8
Area C
Area A
Area E
Area B
Area D
Area F
PTY TP TA AF
LOC ST
178
234566
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 8

REmote Control
9
Name Ref # Signal Function
Power 1 Turn the power on/off.
Open 2 Open/close the TFT monitor.
Mute 3 Toggle on/off audio output.
SRC 4 SRC Select playing mode.
Numeric button 5 1.2.3.4.5. Directly access certain chapter / track / preset station in
6.7.8.9.0 current band.
VOL up 6 VOL+ Increase the volume.
VOL down 7 VOL- Decrease the volume.
Information 8 INFO Display playing information.
GOTO search 9 -/-- Position search function on VCD/DVD mode.
Stop/Band 10 /Select FM/AM band on Tuner mode.
BAND Stop playback in other mode.
Select 11 SEL Enter the audio settings.
ESC 12 ESC Exit the current menu.
Menu 13 MENU Enter the main menu of system.
Picture 14 PIC Adjust the parameter of TFT settings.
Repeat A>B 15 A B Set start point A and end point B to repeat continually.
OK 16 OK Start or pause playback and confirm settings.
Direction buttons 17 Up/down/left/right to select items for setting.
Title 18 TITLE Enter the title menu of current source.
Root 19 ROOT Enter the main menu of the disc.
Turn on PBC while playing VCD.
Repeat 20 Repeat playback for current chapter.
Next 21 Select the next chapter/track for playback.
Previous 22 Select the previous chapter/track for playback.
Fast Reverse 23 Fast reverse the disc content.
Fast Forward 24 Fast forward the disc content.
Audio 25 AUDIO Change the audio language for disc playback.
Zoom 26 ZOOM Zooming in/out on an image.
Angle 27 ANGLE Playback in different angel for a scene(if it is applicable).
SUB Title 28 SUB-T Language selection for subtitle.
©
2
10 8
3
16
1
6
7
11
13 14
15
19 20
2321 24
27 28
4
5
9
12
17
18
22 25
26
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 9

TFT Monitor Operation
Open/Close TFT Monitor
Press the ( ) button on the remote control or press the (OPEN) button on the front panel to
open/close the monitor.

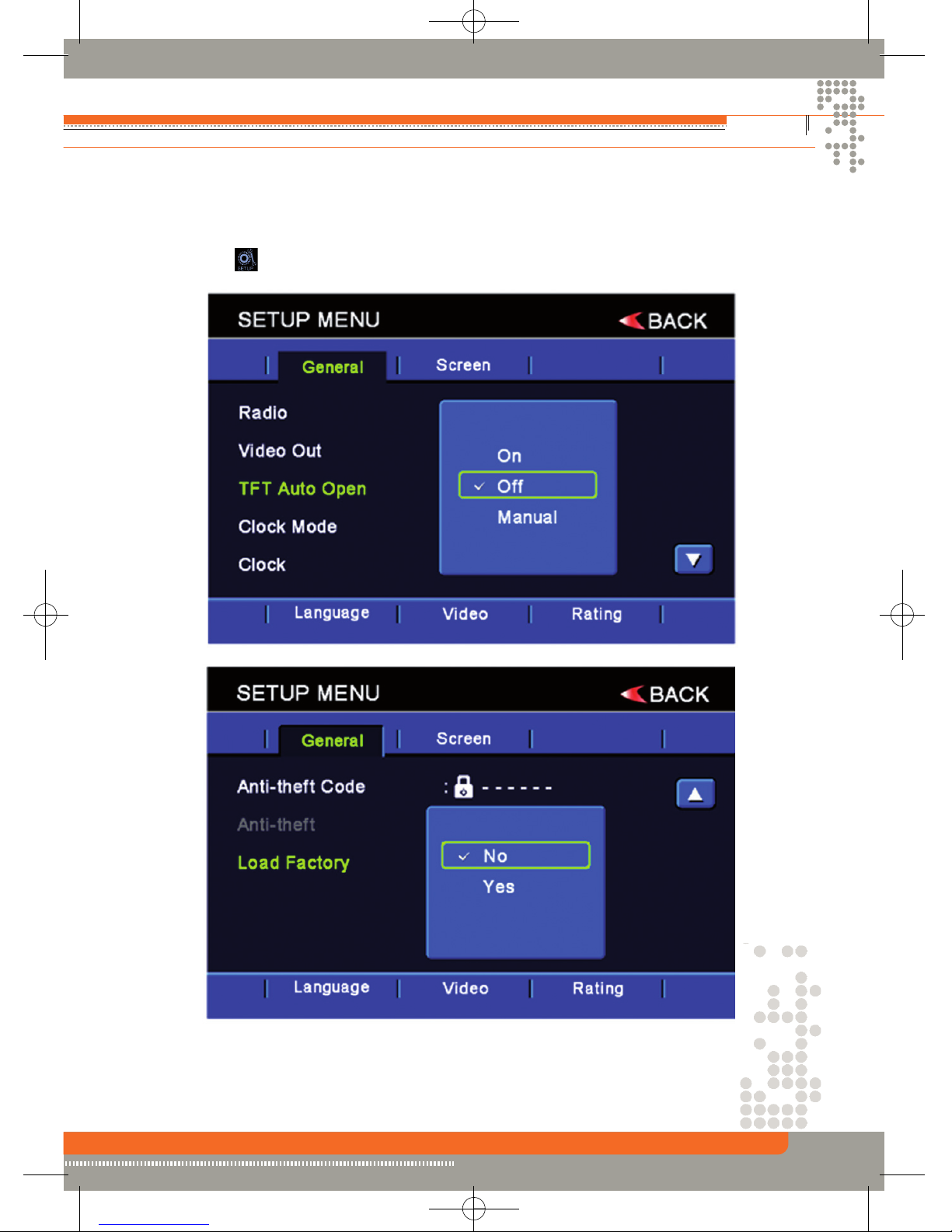

TFT Monitor Auto Open
• If “TFT Auto Open” is “On”, when the unit is turned on, the monitor automatically opens to the
last viewing position.
• If “TFT Auto Open” is ”Off” , when the unit is turned on, press the ( ) button on the remote
control or press the (OPEN) button on the front panel to open the monitor into the desired
viewing position.
• If “TFT Auto Open” is ”Manual” when the unit is turned on or turned off, the monitor will not open.
See “General setting” for more instructions.
Monitor Tilt Angle Adjustment
The monitor angle can be adjusted for optimum viewing using one of the following methods:
Press the ( ) or ( ) buttons on the front panel to adjust the tilt angle of the screen one step
at a time.
Press and hold the ( ) or ( ) buttons on the front panel to continuously adjust the tilt angle.
Adjust the “Screen Tilt” in the “Screen setting” to adjust the tilt of the screen to the desired degree.
Image Setting
Video output format
The table below shows the video output format for each source.
Playing Source Video Output Format
FM/AM Tuner RGB Mode
DVD RGB Mode
Adjustable parameters
While in RGB mode, the only parameter that can be adjusted is brightness (BRIGHT).
Parameter adjustment procedure
1. Enter picture quality setting mode:
Press the PIC button on the remote control or press and hold the INFO button on the front panel
of the unit.
2. Select items to set:
Press the ( / ) buttons on the remote control or rotate the SMART DIAL button clockwise/
anticlockwise to select an item.
3. Set parameters:
Rotate the“ VOL” on the front panel to adjust the selected feature.
4. Exit picture quality setting mode:
Press the PIC button on the remote control or press and hold the INFO button on the unit.
NOTE: A video source must be connected to the AUX input and be playing to access the above
adjustments.
10
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 10

Parking Brake Interlock
1. When the “PARKING” lead is connected to the brake switch, the display on the TFT monitor will
display video only, when the vehicle is stopped and the parking brake is applied.
2. When the “parking brake inhibit” is active, the front monitor displays a caution message with
blue background, preventing the driver from watching video while driving to reduce the risk of a
traffic accident.
Monitor Movement Mechanism
If an obstruction occurs in the monitor path, the motion will stop automatically to prevent damage
to the mechanism or monitor.
Normal operation is resumed by pressing the (OPEN) button or disconnecting and reconnecting
the power.
11
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 11

Basic Operations
Power On / Off
Press the POWER OFF /VOL button to turn the unit on. The buttons on the front panel of the unit
are illuminated and start up message is briefly displayed on the LCD screen, and then displays the current
mode status. You can also turn on the unit by pressing the POWER button ( ) on the remote control.
Press and hold the POWER OFF /VOL button on the front panel for more than 1 second or
press the POWER button ( ) on the remote control to power off the unit. The monitor is drawn
back into the main compartment and the LCD screen displays “BYE BYE”.
Playing Source Selection
Press the MODE button on the front panel or the (SRC) button on the remote control to change
among available playing sources: TUNER, DVD, AUX IN. The playing mode is displayed on the TFT
display.
Volume Adjustment
To increase or decrease the volume level, turn the POWER OFF /VOL on the front panel or press
the (VOL+/ VOL-) buttons on the remote control. The volume ranges from “0” to “40”. The default
volume is “10” when the unit is powered on each time. Default volume memory setup: Rotate
Power Off/VOL knob on the front panel to select volume value and then press and hold the Power
Off/VOL button until you hear a single beep. When you hear the beep, setup is completed.
Audio Control Menu
The audio control feature allows you to easily adjust your audio system to meet the acoustical
characteristics of your vehicle, which vary depending on the type of vehicle and its measure-
ments. To get the best possible sound quality from your new system, be sure to adjust the settings
for the speakers as well. Proper setting of the fader and balance boosts the effects of the cabin
equalizer.
Audio adjustments
Audio Function Adjustable Range
EQ Folk
Jazz
Pop
Classical
Rock
News
Urban
Rave
Movie
Techno
User
BASS -7 to +7
TREBLE -7 to +7
BAL -9 to +9
FADE -9 to +9
SW -7 to +7
LOUD off, on
12
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 12

NOTE: The bass and treble levels are only adjustable when EQ is on “User” mode.
The loudness function compensates for deficiencies in sound ranges at low levels. Loudness levels
range from 1-4 or “off”. When the loudness function is on, LOUD is displayed on the screen.
Exiting the audio control menu
Touch the return arrow on the top right of the display.
Press the (ESC) button on the remote control to exit the audio control menu.
System Reset
To correct a system halt or other unusual operation, use the tip of a pen to press the RESET button
located on the front bottom-right corner of the unit. After a system reset, the unit restores the
settings before last power off.
Mute
Press the MUTE button on the front panel or the MUTE button ( ) on the remote control to
mute the playback volume.
NOTE: Press the MUTE button again to restore the volume.
Adjusting the volume or using any of the audio set-up features will cancel the mute function.
13
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 13

System Setup Menu
MAIN Menu
There are three methods to access the MAIN menu.
• Press the MENU button on the remote control.
• Touch the A area on the touch-screen.
• Press the SMART DIAL button on the front panel.
1. Touch to access Radio mode.
2. Touch to access SETUP mode.
3. Touch to access AUX IN mode.
4. Touch to access DVD mode.
5. Touch to turn off the TFT display.
Note: Touch screen operations and buttons on front panel are all useable to select menu and
adjust “SETTING”. The following instructions will show the different ways to access the menus
and adjustments.
14
31
5
4
2
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 14

15
General setup Menu
Accessing the general setup menu
• Press the (MENU) button on the remote control to access the MAIN menu.
• Select the icon on the bottom of the screen and select the general menu to access the
general setup.
Selecting a feature for adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select the feature to be adjusted.
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 15

System Setup Menu
16
Screen Setting
Accessing the screen setup menu
• Press the (MENU) button on the remote control to access the MAIN menu.
• Select the icon on the bottom of the screen and select the screen menu to access the
screen setup.
Adjusting a feature
Setting Options Function
Screen Tilt 1 to 5
Press the ( / ) buttons on the remote control touch the (1 to 5) number on
the screen directly to adjust the tilt of the screen to the desired degree.
Screen Saver On Touch to activate/deactivate the screen saver.
Off
TS Calibrate No Touch “Yes” to enter the touch screen calibrate mode.
Yes
Version Displays the software version of the unit.
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 16

Adjusting a feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote control. A submenu appears in a second row with the selected option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing the (OK) button. The new value setup is complete.
Adjusting the clock
1. Access the “Clock” setting under the general setup menu.
2. Press the direction button on the remote control to move the cursor to the “Hour” or “Min” position,
and press the (OK) button. You also can touch the “Hour” or “Min” position directly.
3. The numeric keypad will pop up.
4. Press the numeric button on the remote control or touch the numeric keypad on the screen to
adjust the hour or minutes.
5. Press the (OK) button on the remote control or on the keypad of the screen to confirm the setup.
Return to normal playback
The system will automatically return the previous playback mode you were in before accessing
the setup menu after setting with no operation.
Setting Options Function
Radio USA Select the appropriate setting based on the country in which
S-Amer1 you reside.
S-Amer2
Europe
Video out Disable Select whether to activate video out.
Enable
TFT Auto Open On The TFT panel automatically opens when the unit is turned on.
Off You must press the button on the TFT panel or the button
on the remote control to open the TFT .
Manual The monitor does not open or close when the unit is turned on
or turned off.
Clock Mode 12Hr Clock displays 12 hour time using AM and PM.
24Hr Clock displays 24 hour time up to 23:59.
Clock 00:27 Present time.
Load Factory No/Yes Load all factory parameters to their original setting.
17
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 17

18
System Setup Menu
Language Setting
Accessing the language setup menu
• Press the (MENU) button on the remote control to access the MAIN menu.
• Select the icon on the bottom of the screen and select the language menu to access the
language setup.
Adjusting a feature
Setting Options Function
Subtitle English Select desired disc subtitle language.
French
Spanish
German
Auto
off
Audio English Select desired disc audio language.
French
Spanish
German
DVD Menu English Select desired disc menu language.
French
Spanish
German
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 18

19
Video Setting
Accessing the video setup menu
• Press the (MENU) button on the remote control to access the MAIN menu.
• Select the icon on the bottom of the screen and select the video menu to access the video setup.
Adjusting a feature
Setting Options Function
TV Shape 4:3 No function.
16:9
Fill
View Mode Original Select desired view mode.
Auto Fit
Pan Scan
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 19

System Setup Menu
Rating Setting
Accessing the rating setup menu
• Press the (MENU) button on the remote control to access the MAIN menu.
• Select the icon on the bottom of the screen and select the rating menu to access the rating setup.
Adjusting a feature
Setting Options Function
Set Password Touch to display the numeric keypad on the screen and then
you can use the numeric keypad to set the password.
Rating 1. Kid Safe
2. G
3. PG
4. PG-13
5. PG-R
6. R
7. NC-17
8. Adult
20
MANUAL XT7010:Layout 1 16.11.2007 17:16 Uhr Seite 20
