YAMADA NDP-20 series User manual

MAINTENANCE MANUAL
YAMADA AIR-OPERATED DIAPHRAGM PUMPS
NDP-20
NDP-25
NDP-32
Doc. No. NDP 187M-10

WARNING
• For your own safety, be sure to read these procedures carefully before performing
maintenance on this product. After reading this document, be sure to keep it handy for
future reference.
This maintenance manual covers what you should know about maintenance of the Yamada NDP-20 series,
NDP-25 and NDP-32 series Diaphragm Pumps.
This edition is based on the standards for the May 2015 production run. Remember, the specifications are
always subject to change; therefore, some of the information in this edition may not apply to new
specifications.
·Warnings and Cautions
For safe use of this product, be sure to note the following: In this document, warnings and cautions are
indicated by symbols. These symbols are for those who will operate this product and for those who will be
nearby, for safe operation and for prevention of personal injury and property damage. The following
warning and caution symbols have the meanings described below. Be sure to remember their meanings.
If you ignore the warning described and operate the product in
an improper manner, there is danger of serious bodily injury or
death.
Ifyouignorethecautiondescribedandoperatetheproductinan
improper manner. There is danger of personal injury or property
damage.
Furthermore, to indicate the type of danger and damage, the following symbols are also used along with
those mentioned above:
This symbol indicates a DON'T, and will be accompanied by an explanation on something
you must not do.
This symbol indicates a DO, and will be accompanied by instructions on something you
must do in a certain situation.
WARNING
• Before starting maintenance work, cut off the feed air and clean the pump. If air pressure or
residue remain in the pump, there is danger of explosion, or possible poisoning resulting in
serious injury or death if chemicals adhere to the skin or are accidentally swallowed.
(For details on cleaning the pump, refer to Chapter 6 of the Operation Manual.)
• When replacing parts, be sure to use the recommended genuine parts or Equivalents. Use of
other parts may cause a malfunction of the product.
(Refer to Exploded View and Reminder to order correct item on the separate sheets.)
CAUTION
• When it is instructed that special tools must be used, be sure to use the specified tools.
Otherwise, the pump may be damaged.
• Refer to 10.1 "Specifications" in the Operation Manual. Also, remember that the pump is
heavy, and extreme care must be taken when lifting it.
WARNING :
CAUTION :

Table of Contents
·Warnings and Cautions
·Table of Contents
1. Principles of operation ···································································· 1
2. Tools, etc.
2.1 General tools················································································ 1
2.2 Special tools················································································· 1
2.3 Misc. ·························································································· 1
3. Ordering Replacement parts ··························································· 1
4. Balls and Valve seats
4.1 Removal
■BA□[-D], BS□, BF□types ···························································· 2
■BP□, BV□types·········································································· 3
4.2 Inspection ··················································································· 4
4.3 Installation·················································································· 4
5. Diaphragm and Center rod
5.1 Removal
■BA□[-D], BS□, BF□types ···························································· 5
■BP□, BV□types·········································································· 5
5.2 Inspection ··················································································· 6
5.3 Installation
■B□C[-D], B□N[-D], B□E, B□V, B □H[-D], B□S, B□H/T types ············ 7
■B□T[-D] types ············································································· 7
6. Throat bearing and Pilot valve Assembly
6.1 Removal ······················································································ 8
6.2 Inspection ··················································································· 8
6.3 Installation·················································································· 8
7. C Spool Valve Assembly and Sleeve Assembly
7.1 Removal ······················································································ 9
7.2 Inspection ··················································································· 9
7.3 Installation·················································································· 9
8. Retightening of Tie rods································································ 10

1
1. Principles of operation

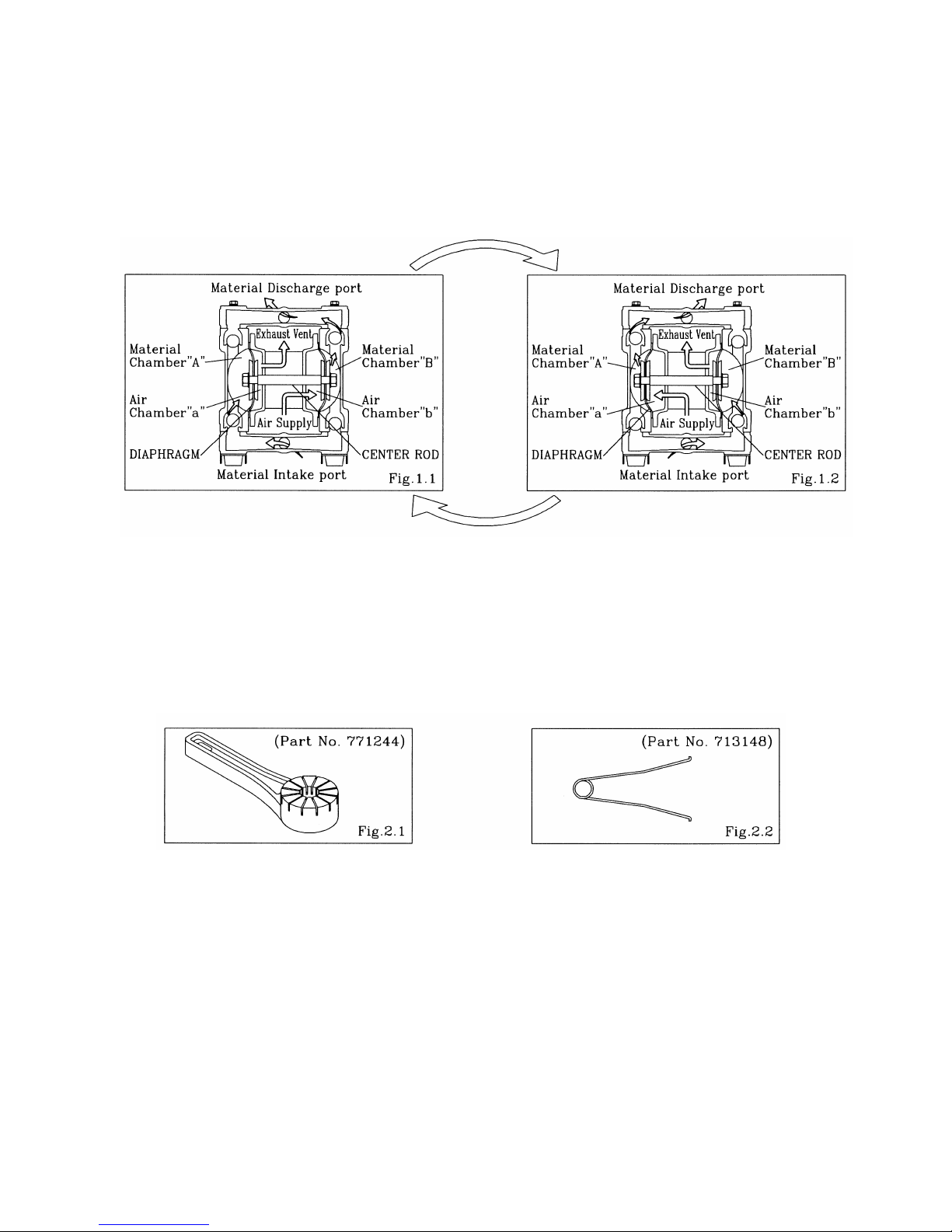

There are two diaphragms fixed to the center rod, one at each end. When compressed air is supplied to air
chamber b (right side, see Fig.1.1), the center rod moves to the right, the material in material chamber B
is pushed out, and at the same time material is sucked into material chamber A.
When the center rod is moved full-stroke to the right, the air switch valve is switched, compressed air is
sent to air chamber a (left side, see Fig.1.2), and the center rod moves to the left. The material in
material chamber A is pushed out, and at the same time material is sucked into material chamber B.
Through repetition of this operation, material is repeatedly taken in and discharged out.
2. Tools, etc.
2.1 General tools
·Socket wrenches 10mm, 12mm, 13mm, 17mm, 22mm
·Hexagonal box wrenches 5mm
·Open-end wrenches 13mm (BP□, BV□), 22mm (BA□[-D], BS□, BF□)
2.2 Special tools
·Accessory tool (Included) ·Sleeve remover (sold separately)
Purpose: Removing the center disk Purpose: For removing sleeves
of BP□and BV□types
2.3 Misc.
·Assembly oil Turbine oil none addition class 1(equivalent to ISO VG32 grade)
·Nuts M14×1.5
·Grease Urea grease grade (NLGI) No. 2
·Lubricants Equivalent to LOCTITE ANTI-SEIZE 767
3. Ordering Replacement parts
For accurate and speedy shipment of parts, be sure to order the right parts for your model to distributor.
Indicate the part numbers, descriptions, and quantities.

2
4. Balls and Valve seats
4.1 Removal
■BA□[-D], BS□, BF□types
▪Remove the 4 retainer bolts from the out manifold, and
remove the out manifold. [Fig.4.1]
▪Remove the O ring, valve stopper, ball and valve seat.
[Fig.4.2]
▪Turn over the main body assembly. [Fig.4.3]
▪Remove the 4 retainer bolts from the in manifold, and
remove the in manifold and pump bases. [Fig.4.3]
(BA□-D and NDP-32 do not have bases.)
▪Remove the O ring, valve seat, ball and valve stopper.
[Fig.4.4]

3
■BP□, BV□types
▪Remove the 4 retainer nuts from the upper side of tie rods,
and remove the out manifold. [Fig.4.5]
<NOTE>
▪When the retainer nuts both sides of the tie rod remove, the
in manifold removes.
▪Remove the O ring, valve stopper, ball and valve seat.
[Fig.4.6]
▪Turn over the main body assembly. [Fig.4.7]
▪Pull out the tie rod, and remove the base and in manifold.
[Fig.4.7]
▪Remove the O ring, valve seat, ball and valve stopper.
[Fig.4.8]

4
4.2 Inspection
▪Ball [Fig.4.9]
Measure the outside diameter, and if it is outside the
usable range, replace the ball.
Usable range of Ball
NDP-20 SØ24.3 ~ SØ27.8 mm
NDP-25
NDP-32 SØ31.5 ~ SØ36.1 mm
▪Valve seat [Fig.4.10]
Measure the dimension shown at left, and if it is outside
the usable range, replace the valve seat.
Usable range of Valve seat
BA□, BS□, BF□BP□, BV□
NDP-20 3.4 ~ 8.5 mm 3.3 ~ 8.1 mm
NDP-25
NDP-32 3.8 ~ 9.5 mm 3.4 ~ 9.5 mm
▪O ring (other than PTFE)
If O rings are worn out or cracked, replace them.
4.3 Installation
For installation, see [Exploded View] on the separate sheet and install in the reverse order of disassembly.
Tightening torque for manifold retainer bolts
C, N, E, V, H, S T
BA□
BS□10 N•m 20 N•m
NDP-20
BA□-D 10 N•m 15 N•m
BA□
BS□
NDP-25
NDP-32 BF□
10 N•m 35 N•m
Tightening torque for manifold retainer nuts
C, N, E, V, H, S T
NDP-20 BP□
BP□
NDP-25 BV□
10 N•m 12 N•m
▪NDP-20B□H/T, NDP-25B□H/T type be with 10N•m tightening.
<NOTE>
▪Make sure there is no dust on the seal surface and the
seal is not damaged.
▪Replace the PTFE O ring regardless of its condition.
▪Apply Lubricant (equivalent to LOCTITE ANTI-SEIZE
767) to tie-rod thread. (BP□, BV□ type)

5
5. Diaphragm and Center rod
5.1 Removal
■BA□[-D], BS□, BF□types
▪Remove the ball and valve seat etc. (see [4.1 Removal
BA□[-D], BS□, BF□types] )
▪Remove the 12 retainer bolts from the out chamber, and
remove the out chamber. [Fig.5.1]
▪Remove the nuts on both sides of the center rod. [Fig.5.2]
▪After the nuts on one side have been removed, remove the
center disk and diaphragm. Remove the diaphragm, center
disk and center rod from the opposite side of the main body.
▪Remove the nuts on the opposite side using the double nut.
[Fig.5.3]
▪Remove the coned disk spring, center disk and diaphragm.
■BP□, BV□types
▪Remove the ball and valve seat etc. (see [4.1 Removal BP□,
BV□types])
▪Remove the 12 retainer bolts from the out chamber, and
remove the out chamber. [Fig.5.4]

6
▪Remove the center disk from one side using the Accessory
tool (special tool: Part No. 771244). [Fig.5.5]
▪After the center disk (outside) has been removed, remove
the diaphragm and the center disk (inside).
▪Remove the center disk and center rod from the opposite
side of the main body.
▪Fix a double nut to one end of the center rod
and take the diaphragm and center disk off
the opposite end. [Fig.5.6]
Be careful not to scratch or score the center rod.
5.2 Inspection
▪Diaphragm
If the diaphragm is worn out or damaged, replace it.
New replace just one diaphragm.
Guideline of diaphragm life
CR, NBR, EPDM 10,000,000 cycle
FKM 2,500,000 cycle
PTFE 3,000,000 cycle
TPEE, TPO 15,000,000 cycle
(When used with clean water at room temperature)
▪Center rod [Fig.5.7]
Measure the diameter, and if it is outside the usable range,
replace the center rod.
Usable range of center rod
Ø 17.9 ~ Ø18.0 mm

7
(only B□H[-D], B□S, B□H/T)
5.3 Installation
■B□C[-D], B□N[-D], B□E, B□V, B□H[-D], B□S, B□H/T types
For installation, see [Exploded View] on the separate sheet and install in the reverse order of disassembly.
▪Install the O ring in the groove the air chamber.
(only B□H[-D], B□S, B□H/T)
▪Apply grease to the center rod, and insert it into the main
body.
▪Keep the marking “OUTSIDE” to liquid end for CR, NBR,
EPDM, FKM diaphragms.
▪Keep the convex side to the outside for TPEE, TPO
diaphragms.
▪Tighten the center disk using the Accessory tool (special
tool: Part No.771244) for the BP□, BV□types.
(No coned disk springs and nuts are needed.)
Tightening torque for center rod
B□C, B□N, B□E, B□V
B□H, B□S, B□H/T 40 N•m
▪Draw the center disk to one side, (cf. Fig.5.8) and install the
out chamber. Tighten the bolts temporarily.
▪Draw the center disk to the opposite side, then turn the
diaphragm over (cf. Fig.5.8). And install the out chamber.
Tighten the bolts temporarily.
▪After installation of the out chambers on both sides, place
the pump on a flat surface and stand the pump upright for
further assembly.
Tightening torque for out chamber.
B□C, B□N, B□E, B□V 10 N•m
NDP-20 B□H, B□S, B□H/T 13 N•m
B□C, B□N, B□E, B□V 10 N•m
NDP-25
NDP-32 B□H, B□S, B□H/T 20 N•m
<NOTE>
▪Make sure there is no dust on the seal surface in order to
prevent seal damaged.
▪Tighten the bolts that balance should be equal from both
side on diagonal line with even torque.
■B□T[-D] types
For installation, see [Exploded View] on the separate sheet and install in the reverse order of disassembly.
▪Install the O ring in the groove the air chamber.
▪Apply grease to the center rod, and insert it into the main
body.
▪Keep the convex side to the outside (cf. Fig.5.9).
▪Put the O rings to both sides of the diaphragm. (cf. Fig.5.9).
▪Tighten the center disk using the Accessory tool (special
tool: Part No. 771244) for the BPT, BVT types.
(No coned disk springs and nuts are needed.)
Tightening torque for center rod
40 N•m
▪Tighten the out chamber temporarily at first.
▪After installation of the out chambers on both sides, place
the pump on a flat surface and stand the pump upright for
further assembly.
Tightening torque for out chamber
NDP-20 13 N•m
NDP-25
NDP-32 20 N•m
<NOTE>
▪Make sure there is no dust on the seal surface in order to prevent seal damaged.
▪Replace the PTFE O ring by new one.
▪Tighten the bolts that balance should be equal from both side on diagonal line with even torque.

8
6. Throat bearing and Pilot valve Assembly
6.1 Removal
▪Remove the diaphragm and center rod (see [5.1 Removal]).
▪Remove the 8 retainer bolts from the air chamber, and
remove the air chamber and gasket. [Fig.6.1]
▪Draw out the pilot valve assembly. [Fig.6.2]
▪Draw out the throat bearing. [Fig.6.2]
▪Remove the packing from the throat bearing. [Fig.6.3]
6.2 Inspection
▪Throat bearing [Fig.6.4]
Measure the inside diameter, and if it is outside the usable
range, replace the throat bearing.
Usable range of throat bearing
Ø18.03 ~ Ø18.14 mm
▪O rings, Packing
If the O ring is worn out or cracked, replace it.
▪Pilot valve assembly
If the pilot valve is worn out or cracked, replace it.
6.3 Installation
For installation, see [Exploded View] on the separate sheet and install in the reverse order of disassembly.
Tightening torque for air chamber retainer bolts
18 N•m
<NOTE>
▪Make sure there is no dust on the seal surface and the
seal is not damaged.
▪Apply grease to packing.

9
7. C Spool Valve Assembly and Sleeve Assembly
7.1 Removal
▪Remove the 6 retainer bolts from the valve body, and
remove the valve body. [Fig.7.1]
▪Remove the 8 cap A and cap B retainer bolts, and remove
cap A, cap B, packing, plain washer, cushion and gasket.
[Fig.7.2]
▪Draw out the C spool valve assembly, and remove the seal
ring from the C spool valve assembly.
▪Remove the sleeve using the sleeve remover (special tool:
Part number 713148). [Fig.7.3]
7.2 Inspection
▪C Spool Valve Assembly
Seal ring [Fig.7.4]
Measure the inside thick diameter, and if it is outside the
usable range, replace the C Spool Valve Assembly.
If the seal ring is worn out or cracked, replace C Spool
Valve Assembly.
Usable range of Seal ring
2.94 ~ 3.02 mm
▪Sleeve Assembly [Fig.7.5]
Measure the inside diameter, and if it is outside the usable
range, replace the sleeve assembly.
Usable range of Sleeve
Ø18.63 ~ Ø 18.65 mm
▪O rings
If the O ring is worn out or cracked, replace it.
<NOTE>
▪C Spool Valve Assembly and Sleeve Assembly must be
replaced complete set. Unable to replace individual
component
7.3 Installation
For installation, see [Exploded View] on the separate sheet and install in the reverse order of disassembly.
Tightening torque for installation Cap A, Cap B
6 N•m
Tightening torque for Valve body installation bolts
7.5 N•m
<NOTE>
▪Make sure there is no dust on the seal surface and it is not
damaged.
▪Install the sleeve at the center of the valve body. At this
point, apply lubricating oil around the sleeve and O ring.

10
8. Retightening of Tie rods
■Metal type
▪The torque should be applied on the occasion of
(1) Right before the pump to use.
(2) There are any leaks of material on daily inspecting a
pump.
Retainer bolts from the
out chamber
Retainer bolts from the
manifold
B□C[-D], B□N[-D], B□E, B□V10 N•m 10 N•m
B□T 13 N•m 20 N•m
B□H[-D], B□S, B□H/T 13 N•m 10 N•m
NDP-20
BAT-D 13 N•m
IN SIDE 15 N•m
OUT SIDE 20 N•m
Retainer bolts from the
out chamber
Retainer bolts from the
manifold
B□C, B□N, B□E, B□V 10 N•m 10 N•m
B□T 20 N•m 35 N•m
NDP-25
NDP-32 B□H, B□S, B□H/T 20 N•m 10 N•m
<NOTE>
▪Tighten the bolts that balance should be equal from both side on diagonal line with even torque.
▪Retighten the Out chamber and then the manifold in this order. [Fig.8.1]
■Plastic type
▪The torque should be applied on the occasion of
(1) Right before the pump to use.
(2) There are any leaks of material on daily inspecting a
pump.
Retainer bolts from the
out chamber
Retainer bolts from the
manifold
B□C, B□N, B□E, B□V 10 N•m 10 N•m
BPT 13 N•m 12 N•m
NDP-20
B□H, B□S, B□H/T 13 N•m 10 N•m
Retainer bolts from the
out chamber
Retainer bolts from the
manifold
B□C, B□N, B□E, B□V 10 N•m 10 N•m
B□T, BVH 20 N•m 12 N•m
NDP-25
BPH, B□S, B□H/T 20 N•m 10 N•m
<NOTE>
▪Tighten the bolts that balance should be equal from both side on diagonal line with even torque.
▪Retighten the Out chamber and then the manifold in this order. [Fig.8.2]

Manufactured by
YAMADA CORPORATION
INTERNATIONAL DEPARTMENT
No.1-3, 1-Chome, Minami- Magome, Ohta-Ku, Tokyo, 143-8504, Japan
PHONE : [phone]
FAX : [phone]
201612 NDP187M
