Yamaha A-S801 User manual

OWNER’S MANUAL
MODE D’EMPLOI
Integrated Amplifier
Amplificateur Intégré

i En
The above warning is located on the rear of the unit.
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused
for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
PRECAUTIONS
Please read these precautions carefully before proceeding.
Be sure to follow the instructions
Please carefully read and observe the following precautions to avoid
harm to people or damage to your personal property.
After reading this document thoroughly, please retain it in a location that
anyone using the product can access at any time.
These precautions alert you to the possibility of death or
serious injury to yourself or others.
If you notice any abnormality
• If any of the following abnormalities occur, immediately shut down the
power.
- The power cord or plug becomes damaged.
- Unusual smells, noise or smoke are emitted from the product.
- An object or some water has been dropped into the product.
- Cracks or other damage appear on the product.
- There is a sudden loss of sound during use of the product.
Follow the steps below to shut down the power.
- Turn off the power to this product.
- Disconnect the power cord plug from the AC outlet.
Continuing to use the product as-is may result in fire, electrical shock
or damage to the product. Request inspection or repair immediately.
Power supply
• Do not damage the power cord.
- Do not place the power cord near heat sources such as heaters.
- Do not forcefully bend or modify the power cord.
- Do not damage the power cord.
- Do not place heavy objects on the power cord.
- Do not staple the power cord.
Using a frayed power cord with the core wire exposed may result in fire,
electrical shock or damage to the product.
• During lightning or electrical storms, do not touch this product, power
plug or power cord.
Otherwise, electrical shock may be caused.
• Use the voltage specified for this product.
Using an incorrect voltage may result in fire, electrical shock or damage
to the product.
• Be sure to use only the item listed below to supply power:
- Included power cord
Otherwise, fire, burns or damage to the product may be caused.
• Do not use the following Included accessory with other devices.
-Powercord
Otherwise, fire, burns or damage to the product may be caused.
• Check the power cord plug periodically and remove any dirt or dust
that may have accumulated.
Otherwise, fire or electrical shock may be caused.
• Be sure to fully insert the power cord plug into an AC outlet.
Otherwise, electrical shock, or fire or damage to the product due to
short circuit may be caused.
• Insert the power cord plug into the AC outlet that is visible and easily
accessible.
If some trouble or malfunction occurs, you should be able to
immediately disconnect the plug from the AC outlet easily. Even when
the power switch is turned off, as long as the power cord is not
unplugged from the wall AC outlet, the product is not disconnected
from the power source completely.
• As soon as you hear thunder, turn off the power switch and disconnect
the power cord plug from the AC outlet.
Otherwise, fire or damage to the product may be caused.
• If you plan not to use the product for a long period of time, remove the
power cord plug from the AC outlets.
Otherwise, fire or damage to the product may be caused.
Do not disassemble
• Do not modify or disassemble this product.
Otherwise, fire, electrical shock, injury or damage to the product may
be caused.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE.
• Contact the following customer center for inspection or repair.
- The store you purchased the product
- Yamaha dealer
• This product is intended for use as a general household device. Do
not use it in any fieldor activity requiring a high degree of reliability
in relation to human lives or valuable assets.
• Please note that Yamaha cannot accept any liability for any losses
resulting from improper use or unauthorized modification of the
product.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING

ii En
English
Water warning
• Do not use this product in damp or wet conditions, such as a bathroom
or rainy outdoor location.
• Do not place on this product any containers (such as vases or medicine
bottles) that contain liquids.
If liquid spills into the product, fire, electrical shock or damage to the
product may be caused.
• Do not insert the power cord plug into or remove it from the AC outlet
with wet hands. Do not handle this product with wet hands.
Otherwise, electrical shock or damage to the product may be caused.
Fire warning
• Do not handle open flames near this product.
Otherwise, fire may be caused.
Handling
• Do not drop this product or apply any strong impact to the product.
Otherwise, fire, electrical shock or damage to the product may be
caused.
Batteries
• Do not swallow batteries.
• Keep batteries away from children.
Otherwise, they may swallow the batteries by accident. Leaking battery
liquid may cause loss of vision or inflammation. If the battery case on this
product is not completely sealed, stop using the product and keep it
away from children. If someone has swallowed a battery by accident,
consult a physician immediately. If a battery is swallowed, it can cause
serious chemical burns or melting of body tissue within two hours,
leading to possible death.
• Do not throw batteries into an open fire.
• Do not expose batteries to high temperatures, such as direct sunlight
or an open fire.
Otherwise, they may explode, resulting in fire or injury.
• If battery liquid is leaking, do not touch the liquid.
Otherwise, loss of vision or chemical burns may be caused. If you touch
the battery liquid, wash it away with water immediately, and consult a
physician.
• Do not use batteries other than the specified type.
• Do not use old and new batteries together.
• Do not use different types of batteries together.
• Do not insert batteries in an orientation opposite from the polarity
indication.
• Do not break down the battery.
• Do not charge non-rechargeable dry cell batteries.
Otherwise, they may explode or battery liquid may leak, resulting in fires,
burns, loss of vision, inflammation, or damage to the product. If you
touch the battery liquid, wash it away with water immediately, and
consult a physician.
• Do not carry the batteries in a pocket or bag or store them along with a
piece of metal.
Otherwise, the batteries may short-circuit, leading to an explosion or
leaking liquid, which could result in fires, loss of vision, or injuries.
• If you plan not to use the product for a long period of time, or if the
batteries are completely discharged, remove them from the remote
control.
Otherwise, battery liquid may leak, possibly resulting in loss of vision,
inflammatory injury, or damage to the product.
• Before you store or discard the batteries, apply a piece of tape to the
connectors to insulate them.
If the battery connectors come into contact with other batteries or
metallic objects, they may explode or battery liquid may leak, possibly
resulting in fire, burns, loss of vision, or inflammatory injury.
These precautions alert you to the possibility of physical
injury to yourself or others.
Power supply
• If the power cord plug inserted into the AC outlet is wiggly or loose, do
not use that outlet.
Otherwise, fire, electrical shock or burns may be caused.
• When removing the power cord plug from the product or an outlet,
always hold the plug itself and not the cord.
Otherwise, the power cord may be damaged, resulting in fire or
electrical shock.
Installation
• Do not place this product in an unstable position or a location subject
to vibration.
Otherwise, the product may fall or tip over, resulting in injuries or
damage to the product.
• Do not block the heat dissipation of this product when installing it.
- Do not cover the product with a cloth or table cloth.
- Do not install the product on a carpet or rug.
- Do not block the vents (heat dissipation slits).
- Make sure that the top surface faces up. Do not install the product on
its sides or upside down.
- Do not use the product in a confined, poorly-ventilated location.
Inadequate ventilation may result in overheating inside the product,
possibly causing damage and fire or malfunction.
Make sure that there is adequate space around the product at least
30 cm above, 20 cm at the sides and 20 cm behind.
• Install this product in accordance with the instructions described in the
following manual.
-Owner’sManual
Otherwise, the product may fall or tip over, resulting in injuries or
damage to the product.
• During earthquakes, stay away from this product.
Otherwise, the product may fall or tip over, resulting in injuries.
• Do not install the product in a place where it may come into contact
with salt air, corrosive gases, oily fume or steam.
Otherwise, the product may fall or tip over, resulting in injuries or
damage to the product.
• When transporting or moving this product, always use Two people or
more people.
Attempts to lift the product by too few people or by yourself may result
in back injuries. In addition, the product may be dropped, which could
cause people in the vicinity to be injured, or cause damage to the
product.
• Before moving this product, be sure to turn off the power switch and
remove all connected cables.
Otherwise, the cables might be caught by a foot or hand, and the
product may fall or tip over, resulting in injuries or damage to the
product.
Connections
• If you plan to connect external devices, first read the owner’s manual
for each device, and connect them in accordance with the instructions.
If you do not follow the instructions correctly, injury or damage to the
product may be caused.
Hearing loss
• Do not expose yourself to high volume sound for an extended period of
time.
Otherwise, hearing loss may be caused. If you experience any hearing
abnormality, consult a physician.
• If you plan to connect this product to any other devices, first turn off
the power to all devices.
Otherwise, hearing loss, electrical shock or damage to the product may
be caused.
• Before turning on the power to or using this product, set the volume
level to minimum. Before turning off the power to this product, set the
volume levels of this product and all connected devices to minimum.
Otherwise, hearing loss or damage to the product may be caused.
• When turning on the power to the audio system, always turn on the
power to the power amplifier LAST. When turning off the power to the
audio system, turn off the power to the power amplifier FIRST.
Otherwise, hearing loss or damage to the product may be caused.
CAUTION

iii En
Maintenance
• Before cleaning the product, be sure to remove the power cord plug
from the AC outlet.
Otherwise, electrical shock may be caused.
Handling
• Do not touch the surface to which this label is attached.
The surface may become heated during use of this product, and
touching the surface may result in burns.
• Do not drop a foreign object, such as a piece ofmetal or paper, into any
gap on this product.
Otherwise, fire, electrical shock or damage to the product may be
caused.
• Keep small parts away from infants.
Otherwise, they may swallow them by accident.
• Do not apply the following excessive force to this product.
- Resting your weight on this product
- Placing heavy objects on this product
- Stacking up this product
- Applying excessive force to the buttons, switches, or I/O connectors
Otherwise, injury or damage to the product may be caused.
• Do not pull connected cables.
Otherwise, the product may fall or tip over, resulting in injuries or
damage to the product.
Precautions for use
NOTICE
Follow the precautions below to avoid malfunction and damage to this
product and to prevent the loss of data.
Power supply
• If you plan not to use this product for a long period of time, remove the
power cord plug from the AC outlet. Even when the [A] (Standby/On)
switch is turned off, a small amount of current still flows through this
product.
Installation
• Depending on the environment in which you use the product, a phone,
radio or TV may generate noise. In that case, change the product
location or orientation, or the surrounding environment.
• Do not install this product in a place subject to:
-Directsunlight
- Extremely high or low temperatures
-Excessivedust
Otherwise, malfunction or damage to the product may be caused.
• Do not install this product in a place where condensation can form due
to rapid, drastic changes in ambient temperature. Using the product
while condensation is present may cause damage to the product. If
there is a reason to believe that condensation might have occurred on
or in this product, leave it for several hours without turning on the
power. You can start using the product when the condensation has
completely dried.
Handling
• Do not place any vinyl, plastic or rubber products on this product.
Otherwise, the panel may be discolored or deteriorate.
Maintenance
• Use a dry, soft cloth to clean this product. Do not use benzine, thinner,
detergent or chemical rag to clean the surface of the product.
Otherwise, the surface may be discolored or deteriorate.
Important information
NOTE
This section describes precautions to be observed during use, functional
restrictions, and supplemental information that may be helpful for you.
Disposal or transfer
• If you plan to transfer ownership of this product, include this document
and the supplied accessories along with the product.
• Follow the rules of your local authority to dispose of this product and
its accessories.
• Follow the rules of your local authority to dispose of used batteries.
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions
contained in this manual, meets FCC requirements. Modifications
not expressly approved by Yamaha may void your authority,
granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/
or another product use only high quality shielded cables. Cable/s
supplied with this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the
requirements listed in FCC Regulations, Part 15 for Class “B”
digital devices. Compliance with these requirements provides a
reasonable level of assurance that your use of this product in a
residential environment will not result in harmful interference
with other electronic devices. This equipment generates/uses
radio frequencies and, if not installed and used according to the
instructions found in the users manual, may cause interference
harmful to the operation of other electronic devices. Compliance
with FCC regulations does not guarantee that interference will not
occur in all installations. If this product is found to be the source
of interference, which can be determined by turning the unit
“OFF” and “ON”, please try to eliminate the problem by using one
of the following measures:
- Relocate either this product or the device that is being affected
by the interference.
- Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
- In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead, change
the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type
of product. If you can not locate the appropriate retailer, please
contact Yamaha Corporation of America, 6600 Orangethorpe Ave,
Buena Park, CA90620, USA.
The above statements apply ONLY to those products distributed
by Yamaha Corporation of America or its subsidiaries.
Product information, such as the model name (product number),
manufacturing code (serial number), and power requirements, are
displayed on or in the vicinity of the nameplate on the product (Rear
panel). We recommend that you fill in the following space with the
model name and serial number, and store this document in a safe
place so that the information will help you identify your product in
case you lose the product.
Model Name
Serial Number

1 En
English
USEFUL FEATURES ................................... 1
SUPPLIED ACCESSORIES......................... 1
CONTROLS AND FUNCTIONS................. 2
Front panel ........................................................2
Rear panel .........................................................4
Remote control..................................................6
CONNECTIONS............................................ 9
Connecting speakers and source components...9
Connecting power cable..................................10

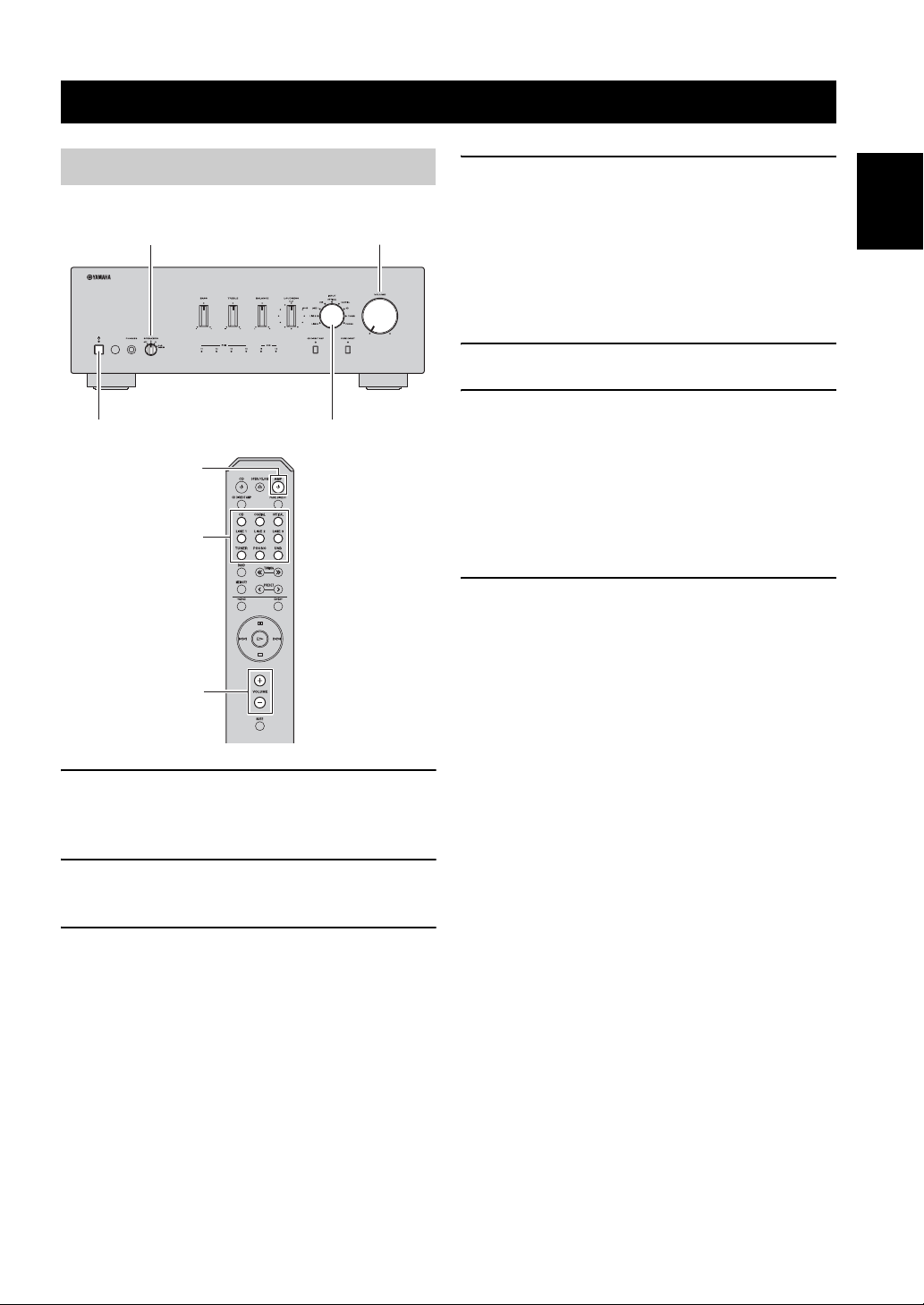

PLAYBACK................................................. 11
Playing a source ............................................. 11
Adjusting to the desired sound....................... 12

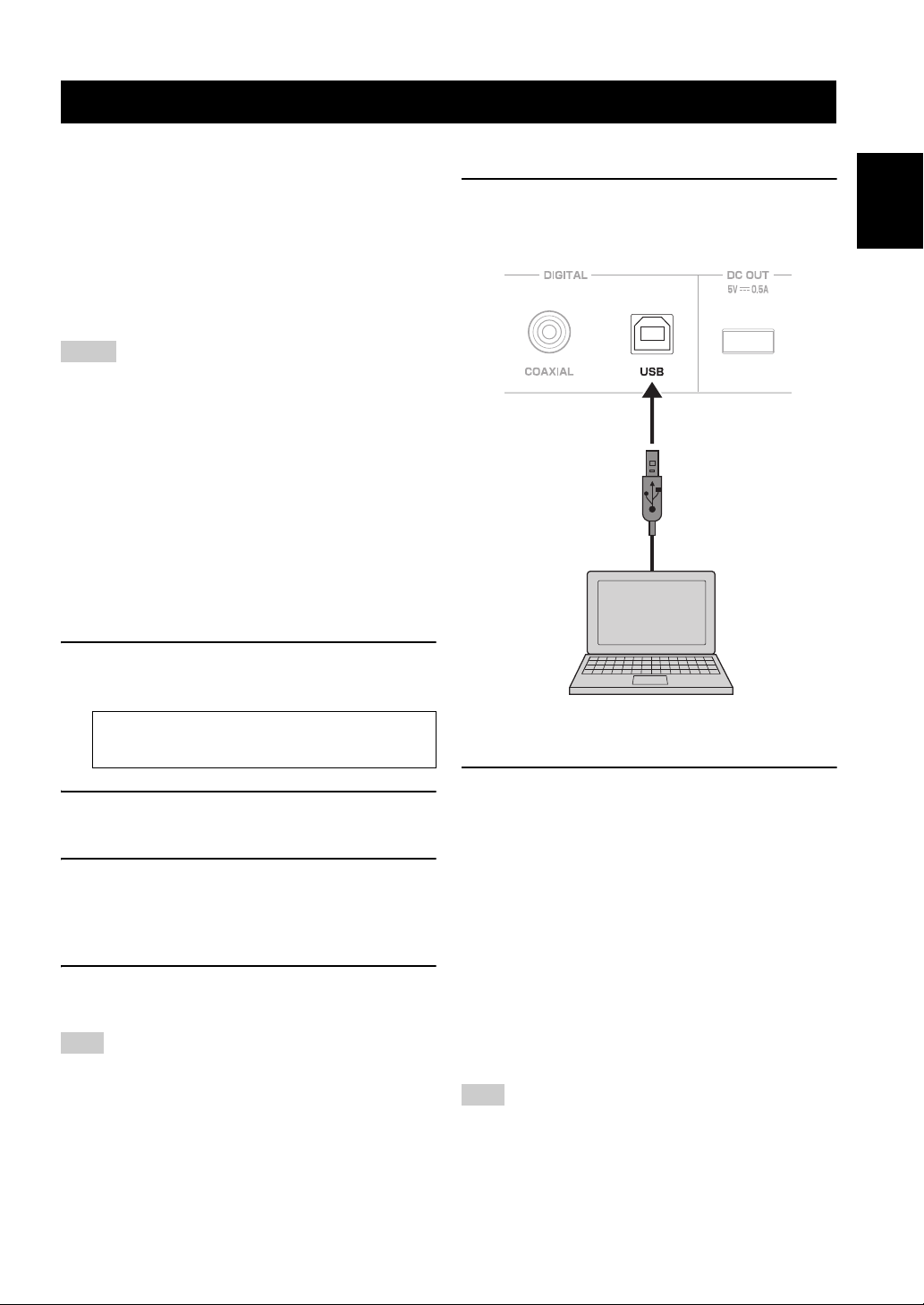

PLAYBACK OF MUSIC FILES STORED
ON A PC (USB DAC)............................... 13
TROUBLESHOOTING.............................. 15
SPECIFICATIONS ..................................... 18
This unit allows you to:
◆USB DAC function corresponding to DSD native
playback (see page 13)
◆Enjoy the highest sound quality of compact discs by
using the CD direct function (see page 12)
◆Enjoy pure, high fidelity sound by using the Pure
Direct function (see page 12)
◆Save power by using AUTO POWER STANDBY
switch (see page 4)
◆Use the remote control of this unit to operate a Yamaha
tuner and/or CD player (see page 7)
◆Boost bass sounds by connecting a subwoofer
(see page 9)
Please check that you received all of the following parts.
CONTENTS
About this manual
•yindicates a tip for your operation.
• Depending on the model, there are some countries/regions where it may not be sold.
USEFUL FEATURES
SUPPLIED ACCESSORIES
Remote control Batteries (x2)
(AA, R6, UM-3) Power cable

2 En
1A(power) switch
Turns on and off the power of this unit.
Even when this unit is turned off, this unit consumes a small
amount of power.
2Power indicator
3Remote control sensor
Receives infrared signals from the remote control.
4PHONES jack
Connect your headphones.
5SPEAKERS selector
6BASS control
Increases or decreases the low frequency response.
The 0 position produces a flat response.
Control range: –10 dB to +10 dB
7TREBLE control
Increases or decreases the high frequency response.
The 0 position produces a flat response.
Control range: –10 dB to +10 dB

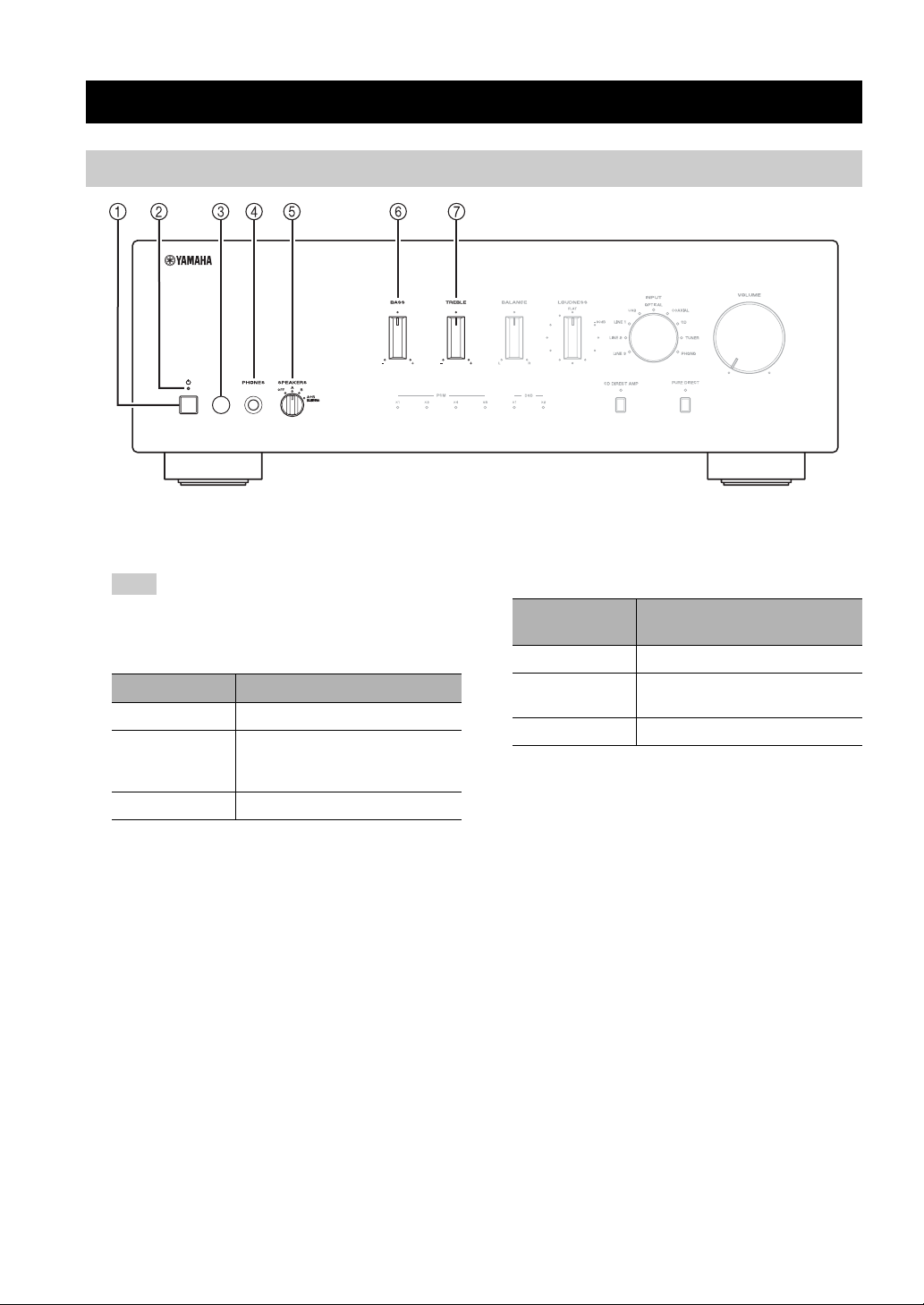

CONTROLS AND FUNCTIONS
Front panel
Note
Indicator Status
Brightly lit The power of this unit is “on”.
Dimly lit
This unit is in “standby” mode.
For details on the “standby” mode, see
page 6.
Off The power of this unit is “off”.
Selector
position Speaker status
OFF Both sets of speakers are off.
A or B The set of speakers connected to the A
or B terminals is on.
A+B BI-WIRING Both sets of speakers are on.

CONTROLS AND FUNCTIONS
3 En
English
8BALANCE control
Adjusts the sound output balance of the left and right
speakers to compensate for sound imbalances.
If you rotate the BALANCE control to the end of L (left) or
R (right), the opposite side of channel is muted.
9LOUDNESS control
Retain a full tonal range at any volume level
(see page 12).
0INPUT selector and indicators
Selects the input source you want to listen to. The
input source indicators light up when the
corresponding input sources are selected.
y
The input source names correspond to the names of the
connection jacks on the rear panel.
AVOLUME control
Increases or decreases the sound output level.
BUSB DAC Indicators
Lights up when PCM (Pulse Code Modulation) or
DSD (Direct Stream Digital) digital audio signals are
input to a USB terminal of this unit (see page 14).
CCD DIRECT AMP button and indicator
Reproduces CD sound in the highest signal quality
(see page 12).
The indicator above it lights up when this function is
turned on.
DPURE DIRECT button and indicator
Reproduces any input source in the purest sound
possible (see page 12).
The indicator above it lights up when this function is
turned on.
Note

CONTROLS AND FUNCTIONS
4 En
1CD input jacks
Used to connect a CD player (see page 9).
2PHONO jacks and GND terminal
Used to connect a turntable that uses an MM cartridge,
and to ground the terminal (see page 9).
3Audio input/output jacks
Used to connect external components, such as a tuner,
etc (see page 9).
4DIGITAL (OPTICAL) jack
Used to connect a component with a digital optical
output (see page 9).
5DIGITAL (COAXIAL) jack
Used to connect a component with a digital coaxial
output (see page 9).
6DIGITAL (USB) jack (Type B)
Used to connect a PC (see page 13).
7DC OUT jack
For supplying power to a Yamaha AV accessory. For
details on connections, refer to the instruction manual
of the AV accessory.
8SPEAKERS A/B terminals
Used to connect one or two speaker sets (see page 9).
9SUBWOOFER OUT jack
Used to connect a subwoofer with built-in amplifier
(see page 9).
y
The SUBWOOFER OUT jack attenuates signals over 90 Hz.
0AUTO POWER STANDBY switch
Rear panel
Switch
position Status
ON
The unit enters standby mode
automatically if not operated for 8
hours.
OFF The unit does not enter standby mode
automatically.

CONTROLS AND FUNCTIONS
5 En
English
AIMPEDANCE SELECTOR switch
Do not change the IMPEDANCE SELECTOR switch
while the power is turned on, as doing so may damage
the unit.
If the IMPEDANCE SELECTOR switch may not be
fully slid to either position, remove the power cable
and slide the switch all the way to either position.
Select the switch position according to the impedance
of the speakers.
BAC IN
Used to connect the supplied power cable to an AC
wall outlet (see page 10).
CAUTION
Speaker
connection
Speaker
impedance
Switch
position
SPEAKERS A
or
SPEAKERS B
6Ωor higher
8Ωor higher
(Asia model only)
HIGH
4Ωor higher LOW
SPEAKERS A
and
SPEAKERS B
12 Ωor higher
(U.K. model only)
16 Ωor higher
(Asia model only)
HIGH
8Ωor higher LOW
Bi-wiring
6Ωor higher
8Ωor higher
(Asia model only)
HIGH
4Ωor higher LOW

CONTROLS AND FUNCTIONS
6 En
1Infrared signal transmitter
Sends infrared signals.
2AAMP
Turns this unit on, or sets it to standby mode.
3OPEN/CLOSE
Opens/closes the disc tray of the Yamaha CD player.
Refer to the owner’s manual of your CD player for
details.
Even when using a Yamaha CD player, certain components
and features may not be available.
4ACD
Turns the Yamaha CD player on, or sets it to standby
mode. Refer to the owner’s manual of your CD player
for details.
Even when using a Yamaha CD player, certain components
and features may not be available.
5CD DIRECT AMP
Reproduces CD sound in the highest signal quality
(see page 12).
6Input selector buttons
Selects the input source you want to listen to.
y
The input source names correspond to the names of the
connection jacks on the rear panel.
7VOLUME +/–
Increases or decreases the sound output level.
8MUTE
Reduces the current volume level by approximately
20 dB. Press again to restore the audio output to the
previous volume level. Pressing the VOLUME +/–
also cancels muting.
The input indicator on the front panel for the current
input source blinks while the output is muted.
9PURE DIRECT
Reproduces any input source in the purest sound
possible (see page 12).
Remote control
Note
Note

CONTROLS AND FUNCTIONS
7 En
English
0Yamaha tuner control buttons
The following buttons can be used to control various
functions of a Yamaha tuner.
Refer to your component’s owner’s manual for more
information.
BAND
Selects the reception band (FM/AM).
TUNING jj / ii
Selects the tuning frequency.
MEMORY
Stores the current FM/AM station as a preset.
PRESET j/ i
Selects a preset FM/AM station.
Even when using a Yamaha tuner, certain components and
features may not be available.
AYamaha CD player control buttons
The following buttons can be used to control a
Yamaha CD player.
Refer to your component’s owner’s manual for more
information.
wRewinds playback
fFast-forwards playback
ePauses playback
bSkips backward
aSkips forward
pStarts playback
sStops playback
Even when using a Yamaha CD player, certain components
and features may not be available.
Note
Note

CONTROLS AND FUNCTIONS
8 En
■Installing batteries ■Operation range
Point the remote control at the remote control sensor on
this unit and remain within the operating range shown
below.
■Notes on remote control and batteries
• The area between the remote control and this unit must be clear of large obstacles.
• Be careful not to spill water or other liquids on the remote control.
• Be careful not to drop the remote control.
• Do not leave or store the remote control in the following conditions:
– places of high humidity, such as near a bathroom
– places of high temperatures, such as near a heater or stove
– places of extremely low temperatures
– dusty places
• Change all batteries if you notice the operation range of the remote control narrows.
• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.
• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material
comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery
compartment thoroughly before installing new batteries.
• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Batteries that look the same may have a
different specification.
• Dispose of batteries according to your regional regulations.
• Keep the batteries in a location out of reach of children.
Batteries can be dangerous if a child were to put in his or her mouth.
• If you plan not to use this unit for a long period of time, remove the batteries from this unit. Otherwise, the batteries will wear out,
possibly resulting in a leakage of battery liquid that may damage this unit.
AA, R6, UM-3 batteries
Remote control
Approximately
6 m
(20 ft)

9 En
English
Make sure to connect L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. If the connections are faulty, no sound will
be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and
lack bass. Refer to the owner’s manual for each of your components.
Make sure to use RCA cables, optical cable or USB cables to connect audio components.
Do not connect this unit or other components to the main power until all connections between components are complete.
Only PCM signals can be input to the DIGITAL (OPTICAL/COAXIAL) jacks of this unit. For details on the supported
PCM signals, see page 18.
y
• The PHONO jacks are designed for connecting a turntable with an MM cartridge.
• Connect your turntable to the GND terminal to reduce noise in the signal. However, for some turntables, you may hear less noise
without the GND connection.
CONNECTIONS
Connecting speakers and source components
CAUTION
CD recorder,
etc.
Tuner
Speakers A
Speakers B
DVD player,
etc.
CD player
Turntable
Audio
out
Audio
out
Audio
In
Audio
out
GND
LeftRight
LeftRight
Audio
out
Audio
out
TV, etc.
Audio
out
SubwooferTape deck,
etc.
BD player, etc.
PC
Audio
out
Audio
out
Audio
In
Audio
out

10 En
CONNECTIONS
■REC jacks
• The audio signals are not output via the LINE 2 REC
or LINE 3 REC output jacks when LINE 2 or LINE 3
is selected with the INPUT selector.
• The VOLUME, BASS, TREBLE, BALANCE and
LOUDNESS controls and the CD DIRECT function
(or the PURE DIRECT function) have no effect on the
source being recorded.
■Connecting speaker cables
1Remove approximately 10 mm (3/8 in) of insulation
from the end of each speaker cable.
2Twist the bare wires of the cable firmly together.
3Unscrew the knob.
4Insert one bare wire into the hole in the side of each
terminal.
5Tighten the knob to secure the wire.
• Set the IMPEDANCE SELECTOR switch according to
the impedance of the speakers to be connected (see
page 5).
• Do not let bare speaker wires touch each other or any
metal part of this unit. This could damage this unit and/
or the speakers.
■Connecting via banana plug
(North America, China and Australia
models only)
1Tighten the knob.
2Insert the banana plug into the end of the
corresponding terminal.
■Bi-wire connection
In the case of speakers supporting the bi-wiring
connection, the tweeter/midrange unit and woofer of the
speakers can be driven independently through connections
shown in the following figure, allowing you to enjoy clear
mid- and high-range sounds.
Connect the other speaker to the other set of terminals in
the same way.
When making bi-wire connections, remove the shorting bridges
or cables on the speaker. Refer to the speakers’ instruction
manuals for more information.
y
To use the bi-wire connections, set the SPEAKERS selector on
the front panel to the A+B BI-WIRING position.
Plug the power cable into the AC IN inlet when all
connections are complete, and then plug in the power
cable to the AC outlet.
CAUTION
Red: positive (+)
Black: negative (–)
10 mm (3/8 in)
Banana plug
Note
Connecting power cable
Rear panel
Speaker
To the AC
wall outlet

11 En
English
1Rotate the VOLUME control on the front
panel fully counter-clockwise so as not to
play sounds loud suddenly.
2Press A(power) switch on the front panel
inward to turn on this unit.
3Rotate the INPUT selector on the front panel
(or press one of the Input selector buttons on
the remote control) to select the input source
you want to listen to.
The indicator for the selected input source lights up.
y
If you want to play back the music stored on your PC, select USB
as the input source (see page 13).
4Rotate the SPEAKERS selector on the front
panel to select SPEAKERS A, B or A+B BI-
WIRING.
y
Set the SPEAKERS selector to the A+B BI-WIRING position
when two sets of speakers are connected using bi-wire
connections, or when using two sets of speakers simultaneously
(A and B).
5Play the selected input source.
6Rotate the VOLUME control on the front
panel (or press VOLUME +/– on the remote
control) to adjust the sound output level.
y
You can adjust to the desired sound by using the BASS,
TREBLE, BALANCE and LOUDNESS controls, the CD
DIRECT AMP button, or the PURE DIRECT button on the front
panel.
7When finished listening, press A(power)
switch on the front panel outward to turn off
this unit.
y
If AAMP on the remote control is pressed while the A(power)
switch on the front panel is in the on position, this unit enters
standby mode. Press AAMP again to turn this unit on.

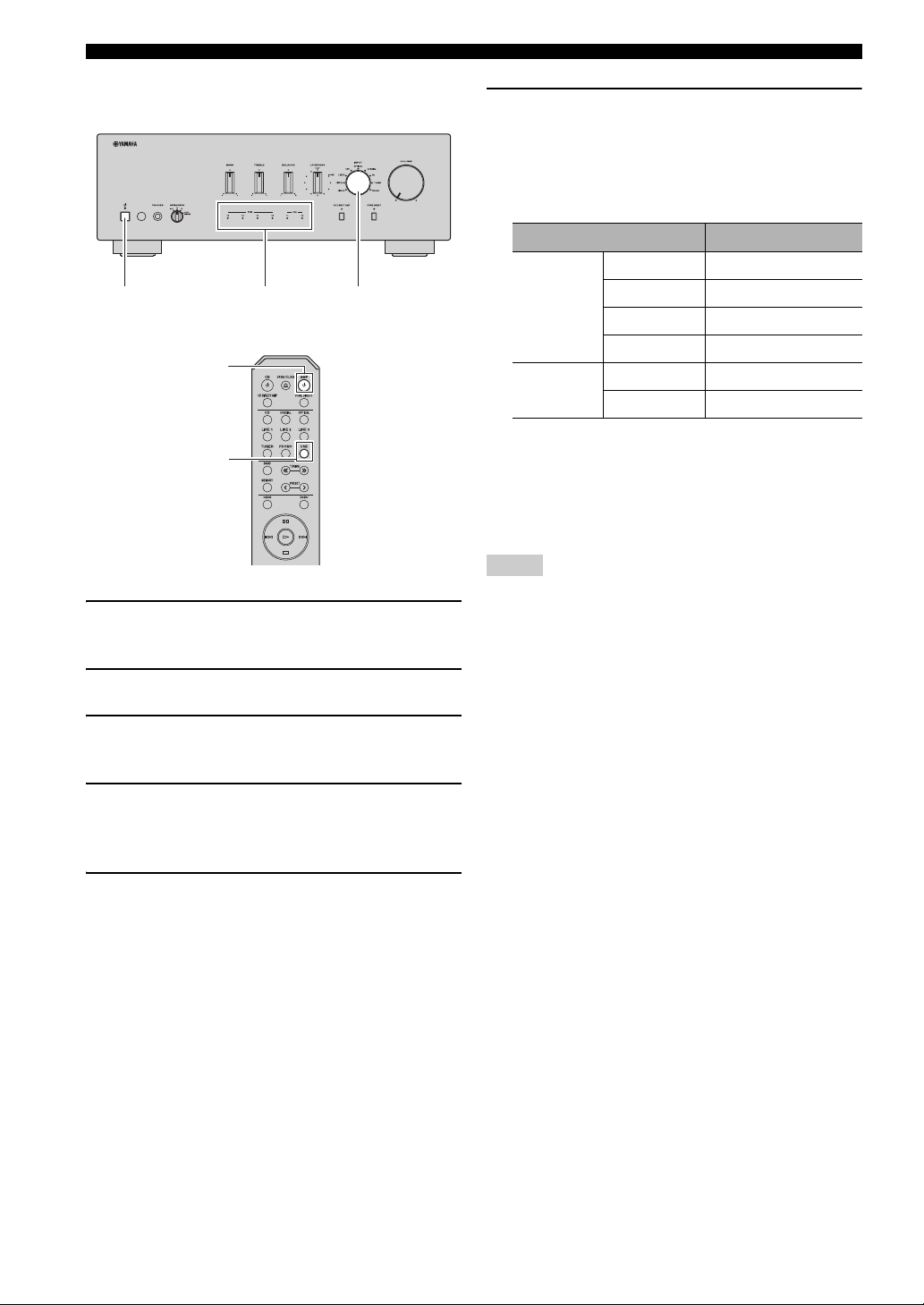

PLAYBACK
Playing a source
SPEAKERS VOLUME
INPUTA
Input selector
buttons
VOLUME +/–
AAMP

12 En
PLAYBACK
■Making it easier to hear the high- and
low-frequency ranges even at low
volume (LOUDNESS)
Enjoy natural sound even at low volume by lowering the
mid-range sound level and compensating for the human
ears’ loss of sensitivity to high- and low-frequency ranges
at low volume.
If the CD DIRECT AMP function (or the PURE DIRECT
function) is turned on with the LOUDNESS control set at
a certain level, the input signals bypass the loudness
control, resulting in a sudden increase in the sound output
level. To prevent your ears or the speakers from being
damaged, be sure to press the CD DIRECT AMP button
(or the PURE DIRECT button) AFTER lowering the
sound output level or AFTER checking that the
LOUDNESS control is properly set.
1Set the LOUDNESS control to the FLAT
position.
2Rotate the VOLUME control on the front
panel (or press VOLUME +/– on the remote
control) to set the sound output level to the
loudest listening level that you would listen
to.
3Rotate the LOUDNESS control
counterclockwise until the desired volume is
obtained.
■Reproducing pure, high fidelity sound
(PURE DIRECT)
When the PURE DIRECT function is on, noise can be
reduced by bypassing the circuit that the audio input
signal is not using and stopping the power supply to the
circuit.
Therefore, in all input sources, you can enjoy music
playback in straight and high quality sound.
The indicator above the PURE DIRECT button lights up
when this function is turned on.
The BASS, TREBLE, BALANCE and LOUDNESS controls do
not function while the PURE DIRECT function is turned on.
■Reproducing CD sound with the highest
sound quality (CD DIRECT AMP)
When selecting the input source other than CD, if you
press the CD DIRECT AMP button, the input source
switches to CD.
• The BASS, TREBLE, BALANCE and LOUDNESS controls do
not function while the CD DIRECT AMP function is turned on.
• Be sure to connect the CD player to the CD input jacks if you
use the CD direct function.
• The CD DIRECT AMP function is turned off if the following
operation is performed.
– Select an input source other than CD for the INPUT selector.
– The PURE DIRECT function is turned on.
Adjusting to the desired sound
CAUTION
VOLUMELOUDNESS
PURE
DIRECT
CDDIRECT
AMP
Note
CD Direct Amp feature
Stop power supply to the unnecessary circuit for CD
playback, convert the input signal to the normal phase
and reverse phase, and balance transfer to the electronic
volume. With the following effects, a more faithful
sound to the original will be provided.
• improved signal-to-noise ratio
• external noise canceling
• reduced distortion
Notes

13 En
English
When a PC is connected to the DIGITAL (USB) jack of
this unit, the unit functions as a USB DAC, enabling
music files stored on the PC to be played.
■Supported operating systems
The USB connection with this unit is for PCs with the
following operating systems: (As of August, 2021)
Windows: Windows 10 (32 bit/64 bit)
Mac: macOS 11 / 10.15 / 10.14 / 10.13 / 10.12
• Operations with other operating systems are not guaranteed.
• Operations may be disabled even with the above-mentioned
operating systems, depending on the configuration or
environment of the PC.
• If the unit is connected to a Mac computer, the unit will usually
operate using the driver included in the standard Mac OS.
However, if the unit fails to play music files stored on the
connected computer, install the driver for Mac by accessing the
URL listed in Step 1 of the following “Installing the dedicated
driver” section.
■ Installing the dedicated driver (Windows only)
Before connecting a PC to this unit, install the dedicated
driver on the PC.
1Access the URL below to search for “Yamaha
Steinberg USB Driver.”
2Unzip the downloaded file, and then execute
it.
3Install the downloaded “Yamaha Steinberg
USB Driver” on the PC.
For details, refer to the Installation Guide supplied
with the downloaded driver.
4When installation is complete, quit all
running applications.
Operations may not be executed correctly if the PC is connected
to this unit before the driver is installed.
■Connecting the unit to your PC
1Connect this unit to the PC using a
commercially-available USB cable.
2Set the audio output destination of the
computer to “Yamaha USB DAC”.
With Windows OS:
Start menu ➝ Settings ➝ System ➝ Sound [Output]
With Mac OS:
System Preferences ➝ Sound ➝ [Output] tab
The setting may vary, depending on the operating
system. For details, consult the manufacturer of your
PC.
y
Transmittable sampling frequencies are as follows:
PCM: 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz/
352.8 kHz/384 kHz
DSD: 2.8224 MHz/5.6448 MHz
The “Yamaha Steinberg USB Driver” is subject to change without
prior notice. For details and the latest information, refer to the
download page for the driver.
PLAYBACK OF MUSIC FILES STORED ON A PC (USB DAC)
Notes
Website for downloading the exclusive driver
URL: https://download.yamaha.com/
Note
Note
USB cable (Type B)
PC
Rear panel

14 En
PLAYBACK OF MUSIC FILES STORED ON A PC (USB DAC)
■Playing back music files stored on the
PC
1Connect the PC to this unit, using a USB
cable.
2Turn on the PC.
3Press A(power) switch on the front panel
inward to turn on this unit.
4Rotate the INPUT selector on the front panel
(or press one of the Input selector buttons on
the remote control) to select the USB.
5Set the audio output destination of the PC to
“Yamaha USB DAC”
With Windows OS:
Start menu ➝Settings ➝System ➝Sound [Output]
With Mac OS:
System Preferences ➝Sound ➝[Output] tab
The setting may vary, depending on the operating
system. For details, consult the manufacturer of your
PC.
6Operate the PC to start playback of music
files.
When the music signal input from the PC to the unit,
the USB DAC indicator on the front panel lights up in
accordance with the sampling frequency of the song
being played.
■Adjusting the sound volume
To obtain higher sound quality, set the sound volume at
the PC to the maximum, and gradually increase the
volume at this unit from the minimum to your desired
level.
• Do not disconnect the USB cable, turn off the unit, or change
the input while playback on a PC connected via the USB cable
is in progress. Doing so may cause a malfunction.
• To mute operation sounds of the PC during music playback,
change the setting on the PC.
• If music files cannot be played correctly, restart the computer
and perform the mentioned procedure again.
• The music files stored on a PC cannot be controlled from this
unit or the remote control of this unit. Operate them on the PC.
USB DAC
indicators
AINPUT
AAMP
USB
Indicator Frequency
PCM
× 1 44.1/48 kHz
× 2 88.2/96 kHz
× 4 176.4/192 kHz
× 8 352.8/384 kHz
DSD × 1 2.8224 MHz
× 2 5.6448 MHz
Notes

15 En
English
Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or
if the instructions below do not help, turn off this unit, disconnect the power cable, and then contact the nearest
authorized Yamaha dealer or service center.
TROUBLESHOOTING
Problem Cause Remedy See
page
This unit fails to turn
on.
The power cable is not connected or the
plug is not completely inserted.
Connect the power cable firmly. 10
The AAMP is pressed on the remote
control while this unit is turned off.
Press A(power) switch on the front panel to on. 2
The impedance setting of the connected
speaker is too small.
Use speaker(s) with proper speaker impedance. 5
The protection circuitry has been activated
because of a short circuit, etc.
Check that the speaker wires are not touching each
other and then turn the power of this unit back on. 10
There is a problem with the internal
circuitries of this unit.
Disconnect the power cable and contact the nearest
authorized Yamaha dealer or service center. —
This unit turns off
suddenly and the
power indicator
blinks.
The speaker wires are touching each other
or shorting out against the rear panel.
Connect the speaker cables properly and press the A
(power) switch again. The INPUT indicators blink
and the volume is decreased to the lowest setting
automatically, then the INPUT indicators stop
flashing and the last input source selected lights up.
Confirm normal sound output from speakers by
increasing the volume gradually.
10
The speaker is malfunctioning. Replace the speaker set and press the A(power)
switch again. The INPUT indicators blink and the
volume is decreased to the lowest setting
automatically, then the INPUT indicators stop
flashing and the last input source selected lights up.
Confirm normal sound from speakers by increasing
the volume gradually.
—
The protection circuitry has been activated
because of excessive input or excessive
volume level.
Rotate the VOLUME control on the front panel to
decrease the volume level and then turn the power on
again.
—
The protection circuitry has been activated
due to excessive internal temperature.
Allow about 30 minutes for the temperature inside
this unit to decrease, rotate the VOLUME control on
the front panel to lower the volume and then turn the
power on again. Set the unit in a place where heat can
readily dissipate from the unit.
—
The IMPEDANCE SELECTOR switch is
not fully slid to either position.
Turn the power off and slide the IMPEDANCE
SELECTOR switch all the way to the correct position. 5
The IMPEDANCE SELECTOR switch is
not set to the correct position.
Set the IMPEDANCE SELECTOR switch to the
position that corresponds to the impedance of your
speakers.
5
This unit has been exposed to a strong
external electric shock (such as lightning
or strong static electricity).
Turn off this unit, disconnect the power cable, plug it
back in after 30 seconds, then use the unit normally. —
There is a problem with the internal
circuitries of this unit.
Disconnect the power cable and contact the nearest
authorized Yamaha dealer or service center. —
No sound. Sound is muted. Press MUTE on the remote control or rotate the
VOLUME control. 6
Incorrect cable connections. Connect the stereo cable for audio units and the
speaker wires properly. If the problem persists, the
cables may be defective.
9

16 En
TROUBLESHOOTING
No sound. Playback has been stopped on the
connected component.
Turn the component on and start playback. 11
No appropriate input source has been
selected.
Select an appropriate input source with the INPUT
selector on the front panel (or one of the Input
selector buttons on the remote control).
11
The SPEAKERS selector is not set
properly.
Set the corresponding SPEAKERS selector to A, B or
A+B BI-WIRING position. 11
The output audio source setting on the
connected component is not PCM.
Only PCM audio sources can be played via the
DIGITAL (OPTICAL/COAXIAL) jacks of this unit.
Set the output audio source of the connected
component to PCM.
18
The sound suddenly
goes off.
The automatic power down function has
activated.
Confirm that there are no other issues causing this
problem, and then turn this unit on again.
To turn off the AUTO POWER STANDBY function,
set the AUTO POWER STANDBY switch to OFF on
the rear panel.
4
Only the speaker on
one side can be
heard.
Incorrect cable connections. Connect the cables properly. If the problem persists,
the cables may be defective. 9
Incorrect setting for the BALANCE
control.
Set the BALANCE control to the appropriate
position. 3
There is a lack of bass
and no ambience.
The + and – wires are connected in
reverse at the amplifier or the speakers.
Connect the speaker wires to the correct + and –
phase. 10
A “humming” sound
can be heard.
Incorrect cable connections. Connect the audio plugs firmly. If the problem
persists, the cables may be defective. 9, 10
No connection from the turntable to the
GND terminal.
Make the GND connection between the turntable and
this unit. 9
The volume level
cannot be increased,
or the sound is
distorted.
The component connected to the LINE 2
REC or LINE 3 REC jacks of this unit is
turned off.
Turn on the power of the component.
—
The sound is
degraded when
listening with
headphones
connected to a CD
player connected to
this unit.
This unit is turned off or is in standby
mode.
Turn on the power of this unit.
—
The sound level is
low.
Sound is muted. Press MUTE on the remote control or rotate the
VOLUME control. 6
The loudness control function is
operating.
Turn down the volume, set the LOUDNESS control
to the FLAT position, and then adjust the volume
again.
12
The volume level is
low while playing a
record.
The turntable is connected to the jacks
other than the PHONO jacks.
Connect the turntable to the PHONO jacks. 9
The record is being played on a turntable
with an MC cartridge.
Use a turntable equipped with an MM cartridge. 9
Using the BASS,
TREBLE, BALANCE
and LOUDNESS
controls does not
affect the sound.
The CD DIRECT function or the PURE
DIRECT function is turned on.
The CD DIRECT function or the PURE DIRECT
function must be turned off to use those controls.
12
Problem Cause Remedy See
page
