NS-IW960

HOME CINEMA IN-WALL SPEAKER

CONTENTS

CONSUMER PRECAUTIONS ...........................................................................

UNPACKING ......................................................................................................

TOOLS NEEDED ...............................................................................................

SPEAKER PLACEMENT ....................................................................................

INSTALLATION ..................................................................................................

CONNECTIONS .................................................................................................

PAINTING THE SPEAKER FRAME AND GRILL ...............................................

SPECIFICATIONS ..............................................................................................

WARRANTY .......................................................................................

Back cover

OWNER’S MANUAL

CONSUMER PRECAUTIONS

Read these precautions carefully before installing your NS-IW960 speaker.

• Before you begin installation, read this owner’s manual completely and consult your local building codes. If you

have any doubt, contact your dealer or a qualified audio/video installer.

YAMAHA recommends installing the speaker only in two-by-four wood frame or similar construction.The

instructions provided in this owner’s manual are intended specifically for this type of wall construction.

When installing your NS-IW960 in-wall speaker, be aware of the product weight (See specification page) and

the sturdiness of the material into which you are installing the speaker.

Be aware of any concealed studs, electrical wiring or plumbing in the wall or ceiling into which you are

installing the speakers. If you are not sure of a safe way to install these speakers, consult aprofessional

installer or a building contractor.

Never touch the woofer or tweeter units with your hands or expose them to excessive physical shock.If they

are dented or bent, the sound will be distorted.

Lower the power amplifier/receiver volume control before changing input sources. Never change input sources

(for example, FM to CD) at high listening levels. Always turn the receiver/amplifier unit off when installing or

removing any cables.

Anytime you note distortion, reduce the volume control on your power amplifier/receiver to a lower setting.

Never allow your power amplifier to be driven into “clipping”.

Secure placement or installation is the owner’s responsibility. YAMAHA shall not be liable for any accident

caused by improper placement or installation of speakers.

•

WARNING:

Installation shall be in accordance with the applicable section of the National Electrical Code, ANSI/NFPA 70,

and/or the National Fire Alarm Code, ANSI/NFPA 72, as applicable. The wiring method and compartment shall

be such as not to interfere with the operation of the speaker.

UNPACKING

After unpacking, check that the following items are contained.

NS-IW960

Speaker System x1 Speaker Grill x1 Cutout template x1

Paint Protective

cover x1 Glue Strips x1

SPEAKER PLACEMENT

TOOLS NEEDED

Pencil Drill Drywall saw Wire strippers Gloves

Small level Sturdy wire

(such as a coat hanger)

Philips screwdriver Safety goggles

Though this speaker is a magnetically shielded type, there may be some influence on a TV picture depending on the

type of TV or the placement of the speaker. In such a case, place the speaker apart from the TV so that there is no

influence on the TV picture.

•Stereo

For best stereo performance, install the left and right

speakers at equal distance from the listening position.

Each speaker should be separated by a distance of 6-

10 ft. And the center of the speaker should be placed

at the listener’s ear level.

•Home Theater

Install the left and right front speakers on either side of

your TV, with the center of the speaker at the listener’s

ear level. The center channel speaker can be installed

horizontally above or below the TV. Surround speakers

should ideally be placed behind the listening area, at

least as far apart as the front speakers and up to 2

additional feet apart per side. The height of the

speaker should be at a minimum of ear level or

preferably somewhat higher.

7-11/16” 3-17/32”

23-7/16”

6-23/32”

22-15/32”

TEMPLATE

aaaaaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaaaaaaaa

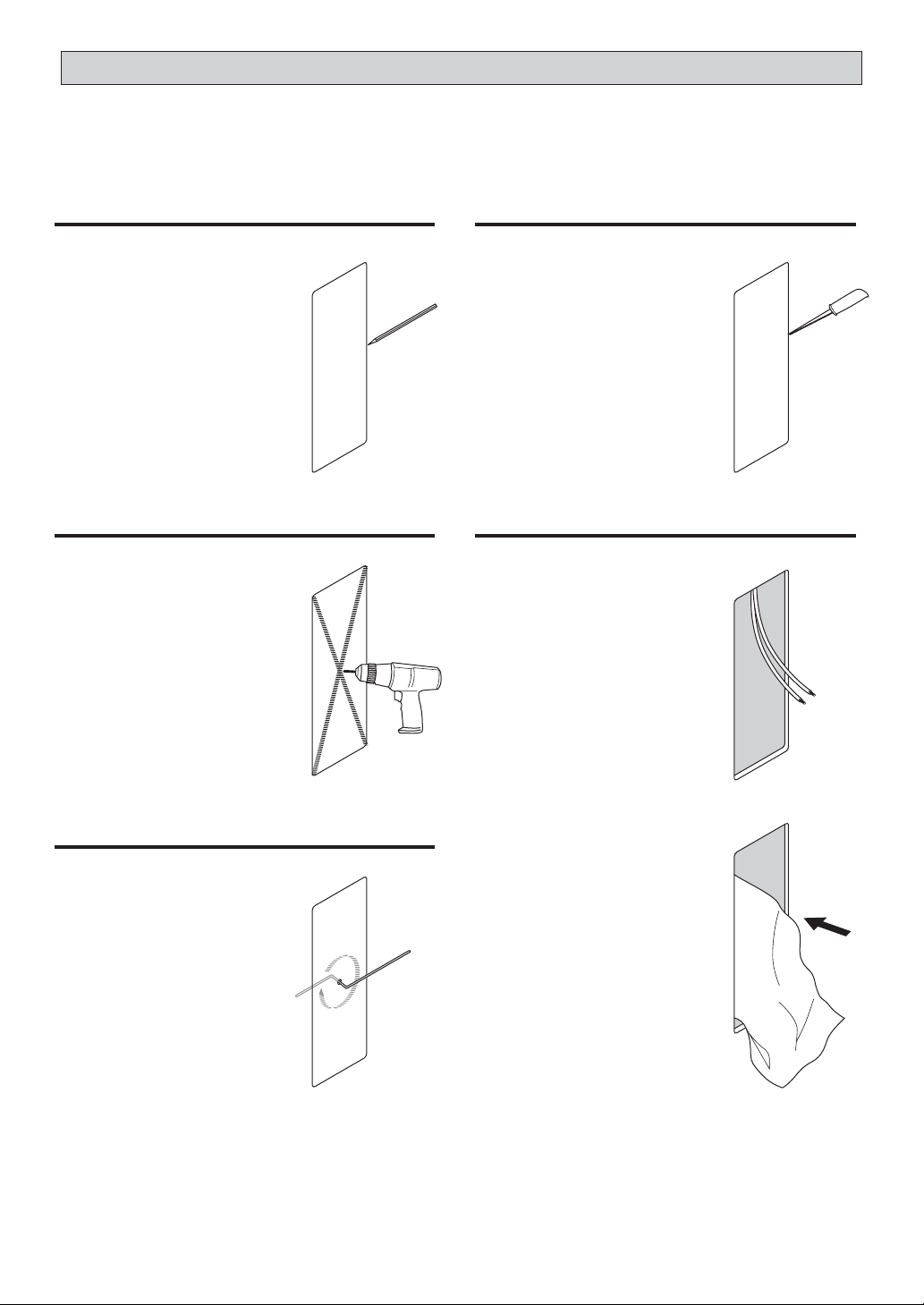

INSTALLATION

Before installation, check to ensure that the area you are installing the speaker is free of any wall studs, by

tapping the wall or using a stud finder.

If you wish to paint the speaker frame and grill, please refer to page 7 “PAINTING THE SPEAKER FRAME AND

GRILL” before proceeding.

Position the cutout template

where you are installing the

speaker. Make sure the

template is level, then trace

around the template with a

pencil.

TEMPLATE

Drill a pilot hole in the center

outline you traced.

Insert the bent coat hanger

wire into the hole. Then

slowly rotate to check for any

obstruction. If there is any

obstruction, patch the hole

and select another location.

360°

Cut the wall along the outline

you traced.

Run high quality speaker

cable from your receiver to

the speaker. Leave a few

extra feet of cable.

Note:

You can insulate the cavity by

placing a sheet of fiberglass

insulation around the speaker

components to improve

speaker performance.

Connect the speaker cable to

the speaker and your

receiver. Please refer to page

6, “CONNECTIONS” section

for detailed instructions.

Place the speaker into the

wall.

Tighten each of the six

screws evenly until the

clamps at the back of the

frame grip the wall to secure

the speaker.

Attach the grill to the frame.9

Note:

For secure grill attachment,

application of the supplied

glue strips is recommended.

Note:

You can swivel the tweeter to

direct high frequency sounds

precisely toward the listening

position by gently pressing

the outer edge of the tweeter

mount.

Recommended Glue Strip Location

Glue strips

aaaaaaaaaaaaaaaaaaaaaaaaaaa

CONNECTIONS

• Connect the push-type input terminals at the rear of the speakers to the speaker output terminals of the

receiver.

Connect the (+) terminals on the receiver and speakers using the corresponding side of the cable. Connect

the (−) terminals on both components using the other side of the cable.

•

•How to connect

1 Press and hold down the speaker terminal.

2 Insert the bare wire.

3 Release the terminal. Test the firmness of the

connection by pulling lightly on the cable at the

terminal.

Remove the insulation

coating at the extremity of each speaker cable

by twisting the coating off.

Notes:

• Make sure that the bare wires are not touching each other as this could damage the speaker and receiver.

• Connect one speaker to the left terminals of your receiver, and another speaker to the right terminals,

making sure no to reverse the polarity (+, −). If one speaker is connected with reversed polarity, the sound

will be unnatural and lack bass.

Receiver NS-IW960

•When using a banana plug

Insert the banana plug into the top of the

terminal as shown below:

Banana plug

+−

−+

Black (−)

Red (+)

(−)

(+)

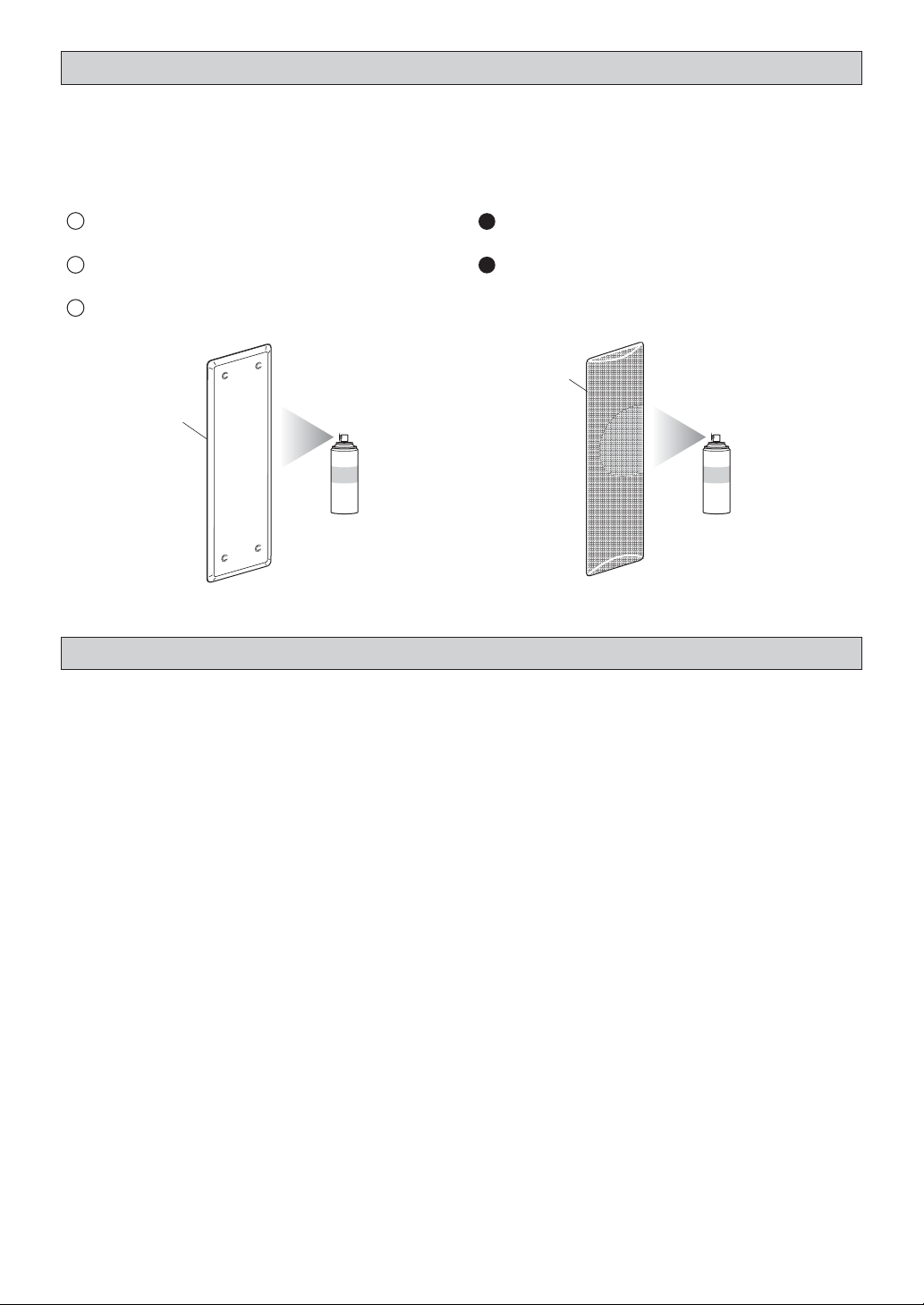

PAINTING THE SPEAKER FRAME AND GRILL

The speaker frame and grill can be painted to match your room décor. Use high quality spray paint and select a

well ventilated area before proceeding.

•Painting the frame

1 Remove the speaker from the wall if it is already

installed. Also, remove the grill from the baffle.

2 Mask the speaker components and the baffle with

the supplied paint protective cover.

3 Apply the paint to the frame.

•Painting the grill

Carefully remove the grill from the speaker, if

attached.

Apply the paint to the grill. Make sure that the grill

holes remain free of paint. Clogging the holes with

paint may diminish the sound quality.

Paint protective

cover

Speaker Grill

SPECIFICATIONS

Speaker

Frequency Range

Impedance

Nominal lnput

Maximum lnput

Sensitivity (dB/2.83v. 1m)

Crossover Frequency

Dimension (HxWxD)

(Mounting depth)

Weight

Magnetic Shielding

*Specifications subject to change without notioe due to product improvements.

6-1/2” woofer Kevlar conex2,1”Titanium dome tweeter

50 Hz - 28 KHz

8 ohms

50 W

150 W

88 dB

6.500 Hz

23-7/16” x 7-11/16” x 3-3/4” (with grille) (595 x 195 x 95.5 mm)

3-5/32” (79.8 mm)

6.2 lbs (2.8Kg)

Yes

aaaaaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaa

YAMAHA Electronics Corporation, USA, is proud of the experienced craftsmanship that goes into each and every YAMAHA Loudspeaker. YAMAHA sells

its products only through a network of high quality, specially authorized dealers and is pleased to offer the following Limited Warranty, which applies only

to products purchased by consumers directly from our authorized dealers. We suggest that you read the Limited Warranty thoroughly, and invite you to

contact your authorized YAMAHA dealer or the YAMAHA Electronics Corporation, USA, Service Department if you have any questions.

SPEAKER SYSTEMS LIMITED WARRANTY

Duration of Warranty:

What is Covered and what is Not Covered:

Who may enforce the warranty:

What we will pay for and what you must pay for”

How you can get Warranty Service:

Limitation of Implied Warranties:

Exclusion of Damages:

Yamaha Loudspeakers are covered by this warranty for a period of 2 years from date of purchase.

This warranty covers all defects in materials or workmanship, but DOES NOT COVER the following:

(1) Damage, deterioration or malfunction resulting from:

a. Accident, negligence, misuse, abuse, improper installation or operation or failure to follow instructions contained in your Owner’s Manual.

b. Any shipment of the product. (Claims must be presented to the carrier.)

c. Repair or attempted repair by anyone other than YAMAHA or a specially authorized YAMAHA Service Center.

(2) Any unit which has been altered, or on which the serial number or cabinet has been defaced, modified or removed.

(3) Consequential, economic or property damage.

(4) Normal wear and maintenance.

(5) Initial setup or check-ups with ho defects found.

(6) Labor & materials required to remove and reinstall the loudspeaker.

(7) Any unit which has not been purchased by the consumer directly from an authorized YAMAHA dealer in the USA or Puerto Rico. If you are

uncertain as to whether a dealer has been authorized by YAMAHA, please contact YAMAHA at the telephone number shown below.

(8) Any unit used for industrial or commercial purposes.

This warranty is enforceable only by the original purchaser of the unit, who purchased from a Yamaha dealer authorized to make that sale.

YAMAHA will repair or replace products covered by this warranty, without charge to the consumer for labor or materials. Some repair parts may be

used or rebuilt replacements, that meet or exceed Yamaha specifications for new parts, in exchange for defective parts. YOU ARE RESPONSIBLE

FOR ANY INSTALLATION OR REMOVAL CHARGES AND FOR ANY INITIAL SHIPPING CHARGES, if the product(s) must be shipped for

warranty service. However, we will pay the return shipping charges to any destination within the USA if the repairs are covered by the warranty.

(1) If your YAMAHA loudspeaker(s) appears to require service, contact the authorized YAMAHA dealer and the dealer will advise you of the

procedures to be followed. If this is not practical, deliver the defective product(s) to a specially authorized YAMAHA Service Center (obtain

referrals from the YAMAHA Web site or toll-free YAMAHA phone number shown below).

(2) Product(s) shipped for service should be packed securely and must be accompanied by a detailed explanation of the problem(s) requiring

service, as well as your sales receipt or other proof of date and place of purchase, as evidence of warranty coverage.

(3) Warranty registration is not required for warranty coverage.

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED IN DURATION TO THE LENGTH OF THIS EXPRESS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG

AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

YAMAHA’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT OUR OPTION.

IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. YAMAHA SHALL NOT BE LIABLE FOR

DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF

USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE. SOME STATES DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Should you have any questions about service received or if you need assistance in locating an authorized YAMAHA Service Center, please

contact:

SERVICE DEPARTMENT

YAMAHA Electronics Corporation, USA

6660 Orangethorpe Avenue, Buena Park,California 90620-1345

internet URL: www.yamaha.com/yec

For referral to your nearest authorized YAMAHA Preferred Customer Service Center call 1-800-4YAMAHA.

Do not return any product to the above address without a written Return Authorization issued by YAMAHA.

P/N 430049 Printed in China

Table of contents

Other Yamaha Speakers manuals

Yamaha

Yamaha TRS-MS05 User manual

Yamaha

Yamaha TRS-MS04 User manual

Yamaha

Yamaha NX-U10 - Speaker Sys User manual

Yamaha

Yamaha YPX-500 User manual

Yamaha

Yamaha MSP5A User manual

Yamaha

Yamaha NS-AW992 User manual

Yamaha

Yamaha YST-M8 User manual

Yamaha

Yamaha Stagepas 300 User manual

Yamaha

Yamaha HAF3-2115 User manual

Yamaha

Yamaha STAGEPAS 500 User manual

Yamaha

Yamaha NS-C385 User manual

Yamaha

Yamaha PSG-01S User manual

Yamaha

Yamaha STAGEPAS 400i User manual

Yamaha

Yamaha YST-MSW8 User manual

Yamaha

Yamaha HAF3-3115 User manual

Yamaha

Yamaha MS101 III User manual

Yamaha

Yamaha YST-MS201 User manual

Yamaha

Yamaha WS-B1A User manual

Yamaha

Yamaha MSP5 - Speaker - 67 Watt User manual

Yamaha

Yamaha MSR100 User manual

Yamaha

Yamaha NS-BP112 User manual

Yamaha

Yamaha MSR400 User manual

Yamaha

Yamaha Electone HS-8 User manual

Yamaha

Yamaha HS series Operating and maintenance manual

Popular Speakers manuals by other brands

WorkPro

WorkPro NGS 5L user manual

Go groove

Go groove BlueSYNC SLK user guide

d & b audiotechnik

d & b audiotechnik SL Series manual

piezosystemjena

piezosystemjena d-Drive instruction manual

Smart Technologies

Smart Technologies SBA-150c Installation instructions manual

WorkPro

WorkPro SoundNut Series user manual

Dongguan Taide Industrial Co.

Dongguan Taide Industrial Co. BT009 user manual

Sound Tube

Sound Tube RS31-EZ Install instructions

BOSSCO

BOSSCO MRGB65 user manual

dB Technologies

dB Technologies DVX P Series user manual

BASSFACE

BASSFACE Team ZXM10/4 instruction manual

oneConcept

oneConcept 10007908 manual

Bluesound

Bluesound Pulse Quick setup guide

BASSFACE

BASSFACE BLACKSPL5C.1 instruction manual

LyxPro

LyxPro VRI50 VOCAL BOOTH user guide

Waudio

Waudio SR 10 user manual

Geek Tek

Geek Tek sonic boombox instruction manual

Go groove

Go groove SonaVERSE UTR user guide

Yamaha NS-IW960 - Speaker - 50 Watt User manual

Popular Speakers manuals by other brands
