Yantrr ARCA-V207A User manual

ARCA-V2 Series Wireless Connectivity Hub
Quick Start Guide
Date: Jul 26, 2017
© 2017 Yantrr Electronic Systems Pvt. Ltd.
New Delhi, 110091
INDIA

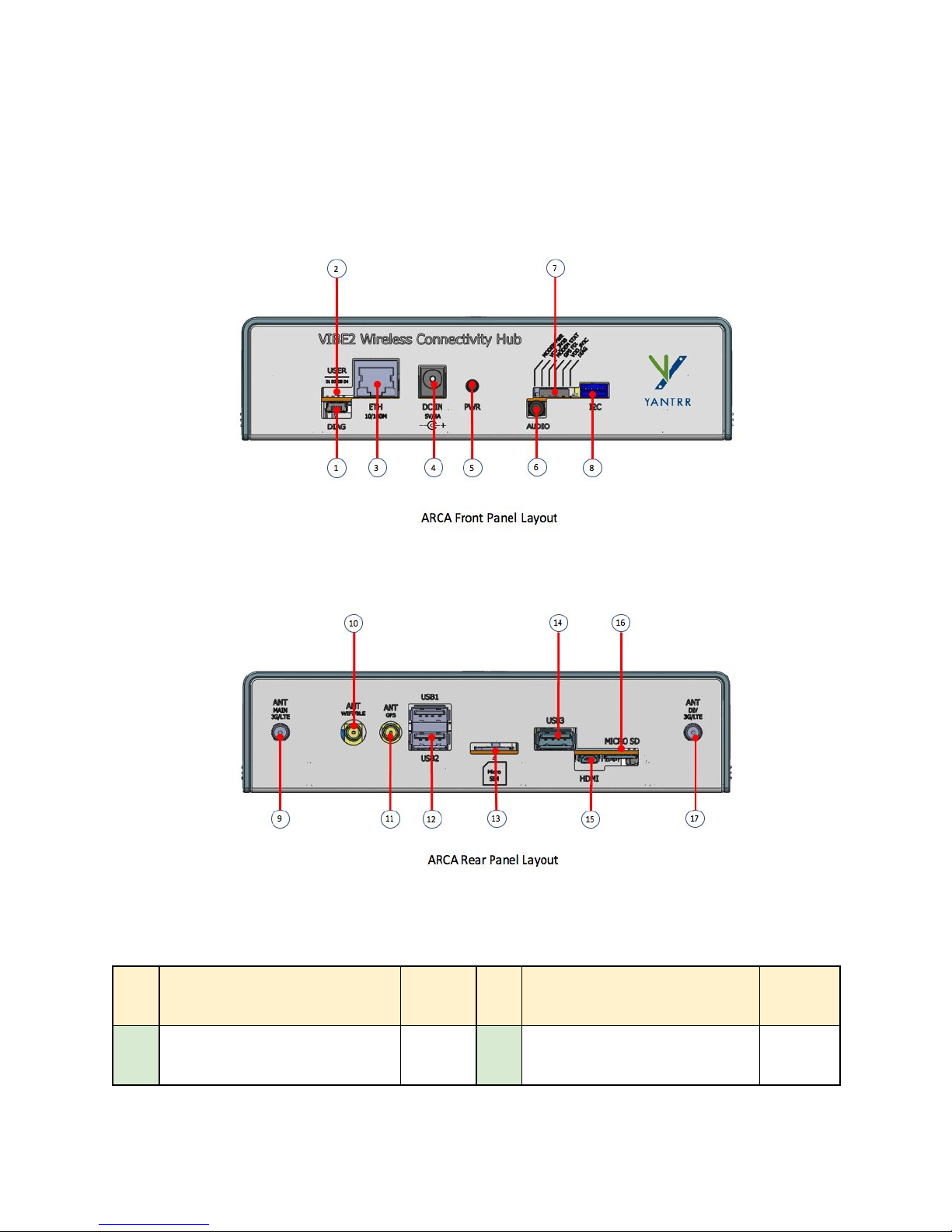

Physical Layout:
Ref
Front Panel
Description
Refere
nce
Ref
Rear Panel
Description
Referen
ce
1
Diagnostic port (USB device)
9
Main 3G/LTE antenna SMA
female connector
© 2017 Yantrr Electronic Systems
Page 1

2
User LEDs D1-D4
10
WiFi/BLE antenna SMA
female connector
3
Ethernet port
11
GPS antenna SMA female
connector
4
DC Power-n jack
12
2x USB 2.0 HS host ports
(USB1, USB2)
5
Power button
13
Micro SIM card socket
6
Audio jack
14
1x USB 2.0 HS host port
(USB3)
7
Systems status LEDs
15
Micro HDMI connector
8
I2C port
16
Micro SD card socket
17
Diversity 3G/LTE antenna
SMA female connector
Specifications
ARCA-V2 CPU System
Processor
TI Sitara™ ARM® Cortex®-A8 AM3352 (600MHz)), On-Chip 64KB Shared SRAM, 32KB Data
Cache, 32KB L1 Cache, On-Chip 256 KB L2 Cache
SDRAM Memory
512MB DDR3
Flash Storage
On-board 4GB, 8 bit Embedded MMC
External microSD expansion slot
Real Time Clock
+/- 2ppm accuracy, Automatic calendar compensated up to year 2100, battery backed, +/- 3◦C
accurate temperature sensor output
Debug Support
USB Device diagnostic port connects to CPU console and modem
Power
5V, 4A DC (20W maximum)
LED Indicators
1-Board power, 1-Modem Power, 1-Modem Data, 1-GPS, 1-GPS Fix, 1-Diag, 4- User
programmable LEDs
HS USB2.0 USB
3x USB2.0 HS host ports, Type A socket, 500mA per port
Serial Port
Console UART access through diagnostic USB device port
Ethernet
10/100Mbps, RJ45
© 2017 Yantrr Electronic Systems
Page 2

User Input Buttons
Power
I/O Interfaces
I2C, USB
Video Interface (Optional)
Micro HDMI
Compatibility
Compatible with other Industrial capes such as CANBus, RS232, RS485 and most of the LCD
capes
Compliance
FCC Part 15 Subpart B Class B, ICES-003 Issue 6 Class B (models offered in North America)
Dimensions
162mmX44mmX92mm(WxHxD)
Operating Conditions
Commercial:0-70degC
Operating System
MainLinuxkernel4.4,Debiandistribution
Cellular Modem Options
Modem
Parameter
ARCA-V20
7A (NA)
ARCA-V20
7C (EU)
ARCA-V20
7B
ARCA-V20
6A (NA),
ARCA-V20
6C (EU)
ARCA-V206
B
ARCA-V207
D (NA)
ARCA-V207
F (EU)
ARCA-V2
07E
ARCA-V208
A
Network Type
LTE CAT1
LTE CAT1
Verizon
LTE CAT3
LTE CAT3
Verizon
LTE CAT4
LTE CAT4
Verizon
Global
GSM/WCDM
A
Frequency
Bands
B2/B4/B5/B1
2/B13 (NA)
B1/B3/B7/B8
/B20 (EU)
B2/B4/B13
B17/B5/B4/B
2 (NA)
B20/B3/B7
(EU)
B13/B4
B2/B4/B5/B1
7 (NA)
B1/B3/B7/B8/
B2 (EU)
B2/B4/B13
800/850, 900.
AWS, 1700,
1900, 2100
Data Rate
(DL/UL)
Mbps
10/5
10/5
100/50
100/50
150/50
150/50
21/5.76
Certifications
FCC, IC,
PTCRB. CE,
GCF
FCC, IC,
Verizon
FCC, IC,
PTCRB, CE,
GCF
FCC, IC,
Verizon
FCC, IC,
PTCRB, GCF
FCC, IC,
Verizon
FCC, IC
Embedded
GPS/GNSS
●
●
●
Ant. Diversity
●
●
●
●
●
●
●
GPS/GNSS (ARCA-V206A, ARCA-V206B, ARCA-V208A)
Receiver
16 channels L1 1575.42 MHz (GPS) 1598.0625 – 1607.0625 (GLONASS)
© 2017 Yantrr Electronic Systems
Page 3

Acquisition Sensitivity
-161 dBm (Hot start), -145 dBm (Cold Start), -165 dBm (Indoor with A-GPS), -159 dBm (Navigation)
Time To First Fix
Hot start 1.8s, Cold start 31.5s
Accuracy
Position 0.4m
Position Update Rate
1 Hz
NMEA Output
Messages
NMEA 0183 format
Miscellaneous
Supercap backup for hot start
Wireless LAN Option
Wi-Fi
802.11 b/g/n, Wi-Fi Direct, AP/EP modes, up to 150Mbps
Bluetooth
V2.1+EDR/BT v3.0/BT v4.0, 1/2/3 Mbps
Hardware Setup Guide
Accessories
Caution: Please use only the accessories provided with the product. Using other models/brands
may cause unsafe or unintended operation of the device.
Identify the following accessories from the package:
a. 1x DC power adaptor 5V/4A
b. 1x USB diagnostic cable
c. 2x multi-band cellular antennas
d. 1x WiFi/BLE antenna (only with some models)
e. 1x GPS antenna (only with some models)
Setup
1. Attach and tighten the cellular main/diversity (9,17) antennas, WiFi/BLE (10) and/or GPS
(11) antennas as applicable to the model.
2. Insert a micro SIM card in slot (13) ensuring correct orientation as marked. Data services
should be activated on this SIM card to be able to make data connection.
3. Micro SD card (16) needs to be inserted only if you want to boot from an OS image on
SD card.
© 2017 Yantrr Electronic Systems
Page 4

Powering Up
1. Connect the power adaptor barrel plug into the DC-in socket (4)
2. The user LEDs (2) will light up and then LEDs will blink rapidly as the CPU system boots.
Login
User’s can login the system using either LAN port (3), diagnostic port (1) or using HDMI display
(15) plus a keyboard on a USB port.
Login using LAN Port:
1. Attach a LAN cable to LAN port
2. Connect other end of LAN cable to a Windows or Linux system
3. The ARCA system is shipped with a factory default IP address 192.168.1.150
4. ssh to this IP address, login “root”, password “root”
5. Change root password on first login to assure security of the system
6. Change IP address as desired
Login using Diagnostic Port:
1. Attach the diagnostics USB cable device plug to the diagnostic port socket (1)
2. Attach the host end of the USB cable to any Linux or Windows PC
© 2017 Yantrr Electronic Systems
Page 5

3. The host system should automatically detect serial devices on the USB port and install
necessary drivers automatically.
On Windows systems, the serial port will appear as COM22, COM23. (usually these
numbered ports, but it can vary from system to system). Out of these two, the first port is
used to connect to ARCA CPU.
On Linux systems, the serial ports will appear as ttyACM0 and ttyACM1. Out of these, the first
one is used to connect to ARCA CPU.
© 2017 Yantrr Electronic Systems
Page 6

4. Using a terminal emulator such as “putty” or “minicom”, attach to serial port
/dev/ttyACM0 using parameters “115200,8,N1”
5. Once at login prompt, login as “root”, password “root”.
6. Change root password at first login to assure security of the system
7. Change IP address as desired.
Login using HDMI display plus keyboard:
1. Connect a HDMI display to the HDMI port
2. Connect a keyboard to any of the USB host ports
3. Login as “root”, password “root”
4. Change root password at first login to assure security of the system
5. Change IP address as desired
© 2017 Yantrr Electronic Systems
Page 7

Software Setup Guide
The ARCA system ships with Linux OS kernel 4.4, release 40-ti-r80.
All drivers and utilities needed to operate the system are included in the Debian filesystem
distributed on the onboard 4GB eMMC FLASH memory.
For guidance on using specific subsystems of the ARCA device, please visit
http://www.yantrr.com/wiki/ARCA-V2
Useful Links :
CPU System: http://beagleboard.org
StillHaveQuestionsorTechnicalIssues?
Pleasepostyourqueriesintheonlinehelpdeskportalathttp://support.yantrr.comoremailusat
[email protected]foranyquestionyoumighthaveprovidingfollowingdetails:
1. Productmodel
2. SerialNumber
3. Youraddress,emailaddressandphonecontactinformation
4. Fulldescriptionoftheissueyouarefacing



FCCDeclarationofConformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
