Yard Pro 96198001500 Installation and operation manual

Snow Thrower
Model 96198001500
Operating & Maintenance Instructions
Instructions d’utilisation et de maintenance
GB
F
407354 08/29/06 Printed in U.S.A

MODEL 96198001500 REPAIR PARTS
38

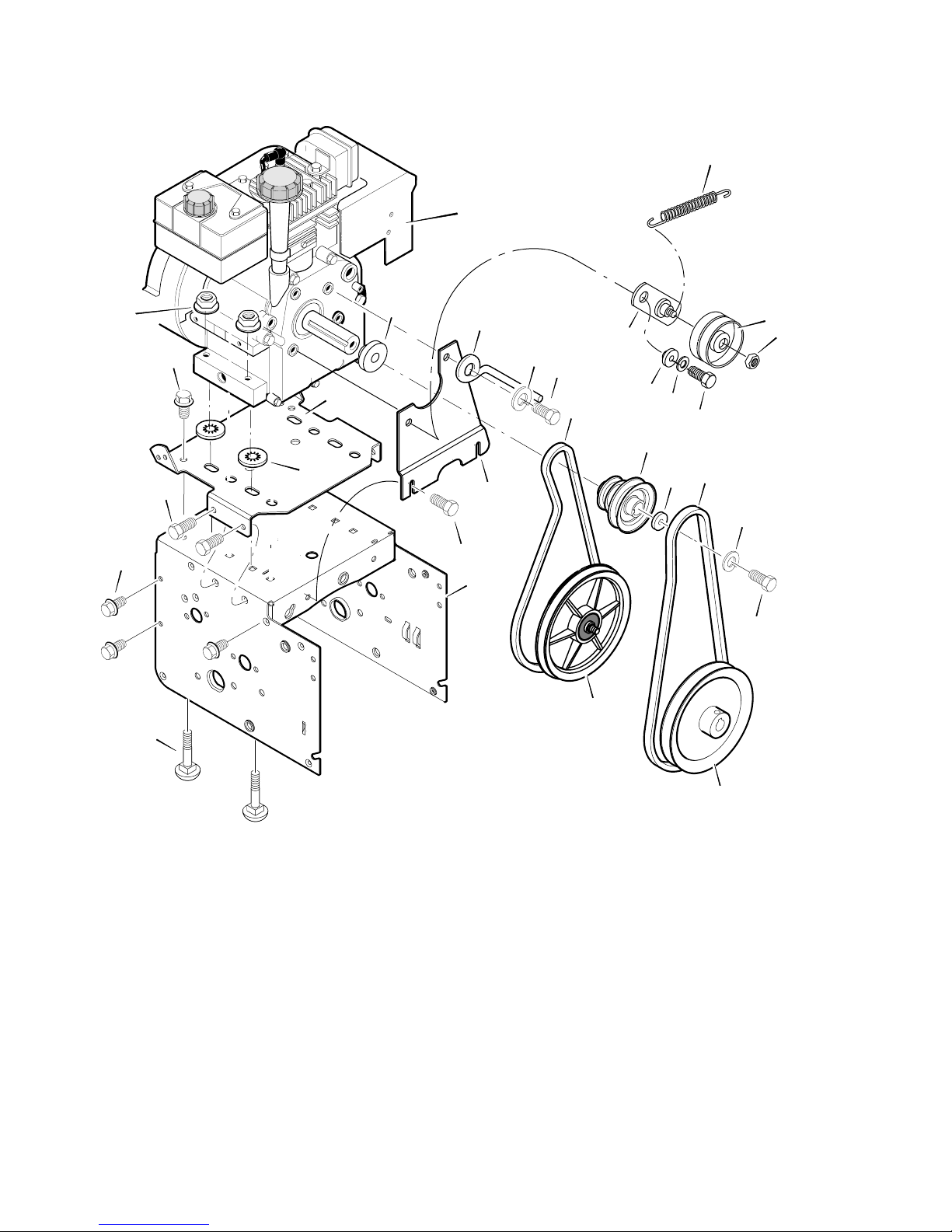

ENGINE
25--1
2
3
25--4
25--2
25--3
5
411
6
7
8
10
Ref. Drive Page
Ref. Auger Housing Page
9
25--2
20
22 15
23
15
16
1718
14
13
15
12
27
Key No. Part No. Description Key No. Part No. Description
2LH3185A--15655
1H
ENGINE *
3 198539 BOLT, CARRIAGE 5/16--18
4 198540 RETAINER, PUSH
5 198541 NUT, HEX 5/16--18
6 198542 PULLEY, ENGINE
7 400026 WASHER
8 850263 WASHER .38ID
9 851084 SCREW, 3/8--24X1.00
10 198546 BELT, DRIVE V 3L
11 400043 BELT, AUGER V 4L
12 1985588004 BRACKET ASSEMBLY, IDLER
13 198559 BUSHING, IDLER BRACKET
14 59289 WASHER, SPLIT
15 74610516 SCREW 5/16--24 X 1.00
16 198560 SPRING, IDLER TRACTION DRIVE
17 198561 PULLEY, IDLER
18 198562 NUT, JAM 3/8--16
20 198555 GUIDE, BELT
22 10040500 WASHER, SPTLK .31X.58X.08
23 198549X008 PLATE, ANTI VIBRATION
25--1 198784 PLATE, ENGINE MOUNT
25--2 198574 SCREW, TAP 1/4--20 X .63
25--3 198584 SCREW, TAP 5/16--18 X .50
25--4 198766X603 FRAME, MOTOR BOX
27 400025 WASHER
---- 407354 OWNER’S MANUAL
* For information on Replacement Parts contact the Engine manufacturer.

MODEL 96198001500 REPAIR PARTS
39
GEAR CASE
32
Key No. Part No. Description Key No. Part No. Description
19 73800400 NUT, HEX LOCK 1/4--20
27 404953 WASHER, FLAT
32 404955 NUT,1/4--20
33 404956 COLLAR,THRUST
34 174684 WASHER, THRUST
35 404957 PIN,SPRING
36 404948 SHAFT, AUGER INPUT (IMPELLER)
37 404944 GEARCASE,COMPLETE
38 404961 BUSHING, FLANGE
39 404954 BOLT 1/4--20 x 3/4
40 B6447 PLUG
41 404965 HOUSING, GEARCASE, RH
42 404959 SEAL, OIL
43 404960 BEARING, FLANGE
44 404952 KEY, WOODRUFF #605
45 404962 GEAR, WORM
46 404946 SHAFT, AUGER OUTPUT
47 404964 HOUSING, GEARCASE, LH
48 405027X479 IMPELLER
49 74780426 SCREW
50 404950 GASKET, GEARCASE
51 7B36M PIN, ROLL

MODEL 96198001500 REPAIR PARTS
40
FRAME
160
162
162
91
91
122
90 168
103
106 105
108
Ref. Engine Page
110 148
149 107
Ref. Drive
Page
Ref. Auger
Housing Page
111
123
123
167
166

MODEL 96198001500 REPAIR PARTS
41
FRAME
Key No. Part No. Description
90 198573X479 COVER, BOTTOM
91 198574 SCREW, 1/4--20X .63
103 406653X008 IDLER ASSEMBLY, AUGER
105 198576 PIN, HAIR .38DIAX1.64LG
106 198580 PIN, CLEVIS 3/16” DIA
107 400024 SPRING, TENSION
108 405484 ASSY., SPRING ATTACH
110 72110612 BOLT, 3/8--16X1.25 CARR.
111 198578 WASHER, FLAT
123 150078 SCREW, TAP 5/16--18 X .50
148 198561 PULLEY, IDLER
149 73800600 NUT, JAM 3/8--16
160 401350X428 COVER, BELT
162 405024 SCREW, TAP
166 198592 WASHER, FLAT
167 198368 WASHER
168 198581 SPACER, AUGER BRACKET

MODEL 96198001500 REPAIR PARTS
42
DRIVE
Ref. Wheel Page
229
200
223 225
226
227
234
230
221
Ref.
Wheel Page
Ref. Shift Yoke Page
206
201
203
204
232 234
229
220
220
218
218
207
215
215
238
238
210
212
213
213
217
213
203 204 236
Ref. Frame Page
Ref. Wheel
Page
Ref. Wheel
Page
208

MODEL 96198001500 REPAIR PARTS
43
DRIVE
Key No. Part No. Description
200 198600X008 LF AXLE, SWING PLATE YZ
201 198588 CHAIN, ROLLER #420x19.00
203 198591 BEARING AND RETAINER, ASSY
204 198592 WASHER
206 198584 SCREW, TAP 5/16--18x0.5
207 198815 ASSY, HEX SHAFT
208 198596 CHAIN, ROLLER #420x18.00 LG
210 198819 BEARING, TRUNION CLUTCH R
212 198820 WHEEL, FRICTION DISC
213 198822 BOLT
215 73800400 NUT, KEPS HEX 1/4--20
217 405538 RING, RETEXT
218 198582 WASHER
220 334163 BEARING AND RETAINER, ASSY
221 198584 SCREW, TAP 5/16--18 x .5
223 198808 FRICTION PULLY
225 198792X008 LF PLATE, SWINGING YZ
226 198650 SPACER, FRICTION PULLEY
227 73040600 NUT, FLANGE LOCK 3/8--24
229 198945 RETAINER, RING
230 198594X008 LF ASSY, SPRING LINK YZ
232 198945 RETAINER, RING
234 198597 SPRING, EXTENSION
236 198598 WLD, INTERMED SPROCKET 33T/7
238 198599 WASHER, FLAT

MODEL 96198001500 REPAIR PARTS
44
AUGER HOUSING

MODEL 96198001500 REPAIR PARTS
45
AUGER HOUSING
Key No. Part No. Description
480 405011 PULLEY, 4L 6.12X .67
481 74950512 SCREW, 5/16--18X.63
482 78060 WASHER, SPLIT
484 19111507 WASHER, FLAT
491 188909 BEARING,BALL
493 199879 BOLT, HEX .31--18X .625
499 198541 NUT, 5/16--18 HEXWDFLLK
500 405680X603 HOUSING, ASSY
510 199045X475 BLADE, SCRAPER
511 198634 BOLT, 1/4--20X.75
514 400100 NUT, 1/4--20
520 405646X479 AUGER, ASSY, LH
521 405647X479 AUGER, ASSY, RH
522 198636 SCREW, 1/4--20X1.75
523 198638 SPACER, SLEEVE
524 73800400 NUT, 1/4--20
525 405535 BEARING,FLANGE
527 179582 SCREW, 5/16--18X .75
540 400039X479 SKID, HEIGHT ADJUST
541 198648 BOLT, 5/16--18 X .75
544 198541 NUT, 5/16--18
550 192199 BRUSH, CLEANOUT
551 405400 CLIP, RETAINER
552 194189 SCREW, CLEANOUT TOOL CLIP
-- -- 1501216 KIT, SHEAR BOLT

MODEL 96198001500 REPAIR PARTS
46

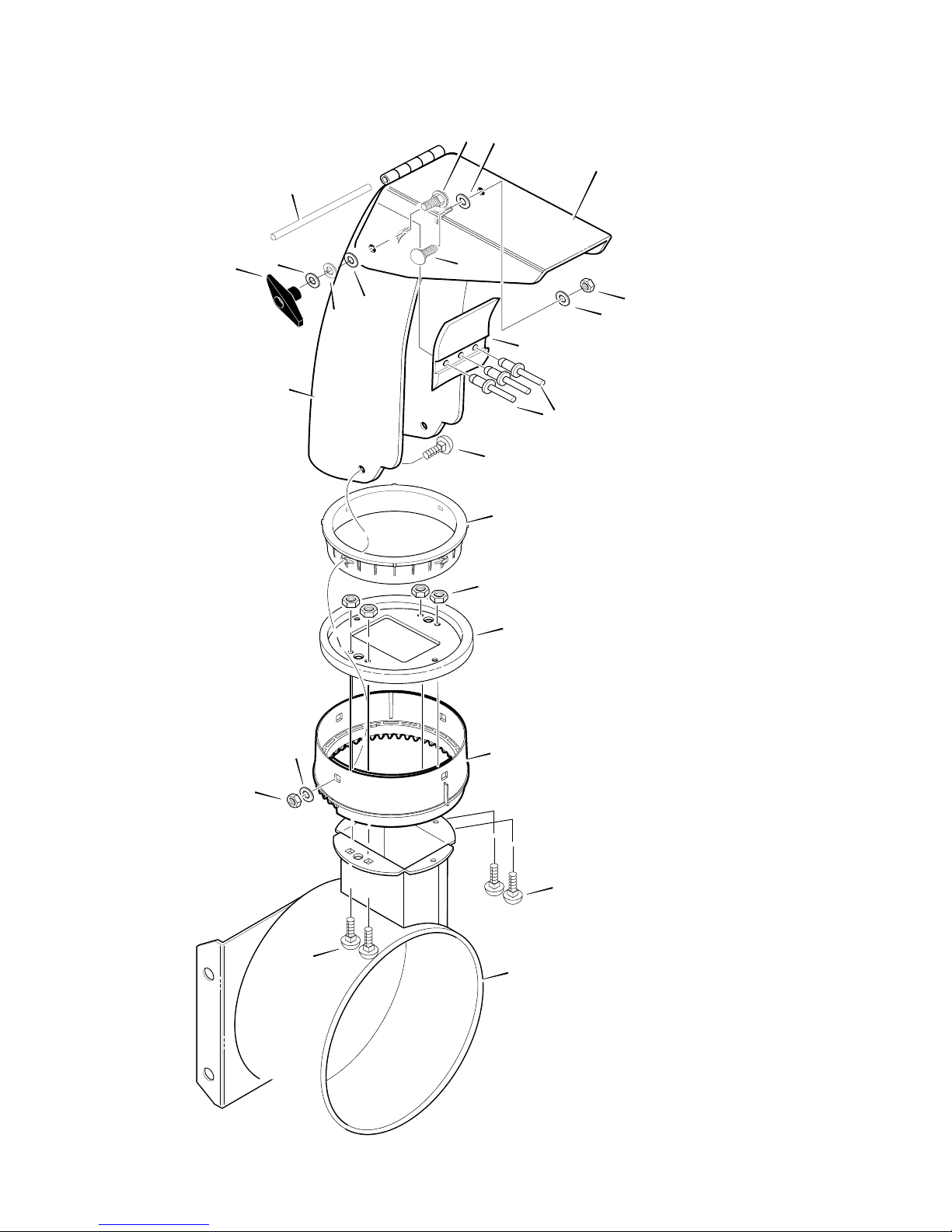

DISCHARGE CHUTE
597 596
583
584
599
582
600
602
603
610
601
606
607
607
611
609
600
588
604
594
595
Ref. Auger Housing Page
600
Pop Rivets

MODEL 96198001500 REPAIR PARTS
47
DISCHARGE CHUTE
Key No. Part No. Description
582 198648 BOLT, CARRIAGE 5/16--18 X.75
583 401347 WASHER, PLASTIC
584 73800500 NUT, 5/16--18 REGHEX NYLOCK
588 198726 WASHER, PLASTIC
594 198662 WASHER, FLAT
595 10040500 WASHER, SPLIT
596 71071 WASHER, FLAT
597 198851 KNOB, T 3.00
599 198539 BOLT, 5/16--18X1.50
600 401339X479 CHUTE ASSEMBLY
601 198661 BOLT, 5/16--18 X1.00
602 198662 WASHER, FLAT
603 73800500 NUT, 5/16--18 HEXNYL
604 401340 FLAP, CHUTE
606 198659 CHUTE COLLAR
607 405024 SCREW, 1/4--20 X 0.75
609 1738004700 NUT, 1/4--20 HEX NYLOCK
610 337227 RETAINER RING INNER
611 1501282 RETAINER RING OUTER

MODEL 96198001500 REPAIR PARTS
48
CHUTE ROD
856
855
854
855
861
860
863
864
864
867
Ref. Handle Assy
870
852--5
852--11
852--9
852--8
852--3
868
852--13 852--10
852--1
852--2
852--6 869
Ref. Auger Housing Assy
852--7
852--4

MODEL 96198001500 REPAIR PARTS
49
CHUTE ROD
Key No. Part No. Description
852--1 198853 ASSEMBLY, YOKE & ROD
852--2 198861 WASHER, CURVED SPRING
852--3 198862 GEAR, CHUTE ROTATION 9T
852--4 400026 WASHER
852--5 400192 PIN, COTTER
852--6 4053397 BRACKET, CHUTE GEAR
852--7 198863 PIN, HAIR
852--8 198789 ASSEMBLY, YOKE ADAPTER YZ
852--9 198576 PIN, HAIR
852--10 198878 PIN, UNIVERSAL JOINT
852--11 198860 PIN, CLEVIS
852--13 198570 HOUSING, UNIVERSAL
854 198836X428 KNOB, SLEEVE
855 198837 FLATWASHER
856 198839 NUT, PUSH ON 3/8”
860 198869 EYE BOLT 3/8--16X6.00
861 198841 GROMMET, EYE BOLT
863 198845 NUT, 3/8--16 HEXJAM
864 198733 FLATWASHER .406X.81X.066
867 73800600 NUT, 3/8--16 HEXNYL
868 198729 BOLT, CARRIAGE 1/4--20 X 1.00
869 73800400 NUT, 1/4--20
870 198848 CRANK, ASSY CHUTE

MODEL 96198001500 REPAIR PARTS
50

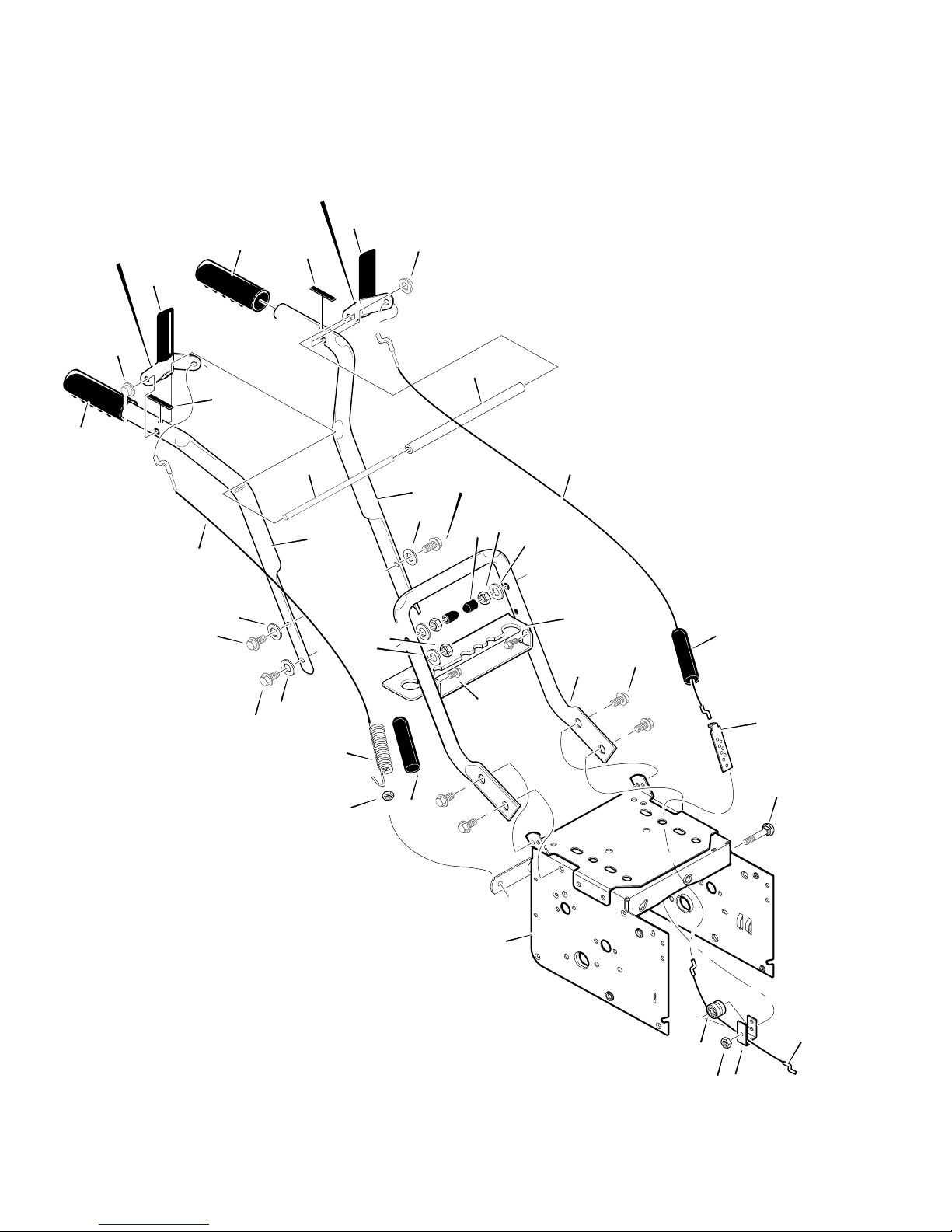

HANDLE
763
734
739
729
763
734
729
739
721
720
735
733
741
740
746
725
725
756
724
725
724
728 727 726
727
726
755
750
757
744
751
762
760
745
759
758
Ref. Engine Page 743
730
731
745 746

MODEL 96198001500 REPAIR PARTS
51
HANDLE
Key No. Part No. Description
720 198700X479 HANDLE, UPPER LH
721 198701X479 HANDLE, UPPER RH
724 198711 SCREW, 5/16--18X2.75
725 198662 WASHER, FLAT
726 10040500 WASHER, SPTLK .31X.58X.08
727 198683 NUT, 5/16--18 REGHEX YZ
728 198709 STOP, RED PLASTIC
729 198708 GRIP--HANDLE FINGER
730 198697X479 LEVER, ASSY CLUTCH DRIVE RH
731 198698X479 LEVER, ASSY CLUTCH DRIVE LH
733 198710 ROD, PIVOT CLUTCH
734 198713 NUT, PUSH ON CAP
735 198712 SPACER--HANDLE
739 198702 BUMPER, RECTANGLE
740 406165 CABLE, CLUTCH
741 406178 CABLE, AUGER CLUTCH
743 198692 BRACKET, CABLE ADJUSTER
744 198690 SPRING, AUGER CLUTCH
745 73800400 NUT, 1/4--20 NYLOCK YZ
746 198670 BOOT, CABLE SPRING
750 400151X479 HANDLE, LOWER
751 150078 SCREW, TAP 5/16--18 X .75
755 198699X479 BRKT, GEAR SELECTOR
756 198685 SCREW, 5/16--18X2.00
757 198574 SCREW
758 198673 BOLT, HEX 1/4--20 X 1.50
759 198678 SPOOL--CABLE, AUGRT CLUTCH
760 198677X004 BRACKET, CABLE SPOOL YZ
762 406164 CABLE, LOWER DRIVE 12”
763 198706 GRIP, CLUTCH HANDLE

MODEL 96198001500 REPAIR PARTS
52
SHIFT YOKE
796
790
792 801
791
800
811
792
812
813
793
Key No. Part No. Description
790 198725X479 ROD, SHIFT
791 198727 SCREW, 1/4--20X.75
792 73800400 NUT, 1/4--20
793 318486 NUT, JAM
796 198736 KNOB
800 198737 LEVER, SPRING
801 302628 SCREW, 1/4--20X.75
811 198731 BEARING, FLANGED
812 198732X008 ROD ASSY., SPEED SELECT
813 1198945 RETAINER, RING

MODEL 96198001500 REPAIR PARTS
53

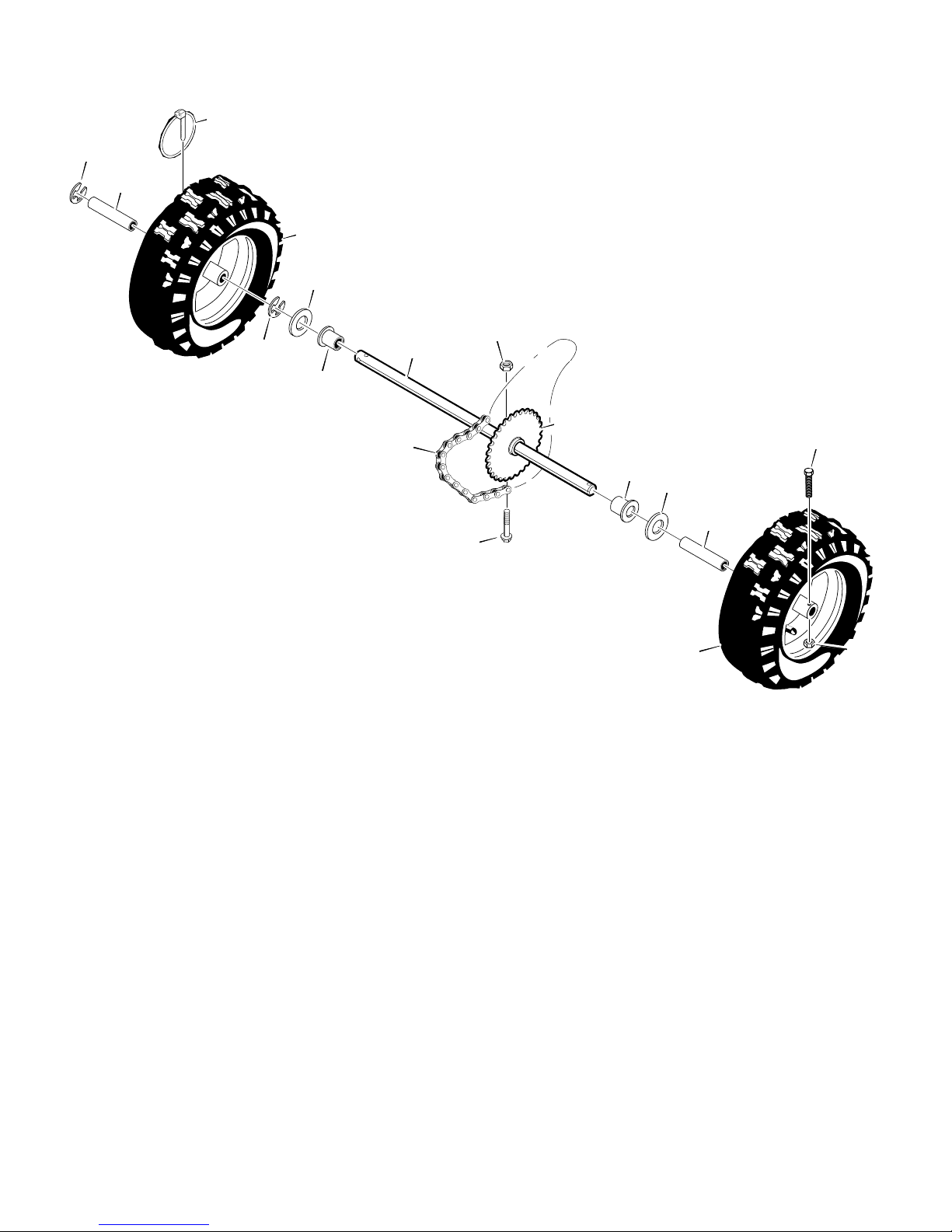

WHEELS
679
678
673
675
678
671
655
650 654
652
653
655 671
673
680
676
677
Ref. Drive Page
Key No. Part No. Description
650 199039 SHAFT, AXLE
652 198679 SPRKT & HUB
653 198667 SCREW, 1/4--20 x 1.75
654 73800400 NUT, 1/4--20 HEX NYLOCK
655 198680 BEARING, AXLE
671 400025 FLATWASHER
673 1199040 BUSHING, WHEEL
675 405067X418 TIRE & RIM, RIGHT
676 198674 SCREW, 1/4--20X1.75 HH
677 73800400 NUT, 1/4--20 HEX NYLOCK
678 198675 RING, RET
679 155443 PIN, KLIK .25 X 1.38 DIA
680 405066X418 TIRE & RIM, LEFT

MODEL 96198001500 REPAIR PARTS
54

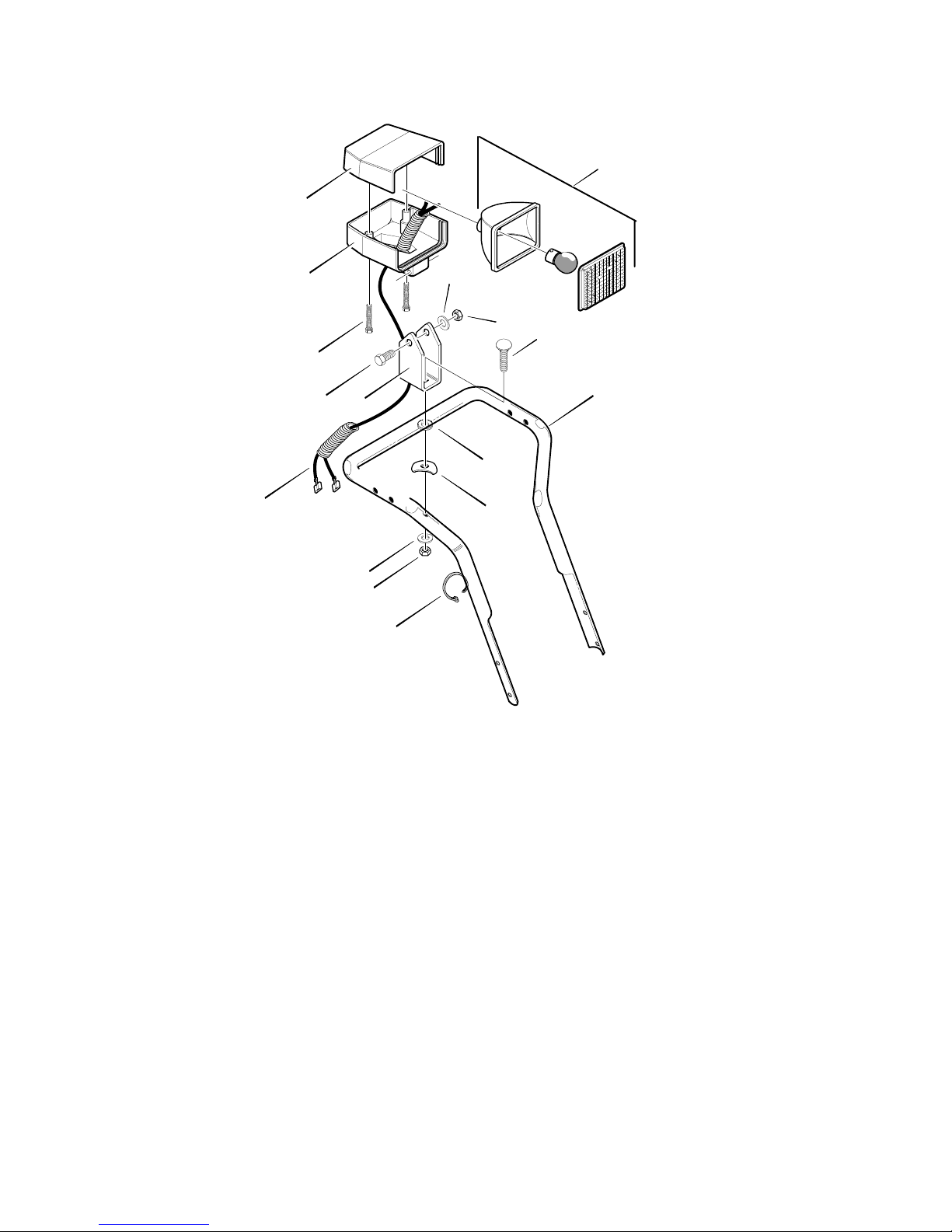

HEADLIGHT / MONTAGE DU PHARE
626
Ref. Handle Page
633
632
620
622
623
631 625
624
629
630
634
628
627
621
Key No.
Nosur le
schéma Part No. Node pièce Description Description
620 406467 HOUSING, HEADLIGHT UPPER BOÎTER SUPÉRIEUR DU PHARE
621 406471 HEADLIGHT, ASSY *MONTAGE DU PHARE *
622 406465 HOUSING, HEADLIGHT LOWER BOÎTER INFÉRIEUR DU PHARE
623 406472 SCREW, #8X1.75 VIS, #8 X 1,75 PO.
624 406470 WIRING HARNESS, HALOGEN FILS ÉLECTRIQUES DU PHARE, HALOGÉNE
625 406473X008 BRACKET, HEADLIGHT SUPPORT MONTAGE DU PHARE
626 402420 BOLT, CARRIAGE -- 5/16--18X2.00 BOULON MÉCANIQUE 5/16--18X2,00 PO.
627 401354 WASHER, SADDLE RONDELLE CINTRÉE
628 11050500 WASHER, EXLK .32X.60X.040 RONDELLE ,32X,60X,040
629 10040500 WASHER, SPTLK .31X.58X.08 RONDELLE FENDUE ,31X,58X,08
630 198683 NUT, 5/16--18 REGHEX ÉCROU, 5/16--18
631 198685 SCREW, 5/16--18X2.00 VIS, 5/16--18X2,00 PO.
632 10040500 WASHER, SPTLK RONDELLE FENDUE
633 198683 NUT, 5/16--18 REGHEX ÉCROU, 5/16--18
634 032618 TIE, CABLE CABLE DE BRIDE
*For replacement bulb, use Standard GE or Phillips #894. *Pour l’ampoule de rechange, employez la GE standard ou #894 Phillips.

MODEL 96198001500 REPAIR PARTS
55
CONTROL PANEL
770
771
771
773
Key No. Part No. Description
770 406461X603 PANEL
771 198720 BOLT,CARRIAGE
773 198730 NUT,1/4--20 NYLOCK YZ
