YAYKON PRIME-845A6 User manual

PRIME-845A6 Mainboard
User’s Manual
Rev：1.1
Date：2007.1

1
CONTENTS
CHAPTER 1 PACKAGE CONTENTS ......................3
CHAPTER 2 INTRODUCTION ..........................4
CHAPTER 3 MAINBOARD LOCATIONS ...................7
CHAPTER 4 INSTALLATION ..........................8
4.1 JUMPER SETTING AND SLOT............................... 8
4.2 CPU INSTALLATION .................................... 9
4.3 MEMORY INSTALLATION ................................. 12
4.4 IDE DEVICES INSTALLATION ............................ 13
4.5 OTHER DEVICE INSTALLATION ............................ 13
CHAPTER 5 DRIVER INSTALLATION ..................16
5.1 INSTALLATION DIRECTORY............................... 16
5.2 INTEL CHIPSET SOFTWARE SETUP ......................... 16
5.3 SOUND DRIVER SETUP.................................. 20
5.4 USB 2.0 DRIVER SETUP ............................... 22
CHAPTER 6 BIOS SETUP ...........................25
6.1 MAIN MENU ......................................... 25
6.2 STANDARD CMOS FEATURES .............................. 27
6.3 ADVANCED BIOS FEATURES .............................. 28
6.4 ADVANCED CHIPSET FEATURES ............................ 30
6.5 INTEGRATED PERIPHERALS............................... 31

2
6.6 POWER MANAGEMENT SETUP .............................. 32
6.7 PNP/PCI CONFIGURATIONS.............................. 34
6.8 LOAD FAIL-SAFE DEFAULTS ............................. 35
6.9 LOAD OPTIMIZED DEFAULTS.............................. 35
6.10 CHANGE PASSWORD .................................... 36
6.11 SAVE EXIT &WITHOUT SAVE EXIT SETUP ................... 37

3
Chapter 1 Package Contents
Your mainboard package contains the following items:
1One mainboard
2One 80-Pin Ultra DMA 66/100 IDE drive ribbon cable
3One 34-Pin Floppy drive ribbon cable
4Software install CD
5One user’s manual
6One I/O Backboard

4
Chapter 2 Introduction
This mainboard has the Intel 845 chipset that contains Intel 82845GV
Memory Controller Hub and Intel 82801DB I/O Controller Hub. This mainboard
has a Socket-478 support for Intel Pentium4 processors with front-side
bus(FSB)speeds up to 400/533,supports DDR200/DDR266 memory bus, supports
AC97 audio codec ,integrated AC97 audio that supports full surround sound
with up to Two channels, front panel audio output function, provides Ultra
DMA66/100 function, the integrated display function technologies without
extend display card ,provides Two PCI slots. The mainboard integrated
mainboard、VGA card、sound card .
Key Features：
-Chipset：
Intel 845GV chipset GMCH：Intel 82845GV；ICH4：Intel 82801DB
-Processor：
Supports Intel Celeron CPU Socket 478 CPU
Supports Intel Pentium4（Northwood）Socket 478 CPU
Supports Intel Pentium4（Willamette）Socket 478 CPU
Supports Intel Pentium4（Prescott）Socket 478 CPU
Supports Intel Celeron D (Prescott) Socket 478 CPU
-Supports 400/533MHz HOST BUS Frequency
-Memory Support：
Supports DDR200/DDR266 Memory；
Two 184-pin DIMM slots for DDR SDRAM memory modules

5
-Integrated display function technologies without extend VGA card
Integrated 2D/3D Graphics Controller
-USB Ports
Six USB ports
Supports compliant with Universal Serial Bus Specification Revision 2.0
-IDE Port
Provides two channel connecting four IDE drives
Supports Ultra ATA66/100 synchronous DMA modes
-I/O Ports
One floppy port support format 360K/720K/1.2M/1.44M/2.88M disk driver
One serial ports
One parallel port
maximum four extra ports)
One PS/2 Keyboard port
One PS/2 Mouse
One MIDI port
One IrDA port support 115.2KB/S transfers data.
-Onboard AC’97 2.0 specification compliant
Support 16bit stereo codec
Multiple stereo input mixer
Provides onboard Line-in jack, Line-out jack, Microphone-in jack
-Expansion Slot
Two PCI slots 2.2 specification compliant
One AGP 4X
One ISA

6
-Dimension
Micro ATX form factor

7
Chapter 3 Mainboard Locations

8
Chapter 4 Installation
4.1 Jumper Setting and Slot
FSB CPU Frequency Jumper Setting
JUPER
AUTO（Default）
400
533
JP1
1-2
2-3
OPEN
JP3：Clear CMOS Jumper Setting
1-2（Default）
Normal
2-3
Clear CMOS
Audio：Front panel Jumper setting
PIN
Function
PIN
Function
1
MIC+
2
Ground
3
Vbias
4
AuD_Vcc(AVCC)
5
AuD_R_Out
6
AuD_R_Out Back
7
N.C.
8
Key
9
AuD_L_Out
10
AuD_L_Out Back
USB: Expansion Connector
PIN
Function
PIN
Function
1
VCC：Power
2
VCC：Power
3
D-：Data - Signal
4
D-：Data - Signal
5
D+：Data + Signal
6
D+：Data + Signal
7
GND：Ground
8
GND：Ground
9
KEY
10
NC
Expansion Slots
DDR1/DDR2
184 Pin DDR Memory Slots
PCI1/PCI2
32 bit PCI BUS Expansion Slots
AGP
AGP Expansion Slots
ISA
ISA Expansion Slots
Connectors
PS/2（Bottom）
PS/2 Keyboard(Down Purple)

9
PS/2（Top）
PS/2 Mouse Header(Up Green)
USB1/2
USB1/2 Connector Port
USB3
USB3 Connector Port
LPT
Printer Connector Port
VGA
VGA Display Connector Port
COM1
Serial Ports COM1 Connector Port
MIDI
MIDI Port
LINE OUT/LINE IN/MIC
Audio Output/Audio Input/Microphone
CD_IN
CD-ROM Audio Input Port
IDE1/IDE2
Primary IDE/Secondary IDE Port
FDD
Floppy Disk Drive Connector Port
PW1
ATX_20 Power Supply Connector Port
PW2
ATX_4 Power Supply Connector Port
FAN 1/2
CPU System Fan Port
IrDA
IrDA Infrared Port
Function Port Panel
Power Supply LED
Pin 1:Power Supply Anode；Pin 3、5：Ground
HDD LED
Pin 2:Power Supply Anode; Pin 4：LED Signal
ATX Power Supply Switch
Pin 10:Switch Signal; Pin 8：Power Supply
Anode
Reset Switch
Pin 14:Ground;Pin 16:Reset Signal
Speaker Input
Pin 9:Speaker Audio Input; Pin 15：Power
Supply Anode
4.2 CPU Installation
This mainboard has a socket478 processor socket. Follow these instructions
to install the CPU:
1.Unhook the CPU socket’s locking lever by pulling it away from socket
and raising it to the upright position.
2.Match the pin 1 corner of CPU socket to the one of processor, and insert
the processor into the socket. Do not use force.
3.Push the locking lever down and hook it under the latch on the edge of
socket.
4.Apply thermal grease to the top of the CPU.
5.Lower the CPU fan/ heatsink unit onto the CPU and CPU socket, and then

10
use the retention module clamps to snap the fan/heatsink into place.
6.Plug the CPU fan power cable into the CPU cooling fan power supply
connector on the mainboard.

11

12

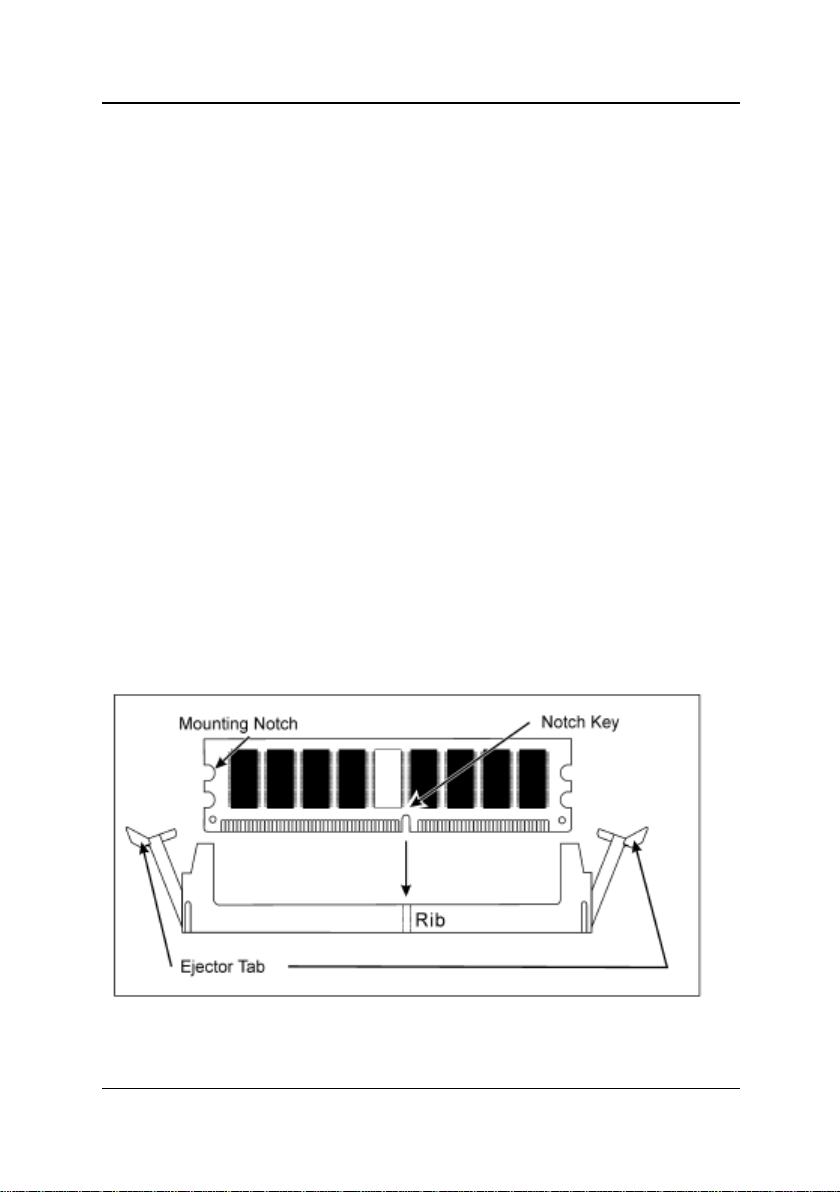

4.3 Memory installation
This mainboard supports DDR200/DDR266 DDR memory ，you may install
64/128/256/512MB 184 pin DDR memory。DDR SDRAM uses additional power and
ground lines and requires 184-pin 2.5V unbuffered DIMM module rather than
the 168-pin 3.3V unbuffered DIMM used by SDRAM.
Follow these instructions to install the Memory:
1.Push the latches on each side of the DIMM slot down.
2.Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
3.Check that the cutouts on the DIMM module edge connector match the notches
in the DIMM slot.
4.Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
5.Install any remaining DIMM modules.

13
4.4 IDE Devices Installation
IDE devices include hard disk drives, high-density diskette drives, and
CD-ROM or DVD-ROM drives, among othes.
The mainboard ships with and IDE cable that can support one or two IDE
devices. If you connect two devices to a single cable, you must configure
one of the drives as Master and one of the drives as Slave. The documentation
of the IDE device will tell you how to configure the device as a Master
or Slave device. The Master device connects to the end of the cable.
4.5 Other Device Installation
4.5.1 Floppy Disk Drive Installation
The mainboard ships with a floppy disk drive cable that can support one
or two drives. Drives can be 3.5” or 5.25” wide, with capacities of 360K,
720K, 1.2MB, 1.44MB, or 2.88MB.
Install your drives and connect power from the system power supply. Use
the cable provided to connect the drives to the floppy disk drive connector
floppy.
4.5.2 Sound Connector Port Installation
This mainboard has three audio ports connect audio device.
The left side jack(green) is for a stereo line-out signal. The middle jack
(blue)is for a stereo line-in signal. The right side jack (red)is for a
microphone.
4.5.3 Clear CMOS (JP3)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You

14
can clear the CMOS memory of date, time, and system setup parameters by
erasing the CMOS RTC RAM data. The RAM data in CMOS, that include system
setup information such as system passwords, is powered by the onboard
button cell battery.
1、Turn OFF the computer and unplug the power cord.
2、Move the jumper cap from pin 1-2(default) to pin 2-3.Keep the cap on
pin 2-3 for about 5-10 seconds, then move the cap back to pins1-2.
3、Plug the power cord and turn ON the computer.
4、Hold down the<DEL> key during the boot process and enter BIOS setup
to re-enter data.
Note1: Except when clearing RTC RAM, never remove the cap on CLRTC1 jumper
default position. Removing the cap will cause system boot failure!
Note2: You do not need to clear the RTC when the system hangs due to
overclocking. For system failure due to overclocking, use the C.P.R. (CPU
Parameter Recall) feature. Shut down and reboot the system so BIOS can
automatically reset parameter settings to default values.
4.5.4 ATX Power connectors (20-pin ATXPWR1,4-pin ATX 12V1)
These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation.
Find the proper orientation and push down firmly until the connectors
completely fit. In addition to the 20-pin ATXPWR1 connector, connect the
4-pin ATX +12V power plug to provide sufficient power to the CPU.
Note1: Make sure that you ATX 12V power supply can provide at least 15A
on the +12V lead and at least 2A on the +5-volt standby lead (+5VSB).The

15
minimum recommended wattage is 300W or above for a fully configured system.
The system may become unstable and may experience difficulty powering up
if the power supply is inadequate.
Note2: Do not forget to connect the 20-pin ATXPWR1 and 4-pin ATX12V1 power
plugs. Failure to do so may cause severe damage to the CPU or motherboard!

16
Chapter 5 Driver Installation
5.1 Installation Directory
The utility CD is supplied with that mainboard the connects contained in
it are showed as below:
Directory
Driver
OS
INTEL\INF\XXX
Intel chipset software
Windows 9x
Windows 2000/XP
Windows NT4.0
SOUND\REALTEK\XXX
Realtek AC’97 Audio
driver
Windows 9x
Windows 2000/XP
Windows NT4.0
INTEL\USB2.0\845
USB 2.0 driver setup
Windows 9x
Windows 2000/XP
Windows NT4.0
INTEL\VGA\845
VGA driver setup
Windows 9x
Windows 2000/XP
Windows NT4.0
Before installing audio driver, you must identify the mode of AC’97 codec.
Fox example: If you use Realtek serial codec, you need to enter into the
Realtek directory installing.
5.2 Intel Chipset Software Setup
Insert the driver CD, running driver software CD, choose the directory :\
CD-ROM:\INTEL\INF\XXX

17
Click“NEXT”to continue
Select“YES”to continue

18
Select“NEXT”to continue
Select“FINISH”to complete the installation.

19
