BRAVO 25 Mower

Model:

25-110 - Honda

25-210 - Kawasaki

P/N990016-1

Rev. 10/2015

Operator’s Manual

Read these instructions carefully and make sure you

understand them before using the BRAVO 25.

OPERATOR’S MANUAL

INTRODUCTION

PERSONAL SAFETY EQUIPMENT

When working and operating garden equipment - approved personal safety items should be used:

WARNING

CALIFORNIA

Proposition 65 Warning

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Hearing

Protection Eye

Protection Protective

Shoes

Protective

Gloves

Careless or improper use of this Lawn Mower can cause serious or even fatal injury.

Carefully read, understand and follow ALL instructions in this manual as well as the

instructions in the included Owner’s Manual for the engine before using the BRAVO 25

Lawn Mower.

Allow only competent adults to operate this lawn mower. It is the owner’s responsibility to

ensure that all operators of this mower have read and understand the content of this

manual.

NOTICE

The engine is not equipped with a spark arrester

in the mufﬂer. It is a violation of California Public

Resource Code Section 4442 to use or operate the

engine on any forest-covered, brush-covered, or

grass-covered land. Other states or federal areas

may have similar laws. Be aware of local laws and

regulations.

Common sense:

The focus of this manual is HOW to operate and service the equipment safely. It is not possible to cover every

conceivable situation you can face when using this mower. Therefore use this product only in a manner described

in this manual. Operation or handling the machine in any other manner can lead to serious injury or death.

If a situation is not described in this manual it should be considered dangerous - and not be done.

If you are unfamiliar with this product make sure that you carefully understand how it functions and practice all

operations and handling before putting the machine to use. Familiarize yourself in the presence of an experienced

operator. Avoid all situations that are beyond your capability.

If you still feel uncertain about the operating procedures after reading these instructions DO NOT operate the

machine until you have consulted an experienced operator.

If you have further questions you can contact - Ybravo.com, by writing or calling, see information below. You may

also ﬁnd a dealer close to you by searching the internet at: www.ybravo.com

Ybravo.com, will willingly be of service and provide you with advice as well as help you to use your product both

efﬁciently and safely. Additional manuals are available at NO CHARGE and can also be obtained on the internet site.

Ybravo Texas, LLC

P.O. Box 40490

Houston, TX 77240-0490

USA

Toll Free no: 888 ybravo1 (888 927 2861)

Toll Free Fax no: 888 250 4040

Internet Site: www.ybravo.com

SAFETY HAZARDS

CAUTION

HEARING HAZARD

During the normal use of this machine, opera-

tor may be exposed to a noise level equal to or

higher than 85 dB(A). Use hearing protection.

WARNING

ASPHYXIATION HAZARD

Running an engine in a conﬁned or badly ven-

tilated area can result in injury or death due to

asphyxiation or carbon monoxide poisoning.

WARNING

DO NOT MODIFY THE PRODUCT

Under no circumstances may the design of the machine be modiﬁed without the permission of the

manufacturer. Always use genuine parts and accessories. Unauthorized modiﬁcations, parts and/or

accessories can result in serious personal injury or the death of the operator or others. Your warranty

may not cover damage or liability caused by the use of unauthorized accessories or replacement parts.

SAFETY DEFINITIONS

In this manual a Safety Alert Symbol followed by the signal words WARNING and CAUTION are used to

identify safety information about hazards which can result in death, serious injury and/or property damage.

These signal words mean:

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

NOTICE indicates a message not related to personal injury.

Please register your new lawn mower with Ybravo.com, by mailing in a copy of this page together with your

address information or (better) register the mower online at the internet site:

www.ybravo.com

Registration will allow us to contact you in case of any critical updates or recalls on this machine.

Product registration has been found helpful in tracing stolen equipment.

Record the following information for your records:

PURCHASE DATE: ________________

MODEL No: _______________________ SERIAL No: ________________________

ENGINE MODEL: ____________ ENGINE TYPE: ____________ENGINE SERIAL No: __________________

The lawn mower model and serial number as well as the engine model number, engine type and serial number are critical in

order to obtain the correct service parts. Ybravo.com has service parts available as listed in the spare parts list. All engine

parts are distributed through the Honda or Kawasaki engine dealer networks. Please refer to the engine Owner’s Manual that

was included with the mower.

Mail information:

Street Address: ______________________________________

Name: ______________________________ City, State, Zip code ___________________________________

CONTENTS

Content Page

Introduction, personal safety ...................... 2

General safety message.............................. 2-3

Registration of the product ………………… 3

Table of contents ………………………….... 4

Lawn mower safety...................................... 4-5

Decals and locations................................... 6

What is what on the mower......................... 6

Assembly - setup ........................................ 7-9

Recommended engine oil .......……..……… 8-9

Recommended fuels.................................... 9

Fuel and fuel safety warnings……….……... 9

Controls and operation …………………….. 10-11

Maintenance ........................................... 12-14

Maintenance schedule................................. 12

Blade maintenance ..................................... 13

Oil change................................................... 13

Blade Brake Clutch cable adjustment ......... 14

Warranty ..................................................... 15

LAWN MOWER SAFETY

WARNING

Always secure the mower when unattended.

Never leave the mower in such way that an

unauthorized person can operate or move the

mower.

SAFETY PRACTICES FOR WALK-BEHIND MOWERS

This lawn mower is capable of amputating hands and feet

and throwing objects. Failure to observe the following safety

instructions could result in serious injury or death.

I. GENERAL OPERATION

1. Read, understand, and follow all instructions on the

machine and in the manuals before starting.

2. Do not put hands or feet near or under the machine. Keep

clear of the discharge opening at all times.

3. Only allow responsible adults, who are familiar with these

instructions, to operate this machine.

4. Clear the area of objects such as rocks, wire, toys, etc.,

which could be thrown by the blade. Stay behind the handle

when the engine is running.

5. Be sure the area is clear of other people before operating.

Stop machine if anyone enters the area.

6. Do not operate machine barefooted or while wearing

sandals. Always wear substantial footwear (protective shoes).

7. Do not pull machine backward unless absolutely

necessary. Always look down and behind before and while

moving backward.

8. Keep the operating area clear of bystanders. Stop the

blade when crossing gravel surfaces.

9. Do not operate machine without the entire grass catcher, or

mulch plug and discharge door, rear guards, or other safety

protective devices in place and working.

10. Never leave a running machine unattended.

11. Stop the engine and wait until the blade comes to a

complete stop before cleaning the machine, removing grass

catcher, or unclogging the discharge chute.

12. Operate machine only in daylight or good artiﬁcial light.

13. Do not operate machine while under the inﬂuence of

alcohol or drugs.

14. Never operate mower in wet grass. Always be sure of

your footing - walk - never run.

15. Disengage the drive system, before starting the engine.

16. If the machine should start to vibrate abnormally, stop

the engine and check for the cause immediately. Vibration is

generally a warning of trouble.

17. Always wear approved personal safety equipment such as

hearing protection, eye protection, and protective gloves when

operating machine.

18. See manufacturer’s instructions for proper operation and

installation of accessories. Only use accessories approved by

Ybravo.com or the engine manufacturer.

WARNING

In order to prevent accidental starting when

setting up, transporting, adjusting or making

repairs, always disconnect spark plug wire and

place wire where it can not come in contact with

the plug.

LAWN MOWER SAFETY

II SLOPE OPERATION

Slopes are a major factor related to slip and fall accidents,

which can result in severe injury. Operation on all slopes

requires extra caution. If you feel uneasy on a slope, do not

mow it.

1. Mow across the face of slopes; never up and down. Exer-

cise extreme caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or other hidden ob-

jects. Uneven terrain could cause a slip and fall accident. Tall

grass can hide obstacles.

3. Do not mow on wet grass or excessively steep slopes.

Poor footing could cause a slip and fall accident.

4. Do not mow near drop-offs, ditches, or embankments. You

could lose your footing or balance.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the ma-

chine and the mowing activity. Never assume that children will

remain where you last saw them.

1. Keep children out of the mowing area and under the watch-

ful care of a responsible adult other than the operator.

2. Be alert and turn mower off if a child enters the area.

3. Never allow children to operate the machine.

4. Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a child.

IV. SAFE HANDLING OF GASOLINE:

To avoid personal injury or property damage, use extreme care

in handling gasoline. Gasoline is extremely ﬂammable and the

vapors are explosive.

1. Extinguish all cigarettes, cigars, pipes, and other sources of

ignition.

2. Use only an approved gasoline container.

3. Never remove gas cap or add fuel with the engine running.

Allow engine to cool before refueling.

4. Never refuel the machine indoors.

5. Never store the machine or fuel container where there is an

open ﬂame, spark, or pilot light such as on a water heater or

on other appliances.

6. Never ﬁll containers inside a vehicle or on a truck or trailer

bed with a plastic liner. Always place containers on the ground

away from your vehicle before ﬁlling.

7. Remove the mower from the truck or trailer and refuel it on

the ground. If this is not possible, then refuel the mower with

a portable container, rather than from a gasoline dispenser

nozzle.

Continued,

8. Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete. Do not

use a nozzle lock-open device.

9. If fuel is spilled on clothing, change clothing immediately.

10. Never overﬁll fuel tank. Replace gas cap and tighten

securely.

V. GENERAL SERVICE

1. Never operate the mower in a closed area.

2. Keep all nuts and bolts tight to be sure the mower is in safe

working condition.

3. Never tamper with safety devices. Check their proper

operation before each use of the mower.

4. Keep the mower free of grass, leaves, or other debris build-

up. Clean up oil or fuel spillage and remove any fuel-soaked

debris. Allow machine to cool before storing.

5. If you strike a foreign object, stop and inspect the mower.

Repair, if necessary, before starting.

6. Never make any adjustments or repairs with the engine

running. Disconnect the spark plug wire and ground against

engine to prevent unintended starting.

7. Never attempt to make wheel height adjustments while the

engine is running.

8. Check grass catcher components and the rear discharge

door frequently and replace only with Ybravo.com original

parts when necessary.

9. Mower blades are sharp. Wrap the blade or wear gloves,

and use extra caution when servicing them.

10 Do not change engine governor setting or over speed the

engine.

11. Maintain or replace all safety and instruction labels.

CAUTION

Mufﬂer and other engine parts become extremely

hot during operation and remain hot after engine

has stopped. To avoid severe burns on contact,

stay away from these areas.

DECALS AND LOCATIONS

These labels warn you of potential hazards that can cause serious injury. Carefully read and understand them.

If a label comes off or becomes hard to read, contact Ybravo.com immediately for a free replacement.

WHAT IS WHAT

Cutting height adjustment - page 11

Lower control bar, drive control - page 11

Throttle cable adjustment

at the engine - page 8, 9

Upper control bar/Operator’s presence

control, BBC control - page 10

Drive control, cable adjustment - page 11

Oil ﬁller cap and dipstick - page 8, 9

Gasoline - page 9

Throttle control - page 8, 9

Gear shift lever - page 11

HI and LO range

Lock for upper control bar- page 10

Spark Plug - Engine Owner’s Manual

Blade Brake Clutch cable

adjustment - page 14

Part #: 201155-1

Part #: 201157-1

Part #: 201439-1

Part #: 201442-1

Part #: 201437-1

Label on grass bag

Model & Serial #

Part #: 201443-1

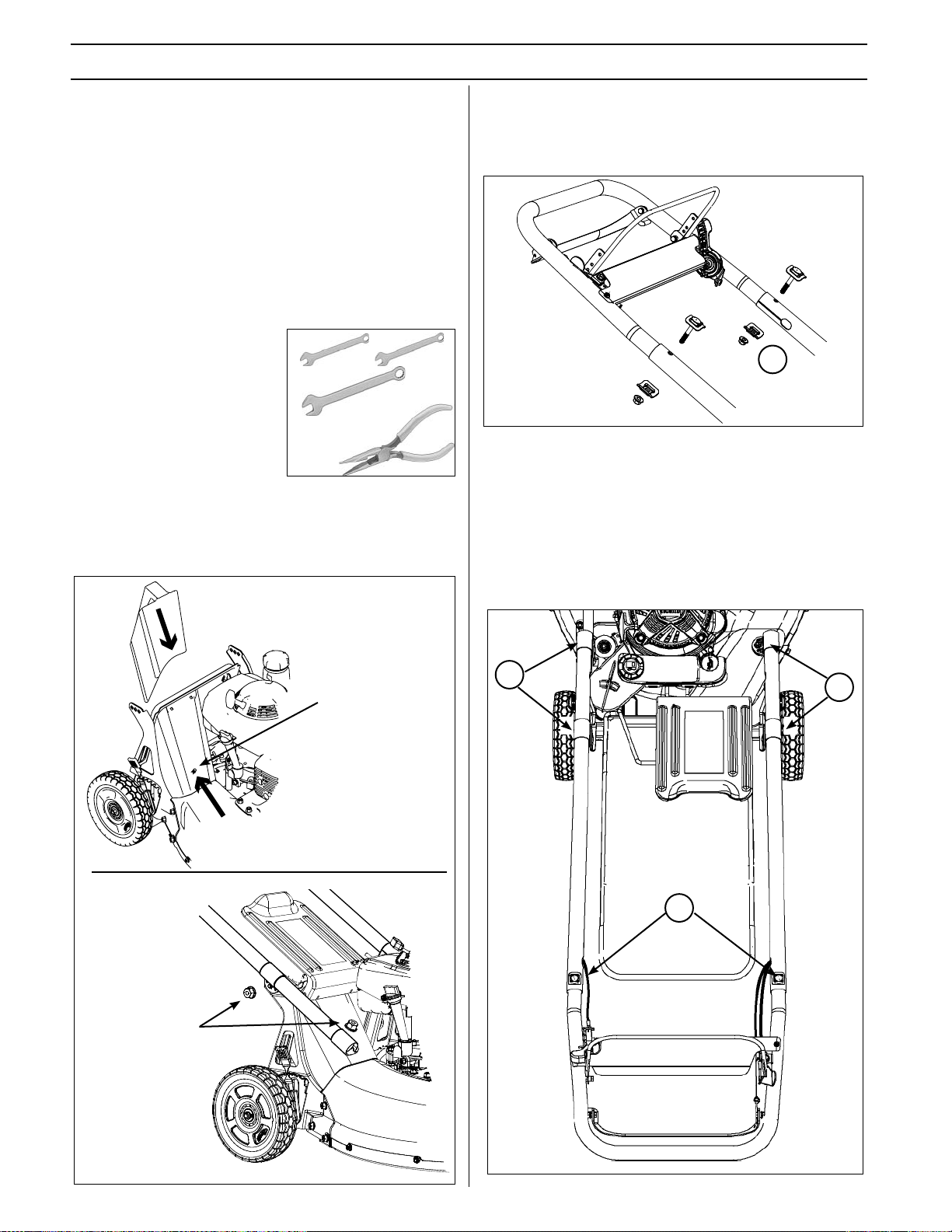

ASSEMBLY - SETUP

STEP 2

Slide the upper handle assembly into the two lower tubes.

Insert the two carriage bolts and use one square washer (1) on

each side of the handle tube.

STEP 3

To simplify the alignment of the handle, install the grass

catcher.

Tighten the bolts in the following order:

1 - Tighten the two bolts crews on the right side tube clamps

2 - Align the left tube with the catcher (same as the right side)

and tighten the clamps.

3 - Tighten the upper bolts that attaches the handle assembly

to the tubes.

Install the right side front

bolt and insert the mulch

plug to hold the bolt

during installation.

Install the nuts ﬁnger

tight. Tighten completely

in step 3.

STEP 1

Install the black handle tubes to the mower with the M8

carriage bolts. Do not tighten the nuts. There are three holes

for the upper clamp to enable height adjustment. A good start-

ing point is the middle hole for a medium height setting.

UNPACKING:

Carefully remove the mower from its packaging and check that

you have all the following items:

Upper Handle complete

(2) Lower Handle tubes

Mower Bag and Mulch Plug (installed on the mower)

Tool kit

Engine Owner’s Manual and Warranty Statement

Bravo 25 Operator’s Manual.

NOTICE:

If you are missing any of these items or if you are unsure of

how to properly assemble this mower please contact Ybravo.

com by e-mail or by phone: 888.ybravo1 (888.927.2861)

Tools needed for assembly:

2 pcs 10mm wrenches

1 pcs 13mm wrench

1 pcs Needle nose pliers Needle Nose

Pliers

10 mm

13 mm

10 mm 1

ASSEMBLY - SETUP

All BBC Models

Kawasaki

Zone Start

Honda

Zone Start

Note: The control

panel does not

have to be removed

to install the cables

STEP 5

Install the blade brake control cable in the upper control bar.

Note that there are three holes for the control cable . All

Bravo 25 models uses the BBC hole position (1).

Pull on the cable sheath and insert into the upper hole (2) of

the handle bracket.

STEP 4

Insert the throttle cable inside the left handle tube. Install the

cable into the throttle control. The cable has been adjusted at

the factory (1) and the nut locked in place. However verify the

proper throttle cable adjustment per the instructions for either

Kawasaki or Honda engines enclosed. See “STEP 7” .

STEP 6

Install the drive cable into the lower control bar (1) and insert

the cable sheath ﬁtting into the lower hole of the handle

bracket (2).

STEP 8 Kawasaki Engine

Fill a new engine with an SAE 10W-30 engine oil.

Fill; 22 Fl.Oz (0.7 Qt. - 0.65 Liters)

If the oil ﬁlter is changed the ﬁll volume is;

29 Fl.Oz (0.9 Qt - 0.85 Liters)

Please read the Kawasaki engine Owner’s Manual for full

information.

STEP 7 Kawasaki Engine

Verify that the throttle control is adjusted correctly as follows:

- Move the throttle control to the Choke position.

- In the Choke position the arm attached to the throttle cable at

the engine should bottom out at the arrow (1).

- If needed an adjustment can be made at the throttle control.

Following these steps for the throttle adjustment will ensure

that the Kawasaki engine performs properly for this mower.

The engine speed is adjusted to approximately 3600 RPM at

the factory.

NOTICE:

The engine speed should preferably be checked and veriﬁed

with a tachometer. Normal full throttle speed of the engine

should be adjusted to 3600 RPM. An authorized Kawasaki

Engine Dealer can verify and adjust the engine speed.

Choke

Full Throttle Idle Throttle Engine Off

(BBC version)

Follow these steps to verify proper setup of the mower

equipped the KAWASAKI engine.

ASSEMBLY - SETUP

STEP 8 Honda Engine

Fill the engine with a SAE 10W-30 engine oil.

Fill; 22 Fl.Oz (0.7 Qt. - 0.65Liters)

Please read the Honda engine Owner’s Manual for full

information.

UPPER LIMIT

LOWER LIMIT

OIL FILLER CAP/DIPSTICK

Following these steps for the throttle adjustment will ensure

that the Honda engine performs properly for this mower.

The engine speed is adjusted to approximately 3600 RPM at

the factory.

NOTICE:

The engine speed should preferably be checked and veriﬁed

with a tachometer. Normal full throttle speed of the engine

should be adjusted to 3600 RPM. An authorized Honda

Engine Dealer can verify and adjust the engine speed.

STEP 7 Honda Engine

Verify that the throttle control is adjusted correctly as follows:

- Move the throttle control to the Full Throttle position.

In the Full Throttle position the two arms at the throttle

mechanism on the engine should touch as illustrated below (1).

If needed an adjustment can be made at the throttle control.

Choke

Full

Throttle Idle Throttle Engine Off

(BBC version)

Follow these steps to verify proper setup of the mower

equipped the HONDA engine.

Taking the following precautions will lessen the risk of

injury and property damage.

Use extreme care in handling gasoline. Gasoline is ex-

tremely ﬂammable and the vapors are explosive.

- Extinguish all cigarettes, cigars, pipes, and other

sources of ignition.

- Use only approved gasoline containers.

- Never remove gas cap or add fuel with the engine

running.

- Allow engine to cool a minimum of 3 minutes before

refueling.

- Never fuel the machine indoors.

- Never store the machine or fuel container where there

is an open ﬂame, spark, or pilot light such as on a water

heater or other appliances.

- Never ﬁll containers inside a vehicle or on a truck or

trailer bed with a plastic liner. Always place containers

on the ground away from your vehicle when ﬁlling.

- Remove the mower from the truck or trailer and refuel

it on the ground. If this is not possible, then refuel the

equipment with a portable container, rather than from a

gasoline dispenser nozzle.

- Keep the nozzle in contact with the rim of the fuel tank

or container opening at all times until fueling is com-

plete. Do not use a nozzle lock-open device.

- If fuel is spilled on clothing, change clothing

immediately.

- Never overﬁll fuel tank. Always wipe off any spilled fuel

or oil. Replace fuel cap and tighten.

WARNING

MAXIMUM

FUEL LEVEL FUEL FILLER

NECK

FUEL FILLER CAP

APPROVED FUEL

CONTAINER

OPERATING FUEL VALVE Honda only

OFF

STEP 9

Before ﬁlling the engine with gasoline - follow all instructions in

this manual as well as all instructions provided in the Kawasaki

or Honda engine Owner’s Manual.

Maximum ﬁll volume:

Kawasaki: 1.9 Qt (1.8 Liter) - 87 octane or higher

Honda: 1.5 Qt (1.4 Liter) - 86 octane or higher

The engine will not operate on gasoline marketed as

E-85 (85% ethanol)

CONTROLS & OPERATION

Before operating the mower for the ﬁrst time, please review

and understand the entire manual including all Warnings and

Cautions.

Even if you have operated other mowers in the past please

take time to become familiar with how this mower works and

practice all operations to build up your skills.

BEFORE ANY OPERATION ALWAYS:

- Inspect the mower for any visible damage or broken parts

- Check the oil level in the engine

-Make sure that when you release the upper control bar

that the blade will disengage and stop. If it does not stop

immediately do not use the lawn mower until the problem has

been corrected. Contact Ybravo.com for advice.

- Never operate the mower with obvious damage or

malfunction until the problems have been corrected.

WARNING

Never make any adjustments or repairs with the

engine running. Disconnect the spark plug wire,

and keep the wire away from the spark plug to

prevent accidental starting.

STARTING THE ENGINE

To start a cold engine it is important to use the “Choke”

position. To start a warm engine it is not necessary to use the

choke.

For best performance use the “Full Throttle” position for all

mowing. To verify that the engine is running at full throttle

please follow the steps outlined under the set up instructions

- Step 7 on Page 8 or 9.

AYbravo.com dealer can typically also verify the correct full

throttle adjustment. The engine speed should be approximate-

ly 3600 RPM without the blade engaged (no load).

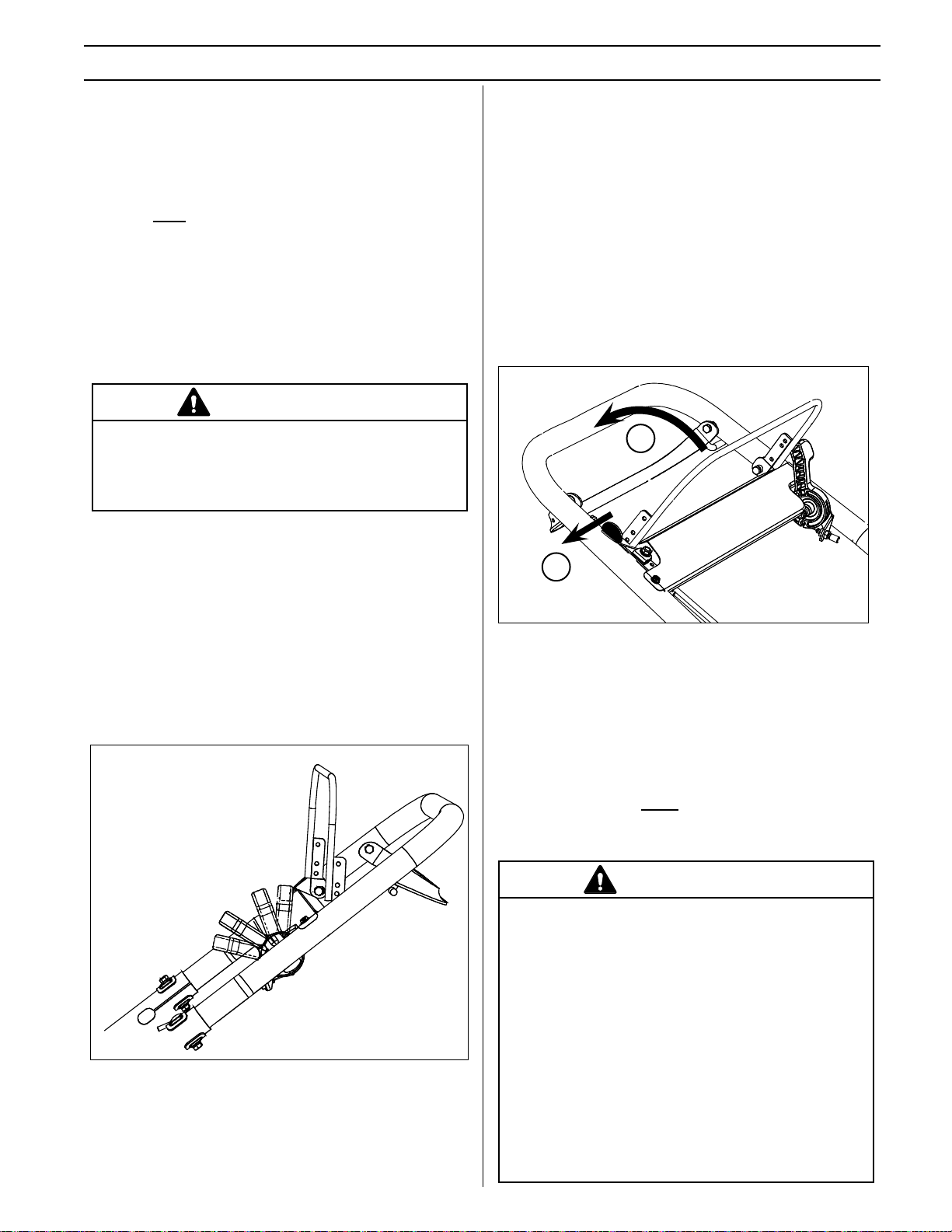

BLADE CONTROL - BBC (Blade Brake Clutch)

It is a multi step process to engage the blade. Do not start the

engine and the blade on an uncut lawn. If the blade is blocked

by tall grass or debris it can damage the belt drive between the

engine and the blade during the engagement.

1. Start the engine and let it warm up for 10 to 30 seconds.

2. Set the throttle control to the “Full Throttle” position.

3. Push the lock (1) for the upper control bar to the side.

4. Push down on the upper control bar until it rests on the

handlebar (2). You will distinctly hear the blade operating -

making a fan like noise.

5. When the upper control bar is released the blade should

stop within 3 seconds.

Additional maintenance instructions are found on Page 14.

WARNING

NEVER insert a hand or any other object in the grass

discharge chute to verify that the blade has stopped.

If the blade continues to run (no change in the noise

or size of the grass bag) after releasing the upper

control bar it is an indication of a malfunction of the

BBC system.

If the blade did not stop during the BBC Function Test

procedure or if you are unsure - Immediately stop the

engine by using the throttle control on the left side of

the control panel. The BBC system will require a repair

before further use. Immediately contact Ybravo.com

for advice. Do not under any circumstances defeat the

function of the BBC system. This can cause serious

injury or death.

CHOKE

FULL THROTTLE

IDLE THROTTLE STOP

BBC Function Test - Before each use

A simple test to verify the BBC function is to install an empty

grass collection bag. The mulch plug should not be installed.

1. Start the engine.

2. Engage the blade per above procedure. Notice how the

noise changes and that the bag becomes “inﬂated”.

3. Release the upper control bar. If the bag does not “deﬂate”

immediately, it indicates that the blade is still engaged and

rotating.

4. IF the bag deﬂated - verify that the blade has stopped

rotating by removing the grass bag and look at the stopped

blade through the grass discharge chute.

CONTROLS & OPERATION

Drive Adjustment

When operating the lower control

bar (1) typical movement on the

red adjustment knob (3) should be

between 1/4” to 3/8” (6 to 10 mm)

DRIVE CONTROL

The drive system consists of a two speed transmission and an

adjustable belt drive from the engine to the transmission.

The transmission speed can be set to LO - N - HI.

HI speed is approximately 4mph - a fast walking speed.

LO speed is approximately 3mph - an average walking speed.

The shifter arm is intentionally made ﬂexible. When the arm is

locked in the LO or the HI position the transmission will

automatically mesh into the gears as soon as the drive is

engaged by operating the lower control bar.

ENGAGING THE DRIVE

To engage and disengage the drive system pull up on the

lower control bar (1). Typically the drive will engage when the

lower control bar is approximately 1 to 1.5 inches from the

handle (2).

Notice

Due to wear, the drive engagement position of the lower

control bar can change. If the distance between the lower

bar and the handle (2) is less than a 1/4 inch when the mower

starts to drive make an adjustment on the red knob located

below the engine fuel tank (3).

If needed turn the red knob 2 turns clockwise. Verify the drive

position of the control bar by operating the mower. If needed

repeat the adjustment.

HEIGHT ADJUSTMENT

Each wheel can be adjusted individually to a speciﬁc cutting

height from 1 inch to 4.5 inch. Notice: It is only possible to

move the adjustment on one side 2 - 3 steps each time.

Moving the front wheel height adjusters forward raises the

cutting height. Moving the rear wheel height adjusters towards

the rear of the mower raises the rear cutting height.

Always adjust the height adjusters to the same position both in

the front and the rear for best cutting results.

WARNING

Never readjust the cutting height while the engine

is running. STOP the engine. Never lift the

mower by placing your hand or ﬁngers under the

edge of the mower deck.

MODES OF OPERATION

This mower is approved to be used in two different operational

modes:

1 With a grass catcher in place

An original equipment Ybravo.com catcher has been tested to

be used with this mower. It is important to always inspect the

catcher for deterioration. If the material is ripped or worn the

bag shall not be used.

2. With the mulch plug installed

If the mulch plug is installed ensure that the rear door can

close completely.

WARNING

Do not operate the lawn mower without the mulch

plug or the Ybravo.com grass catcher in place.

Never attempt to operate the mower with the rear

door removed, damaged or propped open.

Low 1” (25mm)

High 4.5” (114mm)

7 steps - 1/2” (13mm)

the engine before

making any height adjustment

MAINTENANCE

In addition to this schedule follow the Maintenance Schedule in the Honda or Kawasaki Owner’s Manual.

This maintenance schedule assumes daily use by a landscape company.

One Month of use is assumed to be 15 to 20 days of operation.

Maintenance -

Service Interval Procedures

Before each use Check the engine oil level.

Check the operation and integrity of the BBC control system (see page 10).

Inspect the mower blade for wear or damage.

Inspect the cables for any wear or damage.

Inspect the grass catcher for any damage.

Check for any loose or missing screws or damaged parts.

Clean under the lawn mower deck (after usage).

First 20 Hours or

Within 4 weeks Change the engine oil (see page 13).

Check the throttle cable adjustment (see pages 8-9).

Every 50 Hours or

every 2 months Lubricate the pivot arms on the control panel with oil.

Check the function and adjustment of the Blade Brake Clutch cable (see page 14)

Check and clean the engine air ﬁlter (see the engine Owner’s Manual)

Every 100 Hours or

every 4 months Change the engine oil (more often in dusty conditions).

Check the spark plug.

Clean the engine with compressed air.

Every 200 Hours or

every 8 months Replace the paper air ﬁlter (more frequently in dusty conditions).

Replace the spark plug.

Adjust the valve clearance.

NOTICE

Several of the operations described in this

Maintenance section involves placing the mower

on its right side.

To avoid spills of oil and gasoline always:

- Place the mower on a hard surface such as a

concrete driveway or a garage ﬂoor.

- Never place the mower on its side when there is

gasoline in the tank - do the service of the mower

when you have run out of gasoline during normal

operation.

- Always make sure that the Oil Filler Cap is

tightened.

Any spillage of oil or gasoline can be extremely

ﬂammable and explosive and under certain

conditions can cause serious personal injury and

property damage.

CLEANING THE MOWER

We do not recommend using a garden hose to clean the

mower. The buildup of moist grass, fertilizer and water can

cause extreme corrosion damage to many parts of the mower

and the engine.

Never use a Pressure Washer:

The use of a pressure washer can force water and moisture

into ball bearings and engine parts and cause substantial dam-

age.

- Clean the underside of the mower by scraping any build-up

of grass and trash.

- Clean off the outside of the engine and the top of the mower

with compressed air. Any accumulation of debris under the

belt cover can typically also be removed with compressed air

without removing the protective belt cover.

- Wash the Grass Bag with a garden hose frequently. The

holes that allows the grass bag to breathe will eventually clog

with dirt. A clogged bag will not collect the grass clippings

effectively. Do not install and use a wet grass catcher. It will

plug prematurely.

BLADE MAINTENANCE

For best results, the mower blade must be kept sharp. Always

replace a bent or damaged blade.

Removing the blade

1. Disconnect spark plug wire from spark plug and place wire

where it cannot come in contact with plug.

2. Turn lawn mower on its right side. (Make sure air ﬁlter and

carburetor are up).

3. Use a wood block between blade and mower deck to

prevent blade from turning when removing blade bolts.

NOTE: Protect your hands with gloves and/or wrap the blade

with a heavy cloth.

4. Remove blade bolts by turning counter-clockwise with a

11/16” (17mm) wrench or socket.

Installing the blade

1. Position the blade with the bent corner of the blade (sail)

pointing towards the deck. Install the blade bolts.

Important: Blade bolts are heat treated. If a bolt is worn or

damaged replace it only with a bolt available from Ybravo.com.

2. Use a block of wood between blade and mower deck and

tighten the blade bolts. Always use a torque wrench.

The recommended tightening torque is 30 to 35 ft. lbs.

(40 to 45 Nm)

WARNING

Use only a replacement blade approved by

Ybravo.com. Using a blade not approved by

Ybravo.com is hazardous. It can damage your

mower and cause serious personal injury.

A worn or damaged blade can break and parts of

the blade could be thrown into the operators or

bystanders area, resulting in serious personal

injury or death.

Inspecting the blade

Carefully examine the blade for straightness, damage and

abnormal wear. In some areas abrasive sand and dust can

wear away the metal of the blade - see illustration.

Sharpening the blade

File the top side of the blade (1) and maintain the original

angle of the cutting edge. Maintain the radius where the cut-

ting edge ends. Always remove the same amount of material

from both ends of the blade. This ensures that the blade stays

balanced.

If sharpening is done with a grinding stone the blade should

always be balanced using a blade balancing device. A blade

balance tool is available from Ybravo.com or most lawn and

garden dealers, and hardware stores.

If the blade shows wear or cracking at the edge where the

blade is bent up (3) it must immediately be replaced.

1. Cutting edge

2. Square corner

3. Erosion from sand and dirt

4. Air lift wing (sail)

413

MAINTENANCE

ENGINE OIL CHANGE

NOTICE: Before tipping lawn mower on its right side to drain

oil, empty fuel tank by running engine until fuel tank is empty.

1. Disconnect spark plug wire from spark plug and place wire

where it cannot come in contact with plug.

2. Remove oil ﬁller cap/dipstick.

3. Tip lawn mower on its right side as shown and drain oil

into a suitable container. Rock lawn mower back and forth to

remove any oil trapped inside of engine.

4. Wipe off any spilled oil from lawn mower or side of engine.

5. Fill engine with oil. Slowly pour oil down the oil ﬁll spout

into the engine. Use an SAE 10W-30 oil (22 Fl.Oz - 0.65 Liter

without oil ﬁlter, 29 Fl.Oz - 0.85 Liter with oil ﬁlter replacement).

See engine Owner’s Manual for complete information.

6. Wait one minute to allow oil to settle. Use gauge on oil ﬁller

cap/dipstick for checking level. Insert dipstick into the tube

and rest the oil ﬁll cap on the tube.

DO NOT thread the cap into the tube when taking the reading.

7. Continue adding small amounts of oil and rechecking

the dipstick until it reads full. DO NOT overﬁll, or engine

will smoke on startup.

8. Always be sure to retighten oil ﬁll cap/dipstick before

starting engine.

9. Reconnect spark plug wire to spark plug.

MAINTENANCE

BLADE BRAKE CLUTCH CABLE ADJUSTMENT

It is recommended that the adjustment of the Blade Brake

Clutch (BBC) cable is checked at the minimum every 50 Hours

or within each 4 weeks of operation. If not properly adjusted

the brake might not work as designed. This adjustment

pertains to a belt that has been used a minimum of 2 hours.

Removing the belt guard.

1. Disconnect spark plug wire from spark plug and place wire

where it cannot come in contact with the spark plug.

2. Remove the three screws for the plastic belt guard.

Check the adjustment of the spring tension.

1. Without any tension on the spring it measures

approximately 2” (51 mm) per below illustration.

2. Without starting the engine engage the BBC as described

on page 10.

3. Measure the stretched out length of the spring. It should

measure between 2 5/16” (58 mm) to 2 7/16” (62 mm). If

necessary please adjust the cable by loosening the nuts (1).

Approx.

2 inches (51 mm)

4. After making any cable adjustment tighten the nuts and

replace the belt guard.

5. Start the engine and verify the BBC function according to

the procedures on page 10.

BBC engaged - length approx.

2 5/16” to 2 7/16” (58 - 62 mm)

PRODUCT REGISTRATION &

WARRANTY STATEMENT

All Ybravo Texas, LLC products can be registered online at www.ybravo.com quickly and easily.

Click on the Product Registration tab and fill out the electronic form and submit.

SECTION 1: LIMITED WARRANTY

Ybravo Texas, LLC (Ybravo) warrants the original purchaser of Ybravo branded product to which this warranty applies (the “Product”) that the Product

shall be free from defects in material and workmanship from the date of purchase for the applicable “Warranty Schedule” of the Product as set forth

below. Additional limitations are described in Section 2 through Section 6, Inclusive.

SECTION 2: YBRAVO’S OBLIGATIONS UNDER THE WARRANTY

Ybravo will repair or replace, at its option, any part proven to be defective in material or workmanship under normal use during the applicable warranty

period; the labor to repair defective part will be covered for a period of one (1) year for Commercial Use Products, and a period of two (2) years for

Consumer use products; subject to the limitations and exclusions listed in Section 3 and Section 4.

Product Category Residential Use *

Limited Warranty

Commercial Use

Limited Warranty

Rental Use

Limited Warranty

Models: 21-110, 21-210, 21-510, 21-610

25-110, 25-210 5 Year

5 Year Parts / 2 Year Labor

2 Year

2 Year Parts / 1 Year Labor 90 Days

Models: 21-101/102/201, 21-501/502/503/601

25-101/201 1 Year 1 Year 90 Days

Replacement Parts ** 60 Days 60 Days 30 Days

* Residential Use means use of the product at one location. Use of the product at multiple locations is considered Commercial Use.

** Excludes components which are part of engine systems manufactured by third party engine manufacturers for which the purchaser has received a

separate warranty with product at time of purchase

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

1) Cost of adjustments, and/or regular maintenance items which become worn through normal use, including, but not limited to: belts, blades, blade

adapters, cables, bags, clutches.

2) Natural discoloration of material due to ultraviolent light.

3) Engine and drive systems not manufactured by Ybravo; these items are covered by the respective manufacturer’s warranty as provided in writing

with the product information supplied at the time of purchase; all claims must be sent to the appropriate manufacturer.

4) Mowing decks with sand abrasion

5) Emission Control System components necessary to comply with CARB-TIER II and EPA regulations which are manufactured by third party

engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

1) Accident, abuse, misuse, negligence and neglect, dirt, abrasives, moisture, rust, corrosion, or and adverse reaction due to incorrect storage or

use habits.

2) Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction sheet furnished by Ybravo.

3) Alterations or modifications that change the intended use of the product or affects the product’s performance, operation, safety or durability; or

causes the product to fail to comply with applicable laws; or:

4) Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. YBRAVO SHALL

NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON

THESE PRODUCST EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE WARRANTY PERIOD AS DEFINED IN

THE LIMITED WARRANTY STATEMENT. YBRAVO RESERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITH-

OUT NOTICE, AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above

limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary by state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written in maintenance section of the Owner’s/

Operator’s manual. Should an operational problem or failure occur, the product should not be used. Failure caused by continued use is not covered by

warranty. Product should be delivered, at owners expense, as is, to an authorized Ybravo dealer for evaluation. Proof of purchase, as explained in

section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain that the Product Registration was completed on-line at www.ybravo.com Product registra-

tion should be completed within ten (10) days from the date of purchase in order to confirm the warranty and to facilitate post-sale service. Proof of

purchase must be presented to the authorized Ybravo dealer in order to obtain warranty service. This proof of purchase must include date purchased,

model number, serial number, and complete name and address of the selling dealer. To obtain the benefit of this warranty, the product believed to be

defective must be delivered to an authorized Ybravo dealer in a timely manner, no later than thirty (30) day from date of operational problem or failure.
