YINGXIN ZLT S500 User manual

1
CDMA Fixed wireless telephone
User Guide
Model: ZLT S500
Read this manual carefully before operating the instrument.
Ver 1.1

2
CONTENTS
INTRODUCTION...................................................................................4
IMPORTANT INFORMATION............................................................5
DO’S & DON’TS.....................................................................................6
VIEWS.....................................................................................................8
PHONE FUNCTIONS AND FEATURES ............................................9
INSTALLATION ..................................................................................13
BASIC OPERATIONS.........................................................................14
MENU FUNCTION..............................................................................14
MENU STRUCTURE ................................................................................14
DATA SERVICES (OPTIONAL) ........................................................22
CREAT INTERNET CONNECTION..................................................24

3
APPENDIX A: TEXT INPUT METHOD GUIDE.............................37
APPENDIX B: PRODUCT SPECIFICATION..................................37
APPENDIX C: CHARGER SPECIFICATION.................................38
APPENDIX D: PACKING LIST.........................................................38

4
Introduction
Congratulations on your purchase of the ZLT S500 CDMA2000-1X Cellular
Wireless Phone (Hereinafter referred to as Phone). The Phone has been
designed to operate with the latest digital communication technology,
Code Division Multiple Access (CDMA). The CDMA technology has
many advanced features and provides an excellent voice quality
The Phone has advanced features as follows:
•Large, easy to read, Three line, backlit LCD with status icons
•Choice of 15 ring sounds, Power On/Off
•Two Way SMS and caller ID
•Large ergonomically designed Keyboard
•Long Battery stand-by and talk time
•Menu driven interface for easy operation and configuration
•Last Number Redial
•Adjustable ring and voice volume
•AC Power Supply
•Indoor Antenna
•Speaker Phone
•CDMA technology allows privacy of the call
•Any key answer, auto redialing, one touch and speed dialing with 200
memory locations
•Optional accessories available for greater convenience and
enhanced functionality
•Easy Service and Repair
•Subscriber Call Charge Meter

5
IMPORTANT INFORMATION
This user guide provides information on the use and operation of your phone.
Kindly read all the information contained in this user guide carefully prior to using
the phone. This will help you in getting the best performance and shall prevent
any unintended damage to the phone. Check the contents of the box as per the
packing list and report any discrepancies immediately to the store from where
phone has been purchased.

6
Do’s & Don’ts
•Do not clean the phone while in operation. Before attempting to clean the
Phone, turn the Phone off, disconnect the external power adapter and
take out the battery or disconnect the external power supply if used.
Before moving the Phone, disconnect the external power adapter or
power supply in use. Use a Damp cloth for cleaning. Do not use liquid or
aerosol cleaners.
•Do not hold the antenna. This may affect call quality and cause
telephone to operate at unintended power levels.
•Keep the antenna free from obstructions and position the antenna
straight up. This will ensure best call quality.
•Do not use a damaged antenna. Have this replaced through a qualified
technician. Use only antenna approved by the manufacturer. Unapproved
antenna may impair the call quality as well as cause damage to the
phone.
•Only use the battery and the power adapter or the Power Supply
provided with the Instrument. The instrument might get damaged if
any other accessories are used. This will also void the warranty.
•It is highly recommended to charge the battery before initial use. The
battery might have been discharged during storage and delivery.
•Do not use with car battery. It may lead to electric shock or breakdown.
•Do not throw battery. Batteries are not to be disposed off by putting them
in fire. It may explode or catch fire.
•Do not attempt to change the security codes or components. User is
responsible for any consequences arising out of such attempt.
•Avoid Shock or Impact. Rough handling can cause damage to the body
as well as internal circuits.
•Do not paint.
•During lightening, do not touch power plug or phone line. This can cause
electric shock or death. Do not touch the external antenna.
•Your phone is to work with 90-300 V AC. Check the voltage before
connecting.
•Do not plug many power cords in the outlet.

7
•Do not touch the plug with wet hands. Always grasp and pull the plug, not
the cord. Do not put heavy things on the power cord or bend it too much.
•Do not take out the backup battery without the guide of qualified service
personnel.
•If the unit is not working for any reason, do not attempt to repair the
Instrument. The Instrument should be serviced by qualified service
personnel only.
•Place the Instrument and the power supply in a properly ventilated place.
Do not place the Instrument near high temperature objects, under direct
sunlight, near source of water, near fire or near inflammable and
explosive materials.
•Do not place any articles over the instrument.
•Place the Instrument in a dry place and do not expose to moisture.
•Place the Instrument away from other electronic devices like TV and
Radio to avoid interference.
•For a better reception, do not place the Instrument in a building with iron
or metal roof. Hospitals or health care facilities may be using equipment
sensitive to Radio Frequencies. Please ensure that your phone is turned
off while in the vicinity of such facilities.
•Do not use the unit in designated “No Cellular Phone Use” area

8

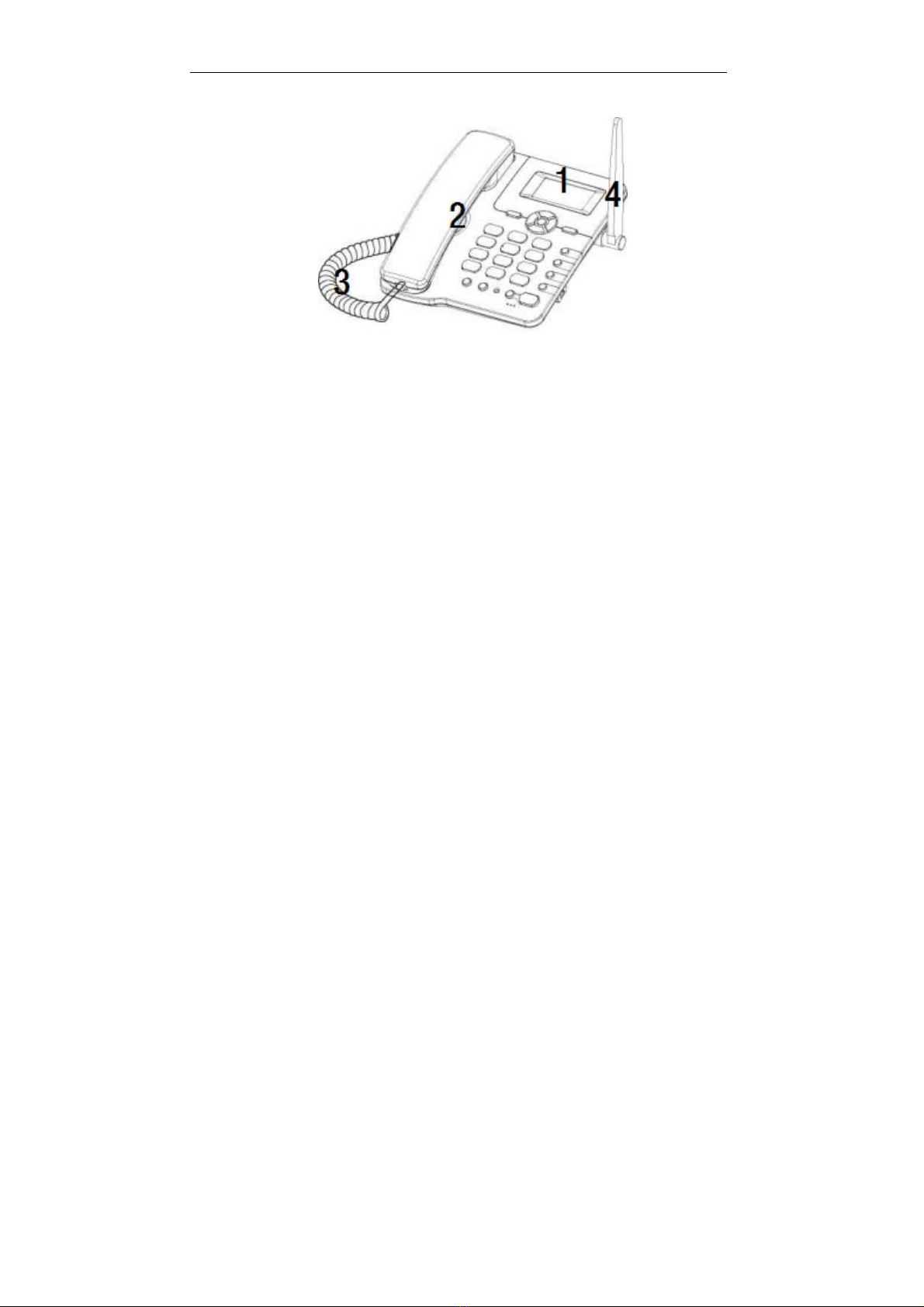

Views
Phone: (1)The Base Instrument, (2)Handset,
(3)Handset Cord, (4) Indoor Antenna
Note: The legends on picture shown may not be same as per the actual
model.

9
Phone Functions and Features
Your phone provides following functions and features
High Quality Voice Services
•Making calls, receiving calls, auto answering and recording.
•Vocoder 13K QCLELP, 8K EVRC
•Handsfree Operation
Short Message Service (SMS)
•SMS in English: supports write, read, send, receive, delete, reply and
forward.
Phone Features
•Language Support: English ；Indonesia
•Phone Book: Supports 200 entries
•Recent call records: lists numbers of last 20 outgoing calls, 10 last
incoming calls and 10 last missed calls.
•Phone setup: includes backlighting, ring tones and tones volume,
speech volume, key press volume
•Various alerts: recharging prompt, low voltage, SMS prompt, key press,
and minute alert during the call.
•Ring tones: Minimum 15 chord sound
•Incoming Call Display
•Various Call Forward (Unconditional Call Forward, No response forward,
Busy forward) and call waiting.
•Mute

10
Phone Description
TOP VIEW OF THE PHONE
1) UP/DOWN Keys 2) IN-USE Indicator
3) RIGHT(BOOK) Key 4) OK/SELECT Key
5) SMS Key 6) CANCEL Key
7) END Key 8) HANDSFREE Key
9) RD/SEND Key 10) POWER ON/OFF Key
11) ALPHANUMERIC Keys 12) LEFT(MENU) Key
13) Hook Switch 14) Handset Retaining Clip
15) LCD Display

11

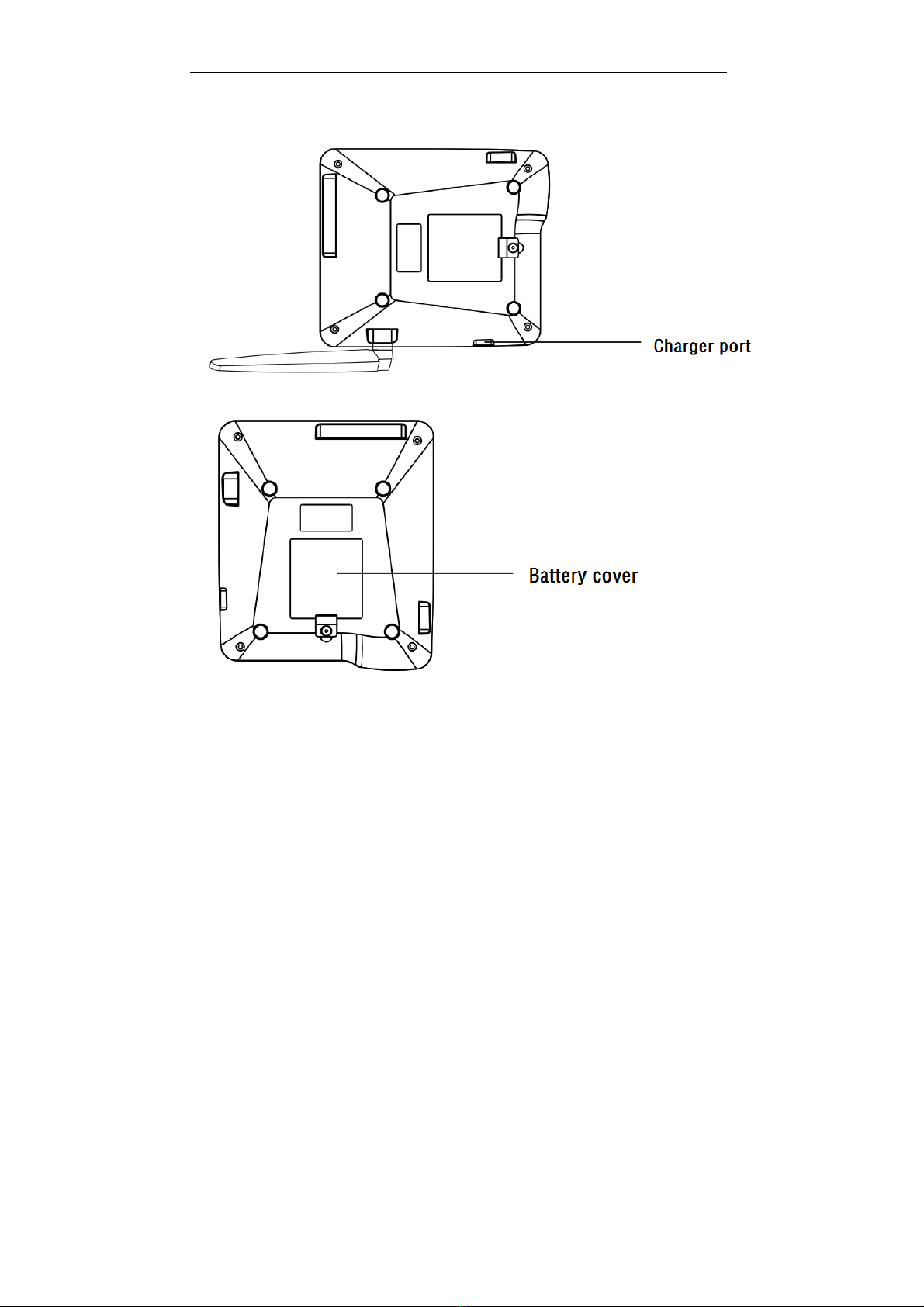

Back Panel View
1) Charger port
BOTTOM VIEW OF THE PHONE
1) Internal Battery Cover

12
LCD Display
Icon Describe
Digital Mode Indicator The icon will be displayed when the phone is
in digital mode.
Received Signal Strength Indicator (RSSI)
Call Connected Indicator,It will be displayed when the phone is
calling.
It will be displayed when the phone is in roaming area.
Message Indicator
This icon will be displayed when the phone is set to voice call mode.
In this mode the phone can receive the incoming calls and make
outgoing calls.
The icon will be displayed when power adapter is connected to the
phone. It will disappear when power adapter (power supply) is
removed or not working properly.

13
Installation
The following steps should be followed carefully in order to guarantee proper
operation of the phone.
Step1: Check the components as per the packing list.
Step2: Placing the Phone
•Place the phone on a stable flat and secure surface (Table, Desk
etc). Do not place the phone near heaters or radiators. Avoid direct
exposure to sunlight or wet and damp areas.
•Read the Do’s and Don’ts at the beginning of the user guide.
Step 3: Connecting the components
•Position the antenna upright.
•Connect coiled cord to handset jack on one side and the base instrument
jack (located on the left) on the other side
•Open the battery case, connect the battery cord and place the battery
pack and close the case.
•Connect the Adapter to the DC Input port located at the back of the
phone. Connect the AC cord to the power adapter on one side and the
Three Pin AC socket on the other side. Switch on the AC Power Supply.
The indicator green light on the power adapter should light up.
Please observe the following for a better reception
•Keep the indoor antenna upright to get the best RSSI.
•Keep phone where it is not obstructed
•Keep away from electrical appliances such as TV, Computer, Radio etc.

14
BASIC OPERATIONS
Menu Function
User can press [Left] (No. 13 in Figure page 10) key to access the phone menu in
idle state, use [UP] / [DOWN] (No. 1 in Figure page 10) key or number key [1-9]
to select corresponding item, then press [CONFIRM/SELECT] key to enter. User
can press [UP] / [DOWN] key to change the value, and select any one value by
[ok] key.
In idle state user will enter the phone book – “Contact” directly by pressing [Right]
(No. 3 in Figure page 10) key, enter message menu directly by pressing [SMS]
key. To exit menu, press [END] key (direct to idle state) or [CANCEL] key (step
by step to idle state). The whole menu structure is shown in below:
Menu Structure

15
Level 1
Menu Level 2 Menu Level 3 Menu Level 4 Menu
View Contacts
New Entry
Find Name
Groups No Group
Family
Friends
Colleagues
Business
Classmates
Other
Delete All UIM Contacts
Phone Contacts
Speed Dial
Contacts
(Phone
book)
Memory Status
New Message
Inbox
Outbox
Draftbox
Sentbox
Delete Msgs Inbox
Messages
Outbox

16
Delete All
Memory status
Incoming Calls
Outgoing Calls
Missed Calls
Call
History
Delete Lists
Alarm clock
Calculator
World Clock
Stop Watch
Game
Tools
Calender
Sounds Ringer In Contacts
Not in Contacts
Volume Ringer
Key Beep
Handset
Handsfree
Alert Minute Beep
Call Connect
Power On/off
Display
Settings
Banner

17
Backlight 7 second
15 second
30 second
Always off
Contrast
Hyphen
Language
Hyphen
Security
Network Service Call Forward FWD If Busy
FWD If No Answer
FWD Unreachable
FWD Unconditional
Call Waiting
Phone Info. Phone Number
SW Version
One key Dial
Making a Call
Making a Local Call

18
(Lift the hand set or press the HANDFREE SPK Key)
Telephone number -> RD/SEND(left software key) Key
Making a STD Call
(Lift the hand set or press the HANDFREE Key)
Area code -> telephone number -> RD/SEND Key
You can clear the last digit by pressing CANCEL Key.
If the call is over, hang up or hook on the receiver, and then press END
Key to return to the idle state.
Making IDD
(Lift the hand set or press the HANDFREE SPK Key)
+ -> Country code -> Area code -> telephone number -> RD/SEND
Key.
Before you make an International distance call, press 0Key twice and
your screen displays the prefix symbol “ +’’ of an International call.
Redialing the last number
Press RD/SEND Key

19
Subscriber Call Charge Indication
Checking the Information during the call
The IFWT will show elapsed time and charging unit on the screen
during the call. Charging unit function should be provided by network,
otherwise it always will show 0.
Answering the Call
When the phone rings, LCD will display the incoming number. Pick up
the receiver or press SPK Key to answer the call.
If you pick up the hand set before the phone rings, press SPK Key to
answer the call.
Note: To display the incoming number requires the network to support.
Ending the Call
Put down the handset when you answer the call by picking up the
handset.
Press SPK Key when you answer the call by pressing HANDFREE
Key.
Press END Key to return to the original state after ending call.

20
Sending SMS
When the phone is in idle-state, press SMS key, then press [down] key
to select “1 Message”, the screen is displayed as follows:
On selecting “1 New Message”, user can first edit message contents,
then select “Next” to enter the phone number.
To send the message, select “Send”.
Reading SMS
When the phone is in idle-state, press SMS key, then press [down] key
to select “3 Inbox”, the screen is displayed as follows:
1 New Message
2 Inbox
3 Outbox
4 Draftbox
5 Sentbox
6 Delete Msgs
7 Memory Status
8 SMS Settings
