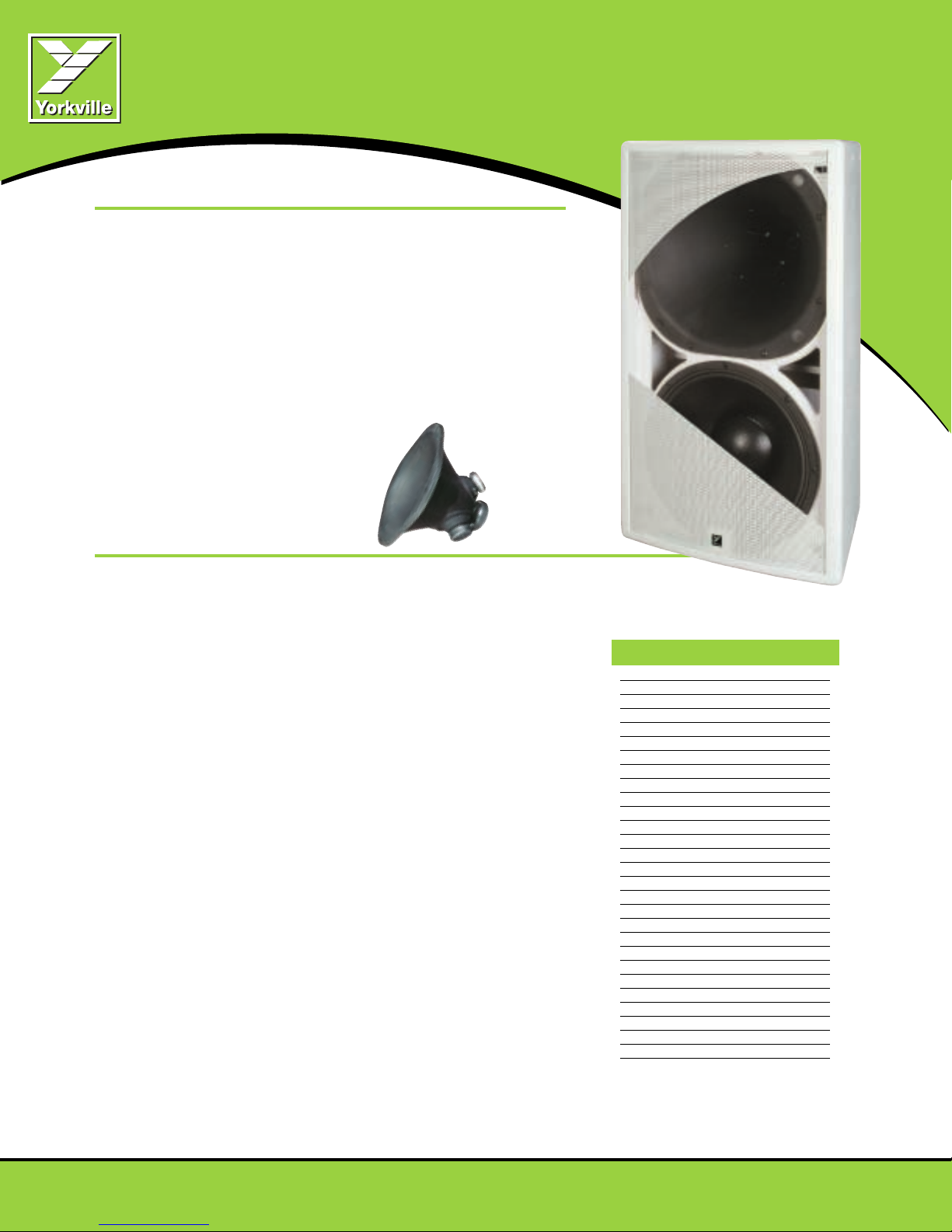

YORKVILLE COLISEUM CU15 User manual

➲800 Watt Passive Loudspeaker Cabinet
➲Unique 60º x 60º Unity™ Horn Assembly
➲15-inch Neodymium Woofer with 3-inch Voicecoil.
➲Unity™ horn combines mid and high frequency drivers on one conical horn.
➲All four component drivers mounted in a Unity™ horn are mechanically
time-aligned and act like a single point source.
➲No self-interference occurs between individual loudspeaker components.
➲Nine rigging points and internal standmount adapter allow for all possible
mounting and flying configurations.
➲15mm 11-ply birch cabinet construction.
➲Two-year unconditional warranty*
*Warrany valid in Canada and the United States only
Engineered for the serious pro audio user, the CU15 is among the most advanced, most
versatile and most efficient high-powered compact PA cabinet available in the market today.
The unparalleled clarity and precision of the patented Unity™ Summation Aperture conical horn
when combined with the single 15-inch Neodymium woofer deliver extreme intelligibility and
performance unmatched by any competitive loudspeaker in this class.
The compact footprint and relative light weight of the CU15 easily makes it a first choice for
front-of-house applications, drum monitor, side fill, front and down fill or virtually any situation
where a professional quality sound reinforcement system is required.
The sonic clarity and smooth frequency response also makes the CU15 a great PA cabinet for
high volume recorded music playback applications. With pre-recorded music the CU15 has the
hi-fidelity to put it on par with some of the best studio reference monitors. But unlike traditional
studio reference monitors, the CU15 is capable if putting out extremely high sound pressure
levels from its high-efficiency 800-watt, 4 ohm format.
The CU15 can be easily driven as a bi-amplified loudspeaker by way of a switch on the rear jack
plate, and used with any Unity or élite series subwoofer for extended low frequency
support. The UP15 Unity™ processor, designed specifically to optimize the sonic characteristics
of the CU15 has also been developed to ensure trouble free, “plug-and-play” full range or
Bi-amp operation with or without a subwoofer.
The cabinet’s trapezoidal shape was designed with multi-box, tight pack arraying in mind. Due to
the nature of the conical horn, the polar pattern remains quite constant regardless of any vertical,
or off axis rotation put upon it. It acts the same on all vertical axis, making it ideal for use upright
or on its’ side, without the need to ever rotate the horn.
The Unity CU15 is made with solid 15mm 11-ply birch plywood cabinet construction and has
heavy gauge perforated metal grille to protect the components. Integrated bar handles and
standmount adaptor makes it an ideal cabinet for highly mobile front-of house applications
where quick and easy set-up and tear down is required. The Coliseum CU15 enclosure has
been redesigned specifically for the installation market. Unlike the Unity™ U15, the touring
version of this cabinet, the CU15 enclosure is covered in an unobtrusive white paintable
finish, and it has been stripped of extraneous touring hardware not required on an
installation loudspeaker box.
The CU15 has been further reinforced for installation and has seventeen integrated flypoints
on the enclosure, making it extremely easy to install on any angle, hung as a single cabinet or
in any array.
Coliseum CU15
Coliseum CU15
Features:
Overview:
yorkville.com
*CU15FH Flyware kit available.
Specifications subject to change without notice.
Coliseum Series Specifications:
Model CU15
SYSTEM TYPE Passive 3-Way
BIAMPABLE YES
PROGRAM POWER (watts) 800
PROGRAM BI-AMP POWER (watts) 800 LF / 200 HF
IMPEDANCE (ohms) 4
FREQ. RESPONSE (Hz +/- 3dB) 50 - 20000
SENSITIVITY (dB@1W/1m) 98
MAXIMUM SPL (dB) 127
X-OVER FREQUENCY (Hz) 300 / 1250
DRIVER CONFIGURATION 15" / 3 x 5" / 1 x 1.75"
LF DRIVER(S) 15" Neodymium / 3" Voicecoil
MF DRIVER(S) 3 X 5" / 1" voice coil
HF DRIVER(S) 1.75" polyester
HIGH / MID HORN CONFIGURATION Conical Unity™ Horn
HIGH / MID HORN DISPERSION (H° x V°) 60 x 60 Waveguide
HF HORN THROAT DIAMETER 1"
HF PROTECTION PTC™
CONSTRUCTION 15mm 11-ply Birch
GRILLE Perforated Metal
STOCK FINISH White painted
INPUTS (1/4" / Speakon™) 2 / 2
FLYWARE TYPE / QUANTITY 3/8" / 17
FLYWARE LOCATIONS All corners / sides and pullback
OPTIONAL ACCESSORIES Unity™ UP15 Processor
DIMENSIONS (DxWxHxBW inches) 16.25 x 19.25 x 34 x 9.5
DIMENSIONS (DxWxHxBW cm) 42 x 49 x 87 x 24
WEIGHT (lbs / kg) 80 / 36
