YOTRIO 10' Patio Offset Umbrella User manual

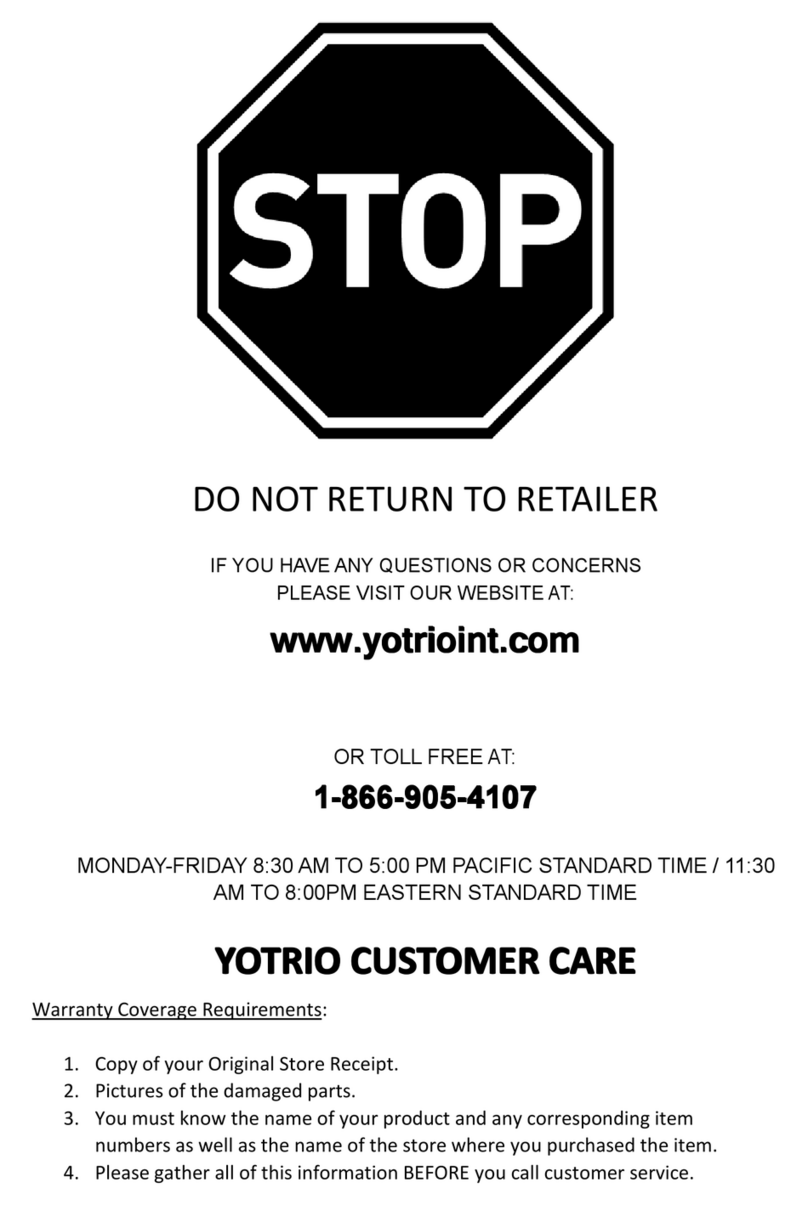

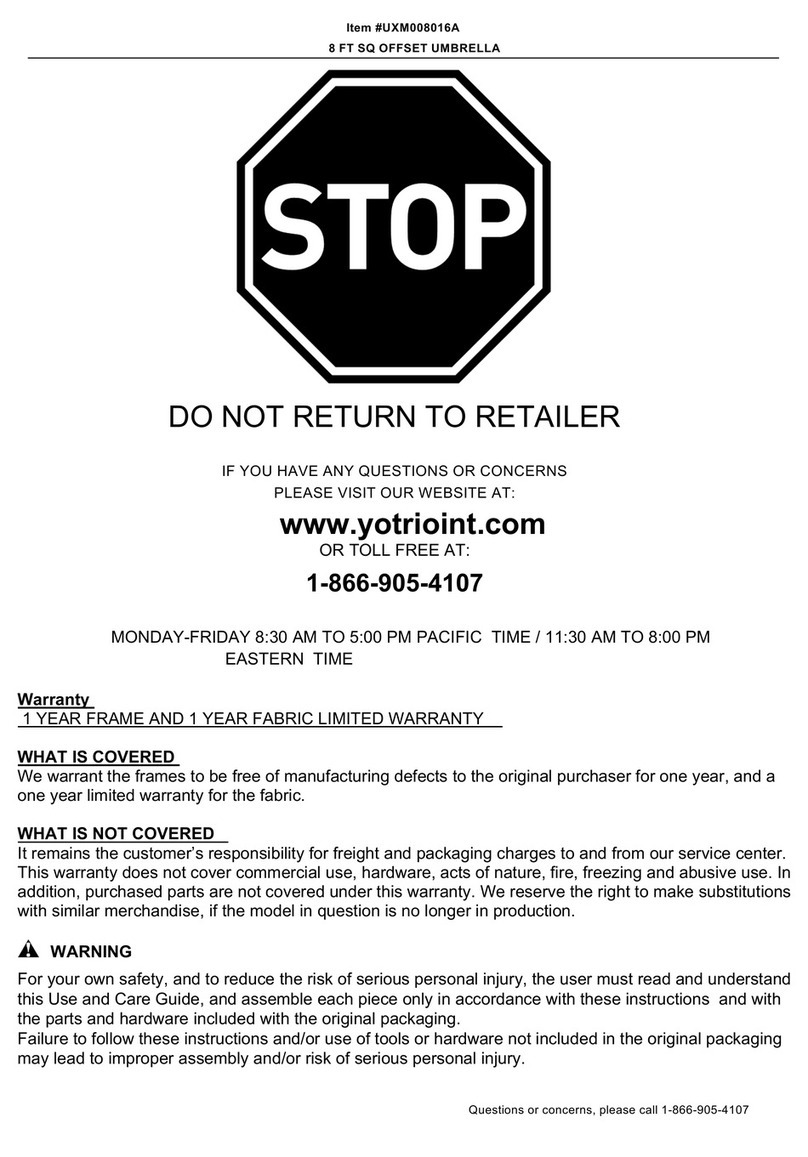

DO NOT RETURN TO RETAILER
IF YOU HAVE ANY QUESTIONS OR CONCERNS
PLEASE VISIT OUR WEBSITE AT:
www.yotrioint.com
OR TOLL FREE AT:
1-866-905-4107
MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC STANDARD TIME / 11:30
AM TO 8:00PM EASTERN STANDARD TIME
YOTRIO CUSTOMER CARE
Warranty Coverage Requirements:
1. Copy of your Original Store Receipt.
2. Pictures of the damaged parts.
3. You must know the name of your product and any corresponding
item numbers as well as the name of the store where you purchased
the item.
4. Please gather all of this information BEFORE you call customer service.
CARE INSTRUCTIONS
For best results, clean frame with damp cloth and dry thoroughly. This
will help prevent mildew by removing dirt particles that may accumulate.
Do not use abrasive materials or cleaners. In order to prolong the life of
your umbrella when not in use or during inclement weather (rain, hail,
sleet, snow, wind), fire, extreme heat and freezing conditions, the
umbrella needs to be stored in a dry, sheltered place. In addition, when
not in use your umbrella needs to be stored.
Important！Please read instructions thoroughly before assembling.
Familiarize yourself with the inventory of parts and the
accompanying illiustrations to assure safe and proper
assembly.
Note: Repeated assembly can weaken the locking ability of the washers. Periodically
check all bolted connections on your furniture to make sure they are tight and
secure. Retain these instructions for future reference.
Warning: In excessively windly conditions, be sure to close umbrella to prevent the
umbrella from tipping over and possible damage.
1

10′ Patio Offset Umbrella Assembly Instructions
PARTS LIST
PARTS
NO. QTY DESCRIPTION NAME
A 1 PC
1 PCB
C 1 PC
D4 PCS
E4 PCS
F1 PC
G1 PC
H 1 PC
I1 PC
J4 PCS
K
L
M
4 PCS
1 PC
1 PC
Lower Bracket
Upper Bracket
Base Tube
M8x20mm Bolts
Flat Washer
Sand Bag (Sand not included)
Fabric Cover
Sunshade
2
Screw-in Knob
Tube Rim
Metal Clip
Plastic Angle Plate
Side Piece On Base

Step 01:
Place Upper Bracket (B) onto Lower Bracket (A) as shown.
Step 03:
Put the Plastic Angle Plate (J) into the four corner of the brackets as shown.
Step 02:
Line up the bolt holes on the Base Tube (C) with the corresponding bolt holes on
the two brackets. Screw the M8x20 Bolts (D) with the Washers (E) into BaseTube
(C).
3
10′ Patio Offset Umbrella Assembly Instructions

Step 04:
Insert the 4 Side Pieces On Base (K) into the slot of the Plastic Angle Plate (J) as
shown.
Step 06:
Attach the two sand bags together using the locking mechanism as shown in
diagram below.
Step 05:
Pour the sand into the Sand Bag (M) through the velcro openings. Each sand bag
holds 88 lbs of sand. Close the velcro openings, then put into the plastic base as
shown.
10′ Patio Offset Umbrella Assembly Instructions
4

Step 07:
Place Fabric Cover (L) over base and hook securely as shown.
1) Overlap the Metal Clip (H) and Tube Rim (G) on the Base Tube. 2) Insert
Screw-in Knob (F) through the hole of the Metal Clip (H) and into the Base Tube as
shown.
Step 08:
10′ Patio Offset Umbrella Assembly Instructions
Step 09:
Insert the stem of the Sunshade (I) into the Base Tube (C), turn the Screw-in Knob
(F) clockwise until tight as shown.
5

Step 11:
1) Close the Spanner. 2) Push the Crank upward. 3) Slide Locking Cover downward
to lock the Umbrella.
Step 10:
1) Open the Spanner by pulling up on the Spanner Lever. 2) Raise the Spanner to
desired height.
10′ Patio Offset Umbrella Assembly Instructions
6
Step 12:
Turn the Crank clockwise to unfold the Umbrella.

Step 14:
Turn the Crank counter clockwise to fold the Umbrella.
Step 13:
To adjust the position: 1) Open the Spanner Lever; 2) Pull down the Spanner;
3) Close the Spanner Lever to lock the Umbrella.
7
10′ Patio Offset Umbrella Assembly Instructions
Step 15:
Push up the Locking Cover to unlock the Umbrella, then pull Crank downward.

Step 17:
Close the Spanner by pushing Spanner Lever down.
Step 16:
Open the Spanner Lever, then pull the Spanner down.
10′ Patio Offset Umbrella Assembly Instructions
