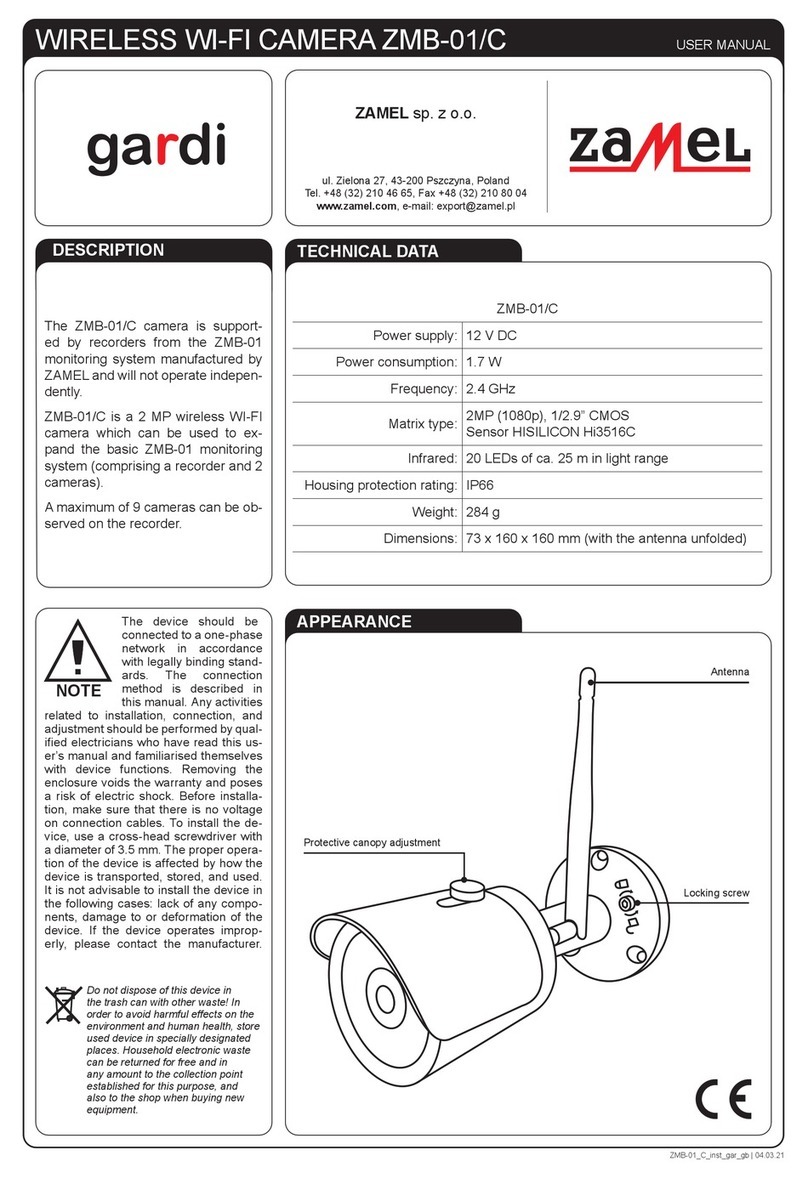

WIRELESS WI-FI CAMERA ZMB-01/C USER MANUAL
ZAMEL sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. [phone], Fax [phone]
www.zamel.com, e-mail: [email protected]
plik: ZMB-01_C_inst_gar_gb | modykacja: 05.01.2021
APPEARANCE
TECHNICAL DATA
DESCRIPTION
ZMB-01/C
Power supply: 12 V DC
Power consumption: 1.7 W
Frequency: 2.4 GHz
Matrix type: 2MP (1080p), 1/2.9” CMOS
Sensor HISILICON Hi3516C
Infrared: 20 LEDs of ca. 25 m in light range
Housing protection rating: IP66
Weight: 284 g
Dimensions: 73 x 160 x 160 mm (with the antenna unfolded)
The ZMB-01/C camera is support-
ed by recorders from the ZMB-01
monitoring system manufactured by
ZAMEL and will not operate indepen-
dently.
ZMB-01/C is a 2 MP wireless WI-FI
camera which can be used to ex-
pand the basic ZMB-01 monitoring
system (comprising a recorder and 2
cameras).
A maximum of 9 cameras can be ob-
served on the recorder.
The device should be
connected to a one-phase
network in accordance
with legally binding stand-
ards. The connection
method is described in
this manual. Any activities
related to installation, connection, and
adjustment should be performed by qual-
ied electricians who have read this us-
er’s manual and familiarised themselves
with device functions. Removing the
enclosure voids the warranty and poses
a risk of electric shock. Before installa-
tion, make sure that there is no voltage
on connection cables. To install the de-
vice, use a cross-head screwdriver with
a diameter of 3.5 mm. The proper opera-
tion of the device is affected by how the
device is transported, stored, and used.
It is not advisable to install the device in
the following cases: lack of any compo-
nents, damage to or deformation of the
device. If the device operates improp-
erly, please contact the manufacturer.
Do not dispose of this device in
the trash can with other waste! In
order to avoid harmful effects on the
environment and human health, store
used device in specially designated
places. Household electronic waste
can be returned for free and in
any amount to the collection point
established for this purpose, and
also to the shop when buying new
equipment.
NOTE
Antenna
Locking screw
Protective canopy adjustment

INSTALLATION AND CONNECTION
• Hang the camera using 3 expansion plugs and screws
provided with the system - Fig. 1.
• To adjust the camera angle, loosen the screw at the
bottom of the camera using the Allen key provided
with the system (Fig. 2). Next, adjust the two dimen-
sions of the camera to set its position at the required
angle. After adjusting the camera, tighten the locking
screw.
• To connect the camera, plug in the power supply
(12 V/500 mA power supply unit). The culverts pro-
vided with the system should be used for conducting
cables through walls.
ADDING THE CAMERA TO THE RECORDER
To pair the camera with the recorder:
• In the main menu of the recorder, select the “Camera” option to open the “Camera management” window” and display the list of
cameras installed in the system (Fig. 4).
• Click on the “Wireless code Add” to display the notication in Fig. 5 signaling that the 120 sec. programming procedure was started.
• Find the programming button on the incoming cable connected to the camera. If it is secured with a cap, remove it to gain access to
the button (Fig. 6).
• Next, press the programming button for about 6 sec. until 3 LEDs on the camera front start to blink. After a few seconds from releasing
the button, the new camera should appear on the list of available devices in the recorder. Use this method to add subsequent cameras
(as part of the 120 sec. programming procedure). If all cameras are not programmed in 120 sec., call the programming function from
the recorder’s menu again.
9 cameras in total can be programmed for the recorder.
The remaining settings, i.e. the period, in which the camera is to record image, motion detection settings, etc., should be congured
according to the user manual provided with the ZMB-01 monitoring system.
WARRANTY CARD
There is 24 months guarantee on the product
1. ZAMEL provides a two-year warranty for its products.
2. The ZAMEL warranty does not cover:
a) mechanical defects resulting from transport, loading / unloading or other circumstances;
b) defects resulting from incorrect installation or operation of ZAMEL products;
c) defects resulting from any changes made by CUSTOMERS or third parties, to products sold or equipment necessary for the
correct operation of products sold;
d) defects resulting from force majeure or other aleatory events for which ZAMEL is not liable;
e) power supply (batteries) to be equipped with a device in the moment of sale (if they appear).
3. All complaints in relation to the warranty must be provided by the CUSTOMER in writing to the retailer after discovering a defect.;
4. ZAMEL will review complaints in accordance with existing regulations.;
5. The way a complaint is settled, e.g. replacement of the product, repair or refund, is left to the discretion of ZAMEL.
6. Guarantee does not exclude, does not limit, nor does it suspend the rights of the PURCHASER resulting from the discrepancy
between the goods and the contract.
Salesman stamp and signature, date of sale
Fig.1 Fig.2
Fig.4
Fig.5 Fig.6
Protective cap
Programming key
Fig.3
