Contents
Safety information 2
Safety instructions 3
Installation 6
Product description 7
Control panel 7
Before first use 8
Daily use 8
Clock functions 9
Using the accessories 11
Additional functions 11
Hints and tips 12
Care and cleaning 19
Troubleshooting 21
Energy efficiency 22
Subject to change without notice.
VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanker.de/support
Safety information
Before the installation and use of the appliance, carefully read the supplied
instructions. The manufacturer is not responsible for any injuries or damage
that are the result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe way and
understand the hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it appropriately.
•WARNING: Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts become hot during use.
•If the appliance has a child safety device, it should be activated.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
General Safety
•Only a qualified person must install this appliance and replace the cable.
2

•The control panel must be connected to specified heating unit with
matching colours of connectors, to avoid possible hazard.
•WARNING: The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating elements.
•Always use oven gloves to remove or put in accessories or ovenware.
•Before carrying out any maintenance, disconnect the appliance from the
power supply.
•WARNING: Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•Do not use the appliance before installing it in the built-in structure.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
glass door since they can scratch the surface, which may result in
shattering of the glass.
•If the mains power supply cable is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly qualified persons
to avoid an electrical hazard.
•To remove the shelf supports first pull the front of the shelf support and
then the rear end away from the side walls. Install the shelf supports in the
opposite sequence.
•The means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the
appliance.
• Always take care when moving the appliance as it is
heavy. Always use safety gloves and enclosed
footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that
meets installation requirements.
• The kitchen cabinet and the recess must have
suitable dimensions.
• Keep the minimum distance from other appliances
and units.
• Before mounting the appliance, check if the oven
door opens without restraint.
• Parts of the appliance carry current. Close the
appliance with furniture to prevent touching the
dangerous parts.
• The appliance is equipped with an electric cooling
system. It must be operated with the electric power
supply.
Cabinet minimum height
(Cabinet under the work-
top minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the
appliance
598 mm
3

Height of the back of the
appliance
579 mm
Width of the front of the
appliance
594 mm
Width of the back of the
appliance
558 mm
Depth of the appliance 561 mm
Built in depth of the appli-
ance
540 mm
Depth with open door 1007 mm
Ventilation opening mini-
mum size. Opening placed
on the bottom rear side
560x20 mm
Mounting screws 4x25 mm
Before you install the appliance, fit it with the applicable
hob from the table.
Type Maximum power
KEV6046XXK 7400 W
KAV6041XXK 6500 W
KEV6043FBB 7600 W
KEV6041FBB 6000 W
EHE60001 -
Electrical connection
Warning! Risk of fire and electric shock.
• All electrical connections should be made by a
qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate
are compatible with the electrical ratings of the
mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains plug
and to the mains cable. Should the mains cable
need to be replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come near the
appliance door or the niche below the appliance,
especially when it operates or the door is hot.
• The shock protection of live and insulated parts
must be fastened in such a way that it cannot be
removed without tools.
• Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
• If the mains socket is loose, do not connect the
mains plug.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting
cut-outs, fuses (screw type fuses removed from the
holder), earth leakage trips and contactors.
• The electrical installation must have an isolation
device which lets you disconnect the appliance from
the mains at all poles. The isolation device must
have a contact opening width of minimum 3 mm.
• This appliance is supplied without a main plug and a
main cable.
• The hob connection socket is at the top of the oven
cabinet. The hob has connection leads for the
cooking zones and the ground cable. The leads
have plug-in connectors. Plug the connectors into
the correct oven socket to connect the hob to the
oven. The design of the plugs and sockets prevents
incorrect connections.
If the mains voltage is different, rearrange the jumpers
on the terminal board (refer to the connection diagram
below). Connect the ground cable to the terminal. After
you connect the supply cable to the terminal board,
attach it with a junction clamp.

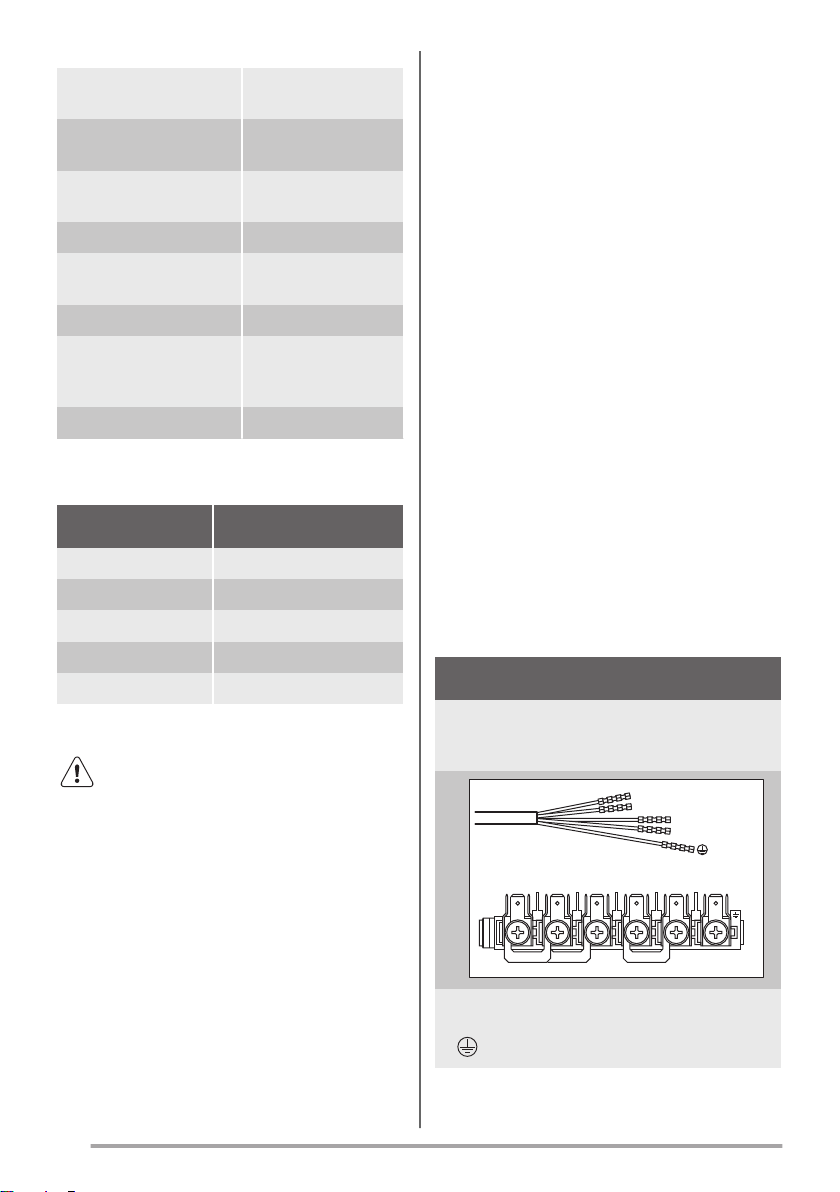

Connecting to terminal board
The appliance has a six-pole terminal board. The
jumpers (bridges) are set for operation on a 400 V
three-phase with a neutral wire.
1 = 45 mm
2 = 45 mm
3 = 60 mm
4 = 60 mm
= 70 mm
1 2 3 4 5
L 1 – 2 – 3 = phase cables
N 4 = neutral cable
= earth cable
4

Connecting to terminal board
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
230V 3~
230V 1~
400V 2N~
400V 3N~
L1
L1 N
L2
L1 N
N
L2
L3
L1 L2 L3
PE
PE
PE
PE
Cable types applicable for installation or replace-
ment for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-
F (T90), H05 BB-F
For the section of the cable refer to the total power on
the rating plate.
Use
Warning! Risk of injury, burns and
electric shock or explosion.
• This appliance is for household use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not
blocked.
• Do not let the appliance stay unattended during
operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while
the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or
when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a
storage surface.
• Open the appliance door carefully. The use of
ingredients with alcohol can cause a mixture of
alcohol and air.
• Do not let sparks or open flames to come in contact
with the appliance when you open the door.
• Do not put flammable products or items that are wet
with flammable products in, near or on the
appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the enamel:
– do not put ovenware or other objects in the
appliance directly on the bottom.
– do not put aluminium foil directly on the bottom
of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel or stainless steel has no
effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause
stains that can be permanent.
• This appliance is for cooking purposes only. It must
not be used for other purposes, for example room
heating.
• Always cook with the oven door closed.
Care and cleaning
Warning! Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk
that the glass panels can break.
• Replace immediately the door glass panels when
they are damaged. Contact the Authorised Service
Centre.
• Be careful when you remove the door from the
appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
Internal lighting
Warning! Risk of electric shock.
• Concerning the lamp(s) inside this product and
spare part lamps sold separately: These lamps are
intended to withstand extreme physical conditions in
5

household appliances, such as temperature,
vibration, humidity, or are intended to signal
information about the operational status of the
appliance. They are not intended to be used in other
applications and are not suitable for household room
illumination.
• Use only lamps with the same specifications.
Service
• To repair the appliance contact the Authorised
Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Remove the door catch to prevent children or pets
from becoming trapped in the appliance.
Installation
Warning! Refer to Safety chapters. Building in
589
598
594
114
19
21540
570
558
min. 550
20
min. 560
3
9
600
(*mm)

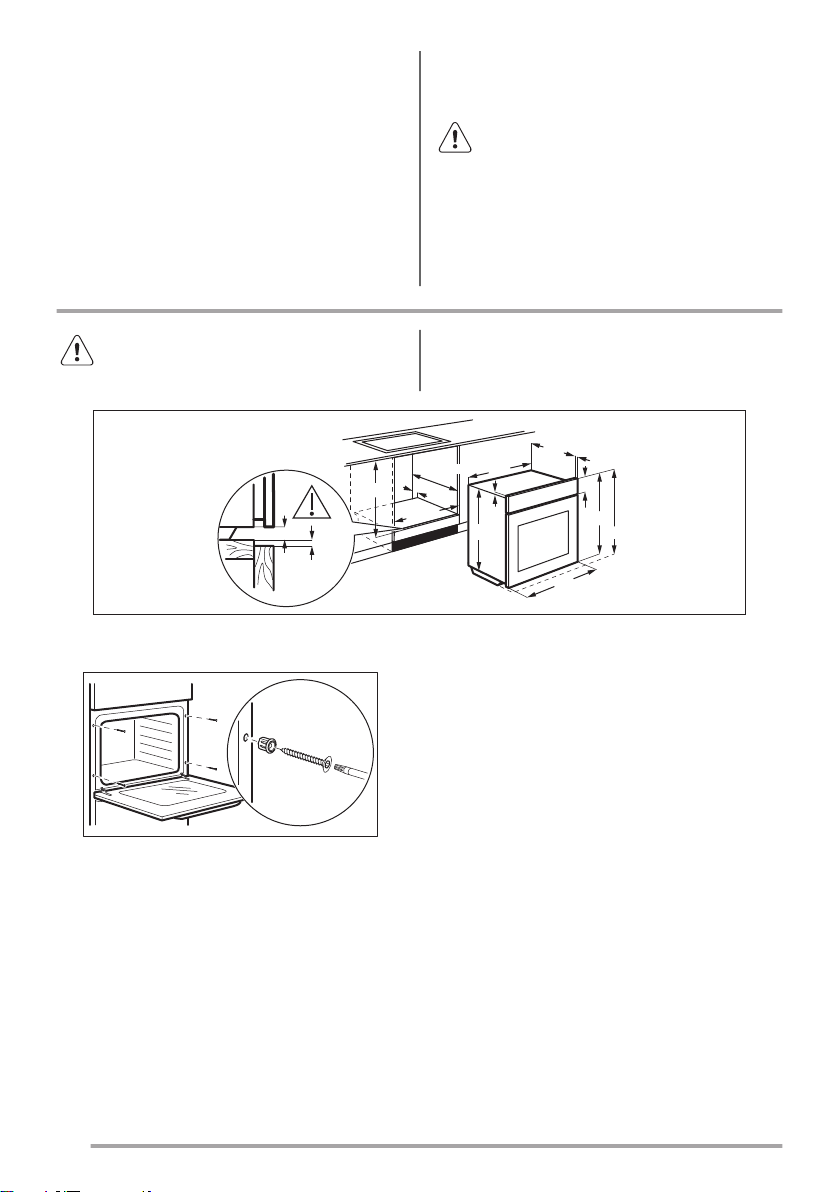

Securing the oven to the cabinet
6

Product description

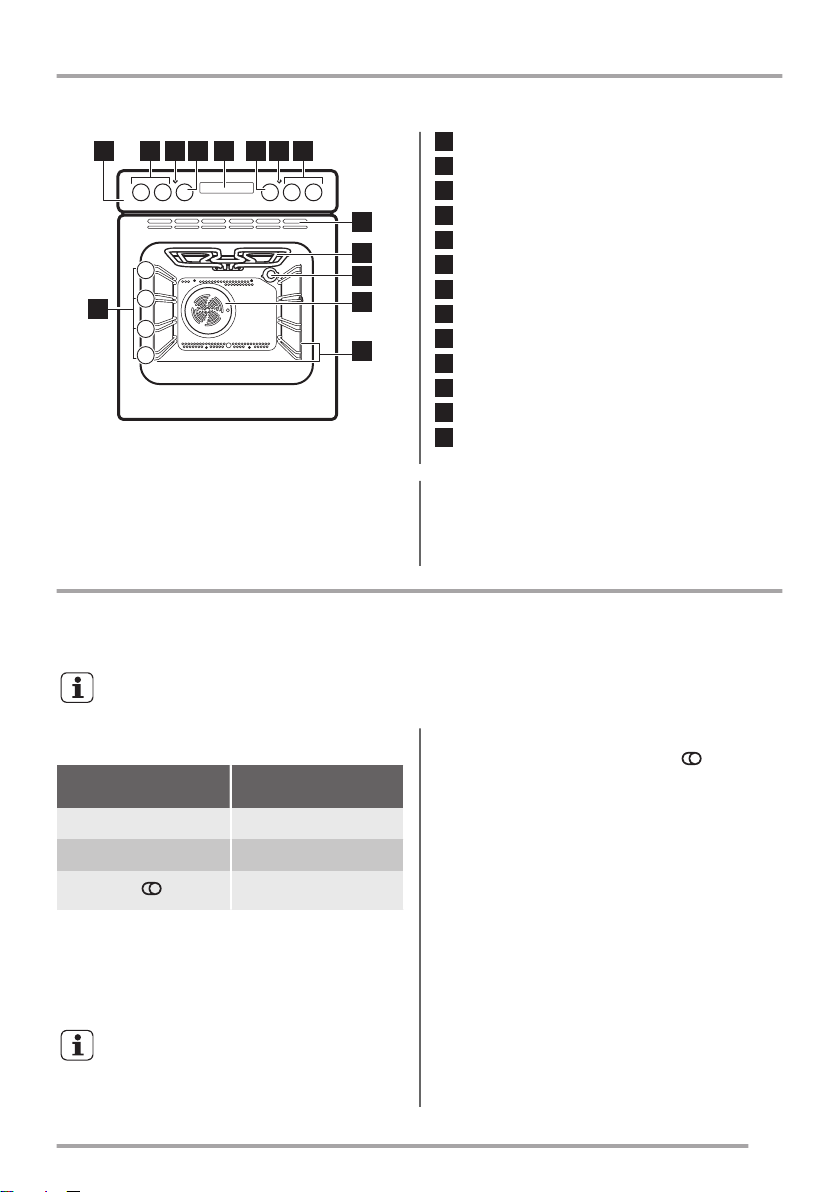

General overview
1 5 73
8
9
10
11
12
4
3
2
1
13
2426
1Control panel
2Knobs for the hob
3Power lamp / symbol
4Knob for the heating functions
5Display
6Control knob (for the temperature)
7Temperature indicator / symbol
8Air vents for the cooling fan
9Heating element
10 Lamp
11 Fan
12 Shelf support, removable
13 Shelf positions
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
Control panel
Knobs for the cooking zones
You can operate the hob with the knobs for the cooking zones.
You must read the Safety chapters in the hob user manual.
Heat settings
Knob indication Function
0 Off position
1 - 9 Heat settings
Double zone switch
1. Turn the knob to a necessary heat setting.
2. To complete the cooking process, turn the knob to
the off position.
Using the double zone (if applicable)
To activate the double zone, turn the
knob clockwise. Do not turn it through
the stop position.
1. Turn the knob clockwise to position 9.
2. Turn the knob slowly to the symbol until you
can hear a click. The two cooking zones are on.
3. To set the necessary heat setting refer to "Heat
settings".
Retractable knobs
To use the appliance press the knob. The knob comes
out.
7

Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
Display
A B
A. Clock functions
B. Timer
Before first use
Warning! Refer to Safety chapters.
Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.
Step 1 Step 2 Step 3
Set the clock Clean the oven Preheat the empty oven
1. , - press to set the time.
After approximately 5 sec., the
flashing stops and the display
shows the time.
1. Remove all accessories and
removable shelf supports from
the oven.
2. Clean the oven and the acces-
sories with a soft cloth, warm
water and a mild detergent.
1. Set the maximum temperature
for the function: .
Time: 1 h.
2. Set the maximum temperature
for the function: .
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf supports in the oven.
Daily use
Warning! Refer to Safety chapters.
How to set: Heating function
Step 1 Turn the knob for the heating functions
to select a heating function.
Step 2 Turn the control knob to select the tem-
perature.
Step 3 When the cooking ends, turn the knobs
to the off position to turn off the oven.
8

Heating functions
Heating
function
Application
Off position
The oven is off.
Fan Cooking
To roast or roast and bake food with
the same cooking temperature on
more than one shelf position, with-
out flavour transference.
Conventional
Cooking
To bake and roast food on one shelf
position.
Bottom Heat
To bake cakes with crispy bottom
and to preserve food.
Turbo Grill-
ing
To roast large meat joints or poultry
with bones on one shelf position. To
make gratins and to brown.
Fast Grilling
To grill thin pieces of food in large
quantities and to toast bread.
Heating
function
Application
Grill
To grill thin pieces of food and to
toast bread.
Moist Baking
This function is designed to save
energy during cooking. When you
use this function, the temperature in
the cavity may differ from the set
temperature. The heating power
may be reduced. For more informa-
tion refer to "Daily Use" chapter,
Notes on: Moist Baking.
Notes on: Moist Baking
This function was used to comply with the energy
efficiency class and ecodesign requirements according
to EU 65/2014 and EU 66/2014. Tests according to EN
60350-1.
The oven door should be closed during cooking so that
the function is not interrupted and the oven operates
with the highest energy efficiency possible.
For the cooking instructions refer to "Hints and tips"
chapter, Moist Baking. For general energy saving
recommendations refer to "Energy Efficiency" chapter,
Energy Saving.
Clock functions
Clock functions
Clock function Application
Time of Day
To set, change or check the time of day.
Duration
To set how long the oven works.
Minute Minder
To set a countdown. This function has no effect on the operation of the oven.
You can set this function at any time, also when the oven is off.
9

How to set: Clock functions
How to set: Time of Day
- flashes when you connect the oven to the electrical supply, when there was a power cut or when the timer is not
set.
, - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to change: Time of Day
Step 1 - press repeatedly to change the time of day. - starts to flash.
Step 2 , - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to set: Duration
Step 1 Set an oven function and the temperature.
Step 2 - press repeatedly. - starts to flash.
Step 3 , - press to set the duration.
The display shows: .
- flashes when the set time ends. The signal sounds and the oven turns off.
Step 4 Press any button to stop the signal.
Step 5 Turn the knobs to the off position.
How to set: Minute Minder
Step 1 - press repeatedly. - starts to flash.
Step 2 , - press to set the time.
The function starts automatically after 5 sec.
When the set time ends, the signal sounds.
Step 3 Press any button to stop the signal.
Step 4 Turn the knobs to the off position.
How to cancel: Clock functions
Step 1 - press repeatedly until the clock function symbol starts to flash.
Step 2 Press and hold: .
The clock function turns off after few seconds.
10

Using the accessories
Warning! Refer to Safety chapters.
Inserting accessories
A small indentation at the top increases safety. The
indentations are also anti-tip devices. The high rim
around the shelf prevents cookware from slipping of the
shelf.
Wire shelf:
Push the shelf between the guide bars of the shelf
support and make sure that the feet point down.
Baking tray:
Push the tray between the guide bars of the shelf
support.
Wire shelf, Baking tray:
Push the tray between the guide bars of the shelf
support and the wire shelf on the guide bars above.
Additional functions
Cooling fan
When the oven operates, the cooling fan turns on
automatically to keep the surfaces of the oven cool. If
you turn off the oven, the cooling fan can continue to
operate until the oven cools down.
Safety thermostat
Incorrect operation of the oven or defective components
can cause dangerous overheating. To prevent this, the
oven has a safety thermostat which interrupts the power
supply. The oven turns on again automatically when the
temperature drops.
11

Hints and tips
Refer to Safety chapters.
Cooking recommendations
The oven has four shelf positions.
Count the shelf positions from the bottom of the oven
floor.
Your oven may bake or roast differently to the oven you
had before. The below tables provide you with the
standard settings for temperature, cooking time and
shelf position.
If you cannot find the settings for a special recipe, look
for the similar one.
The oven has a special system which circulates the air
and constantly recycles the steam. With this system you
can cook in a steamy environment and keep the food
soft inside and crusty outside. It decreases the cooking
time and energy consumption.
Baking cakes
Do not open the oven door before 3/4 of the set cooking
time is up.
If you use two baking trays at the same time, keep one
empty level between them.
Cooking meat and fish
Leave the meat for approximately 15 minutes before
carving so that the juice does not seep out.
To prevent too much smoke in the oven during roasting,
add some water into the deep pan. To prevent the
smoke condensation, add water each time after it dries
up.
Cooking times
Cooking times depend on the type of food, its
consistency, and volume.
Initially, monitor the performance when you cook. Find
the best settings (heat setting, cooking time, etc.) for
your cookware, recipes and quantities when you use
this appliance.
Baking and roasting
CAKES
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Whisked recipes 170 2 165 2 (1 and
3)
45 - 60 Cake mould
Shortbread dough 170 2 160 2 (1 and
3)
20 - 30 Cake mould
Buttermilk cheese-
cake
170 1 165 2 70 - 80 Cake mould, Ø 26
cm
Strudel 175 2 150 2 60 - 80 Baking tray
Jam tart 170 2 160 2 (1 and
3)
30 - 40 Cake mould, Ø 26
cm
Fruit cake 170 2 155 2 50 - 60 Cake mould, Ø 26
cm
Christmas cake 170 2 160 2 50 - 60 Cake mould, Ø 20
cm
12

CAKES
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Plum cake, preheat
the empty oven
170 2 165 2 20 - 30 Bread tin
Biscuits, preheat
the empty oven
150 3 140 3 (1 and
3)
30 - 35 Baking tray
Meringues 100 3 115 3 35 - 40 Baking tray
Buns, preheat the
empty oven
190 3 180 3 80 - 100 Baking tray
Choux pastry, pre-
heat the empty
oven
190 3 180 3 (1 and
3)
15 - 20 Baking tray
Plate tarts 180 3 170 2 25 - 35 Cake mould, Ø 20
cm
Rich fruit cake 160 1 150 2 110 - 120 Cake mould, Ø 24
cm
Victoria sandwich 180 1 or 2 170 2 45 - 70 Cake mould, Ø 20
cm
Preheat the empty oven.
BREAD AND
PIZZA
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
White bread, 1 - 2
pieces, 0.5 kg each
190 1 195 1 60 - 70 -
Rye bread, preheat-
ing is not needed
190 1 190 1 30 - 45 Bread tin
Bread rolls, 6 - 8
rolls
190 2 180 2 (1 and
3)
25 - 40 Baking tray
Pizza 190 1 190 1 20 - 30 Deep pan
Scones 200 3 190 2 10 - 20 Baking tray
Use the cake mould.
13

FLANS
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Pasta flan 180 2 180 2 40 - 50
Vegetable flan 200 2 200 2 45 - 60
Quiches 190 1 190 1 40 - 50
Lasagne 200 2 200 2 25 - 40
Cannelloni 200 2 200 2 25 - 40
Yorkshire pudding, 6 pudding
moulds, preheat the empty
oven
220 2 210 2 20 - 30
Use the wire shelf.
MEAT
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Beef 200 2 190 2 50 - 70
Pork 180 2 180 2 90 - 120
Veal 190 2 175 2 90 - 120
English roast beef, rare 210 2 200 2 44 - 50
English roast beef, medium 210 2 200 2 51 - 55
English roast beef, well
done
210 2 200 2 55 - 60
MEAT
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Pork shoulder, with rind 180 2 170 2 120 - 150
Pork shin, 2 pieces 180 2 160 2 100 - 120
Leg of lamb 190 2 190 2 110 - 130
14

MEAT
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Whole chicken 200 2 200 2 70 - 85
Whole turkey 180 1 160 1 210 - 240
Whole duck 175 2 160 2 120 - 150
Whole goose 175 1 160 1 150 - 200
Rabbit, cut in pieces 190 2 175 2 60 - 80
Hare, cut in pieces 190 2 175 2 150 - 200
Whole pheasant 190 2 175 2 90 - 120
FISH
Conventional Cooking Fan Cooking
(min)
(°C) (°C)
Trout / Sea bream, 3 - 4 fish 190 2 175 2 (1 and 3) 40 - 55
Tuna / Salmon, 4 - 6 fillets 190 2 175 2 (1 and 3) 35 - 60
Grill
Preheat the empty oven.
Use the third shelf position.
Set the temperature to 250 °C.
GRILL
(kg) (min)
1st side
(min)
2nd side
Fillet steaks, 4 pieces 0.8 12 - 15 12 - 14
Beef steak, 4 pieces 0.6 10 - 12 6 - 8
Sausages, 8 - 12 - 15 10 - 12
Pork chops, 4 pieces 0.6 12 - 16 12 - 14
Chicken, half, 2 1 30 - 35 25 - 30
Kebabs, 4 - 10 - 15 10 - 12
15

GRILL
(kg) (min)
1st side
(min)
2nd side
Chicken breast, 4 pieces 0.4 12 - 15 12 - 14
Burgers, 6 0.6 20 - 30 -
Fish fillet, 4 pieces 0.4 12 - 14 10 - 12
Toasted sandwiches, 4 - 6 - 5 - 7 -
Toast, 4 - 6 - 2 - 4 2 - 3
Turbo Grilling
Preheat the empty oven.
Set the temperature to 200 °C.
Use the third shelf position.
(min)
(kg) 1st side 2nd side
Rolled joint, turkey 1 30 - 40 20 - 30
Chicken, half, 2 1 25 - 30 20 - 30
Chicken drumsticks, 6 pieces - 15 - 20 15 - 18
Quail, 4 pieces 0.5 25 - 30 20 - 25
Vegetables au gratin - 20 - 25 -
Scallops - 15 - 20 -
Mackerel, 2 - 4 - 15 - 20 10 - 15
Fish slices, 4 - 6 0.8 12 - 15 8 - 10
Moist Baking - recommended accessories
Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and
reflective dishes.
16

Pizza pan Baking dish Ramekins Flan base tin
Dark, non-reflective
28 cm diameter
Dark, non-reflective
26 cm diameter
Ceramic
8 cm diameter, 5
cm height
Dark, non-reflective
28 cm diameter
Moist Baking
For the best results follow suggestions listed in the table
below.
(°C) (min)
Sweet rolls, 12 pieces baking tray or dripping pan 180 2 35 - 40
Rolls, 9 pieces baking tray or dripping pan 180 2 35 - 40
Pizza, frozen, 0.35 kg wire shelf 220 2 35 - 40
Swiss roll baking tray or dripping pan 170 2 30 - 40
Brownie baking tray or dripping pan 180 2 30 - 40
Soufflè, 6 pieces ceramic ramekins on wire
shelf
200 3 30 - 40
Sponge flan base flan base tin on wire shelf 170 2 20 - 30
Victoria sandwich baking dish on wire shelf 170 2 35 - 45
Poached fish, 0.3 kg baking tray or dripping pan 180 3 35 - 45
Whole fish, 0.2 kg baking tray or dripping pan 180 3 35 - 45
Fish fillet, 0.3 kg pizza pan on wire shelf 180 3 35 - 45
Poached meat, 0.25
kg
baking tray or dripping pan 200 3 40 - 50
Shashlik, 0.5 kg baking tray or dripping pan 200 3 25 - 35
Cookies, 16 pieces baking tray or dripping pan 180 2 20 - 30
Macaroons, 20
pieces
baking tray or dripping pan 180 2 40 - 45
Muffins, 12 pieces baking tray or dripping pan 170 2 30 - 40
17

(°C) (min)
Savory pastry, 16
pieces
baking tray or dripping pan 170 2 35 - 45
Short crust biscuits,
20 pieces
baking tray or dripping pan 150 2 40 - 50
Tartlets, 8 pieces baking tray or dripping pan 170 2 20 - 30
Vegetables, poached,
0.4 kg
baking tray or dripping pan 180 3 35 - 40
Vegetarian omelette pizza pan on wire shelf 200 3 30 - 45
Mediterranean vege-
tables, 0.7 kg
baking tray or dripping pan 180 4 35 - 40
Information for test institutes
Tests according to IEC 60350-1.
(°C) (min)
Small
cakes, 20
per tray
Conventional
Cooking
Baking
tray
3 170 20 - 30 -
Apple pie,
2 tins Ø20
cm
Conventional
Cooking
Wire shelf 1 170 80 - 120 -
Sponge
cake, cake
mould Ø26
cm
Conventional
Cooking
Wire shelf 2 170 35 - 45 -
Short
bread
Conventional
Cooking
Baking
tray
3 150 20 - 35 Preheat the oven for
10 minutes.
Toast, 4 - 6
pieces
Grill Wire shelf 3 max. 2 - 4 minutes first
side; 2 - 3 mi-
nutes second
side
Preheat the oven for
3 minutes.
18

(°C) (min)
Beef bur-
ger, 6
pieces, 0.6
kg
Grill Wire shelf
and drip-
ping pan
3 max. 20 - 30 Put the wire shelf on
the third level and the
dripping pan on the
second level of the
oven. Turn the food
halfway through the
cooking time.
Preheat the oven for
3 minutes.
Care and cleaning
Warning! Refer to Safety chapters.
Notes on cleaning
Cleaning
Agents
Clean the front of the oven with a soft cloth with warm water and a mild detergent. Clean and
check the door gasket around the frame of the cavity.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent.
Everyday Use
Clean the cavity after each use. Fat accumulation or other residue may cause fire.
Moisture can condense in the oven or on the door glass panels. To decrease the condensation,
let the oven work for 10 minutes before cooking. Do not store the food in the oven for longer than
20 minutes. Dry the cavity with a soft cloth after each use.
Accessories
Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a
mild detergent. Do not clean the accessories in a dishwasher.
Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.
How to remove: Shelf supports
Remove the shelf supports to clean the oven.
19

Step 1 Turn off the oven and wait until it is
cold.
Step 2 Pull the front of the shelf support
away from the side wall.
Step 3 Pull the rear end of the shelf support
away from the side wall and remove
it.
2
1
Step 4 Install the shelf supports in the oppo-
site sequence.
How to remove and install: Door
The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it. Read the
whole "Removing and installing door" instruction before you remove the glass panels.
Caution! Do not use the oven without the glass panels.
Step 1 Open the door fully and hold both
hinges.
Step 2 Lift and turn the levers fully on both
hinges.
Step 3 Close the oven door halfway to the
first opening position. Then lift and
pull forward and remove the door from
its seat.
Step 4 Put the door on a soft cloth on a stable
surface and release the locking system
to remove the internal glass panel.
20
