Zanussi Electrolux ZR 23 W User manual

A/ZE/4. (03.)200364669
GB
REFRIGERATOR
ZR 23 W
ZZAANNUUSSSSII
INSTRUCTION BOOK

2
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you see this appliance effectively and safely, please read this instruction book carefully
before installing or using this appliance and retain for future reference.
The symbols below help you to find thin s more easily:
Safety precautions
Warnin s and Safety information
Hints, useful information
Environmental information

Servicing
This product should be serviced by an
authorised en ineer and only enuine spare
parts should be used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctionin . Contact your local
Service Force Centre.
At the end of the Appliance ife
When disposin of your appliance use an
authorised disposal site.
Remove the plu and ensure that any locks or
catches are removed, to prevent youn children
bein trapped inside.
The Appliance and the Environment
This appliance does not contain asses which
could dama e the ozone layer.
Avoid dama in the coolin unit.
The packa in used on this appliance marked with
the symbol is recyclable.
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.
3
IMPOR
IMPORT TANT S ANT SAFET AFETY INS Y INSTR TRUCTIONS UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport dama e. Under
no circumstances should a dama ed appliance be
installed. In the event of dama e please contact
your retailer.
Installation
This appliance is heavy. Care should be taken when
movin it.
It is dan erous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
dama ed, it must be replaced by a cable available
from your local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leavin the required
distance for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refri erant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packa in
material away from children!
During Use
This appliance is desi ned for domestic use only,
specifically for the stora e of edible foodstuffs. It is
not intended for commercial or industrial use.
Maintenance and Cleaning
Before cleanin , always switch off the appliance
and disconnect from the electrical supply.
When unplu in always pull the plu from the
mains socket, do not pull on the cable.

4
CONTENT
CONTENTS S
Instructions for the User
Guide to use the instruction book 2
Important Safety Instructions 3
Instructions for the User 5
Description of the Appliance 5
Using the Appliance 6
Before Use 6
To Start the Appliance 6
Thermostat Control 6
Hints for stora e 6
Stora e Shelf 7
The Ice-makin Compartment 7
Hints and Tips 7
Food Stora e 7
Frozen food stora e 7
Ener y Savin Advice 7
Storage time chart 8
Maintenance and Cleaning 9
Internal cleanin 9
External cleanin 9
When the appliance is not in use 9
Something Not Working 10
Service and Spare Parts 11
Customer Care 11
Guarantee Conditions 12
Instructions for the Installer
Technical Data 13
Location 13
Installing the Appliance 13
Transportation, Unpackin 13
Location 13
Ventilation Requirements 14
Door Reversal 14
Electrical Connection 15

5
Ins
Instr tructions f uctions for the User or the User
General information
This appliance is desi ned for the refri eration of food
in a domestic home. It also has an ice-makin
compartment.
To ensure correct operation, this appliance should
be located where the ambient temperature is
between 12-32 °C

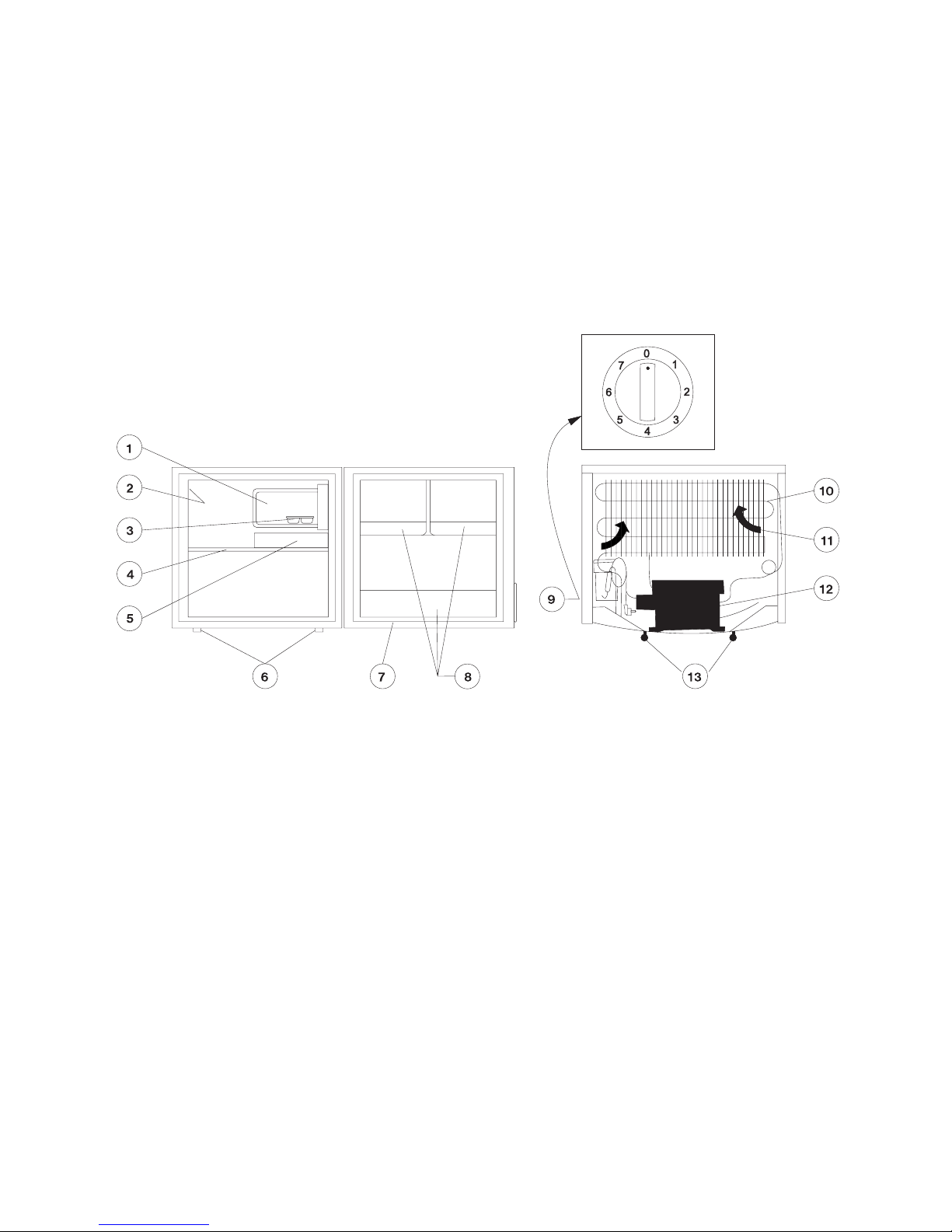

Description of the appliance
1. Ice-makin compartment
2. Data plate
3. Ice tray
4. Wire shelf
5. Drip tray
6. Feet
7. Door asket
8. Door compartment
9. Thermostat with knob
10. Condenser
11. Air circulation
12. Compressor
13. Spacer

6
Hints for storage
Su ested stora e locations for different types of
food produce:
1. Storin frozen foods, makin ice and ice-cream.
2. Confectionery, ready-cooked foods
3. Foods in dishes
4. Opened cans
5. Milk, dairy products
6. Fresh meat, cold cuts, sausa es, etc.
7. Fruits, ve etables, salads
8. Cheese, butter
9. E s
10. Yo hurt, sour cream
11. Bottles, drinks
Using the Appliance
Before Use
Remove all securin tapes.
Wash the inside of the appliance with lukewarm water
with a little bicarbonate of soda added (5 ml to 0,5 litre
of water). Do not use soap or deter ent as the smell
may lin er. Dry the appliance thorou hly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or products containing alcohol.
FFTo Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plu in the appliance and switch on at the mains
supply.
3. Turn the thermostat control knob to the required
settin . A settin of 4 is usually suitable for normal
operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for
the correct temperature to be reached before
placin food inside.
Thermostat Control
The thermostat control knob situated inside the
refri erator re ulates the temperature of the
refri erator and ice-makin compartment. Thermostat
control knob is marked from 1-7 the hi her the
number, the colder the settin .
Position 0 - Off
Position 1 - Cold
Position 7 - Coldest

7
Storage Shelf
The shelf inside the appliance has a flap on the
left side that makes storin lar e sized bottles
possible.
The door shelves taken out of appliance can be used
for servin foods (fruit, salads, etc.)
The Ice-making Compartment
This compartment is suitable for the storin of
commercially frozen food and for makin and storin
ice cubes.
Hints & Tips
Food Storage
To obtain the best results from your appliance
neither hot foods nor liquids which may evaporate,
should be placed in the refri erator.
Keep the time between buyin chilled food and
placin it in your frid e as short as possible.
Do not push food to ether too much, try to allow air
to circulate around each item.
Do not store food uncovered.
Remove suspect food from your refri erator and
clean, refer to Cleanin and Maintenance.
Frozen food storage
Storin ready-frozen foods is quite strai htforward.
The packs can be placed beside each other or on top
of each other.
You are stron ly advised to place ready-frozen food in
the compartment as quickly as possible after
purchase and we therefore recommend that you buy
them last. Also ensure that the external packa in is
intact.
Packa in which is swollen or has traces of
refrozen water droplets on the pack could indicate
that the product has not been kept at a suitable
temperature and that it may have lost its ori inal
quality.
Partially thawed food must not be refrozen, it must
be consumed within 24 hours.
Never exceed the stora e times indicated.
Do not open the ice-makin compartment door too
often and do not leave open lon er than necessary.
Important
In the event of a power cut the food in the ice-
makin compartment will not be affected if the
power cut is short and if the compartment is full. Do
not open the door. Should the food be in to thaw,
it must be consumed quickly and must not be
refrozen.
Energy Saving Advice
Do not install the cabinet close to sources of
heat, such as a cooker, dishwasher or radiator.
Locate the appliance in a cool well ventilated
room and make sure that the air openin s of the
cabinet are not obstructed.
Always leave warm food to cool down to room
temperature before placin in the frid e.
Try to avoid keepin the door open for lon
periods, or openin the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
Ensure there are no obstructions preventin the
door from closin properly.
It is advisable to periodically clean the
refri eration system at the back of the appliance
with a duster or vacuum cleaner.

8
S
St tor orage time char age time chart t
Time and method of stora e of fresh foods in the refri erator
Foods Storage time in days Method of packaging
1234567
Raw meat XXx x x clin film, airti ht
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat Xdish covered
Cooked minced meat XXx x dish covered
Cold cuts XXx x clin film, cellophane, rease-
proof paper
Fresh fish Xx x clin film, airti ht
Cooked fish XXx x dish covered
Tinned fish, open Xx x dish covered
Fresh chicken XXXx x x clin film, airti ht
Fried chicken XXXx x x dish covered
Fresh duck, oose XXXx x x clin film, airti ht
Roasted duck, oose XXXXx x x dish covered
Butter unopened XXXXXXXori inal packa in
Butter opened XXxxxxxoriinal packa in
Milk XXXx x ori inal packa in
Cream XXx x plastic box
Sour cream XXXXx x x plastic box
Cheese (hard) XXXXXXXaluminium foil
Cheese (soft) XXXXx x x clin film
E XXXXXXX
Spinach, sorrel XXx x clin film
Green peas, reen beans XXXXx x x clin film
Mushroom XXx x x clin film
Carrot XXXXXXXclin film
Tomato XXXXXXXclin film
Cabba e XXXXXx x clin film
Strawberry, raspberry, etc. XXXx x clin film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XXx x dish covered
Notation:
Xrecommended stora e time
x maximum recommended stora e time

9
Maint
Maintenance & Cleaning enance & Cleaning
Before any maintenance of cleaning work is
carried out DISC NNECT the appliance from
the ELECTRICITY SUPPLY.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water). Rinse
and dry thorou hly.
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong
odour.
External Cleaning
Wash the outer cabinet with warm soapy water.
When the appliance is not in use
When the appliance is not in use for lon periods,
disconnect from the electricity supply, empty all foods
and clean the appliance, leavin the door open to
prevent unpleasant smells.
Defrosting
While the appliance is in operation the ice-makin
compartment becomes pro ressively covered with
frost.
This frost, acts as an insulator and prevents the
cold from reachin the insulator food. The frost
should be removed whenever the thickness of the
frost exceeds 6 mm (¼). To carry out complete
defrostin proceed as follows.
Pull out the plu from the wall socket or turn the
thermostat control knob to the 0 position.
Leave the frid e and ice-makin compartment
doors open, when defrostin is completed, dry the
appliance thorou hly. Remove any defrost water
collected in the tray.
Replace the plu in the socket or return the
thermostat to the initial position and, after lettin
the appliance run for at least an hour, place the
food in the refri erator.

10
Problem
No power to the
appliance
The temperature in the
appliance is too hi h
The temperature in the
appliance is too low
Excessive frost and ice
has built up
The appliance is noisy.
Possible Cause
No power at the socket.
There is a power cut.
The fuse has blown.
Thermostat control knob is set at 0.
The appliance is located in an unsuitable position.
The thermostat control knob is set too low.
The thermostat control knob is set too hi h.
The door has been left open.
Somethin is obstructin the door.
The door asket is dirty.
The appliance is not level.
Solution
Check there is power at the socket.
Check there is not a power cut by checkin the
household li hts.
Check the fuse has not blown.
Check the thermostat control knob settin .
Check the ambient temperature is within the
appliances operatin limits of 12 °C to 32 °C.
Check that the thermostat control knob is turned
to the correct settin relative to ambient
conditions.
Set the thermostat control knob to a lower
position.
Check the door has not been left open.
Check nothin is preventin the door from closin .
Check the door asket is intact and clean.
Check if the appliance stands stable.
Some
Something N thing No ot W t Wor orking king
If the appliance is not workin correctly, please carry out the followin checks before contactin
your local Service Force Centre.
If after the above checks your appliance still does not
operate correctly, contact your local Service Force
Centre.
Please note that it will be necessary to provide proof
of purchase for any in- uarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
