Zanussi ZCV66050WA User manual

zanussi.com\register
ZCV66050BA
ZCV66050WA
ZCV66050XA
EN User Manual | Cooker

VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanussi.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. INSTALLATION...............................................................................................7
4. PRODUCT DESCRIPTION............................................................................. 9
5. BEFORE FIRST USE....................................................................................10
6. HOB - DAILY USE.........................................................................................10
7. HOB - HINTS AND TIPS............................................................................... 11
8. HOB - CARE AND CLEANING..................................................................... 12
9. OVEN - DAILY USE ..................................................................................... 12
10. OVEN - HINTS AND TIPS...........................................................................14
11. OVEN - CARE AND CLEANING................................................................. 20
12. TROUBLESHOOTING................................................................................ 22
13. ENERGY EFFICIENCY...............................................................................23
14. ENVIRONMENTAL CONCERNS................................................................24
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
2 ENGLISH

• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Only a qualified person must install this appliance and
replace the cable.
• This appliance must be connected to the mains with a
H05VV-F type cable to withstand the temperature of the
rear panel.
• This appliance is intended for use up to an altitude of 2000
m above sea level.
• This appliance is not intended to be used on ships, boats or
vessels.
• Do not install the appliance behind a decorative door in
order to avoid overheating.
• Do not install the appliance on a platform.
• Do not operate the appliance by means of an external timer
or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Never use water to extinguish the cooking fire. Switch off
the appliance and cover flames with e.g. a fire blanket or lid.
ENGLISH 3

• CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
• WARNING: Danger of fire: Do not store items on the
cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door or the glass of hinged lids of the hob
since they can scratch the surface, which may result in
shattering of the glass.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
• If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains. In
case the appliance is connected to the mains directly using
junction box, remove the fuse to disconnect the appliance
from power supply. In either case contact the Authorised
Service Centre.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
• Always use oven gloves to remove or insert accessories or
ovenware.
• Before maintenance, cut the power supply.
• WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
• The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
4 ENGLISH

• WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from other
appliances and units.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay next
to appliances or units with the same
height.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when
the door or the window is opened.
• Make sure to install a stabilizing means in
order to prevent tipping of the appliance.
Refer to Installation chapter.
2.2 Electrical Connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or come
near the appliance door or the niche below
the appliance, especially when it operates
or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door before you
connect the mains plug to the mains
socket.
ENGLISH 5

2.3 Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil on the
appliance or directly on the bottom of
cavity.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches. Always lift these objects up
when you have to move them on the
cooking surface.
2.4 Care and Cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Fat and food remaining in the appliance
can cause fire.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Make sure the cavity and the door are
wiped dry after each use. Steam produced
during the operation of the appliance
condensates on cavity walls and can
cause corrosion. To decrease the
6 ENGLISH

condensation operate the appliance for 10
minutes before cooking.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Technical data
Dimensions
Height 894 - 912 mm
Width 600 mm
Depth 600 mm
3.2 Location of the appliance
You can install your freestanding appliance
with cabinets on one or two sides and in the
corner.
A
Minimum distances
Dimension mm
A 685
ENGLISH 7

3.3 Levelling of the appliance
Use small feet on the bottom of appliance to
set the appliance top surface level with other
surfaces.
3.4 Electrical installation
WARNING!
The manufacturer is not responsible if
you do not follow the safety precautions
from Safety chapters.
This appliance is supplied without a main
plug or a main cable.
Applicable types of cables for different
phases:
Phase Min. size cable
1 3x6.0 mm²
3 with neutral 5x1.5 mm²
WARNING!
The power cable must not touch the part
of the appliance shaded in the illustration.
3.5 Covering terminal board
• The recommended cross-section area is
six square millimetres (6 mm²).
• When you refit the mains terminal cover,
make sure that the lower tabs are located
inside the bottom edge of the aperture,
before you fix the two screws into the top
edge of the mains terminal cover.
• Make sure that the cover is securely
fastened.
To open the cover of terminal board obey
the procedure in opposite sequence.
3.6 Terminal board
Do not remove blanking plates.
Make sure that the links are fitted as shown.
N N N
LL
8 ENGLISH

4. PRODUCT DESCRIPTION
4.1 General overview
1
2
3
4
5
5
6
5
4
3
2
1
73
2
1
4
1Control panel and hob
2Air vents for the cooling fan
3Heating element
4Lamp
5Shelf support, removable
6Fan
7Shelf positions
4.2 Hob overview
145 mm
180 mm145 mm
180 mm
11
1 1
2
1Cooking zone
2Residual Heat Indicator
4.3 Cooker control panel
45
1 2 3 1
1Knobs for the hob
2Knob for the top oven functions
3Knob for the main oven functions
4Temperature indicator / symbol for the
main oven
5Temperature indicator / symbol for the top
oven
4.4 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Grill- / Roasting pan
ENGLISH 9

To bake and roast or as pan to collect fat.
•Trivet
For roasting and grilling. Use the trivet only with the Grill- /
roasting pan.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable shelf
supports from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories before
the first use.
Put the accessories and the removable shelf
supports back to their initial position.
5.2 Preheating
Preheat the empty oven before first use.
Preheat the two ovens before first use.
Heat up one oven at a time.
Set the functions listed below, if
applicable.
1. Set the function . Set the temperature
to 250ºC.
2. Let the oven operate for 1 hour.
3. Set the function . Set the temperature
to 250ºC.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool down.
Accessories can become hotter than usual.
The oven can emit an odour and smoke.
Make sure that the airflow in the room is
sufficient.
6. HOB - DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Heat setting
Symbols Function
Off position
1 - 6 Heat settings
Use the residual heat to decrease energy
consumption. Deactivate the cooking
zone approximately 5 - 10 minutes before
the cooking process is completed.
Turn the knob for the selected cooking zone
to a necessary heat setting.
To complete the cooking process, turn the
knob to the off position.
6.2 Residual heat indicator
WARNING!
As long as the indicator is on, there is a
risk of burns from residual heat.
10 ENGLISH

The indicator appears when a cooking zone
is hot, but it does not function if mains power
is disconnected.
The indicator may also appear:
• for the neighbouring cooking zones even if
you are not using them,
• when hot cookware is placed on cold
cooking zone,
• when the hob is deactivated but the
cooking zone is still hot.
The indicator disappears when the cooking
zone has cooled down.
7. HOB - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
7.1 Cookware
The cooking results depend on the cookware
material
•recommended: aluminium, copper
•not recommended:stainless steel, cast
iron, glass
The bottom of the cookware must be as
thick and flat as possible.
Ensure pan bases are clean and dry
before placing on the hob surface.
Do not use cookware on the ceramic hob
with bases with pronounced edges or
ridges, e.g. cast iron pans. These could
scratch or scour the hob surface
permanently.
Cookware made of enamelled steel and
with aluminium or copper bottoms can
cause a colour change on the glass-
ceramic surface.
To save energy and ensure that the hob
operates properly the cookware bottom must
have a suitable minimum diameter.
7.2 Minimum cookware diameter
Cooking
zone
Cookware diam‐
eter (mm)
Power (W)
Left rear Φ 145 1200
Right rear Φ 180 1700
Right front Φ 145 1200
Left front Φ 180 1700
7.3 Examples of cooking
applications
Heat
setting:
Application:
1 Keeping warm
2 Gentle simmering
3 Simmering
4 Frying / browning
5 Bringing to the boil
6 Bringing to the boil / quick frying / deep-
frying
ENGLISH 11

8. HOB - CARE AND CLEANING
WARNING!
Refer to Safety chapters.
8.1 General information
• Clean the hob after each use.
• Always use cookware with a clean base.
• Scratches or dark stains on the surface
have no effect on how the hob operates.
• Use a special cleaner suitable for the
surface of the hob.
• Use a special scraper for the glass.
8.2 Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, salt, sugar and food with sugar,
otherwise, the dirt can cause damage to
the hob. Take care to avoid burns. Use a
special hob scraper on the glass surface
at an acute angle and move the blade on
the surface.
•Remove when the hob is sufficiently
cool: limescale rings, water rings, fat
stains, shiny metallic discoloration. Clean
the hob with a moist cloth and a non-
abrasive detergent. After cleaning, wipe
the hob dry with a soft cloth.
•Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a cloth.
9. OVEN - DAILY USE
WARNING!
Refer to Safety chapters.
9.1 Top oven functions
Symbol Oven function Application
Off position The oven is off.
Oven Lamp To turn on the lamp without a cooking function.
100 - 250 Conventional Cooking To bake and roast food on one shelf position.
Dual Circuit Grill To grill flat food in medium quantities in the middle of the shelf. To
make toasts.
Full Grill To grill flat food and to toast bread.
12 ENGLISH

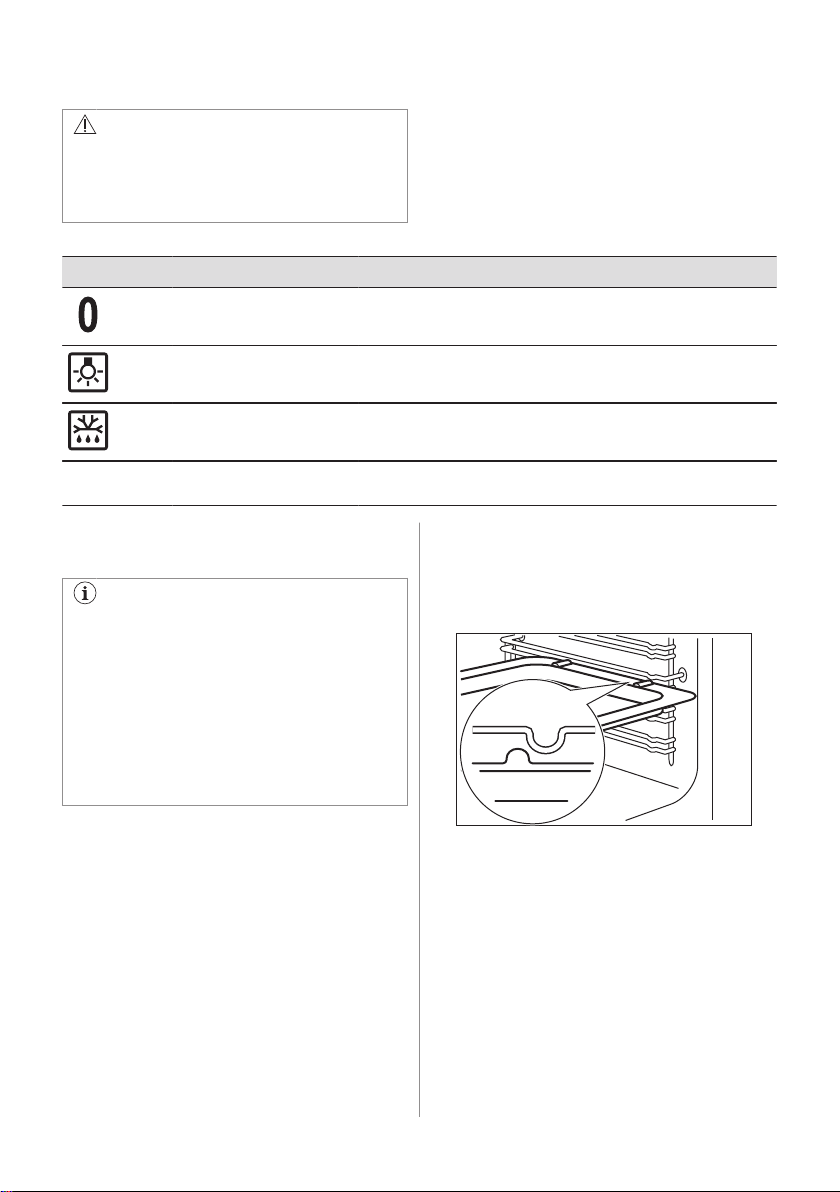

9.2 Main oven functions
WARNING!
Do not pour any liquids into the cavity
embossment before and during the
cooking process. There is a risk of
damage.
Symbol Oven function Application
Off position The oven is off.
Oven Lamp To turn on the lamp without a cooking function.
Defrost To defrost food (vegetables and fruit). The defrosting time de‐
pends on the amount and size of the frozen food.
100 - 250 Thermaflow® To bake on up to two shelf positions at the same time and to dry
food.
9.3 Activating and deactivating the
top / main oven
It depends on the model if your
appliance has knob symbols,
indicators or lamps:
• The indicator comes on when the
oven heats up.
• The lamp comes on when the oven
operates.
• The symbol shows whether the knob
controls one of the cooking zones, the
oven functions or the temperature.
1. Turn the knob for the top / main oven
functions to select an oven function.
2. To deactivate the oven turn the knob for
the top / main oven functions to the off
position.
9.4 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the surfaces of
the oven cool. If you turn off the oven, the
cooling fan continues to operate until the
oven cools down.
9.5 Inserting the oven accessories
Deep pan:
Push the deep pan between the guide bars of
the shelf support.
Wire shelf:
Push the shelf between the guide bars of the
shelf support.
ENGLISH 13

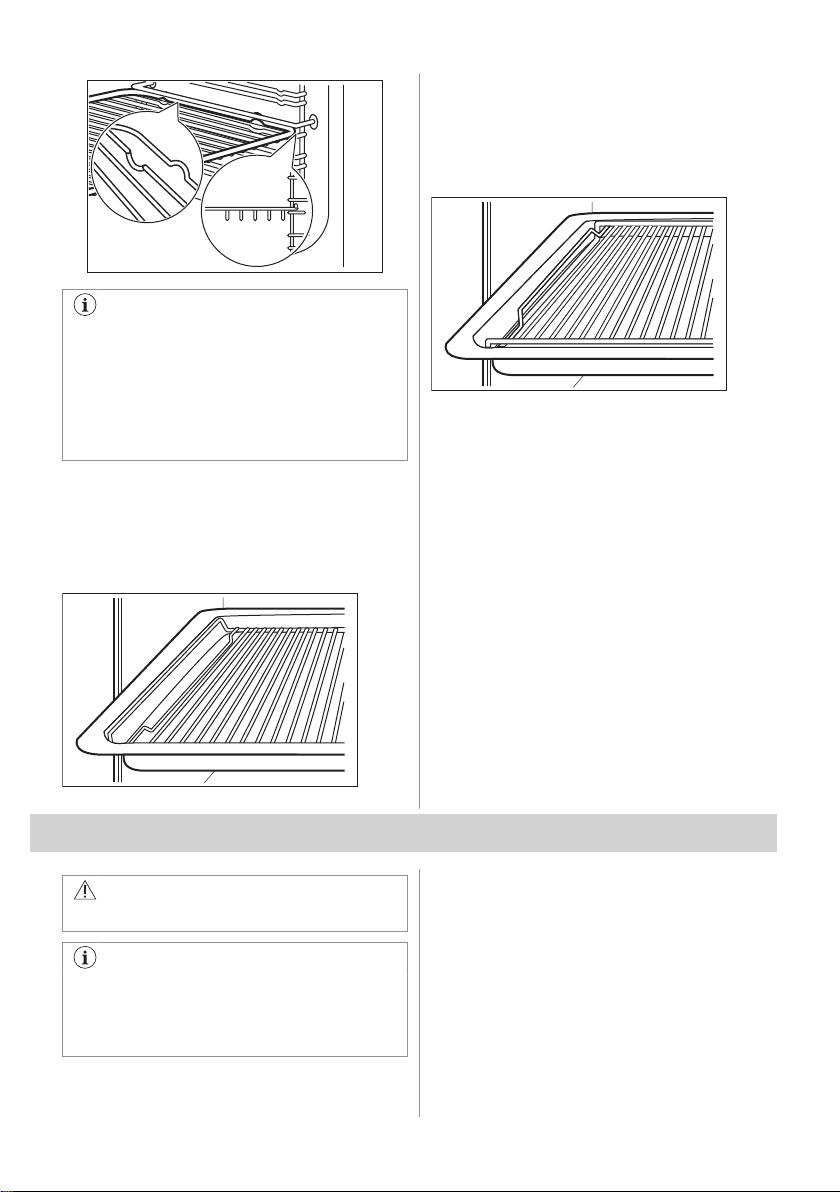

• All accessories have small
indentations at the top of the right and
left side to increase safety. The
indentations are also anti-tip devices.
• The high rim around the shelf is a
device which prevents cookware from
slipping.
9.6 Trivet and Grill- / Roasting pan
You can use the trivet to roast larger pieces
of meat or poultry on one shelf position.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point up.
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in
large quantities and to toast.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point down.
2. Put the deep pan into the oven on the
necessary shelf position.
10. OVEN - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking times in the
tables are guidelines only. They depend
on the recipes and the quality and
quantity of the ingredients used.
10.1 Top oven
The top oven is smaller than the main oven. It
has 3 shelf positions. Use it to cook smaller
quantities of food. It is especially good for
baking fruitcakes, cookies, savoury flans or
quiche.
10.2 Main oven
The main oven is particularly suitable for
cooking larger quantities of food.
14 ENGLISH

10.3 Baking
For the first baking, use the lower
temperature.
You can extend the baking time by 10 – 15
minutes if you bake cakes on more than one
shelf position.
Cakes and pastries at different heights do not
always brown equally. There is no need to
change the temperature setting if an unequal
browning occurs. The differences equalize
during baking.
Trays in the oven can distort during baking.
When the trays are cold again, the distortions
disappear.
10.4 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
baked sufficiently.
The shelf position is incorrect. Put the cake on a lower shelf.
The cake sinks and becomes
soggy or streaky.
The oven temperature is too high. Next time set slightly lower oven tempera‐
ture.
The oven temperature is too high
and the baking time is too short.
Next time set a longer baking time and
lower oven temperature.
The cake is too dry. The oven temperature is too low. Next time set higher oven temperature.
The baking time is too long. Next time set shorter baking time.
The cake bakes unevenly. The oven temperature is too high
and the baking time is too short.
Next time set a longer baking time and
lower oven temperature.
The cake batter is not evenly dis‐
tributed.
Next time spread the cake batter evenly on
the baking tray.
The cake is not ready in the
baking time specified in a rec‐
ipe.
The oven temperature is too low. Next time set a slightly higher oven tem‐
perature.
10.5 Conventional Baking - Top Oven
Food Temperature (°C) Time (min) Shelf position
Biscuits 170 - 190 10 - 20 2
Bread 200 - 220 30 - 35 2
Bread rolls / buns 200 - 220 10 - 15 2
Cakes: Victoria Sandwich 160 - 170 18 - 25 2
Cakes: Madeira 140 - 150 75 - 90 2
Cakes: Rich Fruit 140 - 150 120 - 150 2
Cakes: Gingerbread 140 - 150 80 - 90 2
Cakes: Meringues 90 - 100 150 - 180 2
Cakes: Flapjack 160 - 170 25 - 30 2
Casseroles: Beef / Lamb 160 - 170 150 - 180 2
ENGLISH 15

Food Temperature (°C) Time (min) Shelf position
Casseroles: Chicken 160 - 180 80 - 90 2
Convenience Foods Follow manufacturer`s instructions. 2
Fish 170 - 190 20 - 30 2
Fish Pie (Potato Topped) 190 - 200 20 - 30 2
Fruit Pies, Crumbles 190 - 200 30 - 50 2
Milk Puddings 150 - 170 90 - 120 2
Pasta Lasagne etc. 170 - 180 40 - 50 2
Pastry: Choux 180 - 190 30 - 40 2
Pastry: Eclairs, Profiteroles 180 - 190 30 - 40 2
Pastry: Flaky / Puff Pies 210 - 220 30 - 40 2
Shortcrusts: Mince Pies 190 - 200 15 - 20 2
Shortcrusts: Meat Pies 190 - 210 25 - 35 2
Shortcrusts: Quiche, Tarts, Flans 180 - 200 25 - 50 2
Scones 220 - 230 8 - 12 3
Shepard`s Pie 190 - 200 30 - 40 2
Souffles 170 - 180 20 - 30 2
Vegetables: Baked Jacket Potatos 180 - 190 60 - 90 2
Vegetables: Roast Potatos 180 - 190 60 - 90 2
Yorkshire Pudding Large 220 - 210 25 - 40 2
Yorkshire Pudding Individual 210 - 220 15 - 25 2
Roasting Meat, Poultry Refer to the Roasting table. 2
10.6 Thermaflow® Baking - Main
Oven
Shelf positions are not critical but ensure
that the oven accessories are evenly
spaced when more than one is used.
Food Temperature (°C) Time (min) Shelf posi‐
tion
Biscuits 180 - 190 10 - 20 1 – 3
Bread 190 - 210 30 - 35 2
Cakes: Small & Queen 150 - 170 18 - 25 1 – 3
16 ENGLISH

Food Temperature (°C) Time (min) Shelf posi‐
tion
Cakes: Sponges 160 - 170 20 - 25 3
Cakes: Madeira 140 - 160 60 - 80 3
Cakes: Rich Fruit 130 - 140 120 - 150 3
Cakes: Christmas 130 - 140 180 - 270 3
Cakes: Apple Pie 160 - 170 50 - 60 3
- Shortbread 130 - 150 45 - 60 1 – 3
Fish 160 - 180 30 - 40 3
Fruit Pies, Crumbles 170 - 180 30 - 50 3
Milk Puddings 140 - 160 60 - 90 3
Pastry: Choux 180 - 190 30 - 40 3
Pastry: Shortcrust 180 - 190 25 - 35 3
Pastry: Flaky 180 - 190 30 - 40 3
Pastry: Puff Follow manufacturer`s instructions. Reduce the
temperature for Fan oven by 20 °C.
3
Plate Tarts 180 - 190 25 - 45 3
Quiches / Flans 170 - 180 25 - 45 3
Scones 210 - 230 8 - 12 1 – 3
Roasting: Meat, Poultry 160 - 180 Refer to the Roasting
table.
2
10.7 Tips on Roasting
Use heat-resistant ovenware.
Roast lean meat covered (you can use
aluminium foil).
Roast large meat joints directly in the tray.
Put some water in the tray to prevent dripping
fat from burning.
Turn the roast after 1/2 - 2/3 of the cooking
time.
If level one is suggested put the food directly
on the baking tray
Baste meat joints with their own juice several
times during roasting.
10.8 Thermaflow® - Main Oven
Roasting
Food Temperature (°C) Time (min)
Beef / Beef boned 170 - 190 20 - 35 minutes per 0.5 kg (1 lb) and 20 - 30 minutes over
Mutton / Lamb 170 - 190 20 - 35 minutes per 0.5 kg (1 lb) and 25 - 35 minutes over
Pork / Veal / Ham 170 - 190 30 - 40 minutes per 0.5 kg (1 lb) and 30 - 40 minutes over
Chicken 180 - 200 20 - 25 minutes per 0.5 kg (1 lb) and 20 minutes over
ENGLISH 17

Food Temperature (°C) Time (min)
Turkey / Goose 170 - 190 15 - 20 minutes per 0.5 kg (1 lb) up to 3.5 kg (7 lb) then 10
minutes per 0.5 kg (1 lb) over 3.5 kg (7 lb)
Duck 180 - 200 25 - 35 minutes per 0.5 kg (1 lb) and 25 - 30 minutes over
Pheasant 170 - 190 35 - 40 minutes per 0.5 kg (1 lb) and 35 - 40 minutes over
Rabbit 170 - 190 20 minutes per 0.5 kg (1 lb) and 20 minutes over
10.9 Grilling in general
WARNING!
Always grill with the oven door closed.
•Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• If the first shelf position is recommended
put the food directly on the baking tray.
• Always place the deep pan to collect fat
on the first shelf position.
• Grill only flat pieces of meat or fish.
The grilling area is set in centre of the shelf.
10.10 Dual Grill - Top Oven
Food Time (min) Shelf position
Bacon Rashers 5 - 6 3
Chicken Joints 20 - 40 2
Chops - Lamb 15 - 25 2 - 3
Chops - Pork 20 - 25 2 - 3
Fish - Whole / Trout / Makarel 10 - 12 2
Fillets - Plaice / Cod 4 - 6 2
Kebabs 12 - 18 2 - 3
Kidneys - Lamb / Pig 6 - 10 2 - 3
Sausages 20 - 30 3
Steaks: Rare 4 - 6 3
Steaks: Medium 6 - 8 3
Steaks: Well Done 12 - 15 3
10.11 Defrost
• Remove the food packaging. Put the food
on a plate.
• Do not cover it with a bowl or a plate. This
can extend the defrost time.
• Use the first shelf position. The one on the
bottom.
18 ENGLISH

10.12 Information for test institutes
Main oven
Food Function Tempera‐
ture (°C)
Time (min) Accesso‐
ries
Shelf po‐
sition
Small cakes (20 small
cakes per tray)
Conventional Cooking 170 25 - 35 Tray 3
Small cakes (20 small
cakes per tray)
Thermaflow® 150 25 - 35 Tray 3
Small cakes (20 small
cakes per tray)
Thermaflow® 150 25 - 35 Tray 1 / 4
Apple pie, 2 tins (ø 20 cm)
on the grid, diagonally shif‐
ted
Conventional Cooking 200 80 - 100 Grid 1
Apple pie, 2 tins (ø 20 cm)
on the grid, diagonally shif‐
ted
Thermaflow® 170 80 - 100 Grid 2
Apple pie, 2 tins (ø 20 cm)
on the grid, diagonally shif‐
ted 1)
Steam Bake 160 70 - 80 Tray 2
Fatless sponge cake, 1 tin
(ø 26 cm) on the grid
Conventional Cooking 200 25 - 35 Grid 2
Fatless sponge cake, 1 tin
(ø 26 cm) on the grid
Thermaflow® 170 25 - 35 Grid 2
Fatless sponge cake, 1 tin
(ø 26 cm) on the grid
Thermaflow® 170 30 - 40 Grid 1 / 4
Shortbread/Pastry strip Conventional Cooking 160 20 - 30 Tray 3
Shortbread/Pastry strip Thermaflow® 140 20 - 30 Tray 3
Shortbread/Pastry strip Thermaflow® 140 15 - 25 Tray 1 / 4
1) Add 150 ml of water to the cavity embossment.
Top oven
Food Function Tempera‐
ture (°C)
Time (min) Accesso‐
ries
Shelf po‐
sition
Small cakes (20 small
cakes per tray)
Conventional Cooking 150 25 - 35 Tray 2
Apple pie, 2 tins (ø 20 cm)
on the grid, diagonally shif‐
ted
Conventional Cooking 170 60 - 80 Grid 1
Fatless sponge cake, 1 tin
(ø 26 cm) on the grid
Conventional Cooking 170 20 - 30 Grid 2
Shortbread/Pastry strip Conventional Cooking 140 15 - 25 Tray 2
Toast Full Grill - 3 - 8 Grid 2
ENGLISH 19

Food Function Tempera‐
ture (°C)
Time (min) Accesso‐
ries
Shelf po‐
sition
Beef burger Dual Circuit Grill - 15 - 25 (first
side)
10 - 20 (second
side)
Grid / Roast‐
ing pan
2
11. OVEN - CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
Cleaning Agents
Clean the front of the appliance only with a microfibre cloth with warm water and a mild de‐
tergent.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent.
Everyday Use
Clean the cavity after each use. Fat accumulation or other residue may cause fire.
Do not store the food in the appliance for longer than 20 minutes. Dry the cavity only with a
microfibre cloth after each use.
Accessories
Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm
water and a mild detergent. Do not clean the accessories in a dishwasher.
Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.
11.2 Removing the shelf supports
To clean the oven, remove the shelf supports.
1. Pull the front of the shelf support away
from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
20 ENGLISH
