Smeg SNL61MA9 User manual

Contents
43
EN
1 Instructions 44
1.1 General safety instructions 44
1.2 Manufacturer liability 48
1.3 Appliance purpose 48
1.4 Identification plate 48
1.5 This user manual 48
1.6 Disposal 49
1.7 How to read the user manual 50
2 Description 51

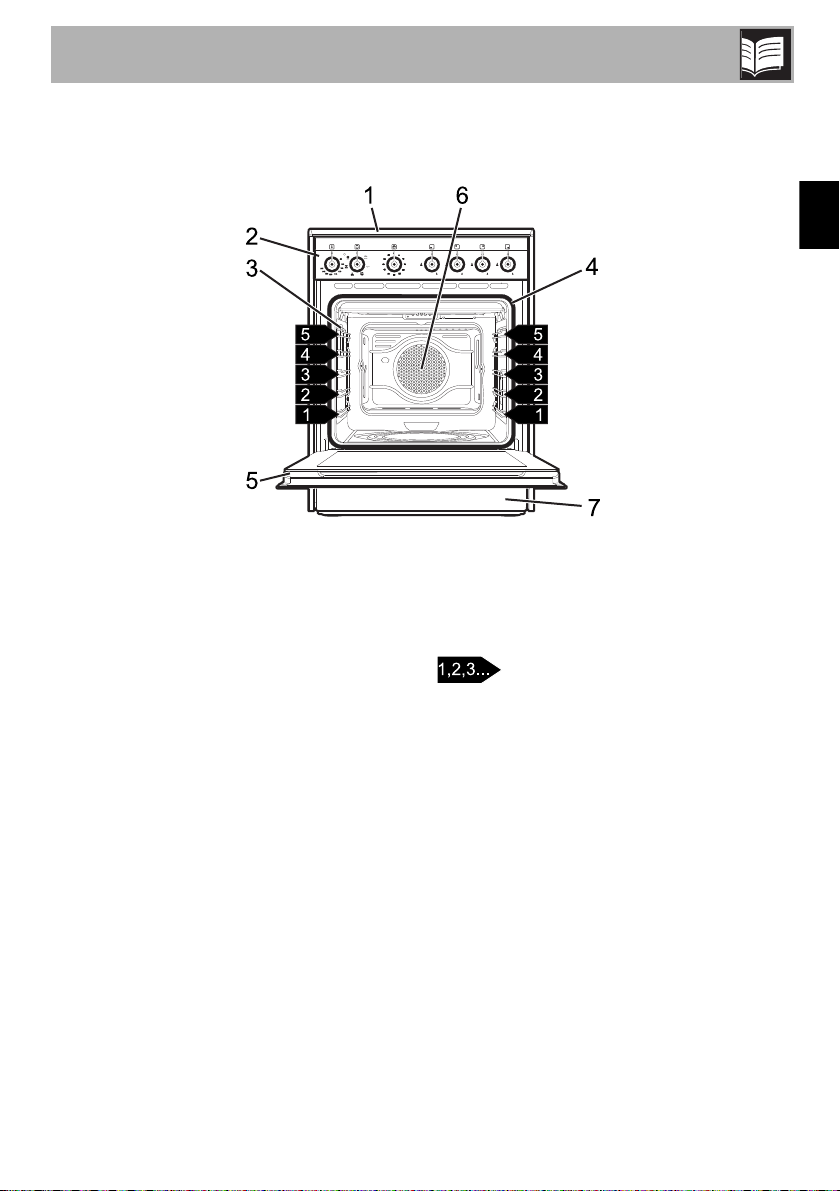

2.1 General Description 51

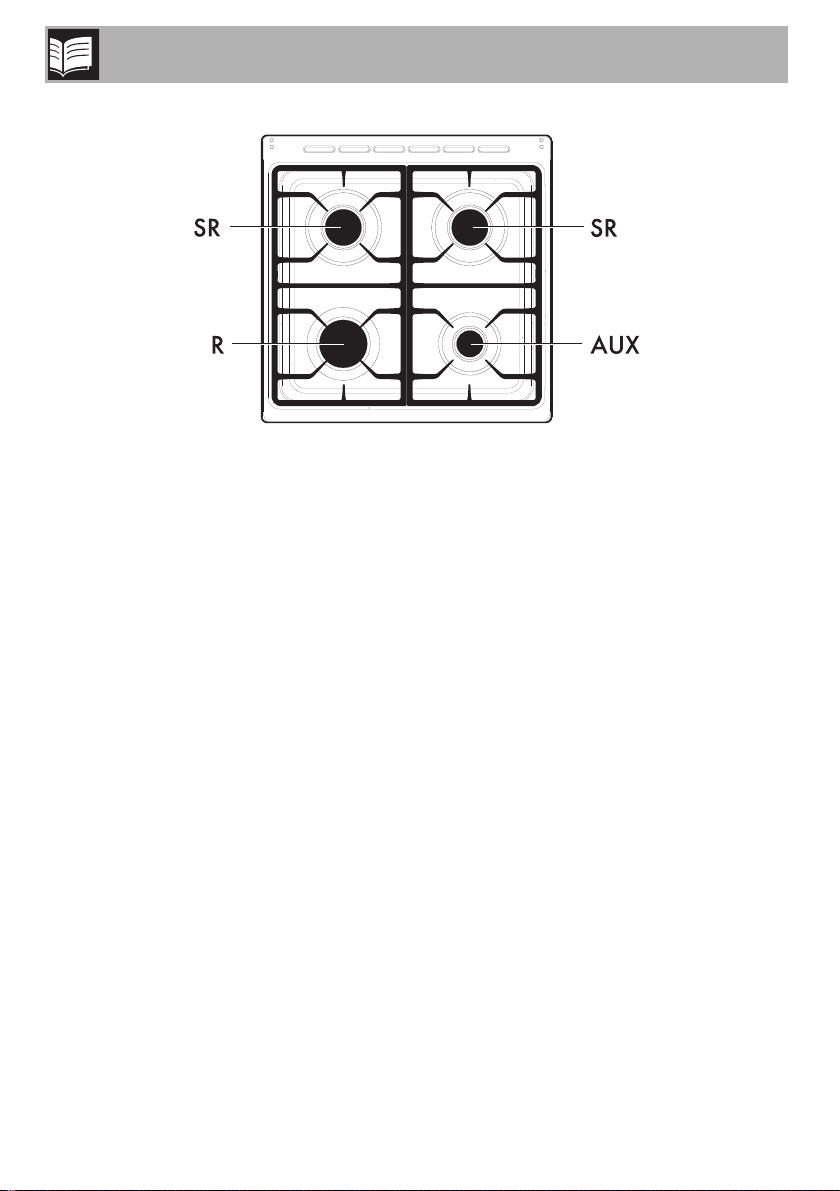

2.2 Cooking hob 52

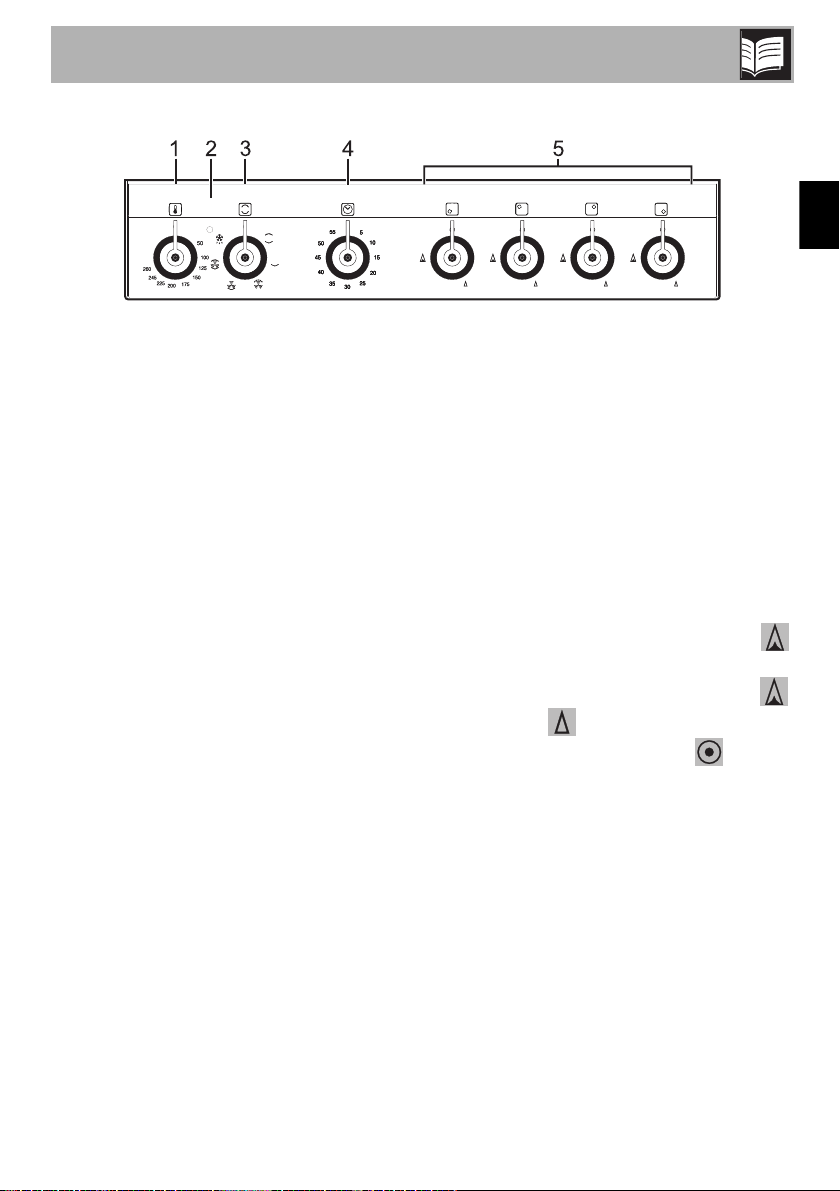

2.3 Control panel 53
2.4 Other parts 54
2.5 Available accessories 54
3 Use 56
3.1 Instructions 56
3.2 Precautions 57
3.3 First use 57
3.4 Using the accessories 58
3.5 Using the storage compartment 59
3.6 Using the hob 59
3.7 Using the oven 60
3.8 Cooking advice 61
4 Cleaning and maintenance 64
4.1 Instructions 64
4.2 Cleaning the appliance 64
4.3 Removing the door 65
4.4 Cleaning the door glazing 66
4.5 Removing the internal glass panes 66
4.6 Cleaning the inside of the oven 67
4.7 Extraordinary maintenance 68
5 Installation 70
5.1 Gas connection 70
5.2 Adaptation to different types of gas 73
5.3 Electrical connection 76
5.4 Positioning 77
5.5 Instructions for the installer 82
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
44
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Make sure that the flame-
spreader crowns are correctly
positioned in their housings with
their respective burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.

Instructions
45
EN
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment (where present)
could be very hot after using the
oven.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN
THE STORAGE
COMPARTMENT (WHERE
PRESENT) OR NEAR TO THE
APPLIANCE.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• Switch off the appliance
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• If required, use a pressure
regulator that complies with
current regulations.
• Installation using a hose must be
carried out so that the length of
the hose does not exceed 2
metres when fully extended for
steel hoses and 1.5 metres for
rubber hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• At the end of the installation,
check for any leaks with a soapy
solution, never with a flame.

Instructions
46
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Do not pull the cable to remove
the plug.
• After carrying out any operation,
check that the tightening torque of
gas connections is between 10 Nm
and 15 Nm.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Never leave objects on the
cooking surface.
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• Do not remove the seal on the
face of the oven.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.

Instructions
47
EN
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash removable parts such
as the hob grids, flame-spreader
crowns and burner caps in the
dishwasher.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN A BOAT OR
CARAVAN.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Have the electrical connection
performed by authorised
technical personnel.
• THE appliance must be
connected to earth in compliance
with electrical system safety
standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.

Instructions
48
For this appliance
• Make sure that the appliance has
been switched off and the mains
power supply disconnected
before replacing the bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than that
specified;
• Failure to comply with the instructions in
the user manual;
• Tampering with any part of the
appliance;
• The use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.

Instructions
49
EN
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Remove the doors and leave the
accessories (racks and trays) in their
usual working positions, so that children
cannot get stuck in the oven
compartment.
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
Deliver the packing materials to the
appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.

Instructions
50
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
51
EN
2 Description
2.1 General Description
1 Cooking hob
2 Control panel
3 Oven light
4 Seal
5 Door
6 Fan
7 Storage compartment (on some models
only)
Rack/tray support frame shelf

Description
52
2.2 Cooking hob
AUX = Auxiliary Burner
SR = Semi-rapid Burner
R = Rapid Burner

Description
53
EN
2.3 Control panel
1 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
2 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
3 Function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
4 Mechanical minute minder timer knob
In order to use the mechanical minute
minder timer, the buzzer must be set by
turning the knob clockwise. The numbers
correspond to minutes (maximum 55 minutes).
Adjustment is progressive and intermediate
positions between the figures can be used.
The end of cooking buzzer does not
interrupt the operation of the appliance.
5 Hob burner knobs
For lighting and adjusting the hob burners.
Press and turn the knobs anti-clockwise to
in order to light the relative burners. Turn the
knobs to the zone between the maximum
and minimum setting to adjust the flame.
Return the knobs to the position to turn
off the burners.

Description
54
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking. The fan causes a
steady outflow of air that exits from the rear
of the appliance and which may continue
for a brief period of time even after the
appliance has been turned off.
Interior lighting
The oven light comes on when the door is
opened or any function is selected.
2.5 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.

Description
55
EN
Oven tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Ring reducer
Useful when using small cookware.
WOK ring
Woks must be used with the specific ring.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
56
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the oven when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fats could catch fire if
overheated. Be very careful.
High temperature inside the
storage compartment (on some
models only)
Danger of burns
• Do not open the storage compartment
when the appliance is on and still hot.
• The items inside the storage
compartment could be very hot after
using the appliance.
• Do not use it for storing flammable items
such as cloths, paper, etc.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels and griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.

Use
57
EN
3.2 Precautions
A gas leak can cause an explosion
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all naked flames and
cigarettes.
• Do not turn on power switches and do
not remove plugs from power sockets.
Do not use phones or mobile phones
inside the building.
• Open the windows in order to ventilate
the room.
• Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre:
• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorised Service
Centre.
3.3 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the
storage compartment (on some
models only)
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance or the storage
compartment.
• Do not use plastic cookware or
containers for cooking food.
• Do not put sealed tins or containers in
the oven.
• Never leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
58
3.4 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Ring reducers
The ring reducers must be placed on the
hob grids. Make sure they are placed
properly.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
59
EN

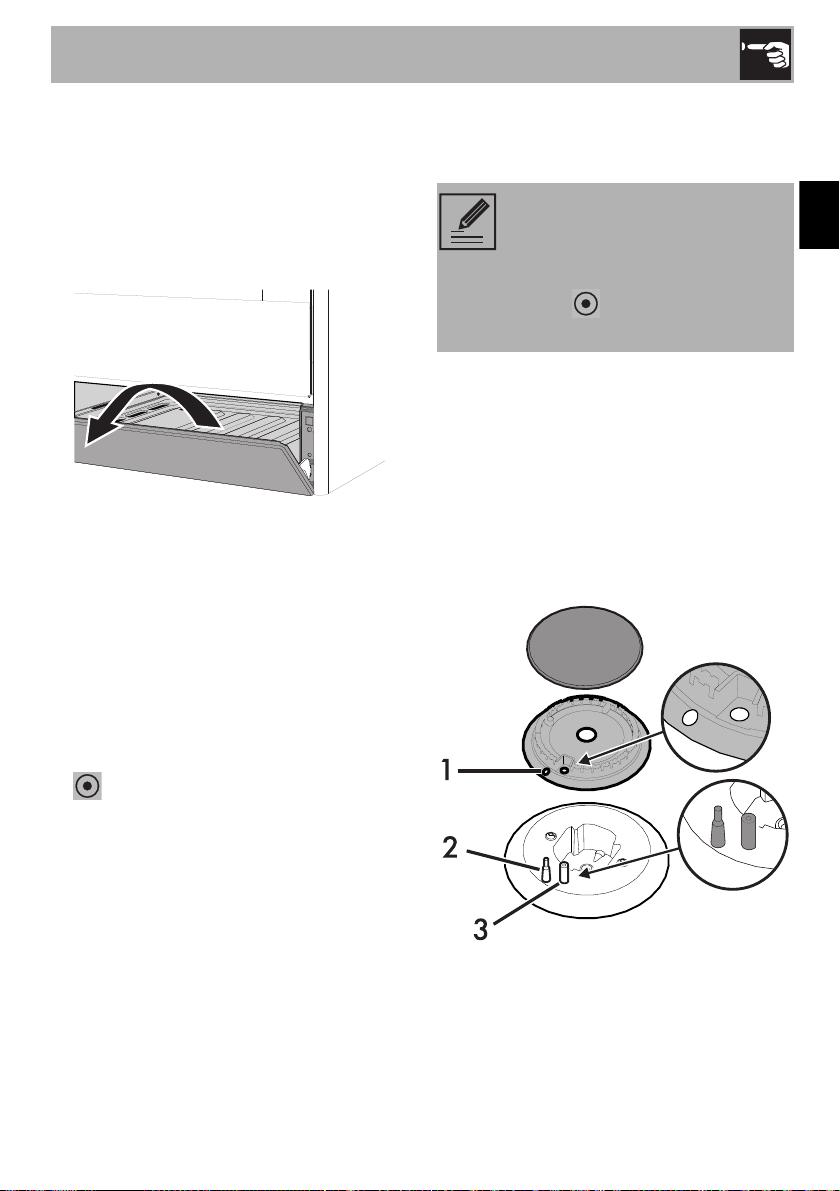

3.5 Using the storage compartment
(on some models only)
There is a storage compartment at the
bottom of the appliance. To open it, pull the
handle towards you. It can be used to store
cookware or metallic objects necessary
when using the appliance.
3.6 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob
to and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the
operation. Keep the knob pressed in
longer.
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes 1in the flame-spreader crowns
are aligned with the igniters 3and
thermocouples 2.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least 60
seconds before lighting it again.

Use
60
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
3.7 Using the oven
Switching on the oven
To switch on the oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
3. Select the required cooking time by
adjusting the mechanical minute minder
knob. Turn the knob clockwise to set the
buzzer. The numbers indicated are
minutes. Adjustment is progressive and
intermediate positions between the
figures can be used. The end of cooking
buzzer interrupts oven operation.
Functions list
Pan diameters:
• Auxiliary: 12 - 14 cm.
• Semi-rapid: 16 - 24 cm.
• Rapid: 18 - 26 cm.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).

Use
61
EN
3.8 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• For the best cooking results, place
cookware in the centre of the rack.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Fan with grill
• With this function, we recommend that
you preheat the oven before grilling.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th shelf).
Rapid defrost
Rapid defrost is helped by the
activation of a fan to ensure uniform
distribution of room temperature air
inside the oven. Perfect for any type
of food.

Use
62
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Limit the opening of the door to a
minimum to prevent the temperature in
the oven from falling and affecting the
result.
• Keep the inside of the appliance clean
at all times.
