Zanussi ZOB140 User manual

EN User manual
Oven
ZOB140

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 10
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 12
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates
or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you
activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
• Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always use
oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
2
www.zanussi.com

• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed be-
low and adjacent safe structures.
• The sides of the appliance must stay adja-
cent to appliances or to units with the same
height.
Electrical connection
Warning! Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
• Make sure not to cause damage to the mains
plug and to the mains cable. Contact the
Service or an electrician to change a dam-
aged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
• The electrical installation must have an isola-
tion device which lets you disconnect the ap-
pliance from the mains at all poles. The isola-
tion device must have a contact opening
width of minimum 3 mm.
Use
Warning! Risk of injury, burns or electric
shock or explosion.
• Use this appliance in a household environ-
ment.
• Do not change the specification of this appli-
ance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful, when you open the appliance
door while the appliance is in operation. Hot
air can release.
3
www.zanussi.com

• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface
or as a storage surface.
• Always keep the appliance door closed when
the appliance is in operation.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a mix-
ture of alcohol and air.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the
enamel:
– Do not put ovenware or other objects in
the appliance directly on the bottom.
– Do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot appli-
ance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
Care and Cleaning
Warning! Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appli-
ance and disconnect the mains plug from the
mains socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the Serv-
ice.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety in-
structions on the packaging.
• Do not clean the catalytic enamel (if applica-
ble) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance, is only for household appli-
ances. Do not use it for house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
4
www.zanussi.com

Product description
General overview
1
2 3 4
5
6
7
8
1Control panel
2Temperature indicator
3Knob for the temperature
4Knob for the oven functions
5Ventilation openings
6Grill
7Oven lamp
8Rating plate
Oven accessories
•Oven shelf
For cookware, cake tins, roasts.
•Deep roasting pan
To bake and roast or as pan to collect fat.
•The roasting pan grid
To put in the deep roasting pan.
Before first use
Warning! Refer to the Safety chapters.
Preheating
1. Set function and maximum temperature.
2. Run an empty oven for 45 minutes.
3. Set function and maximum temperature.
4. Run an empty oven for 15 minutes.
This is to burn off any residue from the cavity
surface. Accessories can become more hot
than in normal use. During this period an odour
and smoke can be emitted. This is normal.
Make sure the airflow is sufficient.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Caution! Do not use abrasive cleaning
agents! This can damage the surface.
Refer to chapter "Care and Cleaning".
Daily use
Warning! Refer to the Safety chapters.
Activating and Deactivating the Oven
1. Turn the oven functions control knob to an
oven function.
2. Turn the temperature control knob to a
temperature.
The temperature indicator comes on while
the oven temperature increases.
5
www.zanussi.com

3. To deactivate the oven, turn the oven func-
tions control knob and the temperature
control knob to the Off position.

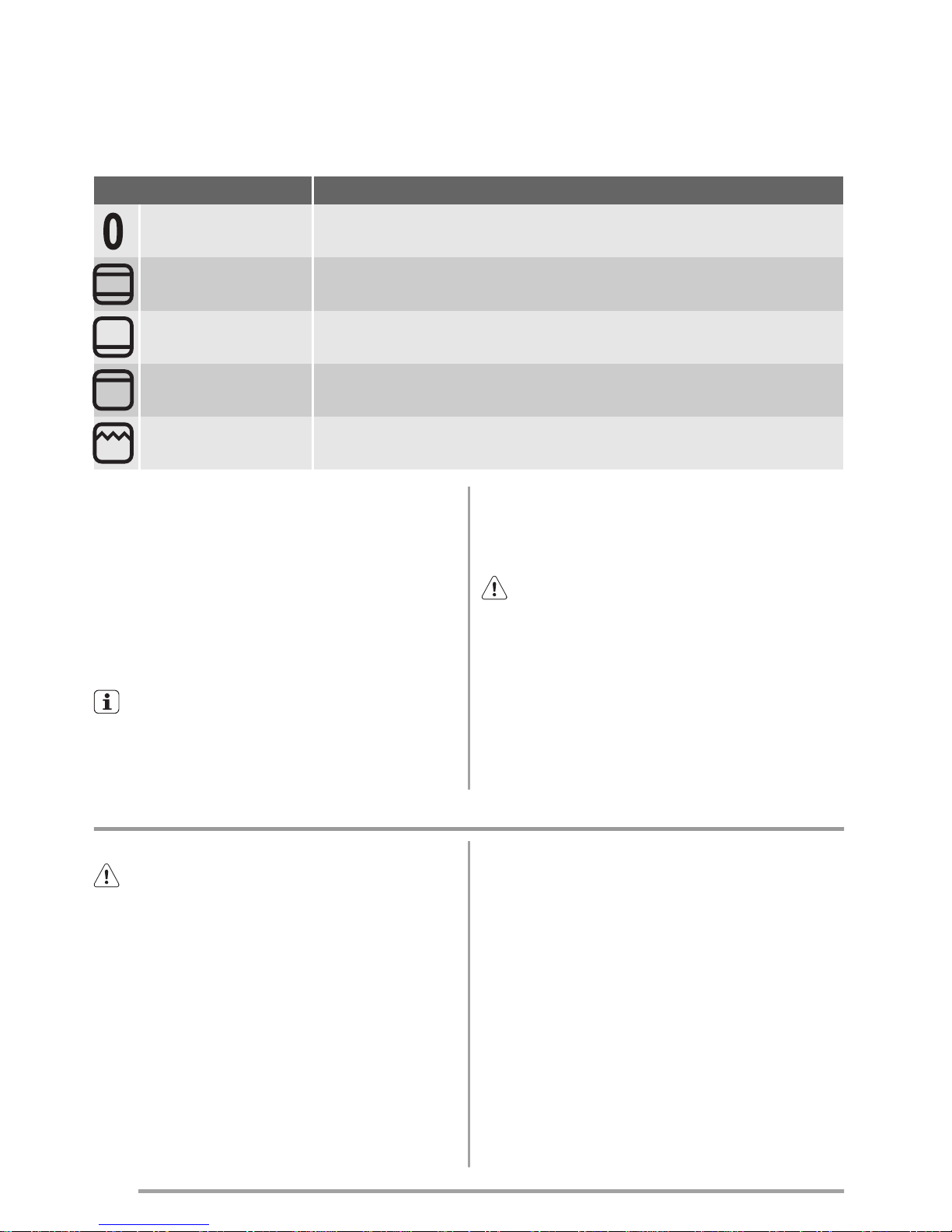

Oven Functions
Oven function Application
OFF position The appliance is OFF.
Conventional cooking Heats both from the top and bottom element. To bake and roast on one
oven level.
Bottom heating ele-
ment
Heats only from the bottom of the oven. To bake cakes with crispy or crusty
bases.
Top heating element Heats only from the top of the oven. To finish cooked dishes.
Dual grill The full grill element is on. To grill flat food items in large quantities. To make
toasts.
Other Functions
Cooling fan
When the appliance operates, the cooling fan
switches on automatically to keep the surfaces
of the appliance cool. If you switch off the ap-
pliance, the cooling fan stops.
Safety thermostat
The safety thermostat is a thermal cut-out
in an operating thermostat.
To prevent damage to the oven thermostat
caused by dangerous overheating, the oven has
a safety thermostat that interrupts the power
supply. The oven switches back on again auto-
matically, when the temperature drops.
Warning! The safety thermostat works
only if the oven thermostat does not
operate correctly. When this occurs, the oven
temperature is very high and can burn all the
dishes. You must call the Service immediately
to replace the oven thermostat.
Helpful hints and tips
Warning! Refer to the Safety chapters.
• The appliance has four shelf levels. Count
the shelf levels from the bottom of the appli-
ance floor.
• The appliance has a special system which
circulates the air and constantly recycles the
steam. With this system you can to cook in a
steamy environment and keep the food soft
inside and crusty outside. It decreases the
cooking time and energy consumption to a
minimum.
• Moisture can condense in the appliance or
on the glass doors. This is normal. Always
stand back from the appliance when you
open the appliance door while cooking. To
decrease the condensation, run the appli-
ance for 10 minutes before cooking.
• Wipe away moisture after every use of the
appliance.
• Do not put the objects directly on the appli-
ance floor and do not cover the components
with aluminium foil when you cook. This can
change the baking results and damage the
enamel coating.
6
www.zanussi.com

Baking cakes
• The best temperature for baking cakes is be-
tween 150 °C and 200 °C.
• Preheat the oven for approximately 10 mi-
nutes before baking.
• Do not open the oven door before 3/4 of the
set cooking time is up.
• If you use two baking trays at the same time,
keep one level empty between them.
Cooking meat and fish
• Do not cook meat with weight below 1 kg.
Cooking too small quantities makes the meat
too dry.
• To keep the red meat well-cooked outside
and juicy inside set the temperature between
200 °C - 250 °C.
• For white meat, poultry and fish, set the tem-
perature between 150 °C - 175 °C.
• Use a dripping pan for very fatty food to pre-
vent the oven from stains that can be perma-
nent.
• Leave the meat for approximately 15 minutes
before carving so that the juice does not
seep out.
• To prevent too much smoke in the oven dur-
ing roasting, add some water into the drip-
ping pan. To prevent smoke condensation,
add water each time after it dries up.
Cooking times
Cooking times depend on the type of food, its
consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting, cook-
ing time, etc.) for your cookware, recipes and
quantities when you use this appliance.
Baking and roasting table
CAKES
TYPE OF DISH Conventional cooking Cooking time
[min] Notes
Level Temp [°C]
Whisked recipies 2170 45-60 In cake mould
Shortbread dough 2170 24-34 In cake mould
Butter-milk cheese
cake
1170 60-80 In cake mould 26 cm
Apple cake (Apple
pie)
1170 100-120 2 cake moulds of 20 cm on the wire
shelf
Strudel 2175 60-80 On baking tray
Jam-tart 2170 30-40 In cake mould 26 cm
Fruit cake 2170 60-70 In cake mould 26 cm
Sponge cake (Fatless
sponge cake)
2170 35-45 In cake mould 26 cm
Christmas cake/Rich
fruit cake
2170 50-60 In cake mould 20 cm
Plum cake 2170 50-60 In bread tin
1)
Small cakes 3170 20-30 On flat baking tray
Biscuits 3150 20-30 On flat baking tray
1)
Meringues 3100 90-120 On flat baking tray
Buns 3190 15-20 On flat baking tray
1)
7
www.zanussi.com

TYPE OF DISH Conventional cooking Cooking time
[min] Notes
Level Temp [°C]
Choux 3190 25-35 On flat baking tray
1)
Plate tarts 3180 45-70 In cake mould 20 cm
Victoria sandwich 1 or 2 180 40-55 Left + right in cake mould 20 cm
1) Preheat for 10 minutes.
BREAD AND PIZZA
TYPE OF DISH
Conventional cook-
ing Cooking time
[min] Notes
Level Temp [°C]
White bread 1190 60-70 1-2 pieces, 500 gr one piece
1)
Rye bread 1190 30-45 In bread tin
Bread rolls 2190 25-40 6-8 rolls on flat baking tray
1)
Pizza 1190 20-30 On deep roasting pan
1)
Scones 3200 10-20 On flat baking tray
1)
1) Preheat for 10 minutes.
FLANS
TYPE OF DISH
Conventional cook-
ing Cooking time
[min] Notes
Level Temp [°C]
Pasta flan 2180 40-50 In mould
Vegetable flan 2200 45-60 In mould
Quiches 1190 40-50 In mould
Lasagne 2200 25-40 In mould
Cannelloni 2200 25-40 In mould
Yorkshire pudding 2220 20-30 6 pudding mould
1)
1) Preheat for 10 minutes.
MEAT
TYPE OF DISH Conventional cooking Cooking time
[min] Notes
Level Temp [°C]
Beef 2200 50-70 On wire shelf and deep roasting pan
Pork 2180 90-120 On wire shelf and deep roasting pan
Veal 2190 90-120 On wire shelf and deep roasting pan
English roast beef rare 2210 44-50 On wire shelf and deep roasting pan
8
www.zanussi.com

TYPE OF DISH Conventional cooking Cooking time
[min] Notes
Level Temp [°C]
English roast beef me-
dium
2210 51-55 On wire shelf and deep roasting pan
English roast beef well
done
2210 55-60 On wire shelf and deep roasting pan
Shoulder of pork 2180 120-150 On deep roasting pan
Shin of pork 2180 100-120 2 pieces on deep roasting pan
Lamb 2190 110-130 Leg
Chicken 2200 70-85 Whole on deep roasting pan
Turkey 1180 210-240 Whole on deep roasting pan
Duck 2175 120-150 Whole on deep roasting pan
Goose 1175 150-200 Whole on deep roasting pan
Rabbit 2190 60-80 Cut in pieces
Hare 2190 150-200 Cut in pieces
Pheasant 2190 90-120 Whole on deep roasting pan
FISH
TYPE OF DISH
Conventional cook-
ing Cooking time
[min] Notes
Level Temp [°C]
Trout/Sea bream 2190 40-55 3-4 fishes
Tuna fish/Salmon 2190 35-60 4-6 fillets
Grilling Preheat the empty oven for 10 minutes,
before cooking.
Quantity Grilling Cooking time in minutes
TYPE OF DISH Pieces glevel Temp.
(°C)
1st side 2nd side
Fillet steaks 4800 3250 12 - 15 12 - 14
Beef steaks 4600 3250 10 - 12 6 - 8
Sausages 8 / 3 250 12 - 15 10 - 12
Pork chops 4600 3250 12 - 16 12 - 14
Chicken (cut in 2) 21000 3250 30 - 35 25 - 30
Kebabs 4 / 3 250 10 - 15 10 - 12
Breast of chicken 4400 3250 12 - 15 12 - 14
Hamburger 6600 3250 20 - 30
Fish Fillet 4400 3250 12 - 14 10 - 12
9
www.zanussi.com

Quantity Grilling Cooking time in minutes
TYPE OF DISH Pieces glevel Temp.
(°C)
1st side 2nd side
Toasted sandwiches 4 - 6 / 3 250 5 - 7 /
Toast 4 - 6 / 3 250 2 - 4 2 - 3
Care and cleaning
Warning! Refer to the Safety chapters.

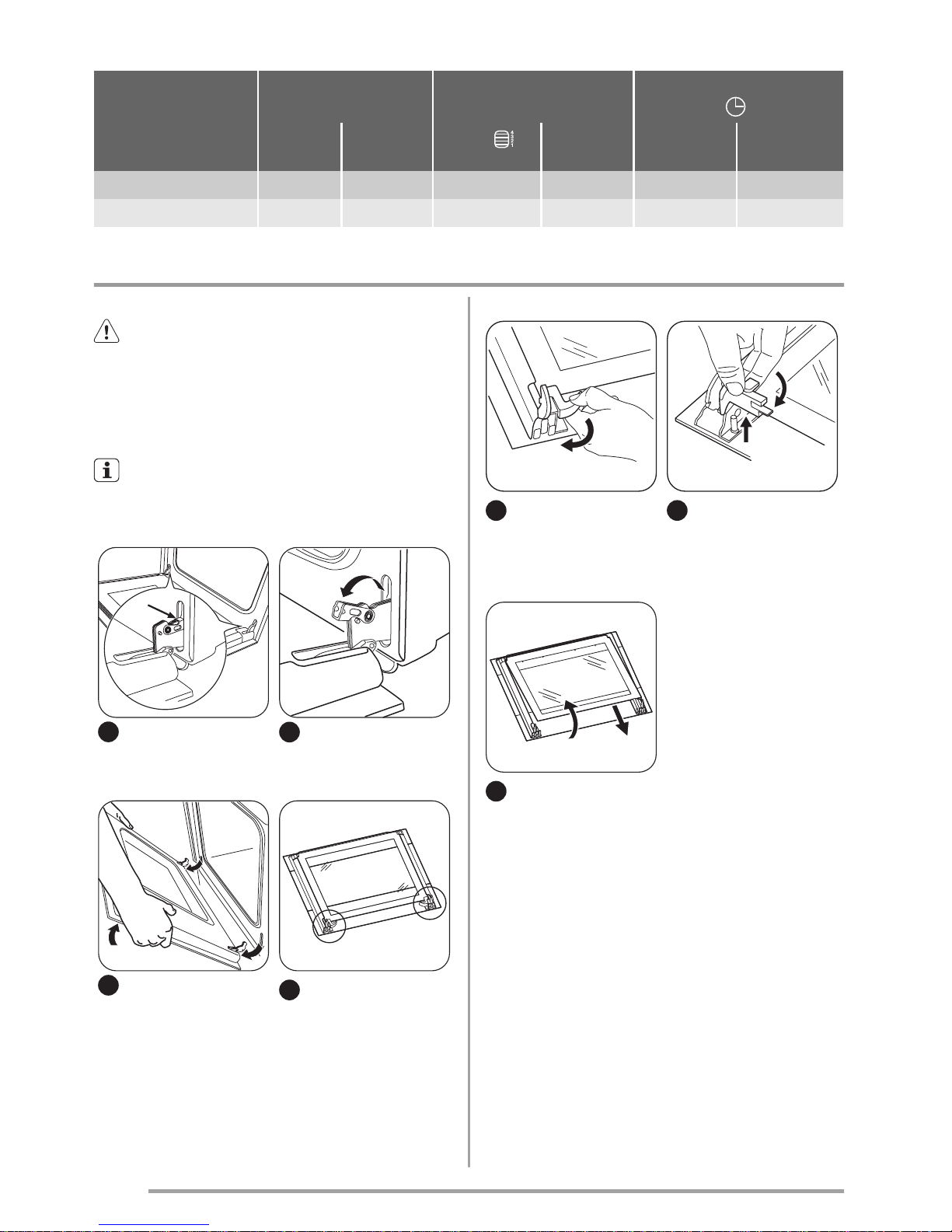

Cleaning the oven door
The oven door has two panels of glass. You
can remove the oven door and the internal pan-
el of glass to clean it.
The oven door can close if you try to re-
move the internal panel of glass before you
remove the oven door.
1
Open the door
fully and hold the two
door hinges.
2
Lift and turn the
levers on the two
hinges.
3
Close the oven
door to the first open-
ing position (halfway).
Then pull forward and
remove the door from
its seat.
4
Put the door on a
soft cloth on a stable
surface.
5
Release the lock-
ing system to remove
the internal panel of
glass.
90°
6
Turn the two fas-
teners by 90° and re-
move them from their
seats.
12
7
Carefully lift (step
1) and remove (step
2) the panel of glass.
Clean the glass panel with water and soap. Dry
the glass panel carefully.

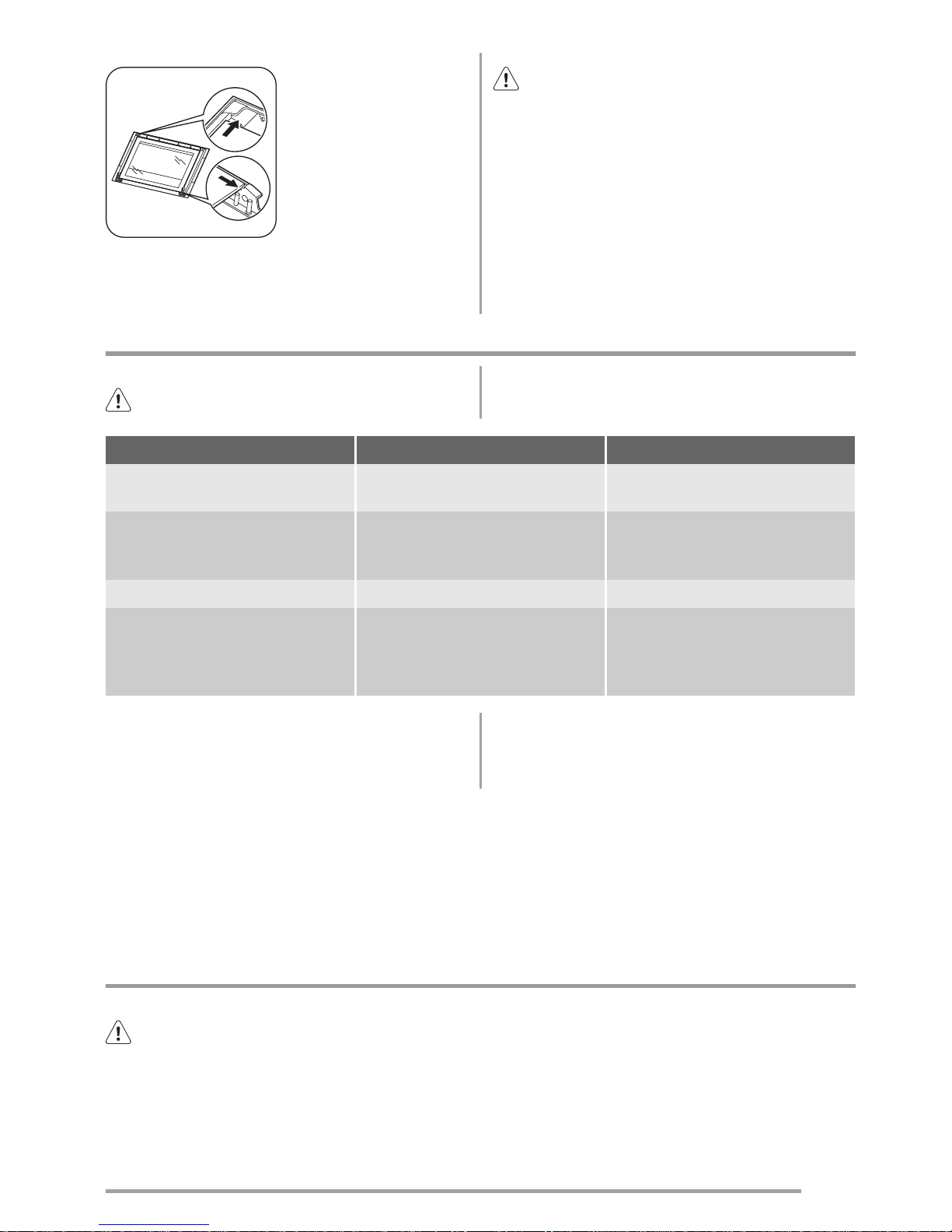

Installing the door and the glass panel
When you install the panel with a decorative
frame, make sure that the screen-printing zone
looks to the inner side of the door. Make sure
that after the installation the surface of the
glass panel frame on the screen-printing zones
is not rough when you touch it.
Make sure that you install the internal panel of
glass in the seats correctly (refer to the illustra-
tion).
10
www.zanussi.com

Replacing the oven light bulb/cleaning
the glass cover
Warning! Be careful! There is the risk of
electrical shock!
1. Turn the glass cover anti-clockwise to re-
move it.
2. Clean the glass cover.
3. Replace the oven light bulb with applicable
300°C heat-resistant oven light bulb. New
oven light bulb must have the same param-
eters as your previous one.
4. Install the glass cover.
What to do if…
Warning! Refer to the Safety chapters.
Problem Possible cause Remedy
The oven does not heat up The oven is not switched on Switch on the oven (refer to chap-
ter "Daily use").
The oven does not heat up The fuse in the fuse box is re-
leased
Control the fuse. If the fuse is re-
leased more than one time, refer
to a qualified electrician.
The oven lamp does not operate The oven lamp is defective Replace the oven lamp
Steam and condensation settle on
the food and in the oven cavity
You left the dish in the oven for
too long
Do not leave the dishes in the
oven for longer than 15-20 mi-
nutes after the cooking process
ends
If you cannot find a solution to the problem
yourself, contact your dealer or the service cen-
tre.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
Warning! Refer to the Safety chapters.
11
www.zanussi.com

594
2
20
570
590
540
560
50
580
550 min
560÷570
550 min
593
560-570
80÷100
A
B
Electrical installation
Important! The manufacturer is not
responsible if you do not obey the safety
precautions from chapter "Safety".
This appliance is supplied without a main plug
and a main cable.
Applicable types of cables for Europe:
• Minimum size Cable/flex: 1,5mm²
• Cable/ flex type: H07 RN-F, H05 RN-F, H05
RRF, H05 VV-F, H05 V2V2-F (T90), H05
BB-F
• Fuse 13 A
Applicable types of cables for UK only
Connection via Min. size Cable/flex Cable/flex type Fuse
• 13 A socket outlet
• 13 A spur box
2,5 mm² Three core butyl insulated 13 A min.
Oven Control Circuit 2,5 mm² PVC/PVC twin and earth 15 A min.
20 A min.
Environment concerns
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your
household waste disposal service or the shop
where you purchased the product.
12
www.zanussi.com

Packaging material
The packaging material is environmentally-
friendly and recyclable. Plastic parts are marked
with international abbreviations such as PE, PS,
etc. Dispose of the packaging material in the
containers provided for this purpose at your lo-
cal waste management facility.
13
www.zanussi.com

14
www.zanussi.com

15
www.zanussi.com

www.zanussi.com/shop
397152501-C-462012
