Zanussi ZOU 662 Q User manual

Einbau-Herd
Built-under oven
ZOU 662 Q
Bedienungs- und Einbauanweisungen
Instruction booklet

18
English
Warnings - Built-under oven
It is most important that the instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can be acquainted with the functioning of the appliance and the
relevant warnings. These warnings are provided in the interest of safety. You must read
them carefully before installing or using the appliance.
Installation
zAny installation work must be undertaken
by a qualified electrician or competent
person.
zInstallation and initial adjustment of your
oven MUST be carried out by qualified
personnel in compliance with current
regulations. Specific installation
instructions for the installer are given in this
booklet.
During use
zThis appliance has been designed for
cooking edible foodstuffs only, and must
not be used for any other purposes.
zAlways stand back from the oven when
opening the oven door during cooking or
at the end of it to allow any build up of
steam or heat to release.
zIt is dangerous to alter the specifications
or modify the product in any way.
zAppliances become very hot with use, and
retain their heat for a long period after use.
Care should be taken to avoid touching
heating elements inside the oven.
zAlways ensure that the control knobs are
in the “off” position when not in use.
zFor hygiene and safety reasons, this
appliance should be kept clean at all times.
A build-up of fats or foodstuffs could result
in a fire.
zNever line any part of the oven with
aluminium foil.
zEasy clean-liners (if provided) should never
be cleaned with any other than soapy water.
zNever use steam or steam machines to
clean the appliance.
zBefore any maintenance or cleaning work
is carried out on the appliance, always turn
off the isolator switch at the cooker point,
and allow to cool.
zEnsure that the shelves are put in place in
the correct way.
zThis oven (even if it is linked to an electrical
cooking table) is made to function at 230 V
mono, double or three-phase with neutral.
zA polyphase linking without neutral (400 V)
can induce the distruction of the oven and
of the eventual cooking table.
Child safety
zThis appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with the
product.
zChildren should be supervised at all times
and should not be allowed to touch the hot
surfaces or be in the vicinity when in use
or until the appliance has cooled after use.
zDuring oven cooking and grilling, the
appliance door and the surrounding parts
are warmed up to a very high temperature.
Be careful and keep children away from
the appliance while you are using it. When
you connect other appliances to a plug near
the oven, check carefully that the wire does
not touch warm parts of the oven and does
not get taken in the oven door.
MANUFACTURER:
ELECTROLUX HOME PRODUCTS ITALY S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italy)

19
Guide to Use the
instructions
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
)
The oven will work only if the time
of day has been set (please read
the relevant instructions).
Once the oven has been installed:
a) set the thermostat knob to “MAX”;
b) switch the oven function control knob to
conventional cooking ( );
c) allow the oven to run empty for
approximately 45 minutes;
d) open a window for ventilation.
During this time, an unpleasant odour may
be emitted. This is absolutely normal, and
is caused by residues of manufacturing.
Repeat this operation for the grill and fan
cookingfunction.
Once this operation is carried out, let the
oven cool down, then clean the oven cavity
with a soft cloth soaked in warm soapy
water.
When the oven is first installed
)
To open the oven door, always
catch the handle in its central
part.
Before cooking for the first time,
carefully wash the oven
accessories.
Technical assistance
zThis appliance should be serviced by an
authorized Network Service Centre, and only
genuine spare parts should be used.
zUnder no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Refer to your local Service
Centre. Always insist on genuine spare
parts.
)
This appliance complies with the
following E.E.C. Directives:
- 73/23 - 90/683 (Low Voltage Directive);
- 89/336 (Electromagnetical Compatibility
Directive);
- 93/68 (General Directives)
and subsequent modifications.
Fig. 1

20

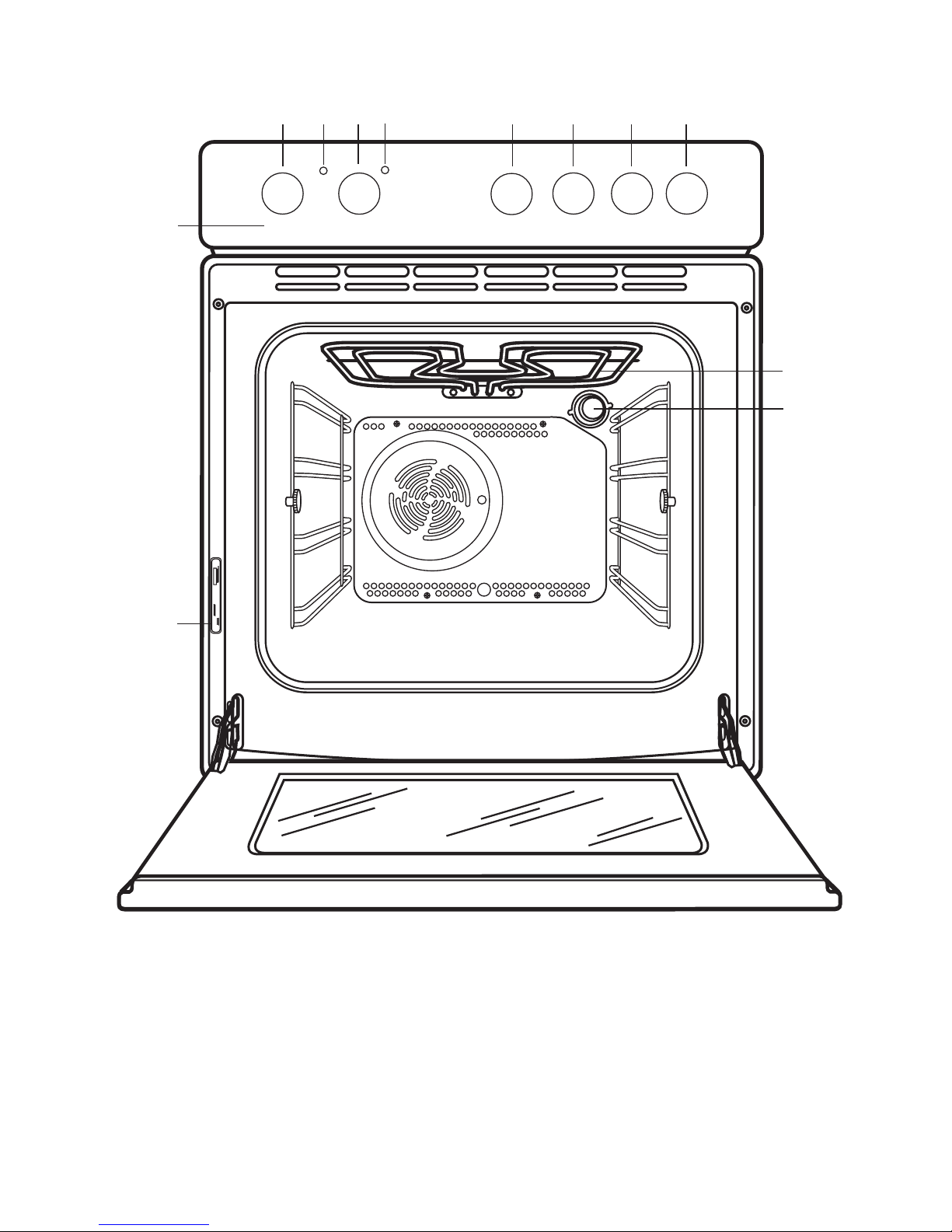

Description of the appliance
1. Control Panel
2. Front right hotplate/cooking zone control
knob
3. Rear right hotplate/cooking zone control
knob
4. Rear left hotplate/cooking zone control
knob
5. Front left hotplate/cooking zone control
knob
723456
1
11
98
6. Thermostat control knob
7. Thermostat control light
8. Cooking function control knob
9. Operating control light
10. Grill
11. Oven lamp
12. Rating plate
10
12

21
Electric oven

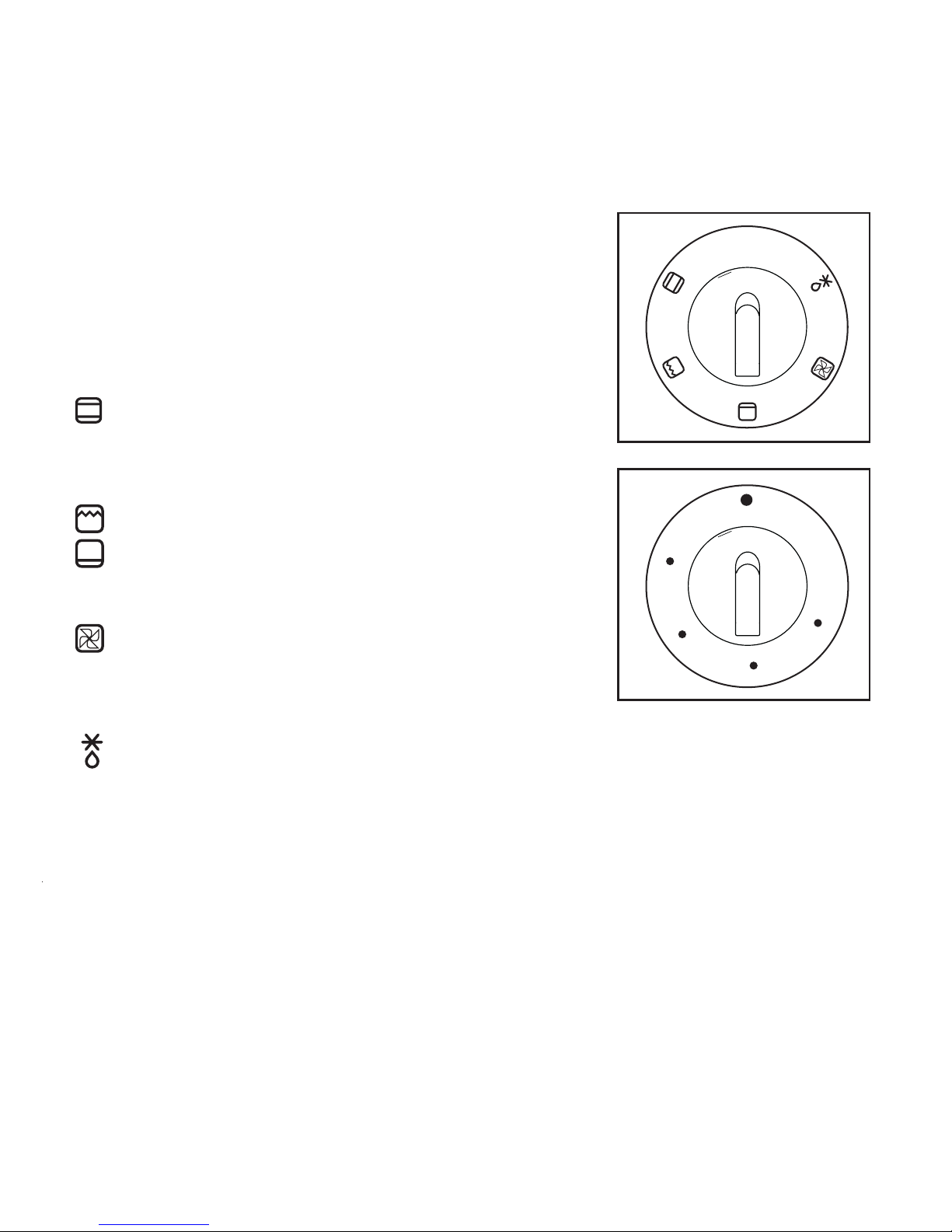

Oven Function (Fig. 2) and
Thermostat (Fig. 3) control
knobs
They enable to select the most appropriate
type of heating for the different cooking
requirements by appropriately connecting
the heating elements and adjusting
temperature to the required level.
0OFF position
Conventional cooking - The heat
comes from both the top and bottom
element, ensuring even heating inside
the oven.
Grill - The grill element will be on.
Bottom heating element - The heat
comes from the bottom of the oven
only.
Fan cooking - This allows you to roast
or roast and bake simoultaneously
using any shelf, without flavour
transference.
Defrost Setting - This setting is
intended to assist in thawing of frozen
food.
Fig. 3
Fig. 2
0
50
MAX
100
150
200

22
Oven thermostat control light
This light goes off when the oven heats up
to the temperature set and comes on again
every time the thermostat cuts in to stabilize
temperature.
Operating control light
It indicates that one or more of the heating
elements are turned on.
Safety thermostat
In order to avoid excessive overheating due
to incorrect use of the appliance or else to a
faulty component, the oven is equipped with
a safety thermostat which cuts off the power
supply if necessary. Operation is restored
automatically when the oven temperature
decreases to normal values. Therefore, if the
thermostat cuts in because you have not
been using the appliance correctly, the oven
can be used again simply by waiting for the
appliance to cool down. If, instead, the
thermostat cuts in because of a faulty
component, you should call the Service
Department.

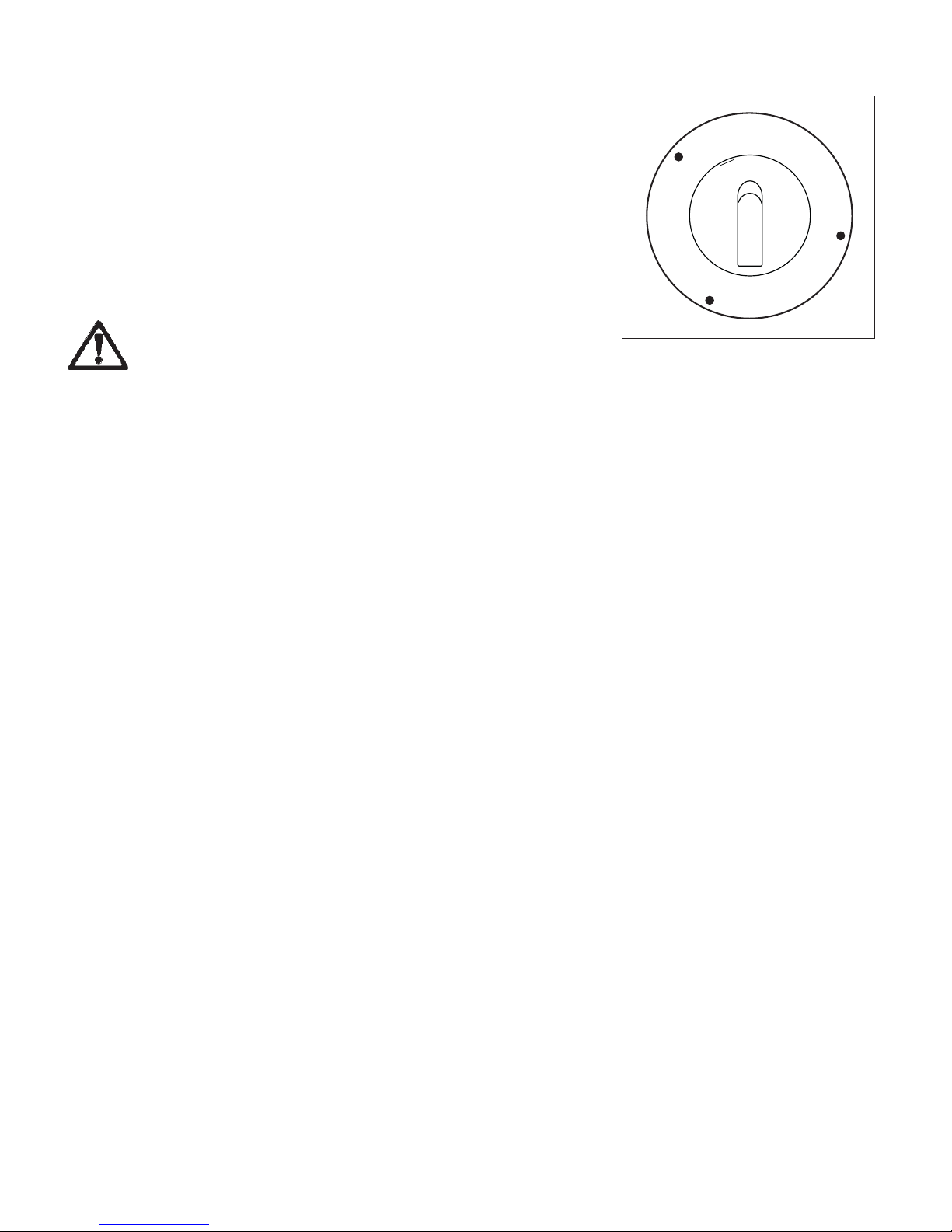

Hotplate control knobs
The Control Knobs for the hotplates (Fig. 4)
can be found on the oven control panel. The
energy regulator of the hotplates can be set
by means of a 7-position control knob:
0=Off
1= Minimum
3= Maximum
The intermediate positions give an increasing
heating power.
Carefully supervise cookings with
oil or fats, since these types of
food can result in a fire, when
over-heated.
Fig. 4
0
3
2
1

23
Hints and tips for using the oven
Always cook with the oven door
closed.
The oven is supplied with an exclusive system
which produces a natural circulation of air
and the constant recycling of steam.
This system makes it possible to cook in a
steamy environment and keep the dishes soft
inside and crusty outside. Moreover, the
cooking time and energy consumption are
reduced to a minimum. During cooking steam
may be produced which can be released when
opening the oven door. This is absolutely
normal.
However, always stand back from the
oven when opening the oven door during
cooking or at the end of it to allow any
build up of steam or heat to release.
Conventional cooking
Heat comes from the top and from the
bottom, therefore it is preferable to use the
central runners.
If cooking requires more heat from the top
or from the bottom use the top or the bottom
runners.
Fan cooking
The food is cooked by means of preheated
air force blown evenly round the inside of
the oven by a fan set on the rear wall of the
oven itself.
Heat thus reaches all parts of the oven evenly
and fast and this means that you can
simultaneously cook different types of foods
positioned on the various oven shelves (Fig.
5). Fan cooking ensures rapid elimination
of moisture and the dryer oven environment
stops the different aromas and flavours from
being transmitted from one food to another.
The possibility of cooking on several shelf
heights means that you can cook several
different dishes at the same time and up to
three tins of biscuits and mini pizzas to be
eaten immediately or subsequently deep
frozen.
Naturally the oven can also be used for
cooking on just one shelf. In this case you
should use the lowest set of runners so that
you can keep an eye on progress more
easily.
In addition, the oven is particularly
recommended for sterilizing preserves,
cooking home-made fruit in syrup, and for
drying mushrooms or fruit.
Grilling
When grilling meat or fish, spread a little oil
onthem and always place them on the oven
grid. The shelf level depends on the
thinckness of the food.
Always place the dripping pan at the lowest
level, with some water in it, to avoid smoke
and unpleasant smells.
Some hints
For baking cakes
Cakes require a moderate temperature
(normally between 150 and 200 °C). In
addition, the oven must be heated up
beforehand - for about 10 minutes.
The oven door should not be opened before
at least 3/4 of the set cooking time is up.
Normal short pastry dough should be
cooked in a mould or tin for 2/3 of total
cooking time required and then garnished
as desired before being cooked completely.
Clearly, the remaining cooking time depends
on the type of garnish used (jam, fruit, etc.).
Care should be taken to ensure that any
dough and cake mixes are of the right
consistency since an unduly moist mix
lengthens cooking time unnecessarily. The

24
raw dough or mix should therefore be fairly
difficult to detach from the spoon or beater.
If three shelves are filled with cakes and tarts
simultaneously, it is advisable to slot in an
extra shelf between the two lower shelves
(Fig. 5).
For cooking meat and fish
Meat cooked in the oven should weigh at
least 1 kg to prevent it from becoming too
dry during cooking. Very tender red meat to
be cooked rare, i.e. well cooked on the
outside but extremely juicy inside, requires
high-temperature cooking (200-220 °C).
White meat, poultry and fish instead require
low-temperature cooking (150-175 °C).
The ingredients for the accompanying sauce
or gravy should be put in the baking pan at
the very beginning only when cooking times
are short.
Otherwise they should be added during the
last half hour. A simple way of checking
whether meat is done or not is to press it
with a spoon; if the meat does not yield
under this pressure it means that it is done
to a turn. In the case of roast beef and fillet
steaks, the inside of which should remain
fairly pink in color, cooking times must be
short.
The meat can be cooked in a baking pan
or else directly on the shelf - in this case a
dripping pan must obviously be placed
underneath the shelf to collect the juice.
Should you cook very fat food, place the
meat directly on the grill and the grill over
the dripping pan in order not to dirty the oven.
Once the meat is cooked, it is advisable to
let it rest for at least 15 minutes before
carving so that the juice does not seep out.
To prevent the formation of too much smoke
in the oven during roasting, it is a good idea
to pour a little water into the dripping pan
and—to prevent steam—to add a little bit
more during cooking if the original amount
dries up too much.
Before serving, the various courses can be
kept hot in the oven which should be turned
down to the minimum temperature.
Warning! - Do not place objects on
the bottom of the oven and do not
cover it with aluminium foil while
cooking, as you can damage the
enamelled surfaces and the food you
are cooking.
Always place pans, heat-resisting
pans and aluminium foils on the oven
shelves.
Warning!-Becareful whenyouinsert
and extract the grid and the dripping
pan from the oven in order not to
damage the enamelled surfaces of
the oven cavity.
Cooking times
Cooking times vary according to the type of
food to be cooked, its consistency, and
volume.We suggest that you take particular
note of your first cooking experiments with
the oven, since operating in the same
conditions for the same dishes you will of
course obtain similar results.
Only experience will enable you to make
the appropriate changes to values given
on charts.
Fan cooking
Fig. 5
4
3
2
1

25
Cooking Tables
4
3
2
1
4
3
2
1
CAKES
Whipped up kneading 2 170 2 (1 and 3)* 160 45 ~ 60 In cake mould
Shortbread dough 2 170 2 (1 and 3)* 160 20 ~ 30 In cake mould
Butter-milk cheese cake 1 160 2 150 60 ~ 80 In cake mould
Apple cake 1 180 2 (1 and 3)* 170 40 ~ 60 In cake mould
Strudel 2 175 2 150 60 ~ 80
Jam-tart 2 175 2 (1 and 3)* 160 30 ~ 40
Fruit cake 1 175 1 160 45 ~ 60 In bread pan
Sponge cake 1 175 2 (1 and 3)* 160 30 ~ 40 Incake mould
Christmas cake 1 170 1 160 40 ~ 60 Incake mould
Plum cake 1 170 1 160 50 ~ 60 In bread pan
Small cakes 2 175 2 (1 and 3)* 160 25 ~ 35 In baking tray
Biscuits 2 160 2 (1 and 3)* 150 20 ~ 30 In baking tray
Meringues 2 100 2 (1 and 3)* 100 90 ~ 120 In baking tray
Buns 2 190 2 (1 and 3)* 180 12 ~ 20 In baking tray
Pastry: Choux 2 200 2 (1 and 3)* 190 15 ~ 25 In baking tray
BREAD AND PIZZA
1000 White bread 1 190 2 180 40 ~ 60 1-2 pieces
500 Rye bread 1 190 1 180 30 ~ 45 In bread pan
500 Bread rolls 2 200 2 (1 and 3)* 175 20 ~ 35 6-8 rolls
250 Pizza 1 210 2 (1 and 3)* 190 15 ~ 30 in baking pan
FLANS
Pasta flan 2 200 2 (1 and 3)* 175 40 ~ 50 in mould
Vegetable flan 2 200 2 (1 and 3)* 175 45 ~ 60 in mould
Quiches 1 200 2 (1 and 3)* 180 35 ~ 45 in mould
Lasagne 2 180 2 160 45 ~ 60 in mould
Cannelloni 2 200 2 175 40 ~ 55 in mould
MEAT
1000 Beef 2 190 2 175 50 ~ 70 On grid
1200 Pork 2 180 2 175 100 ~ 130 On grid
1000 Veal 2 190 2 175 90 ~ 120 On grid
1500
English roast beef
1500 underdone 2 210 2 200 50 ~ 60 On grid
1500 done 2 210 2 200 60 ~ 70 On grid
1500 well done 2 210 2 200 70 ~ 80 On grid
2000 Shoulder of pork 2 180 2 170 120 ~ 150 With rind
1200 Shin of pork 2 180 2 160 100 ~ 120 2 pieces
1200 Lamb 2 190 2 175 110 ~ 130 Leg
1000 Chicken 2 190 2 175 60 ~ 80 Whole
4000 Turkey 2 180 2 160 210 ~ 240 Whole
1500 Duck 2 175 2 160 120 ~ 150 Whole
3000 Goose 2 175 2 160 150 ~ 200 Whole
1200 Rabbit 2 190 2 175 60 ~ 80 Cut in pieces
1500 Hare 2 190 2 175 150 ~ 200 Cut in pieces
800 Pheasant 2 190 2 175 90 ~ 120 Whole
Meat loaf 2 180 2 160 40 ~ 60 in bread pan
FISH
1200 Trout/Sea bream 2 190 2 (1 and 3)* 175 30 ~ 40 3-4 fishes
1500 Tuna fish/Salmon 2 190 2 (1 and 3)* 175 25 ~ 35 4-6 fillets
Traditional
Cooking
Weight (gr.)
TYPE OF DISH Level
Fan Oven
NOTES
Cooking
time
minutes
temp.
°C
Level temp.
°C
Traditional cooking and fan ducted cooking
(*) If you need to cook more than one dish at the same time, we recommend you to place them on the levels
quoted between brackets.

26
Before any cleaning switch the
oven off and let it cool down.
Never use steam or steam
machines to clean the appliance.
Important! Before carrying out
maintenance and cleaning
operations, make sure that your
oven is disconnected from the
mains power supply.
Cleaning must be carried out after the oven
has cooled down. Wash the enamelled
parts with lukewarm water and detergent.
Do not use abrasive products, such as steel
wool pads, acids etc. since these could
damage the various surfaces. Rinse
stainless steel parts with water after use,
and dry them with a soft cloth or chamois
leather.
Cleaning and Maintenance
In the case of persistent stains, you can
use normal non-abrasive detergents or
products specific for stainless steel readily
available on the market. Another
alternative is a drop of hot vinegar. When
cleaning the oven door with the glass top
cover use just hot water, taking care to avoid
using coarse cloths or abrasive products.
The hot acids of fruit (e.g. Iemons, stewed
prunes, etc.) leave difficult-to-remove
stains on the enamelled surfaces; this
inconvenient may remove enamel gloss,
but, it does not impair oven operation.
Clean the oven thoroughly after use; in this
way it will be possible to remove cooking
residuals more easily, thus avoiding these
from burning the next time the oven is used.
Fillet steaks 4 800 3 max 12 ~ 15 12 ~ 14
Beef-steaks 4 600 3 max 10 ~ 12 6 ~ 8
Sausages 8 — 3 max 12 ~ 15 10 ~ 12
Pork chops 4 600 3 max 12 ~ 16 12 ~ 14
Chicken (cut in two) 2 1000 3 max 30 ~ 35 25 ~ 30
Kebabs 4 — 3 max 10 ~ 15 10 ~ 12
Chicken (breast) 4 400 3 max 12 ~ 15 12 ~ 14
Hamburger 6 600 3 max 10 ~ 15 8 ~ 10
Fish (fillets) 4 400 3 max 12 ~ 14 10 ~ 12
Sandwiches 4-6 — 3 max 5 ~ 7 —
Toast 4-6 — 3 max 2~4 2 ~ 3
Grilling (**)
Upper
side
°C
temp.
Pieces Weight
Quantity Cooking time
(minutes)
Lower
side
Grilling
TYPE OF DISH
Level
4
3
2
1
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease
the temperatures to suit individual preferences and requirements. Cooking times in the tables do
not include pre-heating.
We recommend, especially when cooking cakes, pizza and bread, to pre-heat the oven for about 10
minutes before cooking.
(**)Cooking times in the table do not include pre-heating. We recommend to pre-heat the oven for
about 5 minutes before cooking.

27
Models in stainless steel or aluminium:
We recommed to clean the oven door using
only a wet sponge and dry it up after cleaning
with a soft cloth.
Never use steel wool, acids or abrasive
products as they can damage the oven
surface.
Clean the oven control panel following the
same precautions.
Oven door cleaning
For a better cleansing of the oven door, you
are suggested to remove it from the appliance
with the following procedure:
- open tho door completely; lift the small
levers placed on the two hinges and turn
the levers towards the inside (Fig. 6).
- Slowly close the oven door, until it
touches the two levers,
- then push it towards the oven and
remove it by pulling it towards the
outside.
- Place the door on a horizontal level.
After cleaning, assemble the door again
by carrying out the procedure described
above backwards. When the two small
levers are placed again on the hinges, the
door will have been accurately fit.
Fig. 6 FO 0452
The Hinged Grill
Some models are fitted with a hinged grill
element, to enable you to clean the roof of
the oven easily.
Before proceeding ensure the
oven is cool and is isolated from
the electricity supply.
zUndo the screws which hold the grill in
place (see Fig. 7). When doing this
operation for the first time, we
recommend using a screwdriver.
zThen gently pull the grill downward to
allow access to the oven roof.
zClean the oven roof with a suitable
cleaner and wipe dry before replacing the
hinged grill element.
zGently push up the grill element into
place and firmly screw into place the
holding nuts.
Ensure the grill holding nuts are
firmly in place to avoid the grill
falling down when in use.
Fig. 7

28
If the appliance is not working correctly, please carry out the following checks, before
contacting your local Service Centre.
What happens if something goes
wrong
SOLUTION
Check the oven is in manual operation and
that both a cooking function and a temperatu-
re have been selected.
or
Check the appliance is wired in properly, and
the socket switch or the switch from the
mains supply to the oven are ON.
Turn the thermostat knob on a temperature.
or
Turn the oven function control knob on a
function.
Turn the oven function control knob on a
function.
or
Buy a new oven light bulb, asking for it to your
local Service Centre and replace it by following
the instruction provided in this booklet.
Refer to the contents of this booklet,
especially to the chapter "Electric oven".
Leave dishes inside the oven no longer than
15-20 minutes after the cooking is completed.
SYMPTOM
 The oven does not come on
 The oven temperature light does
not come on
 The oven light does not come on
 It takes too much time to finish the
dishes, or they are cooked too fast.
 Steam and condensation settle on
the food and the oven cavity.
Replacing the oven light
Disconnect the appliance from its power
supply point. Push in and unscrew the glass
cap (Fig. 8). Unscrew the light bulb and
replace it with a new heat-proof bulb (300
°C) having the following features: - Operative
tension: 230 V (50 Hz); - Power: 25 W; -
Fitting: E 14. Reconnect the appliance.
Fig. 8

29

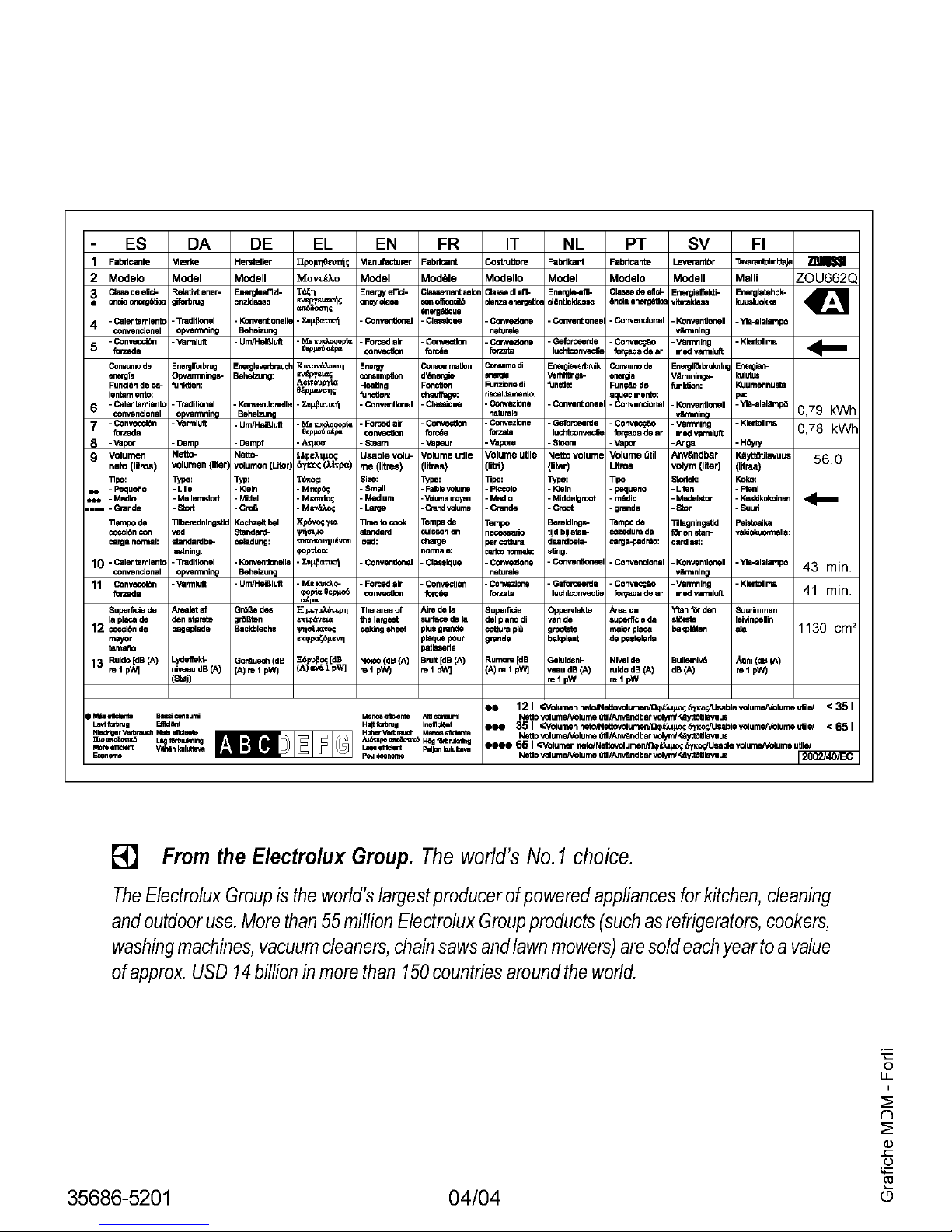

Technical Data
Dimension of the oven recess
Height 593 mm
Width 560 mm
Depth 550 mm
Dimensions of the oven
cavity
Height 335 mm
Width 395 mm
Depth 400 mm
Capacity 53 l
Oven thermostat regulation: from 50 °C up
to 230 °C
Heating elements ratings
Bottom heating element 1000 W
Top heating element 800 W
Full Oven (Top+Bottom) 1800 W
Grill heating element 1650 W
Oven lamp 25 W
Convection fan 30 W
Maximum power rating 1855 W
Voltage tension (50 Hz) 230 V - 400 V

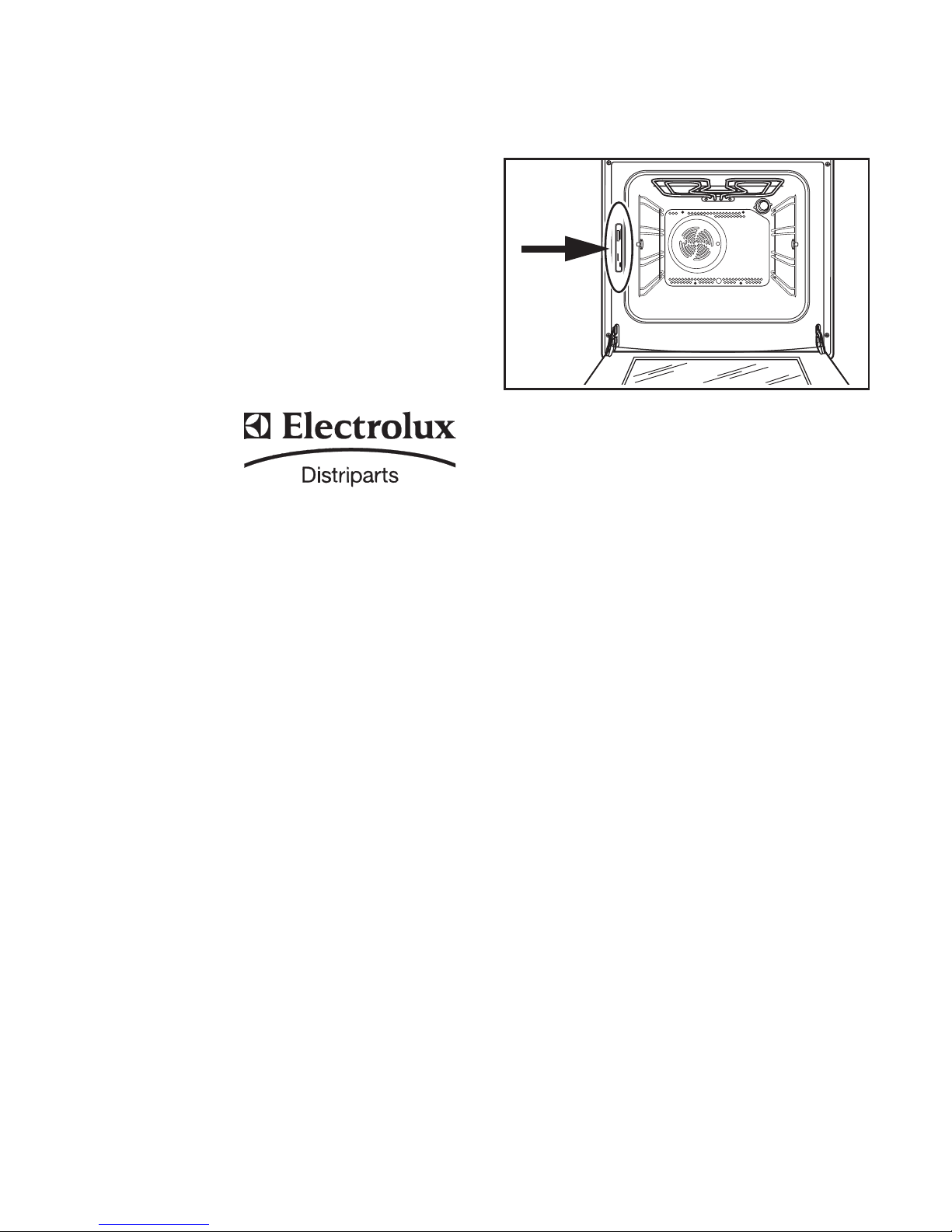

If after the checks listed in the previous
chapter, the appliance still does not work
correctly, contact your local Service
Centre, specifying the type of
malfunctioning, the appliance model (Mod.),
the product number (Prod. No.) and the
serial number (Ser. No.) marked on the
identification plate. This plate is placed on
the front external edge of the oven cavity.
Original spare parts, certified by the product
manufacturer and carrying this symbol, are
only available at our Service Centre and
authorized
spare parts
shops.
Service and Spare Parts
This appliance can be connected to
variuos ceramic hobs:
zz
zz
zCeramic hobs
Type: ZK 64
Maximum power absorbed 5,8 kW
Type: ZC 6675
Maximum power absorbed 5,8 kW
Type: ZC 6685
Maximum power absorbed 6,5 kW
Type: ZK 630
Maximum power absorbed 7,6 kW
Type: ZK 640
Maximum power absorbed 7,4 kW
Power supply voltage (50 Hz) 230 V
Nominal heating power
zz
zz
zOven with ceramic hob
7,655 kW - 8,355 kW - 9,455 kW -
9,255 kW

30
Instructions for the installer
The instructions given below are
designed specifically for a qualified
installer and should aid him or her to
perform all installation, adjustment,
and maintenance operations with
absolute precision and in compliance
with all current legislation and
regulations. We strongly recommend
that all operations for the installation
of your cooker be carryed out by
Qualified Personnel in accordance
with existing rules and regulations.
Electrical connection
Prior to making the electrical connection,
make sure that:
— the protection fuse and the domestic wiring
system are suitable to carry the total
electric load of the oven (see rating plate);
— your domestic wiring system has an
efficient earth connection in compliance
with rules and laws in force;
— the wall socket or the omnipole switch used
for the electrical connection can easily be
reached after the oven is built in.
This appliance is delivered without an
electric supply cable, therefore, you will
have to fit to it a supply cable with standard
plug, suitable for the total electric load
shown on the rating plate. The plug is to
be inserted into a suitable wall socket. If
you require a direct connection to the
electric network (mains), it will be
necessary to fit between the appliance and
the mains an omnipole switch, with a
minimum gap between contacts of 3 mm,
suitable for the required load and in
compliance with rules in force. The green &
yellow ground wire must not be interrupted
by the switch, and should be 2-3 cm longer
than the phase and neutral wires. The supply
cable must in all cases be laid out in such a
way as to ensure that it does not reach at
any given point a temperature 50 °C higher
than the ambient temperature.
Suitable power supply cables are the
following types, considering the respective
necessary section of cable: H07 RN-F, H05
RN-F, H05 RR-F, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F.
Connecting the terminal board
The appliance incorporates an easily
accessible 6-pole terminal board whose
jumpers (bridges) are already pre-set for
operation on 400 V tri-phase with neutral wire
(Fig. 9). In case a different mains voltage is
present, the jumpers on the terminal board
must be rearranged as shown in the diagram
(Fig. 10). The ground cable must be
connected to terminal .After connecting
the supply cable to the terminal board,
secure it with a junction clamp.
FO 0330
Fig. 9
230V 3~
1 2 3 4 5
L1 L2 L3 PE
230V 1~
1 2 3 4 5
L1 N PE
400V 2N~
1 2 3 4 5
L1 L2 N PE
400V 3N~
1 2 3 4 5
L1 L2 L3 N PE
FO 0584
Fig. 10

31
550 MIN
593
560 - 570
80÷100
To ensure correct operation of the built-in
assembly, the kitchen cabinet and the
recess for the built-in appliance must have
suitable dimensions. When the appliance
is fitted-in, there must be no open spaces
left and it must be closed on all sides by
the kitchen furniture to prevent the possibility
of inadvertently touching “live” (current
carrying) parts of the oven.All parts ensuring
such a protection, including any covering
panel (for instance, if the appliance is
installed at the end or at the beginning of a
kitchen counter) must be fastened in such
a way as to prevent removal of the same
without the aid of some tool. This appliance
can be placed with its back and with one
side close to appliances or walls of higher
height. The other side, instead, must be
placed close to furniture or appliances,
having the same height.

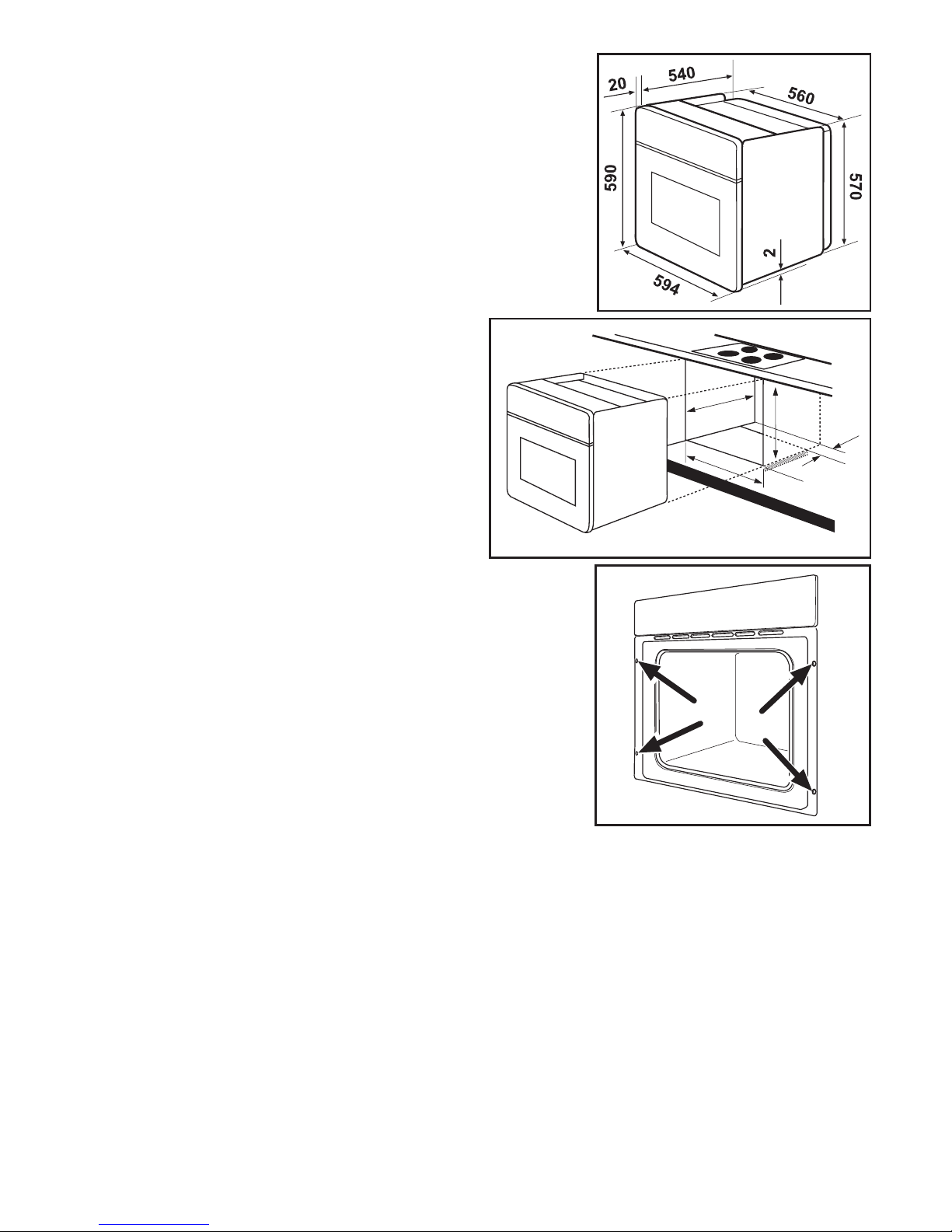

Oven dimensions (Fig. 11)
Fig. 11
Fig. 13
Building-in
Electrical connection with
the hob
This oven can be connected to hobs
indicated in the paragraph "Technical data".
The socket for connecting the hob is located
at the top of the oven cabinet. The hobs
come complete with connecting leads for
the hot plates/heat areas and ground cable;
these leads feature plug-in connectors.
Connection of the hob to the oven is carried
out by plugging-in these connectors to the
corresponding oven socket.
The plug-to-socket connection design is
such as to prevent possible wrong
plugging-ins.
The Manufacturer disclaims any liability
in case these accident-preventing rules
are not observed.
Building-in under a kitchen
counter
The recess must have the dimensions shown
in Fig. 12. Before carrying out the building-
in of the oven, connect it to the hob (see
corresponding chapter); then recess
completely the oven under the counter; open
the oven door and secure the oven to the
kitchen cabinet with four wood screws which
are to fit exactly into the holes provided for
the purpose on the oven frame (Fig. 13).
Fig. 12
FO 2662
