ZDS QPGo.P Series Manual

QPGo.P - QPGo.X - QPJet.P - QPJet.X
P..O3 - P..H3 - P..OT - P..HTF
X..O3 - X..H3 - X..OT - X..HTF
Installation - Operating Instructions
Safety - Declaration of Conformity

2
Fig. 1 Fig. 2
Fig. 3
27
9
1
2
4
4
5
6
3
10
3
4
67
9
9
8
3 m 10 m
1,5 m
1
5
2
511
Fig. 4

3
Fig. 6 Fig. 7
Fig. 8 Fig. 9 Fig. 10
V = ???
Hz = ???

4
Fig. 11 Fig. 12 Fig. 13
Fig. 14 Fig. 15 Fig. 16
Q 0.6 - 2.4 m3/h
H 144 - 48 m

5
16 mm
2
10 mm
2
6 mm
2
4 mm
2
2,5 mm
2
1,5 mm
2
1 mm
2
20
18
16
14
12
10
8
6
4
2
L [m] 15 20 30 40 60 80 100 150 200 300 400 L [m] 15 20 30 40 60 80 100 150 200 300 400
10 mm2
6 mm2
4 mm2
2,5 mm2
1,5 mm2
1 mm2
20
18
16
14
12
10
8
6
4
2
20
18
16
14
12
10
8
6
4
2
L [m] 15 20 30 40 60 80 100 150 200 300 400
16 mm
2
10 mm
2
6 mm
2
4 mm
2
2,5 mm
2
1,5 mm
2
1 mm
2
16 mm2
10 mm2
6 mm2
4 mm2
2,5 mm2
1,5 mm2
1 mm2
L [m] 15 20 30 40 60 80 100 150 200 300 400
20
18
16
14
12
10
8
6
4
2
In[A] 1 x 115 V~In[A] 1 x 220-240 V~
In[A] 3 x 220-240 V~In[A] 3 x 380-415 V~
Fig. 17

GB
D
F
I
E
PL
HR
MNE
RO
SRB
6
27
9
1
2
4
4
5
6
3
10
3
4
67
9
9
8
3 m 10 m
1,5 m
1
5
2
511
Fig. 4Fig. 3
INSTALLATION DIAGRAM
SINGLE-PHASE MOTOR CONNECTION DIAGRAM
THREE-PHASE MOTOR CONNECTION DIAGRAM
Fig. 5a
6 6
8
9 5 5
10
1 1
3 42
8
7
O2 - H2 O3 - H3
6
8
2
5
1
9
3 4
7
OT - HTF
Fig. 5b
1 – MOTOR CABLE
2 – BLACK (NEUTRAL)
3 – LIGHT BLUE or GRAY (RUN)
4 – BROWN (START)
5 – YELLOW/GREEN (GROUND)
6 – POWER SUPPLY LINE
7 – CAPACITOR
8 – FUSES
9 – BROWN
10 – LIGHT BLUE
1 – SUBMERGED PUMP
2 – DELIVERY PIPE
3 – DROP CABLE
4 – CONTROL PANEL
5 – NON-RETURN VALVE
6 – PRESSURE GAUGE
7 – SHUT-OFF VALVE
8 – LEVEL PROBES TO PROTECT AGAINST
DRY RUNNING
9 – CABLE STRIP
10 – POWER SUPPLY
11 – UTILITY
1 – MOTOR CABLE
2 – BLACK
3 – LIGHT BLUE or Gray
4 – BROWN
5 – YELLOW/GREEN (GROUND)
6 – POWER SUPPLY LINE
7 – MAIN SWITCH
8 – FUSES
9 – THERMAL PROTECTION

GB
D
F
I
E
PL
HR
MNE
RO
SRB
7
1- STORAGE AND HANDLING
Storage temperature: -15°C to +50°C. The non-packaged pump must be stored according to the diagram
in Fig.1 to prevent possible misalignment. The pump must not be exposed to direct sunlight.
Any operation required on the pump must be carried out by qualified personnel after
disconnection from the mains.
If the pump is not used in a vertical position, it must be handled with care and using the appropriate lifting
equipment in order to prevent damage (fig. 2).
2- USER
The submersible pumps for 4” wells offer a wide range of flow rates and heads making them ideal for water
raising, pressurisation and distribution in civil and industrial systems, for supplying autoclaves and tanks,
for fire-fighting and cleaning, for hobbies and for irrigation systems.
The pumps are designed to pump clean water, without solid particles or fibres, and not explosive liquids.
The maximum quantity of sand tolerated is 120 g/m3.
The metal and plastic components of the pumps are of the approved type for use with alimentary liquids.
3- CONNECTION OF THE PUMP TO A SUBMERSIBLE MOTOR FOR 4” UNASSEMBLED PUMPS
The pump can be coupled with a 4” submersible motor in compliance with NEMA regulations.
For correct assembly, proceed as follows (fig. 3):
a) Remove the cable cover (1) from the outer jacket of the pump (7) by unscrewing the fastening screws (2).
b) Ensure that the shaft, the joint and the coupling surfaces are clean.
c) Position the motor (3) vertically.
d) Connect the pump to the motor, aligning the “grommet” aperture of the lower support with the motor
cable output.
e) Tighten the nuts (4) on the tie rods (5), fixing the pump to the motor in a diagonal sequence with a
tightening torque of 16-20 Nm (inox) / 11-12 Nm (tecnopolymer).
f) Lay the motor cable (6) along the outer jacket (7), cover it with the cable cover (1) and secure it by
means of the screws (2).
4- OPERATING LIMITS
Maximum temperature of the pumped liquid: 40°C (O2-O3-OT), 30°C (H2-H3-HTF) • Maximum depth below
water level: 150 m (O2-O3-OT), 350 m (H2-H3-HTF) • Maximum number of starts per hour: 150 • Pro-
tection: IP 68 • Installation: for correct motor operation must be guaranteed a flow of water around the
motor casing of at least 8 cm/s • For use of the pump in swimming pools and garden pools, compliance
with the CEI 61-69 (EN 60335-2-41) standard must be guaranteed.
5- INSTALLING THE PUMP (Fig. 4)
The pump is designed to operate in a vertical or horizontal position.
You are recommended to fit a non-return valve on the delivery line to prevent water hammering; be careful
not to damage the supply cable when lowering it into the well and fasten it to the delivery pipe at intervals
of approximately 3 m.
5.a- Installation in the well
The pump can be lowered into wells with a diameter of 4” or larger. Ensure that the motor does not rest
on the bottom of the well and that the pump is fully submerged in the water.
Protect the pump from running dry by means of level probes if there is the danger of lowering of the water bed.
Dry operation will seriously damage the pump.
Never test the pump out of the water.
5.b- Installation in collecting tank or reservoir
To prevent damage, the tank or reservoir must be sized to avoid more than 150 pump starts per hour.
5.c- Suspension cord
You are advised always to use a steel or nylon suspension cord

GB
D
F
I
E
PL
HR
MNE
RO
SRB
8
fastened to one of the connection holes on the head whether using
plastic or metal delivery pipes.
6- ELECTRICAL CONNECTION
The motor must be only started by trained and expert personnel.
The electrical connections must be performed by expert personnel.
The O3-H3 PSC single-phase motors require a starting capacitor (Fig. 3a).
The proper capacitor type is shown on the rating plate on each motor.
On the O2-H2 2-Wire motors, the capacitor is already built-in.
For the correct electrical connection, refer to the rated values and the wiring diagram shown on the
motor rating plate, as well as the safety instructions described below. The following information only
refers to the motor and does not provide any indications on the control devices installed upstream.
Fuses and motor protection devices
1- An external switch must be fitted (Fig. 16) so as to be able to isolate system at any time;
2- An emergency stop device must be fitted;
3- Suitable fuses must be fitted for each phase;
4- The O2-H2 2-Wire motors (Fig. 5a), on the other hand, can be connected directly to the power supply
line, being fitted with a built-in motor protector; for the O3-H3 PSC motors (Fig. 5a) and OT-HTF
three-phase motors (Fig. 5b), a motor protector must be fitted in the control panel.
- By lacking of motor protection warranty expired;
- Motor protection in accordance with EN 60947-4-1;
- Trip time <10 s to 5 x In;
- Calibration at working current (max. In).
Earth connection
For the sizing of the ground connection, the power of the motor must be calculated according to IEC
364-5-54 and EN 60034-1
– The motor must be ground connected.
– Ensure the good contact of the ground wire connection.
It is recommended to fit lightening protection on the system control equipment.
7- SAFETY INSTRUCTION

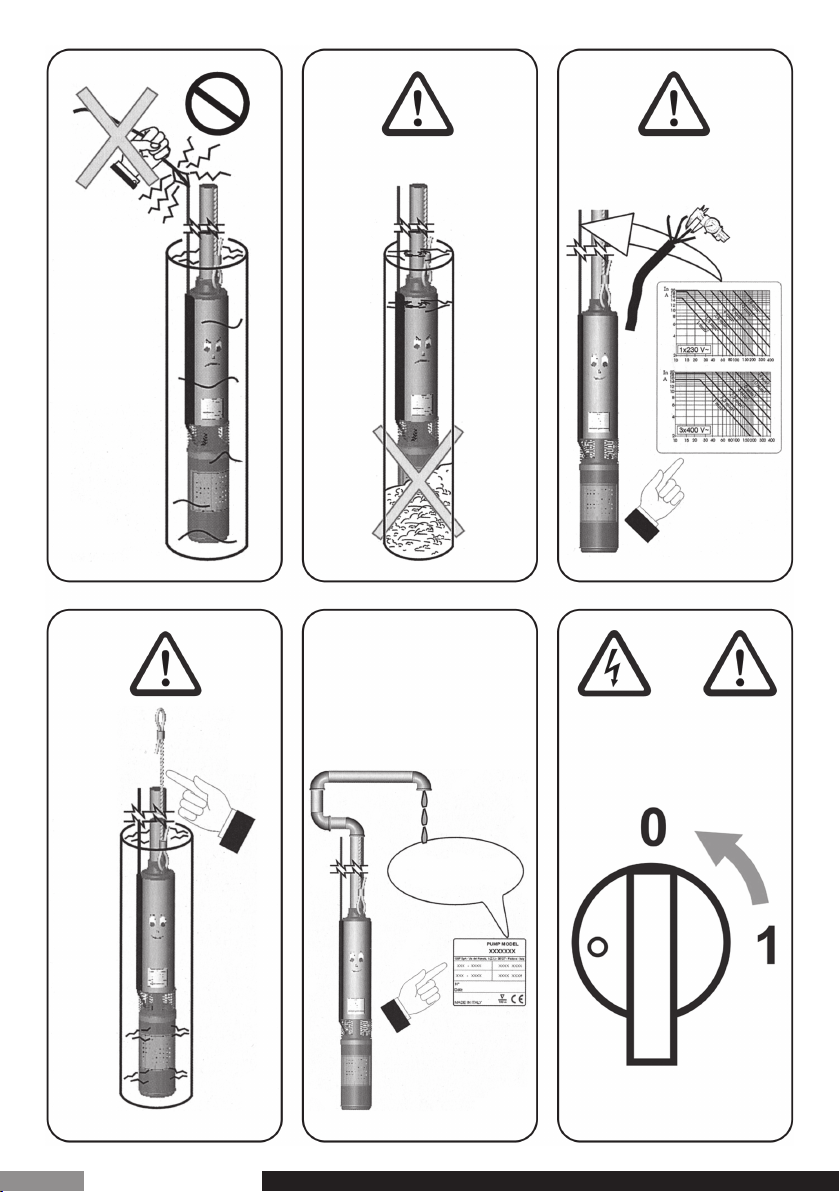

Fig. 6, caution: carefully read the instructions for use, in particular the operating limits.
Fig. 7: please check that the tension and the frequency of the motor is correct for the power supply.
Fig. 8: the mains and earth connections must be made by qualified personnel.
Fig. 9: the pump is not suitable for pumping flammable or dangerous liquids.
Fig. 10: do not operate the pump dry. The pump must be fully submerged in order to avoid damage.
Fig. 11: you are forbidden to use the supply cable for raising the pump from the well or transporting it.
Fig. 12: all sand and solid particles must be bled from the well; the motor will not operate correctly if it is
partially or totally submerged in the sand.
Fig. 13-17: caution: the section of the electrical cable running downwards must be sized according to its
length and the current absorbed by the motor.
Fig. 14: caution: the pump can fall into the well. You are advised to use a safety cable at all times.
Fig. 15: use the pump within the limits of the Q-H rating plate specifications.
8- MAINTENANCE
Disconnect the pump from the mains before performing any repair or maintenance operation.
During normal operation the pump does not require any type of programmed maintenance.
You are advised to periodically check the pressure supplied and the current absorption.
A reduction in the pressure supplied may be due to wear of the pump whereas greater current absorption
indicates abnormal mechanical friction in the motor or pump.

GB
D
F
I
E
PL
HR
MNE
RO
SRB
9
9- TROUBLESHOOTING
CHECKS
A- Check that the motor is powered.
B- Check the presence of all the phases for
the three-phase motors.
C- Check that the pump is not dry running.
A- Check that the power supply voltage
corresponds to the rated voltage.
B- Check the presence of all the phases.
C- Check the setting of the protection and the
presence of possible open or dirty contacts.
D- Check that the temperature of the liquid is
not too high.
E- Check for the presence of excess friction
(scraping between rotating and fixed parts,
pump clogged by sand, etc.).
A- Check that all the phases are present and
that the voltage is sufficient.
B- Check for the presence of excess friction
(scraping between rotating and fixed parts,
pump clogged by sand, etc.).
A- Check correct rotation direction in the
three-phase versions.
B- Check that the pipes are not partially
clogged or leaking.
C- Check that the flow rate of the pump is
below that of the well.
D- Check wear on the pump.
A- Check that the level of the well has not
dropped excessively with consequent possible
dry operation.
B- Check that the head required is not higher
than the one of the pump.
C- Check correct rotation direction in the
three-phase versions.
D- Pump obstructed by impurities.
A- Check for leaks in the system.
B- Check correct operation of the non-return
valve.
C- Check efficiency of the pressure switch, if
used.
D- Check that the tank is sufficiently sized.
E- Check positioning of the probes protecting
against dry operation, if used.
PROBLEM
1- The motor does not start
or the pump does not deliver
water.
2- The motor protection cuts
soon after start.
3- The motor protection
cuts after long periods of
operation.
4- The motor rotates but the
flow rate or pressure are not
sufficient.
5- The motor rotates but
does not deliver water.
6-The pump starts and stops
too frequently.
SOLUTIONS
A- Check the fuses or reset the
switch.
B-Restore the missing phase.
C- Wait for the level of the well
to be restored naturally.
B- Restore the missing phase.
C- Restore the protections,
consulting the rating plate
specifications or replacing the
components involved.
E- Eliminate the cause of the
friction or remove any
obstructions from the pump.
A- Restore the missing phase.
B- Eliminate the cause of the
friction or remove any
obstructions from the pump.
A- lnvert any two phase leads.
B- Eliminate the obstructions or
leaks.
C- Replace the pump with one
with a lower flow rate.
D- Service the pump.
A- Wait for the natural level to be
restored or lower the level of the
well. Install adequate protection
against dry operation.
B- Replace the pump with one
having suitable characteristics.
C- lnvert two phase leads.
D- Clean the pump, filter and pipes.
A- Eliminate the leaks.
B- Repair or replace the valve.
C- Repair or replace the pressure
switch.
D- Replace it with one of adequate
capacity.
E- Reposition the probes to obtain
longer operating periods.

10
DECLARATION OF CONFORMITY
Products: QPGo.P- QPGo.X - QPJet.P- QPJet.X-P..03- P..H3 - P..OT
- P..HTF- X..03- X..H3- X..OT- X..HTF:
ZDS srl declares, under its sole responsibility that the above-
mentioned products to which this declaration refers, comply
with the directives concerning harmonisation of the laws of
the EEC member countries in relation to:
- Machines 2006/42/CE, and related additions standards
EN ISO 12100-1, EN ISO 12100-2;
- Low voltage 2006/95/CE and related additions standard
EN 60335-1 and EN 60335-2-41;
- Electromagnetic compatibility 2004/108/CE and related
additions, standards EN 61000-6-2 and EN 61000-6-3 .
Padova, 14 September 2009
Zonzin Fabio
Company Representative

11
Warranty Certificate
Congratulations on your purchase of a high quality ZDS Product made in Italy.
To our knowledge, ZDS is the only pump manufacturer which truly offers a 24 Months "No Quibble Guarantee"
on its entire product range. Regardless of what problem you or your client encounters, we will replace the
product, with no questions asked, up until 24 months after purchase. ZDS knows your satisfaction comes
from using, selling or installing pumps, and not from pulling them back up again.
Enjoy our quality!
DATE OF PURCHASE:
NAME OF ZDS RETAILER:
RESPONSABLE SALES PERSON:
NAME OF END-USER
Warranty Conditions:
1- The 24 Months No Quibble Warranty takes effect at the time of purchase.
2- This certificate must be signed and stamped by a ZDS retailer and the purchase date
must be clearly indicated.
3- Overdue warranty registration will void any guarantee. In case the date of purchase is missing on
this certificate, the production date will be used for any warranty claims.
4- The products must not have been tampered with and must be returned complete, in one piece.
5- The second time a similar product is claimed for warranty, we reserve the right to make a
technical review before we replace the product again.
ZDS srl. reserves the right to make the final decision about the warranty’s validity.
6- The warranty never implies the possibility of compensation.
In case of warranty replacement, please put the warranty label for the new item below:
Please place a copy of the ZDS product label in the space below:
0016-ZDS CdG-inglese

ABOUT US
ZDS is well known for the production and marketing of highly efficient and reliable submersible
pumps and motors for deep well pumps of 4”. To illustrate the confidence we have in the quality of
our products, we offer a “No Quibble Guarantee” on the entire product portfolio. As far as we are
aware, ZDS is the only company to offer this guarantee. It simply means that regardless of what
problem you or your client encounters, we will replace the product with no questions asked
up until 24 months after purchase. ZDS knows your satisfaction comes from using, selling or
installing pumps and not by pulling them back up again.
Enjoy our quality!
0007-COMPLETE SOLUTION Instr Man book
ZDS S.r.l. – Via Grecia, 8 – 35127 Padova – Italy
Tel.[phone] – Fax [phone]
e-mail: [email protected] - web: http://www.zdsgroup.com
Codice Fiscale e Partita IVA: IT 04141260283
