Preface
About This Manual
Thank you for your purchase of the ZEBEX Z-7010 series fixed
computer. ZEBEX Z-7010 series product is at the forefront of fixed
technology, and this manual will provide the necessary information on
the many and varied options available to you.
The Z-7010 series product is designed base on WindowsCE.NET
version 5.0 with an integrated Ethernet module with power over
Ethernet function, USB communication interface, ZEBEX A-50M
Omnidirectional 1D laser barcode scan module, 5.7 inches touch
screen and 8-keys keypad. The design is ideal for the wall mount solution
as it simple and easy to use for supermarket price check, security
control or shop floor control … etc.
Symbols used in this manual
A triangular shape indicates you should exercise
caution.
A circle shape indicates something you should not to
do.
A black circle indicates something you must to do.
A note symbol indicates you the information that is
important and you should be observed.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 4 / 49

ZEBEX INDUSTRIES INC.
Copyright
ZEBEX Industries Inc. makes no warranty of any kind with regard to this
material. Including but not limited to the imply warranties of
merchantability and fitness for a particular purpose. ZEBEX Industries
Inc. shall not be liable for errors contained herein or for incidental
consequential damages in connection with the furnishing, performance
or use of this product.
ZEBEX Industries Inc. will be under no liability in respect of any defect
arising from fair wear and tear, willful damage, negligence, abnormal
working conditions, failure to follow the instructions and warnings, or
misuse or alteration or repair of the products without written approval.
No part of this document may be reproduced, transmitted, stored in a
retrieval system, transcribed or translated into any language or
computer language in any form or by any means electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, with express writ- ten
consent and authorization.
We reserve the right to make changes in product design without
reservation and without notification. The material in this guide is for
information only and is subject to change without notice.
ZEBEX is a registered trademark of ZEBEX INDUSTRIES INC.
© Copyright 2008 ZEBEX.
Safety Information
Your safety is of the utmost importance so please observe and follow
the following guidelines that allow you to use the scanner in a safe and
responsible way.
Laser Safety
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 5 / 49
The Z-7010 series Fixed computer complies with safety standard
IEC825-1(1993) for a Class 2 laser product. It also complies with
U.S.21CFR1040 as applicable to a Class II laser product. Avoid staring
at direct laser light as the laser beam may hurt your eyes.
LASER BEAM
Never look directly into the laser beam. Doing so can cause
serious eye damage.

ZEBEX INDUSTRIES INC.
Safety Operation
WARNING
Disassembly and Modification
Never try to disassemble or modify the device in any way. All
servicing should be carried out be qualified Zebex personnel or
Zebex- approved engineers.
Interior Parts and Components
Never touch interior high voltage parts or components. Doing so
creates the danger of electrical shock.
Drop and Knock the Device
Be careful when using the device; do not drop or knock the
device as irreversible damage to the unit may occur.
Extreme temperature
Do not operate the device under extreme temperature.
Battery and Charger
The use of third-party battery or charger may either damage the
device or shorten the life of the device.
CAUTION
Dropping and Damage
Should the drop the device and damage it, immediately turn off
the power and contact your original dealer or an authorized
ZEBEX service provider. Continued use creates the danger of
fire and electrical shock.
Abnormal Conditions
Should the device become hot or start to emit smoke or an
original dealer or an authorized ZEBEX service provider.
Continued use creates the danger of fire and electrical shock.
Foreign Objects
Should any foreign matter ever get into the device, immediately
turn off the power and contact your original dealer or an
authorized ZEBEX service provider. Continued use creates the
danger of fire and electrical shock.
Moisture
Keep the device away from vases, planters, cups, glasses and
other containers of liquid. Also keep it away from metal. Water
and metal getting into the device creates the danger of fire and
electrical shock.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 6 / 49

ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 7 / 49
Unpacking
Package Contents
AC Adapter
Z-7010 series
Fixed Computer
RS-232 /RJ45 Cable
Wall Mount Kit
RS-232 DB9 (F) Cable
SDIO Slot cover

ZEBEX INDUSTRIES INC.
Optional Parts
Purchaseable accessories
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 8 / 49
CF Type II Memory Card AC Adapter
RS232 Cable Bracket Kit
PoE(Power over Ethernet) Adaptor

ZEBEX INDUSTRIES INC.
General Guide
1 LED indicator Indicates the status of Power.
2 LED indicator Indicates the status of Ethernet connection.
3 LCD screen Display various data when a program is being run.
4 Stroke keys A total of 8 keys are provided to operations.
5 Barcode scanner Emits an omnidirestional 1D laser bar code reading.
6 Mini USB port For USB communication.
7 Mini SD I/O card slot For Install the Mini SD I/O card
8 Speaker Voice output.
9 Wall Mount Kit For wall mount Installation.
10 USB port For USB communication.
11 Ethernet port For Ethernet communication.
12 RS-232 port For RS-232 communication.
13 Power port For power connection.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 9 / 49

ZEBEX INDUSTRIES INC.
FN Function keys Press to perform an ALT key.
ENT Enter key Press to confirm entries or commands.
Arrow Arrow keys Press 4-way to move around the cursor.
ESC Escape key Press to perform a cancel action.
HOME Home key Press to perform the windows start menu.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 10 / 49

ZEBEX INDUSTRIES INC.
Getting Started
Connect to the power outlet
Connect the power jack of AC adapter into the Z-7010 device’s power
port and joining up the power source.
Connect to the Power over Ether Adapter
Step 1: Inserts PoE (Power over Ethernet) adapter the power line and
the Ethernet cable, in the joining-up the power source and the
network connection.
Step 2: Connect the PoE (power over Ethernet) adapter with Z-7010
device by Ethernet cable.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 11 / 49

ZEBEX INDUSTRIES INC.
PC System Requirements
Windows XP Operating System
64 MB RAM
64 MB free HDD space
Interface: Ethernet / USB / RS-232 ports
Cable Connection
In order to use the software supplied with the Z-7010 or , the Z-7010 fixed
computer must be connected to a PC or Network.
Connecting via RS232 cable to PC
Attach one end of the RS-232 cable to the Z-7010 COM port interface
and the other to the COM port on your PC.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 12 / 49
Cable connect with PC COM port
SB port interface
Cable connect with PC USB port
Connecting via USB Cable to PC
Attach one end of the USB cable to the Z-7010 mini U
and the other to your PC USB port.

ZEBEX INDUSTRIES INC.
Connecting via Ethernet Cable to Network
Attach on end of the Ethernet cable to the Z-7010 device’s Ethernet port
and the other to network Hub device.
Cable connect with Network Hub device
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 13 / 49

ZEBEX INDUSTRIES INC.

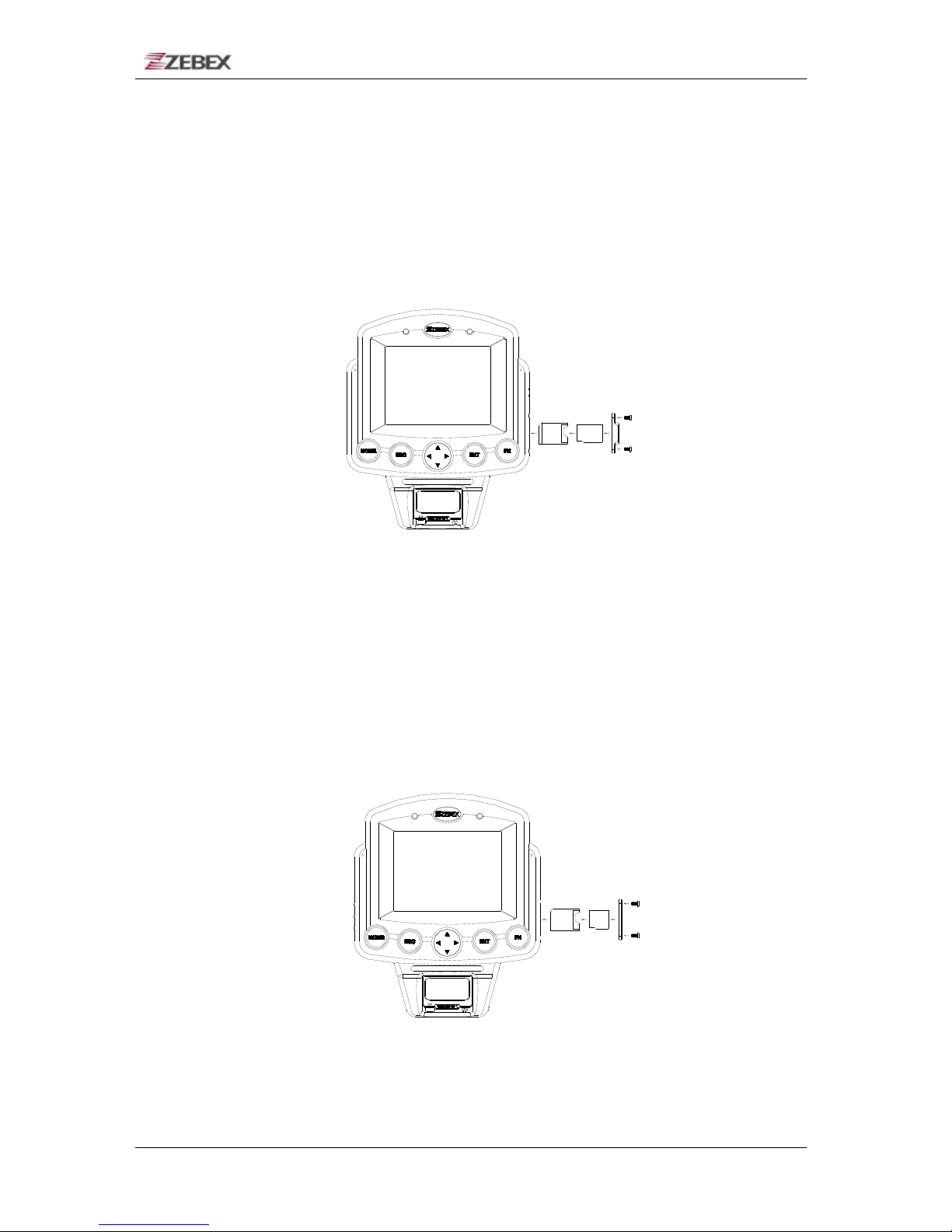

Inserting WiFi Card
1. Make sure the power is turn off.
2. Open the WiFi Slot cover as shown, Insert the WiFi I/O card.
3. Close the WiFi slot Cover.
Remove the WiFi Card
1. Make sure the power is turn off.
2. Open the WiFi Slot cover as shown, Take off the WiFi card.
3. Closed the WiFi slot cover.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 14 / 49

ZEBEX INDUSTRIES INC.
Inserting Bracket Kit
Step1: Lock the Wall mount kit on the Bracket.
Step 2: Lock the Wall mount kit with Bracket into the back of Z-7010
device.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 15 / 49

ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 16 / 49
About The Product
The Z-7010 series product is a compact, ergonomic and durable fixed
computer. It is designed base on Windows CE.NET version 5.0 with an
integrated Ethernet module with power over Ethernet function, USB
communication interface, ZEBEX A-50M Omnidirectional 1D laser
barcode scan module, 5.7 inches touch screen and 8-keys keypad. The
design is ideal for the wall mount solution as it simple and easy to use for
supermarket price check, security control or shop floor control …
application.
The Z-7010 device features an Intel PXA-270 processor (520MHz) and
using WindowsCE.NET version 5.0 operation system. This combination
delivers high performance, low power consumption and the Ethernet
networking solution. Compared with other systems currently available
on the market, Z-7010 is the most cost-effective Windows CE fixed
computer to offering optimum performance.
FEATURE
- Intel PXA-270 520MHz superior CPU
- 5.7” VGA Large LCD display with touch panel
- Optionally complex function
- Supports with Power over Ethernet (PoE) technology
- Expandability interfaces
- Fully programmable
- Easy development
Prerequisites
Skills Required
The following skills are required by developers aiming to develop
application software for the ZEBEX Z-7010 series.
●Windows programming
●Good knowledge of one or more of the following:
* Visual C++
* Visual Basic .NET
* Visual studio .NET
* Visual C#
* Active Server Pages and web programming
The following skills or experiences are also desirable.
●Windows CE devices
●ActiveSync
●Ethernet networking experience

ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 17 / 49
Hardware Required
The following models of the ZEBEX Z-7010 series and the dedicated
options are available.
Available models and the features:
Model name Barcode scanner Ethernet
Z-7010BA 1D Ominidirectional Laser scanner Ethernet

ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 18 / 49
Specifications
Model Specification
System
CPU Inter PXA 270 processor (Max. 520MHz)
Operating System Microsoft Windows CE.NET 5.0
RAM 64 Mbytes Upgradeable to 128MB
F-ROM 64 Mbytes
LCD Display 5.7”, VGA 640 X 480 TFT color panel with touch screen
Keypads & Buttons ENT,FN, HOME, ESC, Up/Down/Right /Left 8 keys
Audio Two speaker output
Interfaces
Ethernet 10/100 Mbps Ethernet (PoE)
USB USB 1.1 Host for external device (back);
USB
1.1 Client for external device (side)
RS-232 Programmable up to 115,200 bps
Expansion Slots
C/F Card Slot One compact flash Type II card slot
SD I/O Card Slot One SD/IO card slot, for extended to Bluetooth or IEEE802.11b/g
Power
AC Adaptor 9V-DC,2A,110V/220V input AC auto selecting
Scanning
1D Scanner ZEBEX A-50M Omnidirectional Laser Scan Module
2D Scanner (option) Symbol SE-450 2D image scan module
RFID Reader (option) HF or UHF RFID reader/writer
Physical
Dimensions (L) 245.1 mm x (W) 204.0 mm x (H) 117.6 mm
Weight Approx 1,40 0 g
Environmental
Operating Temp. 0°C ~ 50°C (32
℉ -122 ℉ )
Storage Temp -10°C ~ 60°C (14
℉ -140 ℉ )
Operating Humidity 10% ~ 70% (non-condensing)
Storage Humidity 5% ~ 70% (non-condensing)
Regulatory Approvals CE & FCC Part 15B

ZEBEX INDUSTRIES INC.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 19 / 49
Using Barcode Scanner
Scanning Barcodes
The Z-7010 intergraded with ZEBEX A-50M Omnidirectional 1D laser
barcode scan module which is a highly versatile tool that can scan a wide
range and omni-direction barcodes, but it is imperative that it is used in the
correct manner.
To
scan a barcode:
Barcode Scanning Position
This device can read from 0 to 200mm distance.
1. Position the laser scanner close to the barcode when scanning small
barcodes. And position it is a distance from the barcode when
scanning large barcodes
2. The reader can be detected by a red beam.

ZEBEX INDUSTRIES INC.
Band Scanning Position
Make sure that the bars enter the laser beam when scanning large
barcodes.
Scanning operations may fail if the laser beam position as below.
Note: this product scans using laser light. Never look directly into the laser
light or shine the laser light into the eyes.
Using the Application Framework
Zebex provides framework named Application Framework for building an
environment that allows users to manage remotely and centrally for the
system, barcode system setting, and applications. In application
framework, users can remotely control configurations of system,
including backlight, sound volume, button locking, tough panel, network,
etc…, and launch applucations such as brower, media player, or any
own-made programs. For details, please refer to documents of
Application Framework Instructions.
Subject Version Date Page
Z-7010 series User’s Manual 2.0 2010/3/11 20 / 49
