ZEC Zec ZR-300FC User manual

1

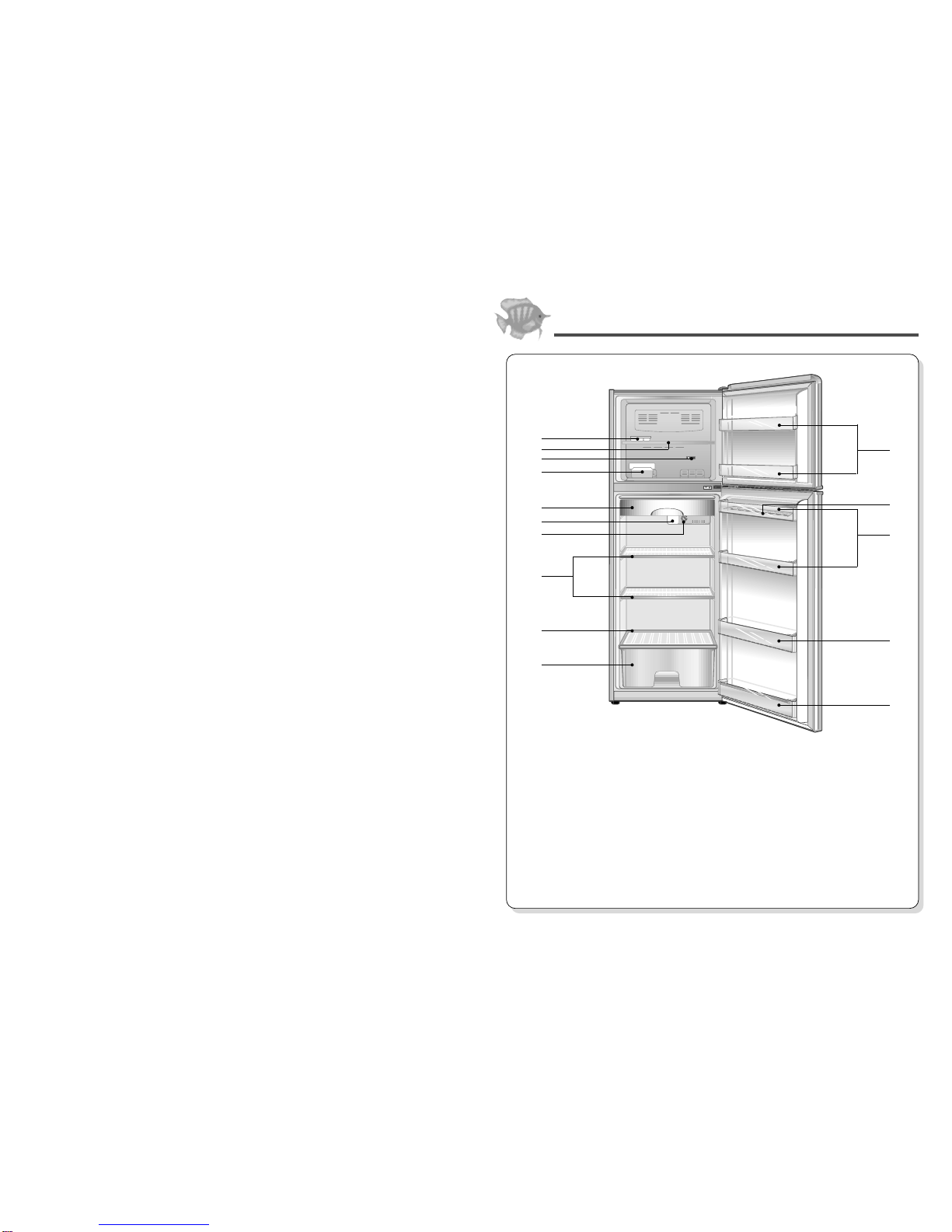

FEATURE CHART
! ICETRAY
@ FSHELF(MOVABLE)
# FREEZERTEMPERATURE
CONTROLKNOB
$ ICEBOX
% CHILLEDCASE
^ LAMPCOVER
& REFRIGERATOR
TEMPERATURE
CONTROLSWITCH
* RSHELF(MOVABLE)
( VEGETABLECASECOVER
) VEGETABLECASE
1 FREEZERPOCKET
2 UTILITYPOCKET
3 EGGCASE
4 BOTTLEPOCKET(LARGE)
5 BOTTLEPOCKET(SMALL)
1
3
4
5
2
!
@
#
$
%
^
&
*
(
)

2

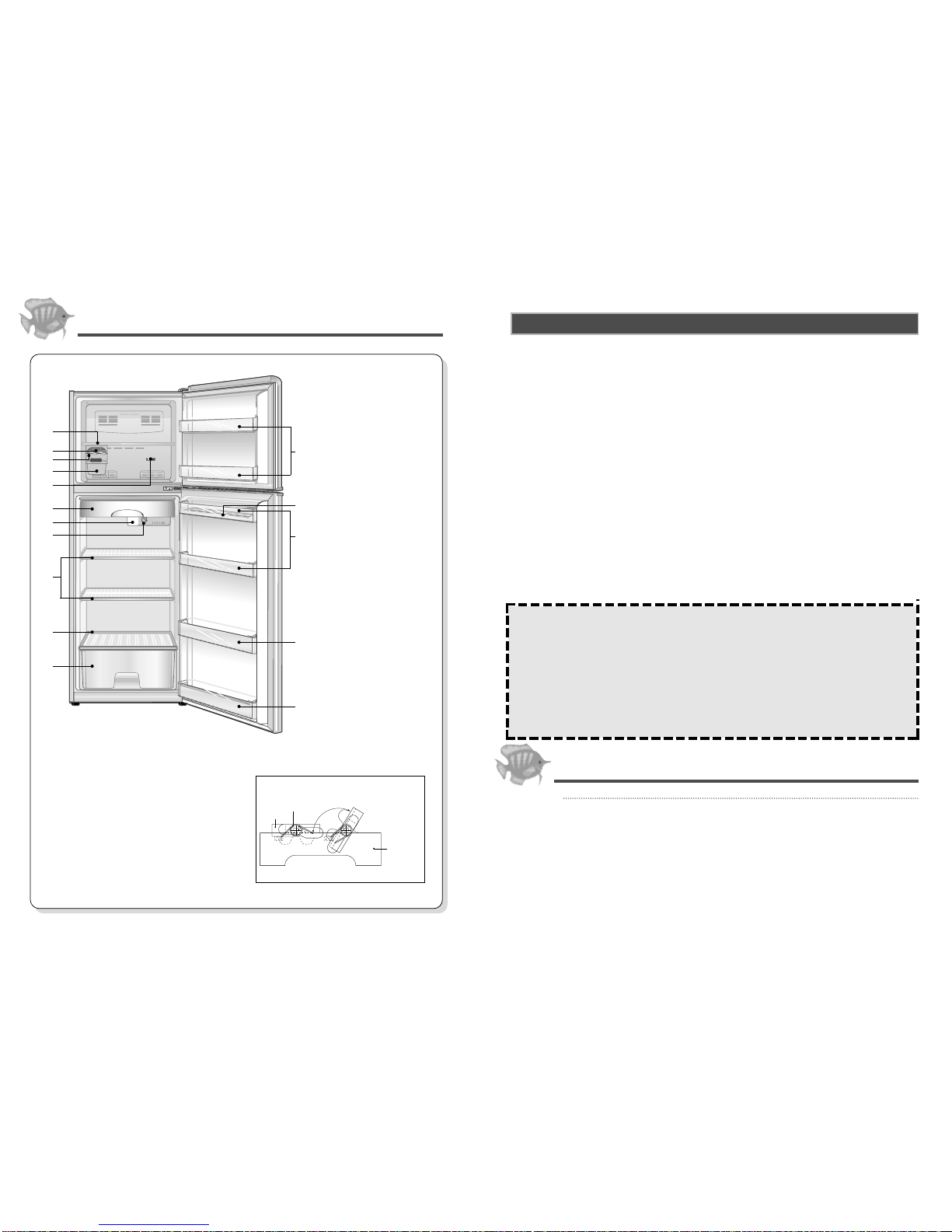

FEATURE CHART (Only twist)
! FSHELF(MOVABLE)
@ ICEHOLDERASSEMBY
# ICECASEFRAMEASSEMBLY
$ ICEBOX
% FREEZERTEMPERATURE
CONTROLKNOB
^ CHILLEDCASE
& LAMPCOVER
* REFRIGERATORTEMPERATURE
CONTROLSWITCH
( RSHELF(MOVABLE)
) VEGETABLECASECOVER
1 VEGETABLECASE
2 FREEZERPOCKET
3 UTILITYPOCKET
4 EGGCASE
5 BOTTLEPOCKET(LARGE)
6BOTTLEPOCKET(SMALL)
2
4
5
6
3
!
@
#
$
^
&
*
(
)
1
%
■ Ice Case Frame Assembly
1)Fillthe ice casewithwater upto thewater level lineandinsert it into thedesignated
spaceinthe ice holder.
2) After the water is completely frozen, twist
the ice case handle clockwise and let the
ice fall into the ice box below. When all
ice has been cleared from the ice case,
letgoof the handlewhich will returntoits
original position by a return spring
installed.
RETURN SPRING
ICE CASE FRAME
STARTING POINT OF TWISTING
120°
ICE CASE
3
CAUTION: 1. Check your voltage before inserting the power supply cord into the socket.
2. Contact the earthingconductor tothis unitwith anattachment earthingscrew.
3. Do not spill liquid on this unit.
4. Do not use flammable spray, such as painting, near this unit.
5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.
6. Take precautions against leakage of any gas equipment near this unit.
7. Keep chidren from hanging on the door of this unit.
8.Do not reinsert the power supply cord within 5 minutes after releasing it from the
socket. If not, there may be problems with the compressor.
9. Put food in the refrigerator after running the refrigerator for 2~3 hours.
Take a moment to know all the features designed for the convenience of the user.
■ Ice tray
Fill 3/4 of the ice tray with water, as the volume expands when the water is frozen. Place
the tray in the freezer compartment. To release ice cubes, twist the ice tray slightly. Ice
cubes will be easier to remove if it is held for a short while under running water.
■ Movable refrigerator and freezer shelves
Storage shelves should be adjusted depending on the height of the food stored. To do this,
pull the shelves slightly forward.
■ Defrost-drain Vessel
Since dust accumulated on the drain case decreases the evaporation efficiency, you
should clean the drain case at regular intervals.
■ Vegetable case
May be used for fruit and vegetable storage. Both the vegetable case and its cover shelf
are removable for easy cleaning. Simply slide forward to remove.
■ Utility Pocket (Top)
The Egg Case in this pocket can be turned upside down for the use of small size goods.
Location
Install the refrigerator in a convenient location away from extreme heat and cold. Allow
at least 6cm clearance between the refrigerator and side wall so that the door may open
for a fully usable interior and the refrigerator may have good air circulation. The
refrigerator is not designed for recessed installation.
■ Select a strong and level floor.
■ Keep 6cm of space between the refrigerator and the walls.
Here are the features of your new refrigerator.
HOW TO INSTALL

54

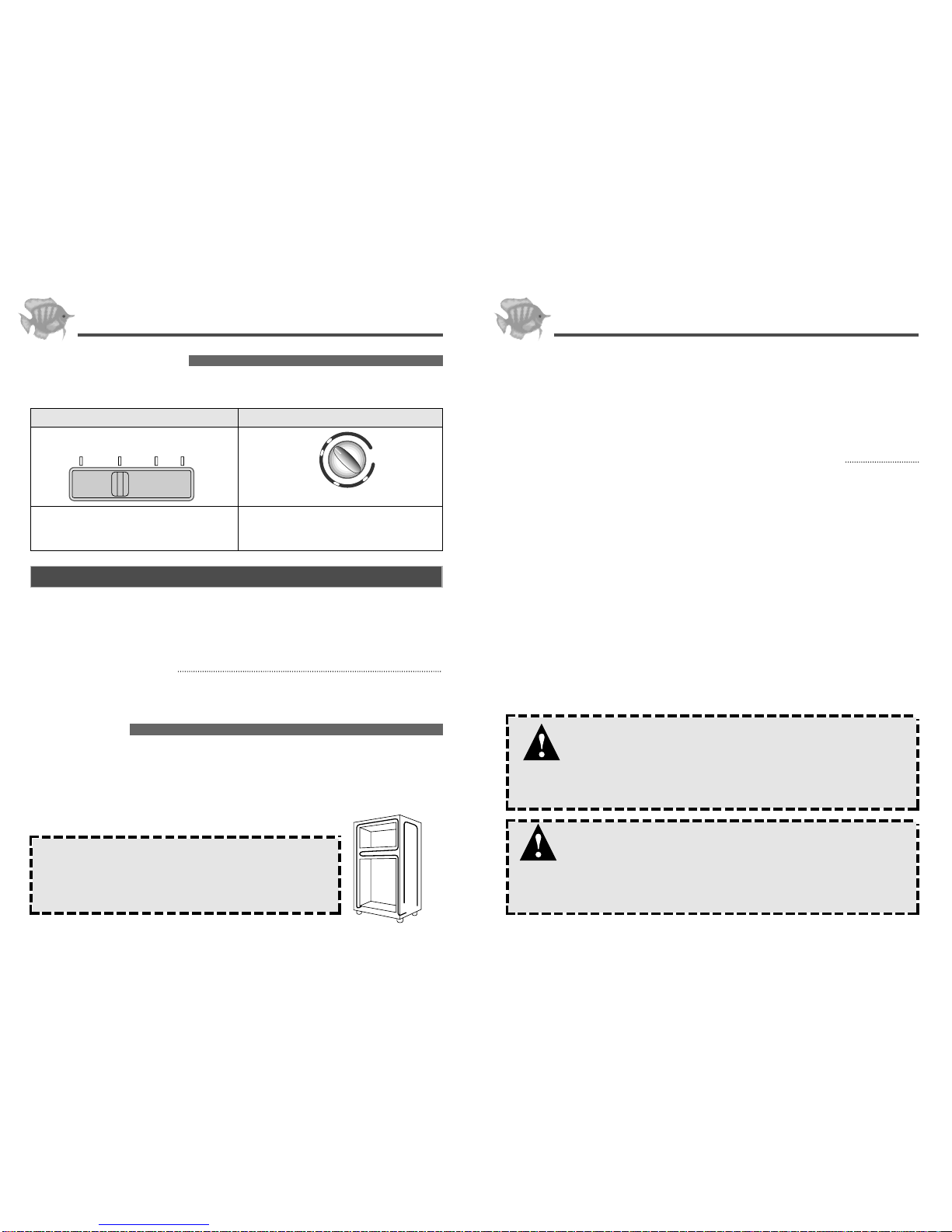

Temperatureiscontrolledby thermostat automatically. TheTemperatureControl inside the
refrigeratorcontrolsthe degree ofcooling for eachcompartment.
ThecontrolhasfoursettingsfromMINto
WINTER.TheWINTERmodeisavailableonlyif
atmospheretemperatureisbelow10°C
ThecontrolhasthefoursettingsfromMINto
WINTER.TheWINTERmodeisavailableonlyif
atmospheretemperatureisbelow10°C
CAUTION
1. TEMPERATURE CONTROL
To turn off the refrigerator
NOTE:During spellsof hot,humid weatherand inrainy season,moisture
maydevelop onthe cabinet,just aswater condensesaround acold
glassof water.It isnot anabnormal condition;wipe offthe moisture
witha drycloth. Thiscan alsohappen whenthe refrigeratoris not
installedin anappropriate place.
1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with
a damp cloth.
2. Set the temperature control knob at normal position.
3. Connect the power supply cord.
Disconnect the power supply cord. Remove icing case and food. Leave doors ajar for
ventilation and dehumidification of both compartments.
Improper use of the grounding plug can result in electric shock. If a grounding adapter
isused,make sure thereceptacle box isfullygrounded.
POWER CORD REPLACEMENT
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agentora simmilary qualifiedperson in ordertoavoida hazard.
FreezerTemperatureControl RefrigeratorTemperatureControl
MIN MED MAX WINTER
WINTER
MAX
MED MIN
WiththeRefrigerating System inoperation, it islikelythat the cabinetwill feel warmatthefront
edgesandsides. This doesnot indicate trouble.
Itisdue to thehot-line used inthistype of RefrigeratingSystem which consistsofpiping hot gas
fromthe(motor-driven)compressor alongthe front edges,thesides of thecabinet and thecenter
partitiontoprevent dewing. Thishas nothing todowith the storagetemperatureinside.
(Thethickline indicates thehot-line)
2. RADIANT HEAT
When not operating for a long time
■ Remove thepowersupply cord.
■ Dry yourrefrigeratorby opening thedoor for 2-3days.
When you get ready to move
■ Securely fastenmovableinterior parts (or removeand pack themseparately).
■ DO NOTlaydown your refrigeratorhorizontally,orthe compressor maybe damaged.
If the refrigerator is not operating:
■ Is the power supply cord unplugged?
■ Is the home fuse or circuit outof order?
If the refrigerator is warmer than usual:
■ Has the door been opened frequently orfor a long period?
■ Are there any hot food or anythingthat has been stored without cooling?
■ Is the clearance between the refrigerator andthe wall given sufficiently?
If there are unusual sounds:
■ Is the refrigerator placed on a levelledfloor?
■ Are there any foreign objects behind therefrigerator?
■ Are dishes on refrigerator shelves vibrating?
Before you call for service, please check the following points first.
HOW TO OPERATE WHAT TO DO...
TEMP. CONTROL
TEMP. CONTROL
Starting your new refrigerator

MODEL NO
Before operating this
refrigerator, please
read this manual
carefully.
ZR-300FC
REFRIGERATOR
Instruction Manual
CFC-FREE
