ZeeVee ZyPer4K User manual

ZyPer4K
IP VIDEO DISTRIBUTION SYSTEM
User Manual
Updated March 2017

Document symbol conventions:
Indicates an important piece of information affecting the operation of the unit.
Retain this information.
Indicates a point of caution. Failure to heed this information may cause a
hazard of some form to the operator or others in the field of operation.
Indicates a point regarding the electrical safety of the box. Failure to abide by
the information presented may result in an electrical shock hazard to the
operator or others in the field of operation.
Indicate a point affecting the RF performance of the box. Failure to heed or
abide by the information presented may result in emissions or susceptibility
that can affect the unit or nearby equipment. Performance conforming to the
regulatory limit may be compromised or affected.
About ZeeVee:
ZeeVee is the leading manufacturer of high-quality encoder/modulator/decoder products for
video distribution over any type of transmission media; be it RF coax, fiber, or copper ethernet.
Established in 2007, ZeeVee has been manufacturing industry-leading products while operating
the company responsibly in compliance with the strictest levels of regulatory and environmental
requirements. The standards by which we govern our corporate conduct are far higher than that
required by law.
Our mission is to completely fulfill the toughest customer application requirements with the
highest quality products we can produce. After the sale, we strive to support the customer with
award-winning support and service. Our goal is that no customer shall be ever be dissatisfied.
It is both our mission and our passion.
ZeeVee, Incorporated
295 Foster Street, Suite 200
Littleton, Massachusetts
01460, USA
www.zeevee.com
[email protected]
Phone: [phone]
ii

CONTENTS
System Description 1..............................................................................
System Elements 2.................................................................................
Encoder Function 2.........................................................................................
Decoder Function 3.........................................................................................
Management Platform 4..................................................................................
Detailed Interface Descriptions 5............................................................
Encoder 5........................................................................................................
Enclosure variants 5.............................................................................
Common Ports 5..................................................................................
Optional Ports - 10G Ethernet 7...........................................................
Optional Ports - USB 8.........................................................................
Extended Input Options 9.....................................................................
Decoder 11......................................................................................................
Enclosure variants 11...........................................................................
Common Ports 11................................................................................
Optional Ports: 10G Ethernet 13..........................................................
Optional Ports: USB 14........................................................................
General Safety and Care Instructions 15................................................
Safety 15.........................................................................................................
Cleaning 17.....................................................................................................
Encoder, Decoder and ZyPerMP Unit Cleaning Procedures 17..........
ZyPerMP Specific Cleaning Procedure 18...........................................
Important Siting and Application Considerations 19................................
ZyPer4K Equipment Type and Uses 19..........................................................
Installation Environment 20.............................................................................
Mounting Options 20............................................................................
Ventilation 20........................................................................................
Water and moisture 21........................................................................
AC Mains Connection 22................................................................................
AC Power Cord 23...............................................................................
iii

Equipotential Referencing 24...............................................................
Responsibility and Stewardship 25.........................................................
Reduction of Hazardous Substances (RoHS) 25...........................................
Waste Electrical and Electronic Equipment 25...............................................
FCC Compliance Statement 27..............................................................
EMC Information 28................................................................................
Electromagnetic Emissions 28........................................................................
Electromagnetic Immunity 29..........................................................................
Device Technical Specifications 30.........................................................
Encoder and Decoder HDMI Video Specifications 30..........................
Encoder Extended Video Input Options 31..........................................
Ethernet Options 35.............................................................................
Other Ports 36......................................................................................
Physical and Environmental 37............................................................
Disclaimers 40.........................................................................................
iv

ZyPer4K
System Description
The ZyPer4K series of products from ZeeVee provide a means for transmitting and receiving
audio-visual information across a standard IP network with outstanding quality at very low
latencies.
A minimal system consists of:
•Video Source
•ZyPer4K Encoder device
•Cable or Fiber
•ZyPer4K Decoder device
•Video sink (display device)"
A fully realized system consists of:
•(N) Video Sources
•(N) ZyPer4K Encoder devices
•10G Ethernet switching Infrastructure (> (N+M) ports of non-blocking capacity)
•(M) ZyPer4K Decoder devices
•(M) Video sink (display devices)
•ZyPerMP control node (optional hot-standby redundant unit(s))
User Manual
Page of 140

ZyPer4K
System Elements
Encoder Function
The function of the ZyPer4K Encoder Device (Encoder) is to accept audio and video data over a
variety of interface types, and translate that data to a format suitable for transmission over a
standard 10G Ethernet network.
Video data is segmented, encrypted, prepared for transmission, and sent by the Encoder unit.
No unit other than those so designated by the control entity shall be able to receive the video
stream sent by an Encoder.
The format of the IP data is fully in compliance with industry-standard IEEE 802.3 Ethernet
networking practices. Any switch or device capable of passing 10G Ethernet traffic can be
employed to carry ZyPer4K A/V traffic.
Other ports on the Encoder devices are for the carriage of USB, IR, RS232 and audio data as
well as a 1Gbit/second utility port for general purpose connectivity of devices to the 10G bulk
data infrastructure.
Common Interfaces on all Encoders:
•Power Input (12VDC)
•RS232 Input/Output
•1Gbit/sec Utility Ethernet Port
•Analog Audio Input
•Infrared Input
•Infrared Output
•HDMI Input
Optional Interfaces on Encoder Units:
Ethernet Bulk Media Interface:
10G Fiber or 10G Copper
USB:
(none) or
USB Type-B Interface
Extended Media Input:
(none) or
HDSDI or
DisplayPort or

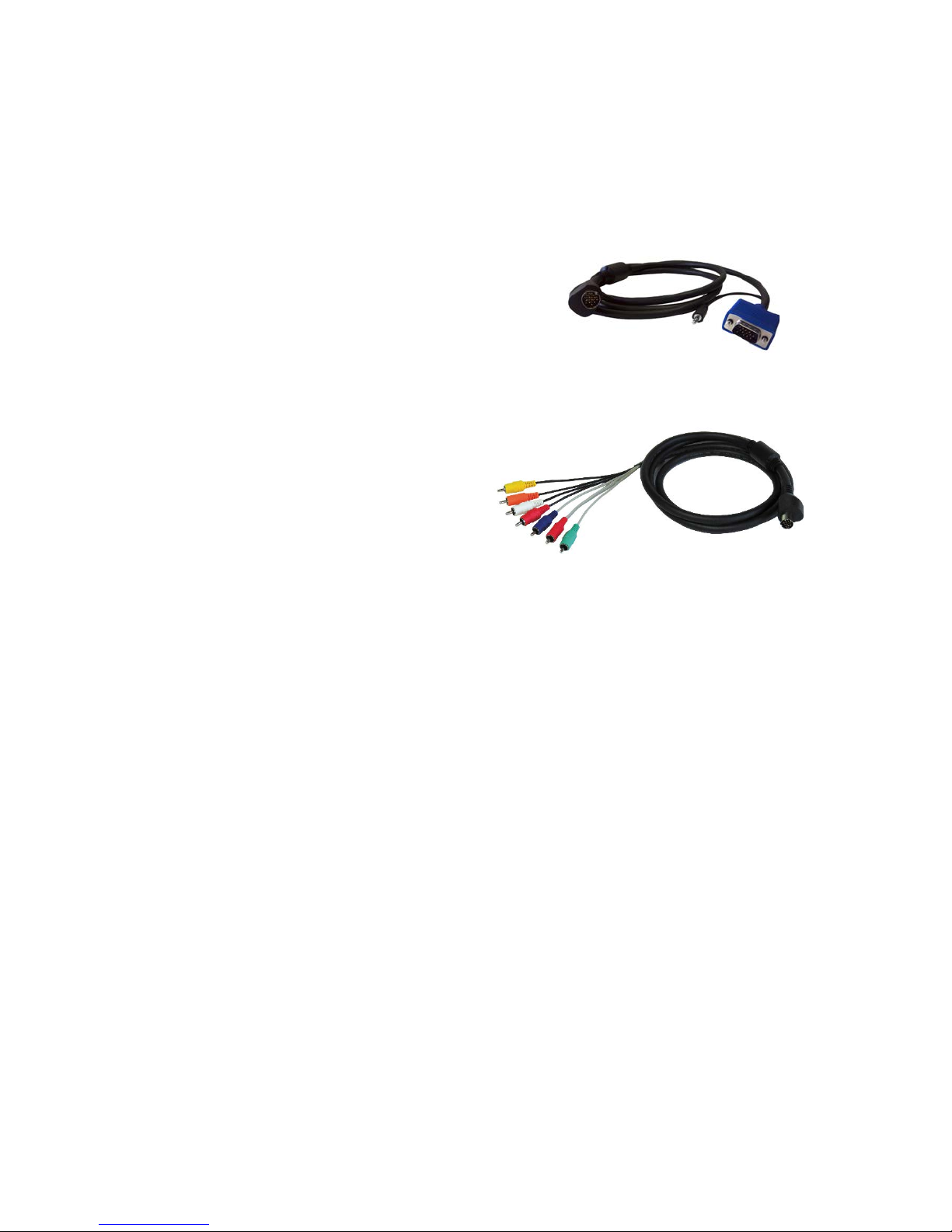

Analog (YPrPb/VGA/S-Video)
In total there are 16 different, unique Encoder types that can be ordered.
HDMI Fiber
HD-SDI Fiber
DisplayPort Fiber
Analog Fiber
HDMI Fiber with USB
HD-SDI Fiber with USB
DisplayPort Fiber w/USB
Analog Fiber w/USB
HDMI Copper
HD-SDI Copper
DisplayPort Copper
Analog Copper
HDMI Copper with USB
HD-SDI Copper w/USB
DisplayPort Copper w/
USB
Analog Copper with
USB
User Manual
Page of 240

ZyPer4K
Decoder Function
The function of the ZyPer4K Decoder device (Decoder) is to accept 10G Ethernet traffic that
represents the information to be decoded and displayed. When the appropriate IP stream is
received the Decoder unit will first strip off the encryption that protects the payload on its transit
across the network. It then reformats the video and audio information for display and plays it
out its HDMI video output. Audio is also played out the appropriate port as included.
Other ports on the Decoder devices are for the carriage of USB, IR, RS232 and audio data as
well as a 1Gbit/second utility port for general purpose connectivity of devices to the 10G bulk
data infrastructure.
Common Interfaces on all Decoders:
•Power Input (12VDC)
•RS232 Input/Output
•1Gbit/sec Utility Ethernet Port
•Analog Audio Output
•Infrared Input
•Infrared Output
•HDMI Output
Optional Interfaces on Decoder Units:
Ethernet Bulk Media Interface:
10G Fiber or 10G Copper
USB:
(none) or
2xUSB Type-A Interface
In total there are 4 different, unique Decoder types that can be ordered.
HDMI Fiber
HDMI Fiber with USB
HDMI Copper
HDMI Copper with USB
User Manual
Page of 340

ZyPer4K
Management Platform
Most installations will require a ZyPer Management
Platform (ZyPerMP). This device controls the
operation and manages the connectivity between
endpoints. The management platform is a
hardened controller node that must reside on the
same logical network as the ZyPer4K Encoders
and Decoders. It captivity runs a ZeeVee
application as its sole function. The application
presents an API to potential third party
management platforms as well as hosting its own
Maestro-Z management application.
In point-to-point applications every element is essential. There is only one Encoder and one
Decoder and they both must be operational for the system to operate at all. The ZyPer4K
Encoder and Decoder will detect this special case and self-configure appropriately.
Any installation beyond simple point-to-point link extension-like applications require a ZyPerMP.
The purpose of the Management Platform is to interface user operational requests into the
specific device-level control needed to effect connectivity changes, screen management,
interface management, and distribute software and control data to all the endpoints of the
overall system. The ZyPerMP is the entity that insures all the endpoints, are accounted for,
operating properly, and performing the correct operation at the correct time.
Further, the ZyPerMP is the element that guarantees security, manages access to the overall
system and prevents rogue listeners or observers from snooping or spoofing unwanted content.
Multiple ZyPerMP devices may be deployed in a redundant configuration to provide for fault
tolerant control of the greater ZyPer4K overall system.
Operation of the ZyPerMP, the Maestro-Z application, and the ZyPer-API are beyond the scope
of this manual and are documented separately in far greater detail in other User Guides.
User Manual
Page of 440

ZyPer4K
Detailed Interface Descriptions
Encoder
The function of the encoder is to accept raw video images, encode, encrypt and format them for
transmission. There are several different variations based on the user’s desired input, media
type and interface description.
Enclosure variants
There are two different sizes of the ZyPer4K Encoder unit enclosure.
The USB option does not affect the enclosure size.
The type of bulk media (10G Fiber or 10G Copper) does not affect the enclosure size.
Common Ports
The following ports are common to all encoders,
regardless of the options or enclosure variant
Input Function
Box Size
HDMI Input
Base unit: 175mm Wide x 43mm High x 144mm Deep
HDMI + HDSDI Input
Extended unit: 227mm Wide x 43mm High x 144mm Deep
HDMI + DisplayPort Input
Extended unit: 227mm Wide x 43mm High x 144mm Deep
HDMI + Analog Video Input
Extended unit: 227mm Wide x 43mm High x 144mm Deep
Port Name
Index
Definition
Power
A
12VDC from supply. Center Post is + Ring is -
Utility
Network
B
10/100/1000Base-T Ethernet port. Used for general purpose
device attachment to network. Traffic will be switched on to
media network.
User Manual
Page of 540
A
B

ZyPer4K
Port Name
Index
Definition
HDMI Input
A
HDMI 2.0 Input port. Capable of up to 4K60 with HDCP2.2
encryption.
Port Name
Index
Definition
RS 232 Port
A
RS232 Control Port for sending and receiving side-band serial traffic to/from
decoders as directed by Maestro-Z management
LED PWR
B
LED illuminated when unit is powered
LED VID
C
LED Illuminated when active video is being processed
Audio
D
Audio Input/Output Jack. Input or Output of line-level stereo audio on 3.5mm
jack. Direction of port configured by Maestro-Z.
IR-OUT
E
Infrared Commands information passed back FROM decoders as configured by
Maestro-Z.
IR-IN
F
Infrared Commands to be passed TO decoders as configured by Maestro-Z.
RESET
G
Reset to defaults. Using a wire or paper clip, lightly press into this hole while
unit is powered to activate a button that resets the unit to factory defaults.
User Manual
Page of 640
A
B
C
D
E
F
G
A

ZyPer4K
Optional Ports - 10G Ethernet
The customer may chose which type of Ethernet interface is appropriate for the application
being addressed. Only one is present at a time and either is available regardless of the
enclosure size.
Port Name
Index
Definition
10G Fiber
A1
10 Gigabit Ethernet Connection. Uses standard 10G pluggable
devices SFP devices.
10G Copper
A2
10G Ethernet over Cat6a (or better) cabling. RJ45
TX Activity
B
Blue LED illuminates in synchrony with the transmission of 10G
Ethernet data
RX Activity
C
Blue LED illuminates in synchrony with the receipt of 10G
Ethernet data
User Manual
Page of 740
A1
A2
B
C

ZyPer4K
Optional Ports - USB
ZyPer4K Encoder units are available with or without a USB port.
Port Name
Index
Definition
USB
A
USB 2.0 Type B port for use USB option is ordered and installed
Configuration and routing of USB handled by the Maestro-Z
configuration. Lower unit shown with no USB installed.
User Manual
Page of 840
A

ZyPer4K
Extended Input Options
All Encoder units contain a single HDMI 2.0 input port. Optionally, units may be ordered with an
“extended” input. Units so ordered will reside in a somewhat larger enclosure.
Available interface types are shown:
(note: All input types are available
with either 10G Fiber or
10G Copper
Ethernet ports)
Port Name
Index
Definition
HDMI 2.0
A
All encoders contain an HDMI 2.0 port capable of up to 4KP60 4:4:4 with
embedded audio and HDCP 2.2 encryption.
HDSDI Input
B
HDSDI Input supports up to 1080P60 w/up to 8-channels of embedded audio.
HDSDI Loop
C
Copy of HDSDI Input port, retimed and reamplified and presented for
downstream devices.
LOCK LED
D
Blue LED illuminated when receiving valid HDSDI input
DisplayPort
E
Standard DisplayPort Input supporting up to 4K60 input rate with embedded
audio.
S-Video
F
Standard S-Video video input. NTSC and PAL supported. Use STD cable.
ZeeVee
Hydra
Connection
G
13-Pin High density DIN connector allows for all signals related to Analog Video
to be input. Types of Hydra Cable supported:
•Analog Video (YPrPb + S/PDIF + CVBS + LR Audio)
•VGA Video (HD15 VGA input + LR Audio)
User Manual
Page of 940
A
A
A
A
B
C
D
E
F
G

ZyPer4K
Two different variants of the ZeeVee Hydra breakout cable may be purchased separately for use
in the specific user application
VGA BREAKOUT
•HD-15 supporting numerous resolutions up to
1900x1600
•Analog audio input carrying stereo L/R line-level
audio for transport.
Analog Breakout
Following connections supported:
•YPrPb - resolutions up to 1080P60
•CVBS - PAL and NTSC resolutions
•S/PDIF - digital audio input
•Analog L/R stereo line-level audio
When using the Analog breakout, only ONE of the input types (YPrPb or CVBS) may be active
at a given time.
Similarly, only one type of audio input (S/PDIF or L/R Stereo) may be active at a given time.
User Manual
Page of 10 40

ZyPer4K
Decoder
The function of the ZyPer4K Decoder is to accept a 10G IP feed containing the video
information to be displayed. It decrypts, decodes and formats the video and audio information
for display on the attached viewing device. There are several different variations based on the
user’s desired media type and USB options.
Enclosure variants
There is one size of the ZyPer4K Decoder unit enclosure.
Common Ports
The following ports are common to all decoders,
regardless of the interface options.
Input Function
Box Size
HDMI Output
Base unit: 175mm Wide x 43mm High x 144mm Deep
Port Name
Index
Definition
Power
A
12VDC from supply at 1.2A (center +, ring-)
Utility
Network
B
10/100/1000Base-T Ethernet port. Used for general purpose
device attachment to network. Traffic will be switched on to
media network.
User Manual
Page of 11 40
A
B

ZyPer4K
Port Name
Index
Definition
HDMI Output
A
HDMI 2.0 Output port. Capable of up to 4K60 4:4:4 with embedded
audio and HDCP2.2 encryption.
Port Name
Index
Definition
RS 232 Port
A
RS232 Control Port for sending and receiving side-band serial traffic to/from
encoders as directed by Maestro-Z management
LED PWR
B
LED illuminated when unit is powered
LED VID
C
LED Illuminated when active video is being processed
Audio
D
Audio Output Jack. Drives line-level stereo audio on 3.5mm jack.
IR-OUT
E
Infrared Commands information passed FROM Encoders to Decoders as
configured by Maestro-Z
IR-IN
F
Infrared Commands to be passed TO Encoders as configured by Maestro-Z.
RESET
G
Reset to defaults. Using a wire or paper clip, lightly press into this hole while
unit is powered to activate a button that resets unit to factory defaults.
User Manual
Page of 12 40
A
A
B
C
E
F
D
G

ZyPer4K
Optional Ports: 10G Ethernet
Port Name
Index
Definition
10G Fiber
A1
10 Gigabit Ethernet Connection. Uses standard 10G SFP
devices.
10G Copper
A2
10G Ethernet over Cat6a or better cabling. RJ45
User Manual
Page of 13 40
A1
A2

ZyPer4K
Optional Ports: USB
The ZyPer4K Decoder device can be ordered with optional USB
connectivity.
Shown to the left is a unit with the USB option (top) and without the
USB option (bottom) installed. This is a build-time option and is not
retrofittable to the product.
Port Name
Index
Definition
USB
A
2 ports of USB 2.0 Type-A connectivity. Either port may be used
and both operate simultaneously.
User Manual
Page of 14 40
A

ZyPer4K
General Safety and Care Instructions
Safety
WARNING: When using electronic products, basic precautions should always be
followed, including:
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with in accordance with cleaning instructions included in this manual.
•Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions for spacing and clearance to allow proper airflow.
•Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the grounding-type plug. A grounding type
plug has two blades and a third grounding prong. The third prong is provided
for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
•Power cord must be accessible to allow for the removal of the power from the unit.
•Protect the power cord from being walked on or pinched, particularly at plugs,#
convenience receptacles, and the point where cords exit from the apparatus.
•Unplug this apparatus during lightning storms.
•Unplug this apparatus when unused for long periods of time.
•Only use attachments/accessories supplied or specified by the manufacturer.
•Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or excessive moisture, does not
operate normally, or has been dropped.
WARNING: To reduce the risk of fire or electric shock do not operate this
apparatus in a position where it is exposed to dripping or splashing
liquids, rain, moisture, or excessively high humidity. Objects containing
liquid shall not be placed in proximity to the unit such that they present a
risk of spillage onto the apparatus.
User Manual
Page of 15 40

ZyPer4K
Shock and Fire Hazard:
The unit’s metal case, power supply, and grounding terminals and lugs are essential in
containing radio energy as well as safeguarding the user from any risk of electrical shock. The
metal shell of the unit protects the internal circuitry from environmentally induced over stress
conditions and is an integral part of the compliant system.
WARNING: Do not open the box or in any way expose the internal
circuitry.
WARNING: There are no user-serviceable parts inside
the unit. Opening or damaging the ZyPer4K unit in any
way voids the warranty and immediately nullifies any
assertion of regulatory compliance made by ZeeVee.
Any required service shall be performed by trained and
qualified service personnel authorized by ZeeVee.
User Manual
Page of 16 40
