Zenith ZDW600W User manual
The following symbols are used in the user manual and on the packaging:
Danger that may result in death or injury.
NOTICE
Danger that may result in damage to the product or its surroundings.
Important information or useful hints about usage.
Read the user manual.
Dear Customer,
Please read this user manual before using the product.
Thank you for choosing this Leisure product. We hope that you get the best results
from your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents before using the product.
Follow all warnings and information in the user manual. Thus, you can protect yourself
and your product against potential dangers.
Keep the user manual. If you handover the product to someone else, give the user
manual as well.
This product was manufactured using the latest technology in environmentally friendly conditions.
CONTENTS
1 SAFETY INSTRUCTIONS 4
Intended Use ..................................................... 4
Safety for children, vulnerable persons and pets4
Electrical safety ................................................. 5
Transportation Safety ........................................ 5
Installation Safety .............................................. 6
Operational safety ............................................. 7
Maintenance and cleaning safety...................... 8
Interior Lighting.................................................. 8
2 ENVIRONMENTAL
INSTRUCTIONS 8
Compliance with WEEE Directive and Disposing
of the Waste Product ......................................... 8
Package information.......................................... 9
Technical specifications................................... 10

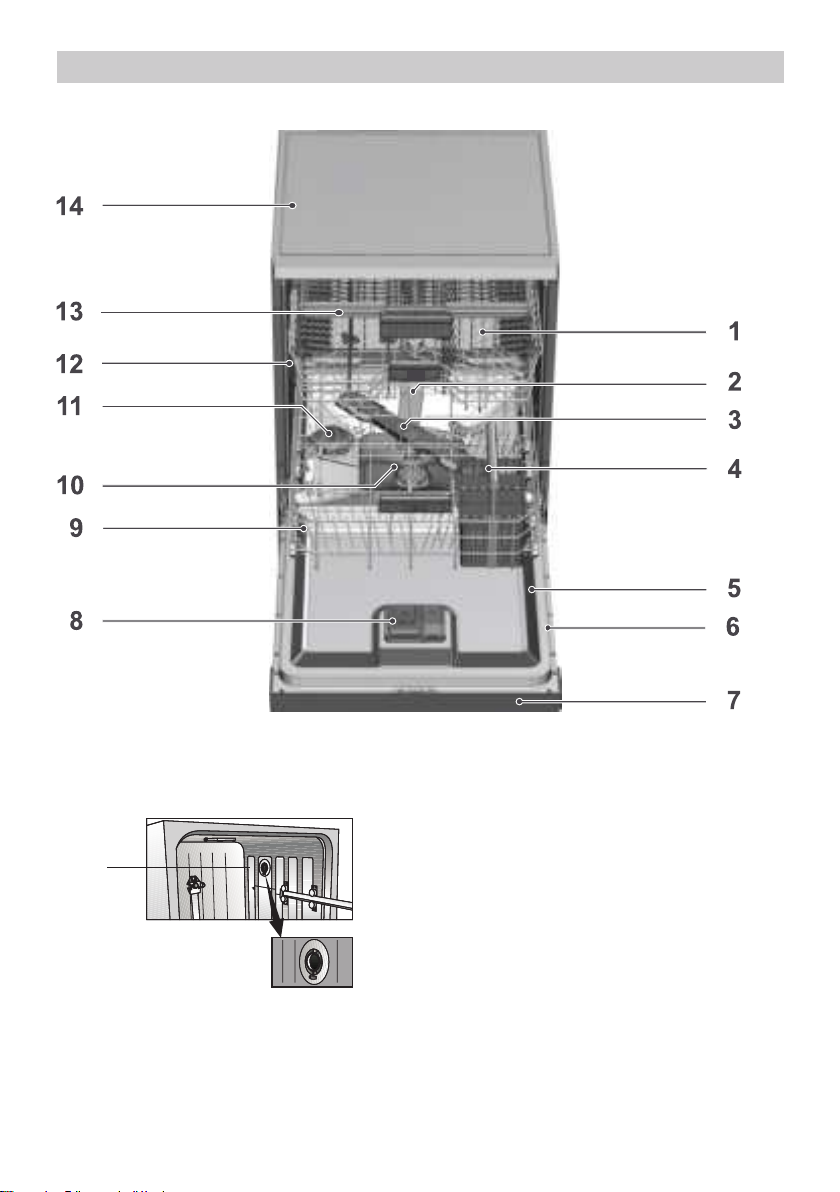

3 YOUR DISHWASHER 11
Overview...........................................................11
4 INSTALLATION 12
Appropriate installation location....................... 12
Connecting water supply ................................. 12
Aquasafe+ ...................................................... 13
Connection to the drain ................................... 14
Adjusting the feet............................................. 14
Electrical connection........................................ 14
Fitting a different plug...................................... 15
5 PREPARATION 16
Tips for energy saving ..................................... 16
Water softening system ................................... 16
Adjusting the water softening system.............. 16
Adding salt....................................................... 17
Detergent......................................................... 17
Tablet detergents ............................................. 19
Rinse aid.......................................................... 19
Items not suitable for washing in the
dishwasher ...................................................... 20
Placing the dishes into the dishwasher ........... 20
Cutlery basket ................................................. 22
Cutlery basket ................................................. 22
Collapsible lower basket tines ......................... 23
Collapsible lower basket tines ......................... 23
Tray Wash Supports........................................ 24
SoftTouch Accessory ....................................... 24
Lower Basket Glass Holder............................. 24
Lower basket multipurpose / height adjustable
service rack ..................................................... 25
Upper basket height adjustable rack ............... 26
Lower basket bottle wire.................................. 26
Upper basket multipurpose service rack ......... 26
Adjusting the height of the upper basket ......... 27
Height setting with empty basket..................... 28
Collapsible upper basket wires........................ 28
Ceiling cutlery basket ...................................... 29
Ceiling cutlery basket ...................................... 29
6 OPERATION OF THE
PRODUCT 30
Keys................................................................. 30
On-Off / Program Selection knob ................... 30
Auxiliary functions............................................ 30
Programming the Washing Period................... 32
Starting of the program.................................... 33
Monitoring of Program..................................... 33
Cancelling the program ................................... 33
Low Salt Warning indicator.............................. 33
Low Rinse Aid Warning indicator..................... 33
Setting the Rinse aid Amount .......................... 34
End of Program ............................................... 34
7 MAINTENANCE AND
CLEANING 35
Cleaning the outer surface of the product ....... 35
Cleaning the interior of the machine................ 35
Cleaning the filters........................................... 35
Cleaning the hose filter.................................... 36
Cleaning the impellers..................................... 37
Lower impeller ................................................. 37
Upper impeller ................................................ 37
8 TROUBLESHOOTING 38
9 GUARANTEE 43
4/EN
Safety Instructions
•This section contains safety
instructions that will help get
protected against risks of
personal injury or property
damage.
•Our company shall not be
responsible for damages
that may arise when these
instructions are not followed.
Installation and repair
procedures must always be
performed by the manufacturer,
authorised service agent or a
qualified person specified by the
importer.
Only use original parts and
accessories.
Do not repair or replace
any part of the product unless
specified expressly in the user
manual.
Do not make any technical
modifications to the product.
Intended Use
This product is designed to
be used in houses and indoor
places. For example:
- Personnel kitchens in
stores, offices and other working
environments;
- Farm houses;
- Areas used by customers
at hotels, motels and other types
of accommodation;
- Bed&breakfast type
hotels, boardinghouses.
This product must be used to
do the domestic type dishes
only.
This product is not suitable for
commercial or collective use.
•The service life of your
product is 10 years. During
this period, original spare
parts will be available to
operate the product properly.
Safety for children,
vulnerable persons and
pets
This product can be used
by children at and above 8
years old and by persons
whose physical, sensory or
mental capabilities were not
fully developed or who lack
experience and knowledge
provided that they are
supervised or trained on the
safe usage of the product and
the risks it brings out.
Children below the age of
3 must be kept away from
the product unless they are
continuously supervised.
Electrical products are
dangerous for children and
pets. Children and pets must
not play with, climb on or
enter inside the product.
Do not forget to close the
door of the product when
leaving the room where it is
located. Children and pets
may remain locked inside the
product and suffocate.
1-
5/EN
Cleaning and user
maintenance works should
not be performed by children
unless they are supervised by
someone.
Keep packaging materials
away from children. There
is the risk of injury and
suffocation.
Store all detergents and
additives used with the
product in a safe place away
from the reach of children.
For children's safety, cut the
power cable and break the
locking mechanism so that it
will be non-functional before
disposing of the product.
Electrical safety
The product must be
unplugged during installation,
maintenance, cleaning,
repairing and moving
procedures.
If the power cable is
damaged, it must be replaced
by a qualified person
specified by the manufacturer,
authorised service agent or
importer in order to avoid
potential dangers.
Do not squeeze the power
cable under or behind the
product. Do not place heavy
objects on the power cable.
Power cable must not be bent
excessively, pinched or come
into contact with any heat
sources.
Do not use extension cords,
multi-sockets or adapters to
operate the product.
Plug must be easily
accessible. If this is not
possible, the electrical
installation where the product
is connected must contain
a device which conforms to
the electrical regulations and
disconnects all poles from the
grid.
Do not touch the power plug
with wet hands.
Remove the plug from the
socket by gripping the plug
and not the cable.
Transportation Safety
Before transporting the
product unplug it and
disconnect its drain and water
supply connections. Drain the
remaining water in the product
completely.
Product is heavy, do not
move it alone.
NOTICE
Do not hold the
product from its door or panel to
move it.
NOTICE
If you need to move
the product, do it in upright
position and hold from the rear
side. Slanting the product to front
may cause the electronic parts in
it to get wet and damaged.
NOTICE
Make sure that
the hoses do not get kinked,
6/EN
squeezed or crushed while
placing the product into its
location after installation or
cleaning procedures.
Installation Safety
•To make the product ready for
use, review the information
in the user manual and
installation instructions and
make sure that the electricity,
water supply and drain
systems are appropriate. If
they are not, call a qualified
technician and plumber
to have the necessary
arrangements carried out.
These procedures are under
customer’s responsibility.
•Prior to installation, check
if the product has any
defects on it. If the product
is damaged, do not have it
installed.
•Do not install the product
in environments where the
temperature falls below 0ºC.
Do not place the product on
carpets or similar surfaces.
This may cause fire hazard
since the product will not be
ventilated from below.
Place the product on a clean,
flat and solid surface and
balance it with adjustable feet.
If the feet are not adjusted
properly, the door will not
be closed completely and
cause hot steam to escape.
Otherwise, it might cause
serious burns and injuries,
and harm your furniture.
Do not install the product
close to heat sources (heater,
stove and etc.) or under the
cooking area of a hob.
•If the product is going to
be used inside a wardrobe/
cabinet/module, keep the
doors of the wardrobe/cabinet/
module open during operation
in cases where there are no
openings to provide sufficient
air circulation.
Plug the product in a
grounded socket protected
by a fuse with current
values as per type label
of the product. Have the
grounding installation made
by a qualified electrician. Do
not use the product without
having the grounding made as
per local/national regulations.
Plug the product in a socket
that conforms the voltage and
frequency values stated on
the type label of the product.
Do not plug the product
in sockets that are loose,
dislocated, broken, dirty,
greasy or bear the risk of
getting in contact with water,
such as places where there
might be water leak from the
counter.
NOTICE
You must use the
new hose set provided with the
product. Do not reuse the old
7/EN
hose set. Do not make extension
at the hoses.
NOTICE
Connect the water inlet
hose directly to the water tap.
Pressure coming from the tap
should be 0.03 MPa (0.3 bars)
minimum and 1MPa (10 bars)
maximum. If the water pressure
exceeds 1 MPa (10 Bars), a
pressure relief valve should be
installed in between.
Route the power cable and
hoses in a way that they do
not cause risk of tripping.
Operational safety
•Only dishwasher safe
detergents, rinse aids and
additives must be used.
Never use chemical solvents
in the product. They bring
forth the risk of explosion.
The wash-water inside the
product is not potable.
Dishwasher detergents have
high alkali content and can
be very dangerous when
ingested. Avoid letting them
get into contact with skin and
eyes and keep children away
from the product when its
door is open. Make sure that
the detergent dispenser is
empty after the washing cycle
is complete.
When you pull the upper and
lower baskets out completely,
the door of the product will
bear all the weight of the
baskets. Do not sit or put
other loads on the door;
otherwise, the product may
tilt.
Maximum washing capacity
of the product is stated in the
section called
“Technical
Specifications”
.
To prevent possible injuries,
always place the sharp and
pointed dishes such as
service fork, bread knife,
etc. upside down so as their
pointed ends face down or
they lie horizontally in the dish
basket.
Open the door of the product
carefully if you need to do so
when the product is running.
Be careful against hot steam
that may escape or hot water
that may spill.
Do not start the broken or
damaged product. Unplug
the product (or switch off the
fuse it is connected to), turn
off the water tap and call the
authorised service agent.
Do not place flame sources
(lit candles, cigarettes, etc.)
on or close to the product.
Do not keep combustable/
flammable substances close
to the product.
Do not climb on the product.
•Unplug the product and close
the tap if you are not going to
use it for a long time.
8/EN
Maintenance and cleaning
safety
Do not wash the product by
spreading or pouring water
onto it.
Do not use sharp or abrasive
tools when cleaning the
product. Do not use home
cleaning products, detergent,
gas, gasoline, thinner, alcohol,
varnish etc.
NOTICE
Do not forget to install
the product’s filter back after
you have cleaned it. Otherwise,
pumps will get clogged and
product will be damaged.
Interior Lighting
Depending on the model
of your product, call the
authorised service agent
when it is required to change
the LED/bulb used for lighting.
Environmental
Instructions
Compliance with WEEE
Directive and Disposing of
the Waste Product
This product complies with
EU WEEE Directive (2012/19/
EU). This product bears a
classification symbol for
waste electrical and electronic
equipment (WEEE).
This symbol indicates
that this product shall
not be disposed with
other household wastes
at the end of its service
life. Used device must
be returned to official collection
point for recycling of electrical
and electronic devices. To find
these collection systems please
contact to your local authorities
or retailer where the product was
purchased. Each household
performs important role in
recovering and recycling of old
appliance. Appropriate disposal
of used appliance helps prevent
potential negative consequences
for the environment and human
health.
Compliance with RoHS
Directive
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
2-
9/EN
Package information
Packaging materials of
the product are
manufactured from
recyclable materials in
accordance with our National
Environment Regulations. Do not
dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.
10/EN
Technical specifications
Maximum washing capacity (check the
energy label and Programme data and
average consumption values table given
on Quick Guide. )
Height (check installation document for
installation)
Width: 60
Depth: 57
Power input: 220-240 V, 50 Hz *
Total power 1800-2100 W *
Heater power: 1800 W *
Total current: 10 A *
Pump power: 90 - 125 W *
Drain pump power: 30 W *
* For detailed electrical values, check
the type label on the machine door.
Water Pressure 0.3 –10 bar
(= 3 – 100 N/cm² = 0.03-1.0 Mpa)
Technical specifications may be
changed without prior notice to improve
the quality of the product.
Figures in this manual are schematic
and may not match the product exactly.
Values stated on the markings of the
product or in the printed documents
accompanying the product are
obtained in the laboratory on basis of
the relevant standards. These values
may vary according to the usage of the
product and ambient conditions.
Note for test institutions:
Data required for performance tests shall
be provided upon request. Requests can
be e-mailed to the following address:
Do not forget to provide the code, stock
number and serial number of the product
to be tested in your request e-mail along
with your contact information. Code, stock
number and serial number of the product
may be found on the type label attached to
the side wall of the door.
Compliance to standards and test
data/EC declaration of conformity
Development, production and
sales stages of this product comply
with the safety rules included in all
pertaining European Community
regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC
60436 / EN 60436
The model information as stored in
the product database can be reached
by entering following website and
searching your model identifier (*)
found on energy label.
https://ec.europa.eu/
XXXXXXXXXX (*)
18 7575 8000
3:25
REV:AA
12.9 L
94
13 x
kWh
2019/2017
48
db
11/EN
Your dishwasher
Overview
1. Upper basket
2. Upper impeller
3. Lower impeller
4. Cutlery basket (depends on model)
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket (depends on model)
14. Tabletop (depends on model)
15. Fan drying system (depends on model)
15
3-
12/EN
Installation
Read “Safety Instructions” section first!
Installation procedures must always be
performed by the manufacturer, authorised
service agent or a qualified person
specified by the importer. To make the
product ready for use, make sure that
the electricity, tap water supply and water
drainage systems are appropriate before
calling the authorised service agent. If
they are not, call a qualified technician
and plumber to have the necessary
arrangements carried out.
Preparation of the location and
electrical, tap water and waste water
installations at the place of installation
is under customer's responsibility.
Installation and electrical connections
must be carried out by the authorised
service agent. Manufacturer shall
not be held responsible for damages
arising from processes carried out by
unauthorised persons.
Prior to installation, check if the product
has any defects on it. If the product
is damaged, do not have it installed.
Damaged products cause risks for your
safety.
Make sure that the water inlet and
discharge hoses are not folded,
pinched or crushed while pushing the
product into its place after installation
or cleaning procedures.
The front of the appliance may not be
removed on free-standing or under-the-
counter models. The warranty will be
void if this is done.
When placing the product, pay attention not
to damage the floor, walls, piping, etc. Do
not hold the product from its door or panel
to move it.
Appropriate installation location
In the area where this product is
installed, there must not be a lockable,
sliding or hinged door that will restrict
full opening of the product’s door.
Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Place the product on a solid and flat
floor that has sufficient load carrying
capacity! The product must be installed
on a flat surface in order for the door to
be closed properly and securely.
•Do not install the product at places
where temperature may fall below 0ºC.
•Place the product on a hard floor. Do
not place it on a long pile rug or similar
surfaces.
Do not place the product on the power
cable.
•Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Install the product at a place close to
the tap and the drain hole. Select the
installation location by considering
that it will not be changed after the
connections are made.
Connecting water supply
We recommend installing a filter at
the water inlet in order to prevent the
dirt (sand, clay, rust) in the mains or
water installation of your home from
damaging the machine or the dishes.
4-
13/EN
Permitted water temperature: up to
25°C ( 60°C for products equipped
with Aquasafe+; please refer to
Aquasafe+ section )
The dishwasher may not be connected to
open warm water devices or flow-through
water heaters.
NOTICE
Do not use an old or used water
inlet hose on the new product. Use the new
water inlet hose supplied with the product.
Do not make extension at the hoses.
NOTICE
Connect the water inlet hose
directly to the water tap. Pressure coming
from the tap should be 0.3 bars minimum
and 10 bars maximum. If the water
pressure exceeds 10 bars, a pressure relief
valve should be installed in between.
NOTICE
The water supply and draining
hoses must be securely fastened and
remain undamaged.
NOTICE
Open the taps completely after
making the connections to check for water
leaks.
Aquasafe+
(depends on the model)
The Aquasafe+ system protects against
water leaks that may occur at the hose
inlet.Water contact with the valve box of
the system must be avoided to prevent
damage to the electrical system.
As the hose set contains electrical
connections and assemblies, never
shorten or lengthen the hose with
extension hoses.
If the Aquasafe+ system is damaged,
unplug the product and call the
authorised service agent.
14/EN
Drain pipe must be connected to the
sewage system and it should not be
connected to any surface water.
Adjusting the feet
If the door of the product cannot be closed
properly or if the product rocks when you
push it slightly, then you need to adjust
the feet of the product. Adjust the feet of
the product as illustrated in the installation
manual supplied with the product.
Steam may escape if the door of the
dishwasher is not adjusted properly.
Hot steam may cause serious burns
and injuries and damage your furniture.
Connection to the drain
Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. See the installation manual
supplied with your machine for detailed
information.
min
300
min
120
max 1000
min 500
Electrical connection
Connect the product to a grounded
outlet protected by a fuse complying
with the values in the "Technical
specifications" table. Our company
shall not be liable for any damages
that will arise when the product is used
without grounding in accordance with
the local regulations.
•Connection must comply with national
regulations.
•Power cable plug must be easily
accessible after installation.
•Plug in the product to a grounded
socket which is protected by a fuse of
16 Amperes.
•The specified voltage must be equal to
your mains voltage.
Do not make connections via extension
cables or multi-plugs.
Damaged power cables must be
replaced by the authorised service
agent.
This appliance must be earthed. If the
fitted moulded plug is not suitable for
your socket, then the plug should be
cut off and an appropriate plug fitted.
Destroy the old plug, which is cut off as
a plug with a bared cord could cause a
shock hazard if inserted into a socket
elsewhere in the house.
The moulded plug on this appliance
incorporates a 13A fuse. Should the
fuse need to be replaced an ASTA
approved BS1362 fuse of the same
rating must be used. Do not forget
to refit the fuse cover. In the event of
losing the fuse cover, the plug must
not be used until a replacement fuse
cover has been fitted. Colour of the
replacement fuse cover must be the
same colour as that visible on the
15/EN
pin face of the plug. Fuse covers are
available from any good electrical
store.
Fitting a different plug
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals on your plug, proceed as follows:
1. Connect the green - yellow or green
(earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
With the alternative plugs a 13A fuse must
be fitted either in the plug or adaptor or
in the main fuse box. If in doubt contact a
qualified electrician.
16/EN
Preparation
Read “Safety Instructions” section first!
Tips for energy saving
Following information will help you use the
product in an ecological and energy-efficient
manner.
Wipe away any coarse food remnants on the
dishes before putting them in the product.
Manual pre-rinsing of tableware items
leads to increased water and energy
consumption and is not recommended.
Washing tableware in a household
dishwasher usually consumes less energy
and water in the use phase than hand
dishwashing when the household dishwasher
is used according to the manufacturer’s
instructions.
Operate the product after filling it completely.
When selecting a programme, consider
the table of "Programme data and average
consumption values" given on Quick Guide.
Do not put more detergent than suggested
on the detergent package.
Water softening system
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This system
softens the supply water to a level that will
allow washing the dishes with the required
quality.
The mains water hardness must be
softened if it is over 7°dH. Otherwise,
hardness ions will accumulate on
the dishes that are washed and may
affect the washing, rinsing and drying
performances of the machine.
Adjusting the water softening
system
Washing performance will increase when
water softening system is adjusted properly.
5-
Read “Quick Guide - Adjusting Water
Softening System” before this section!
The regeneration of the water softening
system can be done in all programmes
during drying step. When regeneration
occurs, duration, energy and water
consumption of the programme increase.
For regeneration process; frequency of
regeneration cycle, maximum additional
duration, water and energy consumption
are given in table below depending on
Eco 50°C programme water consumption,
when the dishwasher is run under standard
conditions with 14 dH water supply on its
Eco 50°C programme:
Eco 50°C water
consumption (l)
Regeneration after
…. cycles
Additional
duration (min)
Additional water
consumption (l)
Additional energy
consumption (kWh)
12,3-14,7 5 5 3,0 0,05
9,6-12,2 6 5 3,0 0,05
9,0-9,5 7 5 3,0 0,05
8,0-9,0 8 5 3,0 0,05
7,0-7,9 9 5 3,0 0,05
For the water consumption of your
dishwasher on Eco 50°C programme,
look at the Programme data and average
consumption values table given on Quick
Guide.
17/EN
You can put about 2 kg of softening
salt into the salt reservoir.
5. Replace the lid and tighten it when the
reservoir is full.
You need to add salt right before
starting the machine. Thus, the
overflowing salty water will be flushed
immediately, preventing the risk
of corrosion in machine. In cases
where you would not start washing
immediately, run your machine empty
in the shortest programme.
Since different salt brands in the
market have different particle sizes and
since the water hardness may vary,
dissolution of the salt in water may
take a couple of hours. Therefore, Salt
Indicator remains on for a while after
adding salt into the machine.
Detergent
You can use powder, liquid/gel or tablet
detergents in the machine.
Only use detergents produced
particularly for use with dishwashers.
Note that detergents that contain
chlorine and phosphate can be harmful
for the environment. Liquid detergents
without chlorine may not remove tea
and coffee stains from cups.
Adding salt
Water softening system needs to be
regenerated in order for the product
to operate with the same performance
continuously. Dishwasher salt is used for
this purpose.
Use only special softening salts
produced particularly for the
dishwashers in your machine.
It is recommended to use granule- or
powder-formed softening salts in the
water softening system. Do not use
salts that do not completely dissolve
in water such as table salt or rock
salt. Otherwise the performance of the
system may deteriorate in time.
Salt reservoir will be filled with water
when you start the product. For this
reason, add salt before operating the
machine.
1. Firstly, take the lower basket out to add
softening salt.
2. Turn the salt reservoir lid counter-
clockwise to open it (A).
3. Add 1 liter of water to salt reservoir of
your machine only in initial use.
4. Fill the salt reservoir with salt by
using the salt funnel (D). To speed up
dissolution rate of salt in water, stir it
with a spoon.
18/EN
or 25 cm³ level marks in the detergent
dispenser according to fullness of the
machine and/or soiling degree of the
dishes. One tablet is enough if you are
using detergent tablets.
3. Push the lid of the detergent dispenser
to close it. A "click" will be heard when
the lid is closed.
1
2
3
Adding detergent
Pay attention to the warnings on the
detergent packaging to get better
washing and drying results. Contact
the manufacturer of the detergent for
further questions.
Do not put solvents into the detergent
dispenser. There is the risk of
explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A). (depends
on model)
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
reservoir.
Inside the detergent dispenser there
are level markings that help you
use appropriate amount of powder
detergent. When brimful, detergent
dispenser will contain 45 cm³ of
detergent. Fill detergent up to 15 cm³
19/EN
When you switch to powder
detergent from tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the highest
level and perform an empty run.
3. After the empty washing cycle, review
the user manual and readjust the water
hardness level so as to suit the water
supply.
4. Make the appropriate rinse aid settings.
Rinse aid
The rinse aid used in dishwashers
is a special combination that aims to
increase drying efficiency and prevent
water or lime stains on the washed
items. For this reason, care must be
paid to have rinse aid in the rinse
aid reservoir and to use rinse aids
produced specially for dishwashers
only.
1. Open the lid of the rinse aid reservoir
with the help of the latch.
2. Fill the reservoir until “MAX” level.
Use powder or liquid/gel detergent in
short programmes without prewash
since the solubility of the tablet
detergent changes depending on the
temperature and time.
Tablet detergents
In addition to the conventional tablet
detergents, there are also commercially
available detergent tablets that show water
softening salt and/or rinse aid effect. Some
types of these detergents contain special-
purpose components such as glass and
stainless steel protectors. These tablets
show their effects up to a certain water
hardness level (21°dH). Water softening
salt and rinse aid must also be used
together with the detergent if the water
hardness level is above the mentioned
level.
The best washing performance in
dishwashers is obtained by using
detergent, rinse aid and water
softening salt individually.
Observe the instructions of the
detergent manufacturer on the package
when using tablet detergents.
Contact the detergent manufacturer if
your dishes are wet and/or if you notice
limescale spots particularly on your
glasses after the washing programme
is over when using a tablet detergent.
20/EN
3. Slightly press the point (B) of the
reservoir lid to close it.
4. If there are stains on tableware items
after washing, level must be increased
and if there is a blue trace after wiping
them by hand, it must be decreased.
This is set to position 3 as factory
default.
The rinse aid adjustment is described
under "Adjusting the amount of rinse
aid" in the section for operating the
machine.
Wipe clean any spilled rinse aid
outside the reservoir. Rinse aid that
spilled accidentally will cause foaming
and it will eventually decrease washing
performance.
Items not suitable for washing in
the dishwasher
•Never wash dishes soiled by cigarette
ash, candle remnants, polish, dyestuff,
chemicals, etc. in your dishwasher.
•Do not wash silverware and cutlery
with wooden or bone stems, glued
pieces, or pieces that are not resistant
to heat, as well as copper and tin-
plated containers in the dishwasher.
Decorative prints of chinaware as well
as aluminium and silver items may get
discoloured or tarnished after washing
in the dishwasher just as it happens in
handwashing as well. Some delicate
glass types and crystals may become
dull in time. We strongly recommend
you to check if the tableware you
are going to purchase is suitable for
washing especially in the dishwasher.
Placing the dishes into the
dishwasher
Depending on the capacity of your
dishwasher, you can use your dishwasher
in the optimum way with respect to energy
consumption and washing and drying
performance only if you place the dishes in
an orderly way.
•Wipe away any coarse food remnants
(bones, seeds, etc.) on the dishes
before placing them in the dishwasher.
•Place thin, narrow pieces in the middle
sections of baskets if possible.
•Place the heavily soiled and bigger
items in the lower basket and smaller,
delicate and light items in the upper
basket.
•Place the hollowed dishes such as
bowls, glasses and pans upside down
in the dishwasher. Thus, accumulation
of water in deep hollows is prevented.
To prevent possible injuries, always
place the sharp and pointed dishes
such as service fork, bread knife, etc.
upside down so as their pointed ends
will face down or lay them horizontally
in the dish basket.
Unload dishes in the lower basket first and
then the dishes in the upper basket.
Table of contents
Other Zenith Dishwasher manuals
