Fisher & Paykel DISHDRAWER DD60DTX6I1 User manual

INSTALLATION GUIDE
INTEGRATED
DD60DTX6I1, DD60DTX6HI1
DOUBLE DISHDRAWER™ DISHWASHER
NZ AU BI

3
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Fitting an integrated panel requires access to
electrical service areas. This must be performed
by a Fisher & Paykel trained and supported
service technician or qualified person.
• Before fitting the front panel, the dishwasher
must be disconnected from the power supply.
• After installing the front panel, the installer
must ensure that the following components
are electrically earthed: the panel bracket and
any custom metal component (e.g. handle) that
extends past the rubber seal.
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug.
• Before installing the DishDrawer™ Dishwasher,
remove the house fuse or open the circuit breaker.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Do not modify the power supply plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
• The dishwasher must be completely enclosed at
the time of installation.
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• WARNING – Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you
are in doubt as to whether the appliance is
properly earthed.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – panel edges are sharp.
SAFETY AND WARNINGS
!WARNING!
Tip Hazard
Failure to follow this advice may result in
injury or product damage.
• Take care when removing product
from packaging.
• If drawers are pulled open while product is not
secured to cabinetry, product may tip.

4
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken by a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
zInstallation of this DishDrawer™ Dishwasher requires basic mechanical and
electrical skills.
zInstallation must comply with your local building and electricity regulations.
zRemove all packaging materials supplied with the dishwasher.
zBe sure to leave these Instructions with the Customer.
zAt the completion of the installation, the Installer must perform the Final Checklist.
zThis dishwasher is manufactured for indoor use only.
zEnsure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
zThe DishDrawer™ Dishwasher MUST be installed to allow for future removal from the
enclosure if service is required.
zThe switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
zCare should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
zIf the DishDrawer™ Dishwasher is relocated from one installation site to another it must
be kept upright to avoid damage from water spillage.
zEnsure only supplied hoses are used for connection. Old hoses should not be reused.
zFailure to install correctly could invalidate any warranty or liability claims.
zIf the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.

5

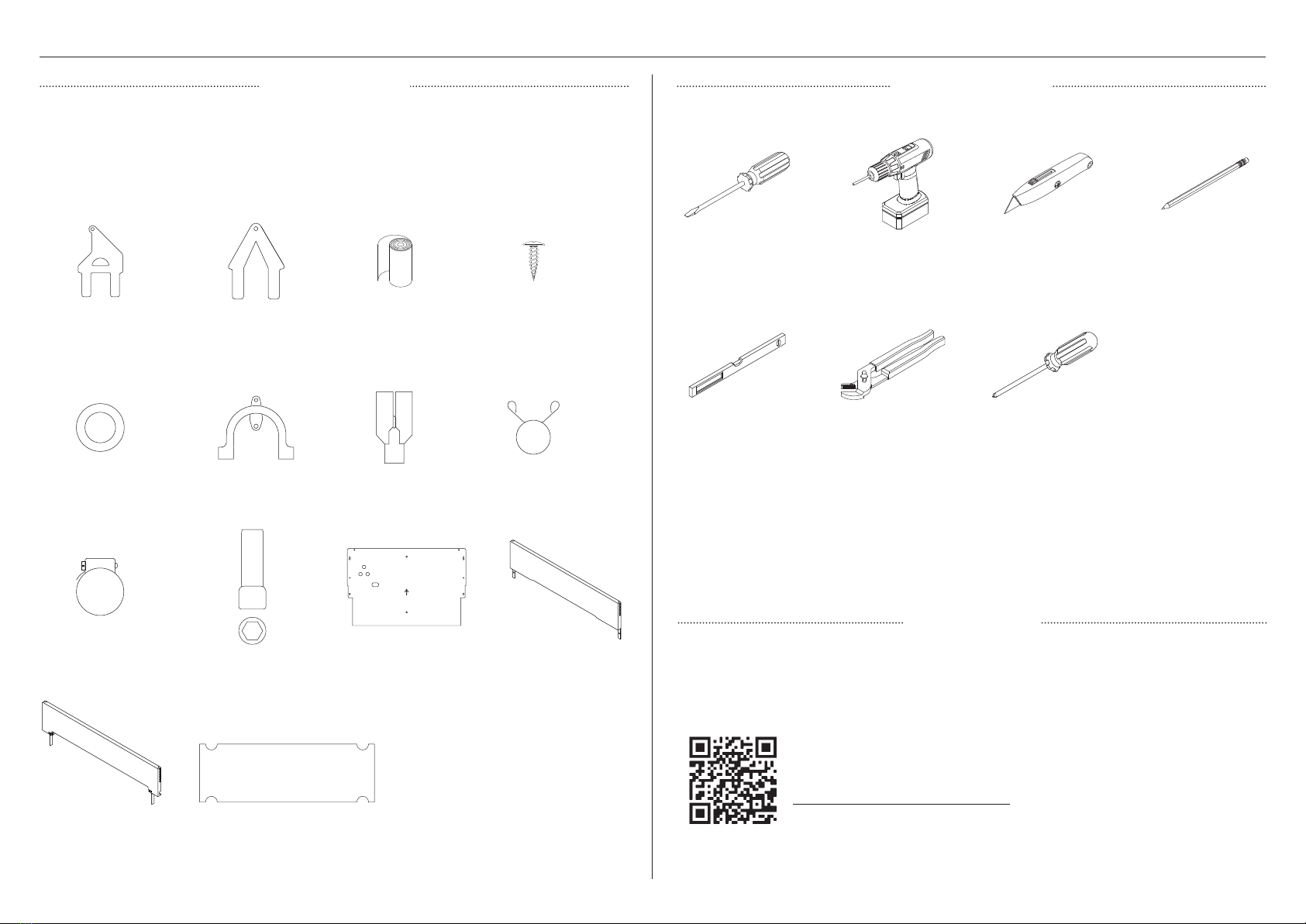

TOOLS AND COMPONENTS
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
zFisher & Paykel is not responsible for shipping damage.
Side mounting bracket
kits (2)*
*Optional | **Comes fitted to the product
Inlet hose rubber washer
(1)**
Drain hose support (1)
Flat-blade screwdriver
Phillips screwdriverLevel
Top mounting bracket
kit (1)*
Drain hose joiner (1)
Powered driver
Pliers
Box cutter Pencil
Moisture protection
tape (1)
16mm Phillips screws (32)
Clamp (1) Hex socket (2) Panel bracket kits (2)**
Wire clip (2)
Supplied
Not supplied
PARTS SUPPLIED TOOLS REQUIRED
Flush pre-finished toe kick
panel (1)
Recessed pre-finished toe
kick (1)
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install
INSTALL VIDEO
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.
Sound seal insulation

6
PRODUCT DIMENSIONS
Actual product dimensions may vary by ± 2 mm
PRODUCT DIMENSIONS MM
A Overall height* 865 – 925
B Overall width** 599
C Overall depth*** 571
D Height of chassis 855
E Depth of chassis 553
F Ventilation gap between door panels 8
G Depth of toe kick recess**
Custom panel installation 40 – 100
Pre-finished panel installation 40 – 120
H Minimum clearance between toe kick panel
and floor 12
I Height of feet* 10 – 70
J Door panel depth**** 16 – 20
K Depth of drawer opening** 527
*depending on adjustment of levelling feet
**excluding custom panel and handle
***based on front panel thickness of 18mm
****refer to 'Custom panel dimensions' for more information
PLAN ISOMETRIC
PROFILEFRONT
d
j
A
i
g
h
b C
f
k
e

7

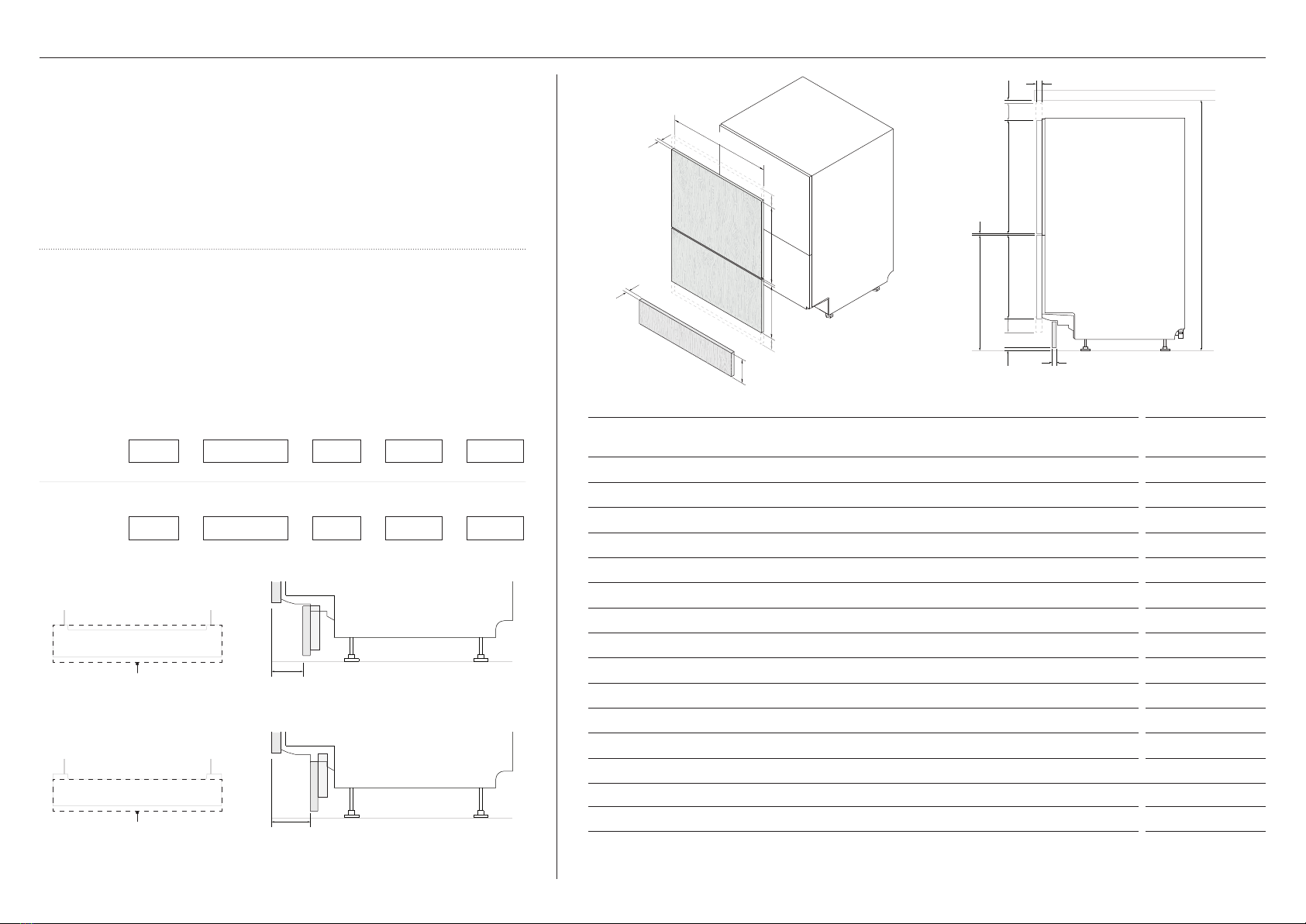

CUSTOM PANEL DIMENSIONS
CUSTOM PANEL CONSIDERATIONS MM
A
Minimum upper door panel height* 442
B Minimum lower door panel height* 311
C Minimum door panel width 596
D Toe kick panel height* 45 – 123
E Door panel depth 16 – 20
F Minimum toe kick panel depth** 9
G Minimum clearance between door panels 8
H Minimum clearance between top of door panel and countertop 2
I Minimum clearance between toe kick panel and floor 12
J Maximum extension of upper panel -
K Maximum extension of lower panel 50
L Minimum inside cavity height 864
M Minimum height from floor to top of bottom drawer panel*** 414
Maximum weight of each drawer panel (including handle) 9kg
*the top door panel may be extended up, or the bottom panel down from the fixed gap. Toe kick panel should be adjusted accordingly.
**if using supplied toe kick mounting screws. Panel can be fixed via screwing or gluing to the supplied mounting bracket.
***depending on adjustment of levelling feet
ISO PROFILE
Material specifications
zMaximum weight of drawer panels must not exceed 9kg (including handle)
zThe panel should be adequately sealed to withstand moisture (50°C @
80% RH). The back and sides of the panel should be completely sealed
with a waterproof vapour barrier, such as polyurethane, to prevent damage.
zThe back of the panel should be completely flush so that the seal between
the panel and the rubber trim is maintained.
zInstallation outside these specifications may result in condensation on
cabinetry surfaces.
Toe kick
zA minimum distance of 12mm between the floor and the base of the toe kick
must be maintained at all times.
zDepending on the desired toe kick recess depth, the custom toe kick panel
will need to be aligned to different positions on the toe kick template to
clear the underside of the tub.
zToe kick panel height can be determined by using the below:
*based on a door panel depth of 18mm
Recess of 40 – 100mm*
Align to pre-finished panel as shown
40 – 100mm
a
B
j
k
c
d
B
a
l
I
e
f
g
m
h
e
f
l j i
783mm
- - = -
cavity height upper panel extension floor clearance toe kick height
l j i
801mm
- - = -
cavity height upper panel extension floor clearance toe kick height
40mm recess
installations:
40 – 100mm recess
installations:
Recess of 40mm*
Align to pre-finished panel as shown
40mm
Custom panel
Custom panel

8
CABINETRY

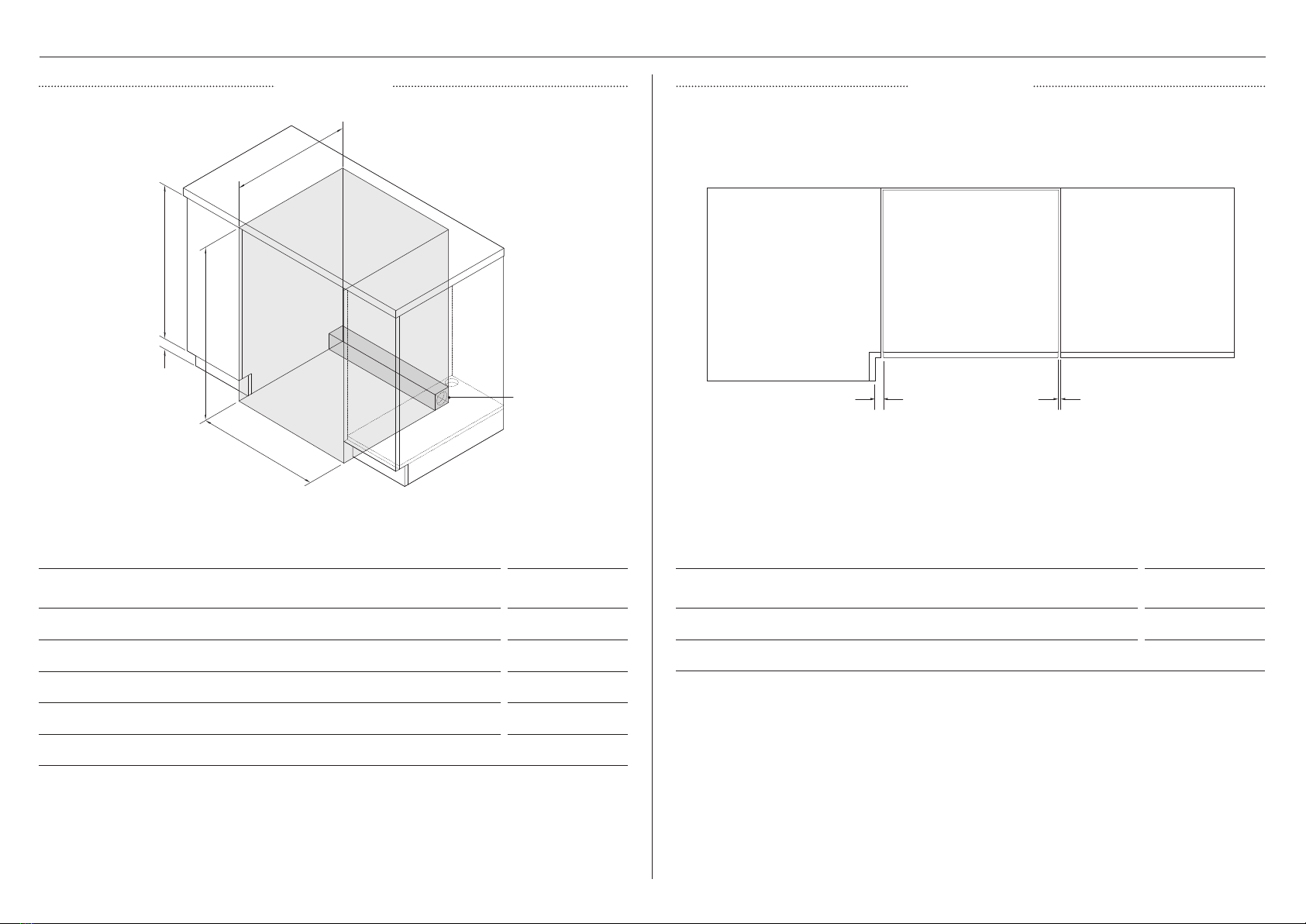

CABINETRY DIMENSIONS MM
A Minimum inside height* 864
B Inside width 600
C Minimum inside depth** 578
D Recommended height of adjacent cabinetry 762
E Height of toe kick area*** 100 – 160
*depending on adjustment of levelling feet
**including 18mm door panels on adjacent cabinetry
***For more information on service requirements, refer to 'Plumbing & electrical considerations' and 'Preparation'.
DIMENSIONS CLEARANCES
B A
ISOMETRIC
PLAN
A
D
E
B
C
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher***
CABINETRY CLEARANCES MM
A Minimum clearance to adjacent cupboard door 2
B Minimum clearance to corner cupboard* 13
*Access to both sides of the product will be required during installation. If access is not possible, the tubs may need to be
removed for door installation and adjustments. Refer to page 13 for guidance on drawer removal.

9
PLUMBING & ELECTRICAL CONSIDERATIONS
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
MM MM
A Length of drain hoses 2000 1700
B Length of power cord** 1650 1550
C Length of inlet hose 1650 1250
D Minimum distance from floor to top of hose support 750 750
E Minimum distance from floor to end of drain hoses*** 500 500
F Minimum distance from floor to inlet hose connection 200 200
G Maximum distance from cabinetry to the centre of electrical outlet 450 450
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for all plumbing installs.
Hose and cord lengths
zYour services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to 'Preparation' for service
access requirements.
zIf the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
zRecommended water temperature: Cold (maximum 60°C)
z3/4” BSP (GB20) to suit flat washer
zEnsure water connection complies with local plumbing regulations.
Water pressure
zWater softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
zNon-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z220 – 240V min 8.5A
Kosher requirements
zDrains will need to be separated to satisfy kosher requirements.
zWe recommend confirming the acceptability with your local rabbi in
respect to kosherinstallations.
a
G G
a b cbc
d d
e e
f f

10

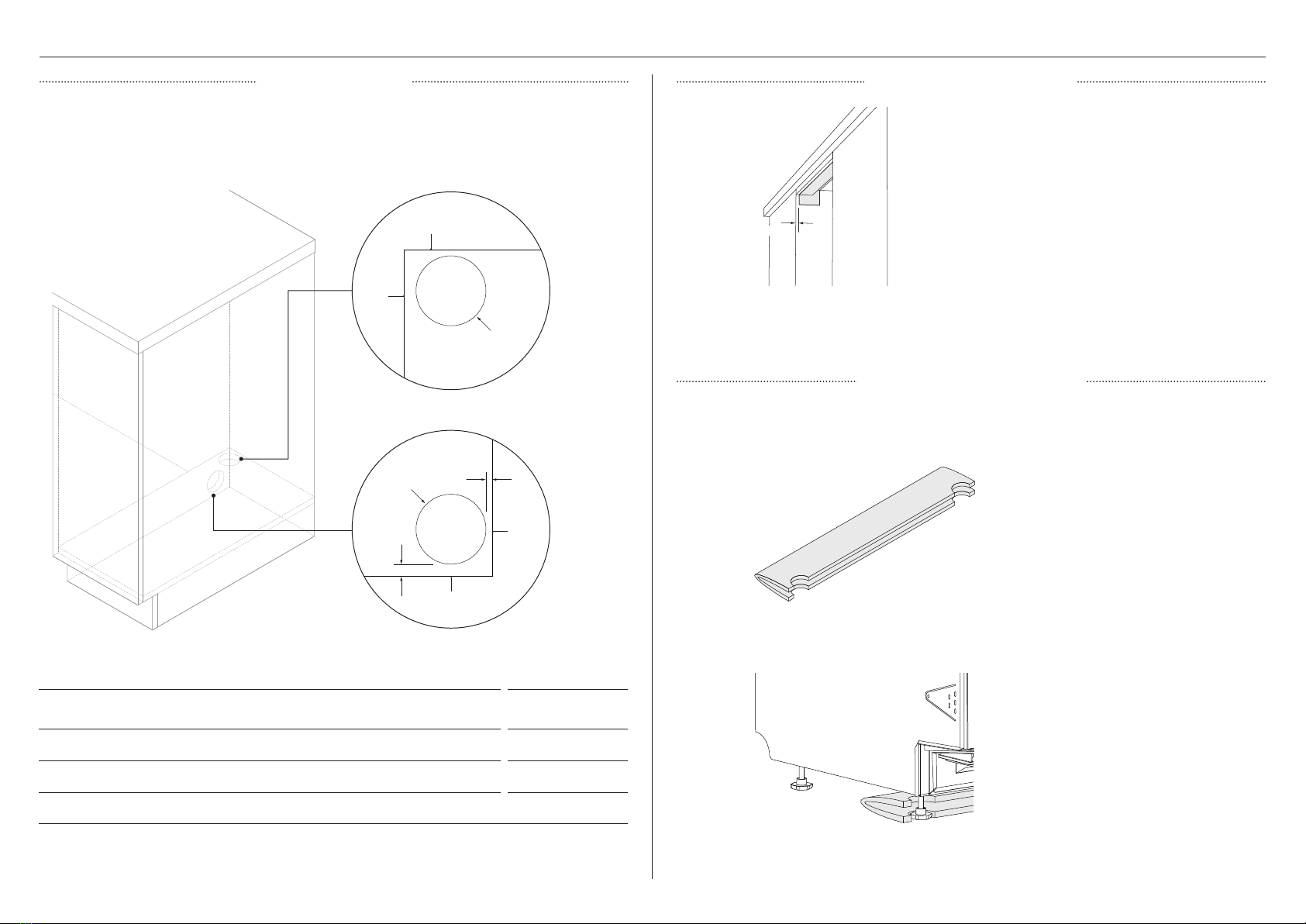

PREPARATION
SERVICE ACCESS
REAR
WALL
Hole
location
created
to suit
cabinetry
REAR
WALL
INSIDE
WALL
FLOOR
PLAN
PROFILE
SERVICE HOLE DIMENSIONS MM
A Maximum distance between rear of cavity and service hole 5
B Maximum distance between floor and service hole 10
C Minimum diameter of service hole 57
A
B
C
C
zWe recommend locating the service holes on either side of the DishDrawer™ Dishwasher as
shown below.
zIf the holes are created through wood, ensure the edges are smooth and rounded
zIf the holes are created through metal, ensure the supplied edge protector is fitted.
1
MOISTURE PROTECTION
10mm
Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris
before carefully applying the tape to
the surface.
For best results, we recommend installing the supplied sound seal to reduce the possibility of
any excess noise occurring during daily use.
SOUND SEAL (OPTIONAL)
1
2
Cavity height of 864 – 874mm
Lay the sound seal flat, do not fold.
Cavity height of 874mm +
Fold the sound seal as illustrated.
Gently tilt the DishDrawer™ Dishwasher
back and align the seal to the front feet.
Carefully lower product and ensure seal
is still positioned correctly.

11
PUSH THE PRODUCT INTO THE CAVITY FIT CUSTOM DOOR PANELS
If securing to cabinetry via method A
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
Optionally, fit the two top brackets for
additional stability. Ensure the brackets
are oriented correctly with the raised
locking barbs facing upwards.
Ensure the ends of the brackets are not
pushed into the chassis.
1
2
3
4
Level the DishDrawer™ Dishwasher
by carefully tipping it onto
protected surface.
Rotate each leg clockwise to increase
the height, and anticlockwise to
decrease. Stand upright when complete.
Minor adjustments can be made by
lightly tilting the product and rotating
each leg as desired.
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them and taking
care not to bend the legs.
2
3
4
On the back of the upper panel, mark
the centre and align the base of the
upper bracket with the base of the
panel. Secure using a minimum of 3
screws on either side.
On the back of the lower panel, mark
the centre and align the top of the
lower bracket with the top of the panel.
Secure using a minimum of 3 screws on
either side.
1Remove both side pins from each drawer
by twisting a quarter-turn towards the
product front. Pull outwards to remove pin.
Carefully pull both brackets from
DishDrawer™ Dishwasher down and out
before unplugging the Knock-to-Pause
modules and earth wires.
Remove the Knock-to-Pause modules
from the back of the brackets.
A
A
B
B

12
FIT THE CUSTOM PANEL
9
!0
!1
Carefully fit the panels onto the
product. When refitting the lower
panel, we recommend pushing back the
drawer slides as shown on page 13
for access.
Insert a Phillips screwdriver into the
hole above each side pin and rotate to
adjust the panel alignment. There is a
maximum travel distance of ± 2mm.
Repeat for both sides and drawers
if required.
Re-check clearances.
Ensure the minimum clearance gap of
8mm between panels is maintained
after all adjustments have been made.
Re-insert both side pins to each drawer
by pushing in and twisting a quarter-turn
towards the rear of the product to secure
panels into place.
7
8
Attach the Knock-to-Pause module to
the panels as shown.
Ensure the Knock-to-Pause modules
are oriented correctly and are
not in contact with the brackets
before securing.
5
6
Snap the bracket tab to remove.
Reconnect the Knock-to-Pause module
to the UI 1 slot on the wash controller as
shown. Reconnect the earth wire to the
panel bracket.
Electric shock hazard:
To earth the panel bracket, connect the
earth wire from the product to one of
the tabs. Any custom metal components
(e.g. handle) that extend past the
rubber seal must be earthed also.

13

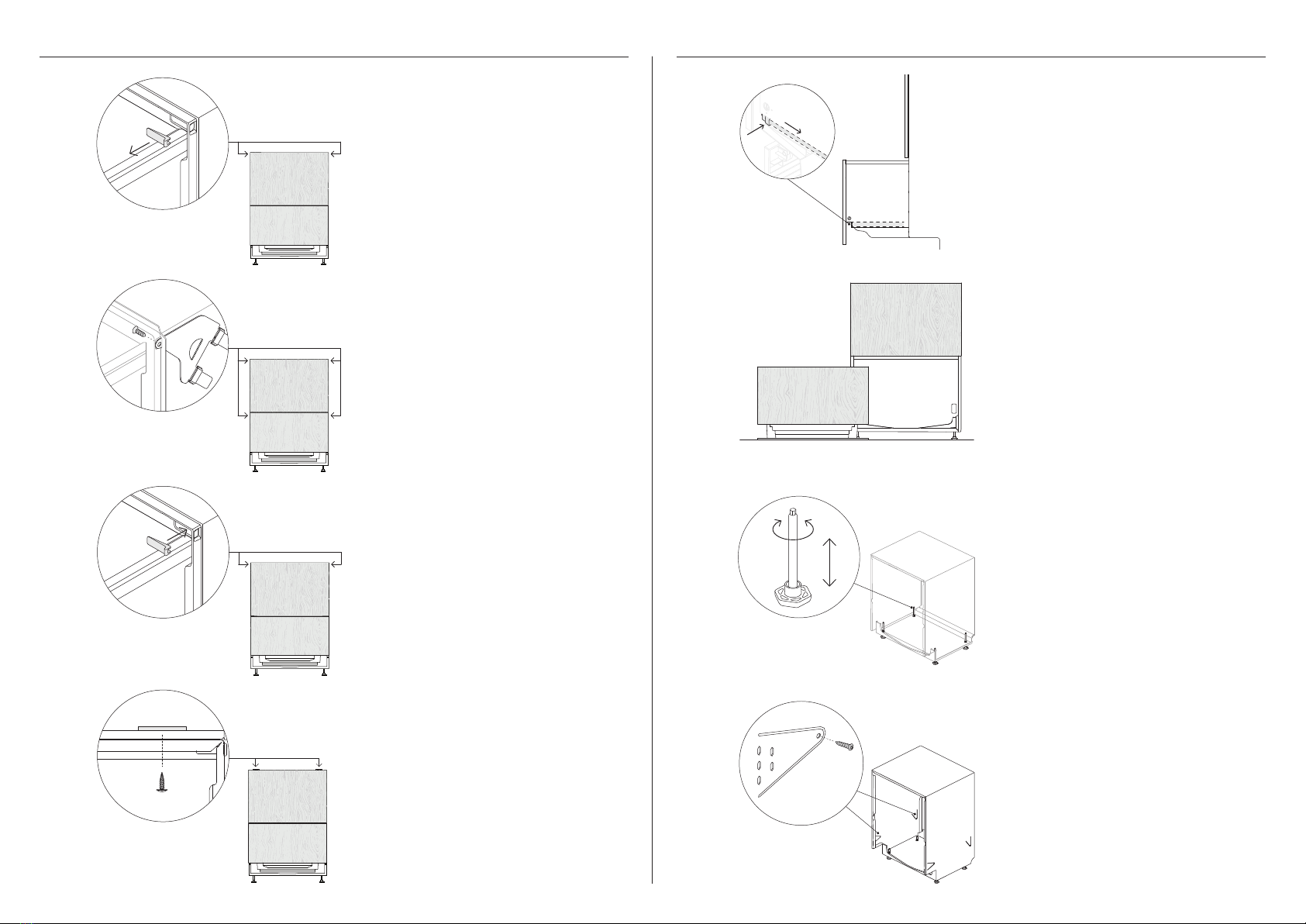

SECURE TO CABINETRY VIA BRACKETS (METHOD A) SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
Partially open one of the drawers and
remove the first screw cover from the
trim moulding.
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
1
2
3
4
Replace the trim cover and repeat for
the remaining brackets.
If fitted, secure the two top brackets to
the cabinetry.
1
2
Open the lower drawer and press both
locking tabs back to release.
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out too
far to prevent any strain on the hoses.
Where possible, protect the base of the
tub to prevent damage.
3
4
Using the supplied hex socket and
a screwdriver, level the DishDrawer™
Dishwasher as required. Rotate clockwise
to increase the height of each leg and
anticlockwise to lower.
It can help to reduce the loading on the
feet to assist the adjustment process to
decrease the height.
Secure to cabinetry via all four fixing
locations in the chassis.
Ensure sound insulation is
replaced correctly.
If fitted, secure the two top brackets
to the cabinetry.

14
SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) INSTALL PRE-FINISHED TOE KICK
5
6Refit the drawer to the runners and clip
into place via both locking tabs.
Before refitting the drawer, ensure the
hoses are not twisted.
Carefully score toe kick at
marked height.
Measure toe kick height against
the base of the locking tab. Mark
cutting location on panel.
1
2
3
4
Slide toe kick onto the mounting rails
and secure. Ensure a 12mm clearance
is maintained between the floor and
the toe kick, the end tabs can be used
to measure this if desired.
Do not over tighten the screws.
min 12mm
Select your preferred pre-finished toe kick based on the depth of your desired toe kick recess.
Toe kick depth of 56 – 120mm
Recessed pre-finished toe kick panel
Toe kick depth of 40 – 56mm
Flush pre-finished toe kick panel
Snap off excess toe kick material and
both end tabs.
Smooth the edges.

15
INSTALL CUSTOM TOE KICK
On a protected surface, carefully
score the toe kick at the
marked height.
1
Slide toe kick onto the mounting rails
and secure.
Do not over tighten the screws.
2 5
3
4
Align the custom panel to the recessed
pre-finished panel, referring to 'Custom
panel dimensions' for guidance.
Mark a section of the recessed panel to
be removed, ensuring it is shorter than
the custom panel.
Snap off excess toe kick material and
both end tabs.
Smooth the edges.
Re-align the custom panel to the
recessed panel and secure using the
provided screws.
Pre-drilling the screw bosses is
recommended for optimal results.
Custom panel Recessed
pre-finished
panel
Recessed
pre-finished
panel
Custom panel

16
PLUMBING & ELECTRICAL CONNECTION
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
'Plumbing & electrical considerations' for
minimum install heights.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
'Plumbing & electrical considerations' for
minimum install heights.
Pull both hoses through the support
guide and rest in standpipe.
Ensure the hoses do not extend any
further than 120mm into the standpipe
to prevent waste water from siphoning
back into the tub.
Thread wire clips on to the hoses before
pulling both hoses through the support
guide and fitting to the supplied hose
joiner. Secure using the wire clips.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorten the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
Plug product in. Plug product in.
Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
1 1
2 2
3 3
4 4
Ensure the supplied rubber washer is
fitted to the coupling before connecting
the inlet hose to tap. Hand-tighten
into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Ensure the supplied rubber washer is
fitted to the coupling before connecting
the inlet hose to tap. Hand-tighten
into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
120mm

17
TO BE COMPLETED BY THE INSTALLER
Check all parts are installed correctly and are secure.
Ensure all clearance gaps have been maintained.
Ensure DishDrawer™ Dishwasher is secure and drawer opens and closes freely with
no resistance.
Ensure panel is fitted correctly to the DishDrawer™ Dishwasher
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotate freely.
Ensure knock-to-pause module is fitted securely and operating correctly.
Ensure all electrical tests have been conducted in accordance with local regulations.
Electrical
Installation
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum 150mm
higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to your user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to
be enabled.
Plumbing
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Test operation
INSTALLER CHECKLIST

18
TROUBLESHOOTING
No program indicator lights up when the drawer is opened
zEnsure power is connected and is switched on.
zAUTO POWER-ON may need to be activated. Refer to your user guide for details.
Drawer doesn’t close properly
zEnsure nothing is obstructing the drawer from closing such as hoses or drawer latches.
Water appears around water supply and drain connections
zCheck hoses, connections and existing plumbing for leaks.
zCheck rubber washer and hose clamp are correctly fitted.
Product is tipping
zEnsure the product is secured to the cabinetry.
Front panels are misaligned to surrounding cabinetry
zCheck cabinetry is square.
zRe-adjust door panels using the door adjustment screws. Refer to page 12 for guidance.
zRe-secure DishDrawerTM Dishwasher to cabinetry
If a problem occurs that is not listed, refer to your user guide for additional troubleshooting If
after checking these points,you still need assistance, please refer to the Service & Warranty
book for warranty details or contact us through our website fisherpaykel.com
DISPLAY POSSIBLE CAUSE WHAT TO DO
RINSE + all modifiers
A1: Water
Supply fault.
1 Ensure the water supply is turned on.
2 Press once to stop the beeping,
then again to clear the fault.
3 Press to resume the wash program.
ECO, RINSE + all modifiers
A3: Drawer cannot
drain. The drainage
hose may be
blocked or kinked,
or the connection to
drainage pipe may
be blocked.
1 Ensure the drainage hose and
connection to pipes are not blocked.
2 Press once to stop the beeping,
then again to clear the fault.
3 Press to resume the wash program.
1 Ensure the filter is installed correctly.
Refer to 'Replacing the filter'in your
user guide.
2 Press once to stop the beeping,
then again to clear the fault.
3 Press to resume the wash program.
GLASSWARE, ECO + all
modifiers
A6: The spray
arm has loosened
or come off its
mounting, or water
pressure is too low, or
a combination of low
water pressure and
excessive foaming.
1 Open the drawer and check the
spray arm.
2 If the spray arm has loosened or
come off its mounting, re-fit it. Check
that it is firmly seated and turns
freely. Refer to ‘Maintenance’ in your
user guide.
3 Press once to stop the beeping,
then again to clear the fault.
4 Press to resume the wash program.

5926A 0.21
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
