For general information about the jacks on your Entertainment Machine, go to . . . . . . . . pages 4
If you are using an antenna or have direct cable service, go to . . . . . . . . . . . . . . . . . . . page 5
If you are using a cable box, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
If you are using a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
If you are using a DVD Player, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
For general speaker placement advice, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
To hook up your surround sound speakers, mini tower speaker or sub-woofer, go to . . . . . page 10
To hook up your Entertainment Machine to an external stereo, go to . . . . . . . . . . . . . . . page 10
206-3360-O
INSTALLATION GETTING STARTED PAGE 3
This page will
help you
hook up your
Entertainment
Machine
properly.
Hookup Directory
IMPORTANT!! Use this page to decide where you need to begin your setup.
First, find the line below that best describes what you want to do, then go to
that page number.
Antenna/Cable
Cable Box
VCR
DVD Player
About your Jacks
Audio Speakers
Speaker Placement
External Stereo
INPUT HOOKUP OPTIONS
GENERAL HOOKUP INFORMATION
AUDIO EQUIPMENT OPTIONS
For a complete Index, see page 52-53.

INSTALLATION GETTING STARTEDPAGE 4
Your jack-pack
and its
various uses.
Audio Video Jacks
206-3360-O
ANTENNA
CABLE 1
LOOP OUT
R- AUDIO- L/MONO
R- AUDIO- L/MONO
VIDEO 2 S-VIDEO 2
R- AUDIO- L/MONO VIDEO
R- AUDIO- L/MONO VIDEO 1 S-VIDEO 1
VARIABLE OUT
R -AUDIO- L
RIGHT LEFT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
VIDEO 3
DATA
PORT
SURROUND SPEAKERS
RF Connectors:
Antenna/Cable 1,
Antenna/Cable 2,
and Loop Out
Used to connect
Antenna/cable to the
television, either
directly or through your
cable box.
Right/Left Audio
Used for stereo sound
from various types of
equipment.
Video 1/2/3
Connects the video
signals from various
types of equipment.
S-VIDEO 1/2
A feature available
with some very
high-end equipment
that provides even
better picture quality.
Variable Out
Used to connect
either an external
amplifier, or add a
sub-woofer to your
surround sound system.
Surround Speaker
Jacks Right/Left
Used to improve your
sound by connecting
surround-sound
speakers.
Data Port
A data connection to
be used for installing
a network computer.
Please refer to your
manual.
Mini glossary
JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jacks and the Audio/Video jacks
that are color-coded.
SIGNAL Picture and sound traveling through cable, or in the air, to your television screen.
Video 3
Video 3 can be used
as a composite or
component input.

INSTALLATION GETTING STARTED PAGE 5
206-3360-O
Antenna/Direct Cable TV
ANTENNA
CABLE 1
LOOP OUT
VARIABLE OUT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
Cable TV
wall jack
Rf coaxial wire
(75ohm)
TV back
Locate the Antenna/Cable 1 jack
on the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack.
1
2
Hooking up to Antenna/Direct Cable
If you receive antenna through a
flat wire that is several years old
and connects with two small
prongs, you will need to purchase a
300 Ohm adapter. It should be
available from your local electronics
dealer.
RF coaxial wire
(75ohm)
Antenna
Connecting
antenna/cable
to your
Entertainment
Machine.
Hooking up to
Antenna/Direct Cable
or

Using a cable
box with
the Loop
Out function.
Cable Box
INSTALLATION STANDARDPAGE 6
206-3360-O
Locate the Antenna/Cable 2 jack on
the back of your TV. Connect the
cable that runs from the wall direct-
ly to the jack. Now find the the
Loop Out jack.
Connect the cable from this jack to
the Input jack on the back of your
cable box.
Locate the Output jack on the back
of your cable box. Connect this to
the Antenna/Cable 1 jack on the
back of your TV.
To view the premium stations, set
the channel number on your cable
box to HBO®, CINEMAX®, SHOW-
TIME®, etc. Then go to the Source
menu and select the Antenna/Cable
1 source. See your Quick Setup
Sheet, included with this operating
guide for more information. See
page 20 for information regarding
Source Menus.
To view the non premium channels
go to the Source Menu and select
Antenna/Cable 2. Then run Channel
Search to check for all available
channels and store them in its
memory.
This can be combined with any
other equipment you may want
to hook up. Hook cable directly into
the TV, then to the cable box. From
there, the cable box goes to the
next device, down the line, until
the last piece, which connects back
to the TV in the Antenna/Cable 1
jack.
1
2
3
4
Some cable services require the use of a
cable box to decode premium channels and
pay-per-view. Using the Loop Out to
Decoder option, and programming your
remote, you can connect your cable box so
that you only need your MBR Trakball
remote to control all the channels. By
connecting cable directly to your
Entertainment Machine, then running it out
to the cable box and back, you make the
cable box another source to choose from in
the Source menu (see page 20).
ANTENNA
CABLE 1
LOOP OUT
VARIABLE OUT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
Cable TV
wall jack
Cable box
In
Out
Rf coaxial wire
(75ohm)
TV back

INSTALLATION STANDARD PAGE 7
206-3360-O
ANTENNA
CABLE 1
LOOP OUT
VARIABLE OUT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
TV back
In
Out
Audio Video
3 4
VCR
Back AV panel R- AUDIO- L
A/V cables
not included
with TV
Cable TV
wall jack
Round wire
(75ohm)
VIDEO 1
S-Video
S-VIDEO 1
OR
VCR
Locate the RF or VHF/UHF/CATV
In jack on the back of your
VCR. Connect the Antenna or
cable wire coming from your
wall directly to this jack.
Find the composite video or
S-Video and audio jacks on
the back of your VCR, and
connect them following
the instructions provided with
your equipment.
You may connect either the
composite video or the S-
Video cables to your
Entertainment Machine. Do
not connect both the com-
posite and the S-Video.
1
2
To hear stereo sound from
your VCR, you will need to
connect A/V cables.
If you want to receive your
signals on Channel 3 or 4
from Antenna/Cable 1, locate
the Out to TV jack on your
VCR. Connect a cable from
the Out to TV jack to the
Antenna/Cable 1 jack on the
back of your Entertainment
Machine.
OR
RF coaxial wire
(75ohm)
Antenna
Connecting a
VCR to your
Entertainment
Machine.
Optional (to receive
signal on channel 3 or 4).
Cable not included.

Connecting a
DVD player or
S-VHS player
to your
Entertainment
Machine.
DVD Player
INSTALLATION STANDARDPAGE 8
206-3360-O
Find the audio and composite
or S-Video jacks on the back of
your DVD Player and connect
them following the instructions
provided with your equipment.
You may connect either the
composite video or the S-Video
cables to your Entertainment
Machine. Do not connect both
the composite and the S-Video.
1
For several pieces of equipment, edit the
names under Source ID so you don’t for-
get which is which. See page 29.
ANTENNA
CABLE 1
LOOP OUT
VARIABLE OUT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
TV back
Audio S-Video
DVD player
Back AV panel R- AUDIO- L S-VIDEO 1
A/V and S-Video
cables not included
with TV
L R Video
OR

INSTALLATION STANDARD PAGE 9
206-3360-O
Room Set-ups for Home Theater
sub-woofer
right
speaker
left
speaker
surround
sound
speaker
surround
sound
speaker
This is just a general room design.
Any number of set-ups are possible,
and some changes may be needed
to maximize your sound.
A left and right speaker on either
side of the Entertainment Machine
will create a phantom “center
channel,” making the dialog sound
as though it’s coming directly from
the Entertainment Machine. The rear
surround sound speakers provide
the majority of other sounds, like
those from special effects in movies.
Your sub-woofer generates ultra-low
frequency sound, for rumbling
low-end audio.
Sound is affected by
speaker placement, so
make sure nothing is in
front of the speakers, and
that they are aimed in
appropriate directions.
You have the option of
turning on or off the internal
speakers.
If your surround sound
system is on, but there’s no
sound from the speakers,
the program you’re watching
might not be broadcast in
surround sound.
General
help on
designing
your home
theater
set-up.

Get the
best sound
possible
from your
Entertainment
Machine.
Audio Hookups
INSTALLATION AUDIOPAGE 10
206-3360-O
ANTENNA
CABLE 1
LOOP OUT
VARIABLE OUT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
TV back
SURROUND SPEAKERS
Right Left
Surround Sound
Speakers
Audio cables
not included
with TV
Sub-woofer

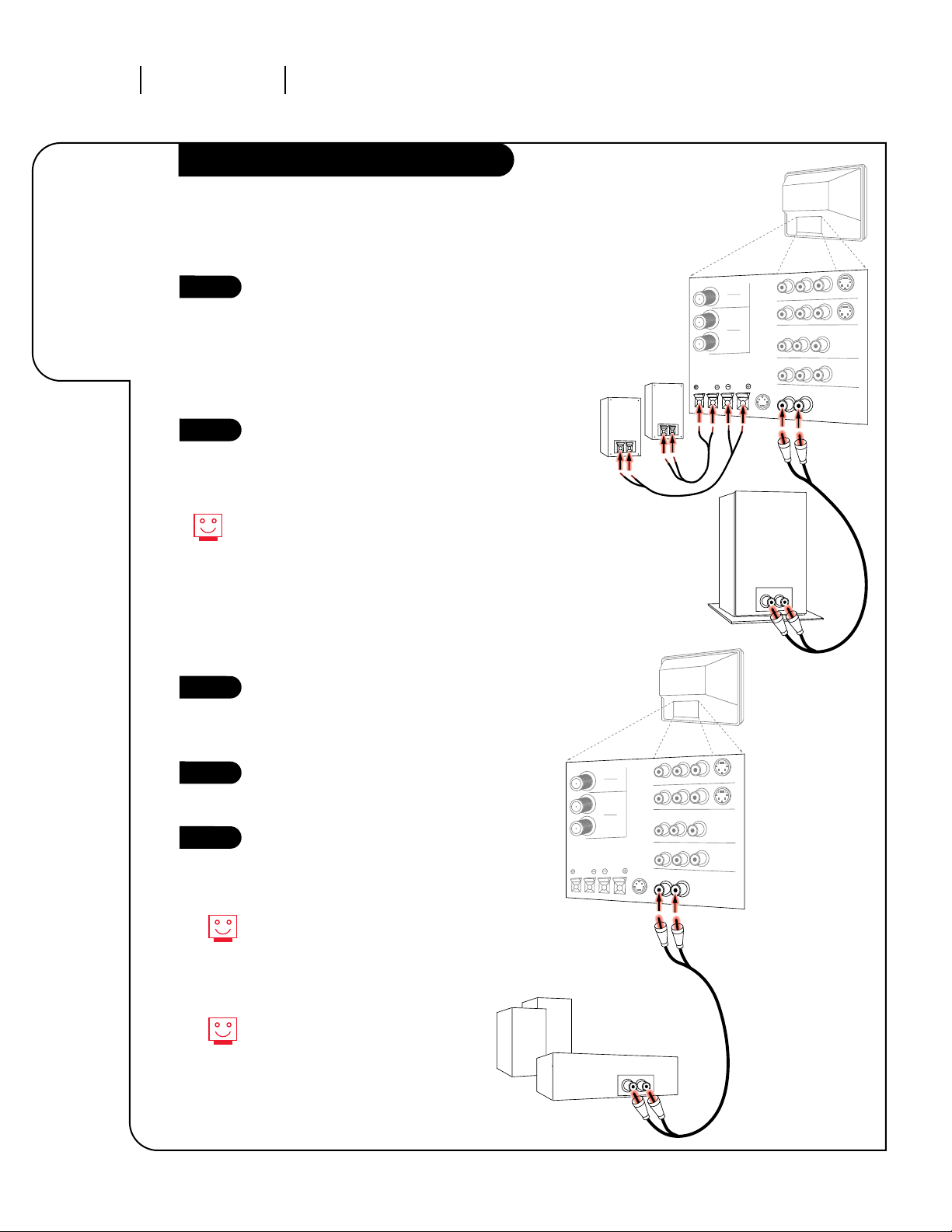

Locate the Surround Speakers jacks on the
back of your Entertainment Machine. Connect
the wires to the right or left channel, depend-
ing on where the speaker is located in your
room. The copper wire corresponds to
the Negative jack, and the silver to the
Positive.
Locate the jacks marked Variable Out. These
are for the sub-woofer. Connect the sub-
woofer’s cables, according to their color (red
is the right channel, white the left) to these
jacks.
1
2
If you happen to have Mini-tower
speakers, these will be connected
to the back of your sub-woofer,
with the jack labeled Satellite
Speaker Output.
Before you begin plugging in your speakers,
it’s a good idea to put them in their
approximate places first. That way you
know how much wire you have or will need.
Locate the Variable Out jacks on
the back of your Entertainment
Machine and the Input jacks on
the back of your stereo’s amplifi-
er.
Connect the two jacks, making
sure that the right and left
channels are placed correctly.
Set up your speakers through
your stereo, according to
those directions.
1
2
3
ANTENNA
CABLE 1
LOOP OUT
VARIABLE OUT
MONITOR OUT
ANTENNA
CABLE 2
INPUT
TV back
SURROUND SPEAKERS
Audio cables
not included
with TV
External stereo amplifier
You can adjust the volume level
on your external stereo system
even if your remote is in TV mode.
See Amplifier Volume Override on
page 45.
You have the option of turning on
or off the internal speakers.
