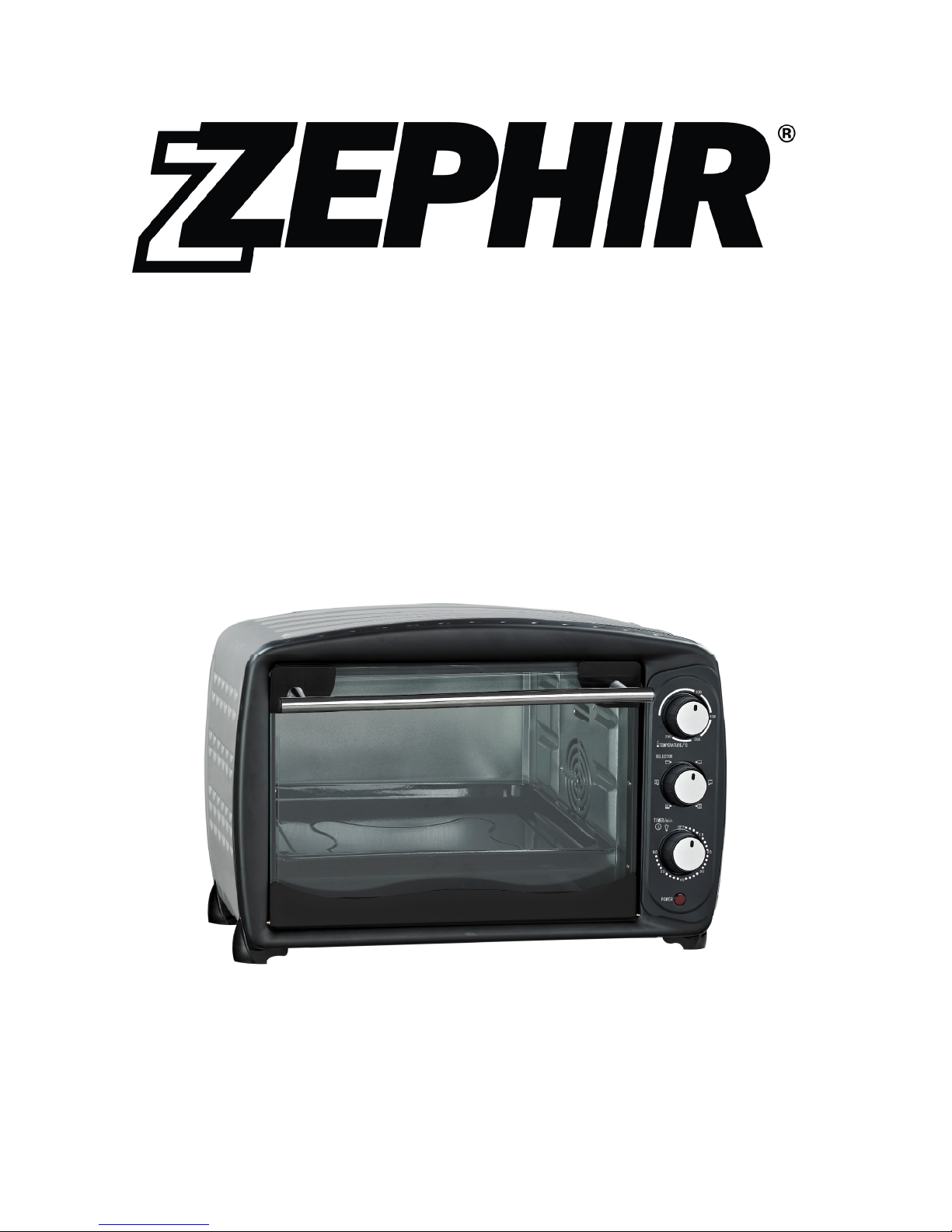

Zephir ZHC127S User manual

INSTRUCTION MANUAL
Model : ZHC12 7S

Please read carefully before use and keep for future reference
IMPORTANT SAFEGUARD S
When using electrical appliances, basic precautions should always be followed, which include t he following:
1. Read all instructions before use or cleaning.
2. Avoid contact with hot surfaces .
3. Close supervision is necessary when any appliance is used near children.
4. Do not immerse cord, plug, or any part of the appliance in water or other liqu ids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. If the
appliance is damaged or broken, do not r epair yourself, if the power cord or the plug is broken or damaged, do not repair or change appliance is damaged or broken, do not r epair yourself, if the power cord or the plug is broken or damaged, do not repair or change
yourself, please send the appliance to qualified service centre for repair or service.
7. Do not place the product near any other gas appliance or heat source , such as microwave ovens.
8. When operating the oven, keep at least four inches (ten centimeters) of space on all sides of the oven to allow for adequa te air
circulation.
9. Disconnect from the socket before starting a cleaning cycle. Wait for the oven to cool before handling .
10. To disconnect, turn the control to OFF, before removing the plug.
11 . Use extreme caution when removing tray or disposing of hot grease or other hot liquids.
12 . Do not cover any part of the oven with metal or cloth, it may cause overh eating of the oven;
13. Extreme caution must be used when moving an appliance containing hot oil or food;
14. Never leave the appliance unattended in working;
15 . Do not clean the oven with metal brushes or tools that could corrode or damage the surface;
16. Oversized foods or metal utensils can not put into the appliance as they may create a fire or risk of electric shock
17. Do not place any item on the oven or cover the oven. This would result in a risk of fire .
18. Extreme caution should be exercised w hen using containers constructed of anything other than qualified metal or qualified ceramics.
19. Do not place any of the following materials in the oven: plastic, paper, or anything similar.
20. Do not use any accessories other than manufacturer recommen ded accessories in this oven.
21. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.
22. Do not use this appliance for any use other than its intended use.
23. This appliance is for HOUSEHOLD USE only.
24. Do not place heavy objects on the cables or heat sources close to them . The cables may be damaged;
25 . Unplug the appliance when it is upside down or resting .
26. Unplug from outlet when not in use and before cleaning. Always hold the plug, but never pull the cord.
27. Do not use aerosols sprays (eg . insecticides , hair spray , etc. ), it may cause damage to the housing;
28. In case of abnormal situations immediately turn off the power and contact your dealer or service center;
29. Do not use this unit co nnected to programmers, external timer , remote control system of separate timer or any other device that can
switch automatically;
30. Do not use power sockets flying or damaged cables;
31. When you hold it firmly pulls the plug to avoid electric shock, s hort circuit or fire;
32. Do not attach safety switches with tape, for fire hazard;
33. It is absolutely prohibited to disassemble or repair the unit by the danger of electric shock if necessary contact your deale r or service
center;
34 . period of non - use : Disconnect the plug from the mains supply when not in use for extended periods of time.
35. Do not use the appliance near a bathtub , shower , swimming pool;
36. Do not place objects on the unit to fire hazard;
37. Do not use the machine near flammable objects;
38. Do not insert objects through the slots of the unit;
39. Before connecting the appliance, make sure that its rating corresponds to that of power supply. The plate is on the bottom of the
appliance
40. Do not touch the power connection with wet hands;
41. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities,o r lack of 41. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities,o r lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the applia nce by a person
responsible for their safety.
42 . Do not use multiple plugs but only dealing with single output power specification.
43. If the external flexible cable is damaged it must be replaced by a qualified technician in order to avoid accidents;
44. Children should be supervised to ensure that they do not play with the appliance

ACCESSORIES:
*BAKE PAN
*BAKE RACK
*PAN HANDLE
LIST OF COMPONENTS
1. Thermostat dial
2. Selector dial
3. Lamp (inside)
4. Convection (inside)
5. Timer
6. Power indicator 6. Power indicator
7. Glass door
8. Bake pan
9. Bake rack
10. Pan handle
THERMOSTAT
Turn the thermostat knob to select the desired cooking temperature
SELECTOR DIAL
1. Top heating
2. Bottom heating
3. Top & bottom heating
4. Top he ating & convection
5. Bottom heating & convection
6. Top & bottom heating & convection
TIMER DIAL (INSIDE LAMP)
When timer is turned on, the inside lamp is ON.
2
1
3
6
4
5
When timer is turned on, the inside lamp is ON.
When timer is turned off, the inside lamp is OFF.
BEFORE USE
- Ensure that there is enoug h ventilation around the oven.
- Ensure that the oven is completely dry before use.
- The oven should not be placed on untreated wooden surface. Place the oven on a heat resistant
surface.
- The feet of the oven can leave some marks on the table, if this happens , remove the marks with a damp
cloth.

OVEN USE
- Turn the thermostat dial clockwise to the desired temperature.
- Turn the selector dial to the desired position.
- Turn the timer dial clockwise to the desired cooking time.
- The power light will light up afte r timer is turned on, and will go out when the timer is turned to OFF.
- When the cooking time is over, the timer will auto shut off and the bell will ring.
- If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to tu rn off
the oven.
- In the first use of this oven, there might be some light smoke coming out from the oven, this is normal.
After 5 - 15 minutes the smoke will disappear.
- In order to get better cooking performance, it is recommended to pre - heat the oven about 10 - 15
minutes.
GRILL COOKING GRILL COOKING
- Leave the door at the open point.
- Turn the selector to GRILL setting (Top heating).
- Turn the temperature dial to 250
- Turn the timer to the desired grill time.
- When the grill cooking is done, turn back the timer to OFF to turn off the oven.
AFTER USE
- Turn back the timer to OFF.
- Turn the cooking selector to OFF.
- Unplug the appliance from the outle t.
- Wait until the oven is completely cool before any cleaning or maintenance.
MAINTENANCE AND CLEANING
- Unplug the appliance and allow it to cool before cleaning.
- Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp clot h.
- If stains still appear, it is recommended to use soap.
- Do not use abrasive cleaners or sharp utensils to clean the appliance.
- Clean the interior chamber with a clean damp cloth.
- Clean bake rack and bake pan with a damp cloth. - Clean bake rack and bake pan with a damp cloth.
TECHNICAL SP ECIFICATIONS
1500 Watt
220 - 240V ~ 50/60Hz
Capacity 26 Liters
Due to the constant development of product functions and designs, we reserve the right to make
changes to the product without prior notice.

Ital iano
Trattamento del dispositivo elettrico od elettronico a fine vita (Applicabile in tutti i paesi dell'Unione Europea e in
quelli con sistema di raccolta differenziata)
Questo simbolo sul prodotto o sulla confezione indica che il prodotto non deve esse re considerato come un normale rifiuto
domestico, ma deve invece essere consegnato ad un punto di raccolta appropriato per il riciclo di apparecchi elettrici ed
elettronici. Assicurandovi che questo prodotto sia smaltito correttamente, voi contribuirete a prevenire potenziali
conseguenze negative per l'ambiente e per la salute che potrebbero altrimenti essere causate dal suo smaltimento
inadeguato. Il riciclaggio dei materiali aiuta a conservare le risorse naturali. Per informazioni più dettagliate circa i l
riciclaggio di questo prodotto, potete contattare l'ufficio comunale, il servizio locale di smaltimento rifiuti oppure il neg ozio
dove l'avete acquistato. dove l'avete acquistato.
Chiunque abbandona o cestina questo apparecchio e non lo riporta in un centro di raccolta differenz iata per rifiuti elettrici -
elettronici è punito con la sanzione amministrativa pecuniaria prevista dalla normativa vigente in materia di smaltimento
abusivo di rifiuti . i
English
Disposal of old electrical & electronic equipment (Applicable in the Europe an Union and other European countries
with separate collection systems)
This symbol on the product or in its packaging indicates that this product shall not be treated as household waste. Instead
it shall be handed over to the applicable collection point f or the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste h andling of this product. The recycling of
materials will help to conserve natural resources. For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or the shop where you p urchased the product.
Français
T raitement des appareils électriques et électroniques en fin de vie (Applicable dans les pays de l'Union
Européenne et aux autres pays européens disposant de systèmes de collecte sélective) Européenne et aux autres pays européens disposant de systèmes de collecte sélective)
Ce symbole, apposé sur le produi t ou sur son emballage, indique que ce produit ne doit pas être traité avec les déchets
ménagers. Il doit être remis à un point de collecte approprié pour le recyclage des équipements électriques et
électroniques. En s'assurant que ce produit est bien mis au rebus de manière appropriée, vous aiderez à prévenir les
conséquences négatives potentielles pour l'environnement et la santé humaine. Le recyclage des matériaux aidera à
conserver les ressources naturelles. Pour toute information supplémentaire au suje t du recyclage de ce produit, vous
pouvez contacter votre municipalité, votre déchetterie ou le magasin où vous avez achetez le produit.
Español
Tratamiento de los equipos eléctricos y electónnicos al final de su vida útil (Aplicable en la Unión Europe a y en
paises europeos con sistemas de recogida selectiva de residuos)
Este símbolo en su equipo o su embalaje indica que el presente producto no puede ser tratado como residuos domésticos
normales, sino que deben entregarse en el correspondiente punto de recogida de equipos eléctricos y electrónicos.
Asegurándose de que este producto es desechado correctamente, Ud. Está ayudando a prevenir las consecuencias
negativas para el medio ambiente y la salud humana que podrían derivarse de la incorrecta manipulaci ón de este
producto. El reciclaje de materiales ayuda a conservar las reservas naturales. Para recibir información detallada sobre el
reciclaje de este producto, por favor, contacte con su ayuntamiento, su punto de recogida más cercano o el distribuidor
do nde adquirió el producto.
Deutsch
Entsorgung von gebrauchten elektrischen und elektronischen Geräten (Anzuwenden in den Ländern der
Europäischen Union und anderen europäischen Ländern mit einem separaten Sammelsystem für diese Geräte)
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler
Haushaltsabfall zu behandeln ist, sondern an einer Annahmestelle für das Recycling von elektrischen und elektronischen
Geräten abgegeben werden muss. Durch Ihren Bei trag zum korrekten Entsorgen dieses Produkts schützen Sie die
Umwelt und die Gesundheit Ihrer Mitmenschen. Umwelt und Gesundheit werden durch falsches Entsorgen gefährdet.
Materialrecycling hilft den Verbrauch von Rohstoffen zu verringern. Weitere Informat ionen über das Recycling dieses
Produkts erhalten Sie von Ihrer Gemeinde, den Kommunalen Entsorgungsbetrieben oder dem Geschäft, in dem Sie das
Produkt gekauft haben.
