Zesty Systems Pinout User manual

Pinout User Manual
Version 1.0
Zesty Systems Inc.
2016.7.27

PINOUTMANUAL
http://www.letspinout.com
2
Index
What you need to use Pinout........................................................................................................... 3
How to get connected to Pinout....................................................................................................... 3
Introduction of Pinout........................................................................................................................ 4
Pinout hardware overview................................................................................................................ 5
Camera compatibility......................................................................................................................... 6
Connect pinout to your DSLR.......................................................................................................... 7
Quick start of application.................................................................................................................. 8
Main Screen of Pinout app............................................................................................................. 13
Simple Release................................................................................................................................ 15
Loss Prevention............................................................................................................................... 21
Timed Release................................................................................................................................. 23
Long Exposure................................................................................................................................. 26
Timelapse................................................................................................................................................28
Distance Lapse.......................................................................................................................................30
Star Trails.................................................................................................................................................31
Geo Tagging...................................................................................................................................................33
Geo Logging..................................................................................................................................... 36
Bulb Ramping................................................................................................................................... 37
LE HDR.............................................................................................................................................39
LE HDR Time-lapse..............................................................................................................................41
Multi-Camera.................................................................................................................................... 43
Sensor Release............................................................................................................................... 45
Settings............................................................................................................................................. 45
User profile and upgrade your kit.................................................................................................. 46
Technical Support............................................................................................................................ 48

PINOUTMANUAL
http://www.letspinout.com
3
What youneedtousePinout
To use pinout with your DSLR you will need
1. Pinout app
A) Smartphone: your smartphone must have BLE capability to use pinout
B) iOS device: iPhone 4s/5/5s/6/6s or later, iPad2 / iPad mini,Apple watch,iOS 9.0 or
later
C) Android device: OS4.4、5.0、6.0 or later (BLE is required)
2. Pinout device
3. Your DSLR
How to get connected to Pinout
1. Download pinout app to your smartphone (put link here)
2. Attach pinout to your DSLR
3. Make sure BLE is available on your smartphone

PINOUTMANUAL
http://www.letspinout.com
4
Introduction of Pinout
Pinout is a small device that plugs to your DSLR camera; it uses Bluetooth LE technology
and a dedicated app on your smartphone to give you remote access and much more to the
camera.
The main functions of pinout are as follows
Simple release
Long exposure
Timed release
Time lapse
Distance lapse
Star trail
Geo tagging
Geo logging
Bulb ramping
LE HDR
LE HDR time lapse
Loss prevention
Multi-camera control

PINOUTMANUAL
http://www.letspinout.com
5
Pinouthardwareoverview
Pinout does not require batteries and uses a very tiny portion of camera’s charge. It
seamlessly blends in with camera. No cable, does not use hot shoe, and no need to take it
off before stowing away camera in camera bag.
TYPE-A
LED indicator
After connecting with camera, the red LED goes on and off.
10-pins connector
Connect to remote-control interface
TYPE-B
LED indicator
After connecting with camera, the red LED goes on and off.
10-pins connector
Connect to remote-control interface

PINOUTMANUAL
http://www.letspinout.com
6
Cameracompatibility
Pinout includes type A and type B. Please confirm your digital camera models before
purchase
Type
DSLR Models
Type A
Nikon D5, D500, D4, D4s, D3, D3S, D3X, D2X, D2XS,
D2HS, D2H, D800, D800E, D810, D810A, D700,
D300, D300S, D200 and Fujifilm S5 Pro;
Type B
Nikon Df, D750, D610, D600, D90, D7200, D7100,
D7000, D5500, D5300, D5200, D5100,

PINOUTMANUAL
http://www.letspinout.com
7
Connect pinout to your DSLR
Connect to remote-control interface of the camera
Connect pinout to your DSLR by easily friction fit the port (please don’t screw otherwise the
interface or pinout maybe damaged).
TYPE-A
TYPE-B

PINOUTMANUAL
http://www.letspinout.com
8
Quick start of application
Step 1. Power on the camera
Step 2. Check the installation of smart phone software
If the application is not installed on your smart phone, please download as follows.
For iPhone users: please download pinout App from applestore (Free)
For Android users: please refer to the latest information of our HP.
Step 3. Set Bluetooth before starting the application
The products can’t work without starting Bluetooth. For iPhone users,
Please start Bluetooth as follows.

PINOUTMANUAL
http://www.letspinout.com
9
Step 4. Start pinout app
Start pinout application. If it is the first time your start pinout app, you will see following.
The registration page of pinout app
Step 5 user registration and pinout kit setting or login
If you are a new user please choose new user and register as following. Or login.
Register a new user

PINOUTMANUAL
http://www.letspinout.com
10

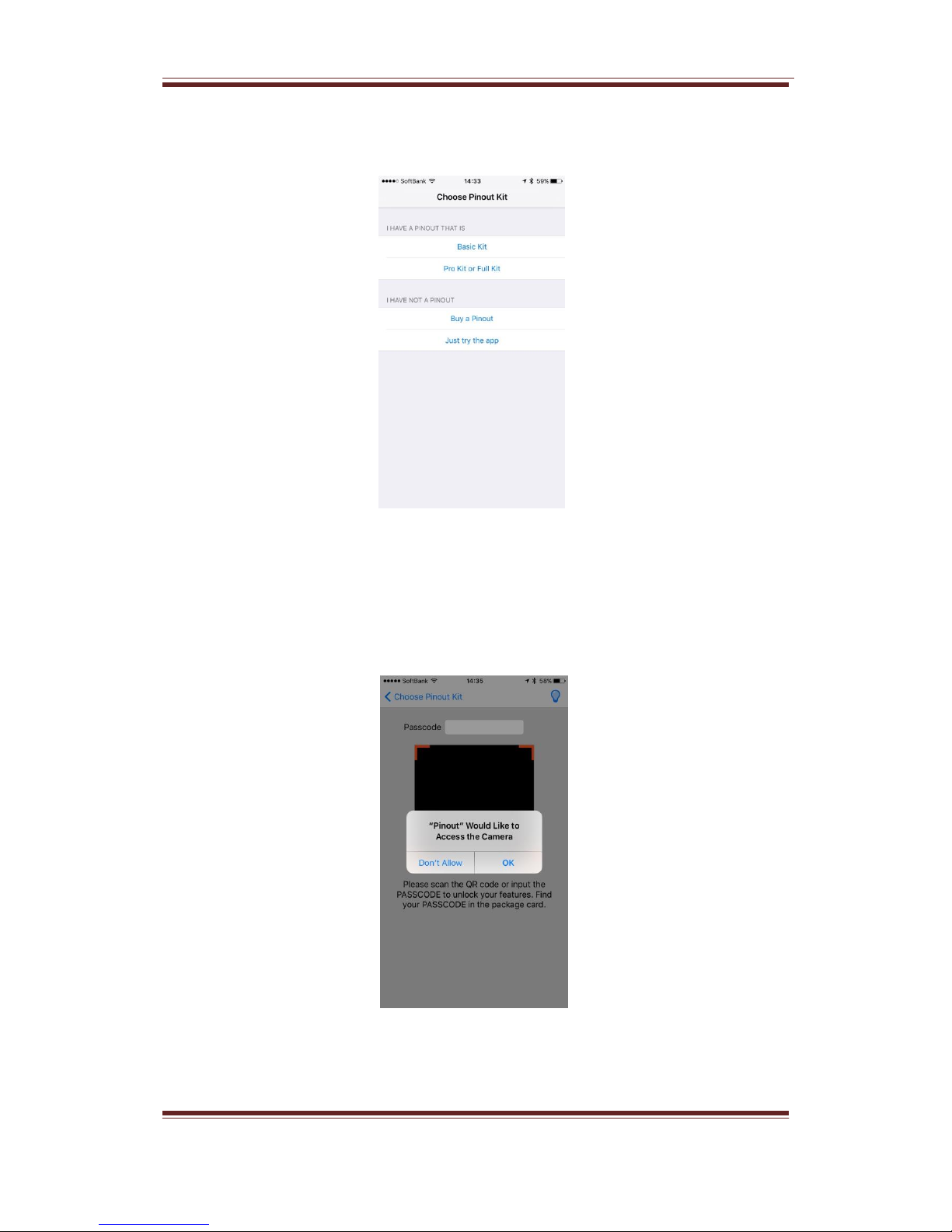

After you registered as a new user you need to choose the kit you purchased.
Choose the pinout kit you purchased
If you purchased a pro kit or a full kit, you need to tear off the seal and scan the
QR code printed on the warranty card or input the passcode manually.
When the scan is finished, your registration is done and you are ready to use
Pinout.
QR code scan to register to a pro or full kit user
