Zhejiang Kingroma KXD series User manual

KXDMOTO.de
OWNERS MANUAL
Manufacturer: Zhejiang Kingroma Industrial & Trading CO. ,LTD.
Address:NO.1 Baihe Road, Baihuashan Industrial Area, Wuyi, ZhejiangChina
Please note that this is a general manual. So, the style of the 2-wheelers
that you have may differ from the picture shown in this manual.
KXDMOTO.de
KXDMOTO.de
Original instructions
Please read this owner’s manual carefully before using this product ! This is most important !
Please read this owner’s manual carefully! It’s good for driver’s safety and vehicle’s
maintenance!
If the rider is without safety awareness or driving experiences, please do drive under
the adult’s supervision! This is most important! It’s very important for your safety.
This product is recommended for riders of 16 years old or over.
Do not lend the vehicle to others who don’t know how to operate.
Please observe the local law and regulations.
Content
!Safety warning
!Compliance with the law
!Assembling
!The position of the VIN
!Key switch
!Function switch
!Charger
!Emergency turn off stop switch
!Burglar Alarm
!Tire and Tire pressure gauges
!Operating
Inspection before riding
-Idling (inspection)
-Front ,rear suspension (inspection)
-Front brake system(inspection)
-Rear brake system(inspection)
-Battery (inspection)
-Tool bag(inspection)
-Self-Protection(inspection)
!Starting
!Training
!Riding
!Parking
!Cleaning
!Storage
!Transport
!Delivery
!Maintenance & accessories

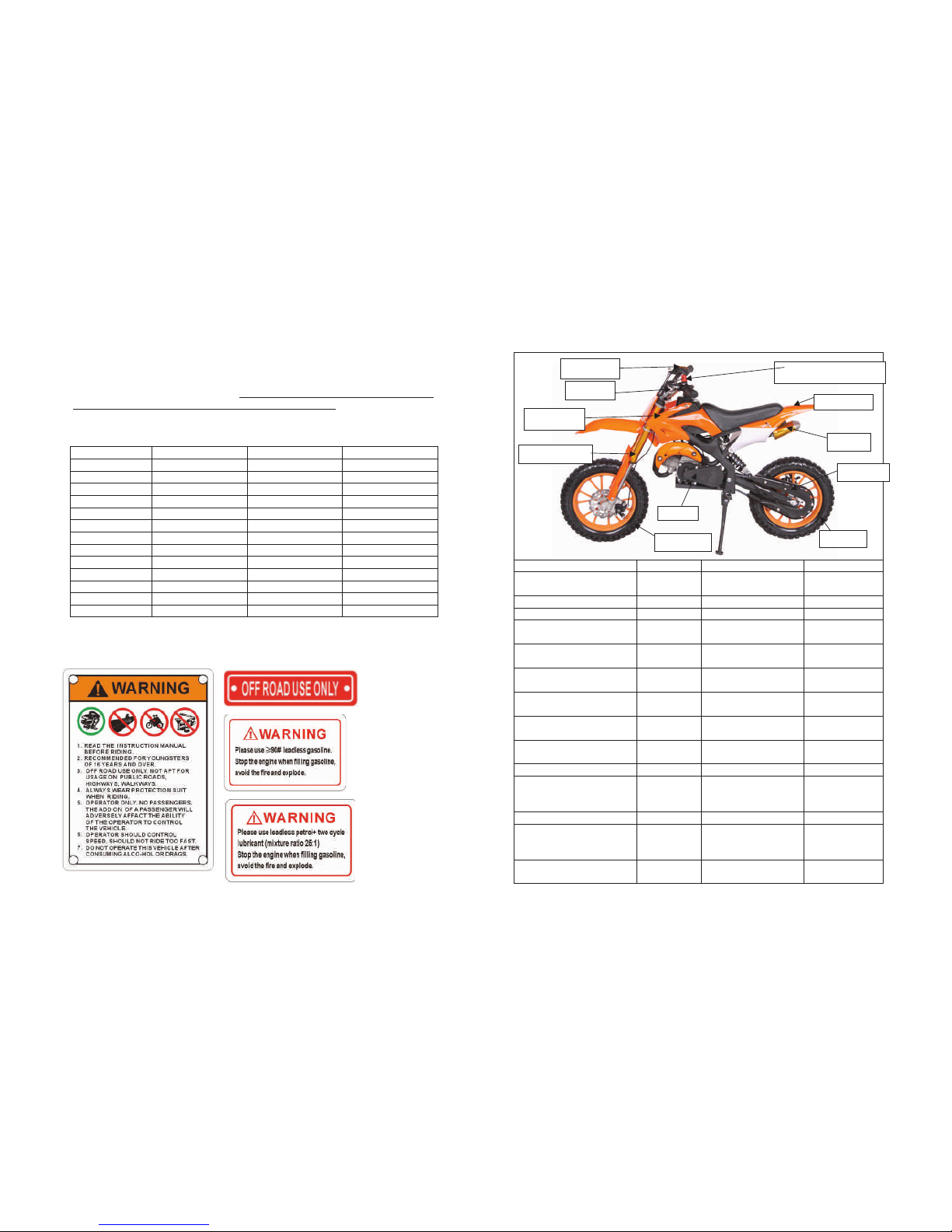

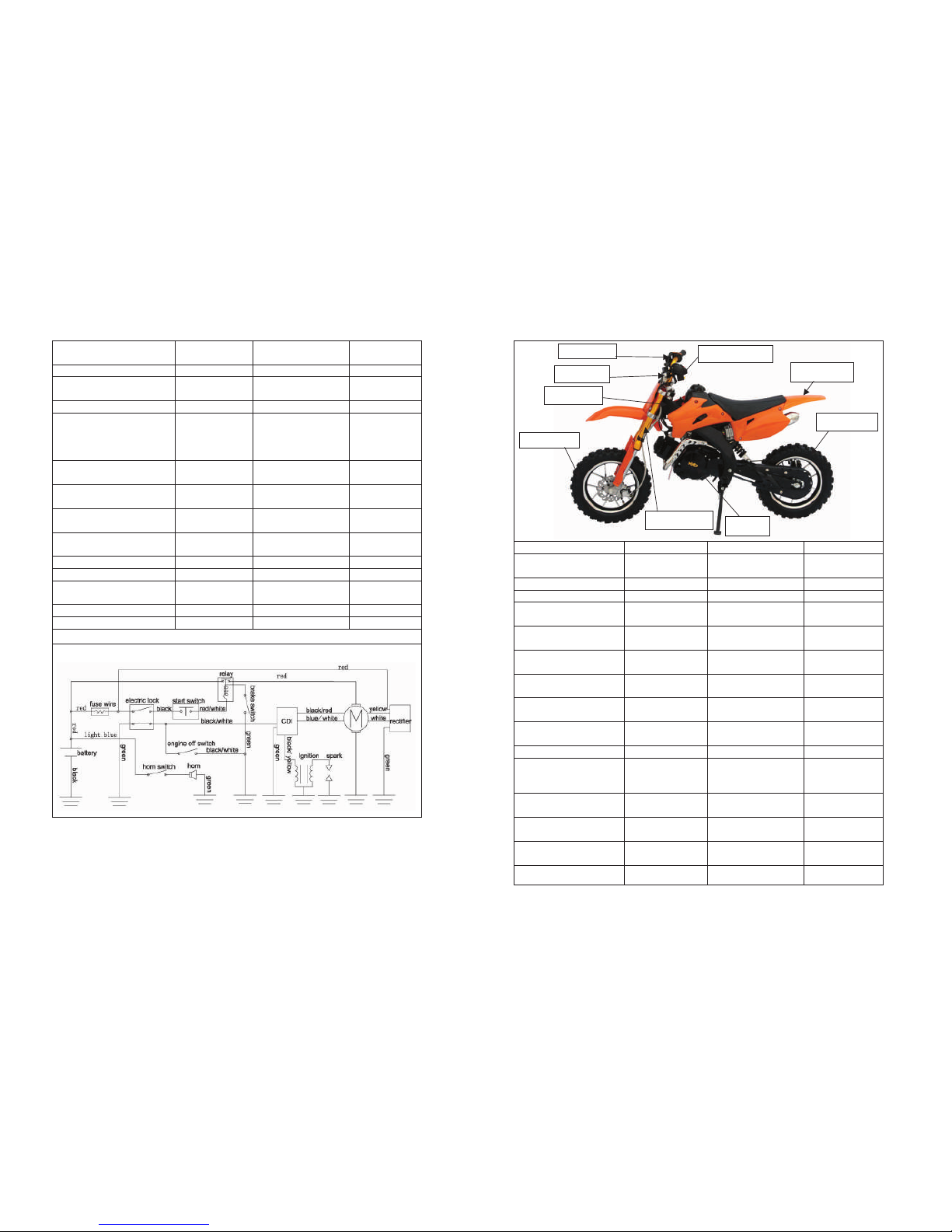

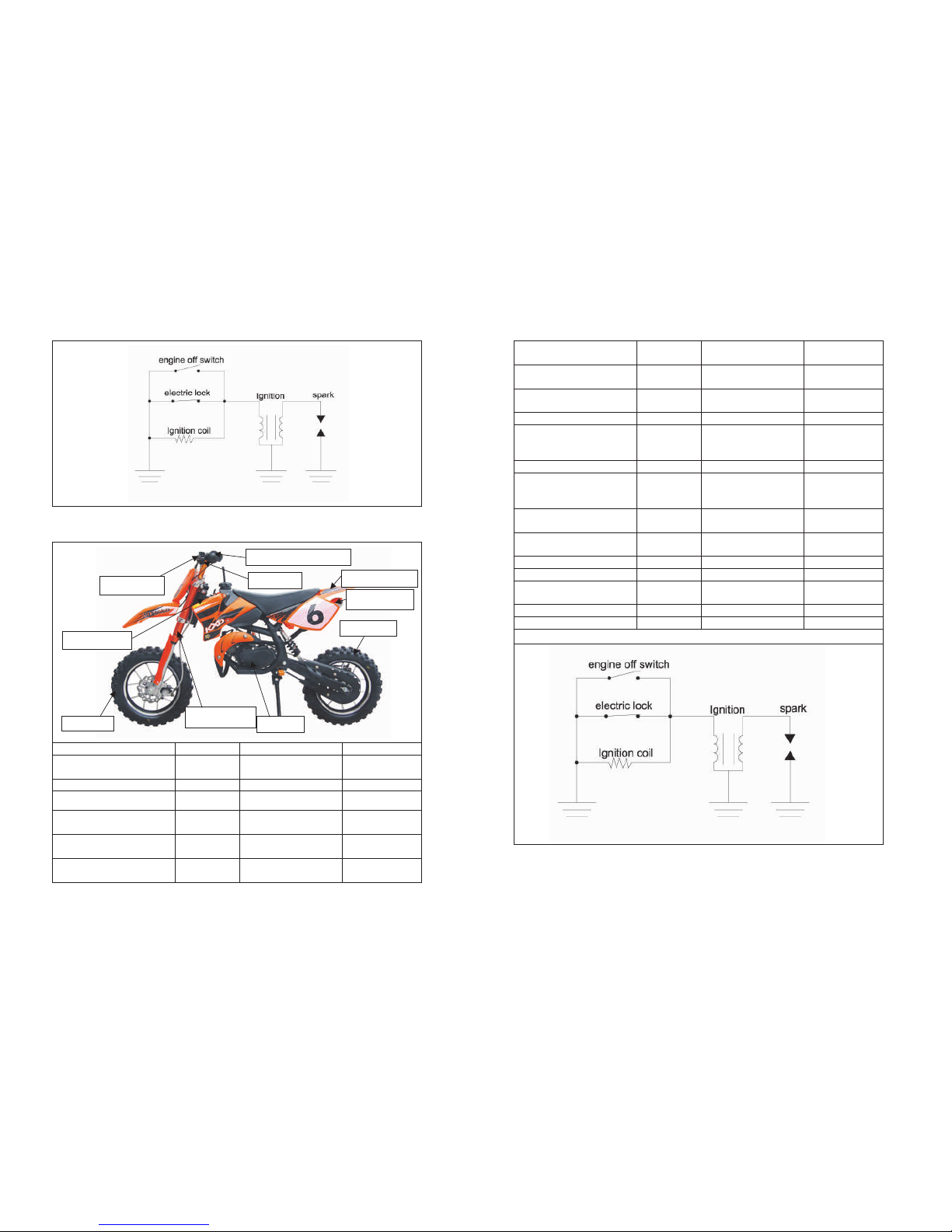

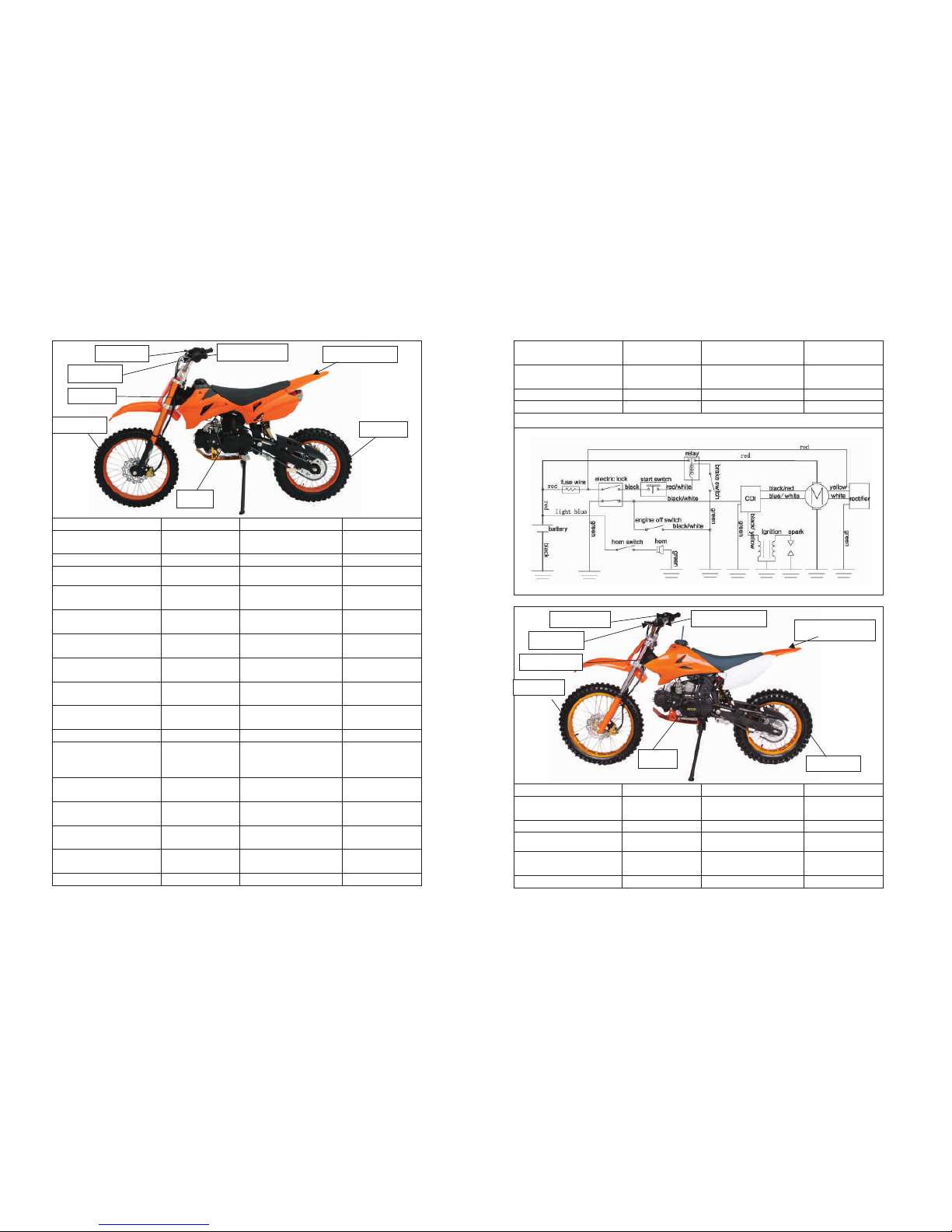

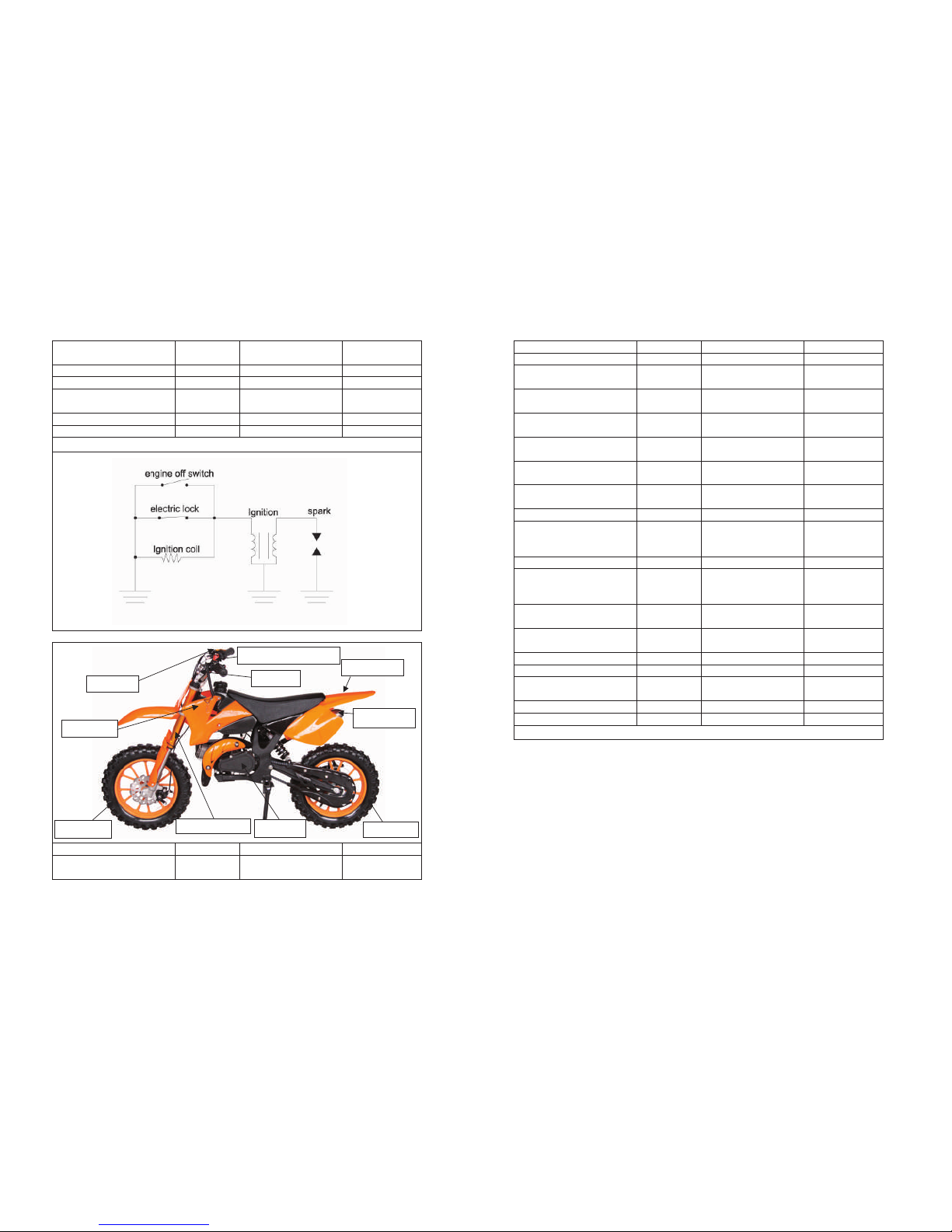

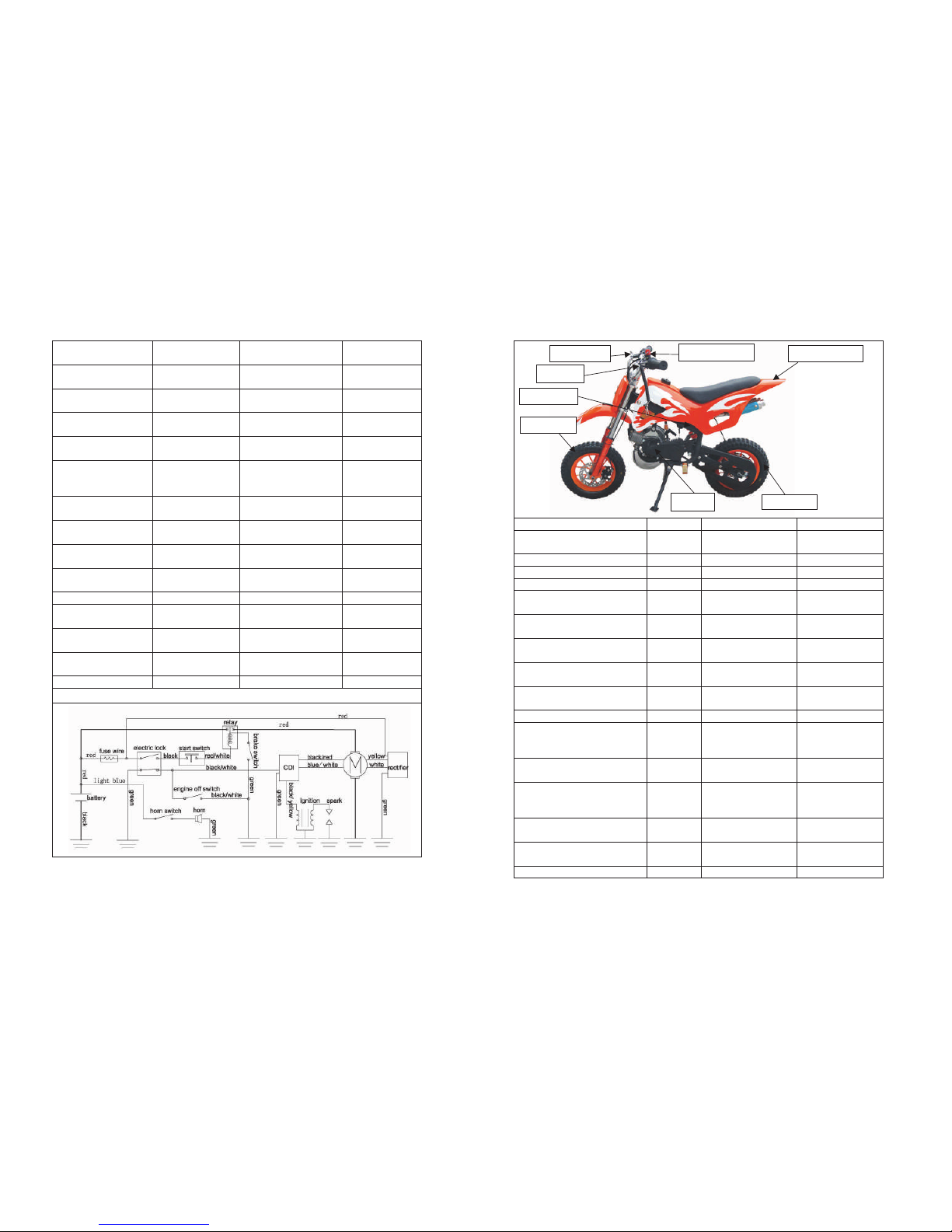

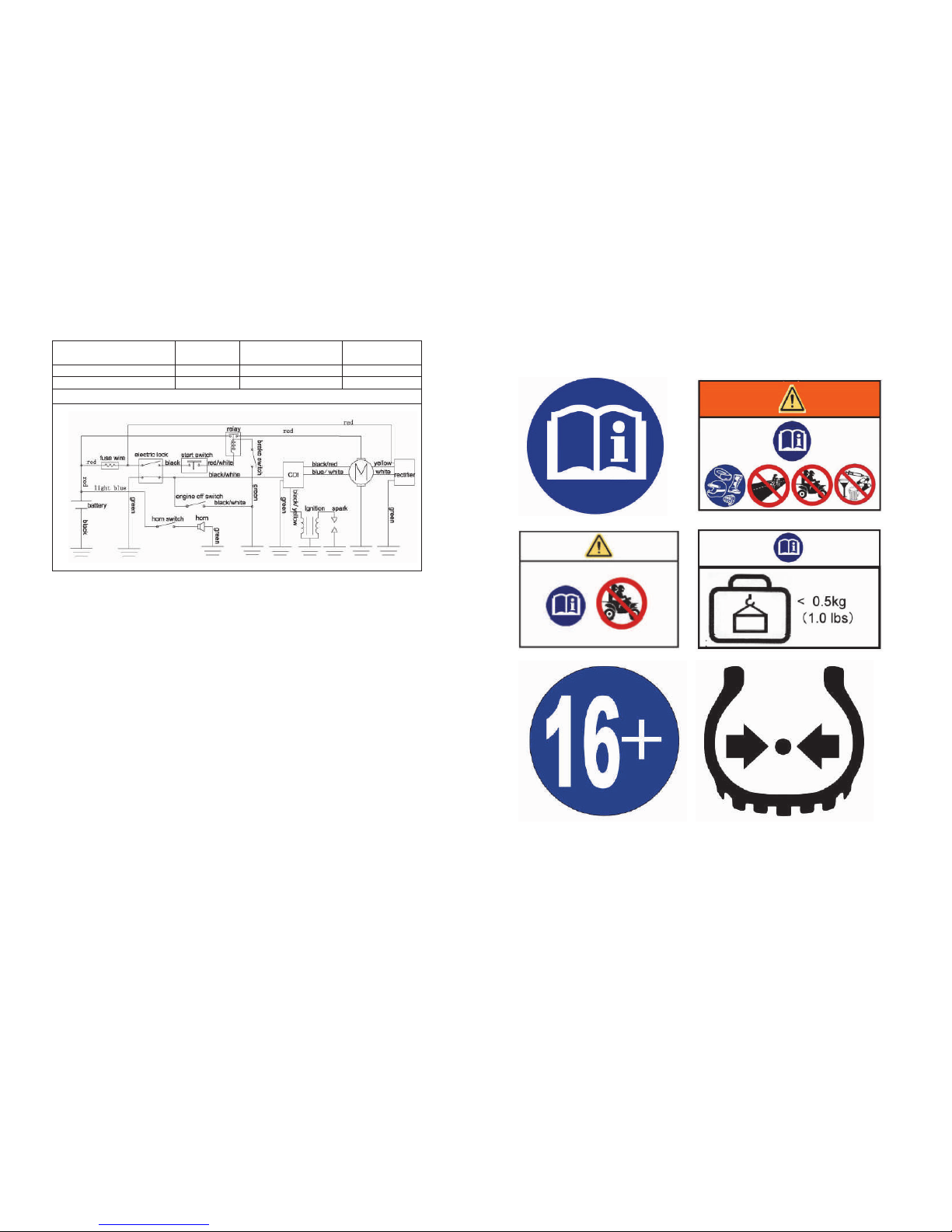

!Accessory description, data, circuit diagram, age warning and warning labels.
KXDMOTO.de

KXDMOTO.de
Safety warning
1. This vehicle is not a toy.
2. Rider under16 years old must use this product under adult’s supervision
3. Children must be trained before driving. This is very important.
4. Be sure of children's ability to forbid the risk. This is very important.
5. Children must understand the manual and the importance of warnings on the manual.
6. User must read the owner manual carefully and understand the content of the manual.
7. Incorrect operation of this off road two-wheel vehicle will result serious injury or even death.
8. Age limit warning.(See aluminum warning plate on the ATV)
9. This product is not intended for OFF-ROAD use. Please get off the vehicle and walk with it when crossing
the roads.
10. Never ride with more than one person.
11. Never attempt to operate this vehicle while under the influence of alcohol or drugs, avoid injury or death.
12. Please control the speed, do not drive at excessive speed.
13. The vehicle is not allowed to use in the adjustment or maintenance period.
14. Be sure the vehicle is in a good condition before using it.
15. Do not modify the vehicles or change the spare parts. This is unsafe and illegal.
16. The accelerating installation of the vehicle has been set. Users should not adjust it, which may result in
serious injuries and death.
17. Before riding ,please wear the safety helmetglovesprotection dress and footwear ,to ensure the
safety .
18. It is necessary to receive training from importer or retailer, and learn the operation skills.
19. Learn local laws and regulations of off road two-wheel vehicle driving from the retailers.
20. It's easy to be burned by break after using the vehicle for a long time.
21. Although the vehicle is with safety designed measures, harms still can not be avoided.
Please read the warning labels on the vehicle carefully, and understand them fully.
1. Warning caution label includes important safety information .
2. User must understand the content of labels completely, and carry out.
3. Make sure all the labels are put on the vehicles already.
4. When finding the labels are not clear or fall off, please ask dealers for them to stick on the vehicles to
ensure the integrity of all the labels.
Compliance with the laws and directives
2006/42/EC
MACHINERY DIRECTIVE
2004/108/EC
EMC DIRECTIVE
97/68/EC
ENGINE POLLUTANT DIRECTIVE
Assembling guide
1. Place packing box on the flat ground, then open it.(with the scissors or cutter)
2. Use 10# open-end wrench and 6# allen wrench to apart the packing metal.for iron cage packed models,
this step is not applicable
KXDMOTO.de
KXDMOTO.de
1st step: Please install rear shock absorbers, and tighten nuts on both sides with 25N.m force.
2nd step: Please install the front tires (make the tread pattern and cycle valve outside),and tighten nuts with
force between 35N.m ~ 45N.m.
3rd step: Please install handlebar (adjust to proper angles), and tighten nuts with force between 15N.m ~
25N.m.
4th step: Connect battery cables. When you connect battery cables, electric lock is in the sate of "OFF”.
Positive first, then negative. Disassembly is opposite.
If you fail to understand the instruction, please contact with the local retailers and get professional
confirmation after installation.
Loading Adjustment (This step should be checked regularly to ensure safety and convenience):
Make sure the connection is ON, and no part is OFF. So vehicle can be started at anytime.
Adjust the Chain: Use the index finger, to press lightly the middle position between power output sprocket
and rear sprocket. The best condition should be pressed 15mm to 20mm. If it is not in this range, please
adjust the chain adjuster. (Please note: The chain adjuster should be adjusted at the same time to ensure
the balance of both side).To loosen the fasten nuts of chain adjuster first, and then unscrew or screw nuts to
be best condition. Finally, make the nuts of chain adjuster screwed .
The position of the VIN
The VIN is on the right side of the front frame.
Key switch
Key switch is on the right side of the vehicle front part, indicating "OFF" and "NO".
"OFF" condition: Key can be taken out. Light can not be turned on (if light available); engine can not be
started.
VIN number
CE plate
KXDMOTO.de

KXDMOTO.de
"ON” condition: Key can not be taken out. When engine is being started, headlight can be turned on (if
headlight available).
Function Switch
Functional switch is in left side of handlebar, which consists of horn, start, headlight, flame-out function.
1. Electric horn button ‘ ’, When key switch is on, press it, then it rings.
(2 stroke, pull start engine have not equipped electric horn as the product construction. But manual horn
should be assembled according to customers’ needs.)
2. Start horn button: Red, ‘
’Press it to start the vehicle (when brake hand is ready ).
3. Headlight button:‘ ’near light;‘ ’distance light .
4. Turn-off switch:‘ ’ turn off;‘
’turn on.
Charger (optional)
1. The input voltage is 220V or 110V (the same as voltage in local place), and output voltage is12V.
2. When the vehicle is charging, the indicator light turns to be red. When the vehicle is fully charged, the
indicator light turns to be green.
Burglar alarm (optional)
1. The input voltage is 12V.
Anti-theft function: Press the “lock” key, vehicle is in alerting condition.
2. Keyless function: Don’t need to turn on the key switch. Press the “start” button twice continuously, and
then operate the vehicle.
Emergency turn off stop switch
It’s put in the left side of the rear frame, or on the left handlebar. Pull or press down the switch, the engine
will be stopped.
The emergency rope can be fastened on the driver When there is emergency, the vehicle will be stopped
automatically by the driver getting off the seats and pulling down the rope.
Tire and Tire gauge
Tire: The proper tire pressure can provide the maximum stability and comfortableness.
Do check and adjust the tire pressure regularly, to make sure the pressure to be on the standard grade.
To find the tire size and standard pressure, please check parameter list and warning label on
the vehicle. To find the “Load-bearing” and “speed grade”, please check the tire surface.
1. Check tire pressure and condition before driving. Please make the replacement if there is any
following condition happened: broken, stabbing,or rim is out of shape. (Please seek assistance from
qualified technician or local retailer for replacement.)
2. Improper tire pressure will result in hazards. Over the standard pressure can cause a flat tire.
Lower than the standard pressure can cause tire relaxation or even dropping, and resulting in losing control
of the vehicle.
3. When the tire-tread wearing is over 2mm,please replace new tire in time.(Please seek assistance
from qualified technician or local retailer for replacement.)
Tire gauge (optional): Manufacturer will provide to customers to measure tie pressure.
Tire gauge is put on the key ring of the key switch for users' convenience.
KXDMOTO.de
KXDMOTO.de
Measure methodUnscrew valve capthen press it toward the valve cap with tire gauge. The measured
value is tie pressure. Put back the valve cap and screw it after measuring. .
Operating
Inspection before riding
Idling inspection
1. Stabilize the vehicleeach mechanical parts, to make sure it move normally and without interference.
2. Check whether the front and rear the shock absorber is deformed or leakage or not.
3. Check whether the front suspension and the rear flat fork is fastened in place.
4. Hold the vehicle when checking.
5. Repair and replace parts in time when finding that negative phenomena.
6. Contact with the dealer when the situation is out of control.
Front brake inspection
Check whether the front brake installation is firm, the braking effect is valid.
1. Front brake handle is mounted on the right side.
2. The brake is working well if backward movement of the brake handle is in the top 20-30mm.
3. Check if the tire rotation is good after releasing the brake lever
4. Contact the dealer for the need of brake maintenance.
5. The front brake lever is with parking feature as well. Use it when parking.
Rear brake inspection
Check whether the rear brake installation is firm, the braking effect is valid.
1. The rear brake is mounted on the left hand, or on the right foot.
2. The brake is working well if backward movement of the brake handle is in the top 20-30mm or
downward movement of the top of the foot brake lever 20-30mm.
3. Put the brake lever or foot brake lever back into place quickly and check if the tire rotation is good
when the force is removed.
4. Contact the dealer for the need of brake maintenance.
5. Inspect the brake shoe regularly, and replace if timely when it is worn out as the brake shoe is a worn
pieces of block.
6. Do not open the brake casually as the brake fluid will damage people’s skin. Clean the skin with
water of go to the doctor when it happens.
7. The rear brake lever is with parking feature as well. Use it when parking.
Battery check (if available)
The battery of this vehicle is maintenance free.
1. Check whether battery joint is tight. If there is some part broken ,please change it.
2. Do not throw off the battery which resulting in environment pollution.
3. Do not charge the battery until it is out of power.
4. When the vehicle placed for extended period of inactivity, check the electric quantity every 3 weeks.
Charge it when below 12V.
5. When charging, using or placing the battery, do not put it upside down.
Tool bag inspection
Check whether tool bag is taken every time before riding.
The tool bag is equipped with some professional tools. You can use time when in need.
Self-protection inspection
Self-protection inspection is the guarantee of pleased driving and life safety. Please wear the protective
KXDMOTO.de

KXDMOTO.de
clothing correctly to ensure your safety.
Protective clothing consists of these parts below:
! Every check and inspection step above is necessary, there is danger existing when driving. Please
conform the above process before driving, and operate in accordance with the standard strictly when
driving will protect your and life safety. The warning sticker put on the surface of vehicle includes
important safety information. User must comprehend fully and act strictly. It will cause the extreme
injure and even death, if not carefully checking or executing.
Starting
Following the steps below to start the engine:
1. Park the vehicle on the flat ground.
2. Turn on the key switch to "NO" position. Make sure it’s well connected.
3. If the engine doesn’t start, please open the choke valve first. Try again. Close the choke valve, when
the engine steady runs.
3. At the beginning, turn the throttle slowly.
Training
Unprofessional person may not understand the large information of this part. So ”Training "will not
explain in details .
Advice: Learn from local professional institution or the retailer.
Operating and driving way in the first or second weeks may affect the vehicle future performance.
Please pay more attention.
During this period, do not turn the throttle into maximum, should alter the speed often.
After training period, maintain the vehicle according to maintenance form strictly. Keep the vehicle in
good condition.
Training is necessary. Improper operation will result in the vehicle, and result in serious injuries and
death.
If the driver is without the safety awareness or driving experiences, please drive it under the supervision
of the adults.
Riding
Before driving, please review the safety driving way and its importance.
1. Pay attention to the brakes working condition always.
2. Driving with only one hand is dangerous and forbidden.
3. Turn the throttle slowly. Never turn it suddenly.
KXDMOTO.de
KXDMOTO.de
4. Release the throttle and use the brake, to make it slow down.
5. Make sure both the front brake and the rear brake work at the same time when braking. Never force
too hard, that will reduce the working life of the brakes.
6. Do not make dangerous movement while driving to ensure safety.
Parking
1. Turn back the throttle and brake at the same time.
2. Turn the key to "OFF" position when the vehicle stops, then take out the key.
3. Parking function is recommended at this moment to avoid sliding.
Cleaning
After every riding, the driver should clean the vehicle. Then place it on flat ground to clean, and then
check.
1. High pressure air or water will harm the vehicle.
2. Do not splash water on these parts: key switch, cables, and battery.
3. Generally, to wash the vehicle with clean water..
4. Do not turn on the key switch immediately after cleaning.
5. Chain should be daubed with lubricating grease.
Storage
The quality will be influenced if you do not use vehicle for a long time. Before storage, vehicle must be
checked to ensure it is in a good condition.
1. Check the weight of vehicle from the parameter list.
2. Clean up the vehicle, and then wax its surface.
3. Turn off the key switch
4. Clean the chain, and then lubricate it.
5. Lubricate all the cable parts.
6. Place the vehicle well-packed in a cool ventilated place to avoid damp and sun exposure.
Transport
This is a process of transport the well-packed vehicle.
1. Check the weight of vehicle from the parameter list.
2. Ensure the package well protects the vehicle.
3. Ensure the vehicle is well fixed on the trailer or forklift.
4. Handling with care.
Delivery
This is the process of delivery the well-packed vehicle.
1. Check the weight of vehicle from the parameter list.
2. Ensure the vehicle is placed normally. Do not turn it upside down or side lay it.
3. Ensure the vehicle is well fixed on the trailer or forklift.
4. Handling with care.
Maintenance
Unprofessional person may not understand the large information of this part. So" Training "will not
explain in details .For more details ,please contact local retailer.
KXDMOTO.de

KXDMOTO.de
Necessary maintenance is the important guarantee to keep the vehicle in good condition. Please
maintain the vehicle according to time list.
Engine maintenance: After every driving, please close the switch of carburetor and oil-way.
Release the rest oil. This is very important. If not do it accordingly, the vehicle will not be easily
started after it has been placed for a long time, or carburetor will leak.
Maintenance time list (Please do operate strictly according to maintenance list)
I: Inspection, Maintenance or lubricant replacement C: Cleaning L: Add lubricant
First week
30days after driving
Each year
Fuel System
I
Throttle
I
Air filter
C
spark plug
I
carburetor
I
I&C
chain
I&L
I&L
Brake pads
brake system
I
I
I
Nuts and bolts
I
I
Tire
I
I
I
Steering system
I
suspension system
I
I
Battery (if available)
I
The position of spare parts, parameter, Electrical diagram, age warning and other
warning labels and plates.
KXDMOTO.de
KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD701
LENGTH X WIDTH X HEIGHT
(mm)
1200×550×790
ENGINE MODEL
1E44F-6
AXLE BASE (mm)
840
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
190
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
2900
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
21
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
22
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A FLOAT
(PLUNGER)
MAXIMUM SPEED (Km/h)
40
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
1.7
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NONE-TOUCH
MAGNETIC
CONTROL
FRONT/REAR TIRE
SPECIFICATION
2.50—10
DRIVE MODE
CHAIN DRIVE
Rear wheel
Front wheel
Front suspension
Warning plate
Rear brake
Muffler
Engine
Emergency turn off switch
Front brake
CE plate
Chain cover
KXDMOTO.de

KXDMOTO.de
FRONT/REAR TIRE
PRESSURE
248
LUBRICATION MODE
PETROL MIXED
LUBRICATE
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR-COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
15.71
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD702A
LENGTH X WIDTH X HEIGHT
(mm)
1200×560×780
ENGINE MODEL
1E44F6
Engine
Muffler
Rear brake
Emergency turn off switch
Warning plate
Front brake
CE plate
Front wheel
Front suspension
Rear wheel
KXDMOTO.de
KXDMOTO.de
AXLE BASE (mm)
820
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
190
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
2700
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
22
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
23
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A FLOAT
(PLUNGER)
MAXIMUM SPEED (Km/h)
40
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
1.2
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NONE-TOUCH
MAGNETIC
CONTROL
FRONT/REAR TIRE
SPECIFICATION
2.50—10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
248
LUBRICATION MODE
PETROL MIXED
LUBRICATE
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR-COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
15.71
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de

KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD702B
LENGTH X WIDTH X HEIGHT
(mm)
1350×620×830
ENGINE MODEL
1E44F6
AXLE BASE (mm)
940
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
210
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
2800
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
26
RATED POWER Kw
(r/min)
1.8/7000
Engine
Front brake
Emergency flame out switch
Muffler
Front wheel
CE plate
Rear wheel
Front suspension
Warning plate
Rear brake
KXDMOTO.de
KXDMOTO.de
THE WEIGHT OF FULL
FURNISHMENT (Kg)
27.2
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A FLOAT
(PLUNGER)
MAXIMUM SPEED (Km/h)
40
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
1.2
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR TIRE
SPECIFICATION
2.50—10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
248
LUBRICATION MODE
PETROL MIXED
LUBRICATE
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR-COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
15.71
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de

KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD703
LENGTH X WIDTH X HEIGHT
(mm)
1200×550×790
ENGINE MODEL
1E44F6
AXLE BASE (mm)
840
BORE×STROKES
4437.4
WHEEL BASE (mm)
450
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
190
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
2900
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
21
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
22
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A FLOAT
(PLUNGER)
MAXIMUM SPEED (Km/h)
40
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
1.5
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NONE-TOUCH
MAGNETIC
CONTROL
FRONT/REAR TIRE
SPECIFICATION
2.50—10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
248
LUBRICATION MODE
PETROL MIXED
Front brake
Rear brake
Warning plate

Engine
Front wheel
CE plate
Rear wheel
Functional switch
KXDMOTO.de
KXDMOTO.de
PRESSURE
LUBRICATE
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR-COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.2
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
15.71
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD705
LENGTH X WIDTH X HEIGHT
1220×575×810
ENGINE MODEL
1E44F6
Front brake
CE plate
Engine
Front wheel
Rear wheel
Warning plate
Emergency turn off switch
Rear brake
KXDMOTO.de

KXDMOTO.de
(mm)
AXLE BASE (mm)
830
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
190
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
2800
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
23
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
24.5
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A FLOAT
(PLUNGER)
MAXIMUM SPEED (Km/h)
40
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
1.8
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NONE-TOUCH
MAGNETIC
CONTROL
FRONT/REAR TIRE
SPECIFICATION
2.50—10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
248Kpa
LUBRICATION MODE
PETROL MIXED
LUBRICATE
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR-COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
15.71
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de
KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD706
LENGTH X WIDTH X HEIGHT
(mm)
1230×610×830
ENGINE MODEL
1P44FZA
AXLE BASE (mm)
850
BORE×STROKES
44X37.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
180
COMPRESSION RATE
9.01
TURNING CIRCLE DIAMETER
(mm)
1800
UNLOADING AND
ROTATE SPEED(r/min)
1700±100
DRY WEIGHT (kg)
36
RATED POWER Kw
(r/min)
1.8/6000
Functional switch
Warning plate
Front brake
CE plate
Front wheel
Front suspension
Engine
Rear wheel
Rear brake
KXDMOTO.de

KXDMOTO.de
THE WEIGHT OF FULL
FURNISHMENT (Kg)
37.5
MAXIMUM TORQUE
N.m (r/min)
3.0/4500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
PLUNGER TYPE
MAXIMUM SPEED (Km/h)
45
CLUTH TYPE
MULTI-DISC
WET CLUTCH
OIL TANK CAPACITY (L)
1.8
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F:HYDRAULIC
SPRING
SUSPENSION
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE OR
HYDRAULIC BRAKE
STARTING MODE
ELECTRIC
START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY HAND
IGNITION MODE
CDI
FRONT/REAR TIRE
SPECIFICATION
2.50-10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
248kpa
LUBRICATION MODE
PRESSURE 
SPLASH
FRONT/REAR RIM TYPE
ALUMINUM RIM
COOLING MODE
AIR COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.0
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
13.95
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de
KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD708
LENGTH X WIDTH X
HEIGHT (mm)
1320x620x800
ENGINE MODEL
1P44FZA
AXLE BASE (mm)
930
BORE×STROKES
44X37.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND
CLEARANCE (mm)
180
COMPRESSION RATE
9.01
TURNING CIRCLE
DIAMETER (mm)
1800
UNLOADING AND
ROTATE SPEED(r/min)
1700±100
DRY WEIGHT (kg)
38
RATED POWER Kw
(r/min)
1.8/6000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
39.5
MAXIMUM TORQUE
N.m (r/min)
3.0/4500
RATED LOAD QUALITY
(kg)
90
CARBURETOR TYPE
PLUNGER TYPE
MAXIMUM SPEED (Km/h)
45
CLUTH TYPE
MULTI-DISC WET
CLUTCH
OIL TANK CAPACITY (L)
1.8
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F:HYDRAULIC SPRING
SUSPENSION
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE
TYPE
DISC BRAKE OR
HYDRAULIC BRAKE
STARTING MODE
ELECTRIC START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY HAND
IGNITION MODE
CDI
FRONT/REAR TIRE
SPECIFICATION
2.50-10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
248kpa
LUBRICATION MODE
PRESSURE
Front brake
Front wheel
CE plate
Engine
Rear wheel
Warning plate
Rear brake
Functional switch
Front suspension
KXDMOTO.de

KXDMOTO.de
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
ALUMINUM RIM
COOLING MODE
AIR COOLED
HEADLIGHT
SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION
RATIO
3.0
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
13.95
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
PRODUCT NAME
POKET BIKE
PRODUCT MODEL
KXD008
LENGTH X WIDTH X HEIGHT
(mm)
980×440×570
ENGINE MODEL
1E44F6
AXLE BASE (mm)
680
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
80
COMPRESSION RATE
8:1
Flame out switch
Rear wheel
Engine
Front brake
Rear brake
CE plate
Front wheel
Warning plate
KXDMOTO.de
KXDMOTO.de
TURNING CIRCLE DIAMETER
(mm)
3460
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
18
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
20
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A
FLOAT-TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
52
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
2.2
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NON-TOUCH TYPE
MAGNETIC IGNITION
FRONT/REAR TIRE
SPECIFICATION
F90/65—6.5
R110/50—6.5
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
165kpa
LUBRICATION MODE
FUEL MIXED
LUBRICATION
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
11.33
LWA dB(A)
78
DRIVE RATIO
36.26
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de

KXDMOTO.de
PRODUCT NAME
POKET BIKE
PRODUCT MODEL
KXD008A
LENGTH X WIDTH X HEIGHT
(mm)
980×440×590
ENGINE MODEL
1E44F6
AXLE BASE (mm)
680
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
80
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
3460
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
18
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
20
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
Engine
Front brake
Warning plate
Rear wheel
Flame out switch
Front wheel
CE plate
Rear brake
KXDMOTO.de
KXDMOTO.de
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A
FLOAT-TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
52
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
1.9
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NON-TOUCH TYPE
MAGNETIC IGNITION
FRONT/REAR TIRE
SPECIFICATION
F90/65—6.5
R110/50—6.5
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
165kpa
LUBRICATION MODE
FUEL MIXED
LUBRICATION
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
125
FINAL REDUCTION RATIO
11.33
LWA dB(A)
78
DRIVE RATIO
36.26
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de

KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD502A
LENGTH X WIDTH X
HEIGHT (mm)
1330X620X820
ENGINE MODEL
1P44FZA
AXLE BASE (mm)
940
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE
(mm)
180
COMPRESSION RATE
9.0:1
TURNING CIRCLE
DIAMETER (mm)
2500
UNLOADING AND
ROTATE SPEED(r/min)
1700±100
DRY WEIGHT (kg)
37.5
RATED POWER Kw
(r/min)
1.8/6000±100
THE WEIGHT OF FULL
FURNISHMENT (Kg)
40.5
MAXIMUM TORQUE
N.m (r/min)
3.0/4500±100
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
45
CLUTH TYPE
MULTI-DISC WET
CLUTH
OIL TANK CAPACITY (L)
4.2
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F:HYDRAULIC
SPRING
SUSPENSION
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC BRAKE OR
HYDRAULIC BRAKE
STARTING MODE
ELECTRIC START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY HAND
IGNITION MODE
C.D.I
FRONT/REAR TIRE
SPECIFICATION
2.50-10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
248kpa
LUBRICATION MODE
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
ALLOYRIM
COOLING MODE
AIR COOLED
Engine
Front brake
Warning plate
Rear wheel
Turn off switch
Front wheel
Rear brake
CE plate
Muffler
KXDMOTO.de
KXDMOTO.de
HEADLIGHT
SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION
RATIO
3.0
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
4.91
LWA dB(A)
78
DRIVE RATIO
13.95
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD502C
LENGTH X WIDTH X
HEIGHT (mm)
1340×605×770
ENGINE MODEL
1P44FZA
AXLE BASE (mm)
925
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND
CLEARANCE (mm)
150
COMPRESSION RATE
9.0:1
TURNING CIRCLE
DIAMETER (mm)
3100
UNLOADING AND
ROTATE SPEED(r/min)
1700±100
Engine
Front brake
Warning plate
Rear wheel
Turn off switch
Front wheel
Rear brake
CE plate
Muffler
KXDMOTO.de

KXDMOTO.de
DRY WEIGHT (kg)
47
RATED POWER Kw
(r/min)
1.8/6000±100
THE WEIGHT OF FULL
FURNISHMENT (Kg)
50
MAXIMUM TORQUE
N.m (r/min)
3.0/4500±100
RATED LOAD QUALITY
(kg)
90
CARBURETOR TYPE
PLUNGER
MAXIMUM SPEED
(Km/h)
60
CLUTH TYPE
MULTI-DISC WET
CLUTH
OIL TANK CAPACITY
(L)
4.2
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F: HYDRAULIC
SPRING
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE
TYPE
DRUM BRAKE
STARTING MODE
ELECTRIC START
FRONT/REAR BRAKE
OPERATION MODE
F: BY HAND
R: BY FOOT
IGNITION MODE
C.D.I
FRONT/REAR TIRE
SPECIFICATION
F2.50-10
R2.50-10
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
248
LUBRICATION MODE
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
SPOKE WHEEL
COOLING MODE
AIR COOLED
HEADLIGHT
SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION
RATIO
3.722
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION
RATIO
2.93
LWA dB(A)
78
DRIVE RATIO
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de
KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD504
LENGTH X WIDTH X HEIGHT
(mm)
1100×570×7
30
ENGINE MODEL
1E44F6
AXLE BASE (mm)
725
BORE×STROKES
4437.4
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
49.0
MIN GROUND CLEARANCE (mm)
140
COMPRESSION RATE
8:1
TURNING CIRCLE DIAMETER
(mm)
2300
UNLOADING AND
ROTATE SPEED(r/min)
2800±150
DRY WEIGHT (kg)
19
RATED POWER Kw
(r/min)
1.8/7000
THE WEIGHT OF FULL
FURNISHMENT (Kg)
19.7
MAXIMUM TORQUE
N.m (r/min)
2.4/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
H117A FLOAT-TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
45
CLUTH TYPE
AUTOMATIC
CENTRIFUGAL
OIL TANK CAPACITY (L)
0.9
SPARK PLUG TYPE
BM6A
FRONT/REAR SHOCK
ABSORBER TYPE
SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
DISC
BRAKE
STARTING MODE
PULL START
FRONT/REAR BRAKE
OPERATION MODE
BY HAND
IGNITION MODE
NON-TOUCHTYPE
MAGNETIC
IGNITION
FRONT/REAR TIRE
SPECIFICATION
12 1/2×2.75
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE PRESSURE
248
LUBRICATION MODE
FUEL MIXED
LUBRICATION
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR COOLED
Engine
Front brake
Warning plate
Rear wheel
Flame out switch
Front wheel
Rear brake
CE plate
KXDMOTO.de

KXDMOTO.de
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION RATIO
3.20
MIXTURE RATIO OF
FUEL &LUBRICANT
OIL
125
FINAL REDUCTION RATIO
3.91
LWA dB(A)
78
DRIVE RATIO
15.71
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD607
LENGTH X WIDTH X
HEIGHT (mm)
1780×775×1050
ENGINE MODEL
152FMH
AXLE BASE (mm)
1240
BORE×STROKES
52.4x49.5
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
107
MIN GROUND
CLEARANCE (mm)
305
COMPRESSION RATE
9.51
TURNING CIRCLE
4200
UNLOADING AND
1500±100
Engine
Front brake
Warning plate
Rear wheel
Functional switch
Front wheel
Rear brake
CE plate
KXDMOTO.de
KXDMOTO.de
DIAMETER (mm)
ROTATE SPEED(r/min)
DRY WEIGHT (kg)
60.5
RATED POWER Kw
(r/min)
4.67500
THE WEIGHT OF FULL
FURNISHMENT (Kg)
63.5
MAXIMUM TORQUE
N.m (r/min)
6.5/5500
RATED LOAD QUALITY
(kg)
90
CARBURETOR TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
70
CLUTH TYPE
MULTI-DISC WET
CLUTH
OIL TANK CAPACITY (L)
4.5
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F: HYDRAULIC
SPRING
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE
TYPE
HYDRAULIC
BRAKE
STARTING MODE
KICK START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY FOOT
IGNITION MODE
C.D.I
FRONT/REAR TIRE
SPECIFICATION
F70/100—17
R90/100—14
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
241Kpa
LUBRICATION MODE
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
STEEL RIM
COOLING MODE
AIR COOLED
HEADLIGHT
SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION
RATIO
3.722
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
2.93
LWA dB(A)
78
DRIVE RATIO
/
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de

KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD608
LENGTH X WIDTH X
HEIGHT (mm)
1785×755×1085
ENGINE MODEL
152FMH
AXLE BASE (mm)
1240
BORE×STROKES
52.4x49.5
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
107
MIN GROUND
CLEARANCE (mm)
290
COMPRESSION RATE
9.51
TURNING CIRCLE
DIAMETER (mm)
4700
UNLOADING AND
ROTATE SPEED(r/min)
1500±100
DRY WEIGHT (kg)
63
RATED POWER Kw
(r/min)
4.67500
THE WEIGHT OF FULL
FURNISHMENT (Kg)
67
MAXIMUM TORQUE
N.m (r/min)
6.5/5500
RATED LOAD QUALITY
(kg)
90
CARBURETOR TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
70
CLUTH TYPE
MULTI-DISC WET
CLUTH
OIL TANK CAPACITY (L)
4.6
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F: HYDRAULIC
SPRING
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE
TYPE
DISC BRAKE
STARTING MODE
KICK START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY FOOT
IGNITION MODE
C.D.I
FRONT/REAR TIRE
SPECIFICATION
F70/100—17
R90/100—14
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
241Kpa
LUBRICATION MODE
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
STEEL RIM
COOLING MODE
AIR COOLED
Engine
Front brake
Warning plate
Rear wheel
Functional switch
Front wheel
Rear brake
CE plate
KXDMOTO.de
KXDMOTO.de
HEADLIGHT
SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION
RATIO
3.722
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
2.93
LWA dB(A)
78
DRIVE RATIO
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD609
LENGTH X WIDTH X
HEIGHT (mm)
1780×775×1050
ENGINE MODEL
152FMH
AXLE BASE (mm)
1240
BORE×STROKES
52.4x49.5
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
107
MIN GROUND
CLEARANCE (mm)
305
COMPRESSION RATE
9.51
TURNING CIRCLE
4200
UNLOADING AND
1500±100
Engine
Front brake
Warning plate
Rear wheel
Functional switch
Front wheel
Rear brake
CE plate
KXDMOTO.de

KXDMOTO.de
DIAMETER (mm)
ROTATE SPEED(r/min)
DRY WEIGHT (kg)
60.5
RATED POWER Kw
(r/min)
4.67500
THE WEIGHT OF FULL
FURNISHMENT (Kg)
63.5
MAXIMUM TORQUE
N.m (r/min)
6.5/5500
RATED LOAD QUALITY
(kg)
90
CARBURETOR TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
70
CLUTH TYPE
MULTI-DISC WET
CLUTH
OIL TANK CAPACITY (L)
4.5
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
F: HYDRAULIC
SPRING
R: SPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE
TYPE
HYDRAULIC
BRAKE
STARTING MODE
KICK START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY FOOT
IGNITION MODE
C.D.I
FRONT/REAR TIRE
SPECIFICATION
F70/100—17
R90/100—14
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
241Kpa
LUBRICATION MODE
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
STEEL RIM
COOLING MODE
AIR COOLED
HEADLIGHT
SPECIFICATION
/
FUEL BRAND
≥90#
PRIMARY REDUCTION
RATIO
3.722
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
2.93
LWA dB(A)
78
DRIVE RATIO
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de
KXDMOTO.de
PRODUCT NAME
DIRT BIKE
PRODUCT MODEL
KXD612
LENGTH X WIDTH X HEIGHT
(mm)
1630×755×965
ENGINE MODEL
152FMH
AXLE BASE (mm)
1130
BORE×STROKES
52.4x49.5
WHEEL BASE (mm)
/
DISPLACEMENT (ml)
107
MIN GROUND CLEARANCE
(mm)
255
COMPRESSION RATE
9.51
TURNING CIRCLE DIAMETER
(mm)
3900
UNLOADING AND
ROTATE SPEED(r/min)
1500±100
DRY WEIGHT (kg)
61
RATED POWER Kw
(r/min)
4.67500
THE WEIGHT OF FULL
FURNISHMENT (Kg)
64
MAXIMUM TORQUE
N.m (r/min)
6.5/5500
RATED LOAD QUALITY (kg)
90
CARBURETOR TYPE
PLUNGER
MAXIMUM SPEED (Km/h)
70
CLUTH TYPE
MULTI-DISC WET
CLUTH
OIL TANK CAPACITY (L)
4.0
SPARK PLUG TYPE
A7TC
FRONT/REAR SHOCK
ABSORBER TYPE
FHYDRAULIC
SPRING
RSPRING
MUFFLER TYPE
IMPEDANCE
COMPOUND
MUFFLER
FRONT/REAR BRAKE TYPE
HYDRAULIC
BRAKE
STARTING MODE
KICK START
FRONT/REAR BRAKE
OPERATION MODE
FBY HAND
RBY FOOT
IGNITION MODE
C.D.I
FRONT/REAR TIRE
SPECIFICATION
F70/100—17
R90/100—14
DRIVE MODE
CHAIN DRIVE
FRONT/REAR TIRE
PRESSURE
241Kpa
LUBRICATION MODE
PRESSURE
SPLASH
FRONT/REAR RIM TYPE
ALLOY RIM
COOLING MODE
AIR COOLED
HEADLIGHT SPECIFICATION
/
FUEL BRAND
≥90#
Engine
Front brake
Warning plate
Rear wheel
Flame out switch
Front wheel
Rear brake
CE plate
Muffler
KXDMOTO.de

KXDMOTO.de
PRIMARY REDUCTION RATIO
3.722
MIXTURE RATIO OF
FUEL &LUBRICANT OIL
/
FINAL REDUCTION RATIO
2.93
LWA dB(A)
78
DRIVE RATIO
VIBRATION(m/s2)
1.0
CIRCUIT DIAGRAM
KXDMOTO.de
KXDMOTO.de
KXDMOTO.de
