ZKTeco AD-ZK40 User manual

AD-ZK40
May 2021
USER MANUAL

Dear User：
Thank you for choosing our products.
Since the beginning, we always adhere to the business philosophy of
"ex-cellent product quality, leading service",to provide reliable and
consistent indoor air quality,provide reliable technical guarantee for
your every breath. In order for you to use this product safely, effectively
and conveniently, please read it carefully before installation and follow
the instructions to install and use the product correctly.
In order to meet the more diverse needs of customers, our products are
constantly being updated.
If the content of this manual is inconsistent with the actual product,
please refer to the actual product, or contact us in time, we will serve
you wholeheartedly!
No matter when and where, from the time you choose our products, our
service will always be with you, and every progress we make is
inseparable from your support and suggestions. Thank you again for
choosing us!
BEST WISHES!
This manual has been carefully checked, if there are any
printing or binding error, please feel free to contact us。
-08-
-03-

Product Description
This machine mainly uses high-quality components such as single-ended ultraviolet
lamps,air circulation devices,air filter devices,etc.Through the built-in single-ended
ultraviolet sterilization and disinfection module,the disinfection and sterilization air
is discharged in the indoor air for many cycles,to realize strong sterilization and high
-efficiency purification,reduce droplet infection and aerosol transmission.
Meanwhile,this machine is available for man-machine symbiosis,and the indoor
crowd activity place can still be disinfected at any time and any place,which is
harmless to the human body.
All the sterilization machine model produced by our company are equipped with
ultraviolet disinfection (man-machine symbiosis)function.
High quality nylon washable primary filter,life time can reach 5 years.
Medical grade H13 fiberglass HEPA,PM 2.5 and the other tiny particles removal
efficiency 99.9%-99.97%@0.3μm.
Ultra-large adsorption area honeycomb activated carbon filter,with volume up to
800X400x10mm,effectively remove formaldehyde.
Technical Parameters
Circulation air volume 1200m³/h UVC lamp power 8.8W
Voltage/Rated power 100-127V~60Hz(146W)220-240V~50Hz(110W)
UV lamp life ≈8000H Noise ≤68dB
Bactericidal rate(staphylococcus albicans)≥99.9%
Natural bacteria extinction rate ≥99.9%
UV radiation intensity(1 meter vertically below the lamp)18uW/cm²
UV leakage(30cm around the device)≤1uW/cm²
Ozone residual concentration ≤0.005mg/m³Machine size 340*600*1290mm
Ambient temperature 5℃-40℃Relative humidity ≤80%
-01--10-
It is strictly forbidden to use flammable and explosive substances (such as
alcohol,acetone,gasoline oil,paint thinner,etc.) to wipe any part of
the product or any parts in the product during maintenance to avoid fire,
personal injury and property damage.
Please replaced the UV lamp in time if it is damaged or exceeds the service
life.
Transportation and Storage
During transportation,avoid rain,snow,splashing,collision,heavy pressure and
corrosive gas materials.They should be stored in a well-ventilated and dry room
to avoid strong sunlight.Stacking code during transportation and storage,no more
than six pieces are appropriate.
Packing List
Quantity Quantity
Air purifier
1
User manual
1
Power line
1
Remote control
1
This manual has been carefully checked, if there are any
printing or binding error, please feel free to contact us。
-08-
-03-

Applicable Place
Suitable for indoor air disinfection in public places,families and other place which
people can stay in the same room when machine power on.
Installation&Use Of Environment
1.Connect one end of power cord to the power connector on the back of the mac-
hine,please use the applicable power supply voltage in accordance with this pro-
duct,then press the leakage protector switch,please stay away from heaters,
stoves or other heat sources.
1. Please do not use explosive or volatile chemicals near the machine.If machine
inhales these chemicals,it may cause fire or explosion.
2. Please leave at least 20 cm of space around the machine and put it in a suitable
place indoors.
Function &Use Introduction
When turning on the sterilization function,please be sure to turn on the fan at the
same time to increase the circulating air volume,can effectively improve the steriliz-
ation effect.Manually touch the on/offkey, machine will be turned on,touch the wind
speed key,the fan starts to run,touch the sterilize key,the UV lamp starts to work,
the system will continue to start the sterilization work,touch the sterilize key again,
the UV lamp will be turned off,the sterilization function stops.
Principles of sterilization,killing microorganism types
This machine has a built-in single-ended ultraviolet lamp,which uses ultraviolet
as the main sterilization factor,and uses circulating air to disinfect indoor air to
kill bacteria in the air.The air outlet is equipped with a high-efficiency filter device,
which can effectively prevent the entry of bacteria.
Killing microorganism types:staphylococcus albicans.
-09--02-
*1.The voltage and frequency are based on the standard of the country or region in
which they are used.The actual use of parameters please based on the product sticker!
*2.The test data identified are laboratory data.If there is any discrepancy,please refer
to the physical test data.
Daily Maintenance
1.When the machine works for about 2000 hours.please clean the air filter,use a
brush to remove the dust on the filter
and put it back,to ensure sufficient air volume.
2.For better maintenance and maintenance,please check carefully whether the
disinfection device,circulating air device,air filter device,electric control device,
etc are working properly aperiodically,otherwise replace it timely.
3. If the machine is shut down for a long time,the power should be cut off and
covered with a clean cloth.
Check item How to check Frequency
external wiring visually check for looseness 3 months
Centrifugal fan
and motor
the centrifugal fan must rotate smoothly without
generating abnormal sound.If abnormal sound is
heard,please confirm whether there is foreign
matter in the blower and whether the noise of the
motor bearing is abnormal.If the motor has
problems,please replace it.
12 months
Pre filter to check whether the surface is damaged;cleaned
every 3 months 3 months
UV lamp to check the lamp tube every six months for damage 6 months
Important Safety Instructions
Please read the manual carefully before using,to avoid personal injury and
property damage.When installing the product,
the product power plug must be
inserted into a power supply that may be grounded.
Please use the applicable power supply
voltage in accordance with this product,
otherwise it will cause damage or fire to the product.
Please keep good hygienic conditions,and can not store flammable and explo-
sive materials around,otherwise it will affect the purification effect and the risk
of fire or explosion.
Please protect the product with both hands
when it is moving, to prevent it from
tilting or falling,causing personal injury.
The machine should be maintained regularly and irregularly,otherwise it will
affect the purification effect and have hidden dangers.Maintenance should be
carried out under the condition of shutdown and power off to avoid the risk of
electric shock.
This manual has been carefully checked, if there are any
printing or binding error, please feel free to contact us。
-08-
-03-

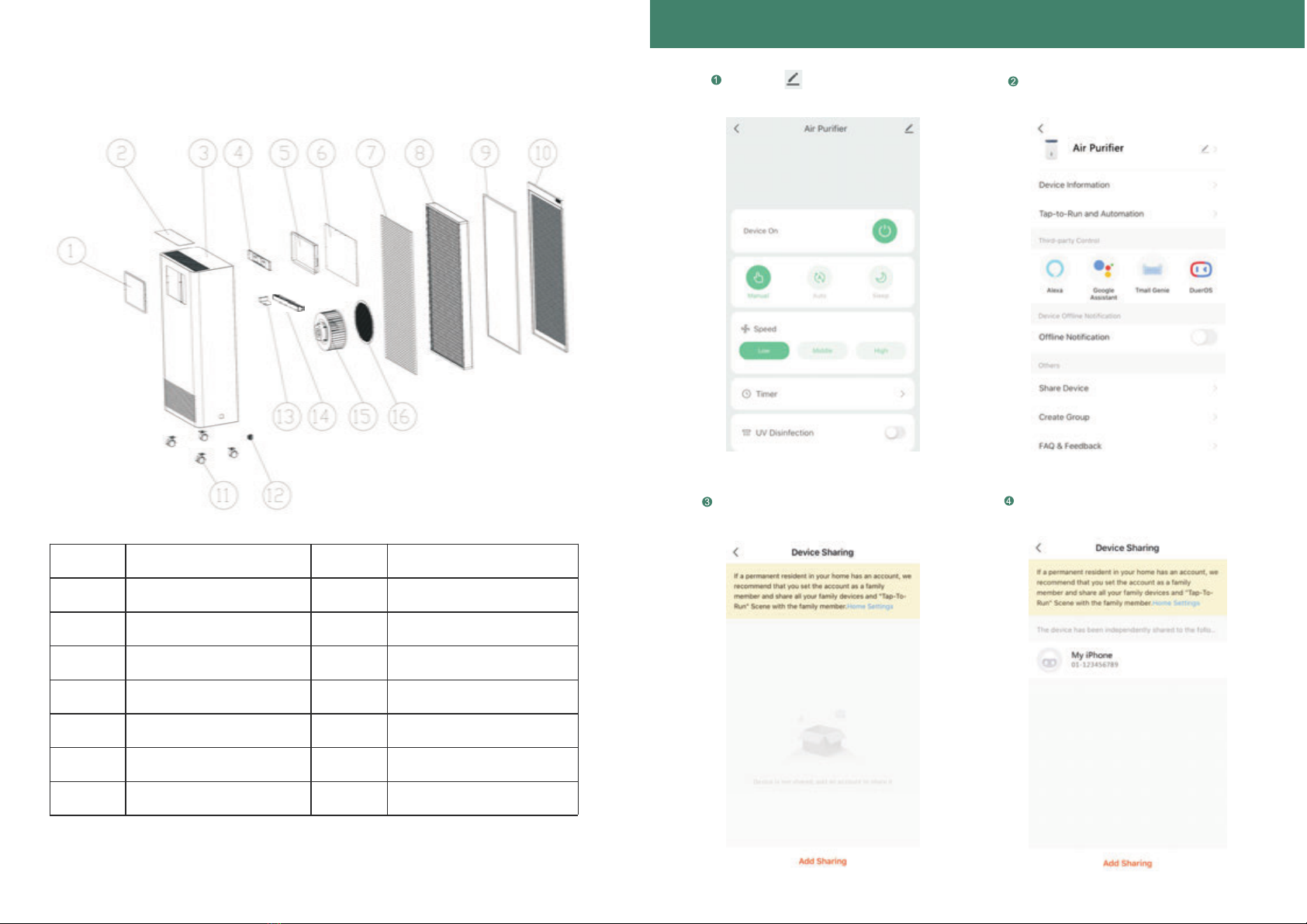

Assembling Drawing
-03--08-
1
Touch screen
9
Primary filter
2
Air outlet shelter
10
Air inlet
3Machine body 11 Wheel
4PCB board
12
Power supply
5PCB protective cover 13 Sensor holder
6PCB install board 14 UV Lamp
7Carbon filter 15 Motor and fan
8HEPA filter 16 Isolation Net
Note: Instructions about how other users control the device by the APP.
Click the by the side of the device
name to the Settings interface.
“ ” Click Share Device for device sharing.
Click Add Sharing to input the other user’s
account name.
With Add Successfully the other user can
control the device simultaneously.
This manual has been carefully checked, if there are any
printing or binding error, please feel free to contact us。
-08-
-03-

Click Next when the APP has located
the available devices.
Input the account and password of the
WLAN for the device (Ensure the device uses
the same network as the cellphone with the
same correct password.) and click Next.
APP will be automatically connected with the
device, this process may take 1-3 minutes.Click
“Done”after “Add Successfully”. Click the dev-
icename could name it, for example: “Air Purifier”
Here comes the APP control interface.
Click Icons to remote control the device.
Congratulations! now you can control this
device by Tuya.
7
Part Function Description
NO Part Function
1
Primary
filter
remove large particles,wool,mosquitoes
and other pollutants
2
Wheel easy to move
3
Air outlet diffuse airflow
4
Fan provide air circulation power
5
Air filter remove harmful odor/filtering≥0.3μm particles
6
UVC lamp kill virus/bacteria
7
Control
system
manually adjust the wind speed,start
and stop the sterilization system
Operation Interface
1.Numerical display(white)
PM2.5,time preset value(share the same middle number of PM2.5)
2.Status display(white)
gear status display,air filter replace indicator,sleep mode,automatic mode.
3.Function button:
same as remote control
Air filter replacement reminder:
*Replacement reminder:the icon flashing on the machine indicates that
HEPA filterneeds to be replace immediately,please replace it immediately.
*Replacement reset:after replacing the HEPA filter,please press the on/off
key and speed key for 5 seconds at the same time,the machine issued a
"drop ", the icon no longer flashing,indicating that the machine has
replaced the new HEPA filter,and began to recalculate the life.
PS:the first time to use the machine,the icon will flashing too,please do the
same operation as replacement reset,the machine will begin to recalculate the
HEPA life.
-07--04-
This manual has been carefully checked, if there are any
printing or binding error, please feel free to contact us。
-08-
-03-

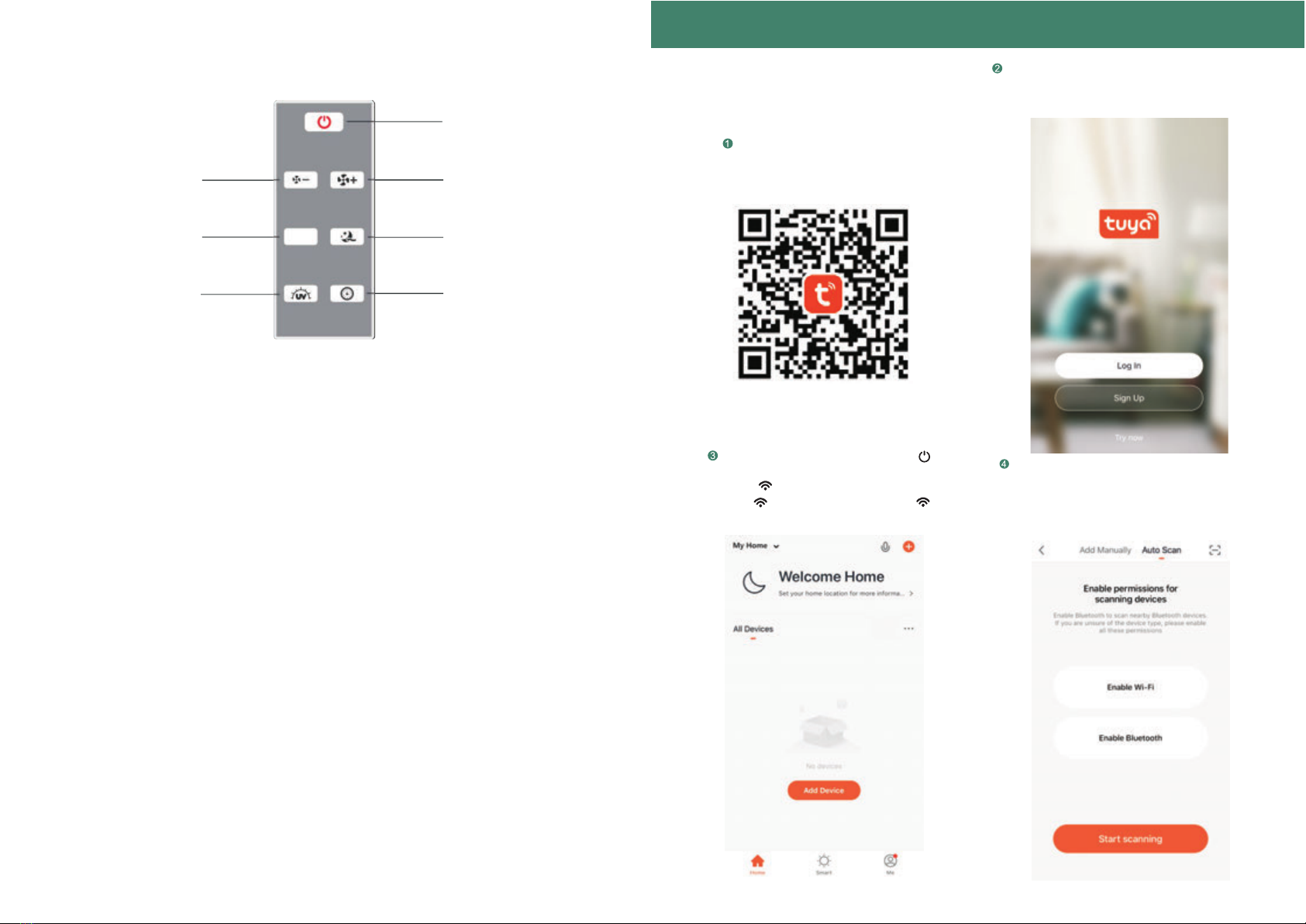

Scan the QR code to download or
search TuyaSmart to download and
install the APP.
Launch Tuya Smart and click Log In (click Sign
Up first without an account) or Try now (some APP
features may not be available without login).
Plug in the device, click power on ,
press MODE on the panel for 5 sec till the
light for “ ” on the panel flashes(Ignore
it if the “ ” flashes while repeat it if “ ”
does not flash). Then click Add Device.
“ ” Click Auto Scan, launch Location Services,
WLAN (Ensure the cellphone and the device
use the same network) and Bluetooth, and
then click Auto Scan to search for the nearby
devices available.
Tuya APP Operation Instruction
5
AUTO
Remote Control Operation Interface
on/off
wind speed-wind speed+
automatic
sterilize
sleep mode
timing
1.ON/OFF
*Our products are updated and upgraded on an irregular basis,
the remote control please based on the product you received.
press the on/off button to turn on/offthe machine.all the light will on exclude
sterilizer light,default into manual mode,the fan operation under gear 1.
2. Speed:
this workable on manual mode.1-3 gear cycle display.
3. Mode
A.manual mode:
adjust the air volume manually.
B.automatic mode
automatically adjust the wind speed according to the state of air quality.
C.timing mode:
machine turn off time can be scheduled.the machine will automatically turn
off after the scheduled 1-9 hours.
D.sleep mode:
operate with min wind speed and all lights off.all the light will be turned off,
just remain sleep mode light.just sleep indicator still light on.
4. Sterilize
press the sterilize button to make the machine enter the sterilize mode.
the sterilization light will be on.press again to exit this mode.
-05--06-
This manual has been carefully checked, if there are any
printing or binding error, please feel free to contact us。
-08-
-03-

www.zkteco.eu
