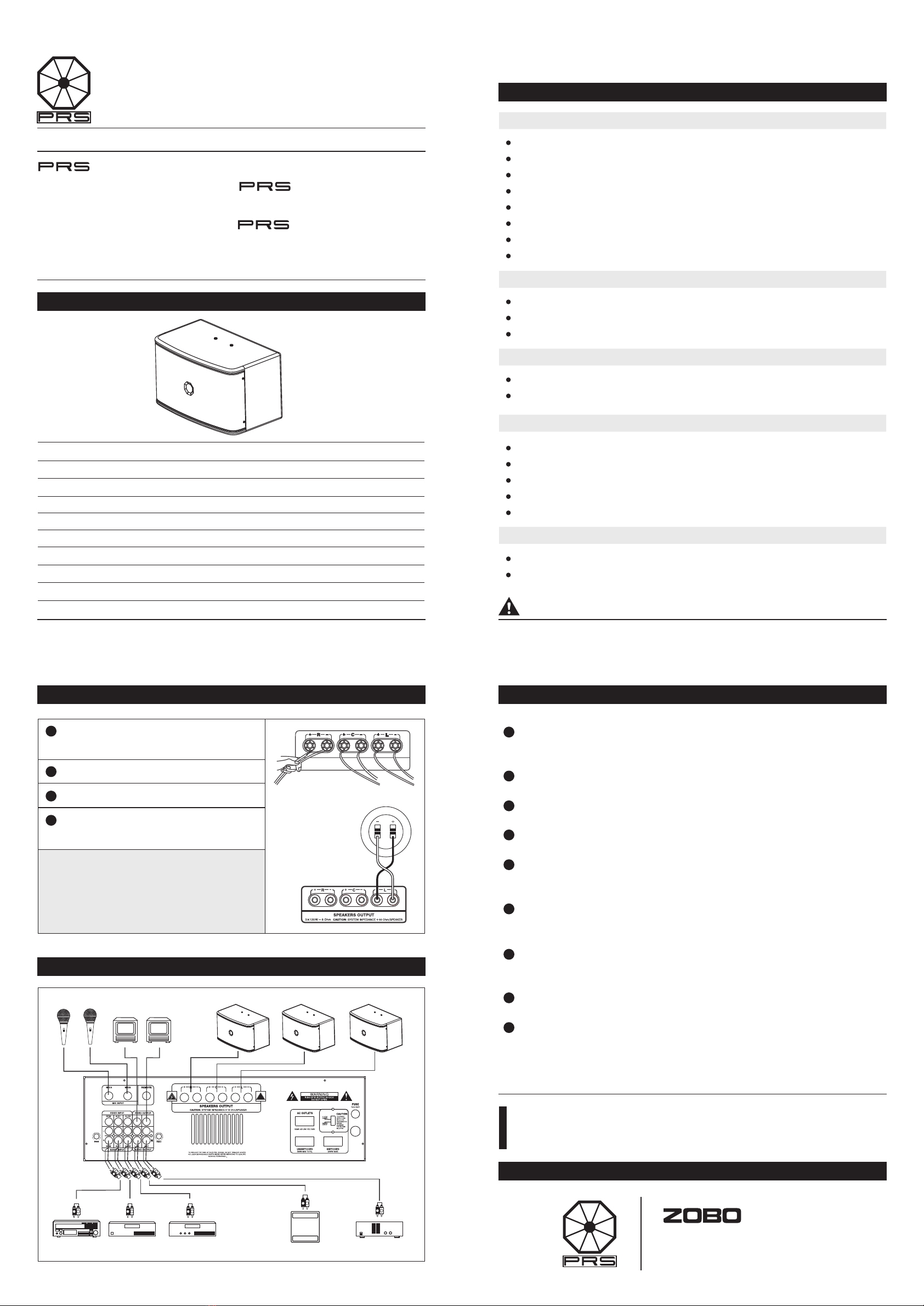

professional Karaoke speaker is the high grade professional equipment for
commercial KTV entertainment. It combines the state-of-the-art technology and ample
experience in the field of Karaoke and contains the ' s ten years' understanding for
the Karaoke sound reinforcement, which concentrates on the reflection of the human voice's
penetrability and decoration, and the music atmosphere with suitable sound pressure and
power. All loudspeakers' key material is custom-made according to special requirement of the
. Moreover, the crossover's design is completed by CAD to superior listening
engineer's adjustment and then to the precise test in the Anechoic Chamber. So, the speakers
of VS series can give you comfortable feeling and fully inspire your enthusiasm for singing.

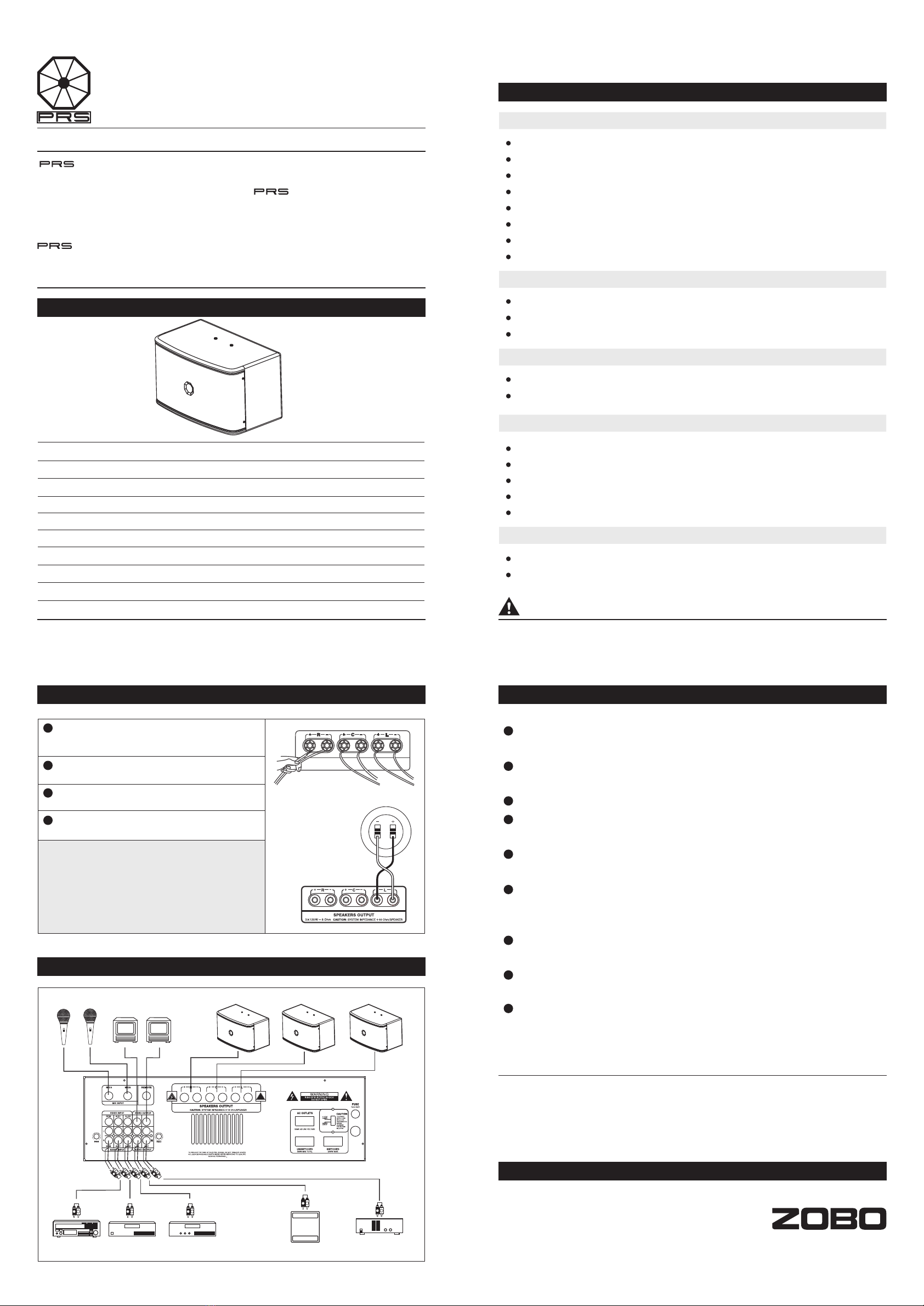

THE SPEAKER'S CONNECTION
Turn the screw on the amplifier's connection pole
by laevorotation and then insert the speaker
cable to the hole from the side .
Turn the screw on the amplifier's connection pole
by clockwise and press the speaker cable well.
Connect the speaker cable with the terminal as
per the related polarity.
There are four terminals and the other two can
connect with speaker in daisy connection.
Remark:
1.the amplifier and the speaker cable should connect
the right polarity, other wise the voice will become
un-nature and less low frequency.
2.Choose the suitable speaker cable before the
connection and connect from the shortest.
3.make sure the projection of the lead end not touch
the next lead
THE EXAMPLE OF SYSTEM CONNECTION
Active woofer speaker Recording or
enforcement
equipment
THE REMOVE FOR THE FAULT OF THE KTV SYSTEM
The main volume control in the amplifier set the suitable voltage
The hidden volume control in the amplifier set the suitable voltage
No voice from the microphone
The microphone is normal or not
The microphone is on or off
The connection of the microphone is normal or not
The volume in the related microphone channel set the suitable voltage
The volume control in the amplifier set the suitable voltage
No reverberation
The effect volume control in the amplifier's microphone set the suitable voltage
The effect functional volume control in the amplifier's microphone is on or off
Please contact our distribute dealer if fail to solve the problem
No voice in the system
Check the power is normal or not
Check the plug is connected the socket by a right way
Check the amplifier's power is on or off
Check the original voice is on or off
The signal cable connect the amplifier input by a right way
The speaker cable connect the speaker by a right way
The main volume control in the amplifier set the suitable voltage
The hidden volume control in the amplifier set the suitable voltage
The signal fail to input by one side and please check the connection of the signal cable
One side of the speaker cable have a bad connection
The equation control of the amplifier is on the middle position or not
ATTENTION
M a ke s u r e t h e v o l t a ge i s n or m al b e f o re o p e n t h e p o w e r a n d t h e v o l t a ge o f t he
a m p l i fi e r h av e b ee n s e t w i t h in t h e c it y v ol t ag e r an g e
The a node a nd c at ho de o f the s peake r i s sa me w it h th e a mplif ie r' s wh en c on ne ct
t h e s ys t em
T h e p ow e r o f m at ch e d a mp li f ie r s h o ul d b e b et we e n 5 0% -1 5 0% .
D o n ' t s e t t h e v o l u m e c o n t r o l o f t h e a m p li f i e r o r t h e e q u a l i z e o n t h e b i g ge s t
p o s i t io n o r i t w i ll m a y b e d a m ag e t h e s p e a ke r
O n l y u s e t h e s p e ak e r c a b le w h en c o nn ec t t h e s p e ake r w i t h t h e a m p li fi e r. A ny
o t h e r c a b l e w il l m ay b e l ea d in g t o f ir e
Close all t h e p o w e r b e f o r e t h e c o n n e c t i o n o f t h e spea ker and o t h e r e q u i p m e n t
a n d s e t t h e a l l v oi c e v o lu m e c o nt r ol o n t h e m i n i m u m p o si t i o n b e fo r e c l os e o r
o p e n a l l t he p o w e r
Don't ke e p u s i n g t h e s p e a ke r on a v e ry h i gh o r u n c o m f o r t a b l e v o l u m e b y a l o n g
t i m e o r i t w i l l m a y be d a m a g e y ou r e ar f o r e v er
D o n ' t u s e t h e s p e a ke r w i th d i s t or t io n v oi c e b y a l o n g t im e o r i t w il l l ea d in g t o
o v e r h ea t a n d s e t f i r e
W h e n y o u m ake t h e f l y i ng s p e a ke r s, p l e a se p a y a t t e n ti o n t o t h e f ol l ow s:
A . a d ju s t t he h i g h v o i c e a xi s t o p oi n t a t t he e f f e ct i ve l i s t en s p a c e;
B . T he s pe ake r s h ou l d a w ay f r om t he b a ck w a ll w it hi n 5 0c m a n d 3 0 cm l o ng e r
f r o m t h e s id e w al l .
THE PACKING INSIDE INCLUDES: Speaker．Manual and Guarantee Card
Th e te ch nic al s pe cif ic ati on a nd i nt rod uc tio n i n th is m anu al i s on ly f or r ef ere nc e
an d our com pan y keep th e ri gh t to mo dif y or ch an ge the pro du ct or tech ni cal
sp ec ifi ca tio n at an y ti me . We w il l no t in fo rm you i f we ma ke the modifi ca tio n.
Be ca use th e te ch spe ci fic at ion , e qu ipm en t or th e ac ce sso ri es may be dif fe ren t
fr om ea ch o th er a s pe r d iff er ent re gio n, so p lea se con fi rm w it h ou r l oca l
di st rib ut e de ale r i f yo u ha ve a ny q ue sti on ... .. ... .. ... .. ... .. .. ... .. ... .. ... .. ... .. ..... ..
