Zokop B23PXP88-A90 User manual

Thanks for your purchase. Any questions please don't hesitate to contact us,
We will handle all your problem ASAP. Your feedback is vital to us!
And we will always try to do better. For more details, please contact us
by email via [email protected]. (Write your seller's Order # on the
subject of the email, so that we can find your order and better assist
your issue) Or call us at (1)855-882-2333 .
MADE IN CHINA
B23PXP88-A90
USER MANUAL

TABLE OF CONTENTS
IMPORTANT SAFEGUARDS
INSTALLATION
TIPS FOR CLEANING
PRODUCT INSTRUCTION
OPERATION OF CONTROL PANEL
UTENSILS GUIDELINE
COOKING TIPS
MAINTENANCE
SERVICING SAFEGUARDS
CLEANING
3
7
8
9
10
11
19
20
21
21

IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEPFOR FUTURE REFERENCE
.IMPORTANT SAFEGUARDS…………。。。。。………………………
The following basic precautions should always be followed
when using electrical appliance:
1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to
the one shown on the rating label of the appliance. And the
wall socket is properly grounded.
3. To reduce the risk of fire in the oven cavity:
a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before
placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of
oil cannot be controlled.
d. After use wipe the waveguide cover with a damp cloth,
followed by dry cloth to remove any food splashes and
grease. Built -up grease may overheat and begin to cause
smoke or catch fire.
e. If materials inside the oven should smoke or ignite, keep
oven door closed, turn oven off and disconnect the power
supply.
f. When heating food in plastic or paper containers, keep an
eye on the oven due to the possibility of ignition.
4. To reduce the risk of explosion and sudden boiling:
a. WARNING: Liquids and other foods must not be heated in
sealed container since they are liable to explode; Baby
bottles fitted with a screw cap or teat are considered to be
3

sealed containers.
b. Use the wide -mouthed container to cook liquid, and the
cooked liquid should not be removed out immediately.
Several moments should be waited before removing. In
order to avoid possible hazards caused by delayed eruptive
boiling of liquids.
c. Potatoes, sausage and chestnut should be peeled or
pierced before cooking. Eggs in their shell, whole hard
-boiled eggs should not be heated in microwave ovens since
they may explode, even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars are to
be stirred or shaken and the temperature is to be checked
before consumption, in order to avoid burns.
5. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a qualified technician in
order to avoid a shock hazard.
6. After cooking, the container is very hot. Using gloves to
take out the food and avoid steam burns by directing steam
away from the face and hands.
7. Slowly lift the furthest edge of dishes cover and
microwave plastic wrap and carefully open popcorn and
oven cooking bags away from the face.
8. To prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
9. Make sure the utensils do not touch the interior walls
during cooking.
10. Only use utensils that are suitable for use in microwave
ovens.
4

11. Do not store food or any other things inside the oven.
12. Do not operate the oven without any liquid or food inside
the oven. This would do damage the oven.
13. When the appliance is operated in the combination mode,
children should only use the oven under adult supervision
due to the temperatures generated.
14. Any accessories not recommended by the manufacturer
may cause injuries to persons.
15. Do not use outdoors.
16. Save these instructions.
17. WARNING: If the door or door seals are damaged or the
oven is malfunctioned, the oven must not be operated until it
has been repaired by a competent person;
18. WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which gives
protection against exposure to microwave energy;
19. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames;
20. Microwave heating of beverages can result in delayed
eruptive boiling; therefore care must be taken when handling
the container;
21. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
22. The lamp of microwave oven is not intended for other
purposes.
23. The appliances are not intended to be operated by
means of an external timer or separate remote -control
system.
5

24. This appliance is intended to be used in household and
similar applications, such as:
• Staff kitchen areas in shops, offices and other working
environments;
• Farm houses;
• By clients in hotels, motels and other residential
environments;
• Bed and breakfast type environments.
25. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
26. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be
made by children unless they are older than 8 and
supervised. Keep the appliance and its cord out of reach of
children less than 8 years.
27. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
28. Children should be supervised to ensure that they do not
play with the appliance.
29. A steam cleaner is not to be used.
6

Household use only
.INSTALLATION……………………………………………………..……….…
30. The door or the outer surface may get hot when the
appliance is operating.
31. WARNING: Accessible parts may become hot during use.
Young children should be kept away.
32.This device complies with Part 18 of the FCC Rules.
33.During use the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the oven.
34.The surfaces are liable to get hot during use.
1. Take out all the packing. If there is a safe film over the
oven, tear it off before use. Check carefully for damage. If
any, immediately notify dealer or send to the manufacturer’s
service center.
2. Microwave ovens must be placed under dry and
non-corrosiveness environments, kept away from heat and
humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of
microwave to the wall should be at least 10 cm, the side to
the wall should be at least 5 cm, the free distance above the
top surface at least 20 cm. the distance of the microwave to
the ground should be at least 85 cm.
4. The position of the oven shall be such that it is far from
the TV, Radio or antenna as picture disturbance. The
distance should be more than 5m.
5. The appliance must be positioned so that the plug is
accessible, and must ensure a good grounding in case
7

leakage, ground loop can be formed to avoid electric shock.
.CLEANING…………………………………………………………………….…。
MICROWAVE OVEN CARE
The oven should be cleaned regularly and anyfood deposits
removed.
6. The microwave oven must be operated with the door
closed.
7. The microwave oven must not be placed in a cabinet. The
microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the
oven cavity or heat element, it usually would smell the odor,
even a slight smoke, It is normal case and would not occur
after several times use, keep the door or window open to
ensure good ventilation. So it is strongly recommended to
place a cup of water in the turntable, setting at high power
and operate for several times.
1. Remove the power cord from the wall outlet before
cleaning. Don't immerse the appliance in water or other
fluids when cleaning.
2. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation
3. Never use hard detergent, gasoline, abrasive powder or
metal brush to clean any part of the appliance
4. Do not remove the waveguide cover
8

5. When the microwave oven has been used for a long time,
there may be some strange odors exist in oven, Following 3
methods can get rid of them:
6. WARNING:Only allow children to use the oven without
supervision whenadequate instructions have been given so
that the child is able to use the oven in a safe way
and understands the hazards of improper use;
TIPSFOR CLEANING
Details for cleaning door seals, cavity and adjacent parts:
Exterior:
Wipe the enclosure with a dampened softcloth
Door:
Usinga dampenedsoftcloth, wipe clean the door and
window
Wipe the door seals and adjacent parts to remove any
spillor spatter
Wipe the control panel with a slightly dampenedsoftcloth
Interior walls:
Wipe clean the cavity with a dampenedsoftcloth
Wipe clean the waveguide cover to remove any food
splashed
a. Place several lemon slices in a cup, then heat with high
Micro Power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high micro
power.
c. Put some orange peel into oven, and then heat them with
high Micro Power for 1 minute.
9

Turntable/ Rotation ring/ Rotation axis:
Wash with mild soap water
Rinsewith clean water and allow drying thoroughly

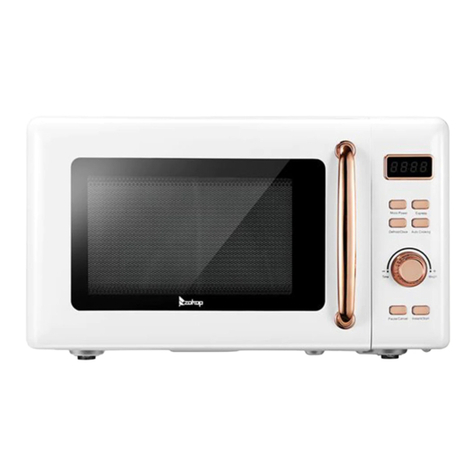

.PRODUCT INSTRUCTION………………………….............................
BAKEDPOTATO POPCORN PIZZA
BEVERAGE FROZENDINNER REHEAT
POWER CO
TIM
O
E
KBYT
DEFRO
IM
S
E
T
KITC
TIMER
HEN
BYWE
DEFRO
IG
S
HT
T
EXPRESSCOOK
CLOCK 3
AD
0S
D
EC
HOLD
ST
CLEAR
OP/ STA
PAUSE
RT/
1) Door lock
Microwave oven door must be properly closed in order for it to
operate
2) Viewing window
Allow user to see the cooking status
3) Rotating axis
The glass turntable sits on the axis; the motor underneath it
drives the turntable to rotate
4) Rotating ring
The glass turntable sits on its wheels; it supports the turntable
and helps it to balance when rotating
10

5) Turntable
The food sits on the turntable, its rotation during operation
helps to cook food evenly
-Place the rotating ring first
-Fit the turntable onto the rotating axis and make sure that it is
geared in properly
6) Control panel
See below in details (the control panel is subject to change
without prior notice)
7) Waveguide cover
It is inside the microwave oven, next to the wall of control panel.
Never remove the waveguide cover
OPERATION OF CONTROL PANEL…。。。。。。。。。。 ...。…...........
BAKED POTATO POPCORN PIZZA
BEVERAGE FROZEN DINNER REHEAT
POWER TIME DEFROST
COOK BY TIME
KITCHEN DEFROST
TIMER BY WEIGHT
EXPRESS COOK
CLOCK ADD
30 SEC
HOLD
STOP / START /
CLEAR PAUSE
1. STOP/CLEAR
Clear all previous settings before cooking; or go back to
standby mode during cooking.
11

2.START/PAUSE
Touch to start or stop cooking.
3.NUMBER PADS (0-9)
Touch to set the cooking time.
4. SETTING THE CLOCK
1) Touch CLOCK once (for 12 hour clock) or twice (for 24 hour).
2) Use the number pads to enter correct time.
3) Touch CLOCK again.
Note:
This is a 12 or 24 hour clock. During the cooking program, the
current time can be seen by touching the CLOCK pad.
5.SETTING THE KITCHEN TIMER
This function can be used alone, even in the process of
cooking.
1) Touch KITCHEN TIMER pad once.
2) Enter the amount of time you want to count down by
touching the number pads.
3) Touch START/PAUSE pad to start.
Note:
1) The maximum time you can enter is 99 minutes and 99
seconds.
2) Time count down can be seen in display for 5 seconds by
touching KITCHEN TIMER, and it can be cancelled by
touching STOP/CLEAR pad during this 5 seconds.
12

6.EXPRESS
Program will start immediately after touching the number pad
(1-6).
Suppose you want to set the quick cooking in 6 minutes.
1) Touch number pad 6.
2) 6:00 can be seen on display.
3) The program starts automatically.
Touch number pad
Time minutes
1
1 minute
2
2 minutes
3
3 minutes
4
4 minutes
5
5 minutes
6
6 minutes
7. ADD 30 SEC.
Touch to set cooking time to add 30 seconds each.
1) Touch once and cooking will start immediately for 30
seconds. Touching this button repeatedly with add 30
seconds each time.
2) During the TIME COOK and TIME DEFROST, you can add
30 seconds for each push.
8.TIME COOK
1) Touch TIME COOK pad.
2) Touch number pad to enter desired cooking time.
The maximum number can be entered is 99 min.99 sec.
3) Touch POWER LEVEL pad.
13

4) Use the number pads to enter the power level as shown in
the table below.
NUMBER Display
POWER
1,0 100P 100%
9 90P 90%
8 80P 80%
7 70P 70%
6 60P 60%
5 50P 50%
4 40P 40%
3 30P 30%
2 20P 20%
1 10P 10%
5) Touch START/PAUSE pad.
9. SETTING “TIME DEFROST”
1) Touch TIME DEFROST pad.
2) Enter desired defrosting time by touching correct number
pads.
The longest time you can set is 99 min. 99 sec.
3) Touch START/PAUSE pad.
14

10. SETTING “WEIGHT DEFROST”
1) Touch WEIGHT DEFROST pad.
2) Use the number pad to enter food weight “LB”.
3) When icon of “OZ” flashes, use the number pad to enter
food weight in “OZ”.
4) Touch START/PAUSE pad.
Note:
The maximum weight is 5 LB. 16 OZ. During defrosting
program, sound beeps will remind user to turn food over, and
then press START/PAUSE to resume the defrosting.
11. ONE-TOUCH COOK
For the following menus, you do not need to input cooking
power and time. Follow the steps below.
Steps:
1) Place food into oven and close it.
2) Touc h the correct auto menu to select the weight or the
amount.
3) Touch STRAT/PAUSE pad.
Code Food Note
1 Potato
The result of auto cook depends on
factors such as the shape and size
of food, your personal preference
as to the doneness of certain foods
and even how well you happen to
place food in the oven.
2 Popcorn
3 Pizza
4 Beverage
5 Frozen dinner
6
Reheat
15

1) Baked Potato
Each potato about 3.5-5.3oz
1. Touch BAKED POTATO once for each potato to be cooked.
1 potato 6 min
2 potatoes 8 min
3 potatoes 10 min
4 potatoes 12 min
2. Touch START/PAUSE pad
2) Popcorn
For microwave popcorn:
1. Touch POPCORN.
AMOUNT COOKING TIME
1 (1.2oz.) 1 min. 45sec.
2 (3.0oz.) 2 min. 35sec.
3（3.5oz）2 min. 55sec.
2. Touch START/PAUSE pad
Popcorn instruction:
●To pop package evenly and avoid burning, the bag must be
able to turn freely while cooking
●Please listen to the popping sound and watch the bag until
the popping is completed. Some brand of microwave popcorn
bags may be larger. Make sure that the bag matches the
correct weight.
Use an oven mitt or potholder when removing the bag, as
content can be very hot.
16

3) Pizza
Reheating pizza:
1. Touch PIZZA pad.
2. Touch PIZZA once for one slice and touch the pad twice for
two slices.
3. Touch START/PAUSE pad
4) Beverage
Each cup about 250ml:
1. Touch BEVERAGE once for each cup to be heated.
1 cup. 50sec
2 cups. 2 min
3 cups. 2 min. 50sec
4 cups.
3 min. 40sec
3. Touch START/PAUSE pad.
5) Frozen Dinner
For frozen dinners:
1. Touch FROZEN DINNER pad.
2. Touch the pad once for one slice and touch the pad twice for
two slices.
3. Touch START/PAUSE pad.
6) Reheat
For a plate of cool food:
1. Touch REHEAT pad once.
2. Touch START/PAUSE pad.
17

12.TWO-STAGE COOKING
Use for multi-stage cooking. It enable cooking at multiple power
and time settings automatically.
SET STAGE1:
1) Place food into oven and close it. Touc h TIME COOK pad.
2) Use the number pads to set a cooking time.
3) Touch POWER LEVEL pad.
4) Use the number pads to enter the power level.
SET STAGE2:
5) Touch TIME COOK pad.
6) Use the number pads to set a cooking time.
7) Touch POWER LEVEL pad.
8) Use the number pads to enter the power level.
9) Touch START/PAUSE to start.
13.SETTING CHILD LOCK
The child lock prevents unsupervised operation by children.
To set, in standby mode, press and hold STOP/CLEAR for 3
seconds.
LOC is indicated on the display.
To cancel, press and hold STOP/CLEAR for 3 seconds.
LOC indication disappears.
18

.UTENSILS GUIDELINE…………………。。……………………………..
It is strongly recommended to use the containers which are
suitable and safe for microwave cooking. Generally speaking,
the containers which are made of heat-resistant ceramic, glass
or plastic are suitable for microwave cooking. Never use the
metal containers for microwave cooking and combination
cooking as spark is likely to occur. You can take the reference
of below table.
Material of
container Microwave Notes
Heat-resistant
ceramic Ye s
Never use the ceramics which are
decorated
with metal rim or
glazed
Heat-resistant
plastic Yes
Can not be used for long time
microwave cooking
Heat-resistant
glass Ye s
Plastic film Yes
It should not be used when
cooking meat or chops as the
over-temperature may do damage
to the film
Grill rack No
Metal
container No
It should not be used in
microwave oven .Microwave can
not penetrate through metal.
lacquer No
Poor heat-
resistant. Can not be
used for High-temperature
cooking
Bamboo wood
and paper No
Poor heat-
resistant. Can not be
used for High-temperature
cooking
19

.COOKING TIPS…………………………………………。……………..………..
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part
towards the centre and spread it evenly. Do not overlap if
possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times
out and extend it according to the actual need. Over cooking
may result in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned
once during cooking.
Depending on the type of food, if applicable, stir it from outside
to centre of dish once or twice during cooking
Allow standing time
After cooking times out, leave the food in the oven for an
adequate length of time, this allows it to complete its cooking
cycle and cooling it down in a gradual manner
Whether the food is done
Color and hardness of food help to determine if it is done,
these include:
-Steam coming out from all parts of food, not just the edge
-Joints of poultry can be moved easily
-Pork or poultry shows no signs of blood
-Fish is opaque and can be sliced easily with a fork
Browning dish
When using a browning dish or self-heating container, always
place a heat-resistant insulator such as a porcelain plate under
it to prevent damage to the turntable and rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the
plastic wrap come into contact with food as it may melt
20
