Zoomax Acesight VR User manual

1
User Guide
V4 .0

2
Contents
1. What’s in the box ..................................................................................... 4
1.1 Device Accessories ........................................................................ 4
1.2 Headset............................................................................................ 5
1.3 Controller ......................................................................................... 6
2. Getting started ......................................................................................... 7
2.1 Preparing to use Acesight VR........................................................ 7
2.1.1 Charging the device.................................................................................. 7
2.1.3 Turn the controller on/off ...................................................................... 11
2.2 Put on the headset........................................................................ 12
2.2.1 Wearing the headset............................................................................... 12
2.2.2 Adjust the focus ...................................................................................... 12
3. Basic functions ...................................................................................... 14
3.1 Activate/exit sleep mode ............................................................. 14

3
3.2 Zoom in/out................................................................................... 15
3.3 Focus Lock .................................................................................... 15
3.4 Change modes .............................................................................. 16
3.4.3 outline display.......................................................................................... 19
3.4.3 Favourite colour mode ........................................................................... 20
Adjust thickness of outlines/contrast of high contrast colours ..... 20
4. Advanced functions............................................................................... 21
4.1 Freeze image................................................................................. 21
4.1.1 View the frozen image............................................................................ 21
4.1.2 Zoom in/out of the frozen image ......................................................... 22
4.2 Find function.................................................................................. 23
4.3 Menu .............................................................................................. 24
............................................................................................................................. 25
4.3.1 Favourite magnification ......................................................................... 26
4.3.2 Screen brightness ................................................................................... 27
4.3.3 Select favourite colour mode ................................................................ 28

4
4.3.4 Set the narrow display............................................................................ 29
1.3.5 Factory reset ........................................................................................... 31
4.4 Other buttons on headset ............................................................ 32
5. Notes on use .......................................................................................... 35
6. Technical specifications....................................................................... 36
1. WHAT’S IN THE BOX
1.1 DEVICE ACCESSORIES
➢Headset
➢Controller

5
➢Power Adapter & Cable
➢User Guide
➢Carrying Case
1.2 HEADSET
Arrow Buttons
Power Button
Toggle Button
Focus Wheel

6
1.3 CONTROLLER
Joystick
Focus lock/Menu
Mode/Power
Freeze/Find
Indicator light
Power Input
Camera
Screen

7
2. GETTING STARTED
2.1 PREPARING TO USE ACESIGHT VR
2.1.1 CHARGING THE DEVICE
➢HEADSET:
To charge the headset, connect the headset (power input port) with
the charger (included). When the battery icon on the Acesight VR

8
screen turns to , the battery level is low. Please charge the
device. It takes less than 1.5 hours to fully charge the battery.
To check the current battery level - short press the Power Button
two times.
➢CONTROLLER
The controller is non-rechargeable. Change the
AAA batteries in the controller when the
battery is low or runs out of power.
Remove the battery cover by inserting a fingernail or
Clasp

9
small tool underneath to replace the battery.
2.1.2 Turn Acesight VR On/Off
Switching on Acesight VR:
The first time you switch on the device, press the Power Button on
the Headset for about 3 seconds. When the Acesight VR is in Sleep
Power Button

10
Mode a single press of the Power Button on the headset wakes the
device. You may feel a slight vibration to indicate the unit is starting
up. This process takes about 15 seconds. Acesight VR is ready when
you see the image on its screen.
Switching Off Acesight VR:
Acesight VR will enter sleep mode when you quick press the power
button, or by removing the device from your head and placing it on a
table or other surface. After 5 minutes the screen will switch off and
the device will enter sleep mode automatically. Acesight VR can

11
remain in Sleep mode for days without any noticeable change in
battery charge and woken up instantly with a single press to the
power button. It’s very convenient.
Acesight VR will shut off automatically when the battery runs out.
NOTE: To maintain a fully charged battery, leave Acesight VR
connected to power when not in use.
2.1.3 TURN THE CONTROLLER ON/OFF

12
Press the Power Button on the controller for 3 seconds to turn it On/Off.
The indicator light on the controller will flash blue one to two times before
it connects with the headset.
2.2 PUT ON THE HEADSET
2.2.1 WEARING THE HEADSET
Step 1: Place the headset over your eyes and pull the strap back over
your head.
Step 2: Adjust the strap to ensure a comfortable fit.
NOTE: Do not attempt to walk while wearing Acesight VR.
2.2.2 ADJUST THE FOCUS

13
Step 1: Pick an object or face at least 4 feet (1.2m) away to look at,
such as a picture on the wall.
Step 2: Rotate the Focus wheel on the top of the Acesight VR headset
to the left or right until the object is in focus.
Focus Wheel

14
3. BASIC FUNCTIONS
3.1 ACTIVATE/EXIT SLEEP MODE
When the unit has been powered on, press the Power Button on the
top of the headset to activate or exit sleep mode. The screen will turn
black when the headset goes into sleep mode. The unit can also be
woken up by pressing any button (not the joystick) on the controller.

15
To save power, the headset will go into sleep mode automatically
after 5 minutes of inactivity.
We recommend charging the Acesight VR when not in use, to help
ensure it is fully charged each time you wish to use it.
3.2 ZOOM IN/OUT
Push the joystick up to zoom in or down to zoom out.
The magnification range of Acesight VR is 1x to 16x.
3.3 FOCUS LOCK

16
The camera of the Acesight VR is auto-focus. However, if you need
to lock the focus, single click the Focus Lock button to turn off auto
focus. To return to Auto-Focus click it again.
Icon or will appear in the lower right corner of the screen
when Focus Lock is on or off.
The icon indicates Focus Lock function activated.
The icon indicates Auto-Focus activated.
3.4 CHANGE MODES
3.4.1 Change modes

17
Press mode button to switch between the nine different modes
1 / 9 - Normal view
2 / 9 - TV view
3 / 9 - Black text on white background
4 / 9 - White text on black background
5 / 9 - Black text on yellow background
6 / 9 - Yellow text on black background
7 / 9 - Edge mode, black text on white background

18
8 / 9 - Edge mode, white text on black background
9 / 9 - Edge mode, colour
3.4.2 TV mode
In live mode, press the mode button to enter into TV mode.
The icon will appear in the lower-right corner of the screen.
In TV mode, the exposure value (from -24 to 24) can be adjusted by moving
the remote controller joystick left or right.

19
Note: The exposure value you select will be saved automatically and will
activate whether you’re waking the device from standby mode or rebooting.
3.4.3 OUTLINE DISPLAY

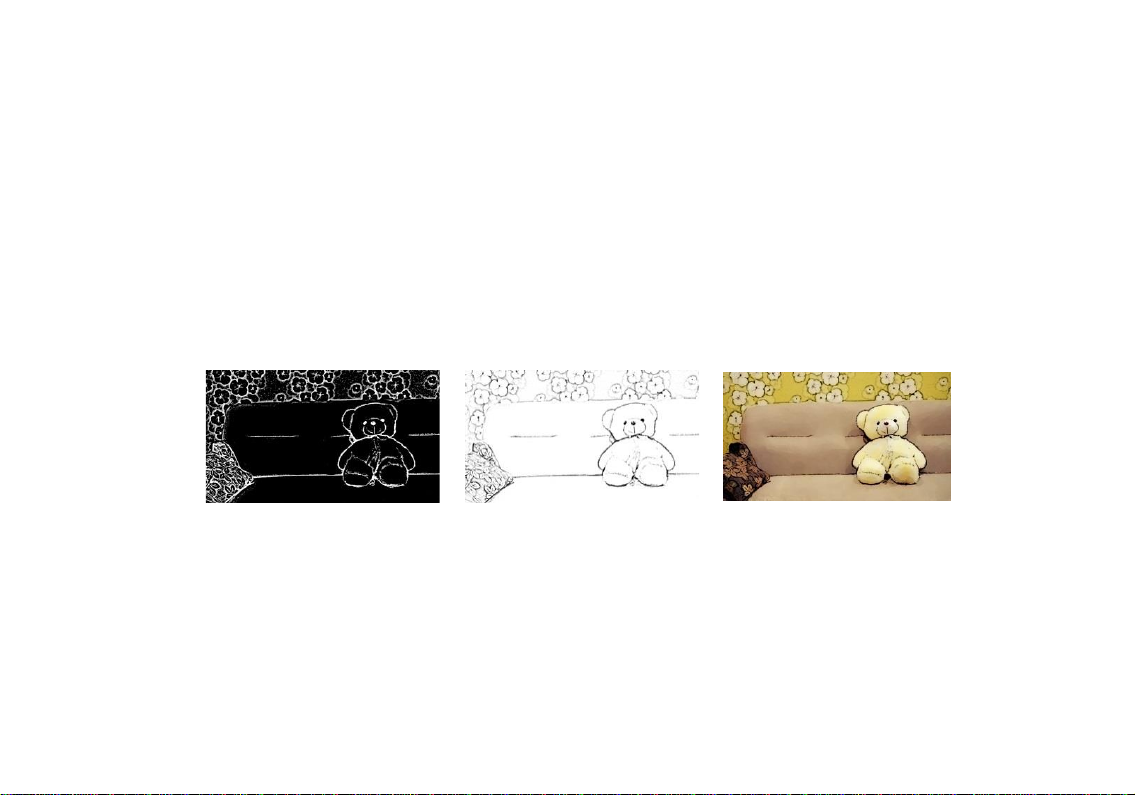

➢3OUTLINE DISPLAYS
White on Black
Black on White
Black Outline on Full
colour

20
3.4.3 FAVOURITE COLOUR MODE
You can select your favourite colour mode in the Menu. Please refer
to the “Menu” section on page 24 of this guide.
ADJUST THICKNESS OF OUTLINES/CONTRAST OF HIGH CONTRAST COLOURS
The thickness of the outline and the range of the contrast in high
contrast colours are adjustable by up to 5 levels by pushing the
joystick left or right. This allows it to adapt to various eye conditions
and lighting environments.
