ZTEWelink GE2015 User manual

GE2015 DEV BOARD USER GUIDE
Version: V1.1
Date: 2017-01-04
Dev Board
GE2015
Website: www.ztewelink.com
E-mail: [email protected]om.cn

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. I
GE2015
Dev Board User Guide
LEGAL INFORMATION
By receiving the document from Shenzhen ZTEWelink Technology Co., Ltd (shortly referred to as ZTEWelink), you are deemed to have agreed to the following terms. If
you don’t agree to the following terms, please stop using the document.
Copyright © 2017 Shenzhen ZTEWelink Technology Co., Ltd. All rights reserved. The document contains ZTEWelink’s proprietary information. Without the prior written
permission of ZTEWelink, no entity or individual is allowed to reproduce, transfer, distribute, use and disclose this document or any image, table, data or other information
contained in this document.
ZTEWelink is a holding subsidiary of ZTE Corporation, dedicate to cellular M2M communication modules and M2M solutions. is the registered trademark of
ZTE Corporation and ZTEWelink is granted to use ZTE Corporation’s registered trademarks. The name and logo of ZTEWelink are ZTEWElink’s trademark or registered
trademarks. The other products or company names mentioned in this document are the trademark or registered trademark of their respective owner. Without the prior
written permission of ZTEWelink or the third-party oblige, no entity or individual is allowed to use any company name, trademark, logo, label or other information
contained in this document.
The product meets the design requirements of environmental protection and personal security. The storage, use or disposal of products should abide by the product
manual, relevant contract or the laws and regulations of relevant country.
ZTEWelink reserves the right to make modifications on the product described in this document without prior notice, and keeps the right to revise or retrieve the
document any time.
If you have any question about the manual, please consult the company or its distributors promptly.
Copyright © ZTEWeLink Technology Co., LTD, All rights reserved.

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. II
GE2015
Dev Board User Guide
ABOUT THIS DOCUMENT
Reading Notes
The symbols below are the reading notes you should pay attention on:
: WARNING or ATTENTION
: NOTE or REMARK

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. III
GE2015
Dev Board User Guide
REVISION HISTORY
Version
Date
Description
1.0
2016-10-21
1st version
1.1
2017-01-04
Add the content of GE2015_SB_ME3630PCIE in chapter 3.3&3.4
Add the content of GE2015_SB_B & GE2015_DB_MB_B.

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. IV
GE2015
Dev Board User Guide
CONTENTS
LEGAL INFORMATION .........................................................................................................................................................................................................................................................I
ABOUT THIS DOCUMENT ..................................................................................................................................................................................................................................................II
REVISION HISTORY ........................................................................................................................................................................................................................................................... III
CONTENTS .......................................................................................................................................................................................................................................................................... IV
FIGURE CONTENTS............................................................................................................................................................................................................................................................ VI
1. OVERVIEW ........................................................................................................................................................................................................................................................................7
1.1. INTRODUCTION TO THE DVK(DEVELOPMENT KIT) ..................................................................................................................................................................................................................................................7
1.2. COMPONENTS OF THE DVK ......................................................................................................................................................................................................................................................................................7
1.3. MODULES SUPPORT BY GE2015..............................................................................................................................................................................................................................................................................9
2. FUNCTION INTRODUCTION ........................................................................................................................................................................................................................................10
2.1. FUNCTIONAL DIAGRAM .......................................................................................................................................................................................................................................................................................... 10
2.2. FUNCTION IDENTIFYING .......................................................................................................................................................................................................................................................................................... 11
2.3. FUNCTION INTRODUCTION ..................................................................................................................................................................................................................................................................................... 12
3. INTERFACE BOARD INTRODUCTION .........................................................................................................................................................................................................................14
3.1. PICTURE OF GE2015_SB_B INTERFACE BOARD AND CONNECTION .................................................................................................................................................................................................................... 14
3.2. INTRODUCTION OF GE2015_SB_B INTERFACE BOARD FUNCTION ..................................................................................................................................................................................................................... 15
3.3. PICTURE OF GE2015_SB_ME3630PCIE INTERFACE BOARD AND CONNECTION .............................................................................................................................................................................................. 21
3.4. INTRODUCTION OF GE2015_SB_ME3630PCIE INTERFACE BOARD FUNCTION ............................................................................................................................................................................................... 22
4. QUICK START GUIDE.....................................................................................................................................................................................................................................................29
4.1. DEVICE CONNECTION ............................................................................................................................................................................................................................................................................................. 29

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. V
GE2015
Dev Board User Guide
4.2. RUN HYPER TERMINAL OR OTHER COM TOOL ON PC....................................................................................................................................................................................................................................... 32
4.3. POWER SUPPLY ....................................................................................................................................................................................................................................................................................................... 32
5. DETAILED FUNCTIONAL INTRODUCTION OF GE2015 AND MODULE .................................................................................................................................................................33
5.1. POWER SUPPLY ....................................................................................................................................................................................................................................................................................................... 33
5.1.1. Direct Power Supply ................................................................................................................................................................................................................................................................................ 33
5.1.2. Adapter Power Supply............................................................................................................................................................................................................................................................................ 34
5.1.3. USB Power Supply .................................................................................................................................................................................................................................................................................... 34
5.1.4. Other Power Supply................................................................................................................................................................................................................................................................................. 35
5.2. UART1 ................................................................................................................................................................................................................................................................................................................... 38
5.2.1. DB9 UART1 Main Interface.................................................................................................................................................................................................................................................................... 39
5.2.2. UART1-USB Interface .............................................................................................................................................................................................................................................................................. 39
5.3. UART2 ................................................................................................................................................................................................................................................................................................................... 40
5.3.1. DB9 UART2 Main Interface.................................................................................................................................................................................................................................................................... 42
5.3.2. USB-UART2 Interface .............................................................................................................................................................................................................................................................................. 42
5.4. SPI-UART.............................................................................................................................................................................................................................................................................................................. 43
5.5. CONTROL AND INDICATION INTERFACES ............................................................................................................................................................................................................................................................... 44
5.5.1. Control Button........................................................................................................................................................................................................................................................................................... 44
5.5.2. Indicator Light............................................................................................................................................................................................................................................................................................ 46
5.6. SDIO INTERFACE(NOT SUPPORT CURRENTLY)....................................................................................................................................................................................................................................................... 47
5.7. ADC INTERFACE...................................................................................................................................................................................................................................................................................................... 49
5.8. AUDIO INTERFACE ................................................................................................................................................................................................................................................................................................... 50
5.9. MAIN INTERFACE OF MODULE INTERFACE BOARD................................................................................................................................................................................................................................................ 52
6. APPENDIX.......................................................................................................................................................................................................................................................................54

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. VI
GE2015
Dev Board User Guide
FIGURE CONTENTS
Figure 1–1 Components of the GE2015 DVK (For reference) ....................................................................................................................................................................8
Figure 2–1 GE2015 Dev Board Functional Diagram .................................................................................................................................................................................10
Figure 2–2 The GE2015 Dev Board and Identifying..................................................................................................................................................................................11
Figure 3–1 Picture of GE2015_SB_B.........................................................................................................................................................................................................14
Figure 3–2 GE2015 mother board and GE2015_SB_B interface board connection ................................................................................................................................15
Figure 3–3 default jumper connection of GE2015_SB_B interface board when used together with GE2015........................................................................................16
Figure 3–4 default jumper connection of GE2015_SB_B interface board when used alone...................................................................................................................17
Figure 3–5 GE2015_SB_B and Identifying................................................................................................................................................................................................19
Figure 3–6 Picture of GE2015_SB_ME3630PCIE interface board ............................................................................................................................................................21
Figure 3–7 GE2015 mother board and GE2015_SB_ME3630PCIE interface board connection..............................................................................................................22
Figure 3–8 default jumper connection of GE2015_SB_ME3630PCIE interface board when used together with GE2015......................................................................23
Figure 3–9 default jumper connection of GE2015_SB_ME3630PCIE interface board when used alone ................................................................................................24
Figure 3–10 GE2015_SB_ME3630PCIEinterface board and Identifying...................................................................................................................................................25
Figure 4–1GE2015_DB_MB_B default jumper connection .....................................................................................................................................................................31
Figure 4–2 Device connection between GE2015_DB_B and GE2015_SB_B interface board ..................................................................................................................31

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 7
GE2015
Dev Board User Guide
1. OVERVIEW
1.1. INTRODUCTION TO THE DVK(DEVELOPMENT KIT)
The GE2015 Dev Board provides a complete solution based on the data functions of the CDMA, GSM, WCDMA and LTE modules for debugging and testing. With an
extra interface board, the Dev Board not only educes all module function pins (such as power supply, UART, USB and so on), but also adds right amount of testing points to
provide all kinds of simple and convenient interfaces for users.
For designers who adopt the module in their designs, the Dev Board facilitates their module-based programming and troubleshooting at the project development
stage. In order to facilitate and simplify the use of Dev Board, and support kinds of modules, we use the jumpers as less as possible, and reserve the interfaces as more as
possible, to meet the requirement of plug and play.
The Dev Board provides the following interfaces:
◆One RS232 4-wires UART, one 2-wires debug UART
◆One SPI to UART interface
◆Two UART to USB interface
◆Can adapt to 1.8V/3.3V level
◆Power supply can be switched between USB supply and DC power supply
Recommended power supply: 5V/1.5-2.0A DC.
1.2. COMPONENTS OF THE DVK
Check the components and their quantities after you obtain GE2015 DVK. If any component is missing or damaged, contact with your DVK supplier. Table below lists
the components of the DVK.

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 8
GE2015
Dev Board User Guide
No.
Item
Quatity(pcs)
Description
1
USB TO DB9M (RS232)serial cable
1
2
USB AM TO USB AM cable
1
USB AM TO USB AM cable, 1 meter length
3
SMA-U.FL-155mm/KY1.3H Coaxial cable
2
4
GE2015 mother board
GE2015_SB Interface board with module on it
1
There is two kinds of GE2015_SB Interface board currently for
customer to choose, one is GE2015_SB_B, the other is
GE2015_SB_ME3630PCIE
5
Switching Power Adapter
1
ZXR10 2609 Power Adapter (5V2A output )
6
Standard generalized USB to Micro USB cable
1
7
External antenna
1
CS-G10-5F3-LE-RG58A/U//V1264-009-02

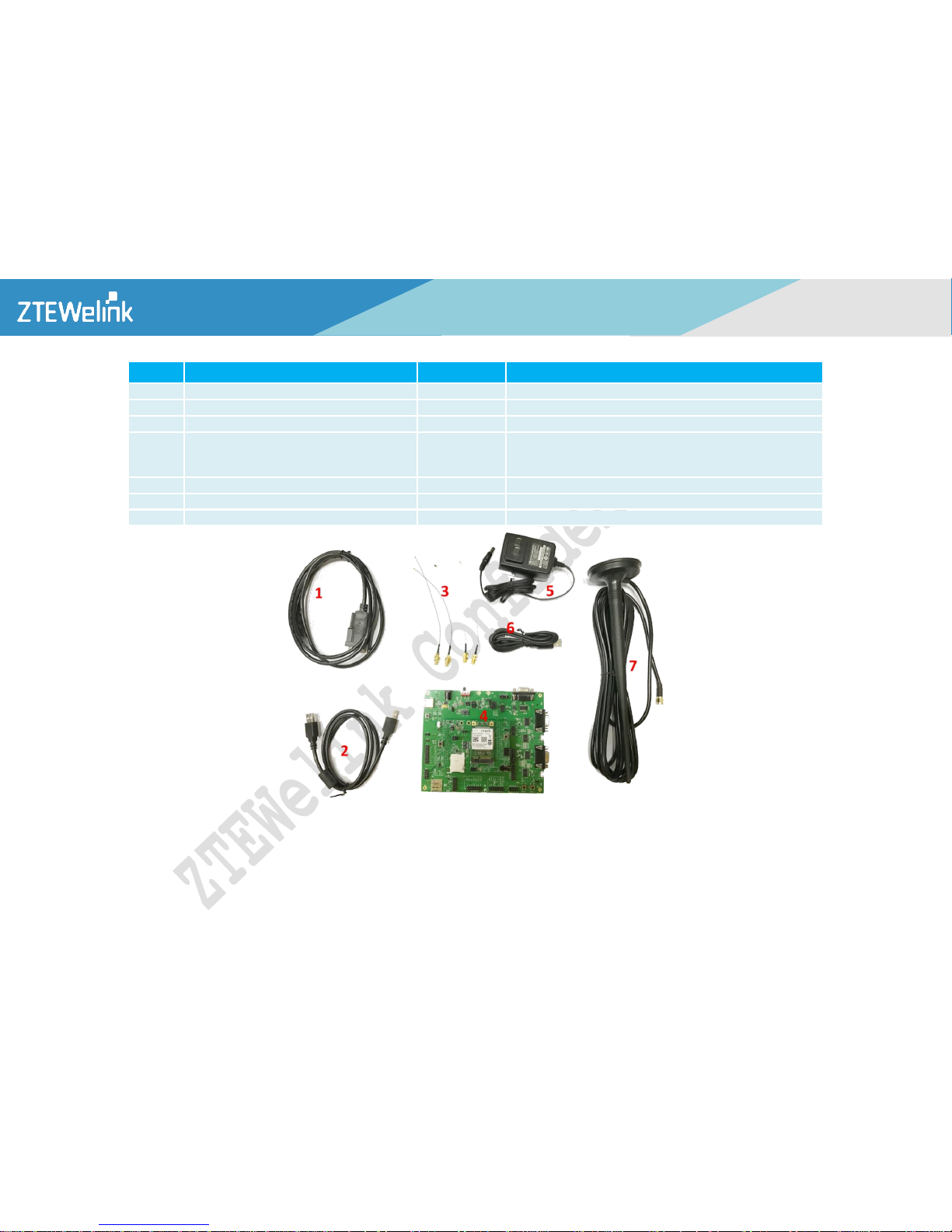

Figure 1–1Components of the GE2015 DVK (Figure just for reference)

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 9
GE2015
Dev Board User Guide
1.3. MODULES SUPPORT BY GE2015
Modules list supported by GE2015 Dev Board is shown in Table 1-1.
Table 1–1 Module list supported by GE2015 Dev Board
Support Modules
Corresponding Interface board
ME3620
ME3630_GE2015_SB_B
ME3630
ME3630_GE2015_SB_B
ME3630_PCIE
GE2015_SB_ME3630PCIE
ME3620_PCIE
GE2015_SB_ME3630PCIE

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 10
GE2015
Dev Board User Guide
2. FUNCTION INTRODUCTION
2.1. FUNCTIONAL DIAGRAM

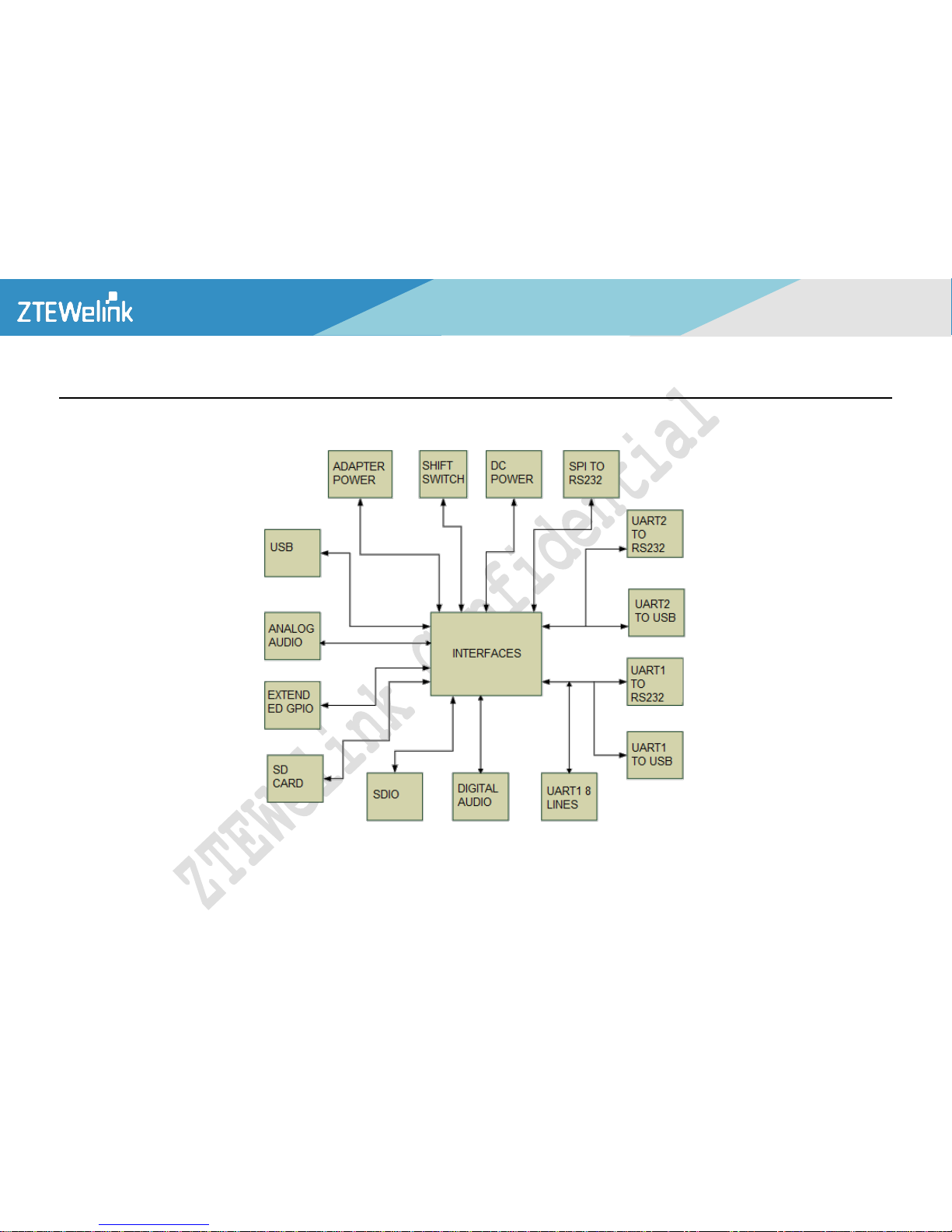

Figure 2–1GE2015 Dev Board Functional Diagram

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 11
GE2015
Dev Board User Guide
2.2. FUNCTION IDENTIFYING
图2-1 实物图及其标注

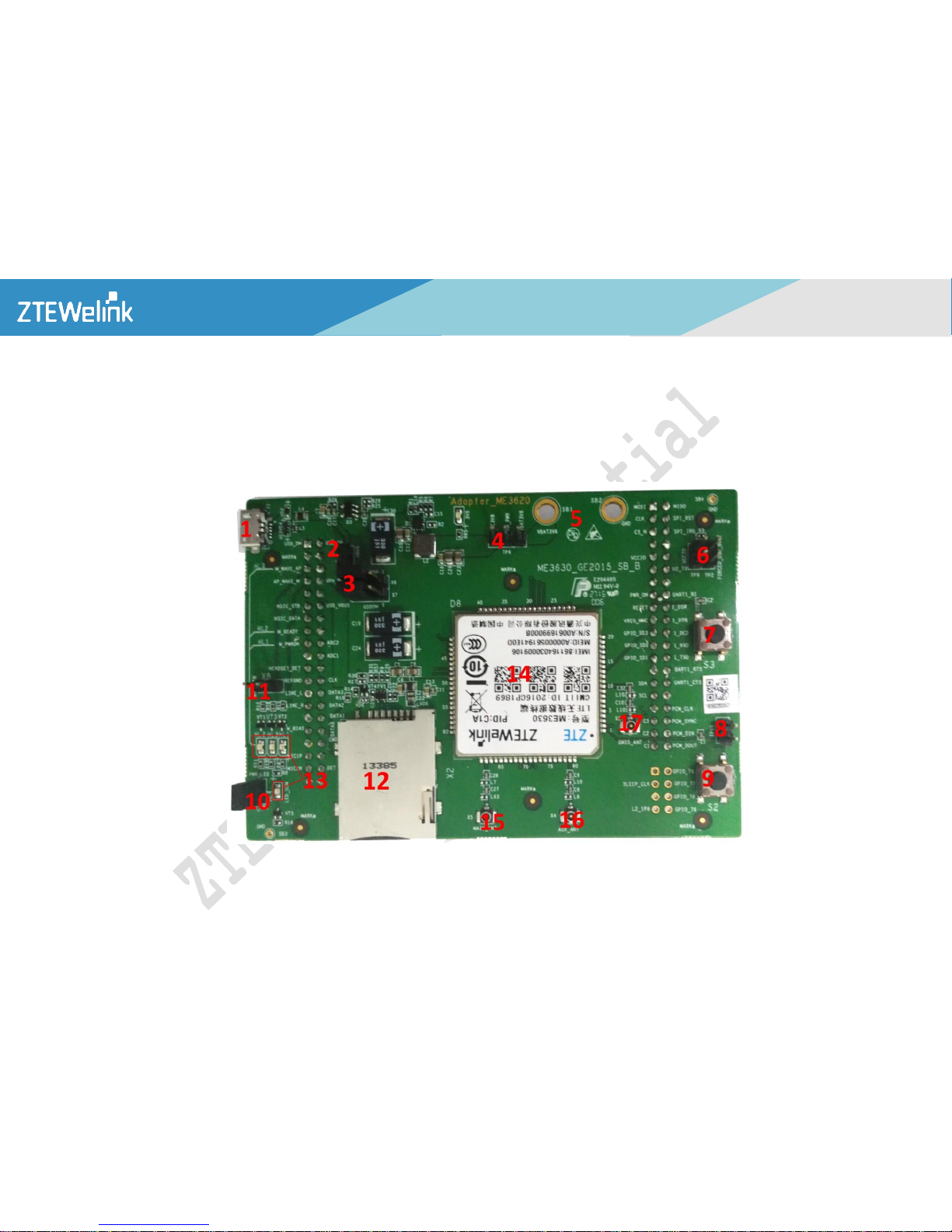

Figure 2–2The GE2015 Dev Board and Identifying
Main interfaces description
INTERFACE
DESCRPTION
1
USB interface
2
Power adapter input interface
3
Power switch
4
Power input interface
5
SPI to RS232 interface
6
UART2 to RS232 interface
7
UART2 to USB interface
8
UART1 to RS232 interface
9
UART1 to USB interface
10
ON/OFF button
11
RESET button
12
3.3V level domain UART1 8-wire interface
13
Audio PCM interface
14
SDIO interface
15
Jumper between SD card and SDIO interface
16
SD card holder
17
Extended interface interface
18
Analog audio interface
19
ADC interface
20
Interface board 5VUSB power
21
AP wake-up module button
22
Interface between GE2015 baseboard and interface board
23
Interface between GE2015 baseboard and interface board
24
Interface between GE2015 baseboard and interface board

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 12
GE2015
Dev Board User Guide
2.3. FUNCTION INTRODUCTION
No.
Annotation (bit number)
Description
1
USB interface (X3)
Output the signals USB_DM, USB_DP of J8 module interface, and USB interface connects to +5V voltage input.
2
Power adapter input interface (X4)
Output interface of 5V power adapter.
3
Power switch (S4)
The user can choose the power mode this switch. Left side is for USB or power adapter power-up, right side is for DC
power supply.
4
Power input interface (SB1、SB2)
The power input of Dev Board is DC power supply, and the recommended voltage is 3.8V
5
SPI to RS232 interface (X12)
SPI can convert to UART via chip XR20M1170, and then convert to RS232 via MAX3238.
6
UART2 to RS232 interface (X25)
UART 2, Communication port (for debug log output information), 2-wire serial, can connect to RS232 interface.
7
UART2 to USB interface (X8)
UART 2, Communication port (for debug log output information), 2-wire serial, can connect to USB interface.
8
UART1 to RS23 (X24)
UART 1, Communication port (for AT command interaction), 8-wire UART, can connect to RS232 interface
9
UART1 to USB interface (X9)
UART 1, Communication port (for AT command interaction), 8-wire UART, can connect to USB interface
10
ON/OFF button (S2)
This button is connected to the PWR_ON signal of S2 module interface, the PWR_ON signal is set to low and the
module will start up.
Note:
1. When the interface board is GE2015_SB_B, connect to jumper TP15 can set POWER_ON as always low to power
on module once connect to the mother board to power supply.
2. When the interface board is GE2015_SB_ME3630PCIE, no matter TP15 is connect or not, the module will power
on once connect to power supply
11
RESET button (S3)
This button is connected to the PWR_RST signal module interface, the PWR_RST signal is set to low when press this
button. When press this button and then release it, the module will be reset
12
3.3V level domain UART1 8-wire
interface (X7)
Reserved, extended UART1 interface after 3.3V lever switch, 8-wires.
13
Audio PCM interface (X1)
Audio PCM port, I2C interface, 3.3V level and VCCIO level.
14
SDIO interface (X5)
1.8V SDIO interface

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 13
GE2015
Dev Board User Guide
Note: SIDO interface is not support currently
15
Jumper between SD card and SDIO
interface (TP13)
Jumper between SD card slot and SDIO signal, SD card holder (X15) can be available after jumper connection.
16
SD card holder (X15)
SD card holder, support SD card plug detection.
17
Extended interface interface (X16)
Extended GPIO interface.
18
Analog audio interface (X6)
Analog audio interface, including both left&right audio channel of earpiece and MIC interface, it can be used to
connect external earphone or other audio devices.
19
ADC interface (X2)
ADC detection interface.
20
Interface board 5VUSB power (TP16)
5VUSB from baseboard will be input to module on interface board after jumper connection.
21
AP wake-up module button (S1)
For module wake-up, when press this button (rising edge) wakeup module; when release this button (falling edge)
the module can enter sleep.
22
Interface between GE2015 baseboard
and interface board (X14)
Interface between GE2015 debug board and interface board
23
Interface between GE2015 baseboard
and interface board (X11)
Interface between GE2015 debug board and interface board
24
Interface between GE2015 baseboard
and interface board (X13)
Interface between GE2015 debug board and interface board
25
SPI to UART chip (D1)
The chip for changing SPI to UART signal, model is XR20M1170.
26
UART to RS232 interface chip (D12)
The chip for changing UART signal to RS232 interface, model is MAX3238.
27
UART to RS232 interface chip (D19)
The chip for changing UART signal to RS232 interface, model is MAX3238.
28
UART to USB interface chip (U2)
The chip for changing UART signal to USB interface, model is FT232.
29
UART to RS232 interface chip (D18)
The chip for changing UART signal to RS232 interface, model is MAX3238.
30
UART to USB interface chip (U1)
The chip for changing UART signal to USB interface, model is FT232.
31
Jumper (TP15)
This button is connected to the PWR_ON signal of TP15 module interface, the PWR_ON signal is set to low and the
module will start up.
NOTE:
The silk printing and the schematic diagram of GE2015_DB_MB_B are shown in appendix.

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 14
GE2015
Dev Board User Guide
3. INTERFACE BOARD INTRODUCTION
3.1. PICTURE OF GE2015_SB_B INTERFACE BOARD AND CONNECTION
Below it’s the figure of the GE2015_SB_B interface board for LCC module:
Figure 3–1Picture of GE2015_SB_B
The connection effect figure of this board and GE2015 is shown below:

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 15
GE2015
Dev Board User Guide
Figure 3–2GE2015 mother board and GE2015_SB_B interface board connection
3.2. INTRODUCTION OF GE2015_SB_B INTERFACE BOARD FUNCTION
The default jumpers of GE2015_SB_B is displayed in the figure below:

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 16
GE2015
Dev Board User Guide
The connection between interface board GE2015_SB_B and GE2015 will need the following 4 jumpers, defaulted as USB connection on GE2015 (X6 and X7 on interface
board share the same as the jumper 1 and 2 connection in the figure below):
Figure 3–3default jumper connection of GE2015_SB_B interface board when used together with GE2015
When only used the GE2015_SB_B interface board, the USB interface as power supply, the default jumper connection is shown in the figure below. The maximum
current provided by USB interface is 500mA.

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 17
GE2015
Dev Board User Guide
Figure 3–4default jumper connection of GE2015_SB_B interface board when used alone
GE2015_SB_B has powerful function, can debug and test module separately. It has 3 ways to provide own power: from USB interface, external DC power supply or
from GE2015.
The below is the function description:
USB, can provide power supply or download function. Can select the USB on GE2015_SB_B via jumper or the USB on main board.
DC power test hole, can choose external DC power supply by jumper TP6 or from GE2015 directly.

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 18
GE2015
Dev Board User Guide
SIM card holder
Power-on button and Reset button
Test part for main antenna, diversity antenna and GPS antenna
Indicator light
Holes on the reverse side, and exposed JTAG points for module can do fly line connection or JTAG debugging.
The following figure and table are the detailed description of these functions:

Copyright © ZTEWeLink Technology Co., LTD, All rights reserved. 19
GE2015
Dev Board User Guide

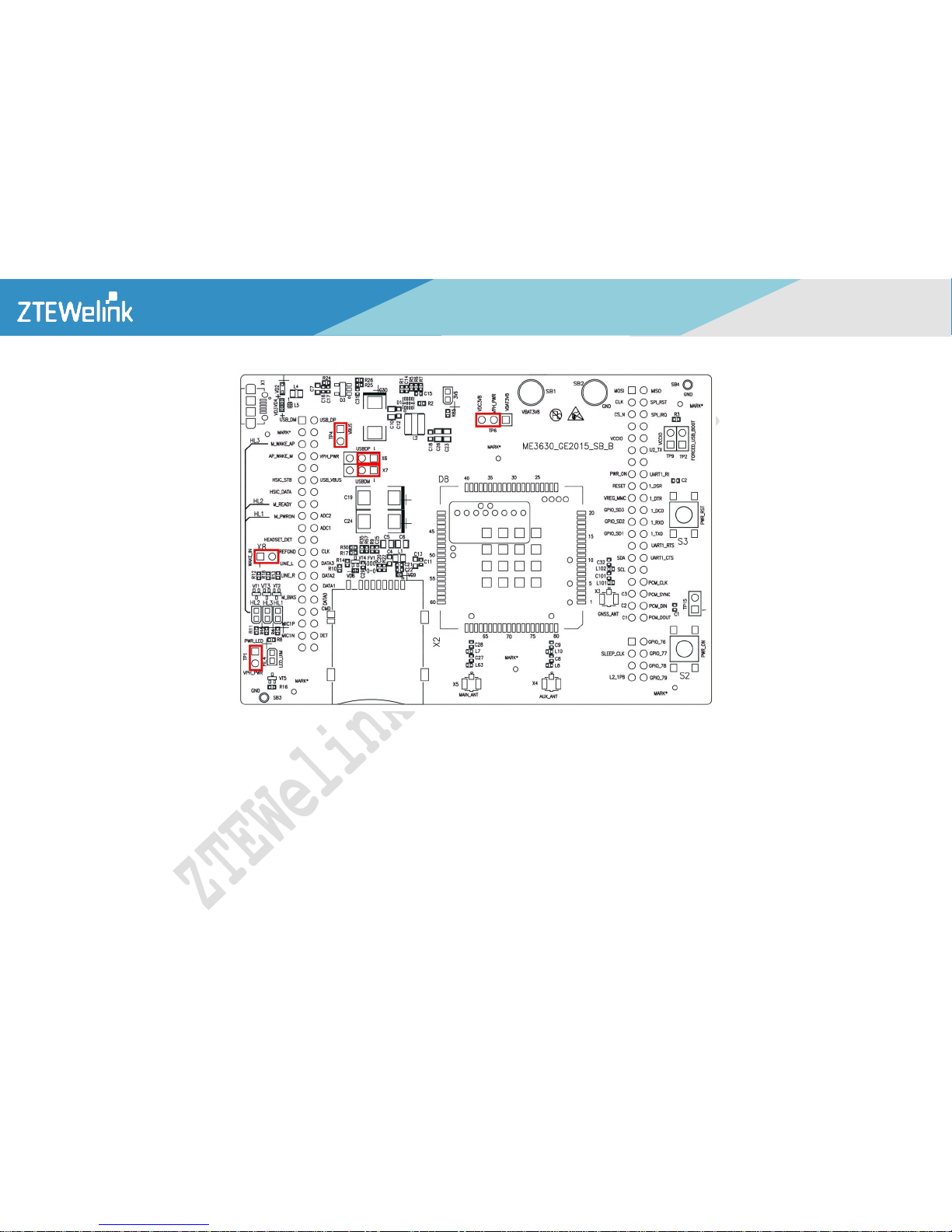

Figure 3–5GE2015_SB_B and Identifying
No.
Annotation (bit number)
Description
1
USB interface (X1)
Lead out e USB_DM, USB_DP signal from module interface,external +5V power input from USB interface, can supply
3.8V power through DCDC (D1)chip.
2
Jumper (TP4)
When TP4 connection, lead in 5VUSB from GE2015 to GE2015_SB, or use 5VUSB on baseboard as 5V input.
3

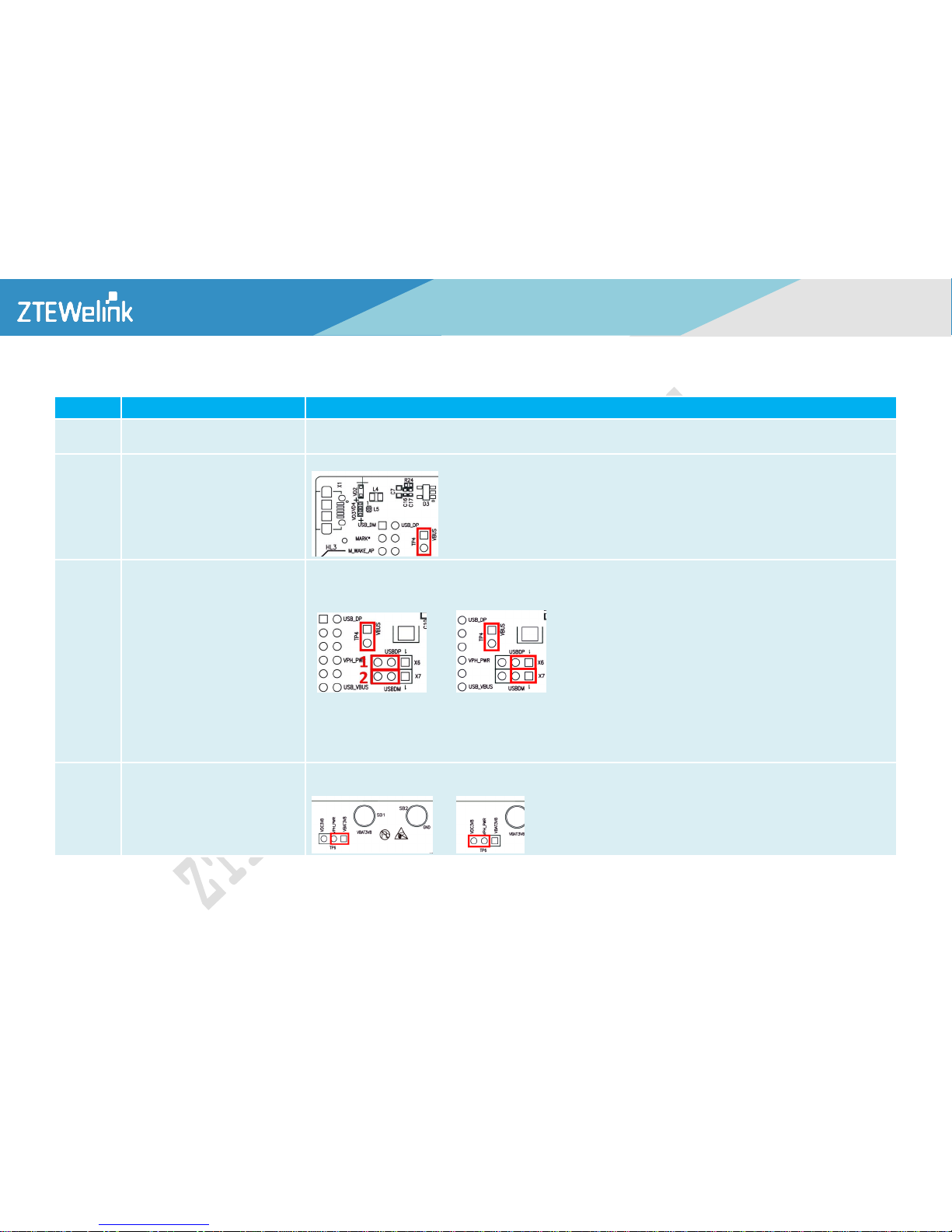

Jumper (X6、X7)
USB interface select:
When select the USB interface of GE2015 for power supply, you need to connect Jumper TP4, and locate X6&X7 to the
left as shown in the left figure below(connect the X3 USB interface of GE2015 to PC to enumerate the USB port)
Mode 1 Mode 2
2. when only use the SB interface board alone, you need to connect Jumper TP4, and locate X6&X7 to the right as
shown in the right figure above to select the USB interface of SB board for power supply. (connect the X1 USB interface
of SB interface board to PC to enumerate the USB port)
4
Jumper (TP6)
TP6 can choose the power supply pattern when use GE2015_SB only: VPH_PWR selects DC power supply (jumper is on
the right) or USB interface external power supply ((jumper is on the left).
