ZUG Combair S Series User manual

Operating instructions
Combair S
Oven • Hob

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarise yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliance is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on the identi-
fication plate. These operating instructions apply to:
Type Product family Size system
BCS 21009 55-600/55-762
BCS60 21010 60-600/60-762
ECS 22009 55-600/55-762
ECS60 22010 60-600
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2018
2

3
Contents
1 Safety precautions 5
1.1 Symbols used......................................................... 5
1.2 General safety precautions.................................. 5
1.3 Appliance-specific safety precautions .............. 6
1.4 Instructions for use................................................ 7
2 Appliance description 10
2.1 Construction .........................................................10
2.2 Operating and display elements.......................10
2.3 Cooking space.....................................................12
2.4 Accessories ..........................................................12
3 Operating the appliance 13
3.1 Operating the appliance using the buttons ....13
3.2 Before using for the first time............................13
3.3 Selecting the operating mode...........................14
3.4 Selecting the cooking space temperature......14
3.5 Switching off .........................................................14
4 User settings 14
4.1 Adjusting user settings .......................................14
4.2 Time display..........................................................15
4.3 Acoustic signal.....................................................15
4.4 Time format...........................................................15
5 Time functions 16
5.1 Available time functions .....................................16
5.2 Setting and changing the time..........................16
5.3 Timer ......................................................................16
5.4 Operating time .....................................................17
5.5 Delayed start ........................................................18
6 Operating modes 20
6.1 Overview of operating modes ...........................20
6.2 Top/Bottom heat..................................................20
6.3 Top/Bottom heat humid .....................................20
6.4 Bottom heat ..........................................................20
6.5 Hot air ....................................................................21
6.6 Hot air humid........................................................21
6.7 PizzaPlus ...............................................................22
6.8 Grill .........................................................................22
6.9 Grill-forced convection.........................................22
7 Tips and tricks 23
7.1 Baking and roasting.............................................23
7.2 Cakes .....................................................................23
7.3 Uneven browning..................................................23
7.4 Saving energy........................................................24
8 Heatable appliance drawer option 24
9 Care and maintenance 24
9.1 Cleaning the exterior............................................24
9.2 Cleaning the door seal ........................................25
9.3 Cleaning the appliance door ..............................25
9.4 Cleaning the accessories and shelf guides ....25
9.5 Cleaning the cooking space...............................26
9.6 Catalytic self-cleaning ..........................................26
9.7 Replacing the halogen light bulb.......................27
10 Trouble-shooting 28
10.1 Procedure...............................................................28
10.2 What to do if …......................................................28
10.3 After a power failure.............................................30
11 Hob 30
11.1 Operating and display elements........................30
11.2 Cookware ...............................................................31
11.3 Operating the appliance......................................31
11.4 Care and maintenance ........................................32
12 Accessories and spare parts 32
12.1 Accessories ...........................................................32
12.2 Special accessories .............................................32
12.3 Spare parts ............................................................33
13 Technical data 33
13.1 Note for testing institutes ....................................33
13.2 Temperature measurement ................................33
13.3 Product fiche .........................................................34
13.4 Automatic energy-saving stand-by ....................34
14 Disposal 35
15 Index 36

4
16 Notes 38
17 Service & Support 39

5
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the operating in-
structions
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts
to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-

1 Safety precautions
6
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.3 Appliance-specific safety
precautions
▪READ THE IMPORTANT
SAFETY PRECAUTIONS
CAREFULLY AND RETAIN
FOR FUTURE USE.
▪WARNING: The appliance
and its accessible parts get
hot during use. Be careful not
to touch the heating ele-
ments. Children under 8
years of age must be kept
away from the appliance un-
less they are constantly su-
pervised.
▪WARNING: Accessible parts
can get hot during use. Keep
young children away from the
appliance.
▪This appliance is intended for
use in the home and similar
settings such as: in staff kit-
chens in shops, offices and
other commercial establish-
ments; in agricultural estab-
lishments; by guests in hotels,
motels and other accommod-
ation establishments; in bed
and breakfast establishments.
▪A heatable appliance drawer
and its contents get hot.
▪Do not use aggressive or ab-
rasive cleaning agents or
sharp metal scrapers for
cleaning the glass in the oven
door as they could scratch
the surface. This can destroy
the glass.
▪For appliances with pyrolytic
self-cleaning: Excessive soil-
ing and any and all accessor-
ies (tableware, baking trays,
runners, shelf guides) must
be removed before carrying
out pyrolytic self-cleaning.
▪Under no circumstances use
a steam cleaner to clean the
appliance.
▪WARNING: Before replacing
the light bulb, ensure the ap-
pliance is switched off and
disconnected from the mains
power supply to avoid pos-
sible electric shock.
▪To avoid overheating, the ap-
pliance must not be installed
behind a decor door.
▪This appliance is not intended
for use in vehicles or on
board ships or aircraft or in
rooms where there are spe-
cial conditions such as, for in-

1 Safety precautions
7
stance, a corrosive or explos-
ive atmosphere (dust, steam
or gas) or condensing mois-
ture.
▪WARNING: Never heat food
or liquids in sealed containers
such as cans or bottles as
they are liable to explode due
to overpressure.
▪See the «Accessories» sec-
tion for the proper use of in-
sertable parts.
▪WARNING: It can be danger-
ous to leave the hob unatten-
ded when cooking with fat or
oil, as this can lead to fires.
NEVER attempt to extinguish
a fire with water. Instead,
switch the appliance off and
then carefully smother the
flames with, for example, a lid
or a fire blanket.
▪WARNING: Never store ob-
jects on the hob due to the
risk of fire.
1.4 Instructions for use
Before using for the first time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
Correct use
▪The appliance is designed for use in
the home for preparing food. Under no
circumstances flambé or cook food us-
ing a lot of fat in the cooking space! No
liability is assumed for any damage
caused by improper use or incorrect
handling.
▪Never use the appliance to dry animals,
textiles or paper, etc.
▪Do not use the appliance as a room
heater.
▪The appliance should only be installed
and operated at an ambient temperat-
ure of 5 °C to 35 °C.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its Cus-
tomer Services or a similarly qualified
person. Repairs if carried out incorrectly
may cause serious injury, damage to
the appliance and fittings, as well as af-
fect the functioning of the appliance. If
the appliance is not working properly or
in case of a repair order, follow the in-
structions given in the «Service & Sup-
port» section. Please contact our Cus-
tomer Services if necessary.
▪Use original spare parts only.
▪Retain these operating instructions for
future reference.
▪The appliance corresponds to recog-
nized technology standards and the rel-
evant safety regulations. Proper use of
the appliance is essential to avoid dam-
age and accidents. Please therefore fol-
low the precautions given in these oper-
ating instructions.
Note on use
▪Use the childproof locking facility.
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪If the appliance is not operating prop-
erly, disconnect it from the power sup-
ply immediately.

1 Safety precautions
8
▪Ensure there are no foreign bodies or
pets in the cooking space before clos-
ing the appliance door.
▪Objects that could pose a danger if the
appliance were accidentally switched
on should not be stored in the cooking
space or the heatable appliance
drawer. Do not store food or any tem-
perature-sensitive or inflammable mater-
ials, e.g. cleaning agents, oven sprays,
etc., in the cooking space or the heat-
able appliance drawer.
▪For appliances with grill: Leave the ap-
pliance door closed when grilling. The
heat could otherwise damage the oper-
ating and display elements or the fitted
units above.
Caution: Risk of burns!
▪The appliance gets very hot when in
use. The appliance door also gets hot.
▪Steam and/or hot air may escape from
the cooking space when the appliance
door is opened.
▪The appliance will remain hot for some
time after it is switched off and will only
cool down slowly to room temperature.
Allow sufficient time for the appliance to
cool down before, for instance, cleaning
it.
▪Overheated fat and oil can easily catch
fire. Heating oil in the cooking space to
sear meat is dangerous and should not
be done. Never attempt to extinguish
burning oil or fat with water. Danger of
explosion! Smother the flames with a
fire blanket. Keep doors and windows
closed.
▪Do not pour spirits (brandy, whisky,
schnapps, etc.) over hot food. Danger
of explosion!
▪Do not leave the appliance unattended
when drying herbs, bread, mushrooms,
etc. If the foodstuff dries out too much,
it can pose a fire hazard.
▪If you notice smoke possibly coming
from the appliance itself or from inside
the cooking space, keep the appliance
door closed. Disconnect the appliance
from the power supply.
▪Accessories get hot in the cooking
space. Use protective gloves or oven
cloths.
Caution: Risk of injury!
▪Be careful not to put fingers in the door
hinges, there is otherwise a risk of in-
jury if the appliance door is moved. Par-
ticular care should be taken when chil-
dren are around.
▪Only leave the appliance door open in
the at-rest position. An open appliance
door poses a danger of tripping or in-
jury! Do not sit or rest on the appliance
door or use it as a storage surface.
▪For hobs: A hob guard can be fitted to
protect small children. Hob guards are
available from specialist retailers.
Caution: Risk to life!
▪Danger of suffocation! Keep packaging
material, e.g. plastic film and poly-
styrene, away from children. Packaging
material can be dangerous for children.
How to avoid damaging the appliance
▪Close the appliance door carefully.
▪For appliances with visible bottom heat-
ing element: Do not place any objects
directly on the bottom heating element.
▪Do not use protective aluminium inserts
with appliances with no visible bottom
heating element.
▪Do not use objects that can rust in the
cooking space.
▪Using knives or cutting wheels on the
baking tray will visibly damage the sur-
face.
▪To prevent corrosion, leave the appli-
ance door open in the at-rest position
until the cooking space has cooled
down.
▪When cleaning the appliance, make
sure no water gets inside it. Use a mod-
erately damp cloth. Do not spray the
outside or the inside of the appliance
with water. If water gets inside the appli-
ance, it will cause damage.

1 Safety precautions
9
▪Do not leave the hotplates switched on
at a high power level for any length of
time without any cookware as this can
damage them.

2 Appliance description

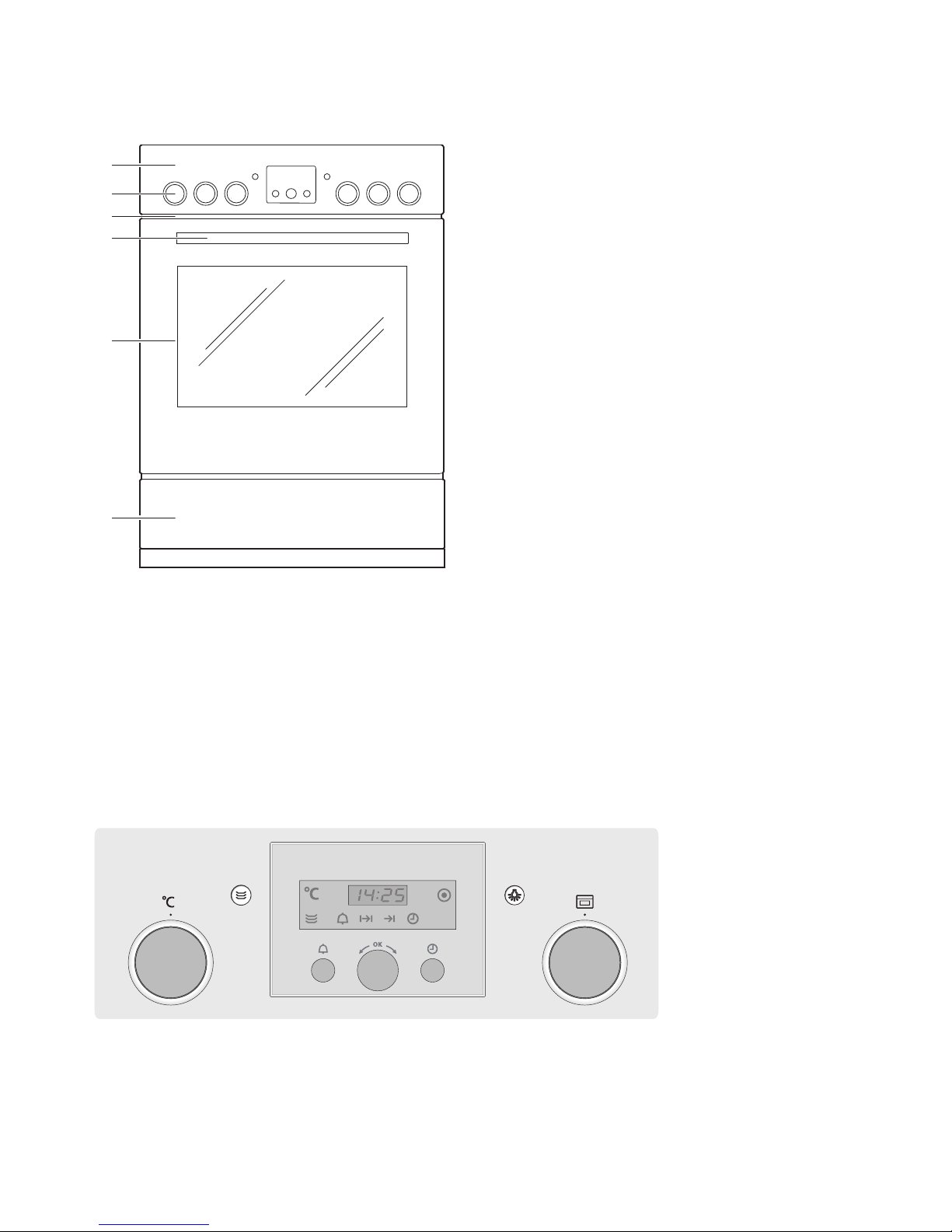

2.1 Construction
1
2
3
4
5
6
1Operating and display elements
2Dials
3Ventilation opening
4Door handle
5Appliance door
6Appliance drawer/Heatable appliance drawer *
* Depending on model
2.2 Operating and display elements
10

2 Appliance description
Dials
Cooking space temperature Operating mode
The symbols for the different operating modes and the temperature values are located
on the retractable dials and are visible when extended.
▸ To extend the dial, press it in the middle.
▸ To retract the dial, first set it to «0» and then press it in the middle.
Operating mode symbols
Top/Bottom heat Top/Bottom heat humid
Bottom heat Hot air humid
Grill PizzaPlus
Grill-forced convection Hot air
Symbols
Cooking space temperature Heatable appliance drawer *
Timer Operating time
Switch-off time Time
Operating mode / Cooking zone
Display
Time
Operating time
Switch-off time
Timer
Buttons
Heatable appliance drawer * Timer
Adjusting knob Time
Operating time
Switch-off time
Illumination
* Depending on model
11

2 Appliance description

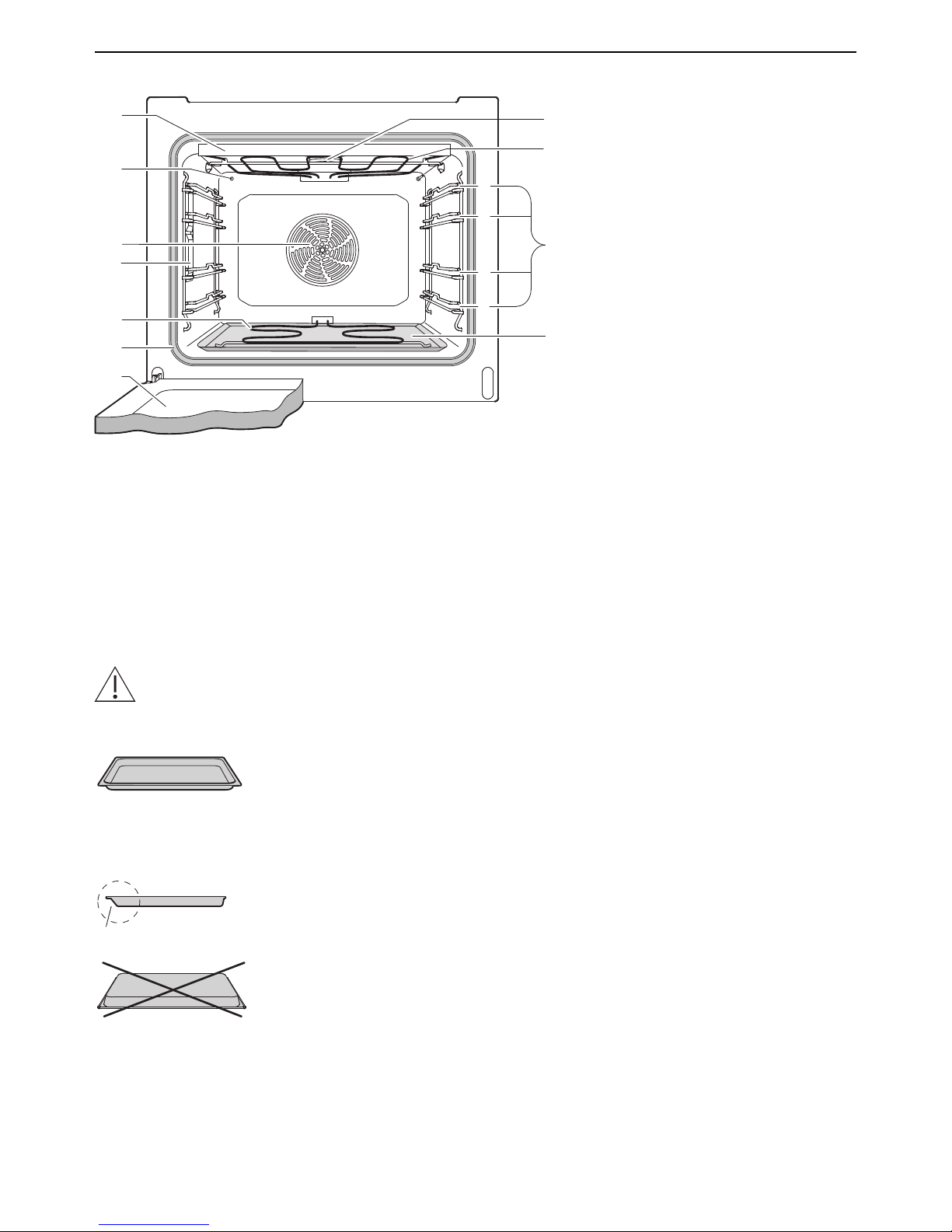

2.3 Cooking space
1
2
3
4
78
4
5
3
2
1
6
10
9
11
1Appliance door 7Grill/Top heat guard
2Door seal 8Cooking space ventilation
3Bottom heat 9Grill/Top heat
4Illumination 10 Levels (labelled)
5Hot air fan 11 Protective foil
6Cooking space temperature sensor
2.4 Accessories
Incorrect handling can cause damage!
Do not use knives or cutting wheels on the accessories.
TopClean baking tray
▪Baking tin for flans and biscuits
▪Use together with the wire shelf as a drip tray
▪If not fully covered, its shape can become distorted dur-
ing baking. This is normal. It will go back to its original
form as it cools down.
1
▸ Ensure that the «sloped» side 1 of the baking tray is to
the back of the cooking space.
▸ Only use the normal way round – not upside down.
12

3 Operating the appliance
Wire shelf
1
▪For standing roasting and baking tins on
▪For standing meat, frozen pizza, etc. on
▸ Ensure that the cross strut 1 is to the back of the cook-
ing space. It enables the food to be removed safely
from the cooking space.
▪Serves as a cooling rack
Protective foil
▪Place between the cooking space floor and the bottom
heating element to prevent soiling of the cooking space
floor.
Special accessories
Place any accessories not included in the scope of delivery on the wire shelf.
▸ Special accessories can be found at: www.vzug.com
3 Operating the appliance
3.1 Operating the appliance using the buttons
The timer, operating time and switch-off time can be selected by pressing the appropri-
ate button once or more.
▪The symbol for the function selected illuminates or flashes.
▪A suggestion flashes in the corresponding display.
▪Turn the adjusting knob to change the setting.
▪Press the adjusting knob to confirm the setting or it will be automatically accep-
ted after 10 seconds.
▪Other settings or changes can be made at any time.
3.2 Before using for the first time
Before operating the newly installed appliance for the first time, the following steps
should be taken:
▸ Remove all packaging and transport materials from out of the cooking space.
▸ Clean the cooking space and the accessories.
▸ If flashes in the display, turn the adjusting knob to set the time.
Turn it to set the hours and the minutes.
Press the adjusting knob to toggle between hours and minutes.
Press the adjusting knob to confirm the setting.
▸ Heat the empty cooking space (without wire shelves, baking trays, etc.) using the
operating mode at the maximum cooking space temperature for about 1 hour.
▸ If your appliance comes with hotplates, heat each hotplate individually (without cook-
ware) at full power for 5minutes.
13

4 User settings
There is likely to be some smoke and odour given off, we therefore recommend
ventilating the room well during this phase.
See separate operating instructions on using a glass ceramic hob for the first time and
its operation and follow the instructions given.
3.3 Selecting the operating mode
▸ Set the dial to the desired operating mode.
–The symbol illuminates.
3.4 Selecting the cooking space temperature
▸ Select the cooking space temperature.
–The symbol illuminates.
–The cooking space is heated up.
As soon as the set temperature has been reached,
–the symbol goes out.
3.5 Switching off
▸ Set the and dials to «0».
–If there are no cooking zones switched on on the hob, the symbol goes out.
Removing food from cooking space
Risk of burns!
Hot air may escape from the cooking space when the appliance door is opened.
The accessories get hot. Use protective gloves or oven cloths.
▸ Take the food out of the cooking space when done.
▸ To prevent corrosion, leave the appliance door open in the at-rest position until the
cooking space has cooled down.
4 User settings
4.1 Adjusting user settings
You can adjust all the settings analogous to the following example.
▸ With the appliance switched off, hold the adjusting knob depressed until
– appears in the display.
▸ Press the adjusting knob to confirm.
– appears in the display for «Time display visible».
▸ Turn the adjusting knob to select the setting to be changed.
▸ Select the desired user setting and press the adjusting knob to confirm.
–For example, flashes in the display for «Acoustic signal high».
▸ Turn the adjusting knob to change the display to for «Acoustic signal
low».
14

4 User settings
▸ Press the adjusting knob to confirm the setting.
▸ Turn the adjusting knob to move to the next setting should you wish to change
any other settings.
▸ The user settings menu ends automatically after 10seconds.
After a power failure the factory settings are active again.

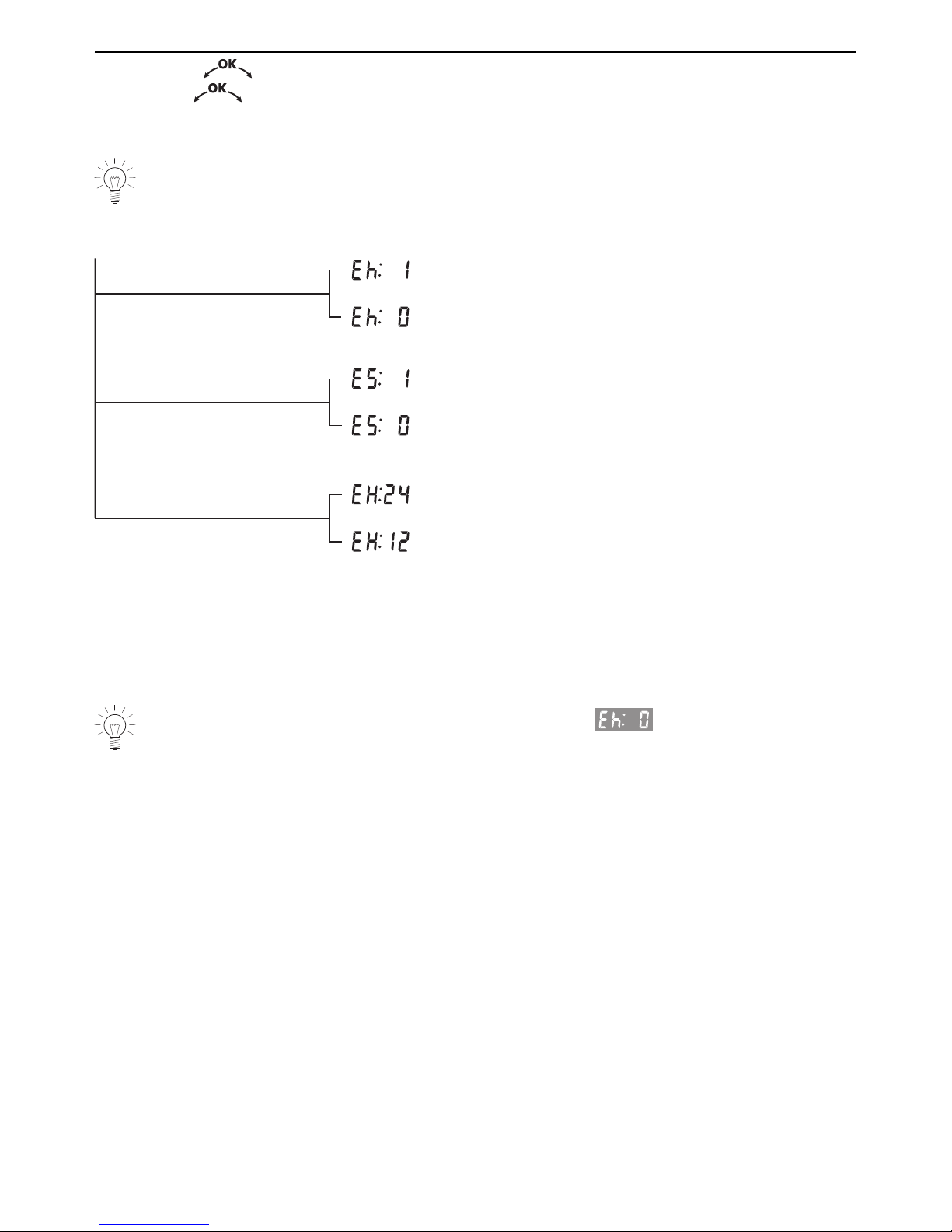

Possible settings
visible *
invisible
Time display
high *
Acoustic signal
12 h
* Factory setting
24 h *
Time format
low
4.2 Time display
If «invisible» is selected, the displays are not illuminated when the appliance is off. The
time is visible when the appliance is on.
To reduce power consumption to a minimum, select , «Time display invis-
ible», in the user settings. Despite automatic energy-saving stand-by, all safety
functions are active.
4.3 Acoustic signal
The acoustic signal can be set at one of two levels of loudness.
▪high: maximum loudness
▪low: reduced loudness
4.4 Time format
The time can be displayed in the European 24-hour time format or the US 12‑hour format
(a.m./p.m.).
15

5 Time functions
5 Time functions
5.1 Available time functions
The following time functions are available:
▪Time
▪Timer
▪Operating time – time-controlled switch-off of the appliance
▪Delayed start – time-controlled switch-on and switch-off of the appliance
When the appliance is switched off, the time display is dimmed between 24:00
and 6:00.
If the time format has been selected, the display is not dimmed.
5.2 Setting and changing the time
The time cannot be changed if the appliance is in operation or if a delayed start
has been set.
▸ Press the button.
–The hour flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to set the hour.
▸ Press the button or the adjusting knob.
–The minutes flash in the display.
–The symbol flashes.
▸ Turn the adjusting knob to set the minutes.
▸ Press the adjusting knob to confirm the settings.

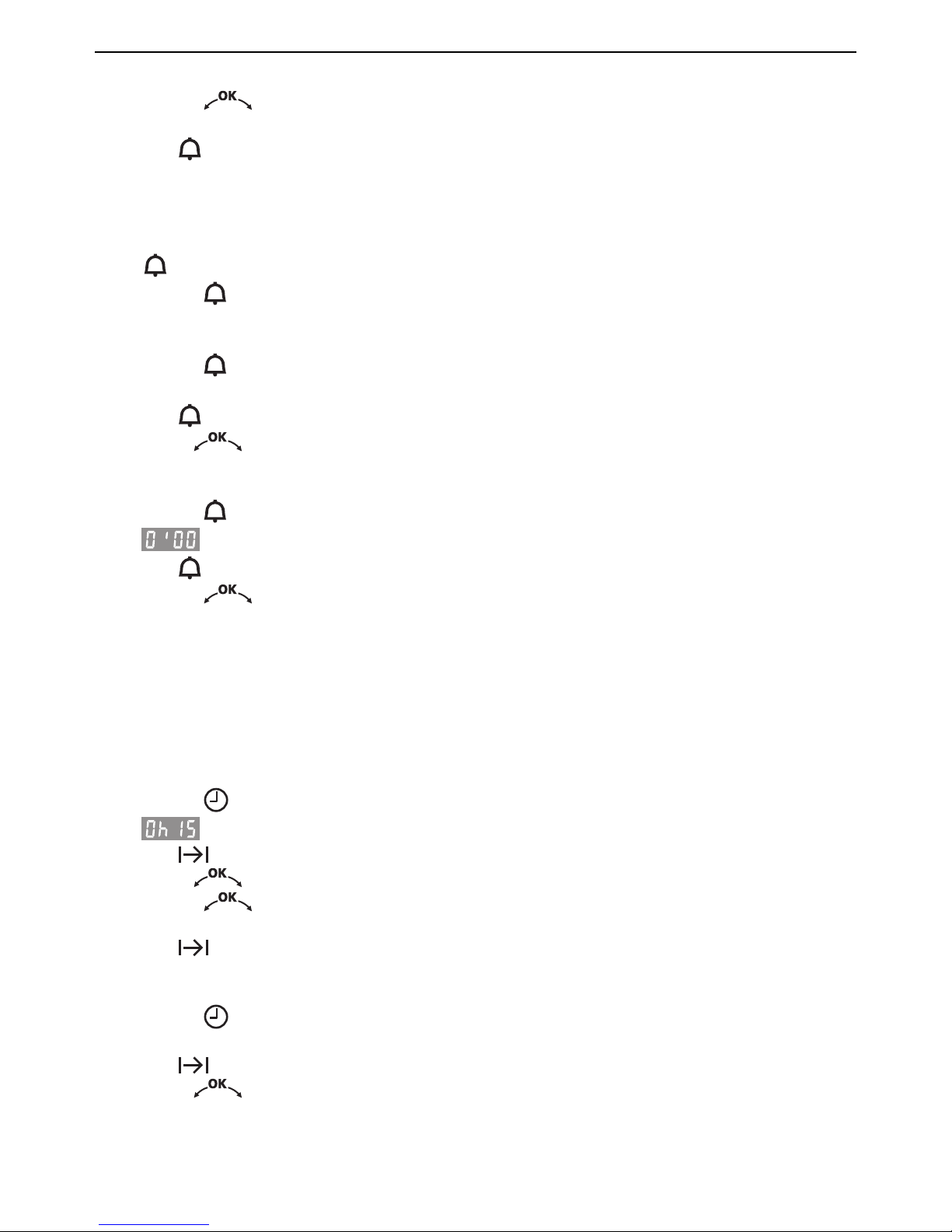

5.3 Timer
The timer functions like an egg timer. It can be used at any time and independently of all
other functions.
Setting
▸ Press the button.
– flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to set the duration.
The timer can be set for:
▪up to 10minutes in 10-second intervals, e.g. = 9mins. and 50secs.
▪over 10 minutes in 1-minute intervals, e.g. = 1hr. and 12mins.
The maximum timer duration that can be set is 9 hrs. and 59 mins.
Press the button once to reset the timer duration to .
16

5 Time functions
Starting
▸ Press the adjusting knob to start the timer.
–The countdown to the time remaining is visible in the display.
–The symbol illuminates.
Set duration finished
When the set duration is up
– a sequence of 5 short acoustic signals is repeated for 1 minute
– the symbol flashes.
▸ Press the button to switch off the acoustic signal.
Checking and changing
▸ Press the button.
–The countdown to the time remaining flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to change the duration of the timer.
Switching off before time
▸ Press the button 2×.
– flashes in the display.
–The symbol flashes.
▸ Press the adjusting knob to confirm.
5.4 Operating time
The operating mode selected ends automatically when the operating time is up.
Setting
▸ Select the desired and cooking space temperature operating mode.
▸ Preheat the cooking space if necessary.
▸ Place the food in the cooking space.
▸ Press the button.
– flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to set the operating time (max. 9hrs. 59mins.).
▸ Press the adjusting knob to confirm.
–The countdown to the time remaining is visible in the display.
–The symbol illuminates.
Checking and changing
▸ Press the button.
–The countdown to the time remaining flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to change the operating time.
17

5 Time functions
Switching off before time
▸ Set the dial to «0».
Operating time finished
When the set duration is up
– the operating mode selected ends automatically
– a long, intermittent acoustic signal is emitted for 1minute
– flashes in the display
– the symbol flashes.
– the settings remain for 3minutes.
Extending the operating time
▸ Turn the adjusting knob within 3minutes to select a new duration.
Switching off
▸ Set the dial to «0».
5.5 Delayed start
The delayed start is activated when for the operating mode selected both an operating
time and a switch-off time are set.
The appliance switches automatically on and off again at the desired times.
Perishables should not be kept unrefrigerated.
Before setting operating time and switch-off time
▸ Place the food in the cooking space.
▸ Select the desired and cooking space temperature operating mode.
▸ Do not press the adjusting knob to confirm, otherwise the appliance will start
without a delayed start.
▸ Set the operating time and switch-off time as described below.
Setting the operating time
▸ Press the button.
– flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to set the operating time (maximum of 9hrs. 59mins.).
▸ Do not press the adjusting knob to confirm, but instead set the switch-off time
as described below.
Setting the switch-off time
▸ Press the button again.
–The switch-off time – without a delayed start – e.g. flashes in the display.
–The symbol flashes.
▸ Turn the adjusting knob to set the switch-off time.
18

5 Time functions
The switch-off time can be delayed by a maximum of 23 hrs. and 59 mins.
If the time format has been selected, the switch-off time can be delayed by
a maximum of 11 hrs. and 59 mins.
▸ Press the adjusting knob to confirm.
–The time appears in the display.
–The symbol illuminates.
–The operating mode selected remains switched off until the automatic start.
Example
▸ Select the operating mode and 180°C.
▸ At 8:00, set an operating time of 1hr. and 15mins.
▸ Set the switch-off time to 11:30.
–The appliance will automatically switch on at 10:15 and off again at 11:30.
Checking and changing the parameters
▸ Press the button 1×.
–The operating time is visible for 2seconds.
▸ Press the button 2×.
–The switch-off time flashes and can be changed.
The operating time cannot be changed.
Switching off before time
▸ Set the dial to «0».
Operating time finished
When the operating time is up
– the operating mode selected ends automatically
– a long, intermittent acoustic signal is emitted for 1minute
–flashes in the display
– the symbol flashes
– the settings remain for 3minutes.
Extending the operating time
▸ Turn the adjusting knob within 3minutes of the operating time being up to se-
lect a new duration.
Switching off
▸ Set the dial to «0».
19

6 Operating modes
6 Operating modes
6.1 Overview of operating modes
All the operating modes are described below.
▸ Place tins, moulds, etc. on the wire shelf.
▸ Ensure that the «sloped» side of the baking tray is facing the back of the cooking
space.
▸ Turn the dial to select the desired operating mode.
Follow the advice in 'Tips and tricks' and in the separate 'Tips on settings'.
6.2 Top/Bottom heat
Temperature range 50–270 °C
Recommended value 200 °C
Level 2 (or 1)
The cooking space is heated by the top and bottom heating elements.
Uses
▪Classic operating mode for cooking and baking on one level
▪Cakes, biscuits, bread and roasts
Use a dark enamelled tray or a black tray or tin for crispy results.
6.3 Top/Bottom heat humid
Temperature range 50–270 °C
Recommended value 200 °C
Level 2 (or 1)
The cooking space is heated by the top and bottom heating elements. The steam pro-
duced is largely retained in the cooking space. The food retains its moisture.
Uses
▪Bread, plaited bread, roasts and gratins on one level
▪Low temperature cooking
6.4 Bottom heat
Temperature range 50–270 °C
Recommended value 200 °C
Level 2 (or 1)
20
